FSC 100% Wood MagClick™ 5000 mAh Fast Wireless Power Bank Instruction Manual Item: 7122-06 Model: XY-PR016 1 x Wireless Charging Pad 1 x Instruction Manual 1 x USB-A to Type-C Charging Cable Battery Capacity: 5000mAh/18.5Wh Type-C input: 5V/2.4A ;9V/2A; 12V/1.5A Type-C output: 5V/2.4A ;9V/2A; 12V/1.5A USB-A output: 5V/2.4A ;9V/2A; 12V/1.5A Wireless output: 10W/7.5W/5W Charging the Powerbank: Be sure the power bank is fully charged before usage. Using the included Type-C to USB charging cable, insert the USB A port of the cable into a computer and Type-C into Type-C Input/ Output port (5). Once connected, the LED display(4) will show the percentage of remaining power and when fully charged the LED display will show “100%”. Charging Mobile Phones and Other Electronic Devices: Connect the charging cable to your mobile phone/device using the appropriate connector. Connect the USB tip of the cable into USB A Output(7) or Type-C tip into Type-C input(5). Phone will begin to charge automatically, the LED display will show the percentage of remaining power in the power bank. Remove the charging cable from your mobile device when it is fully charged. Wireless Charging Mobile phones and other electronic devices: Press the ON/OFF button(3) once to turn on the wireless charger function, the LED dis- play(4) will show the remaining power. LED Indicator(6) turn RED when in standby mode. Place the wireless charging supported 1. • • • 2. • • • 3. • • 1. 2. 3. 4. 5. 6. 7. • • • • • Wireless Charging Surface Magnetic Surface ON/OFF Button LED Display Type-C Input/Output LED Indicator USB-A Output What’s included: Functions: SAFETY PRECAUTIONS: Instructions: FCC ID: 2ALCFXY-PR016 IC ID: 27880-XYPR016 Made in China Name of the Distributor: Leedsworld Inc Address of the Distributor: 400 Hunt Valley Road, New Kensington, PA 15068 USA. mobile device on the wireless charging surface, it will begin to charge automati- cally and the LED Indicator will glow RED when device is charging. Once fully charged remove the device. Double press the button to turn off the wireless charger. Note: When wireless charging, if the LED NOT a wireless charging device or there is an object between the the device and charging surface interfering with the charging process. Wireless Charging with Magnetic Surface: If your device supports MagSafe, the WARNING-When using this product, basic precautions should always be followed, including the following: 1. Read all the instructions before using the product. 2. Charge the power bank fully before initial use. The unit's full performance is achieved only after 2 or 3 completed charge and discharge cycles. 3. To reduce the risk of injury, close supervision is necessary when the product is used near children. 4. Do not expose the device to moisture. 5. Do not use the device in excess of its output rating. Overload outputs above rating may result in a risk of fire or injury. FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. * Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IC Statement This device contains licence-exempt transmitter (s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 6. Do not use the device if damaged or modified. 7. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. 8. Do not disassemble the device.Take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of fire or injury. 9. Do not expose the device to fire or excessive temperature. Exposure to fire or temperatures above 212Fmay cause explosion. 10. Have servicing performed by a qualified repair person using only identical replacement parts. 11. This will ensure that the safety of the product is maintained. 12. Do not overcharge Phone.Unit may get hot with excessive use.Remove Phone when it is fully charged.Never charge for more than7 hours at a time. 13. Attachments on the back of your phone can impede the effectiveness of the wireless charger, and lead to overheating. Please remove attachments from the phone before charging on this device. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to whitch the receiver is connected. - Con…

Text truncated - open the document above for the full version.

(Dongguan Xing Yue Electronic co., Ltd) (May. 09, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (2ALCFXY-PR016) [Dongguan Xing Yue Electronic co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Sunny zhang (Dongguan Xing Yue Electronic co., Ltd) (May. 09, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (2ALCFXY-PR016) [Dongguan Xing Yue Electronic co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Sunny zhang

Attestation Statements (Mar. 03, 2023) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (2ALCFXY-PR016) (Dongguan Xing Yue Electronic co., Ltd ), the undersigned, hereby authorize (SOUTH BAY INNOVATION LLC) to act as our designated U.S. agent for service of process, (Dongguan Xing Yue Electronic co., Ltd) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (SOUTH BAY INNOVATION LLC) accepts the responsibility to act as designated U.S. agent for service of process, provides an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Information： Company name: Dongguan Xing Yue Electronic co., Ltd Contact Name: Sunny zhang Address: #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan City, Guang Dong, China Telephone No: 13538214502 Email: [email protected] U.S. Agent Information: Company Name: SOUTH BAY INNOVATION LLC Address: 23545 CRENSHAW BLVD STE 102 Torrance , CA US 90505 Contact Name: Yueting Zhu Telephone No: 4243769142 Email: [email protected] FRN: 0033401811 Applicant Signature: Agent Signature: Applicant printed name: Sunny zhang Agent printed name: Yueting Zhu

Dongguan Xing Yue Electronic co., Ltd (2023.05.09) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Wireless Power Bank / XY-PR016 / FCC ID: 2ALCFXY-PR016) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☒ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Sunny zhang Title: business

Dongguan Xing Yue Electronic co., Ltd (2023.05.09) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Sunny zhang Title: business

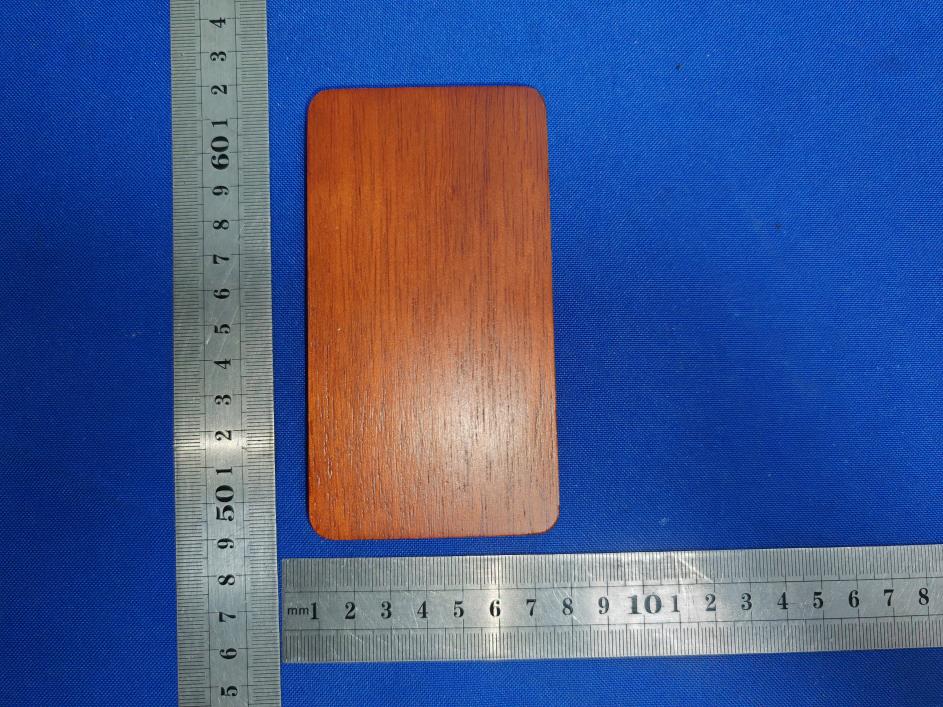

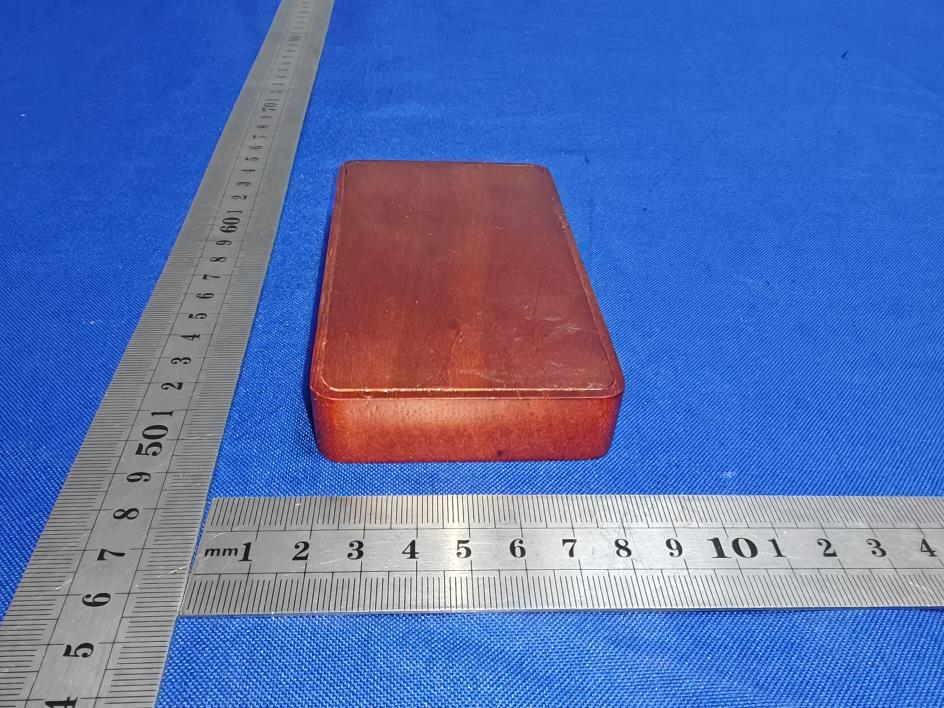

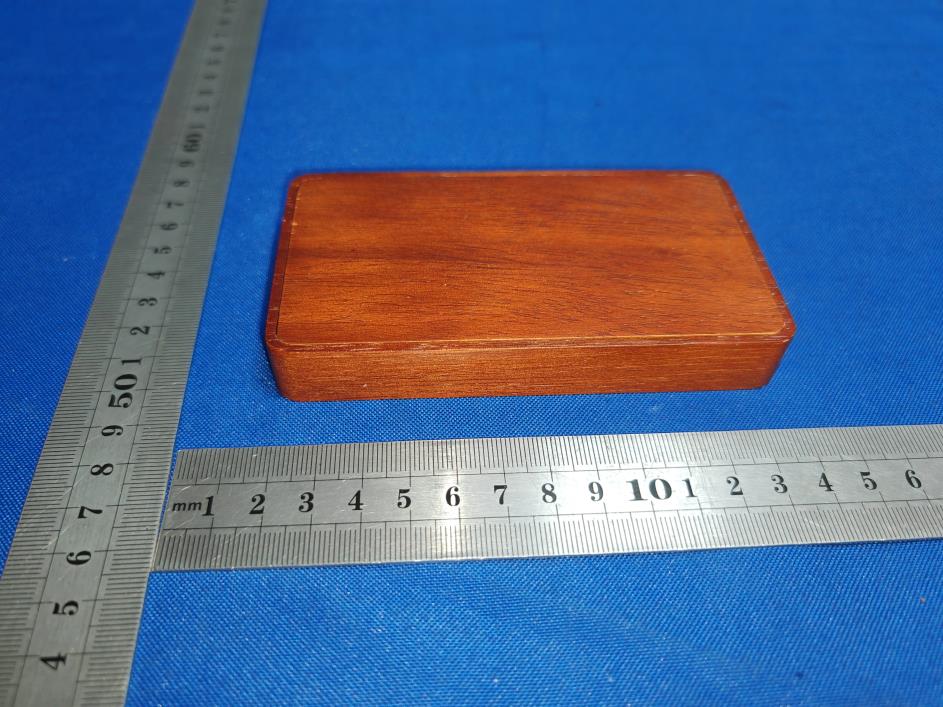

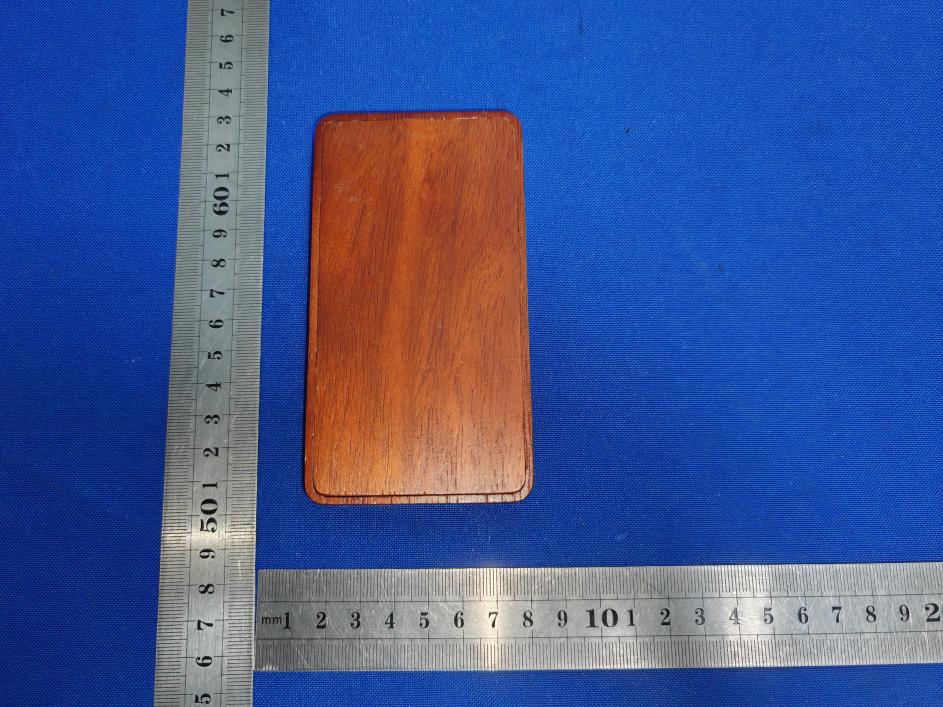

External Photos
