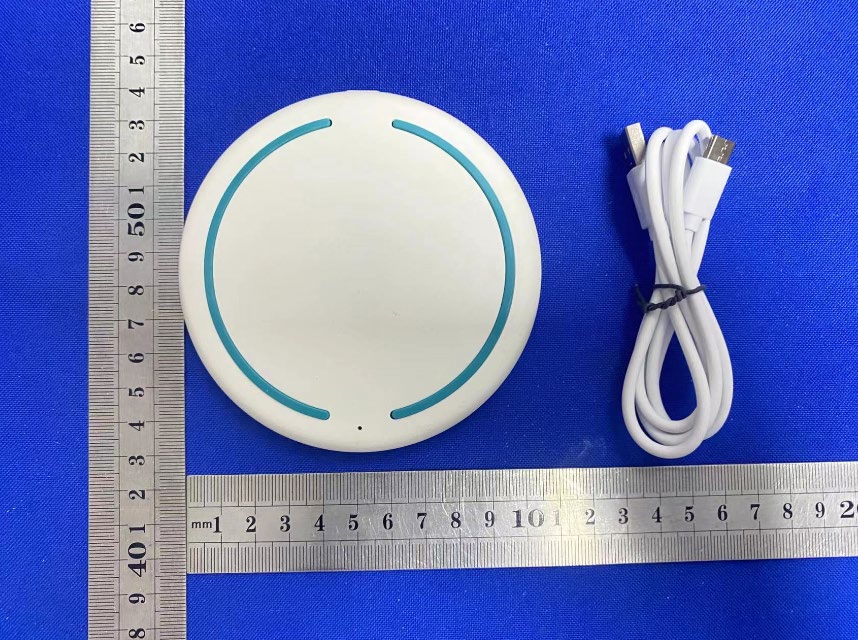

Recycled ABS Fast Wireless Charging Pad Instruction Manual XY-PR019 1 x Wireless Charging Pad 1 x USB to Type-C Charging Cable 1 x Instruction Manual Type-C Input: 5V/2A; 9V/2A Wireless Output: 5W/7.5W/10W Wireless Charging Mobile phones and other electronic devices: Using the included Type-C to USB charging cable, insert the USB-A port of the cable into Type-C tip Type-C Input(3). LED indicator(2) will glow BLUE & RED for 4 seconds, then glow RED when the device is in wireless charging standby. Place the wireless charging supported mobile device on the wireless charging surface(1), LED will glow BLUE when device is charging. Phone will begin to charge automatically. Once fully charged remove the device. 1. • • • • • 1. 2. 3. • • Type-C Input Port LED Indicator Wireless Charging Surface What’s included: Functions: Instructions: WARNING-When using this product, basic precautions should always be followed: Read all the instructions before use. Never store or use this product in temperatures below 32°F(0°C) or above 115°F(45°C). Do not overcharge your phone. The unit may become hot under excessive use. Remove your phone once it is fully charged. Never charge your phone for more than 7 hours at a time. To reduce the risk of injury, close supervision is required when the product is used near children. Do not expose the device to moisture. Do not use the device in excess of its output rating. Overload outputs above the Do not use the device if damaged or Do not disassemble the device. For professional. incorrect reassembly may or temperatures above 104°F may cause explosion. use only identical replacement parts to ensure product safety. Attachments on the back of your phone can impede the effectiveness of the wireless charger, and lead to overheating. Please remove any attachments from the phone before charging on this device, attachments can interfer with wireless charging and lead to over heating. • 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. SAFETY PRECAUTIONS: Note: When wireless charging, if the LED a wireless charging device or there NOT is an object between the the device and charging surface interfering with the charging process. MADE IN CHINA FCC Statement: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm distance between the radiator and your body: Use only the supplied antenna.

(Dongguan Xing Yue Electronic co., Ltd) (Mar. 27, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (2ALCFXY-PR019) [Dongguan Xing Yue Electronic co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Sunny zhang (Dongguan Xing Yue Electronic co., Ltd) (Mar. 27, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (2ALCFXY-PR019) [Dongguan Xing Yue Electronic co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Sunny zhang

Attestation Statements (Mar. 03, 2023) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (2ALCFXY-PR019) (Dongguan Xing Yue Electronic co., Ltd ), the undersigned, hereby authorize (SOUTH BAY INNOVATION LLC) to act as our designated U.S. agent for service of process, (Dongguan Xing Yue Electronic co., Ltd) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (SOUTH BAY INNOVATION LLC) accepts the responsibility to act as designated U.S. agent for service of process, provides an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Information： Company name: Dongguan Xing Yue Electronic co., Ltd Contact Name: Sunny zhang Address: #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan City, Guang Dong, China Telephone No: 13538214502 Email: [email protected] U.S. Agent Information: Company Name: SOUTH BAY INNOVATION LLC Address: 23545 CRENSHAW BLVD STE 102 Torrance , CA US 90505 Contact Name: Yueting Zhu Telephone No: 4243769142 Email: [email protected] FRN: 0033401811 Applicant Signature: Agent Signature: Applicant printed name: Sunny zhang Agent printed name: Yueting Zhu

Dongguan Xing Yue Electronic co., Ltd (2023.04.19) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Wireless charger / XY-PR019 / FCC ID: 2ALCFXY-PR019 ) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☒ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☒ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Sunny zhang Title: business

Dongguan Xing Yue Electronic co., Ltd (2023.04.19) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Sunny zhang Title: business

External Photos

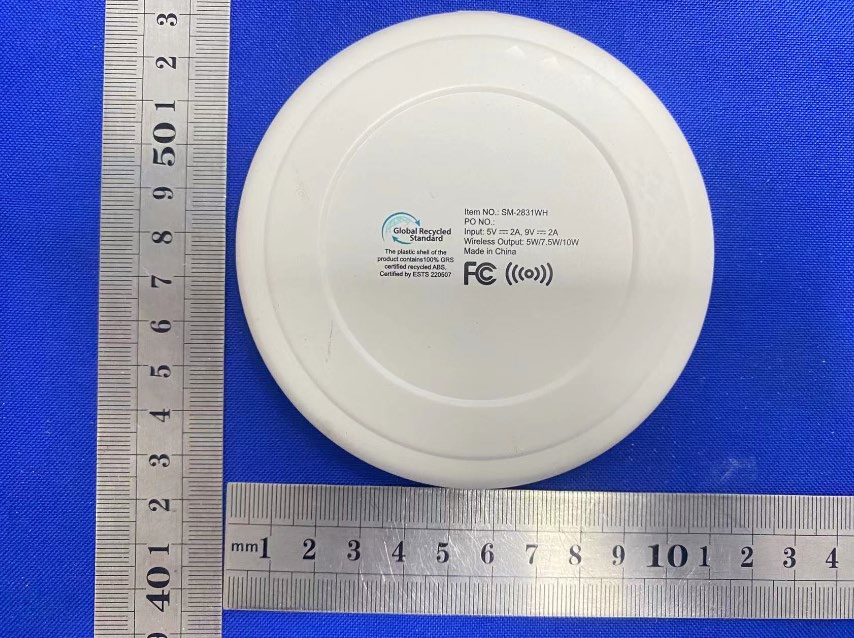

FCC ID LABEL: Label Location: FCC ID: 2ALCFXY-PR019 Model No.: XY-PR019 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
