2ALCVER100401SmartSet Alarm Clock Radio with Bluetooth Speaker, USB Charge out and Fast Wireless Charge

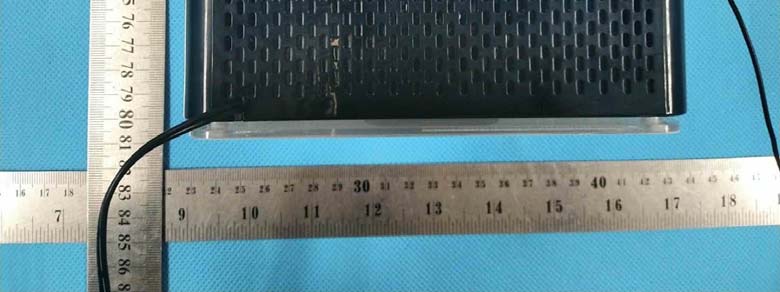

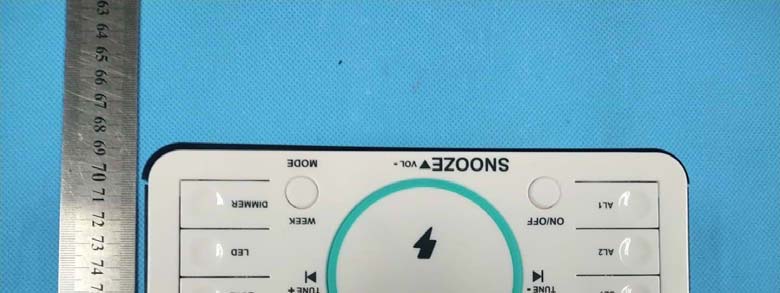

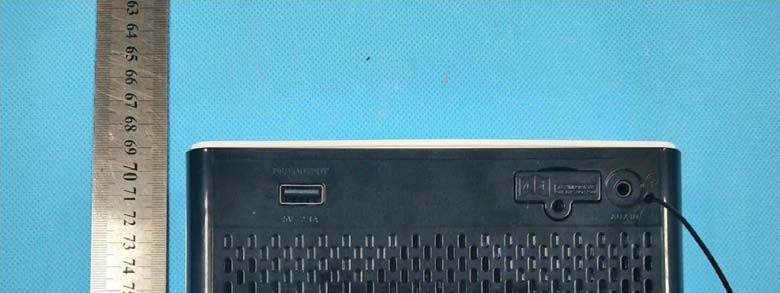

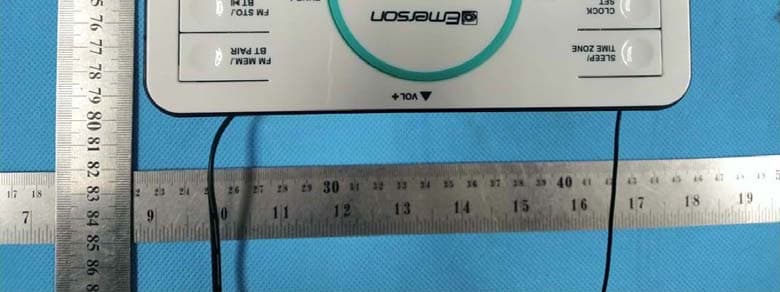

1 External Photo FCC ID: 2ALCVER100401 View of The Product View of The Product 2 View of The Product View of The Product 3 View of The Product View of The Product

ER100401-Label List-R0.4-2020-11-30 （内容按最终认证后资料更新） 3) Master Label 主机贴纸 尺寸：49.5*33.2mm 黑底白字 贴于主机底部特定框内 33.2mm SIZE:
49.5
(W)
X
33.2
(H)
mm 2) 5) 31.50 mm 4 5 . 5 0 m m Size:W30mm×H30mm 35 4) （内容按最终认证后资料更新） 35 30.00 mm 3 0 . 0 0 m m WIRELESS OUTPUT:5V ,5W MAX 1928 012580603498 ER100401 50 40 50 40 Size:W40.5mm×H34.5mm 4) FCC ID: 2ALCVER100401 A MODEL NO: ER100401 15W MAX SUFFIX 49.5mm 2pc 格式：年份（1位数）+月份（两位数）+ 数量（六位数）+工厂代码（IRF） Format: year + month + quantity + factory code 工厂代号 数量，六位数，每个月从000001开 始计算累加，过月清零 月份，例如8月份=08,9月份=09 年份的最后一位数，例如2010=0;2011=1;2012=2 （具体号码段见订单系统） 例如： 和机器底部的特定位置 and the unit RF 9 05 9 0 5 0 1 3 9 8 6 I R F 42mm 8mm 28 3986 28 1) 未改 1pc 格式：年份（1位数）+月份（两位数）+ 数量（六位数）+工厂代码（IHX） Format: year + month + quantity + factory code 工厂代号 数量，六位数，每个月从000001开 始计算累加，过月清零 月份，例如8月份=08,9月份=09 年份的最后一位数，例如2010=0;2011=1;2012=2 （具体号码段见订单系统） 例如： 机器底部的特定位置 and the unit HX 011 8 000001IHX0 9 11 FCC ID: 2ALCVER100401 A MODEL NO: ER100401 SUFFIX INPUT: 120V AC ~ 60HZ FCC ID: 2ALCVER100401 A MODEL NO: ER100401 SUFFIX INPUT: 120V AC ~ 60HZ CM C Intertek L US D S I T E 4é 3 * 4 5 ° R 3 * 3 40.5mm 3 4 . 5 m m 贴于适配器特定框内（或镭雕于适配器特定框内）

1 Internal Photo FCC ID: 2ALCVER100401 Inside View of The Product Inner Circuit Top View 2 Inner Circuit Bottom View Inner Circuit Top View Antenna 3 Inner Circuit Top View Inner Circuit Bottom View

AC6925B Datasheet AC6925B Datasheet Zhuhai Jieli Technology Co.,LTD Version：V1.0 Date：2018.04.20 Copyright © Zhuhai Jieli Technology Co.,LTD. All rights reserved. AC6925B Datasheet 2 Confidential The information contained herein is the exclusive property of JIELI and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of JIELI. AC6925B Features High performance 32-bit RISC CPU RISC 32-bit CPU DC-160MHz operation Support DSP instructions 64Vectored interrupts 4 Levels interrupt priority Flexible I/O 12 GPIO pins All GPIO pins can be programmable as input or output individually All GPIO pins are internal pull-up/pull-down selectable individually CMOS/TTL level Schmitt triggered input External wake up/interrupt on all GPIOs Peripheral Feature One full speed USB 2.0 OTG controller One audio interface supports IIS, left adjusted, right adjusted and DSP mode Four multi-function 16-bit timers, support capture and PWM mode Three 16-bit PWM generator for motor driving One 16-bit active parallel port One full-duplex basic UART Two full-duplex advanced UART One SPI interface supports host and device mode Two SD Card Host controller One IIC interface supports host and device mode One Quadrate decoder Watchdog 1 Crystal Oscillator 16-bit Mono DAC with headphone amplifier, SNR >= 95dB 1 channel ADC , SNR >= 90dB 1 channel MIC amplifier 2 channels Stereo analog MUX 9 channels 10-bit ADC 2 channels 8 levels Low Voltage Detector Power-on reset Embedded PMU support low power mode Bluetooth Feature CMOS single-chip fully-integrated radio and baseband Compliant with Bluetooth V5.0+BR+EDR+BLE specification Bluetooth Piconet and Scatternet support AC6925B Datasheet 3 Confidential The information contained herein is the exclusive property of JIELI and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of JIELI. Meet class2 and class3 transmitting power requirement Support GFSK and π/4 DQPSK all paket types Provides +2dbm transmitting power receiver with -89dBm sensitivity Support a2dp\avctp\avdtp\avrcp\hfp\spp\smp\att\gap\gatt\rfcomm\sdp\l2cap profile FM Tuner Support worldwide frequency band 76-108MHz Fully integrated digital low-IF tuner & frequency synthesizer Autonomous search tuning Digital auto gain control (AGC) Digital adaptive noise cancellation Programmable de-emphasis (50/75 uS) Receive signal strength indicator (RSSI) Radio search in multi-channel simultaneously Digital volume control Power Supply VBAT is 2.2V to 5.5V VDDIO is 2.2V to 3.6V RTCVDD is 2.2V to 3.6V Packages QSOP24 Temperature Operating temperature: -20°C to +70°C Storage temperature: -65°C to +150°C AC6925B Datasheet 4 Confidential The information contained herein is the exclusive property of JIELI and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of JIELI. 1、Pin Definition 1.1 Pin Assignment 1 2 3 4 5 6 7 8 9 10 24 23 22 21 11 12 14 18 19 20 BT_RF DACVSS DACVDD PC5 PB5 USBDM USBDP VSSIO PB0 VBAT (QSOP24) 15 16 17 13 VDDIO BT_OSCO VCOM PA0/PA4 BT_OSCI PA3 PC4 DACL PB4 PB3 PB1 BT_AVDD PC3 FMIP Figure 1-1 AC6925B_QSOP24 Package Diagram AC6925B Datasheet 5 Confidential The information contained herein is the exclusive property of JIELI and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of JIELI. 1.2 Pin Description Table 1-1 AC6925B_QSOP24 Pin Description PIN NO. Name I/O Type High Drive (mA) Function Other Function 1 PC5 I/O 24 GPIO SD1CLKA：SD1 Clock(A); SPI1DOB：SPI1 Data Out(B); UART2RXD：Uart2 Data In(B); IIC_SDA_B：IIC SDA(B); 2 PC4 I/O 24 GPIO SD1CMDA：SD1 Command(A); SPI1CLKB：SPI1 Clock(B); UART2TXD：Uart2 Data Out(B); IIC_SCL_B：IIC SCL(B); 3 PC3 I/O 24 GPIO SD1DAT0A：SD1 Data0(A); SPI1DIB：SPI1 Data In(B); UART0RXC：Uart0 Data In(C); TMR3：Timer3 Clock Input; ADC10：ADC Input Channel 10; 4 USBDM I/O 4 USB Negative Data (pull down) UART1RXD：Uart1 Data In(D); SPI2DOB：SPI2 Data Out(B); IIC_SDA_A：IIC SDA(A); ADC11：ADC Input Channel 11; 5 USBDP I/O 4 USB Positive Data (pull down) UART1TXD：Uart1 Data Out(D); SPI2CLKB：SPI2 Clock(B); IIC_SCL_A：IIC SCL(A); 6 PA 0 I / O 24 GPIO PLNK_DAT0：PLNK Data0; MIC：MIC Input Channel; UART0RXB：Uart0 Data In(B); PA 4 I / O 24 GPIO PWM1：Timer1 PWM Output; AMUX1R：Simulator Channel1 Right; ADC1：ADC Input Channel 1; UART2RXA：Uart2 Data In(A); Touch11：Touch Input Channel 11; 7 PA3 I/O 24 GPIO AMUX1L：Simulator Channel1 Left; ADC0：ADC Input Channel 0; UART2TXA：Uart2 Data Out(A); Touch10：Touch Input Channel 10; 8 DACL O / DAC Left Channel 9 DACVDD P / DAC Power 10 VCOM P / DAC Reference AC6925B Datasheet 6 Confidential The information contained herein is the exclusive property of JIELI and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of JIELI. 11 DACVSS P / Ground 12 VDDIO P / IO Power 3.3v 13 PB5 I/O 8 GPIO UART0TXB：Uart0 Data Out(B); AMUX0R：Simulator Channel0 Right; SPI1DOA：SPI1 Data Out(A); SD0CLKB：SD0 Clock(B); ADC9：ADC Input Channel 9; Touch5：Touch Input Channel 5; 14 PB4 I/O 8 GPIO PWM3：Timer3 PWM Output; AMUX0L：Simulator Channel0 Left; SPI1CLKA：SPI1 Clock(A); SD0CMDB：SD0 Command(B); ADC8：ADC Input Channel 8; SPI0_DAT2AB(2)：SPI0 Data2(AB); Touch4：Touch Input Channel 4; 15 PB3 I/O 8 GPIO PWM2：Timer2 PWM Output; UART2RXC：Uart2 Data In(C); SPI1DIA：SPI1 Data In(A); SD0DAT0B：SD0 Data0(B); AMUX2R：Simulator Channel2 Right; SPI0_DAT3AB(3)：SPI0 Data3(AB); Touch3：Touch Input Channel 3; 16 PB1 I/O 8 GPIO TMR2：Timer2 Clock Input; UART1RXA：Uart1 Data In(A); SPI2DOA：SPI2 Data Out(A); ADC7：ADC Input Channel 7; Touch1：Touch Input Channel 1; 17 PB0 I/O 8 GPIO UART1TXA：Uart1 Data Out(A); SPI2CLKA：SPI2 Clock(A); ADC6：ADC Input Channel 6; Touch0：Touch Input Channel 0; 18 VBAT P / LDO Power 19 BT_AVDD P / BT Power 1.3v 20 BT_RF P / 21 FMIP I / 22 VSSIO P / Ground 23 BT_OSCI I / BT OSC In 24 BT_OSCO O / BT OSC Out AC6925B Datasheet 7 Confidential The information …

Text truncated - open the document above for the full version.

RF Exposure Test Requirement: FCC 47CFR 15.247(i) Test Date: 2020-12-10 Mode of Operation: Tx mode Test Method: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. Test Results: The EUT complied with the requirement(s) of this section. EUT meets the requirements of these sections as proven through MPE calculation The MPE calculation for EUT @ 20cm Based on the highest Tolerance Power =1.294 mW Pd = PG/ 4pi*R 2 = (1.294x 1)/12.566* (20) 2 = (1.294)/12.566x 400= 1.294/5026.4 = 0.000257mW/cm 2 where: *Pd = power density in mW/cm2 * G = Antenna numeric gain (1); Log G = g/10 ( g = 0dBi ). *Tolerance Range(-0.5, 0.5)dB * P = Conducted RF power to antenna (1.294mW). * R = Minimum allowable distance.(20 cm) *The power density Pd = 0.000257mW/cm 2 is less than 1 mW/cm 2 (listed MPE limit) *The SAR evaluation is not needed ( this is a desk top device, R> 20 cm ) * The EUT( antenna ) must be 0.2 meters away from the General Population.

Test Report Date : 2020-12-10 Page 1 of 75 No. : HMD20100008 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. Applicant : Emerson Radio Corp. 35 Waterview Blvd, Parsippany, New Jersey 07054, United States Supplier / Manufacturer : He Xun Electronics Co., Ltd. Shi Wu Factory , Queens Village, Zhenlong Town, Huiyang District, Huizhou city,Guangdong Province, China Description of Sample(s) : Submitted sample(s) said to be Product: SmartSet Alarm Clock Radio with Bluetooth Speaker, USB Charge out and Fast Wireless Charger Brand Name: Emerson Model No.: ER100401 FCC ID: 2ALCVER100401 Date Samples Received : 2020-10-23 Date Tested : 2020-10-20 to 2020-12-10 Investigation Requested : Perform Electro Magnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.10:2013 for FCC Certification. Conclusions : The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks : Bluetooth FHSS (GFSK / π/4-DQPSK) For additional model(s) details, please see page 3. _______________________________ Dr. LEE Kam Chuen Authorized Signatory Test Report Date : 2020-12-10 Page 2 of 75 No. : HMD20100008 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. CONTENT: Cover Page 1 of 75 Content Page 2 of 75 1.0 General Details 1.1 Test Laboratory Page 3 of 75 1.2 Equipment Under Test [EUT] Page 3 of 75 Description of EUT operation 1.3 Date of Order Page 3 of 75 1.4 Submitted Sample(s) Page 3 of 75 1.5 Test Duration Page 3 of 75 1.6 Country of Origin Page 3 of 75 1.7 RF Module Details Page 4 of 75 1.8 Antenna Details Page 4 of 75 1.9 Channel List Page 4 of 75 2.0 Technical Details 2.1 Investigations Requested Page 5 of 75 2.2 Test Standards and Results Summary Page 5 of 75 2.3 Table for Test Modes Page 6 of 75 3.0 Test Results 3.1 Emission Page 7-70 of 75 Appendix A List of Measurement Equipment Page 71 of 75 Appendix B Photograph(s) of Product Page 72-75 of 75 Test Report Date : 2020-12-10 Page 3 of 75 No. : HMD20100008 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate, New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: SmartSet Alarm Clock Radio with Bluetooth Speaker, USB Charge out and Fast Wireless Charger Manufacturer: He Xun Electronics Co., Ltd. Shi Wu Factory , Queens Village, Zhenlong Town, Huiyang District, Huizhou city,Guangdong Province, China Brand Name: Emerson Model Number: ER100401 Additional Model Number: ER100402, ER100403 Rating: 12.0Vd.c. by AC adapter The AC/DC adapter was provided by the applicant with following details: Brand name: KEERDA, Model no.: DZ048BHL120300U, Input: 100-240Va.c. 50/60Hz 1.5A, Output: 12.0Vd.c. 3.0A 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a SmartSet Alarm Clock Radio with Bluetooth Speaker. The transmission signal is digital modulated with channel frequency range 2402-2480MHz. The R.F. signal was modulated by IC; the type of modulation used was frequency hopping spread spectrum Modulation. 1.3 Date of Order 2020-10-23 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2020-10-20 to 2020-12-10 1.6 Country of Origin China Test Report Date : 2020-12-10 Page 4 of 75 No. : HMD20100008 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 1.7 RF Module Details Module Model Number: AC6925B Module FCC ID: N/A Module Transmission Type: Bluetooth V5.0 EDR Modulation: FHSS (GFSK / π/4-DQPSK) Data Rates: 1MBps: GFSK 2 MBps: π/4-DQPSK Frequency Range: 2400-2483.5MHz Carrier Frequencies: 2402MHz – 2480MHz Module Specification (specification provided by manufacturer) 1.8 Antenna Details Antenna Type: PCB antenna Antenna Gain: 0dBi 1.9 Channel List Channel Frequency (MHz) Channel Frequency (MHz) 0 2402 42 2444 1 2403 43 2445 2 2404 44 2446 3 2405 45 2447 4 2406 46 2448 5 2407 47 2449 6 2408 48 2450 7 2409 Ƀ Ƀ 8 2410 67 2469 9 2411 68 2470 Ƀ Ƀ 69 2471 33 2435 70 2472 34 2436 71 2473 35 2437 72 2474 36 2438 73 2475 37 2439 74 2476 38 2440 75 2477 39 2441 76 2478 40 2442 77 2479 41 2443 78 2480 Test Rep…

Text truncated - open the document above for the full version.

1 Test Photo FCC ID: 2ALCVER100401 Measurement of Radiated Emission Test Set Up Measurement of Radiated Emission Test Set Up 2 Measurement of Radiated Emission Test Set Up Measurement of Conducted Emission Test Set Up
