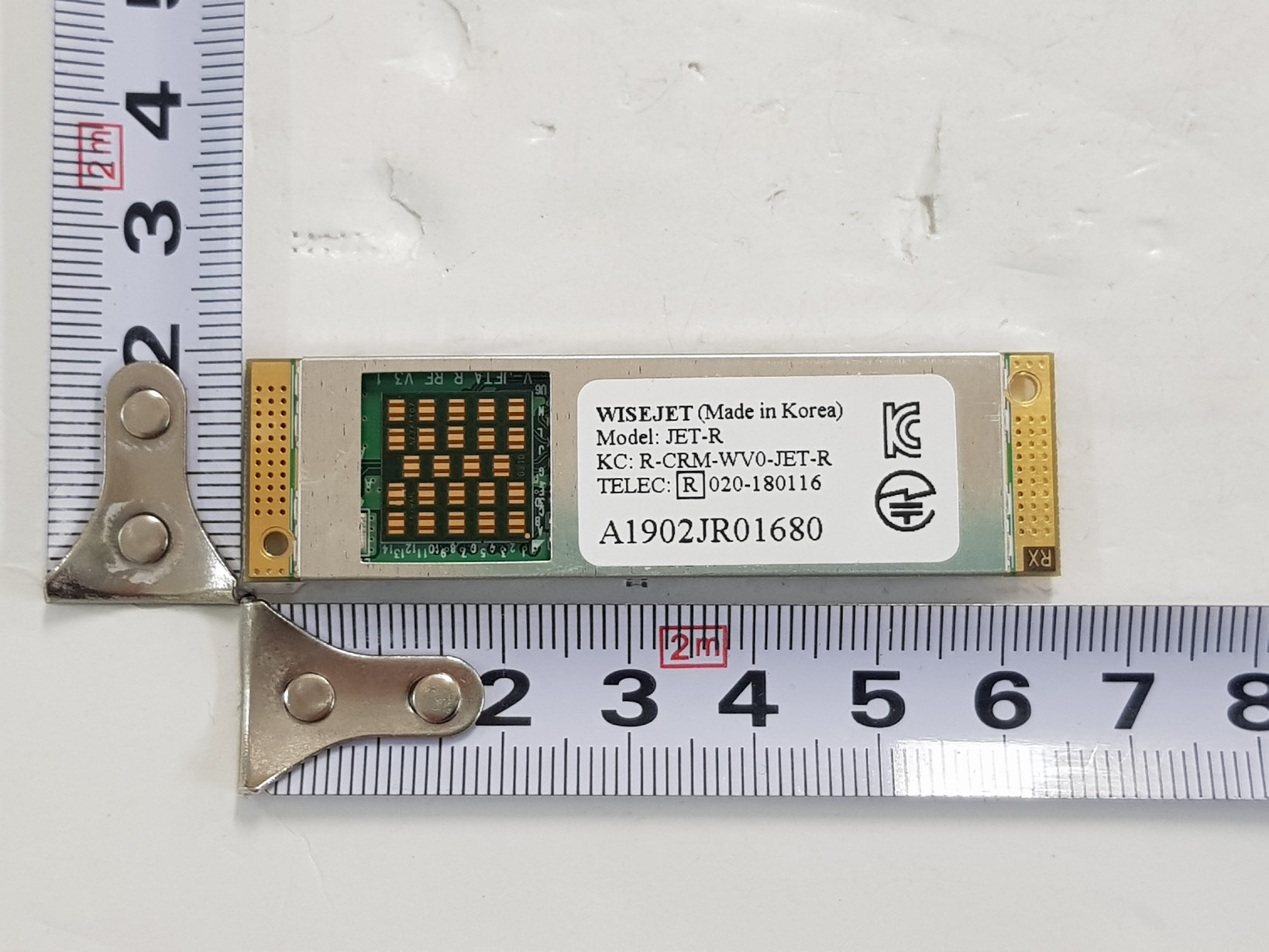

JET-R Module Manual JET-R acts as a receiver for 60GHz RF Module and works in pairs with a JET-T transmitter. Be sure to design the position of the RF radiation direction facing the receiver. The material of case is recommanded for ABS and the thickness is recommended less than 2mm . Full-HD (1080p / 60Hz) in HDMI format - Supports Video and Audio. This product can be used for fixed point-to-point communication only. 49mm 8mm 8mm 18mm 65mm Module configuration 50 pin connector Part number : DF40C-50DP-0.4V pin : HDMI signal, power, debugging signal, control signal RF antenna •Power: 3.3 V @ 1 A •System Control: - Status LED signal - Source switch signal - ON/OFF control signal - Sleep mode indication signal - ON/OFF indication signal •Advanced control port - I2C interface •Debug, control, and flash programing - USB interface •Digital video output signal compatible with HDMI signals on the system board Temperature Test / Connector Feathers Temperature test report Single Connector Features RF radiation angle and Module/System Cable circuit Module/System Cable circuit RF radiation angle Flexible PCB Cable is recommanded. Use 3 layer FPCB Module/System Cable dimension FPCB cable for connecting JET-T and IO-board Operating frequency bandwidth 57GHz ~ 64GHz : channel 2(60.48 GHz), channel 3(62.64 GHz) Transmission distance 10M (depending on the state of the receiver) If there are objects between transmitter and receiver, communication is disturbed. Temperature Operating Temperature : -10 o C ~ 50 o C, Storage Temperature : -10 o C ~ 50 o C Power consumption DC 3.3V / 1A dimension 65 x 18 x 4.5mm HDMI signal connection and module spec. Module spec. Reference of HDMI signal
