2ALIR-MU202UWB module

Users Manual MU202 FCC ID: 2ALIR-MU202 TheMU202ispartofawirelesssystemthatreliesonultra-wideband(UWB)pulsesand time-stampinformationtodeterminereal-timelocationtrackingdata.TheMU202transmits UWBbeaconsandco-existswithotherdevicesonaUWBnetwork.TheMU202devicesare usedinanobjectofinterestwithintheoperationalareainordertolocateandtrackthatobject. TheMU202receivespowerfromitshostdevice.TheMU202moduleissmallandversatile,and can be utilized in a variety of hosts. Main System Components Micro-controller: Decawave DW1000 Ultra Wideband (UWB) IEEE802.15.4-2011 RF Transceiver: Decawave DW1000 Ultra Wideband (UWB) IEEE802.15.4-2011 Operating Voltage: 2.8 - 5.0 V (3.3V nom.) Temperature Range: -40 - 85C Mechanical Width: 28.0 mm Depth: 75.5 mm Height: 3.7 mm Weight: 6.5 g RF Characteristics UWB IEEE802.15.4-201 Data Rate: 6.81Mbps Channel: 5, PRF 16 MHz Bandwidth (Values in GHz): fM The highest emission peak 6.490 fL 10 dB below the highest peak 6.1873 fH 10 dB above the highest peak 6.8167 BandwidthCalculated: (fH - fL) 0.6294 Channel: 5, PRF 64 MHz Bandwidth (Values in GHz): fM The highest emission peak 6.519 fL 10 dB below the highest peak 6.2043 fH 10 dB above the highest peak 6.8037 BandwidthCalculated: (fH - fL) 0.5994 Antenna: 0.0 dBi Omnidirectional United States (FCC) Regulatory Information FCC ID: 2ALIR-MU202 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE:​ This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ●Reorient or relocate the receiving antenna. ●Increase the separation between the equipment and receiver. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ●Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The OEM integrator is responsible for compliance testing to Part 15 Subpart B with the module installed and for compliance to any other FCC rules that apply to the host not covered by the module grant of certification. To fulfill FCC Certification requirements, an OEM manufacturer must comply with the following regulations: 1. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: IMPORTANT: Contains FCC ID: 2ALIR-MU202. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation (FCC 15.19). Applicable rules: FCC 15.250 Canada (ISED) Regulatory Information IC:26788-MU202 CAN ICES-3 (B)/NMB-3(B) This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage; 2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). This Module is labelled with its own IC ID. If the IC ID Certification Number is not visible while installed inside another device, then the device should display the label on it referring to the enclosed module. In that case, the final end product must be labelled in a visible area with the following: “Contains Transmitter Module IC:26788-MU202” OR “Contains IC:26788-MU202” Ce module est étiqueté avec son propre ID IC. Si le numéro de certification IC ID n’est pas visible lorsqu’il est installé à l’intérieur d’un autre appareil, l’appareil doit afficher l’étiquette sur le module de référence ci-joint. Dans ce cas, le produit final doit être étiqueté dans un endroit visible par le texte suivant: “Contains Transmitter Module IC:26788-MU202” OR “Contains IC:26788-MU202” This radio transmitter (IC:26788-MU202) has been approved by ISED Canada to operate with the antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for tha…

Text truncated - open the document above for the full version.

Letter Of Agency Date: December 17, 2020 To Whom It May Concern: Please be advised that Mike Ciholas of Ciholas, Inc. authorizes Larry Stillings of Compliance Worldwide, Inc. to act on our behalf, until otherwise notified, for applications submitted for the purpose of obtaining an FCC Grant of Equipment Authorization. Wecertifythatwearenotsubjecttodenialoffederalbenefits,thatincludesFCCbenefits, pursuanttoSection5301oftheAnti-DrugAbuseACTof1988,U.S.C.862.Further,noparty,as definedin47CFR1.2002(b),totheapplicationissubjecttodenialoffederalbenefits,that includes FCC benefits. Thank you for your attention to this matter. Signatory Mike Ciholas President 812.962.9400 - 3700 Bell Road, Newburgh, IN 47630 - www.ciholas.com

Date: December 17, 2020 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ALIR-MU202 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Long Term confidential treatment of information accompanying this application as outlined below: The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Mike Ciholas President 812.962.9400 - 3700 Bell Road, Newburgh, IN 47630 - www.ciholas.com Exhibit Type File Name Block Diagram Schematics Operational Description MU202 Block Diagram.pdf MU202 Schematic.pdf MU202 Operational Description.pdf

Modular Approval Request Date: December 16, 2020 Federal Communications Commission Authorization and Evaluation Division RE: FCC ID: ​2ALIR-MU202 The following attestation addresses the requirements to support modular approval: Modular Approval Requirement Yes No The radio elements must have the radio frequency circuitry shielded. Physical/discrete and tuning capacitors may be located external to the shield but must be on the module assembly. YES The module must have buffered modulation/data inputs to ensure that the device will comply with the Part 15 requirements with any type of input signal. YES The module must contain power supply regulation on the module. YES The module must contain a permanently-attached antenna, or contain a unique antenna connector, and be marketed or operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). YES The module must demonstrate compliance in a stand-alone configuration. YES The module must be labelled with its permanently fixed FCC ID label, or use an electronic display. YES Sincerely, __________________________ 12-16-2020​________________ SignatureDate Mike Ciholas​________________President​___________________ NameTitle Modular Approval Requirement Yes No The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements. YES The module must comply with RF Exposure requirements YES

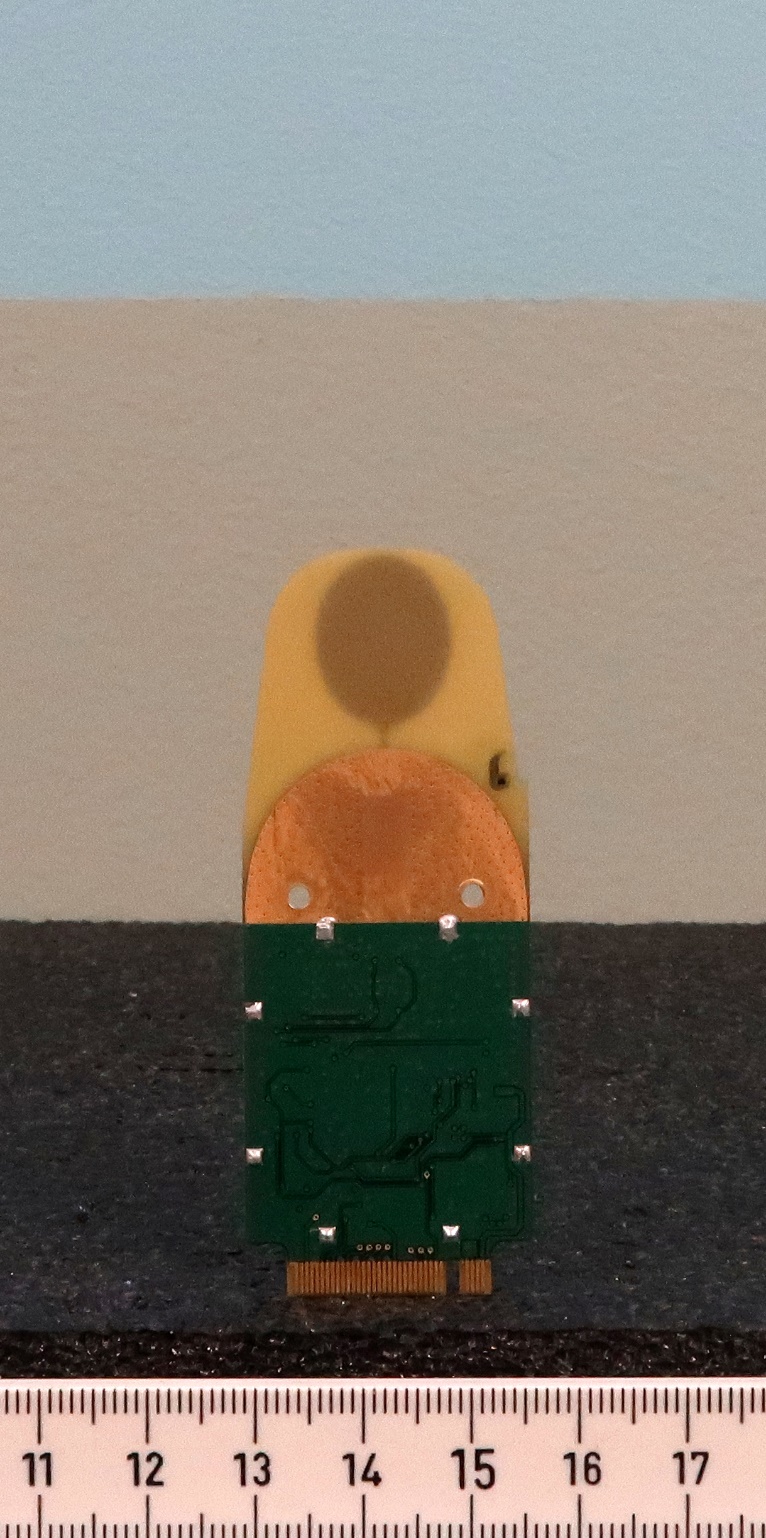

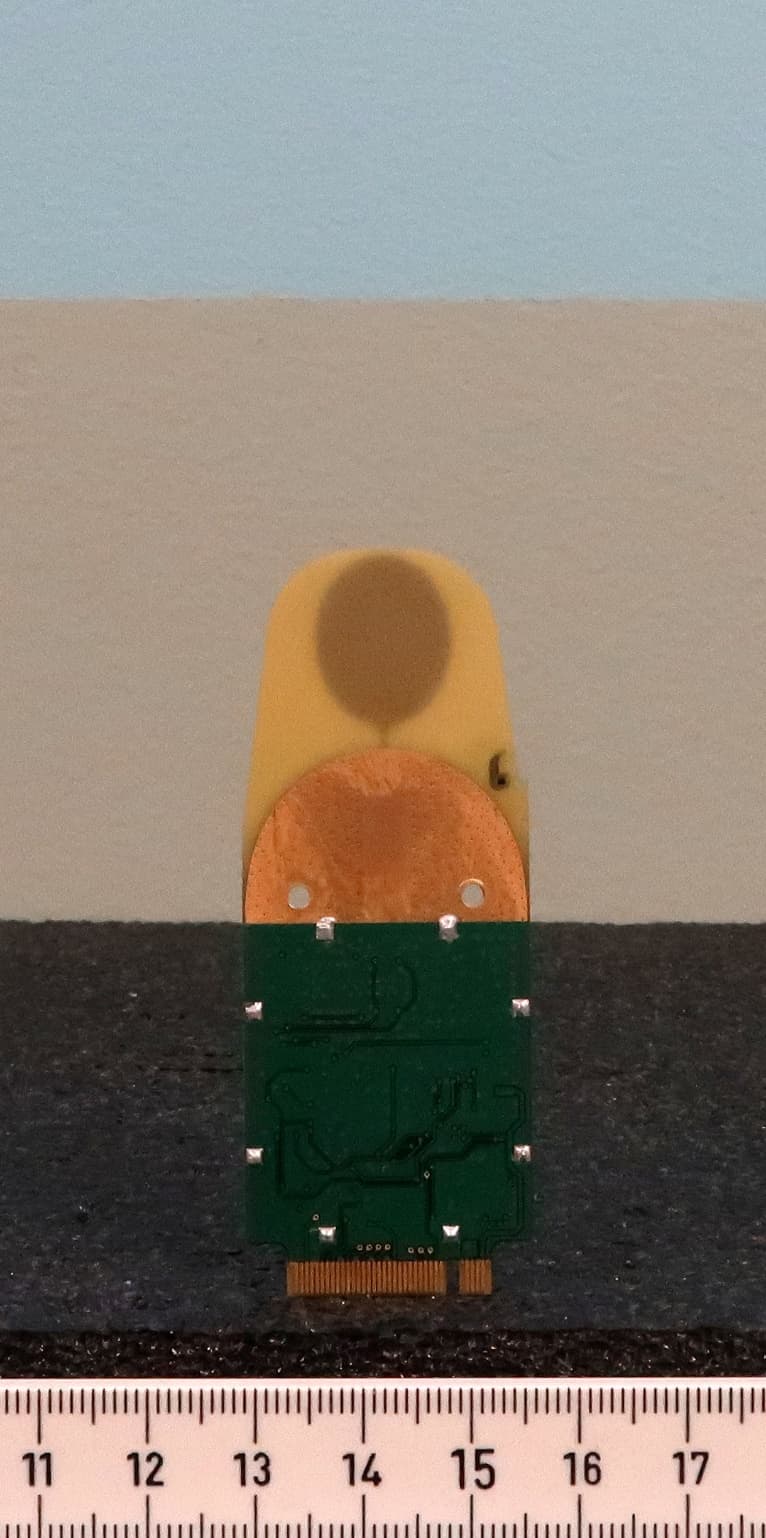

External Photos – Model A02824 Transmitter Module Rear Transmitter Front

MU202 Label Location Information 12/16/2020 812.962.9400 - 3700 Bell Road, Newburgh, IN 47630 - www.ciholas.com Each manufactured Ciholas MU202 module will have the following label affixed in the following location: 812.962.9400 - 3700 Bell Road, Newburgh, IN 47630 - www.ciholas.com

Ciholas MU202 FCC ID: 2ALIR-MU202 IC: 26788-MU202 REV: XXXXX PN: A02824 Serial: XXXXXXXX

Internal Photos – Model A02824 Transmitter Module Rear Transmitter Module Front

Test Number: 301-20R1 Issue Date: 2/25/2021 Page 45 of 56 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 6. Measurement Data (continued) 6.11. Public Exposure to Radio Frequency Energy Levels (1.1310) 6.11.1 RF Exposure for devices that operate above 6 GHz (continued) Requirement: TCB Workshop November 2019 RF Exposure Policy Updates dated November 13, 2019, specifically slide 11. Test exclusion based on 1 mW may be used now with the portable device f> 6GHz FCC MPE power density limits. Maximum time-averaged conducted power irrespective of distance from the body. Worst Case conducted peak power = -7.27 dBm or 0.188 mW Result: Device is compliant with the Test Exclusion requirement of 1 mW.

Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com COMPLIANCE WORLDWIDE INC. TEST REPORT 301-20R1 In Accordance with the Requirements of Federal Communications Commission 47 CFR Part 15.250, Subpart C Wideband Systems within the band 5925 to 7250 MHz ISED RSS-220, Issue 1 (March 2009) + Amendment 1 (July 2018) Devices Using Ultra-Wideband (UWB) Technology Issued to Ciholas, Inc. 3700 Bell Road Newburgh, IN 47630 For the MU202 UWB Module FCC ID: 2ALIR-MU202 IC: 26788-MU202 Report Issued on November 30, 2020 Revision R1 Issued on February 25, 2021 Tested By This test report shall not be reproduced, except in full, without written permission from Compliance Worldwide, Inc. Test Number: 301-20R1 Issue Date: 2/25/2021 Page 2 of 56 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com Table of Contents 1. Scope .................................................................................................................................................. 3 2. Product Details ................................................................................................................................... 3 2.1. Manufacturer ............................................................................................................................. 3 2.2. Model Number ........................................................................................................................... 3 2.3. Serial Number ........................................................................................................................... 3 2.4. Description ................................................................................................................................ 3 2.5. Power Source ............................................................................................................................ 3 2.6. Hardware Revision .................................................................................................................... 3 2.7. Software Revision ..................................................................................................................... 3 2.8. Modulation Type ........................................................................................................................ 3 2.9. Operating Frequency ................................................................................................................ 3 2.10. EMC Modifications .................................................................................................................. 3 3. Product Configuration ......................................................................................................................... 3 3.1. Operational Characteristics & Software .................................................................................... 3 3.2. Cables ....................................................................................................................................... 3 3.3. EUT Hardware .......................................................................................................................... 4 3.4. Support Equipment ................................................................................................................... 4 3.5. Test Setup ................................................................................................................................. 4 4. Measurements Parameters ................................................................................................................ 5 4.1. Measurement Equipment Used to Perform Test ...................................................................... 5 4.2. Measurement & Equipment Setup ............................................................................................ 6 4.3. Measurement Procedure .......................................................................................................... 6 4.4. Measurement Uncertainty ......................................................................................................... 6 5. Measurement Summary ..................................................................................................................... 7 6. Measurement Data ............................................................................................................................. 8 6.1. Antenna Requirement ............................................................................................................... 8 6.2. Operational Requirements ........................................................................................................ 8 6.3. UWB Bandwidth ........................................................................................................................ 9 6.4. Spurious Radiated Emissions ................................................................................................. 11 6.5. Radiated Emissions in GPS Bands ......................................................................................... 27 6.6. RMS Power in a 1 MHz Bandwidth ......................................................................................... 32 6.7. Peak Emissions in a 50 MHz Bandwidth ................................................................................ 35 6.8. Conducted Emissions Test Setup ........................................................................................... 38 6.9. Conducted Emissions Test Results ........................................................................................ 39 6.10. 99% Emission Bandwidth ..................................................................................................... 43 6.11. Public Exposure to Radio Frequency Energy Levels............................................................ 45 7. Test Site Description …

Text truncated - open the document above for the full version.

Test Number: 301-20 Issue Date: 11/30/2020 Page 46 of 54 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 8. Test Images 8.1. Spurious and Harmonic Emissions – 30 kHz to 1 GHz Front Test Number: 301-20 Issue Date: 11/30/2020 Page 47 of 54 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 8. Test Images 8.2. Spurious and Harmonic Emissions – 30 kHz to 30 MHz Rear Test Number: 301-20 Issue Date: 11/30/2020 Page 48 of 54 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 8. Test Images 8.3. Spurious and Harmonic Emissions – 30 MHz to 1 GHz Rear Test Number: 301-20 Issue Date: 11/30/2020 Page 49 of 54 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 8. Test Images 8.4. Spurious and Harmonic Emissions – 1 to 18 GHz Front Test Number: 301-20 Issue Date: 11/30/2020 Page 50 of 54 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 8. Test Images 8.5. Spurious and Harmonic Emissions – 1 to 18 GHz Rear Test Number: 301-20 Issue Date: 11/30/2020 Page 51 of 54 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 8. Test Images 8.6. Spurious and Harmonic Emissions – 18 to 40 GHz Side Test Number: 301-20 Issue Date: 11/30/2020 Page 52 of 54 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 8. Test Images 8.7. Conducted Emissions (Front) Test Number: 301-20 Issue Date: 11/30/2020 Page 53 of 54 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 8. Test Images 8.8. Conducted Emissions (Rear) Test Number: 301-20 Issue Date: 11/30/2020 Page 54 of 54 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 8. Test Images 8.9. Frequency Stability (Setup)
