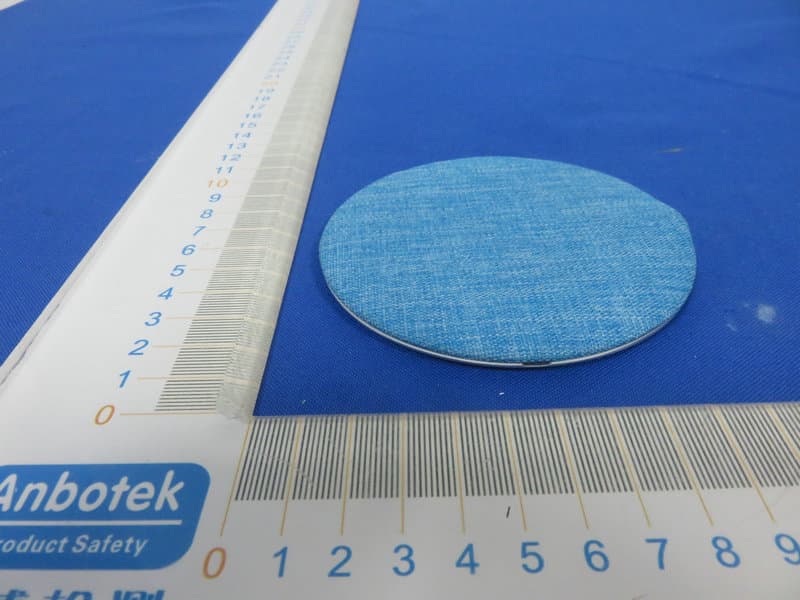

2ALKR-HE190027Fabric Wireless Charger

rade00 er 8teams : -N ThweFb User Manual Accessories: Wireless transmitter x1 Type c-usb data cable x1 User manual x1 Specifications: Input : 5V/2A ; 9V/1.67A;12V /1.67A Wireless Output : 5V/1A ; 9V/1.12A ; 9V /1.67A Product Size: 0100 x 7.4mm Charging Efficiency: > 65% Transmission Distance: < 6mm (D I np ut port @ LED indicator @ Transmitter ＠ 飞 产 - - - - 、 ti 五 。 三 ;��I� 三 厂三���@ 2.When your mobile device is being charged, the Blue LED indicator will keep on. 3.When your mobile device is fully charged, the Blue and Red ind,catoroff. 4. When the red LED or blue LED ind,cator flashes qu,ckly, that means there is improper operation. When your wireless transmitter working improperly • Clean the clutters on the wireless transmitter. • When the wireless transmitter is over-heating, take your mobile device away from your wireless transmitter.And the transmitter will stop charging automatically when over­ heatin g . Please try charging again when the wireless transmitter cooling down. Remarks 1.The wattage of the power adapter you used need more than 7.SW, We suggest you use the adapter with 5V/2A output. 2.It's normal that this charger and your smart phone will be hot under operating conditions.and it may be more hotter when charging and using at the same time(such as looping music). Model: HE190027 FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving an tenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

FCC ID: 2ALKR-HE190027

Label Location On EUT Label Product Name: Fabric Wireless Charger Model No.: HE190027 FCC ID: 2ALKR-HE190027 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2ALKR-HE190027 ANT

version01 Winplus Australasia pty ltd Declaration concerning Antenna Specification It is hereby declared that the product Model No.: HE190027 FCC ID : 2ALKR-HE190027 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: HE190027 Type of antenna:Inductive loop coil Antenna Gain of the antenna: 0 dBi Frequency range:111.86-146.63KHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Winplus Australasia pty ltd Address: 6 prospect Place, Melobourne, Australia 3155 City: Melobourne ZIP / Postal code: N/A Country:Australia 3155 Place:Australia 3155Date: 2020-04-08 Signature:

Report No.: 18220WC00014702FCC ID: 2ALKR-HE190027Page 1 of 13 Code:AB-RF-05-a FCC TEST REPORT Client Name: Winplus Australasia pty ltd Address: 6 prospect Place, Melobourne, Australia 3155 Product Name: Fabric Wireless Charger Date: Apr. 07, 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: 18220WC00014702FCC ID: 2ALKR-HE190027Page 2 of 13 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 4 1.1. Client Information ....................................................................................................................................... 4 1.2. Description of Device (EUT) ..................................................................................................................... 4 1.3. Auxiliary Equipment Used During Test ................................................................................................... 5 1.4. Test Equipment List .................................................................................................................................... 5 1.5. Measurement Uncertainty ......................................................................................................................... 5 1.6. Description of Test Facility ........................................................................................................................ 5 2. Measurement and Result ..................................................................................................................................... 6 2.1. Requirements .............................................................................................................................................. 6 2.2. Test Setup .................................................................................................................................................... 7 2.3. Test Procedure ............................................................................................................................................ 7 2.4. Test Result ................................................................................................................................................... 7 2.4.1. Equipment Approval Considerations item 5.b of KDB 680106 D01 v03. ...................................... 7 2.4.2. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 .................................................................................................................................................................. 9 APPENDIX I -- TEST SETUP PHOTOGRAPH ................................................................................................... 11 Report No.: 18220WC00014702FCC ID: 2ALKR-HE190027Page 3 of 13 Code:AB-RF-05-a TEST REPORT Applicant: Winplus Australasia pty ltd Manufacturer: Shenzhen Yostand Technology Co., Ltd Product Name: Fabric Wireless Charger Model No.: HE190027 Trade Mark: N.A. Rating(s): Input: DC 5V, 2A/DC 9V, 1.67A/DC 12V, 1.67A(via adapter input: 100-240V~ 50/60Hz, 0.8A Max) Wireless output: DC 5V, 1A/DC 9V, 1.12A/DC 9V, 1.67A Test Standard(s) : FCC Part 1.1310, 1.1307(b) Test Method(s): KDB680106 D01 RF Exposure Wireless Charging Apps v03 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results are contained in this test report and Shenzhen Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also,this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 1.1307 & KDB680106 D01 requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of Shenzhen Anbotek Compliance Laboratory Limited. Date of ReceiptMar. 06, 2020 Date of TestMar. 06~27, 2020 Prepared By (Engineer / Dolly Mo) Reviewer (Supervisor / Bibo Zhang) Approved & Authorized Signer (Manager / Tom Chen) Report No.: 18220WC00014702FCC ID: 2ALKR-HE190027Page 4 of 13 Code:AB-RF-05-a 1. General Information 1.1. Client Information 1.2. Description of Device (EUT) Product Name : Fabric Wireless Charger Model No.: HE190027 Trade Mark: N.A. Test Power Supply: AC 120V, 60Hz for adapter Test Sample No.: 1-2-1(Normal Sample), 1-2-1(Engineering Sample) Product Description : Operation Frequency:111.86-146.63KHz Modulation Type:ASK Antenna Type:Inductive loop coil Antenna Antenna Gain(Peak):0 dBi Remark:1) For a more detailed features description, please refer to the manufacturer’s specifications or the User’s Manual. Applicant: Winplus Australasia pty ltd Address: 6 prospect Place, Melobourne, Australia 3155 Manufacturer: Shenzhen Yostand Technology Co., Ltd Address : East Wing, 10th F., Mingzhou Mansion, Mingzhou Xingye Science Park, No.1 Industrial Zone, Loucun Community, Gongming Street, Guangming New District, Shenzhen Factory: Shenzhen Yostand Technology Co., Ltd Address : East Wing, 10th F., Mingzhou Mansion, Mingzhou Xingye Science Park, No.1 Industrial Zone, Loucun Community, Gongming Street, Guangming New District, Shenzhen Report No.: 18220WC00014702FCC ID: 2ALKR-HE190027Page 5 of 13 Code:AB-RF-05-a 1.3. Auxiliary Equipment Used During Test AdapterM/N: HNFCQC3024UU Input: AC 100-240V~ 50/60Hz, 0.8A MAX Output: DC 5V,3A/DC 9V,2A/DC 12V,2A 1.4. Test Equipment List ItemEquipmentManufacturerModel No.Serial No.Last Cal.Cal. Interval 1 Magnetic field meter NARDAELT-400423623 Dec. 23, 2019 1 Year 2E-Field ProbeNardaEF0391Q15221 Nov.17, 2017 3 Year 3H-Field ProbeNardaHF3061Q15835 Nov.17, 2017 3 Year 1.5. Measurement Uncertainty Radiation Uncertainty: Ur = 3.9 dB (Horizontal) Ur = 3.8 dB (Vertical) Conduction Uncertainty: Uc = …

Text truncated - open the document above for the full version.

Report No.: 18220WC00014701FCC ID: 2ALKR-HE190027Page 1 of 29 Code:AB-RF-05-a FCC TEST REPORT Client Name: Winplus Australasia pty ltd Address: 6 prospect Place, Melobourne, Australia 3155 Product Name: Fabric Wireless Charger Date: Apr. 07, 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: 18220WC00014701FCC ID: 2ALKR-HE190027Page 2 of 29 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 4 1.1. Client Information ....................................................................................................................................... 4 1.2. Description of Device (EUT) ..................................................................................................................... 4 1.3. Auxiliary Equipment Used During Test ................................................................................................... 4 1.4. Description of Test Modes ........................................................................................................................ 5 1.5. Description Of Test Setup ......................................................................................................................... 6 1.6. Test Equipment List .................................................................................................................................... 7 1.7. Measurement Uncertainty ......................................................................................................................... 8 1.8. Description of Test Facility ........................................................................................................................ 8 2. Summary of Test Results ..................................................................................................................................... 9 3. Conducted Emission Test ................................................................................................................................... 10 3.1. Test Standard and Limit .......................................................................................................................... 10 3.2. Test Setup .................................................................................................................................................. 10 3.3. Test Procedure .......................................................................................................................................... 10 3.4. Test Data .................................................................................................................................................... 10 4. Radiation Spurious Emission and Band Edge ................................................................................................ 13 4.1. Test Standard and Limit .......................................................................................................................... 13 4.2. Test Setup .................................................................................................................................................. 13 4.3. Test Procedure .......................................................................................................................................... 14 4.4. Test Data .................................................................................................................................................... 15 5. Antenna Requirement ......................................................................................................................................... 19 5.1. Test Standard and Requirement ............................................................................................................ 19 5.2. Antenna Connected Construction .......................................................................................................... 19 APPENDIX I -- TEST SETUP PHOTOGRAPH ................................................................................................... 20 APPENDIX II -- EXTERNAL PHOTOGRAPH ..................................................................................................... 22 APPENDIX III -- INTERNAL PHOTOGRAPH ..................................................................................................... 27 Report No.: 18220WC00014701FCC ID: 2ALKR-HE190027Page 3 of 29 Code:AB-RF-05-a TEST REPORT Applicant: Winplus Australasia pty ltd Manufacturer: Shenzhen Yostand Technology Co., Ltd Product Name: Fabric Wireless Charger Model No.: HE190027 Trade Mark: N.A. Rating(s): Input: DC 5V, 2A/DC 9V, 1.67A/DC 12V, 1.67A(via adapter input: 100-240V~ 50/60Hz, 0.8A Max) Wireless output: DC 5V, 1A/DC 9V, 1.12A/DC 9V, 1.67A Test Standard(s) : FCC Part15 Subpart C 2019, Paragraph 15.209 Test Method(s): ANSI C63.10: 2013 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results are contained in this test report and Shenzhen Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also,this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of Shenzhen Anbotek Compliance Laboratory Limited. Date of ReceiptMar. 06, 2020 Date of TestMar. 06~27, 2020 Prepared By (Engineer / Dolly Mo) Reviewer (Supervisor / Bibo Zhang) Approved & Authorized Signer (Manager / Tom Chen) Report No.: 18220WC00014701FCC ID: 2ALKR-HE190027Page 4 of 29 Code:AB-RF-05-a 1. General Information 1.1. Client Information Applicant: Winplus Australasia pty…

Text truncated - open the document above for the full version.

FCC ID: 2ALKR-HE190027 Photo of Conducted Emission Measurement Photo of Radiation Emission Test Photo of MPE Measurement
