2ALN5-RL180070Sonr SASH

9800002927 3 SONR Anti-Sweep Hook RF warning statement: The device has been evaluated to meet general RF exposu re requirement. The device can be used in portable exposure condition without restriction. 9800002927 1 SONR Anti-Sweep Hook Insert hooks into pegboard of desired location without lower metal lock plate 1 INSTALL 2 3 Allow enough space between the displays so that product does not touch the surface below or obstruct other merchandise. Insert the Lock Down Plate into the holes directly below the unit. Rotate up into place, until the screw inserts into back plate. 4 Tighten screw with a Phillips Head Screwdriver. Close ScrewCover Cap when finished. Lock Down 9800002927 2 SONR Anti-Sweep Hook Insert the merchandise by following the ramp upwards until product stops, then turn the knob counter clockwise until product catches hook. 5 LOADING MECHANDISE 6 Open window and insert Price Label. DISPENSING MECHANDISE 1 Hold Product 2 Turn Knob to Release WARNING: Do not overturn coil. Product will go all the way Žī the rear of the coil and become inaccessible. ATTENTION: Keep product faced to the front 1 Place Merchandise in the hanging position 2 LED Turn Knob counter clockwise until supported by the wire hook 1~3 Dispenses in less than 30 seconds trigger wireless notification to SiffronEcho Box > 3 Dispenses in less than 30 seconds result in full alarm at ECHO Box 3

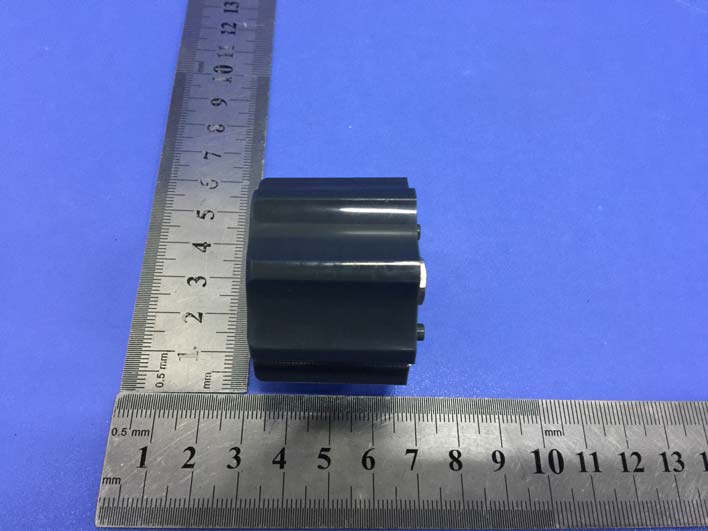

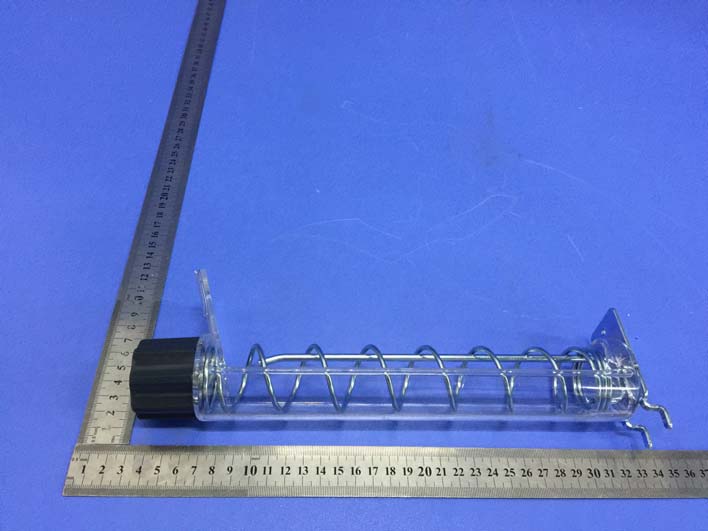

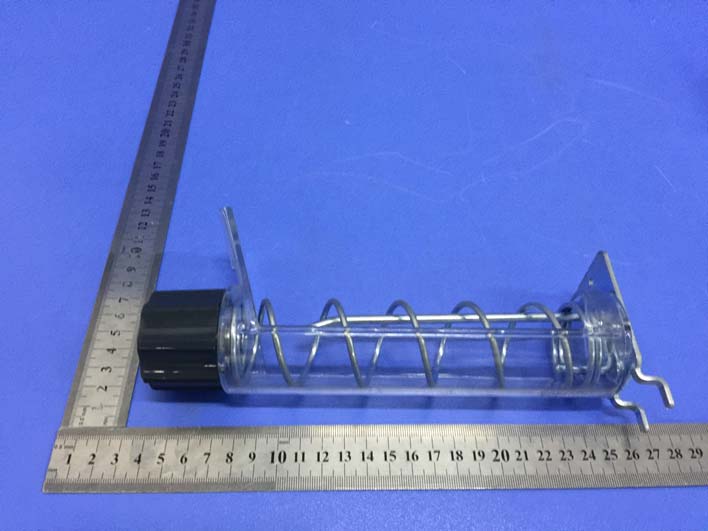

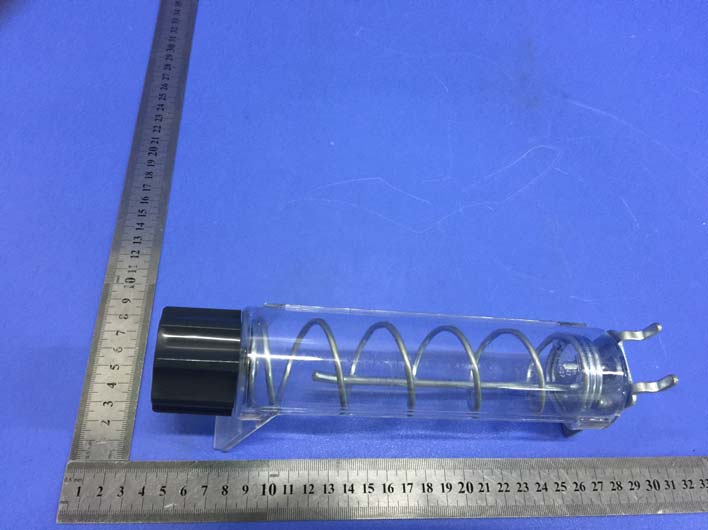

Report No.: TB-FCC170737 Page: 3 of 11 FCC ID: 2ALN5-RL180070 TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT 9inch Antenna 6inch Antenna Report No.: TB-FCC170737 Page: 4 of 11 FCC ID: 2ALN5-RL180070 TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT 12 inch Antenna Report No.: TB-FCC170737 Page: 5 of 11 FCC ID: 2ALN5-RL180070 TB-RF-074-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT Report No.: TB-FCC170737 Page: 6 of 11 FCC ID: 2ALN5-RL180070 TB-RF-074-1.0 Photo 7 Appearance of EUT Photo 8 Appearance of EUT

Report No.: TB-FCC170737 Page: 1 of 11 FCC ID: 2ALN5-RL180070 TB-RF-074-1.0 Appendix IFCC ID Label FCC ID: 2ALN5-RL180070 Report No.: TB-FCC170737 Page: 2 of 11 FCC ID: 2ALN5-RL180070 TB-RF-074-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC170737 Page: 7 of 11 FCC ID: 2ALN5-RL180070 TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 9 Internal of EUT Photo 10 Appearance of PCB Report No.: TB-FCC170737 Page: 8 of 11 FCC ID: 2ALN5-RL180070 TB-RF-074-1.0 Photo 11 Appearance of PCB

version01 Siffron Declaration concerning Antenna Specification It is hereby declared that the product Model No.: RL-18007-0 FCC ID: 2ALN5-RL180070 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Integral antenna type(s) described below: Model No. of antenna: N/A Type of antenna: Integral Antenna Gain of the antenna: 0 dBi Frequency range: 433.92 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Siffron Address: 8181 Darrow Road Twinsburg, OH 44087 USA City: Twinsburg ZIP / Postal code: Country: USA Place: Brent Ewing/ VP of Product Development Date: 2020-03-28 Signature:

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE170738 Page: 1 of 3 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2ALN5-RL180070 1. Client Information Applicant : Siffron Address : 8181 Darrow Road Twinsburg, OH 44087 USA Manufacturer : Shenzhen Allcomm Electronic Company Limited Address : No. 272 Guangtian Road, Tangxiayong, Yanluo Street, Baoan District, Shenzhen City, Guangdong Province, P.R. China 2. General Description of EUT EUT Name : Sonr SASH Models No. : RL-18007-0 Model Difference : N/A Product Description : Operation Frequency: 433.92 MHz Output Power: Ant.1: 85.36 dBuV/m (PK Max.) 73.12 dBuV/m (AV Max.) Ant.2: 82.79 dBuV/m (PK Max.) 70.33 dBuV/m (AV Max.) Ant.3: 74.56 dBuV/m (PK Max.) 62.10 dBuV/m (AV Max.) Antenna Gain: Integral Antenna(0 dBi) Modulation Type: ASK Power Rating : DC 3.0V by button Battery(CR2430). Software Version : V1.0 Hardware Version : V1.0 Remark : The antenna gain provided by the applicant, the verified for the RF conduction test provided by TOBY test lab. Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE170738 Page: 2 of 3 TB-RF-074-1.0 Standard Requirement Portable Device According to §15.247(i) and §1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance V6, section 4.3.1. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where ·f(GHz) is the RF channel transmit frequency in GHz ·Power and distance are rounded to the nearest mW and mm before calculation17 ·The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Report No.: TB-MPE170738 Page: 3 of 3 TB-RF-074-1.0 Measurement Result: Test separation: 5mm Antenna Type Frequency (GHz) Max. E (dBuV/m) D (m) Max Output power (dBm) Max Output power (mW) Calculation Value (Note 1) Threshold Value 12 inch 433.92 85.36 3 -9.90 0.1024 0.0135 3.0 9 inch 433.92 82.79 3 -12.47 0.0567 0.0075 3.0 6 inch 433.92 74.56 3 -20.70 0.0085 0.0011 3.0 Note: EIRP=E-104.8+20logD Note 1: Calculation Value =[(max. power of channel, mW)/(min.test separation distance, mm)] ·[√f(GHz)]. Fox example: 0.1024/5*√0.43392=0.0135 ≤3.0 According to KDB447498 D01 V6, threshold at which no SAR required is ≤3.0 for 1-g SAR, separation distance is 5mm, and no simultaneous SAR measurement is required. Standard Applicable According to 2.1093 this is a portable device. According to KDB 447498 D01 V6, Appendix A SAR test exclusion thresholds for below table, the power level 22mW at 5mm. Measurement Result: This is a portable device and the Max. peak output power is -9.90dBm(0.1024mW) lower than low threshold 22mW at 5mm in general population category; The SAR measurement is not necessary. -----END OF REPORT-----

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC170737 Page: 1 of 37 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2ALN5-RL180070 Report No. : TB-FCC170737 Applicant : Siffron Equipment Under Test (EUT) EUT Name : Sonr SASH Model No. : RL-18007-0 Serial Model No. : N/A Brand Name : N/A Receipt Date : 2020-03-16 Test Date : 2020-03-16 to 2020-03-27 Issue Date : 2020-03-28 Standards : FCC Part 15, Subpart C (15.231(a)) Test Method : ANSI C63.10:2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Jack Deng Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC170737 Page: 2 of 37 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting .............................................................................. 7 1.7 Measurement Uncertainty ................................................................................................ 7 1.8 Test Facility ........................................................................................................................ 8 2. TEST SUMMARY ....................................................................................................................... 8 3. TEST SOFTWARE ..................................................................................................................... 8 4. TEST EQUIPMENT .................................................................................................................... 9 5. CONDUCTED EMISSION TEST ........................................................................................... 10 5.1 Test Standard and Limit .................................................................................................... 10 5.2 Test Setup ........................................................................................................................... 10 5.3 Test Procedure ................................................................................................................... 11 5.4 Deviation From Test Standard ......................................................................................... 11 5.5 Test Data ............................................................................................................................. 11 6. RADIATED EMISSION TEST ................................................................................................ 12 6.1 Test Standard and Limit .................................................................................................... 12 6.2 Test Setup ........................................................................................................................... 13 6.3 Test Procedure ................................................................................................................... 15 6.4 Deviation From Test Standard ......................................................................................... 15 6.5 EUT Operating Condition ................................................................................................. 15 6.6 Test Data ............................................................................................................................. 15 7. BANDWIDTH ............................................................................................................................ 16 7.1 Test Standard and Limit .................................................................................................... 16 7.2 Test Setup ........................................................................................................................... 16 7.3 Test Procedure ................................................................................................................... 16 7.4 Deviation From Test Standard ......................................................................................... 16 7.5 EUT Operating Condition ................................................................................................. 16 7.6 Test Data ............................................................................................................................. 16 8. RELEASE TIME MEASUREMENT ....................................................................................... 17 8.1 Test Standard and Limit .................................................................................................... 17 8.2 Test Setup ........................................................................................................................... 17 8.3 Test …

Text truncated - open the document above for the full version.

Report No.: TB-FCC170737 Page: 9 of 11 FCC ID: 2ALN5-RL180070 TB-RF-074-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz)-12 inch Antenna Photo of Setup for Radiated Emission (Above 1 GHz)-9 inch Antenna Report No.: TB-FCC170737 Page: 10 of 11 FCC ID: 2ALN5-RL180070 TB-RF-074-1.0 Photo of Setup for Radiated Emission (Above 1 GHz)-6 inch Antenna Photo of Setup for Radiated Emission (Below 1 GHz)-12 inch Antenna Report No.: TB-FCC170737 Page: 11 of 11 FCC ID: 2ALN5-RL180070 TB-RF-074-1.0 Photo of Setup for Radiated Emission (Below 1 GHz)-9 inch Antenna Photo of Setup for Radiated Emission (Below 1 GHz)-6 inch Antenna -----END OF REPORT-----
