2ALP8AP4Battery pack with radio interface

1 © ANDREAS STIHL AG & Co. KG, 2025 AP EA13 400 XXXX 4850 400 XXXX Get the STIHL connected App 2 41 3 REGISTER SIGN IN ANDREAS STIHL AG & Co. KG, 71336 Waiblingen / GERMANY GB SAVE THESE INSTRUCTIONS! WARNING ￭ AP series batteries are designed only to power compatible STIHL products, specified Kärcher products and specified third-party products. Use for other purposes or with products not specifically authorized could result in personal injury or property damage. Refer to your tool’s operating instructions to confirm battery compatibility. ￭ The battery contains safety features and devices which, if damaged, may allow the battery to generate heat, rupture, leak, ignite or explode. – Never use or charge a malfunctioning, damaged, cracked, leaking or deformed battery. – Never open, disassemble, crush, drop, subject to heavy impact or otherwise damage the battery. – Never expose the battery to microwaves or high pressures. – Never insert objects into the battery's cooling slots. ￭ Extreme temperatures can damage the battery and may also cause it to generate heat, rupture, leak, ignite or explode, resulting in severe or fatal personal injury or property damage. Never charge, use or store the battery outside the ambient temperature limits specified below. – Do not charge the battery below - 4 °F (- 20 °C) or above 122 °F (50 °C). – Do not use the battery below - 4 °F (- 20 °C) or above 122 °F (50 °C). – Do not store the battery below - 4 °F (- 20 °C) or above 158 °F (70 °C). ￭ For optimum performance, observe the following ambient temperature ranges for the battery: – Charging:41 °F to 104 °F (5 °C to 40 °C) – Use: 14 °F to 104 °F (- 10 °C to 40 °C) – Storage: - 4 °F to 122 °F (- 20 °C to 50 °C) Charging, using or storing the battery outside the recommended ambient temperature ranges may reduce performance. ￭ To reduce the risk of personal injury and property damage in the event the battery emits smoke, an unusual smell or feels unusually hot while using, charging or storing: – Immediately discontinue using or charging the battery. Prepare to contact the authorities in the event of fire or explosion. ￭ To reduce the risk of a short circuit, which could lead to electric shock, fire and explosion: – Never bridge the battery terminals with wires or other metallic objects. – Keep a battery that is not in use away from small metal objects capable of conducting electricity (e.g., paper clips, nails, coins, keys). – Store the battery indoors in a dry room. – Never store the battery in damp or corrosive environments or in conditions that could lead to corrosion of its metal components. – Protect the battery from exposure to corrosive agents such as garden chemicals and de-icing salts. – Never store the battery in the power tool. – When storing the battery, maintain a charge of 40 % to 60 % (2 green LEDs). – If storing the battery in the charger, disconnect the charger from the outlet. – Do not attempt to repair, open or disassemble the battery. There are no user- serviceable parts inside. ￭ Leaking battery fluid can cause skin and eye irritation or chemical burns. – Avoid contact with skin and eyes. – Use an inert absorbent such as sand on spilled liquids. – In the event of accidental contact, immediately rinse the contact area thoroughly with mild soap and water. – If fluid gets into your eye(s): Do not rub. Rinse water over the open eye(s) for at least 15 minutes and seek medical attention. ￭ A battery fire can be dangerous. To reduce the risk of severe personal injury and property damage in the event of fire: – Evacuate the area. Fire can spread rapidly. Stay clear of any vapors generated and maintain a safe distance. – Contact the fire department. – Although water can be used to put out a battery fire, use of a multi-purpose dry chemical fire extinguisher is preferable. – Consult the fire department regarding proper disposal of the burned battery. ￭ Dropping the battery could result in personal injury or property damage. To prevent the battery from falling during removal: – Place the power tool on a level surface and use care when ejecting the battery. Four LEDs show the status of the battery. These LEDs can glow or flash green or red. The green lights indicate the status of the charge, with four continuously glowing green lights indicating a full charge. If one green LED is flashing, less than 20% of the battery's charge remains. Read and follow the warnings and instructions in your charger's manual. For optimum performance, STIHL recommends operating the charger within an ambient temperature range of 41 °F to 104 °F (5 °C to 40 °C). Use of unauthorized chargers can result in fire or explosion. Charge only with compatible AL series chargers. Remove the battery from the power tool when not in use. If storing the battery in the charger, disconnect the charger from the electrical outlet. Store the battery indoors away from children and other unauthorized users. Keep the battery dry. Protection against spraying or splashing water from all directions. For batteries rated to IPX5 (see rating label on battery for certified moisture/dust protection class): Batteries certified to IPX5 can be rinsed briefly with clear running water from time to time if absolutely necessary. Do not use cleaning agents. For a battery cleaned with running water, or any battery that became damp or wet during operation, allow it to dry at least 48 hours at temperatures between 59 °F (15 °C) and 122 °F (50 °C) and relative humidity below 70 % before charging or storing. Higher humidity can extend the drying time. Store the battery only within an ambient temperature range of - 4 °F to 122 °F (- 20 °C to 50 °C), with a charge of 40 % and 60 % (2 green LEDs). Exposure to temperatures outside the recommended range may reduce battery life and performance. Use spare batteries in rotation. A battery with this symbol is equipped with Bluetooth ® and can be used with the STIHL connected App. Turning On/Off: Press and hold the button on …

Text truncated - open the document above for the full version.

Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Your Reference Dated Our Reference Phone E-Mail Date [email protected] 01-29-2026 Attestation Statement according to 2.911(d)(5)(i) and 2.911(d)(5)(ii) FCC ID: 2ALP8AP4 To whom it may concern: Hereby we certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Further we certify that, as of the date of the filing of the application, Andreas Stihl AG & Co. KG is not identified on the Covered List as an entity producing “covered” equipment. Yours sincerely ANDREAS STIHL AG & Co. KG Product Certification & Standardization i. A. Tim Römer

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b) (4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ALP8AP4 AP 300.0 P For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality External Photos Internal Photos x Block Diagram x Schematics x Test Setup Photos User’s Manual Parts List x Tune Up Operational Description x The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Tim Römer / Product Certification Engineer Andreas Stihl AG & Co. KG Badstrasse 115 71336 Waiblingen +497151264428 [email protected]

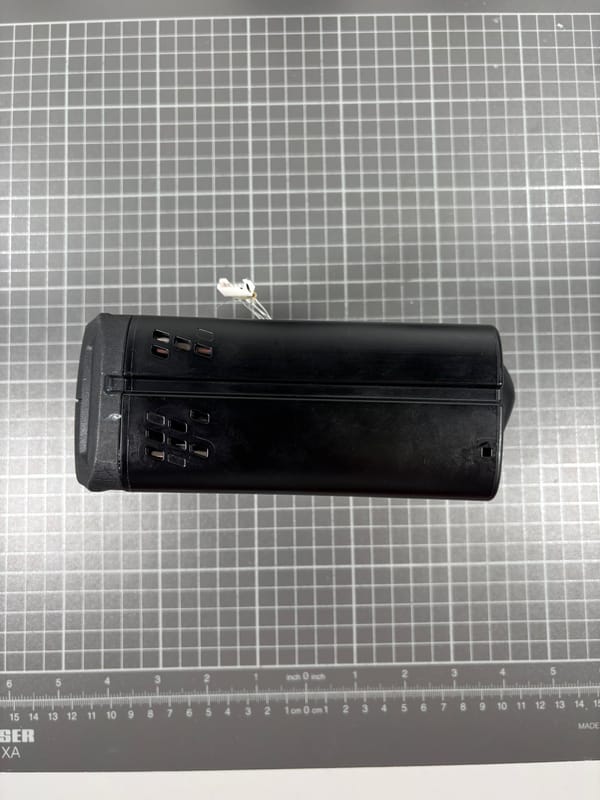

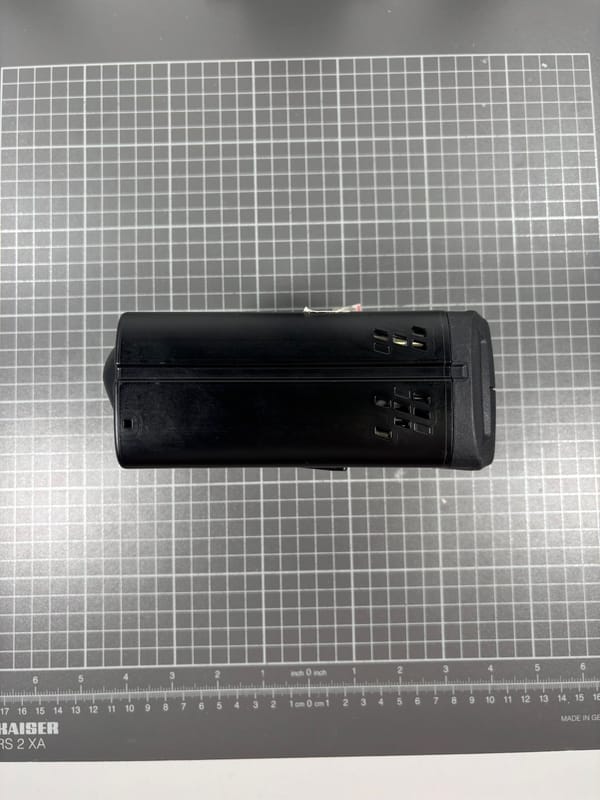

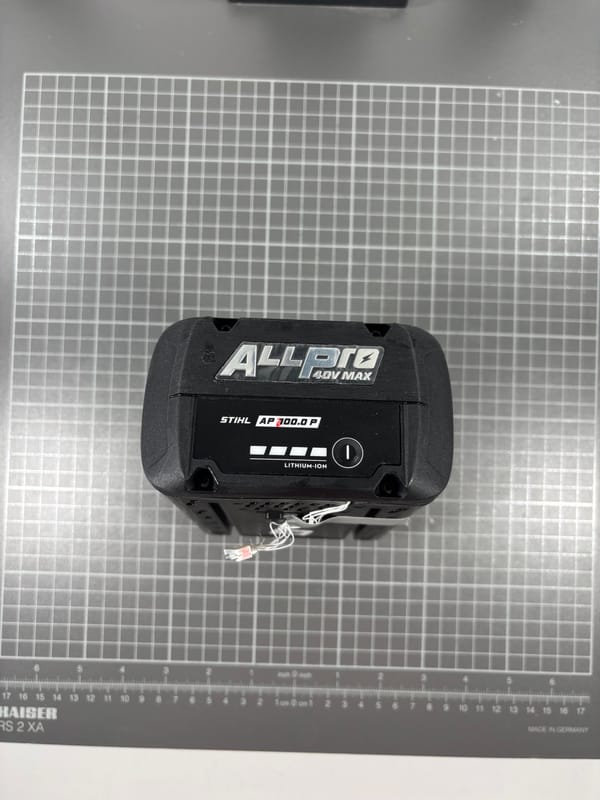

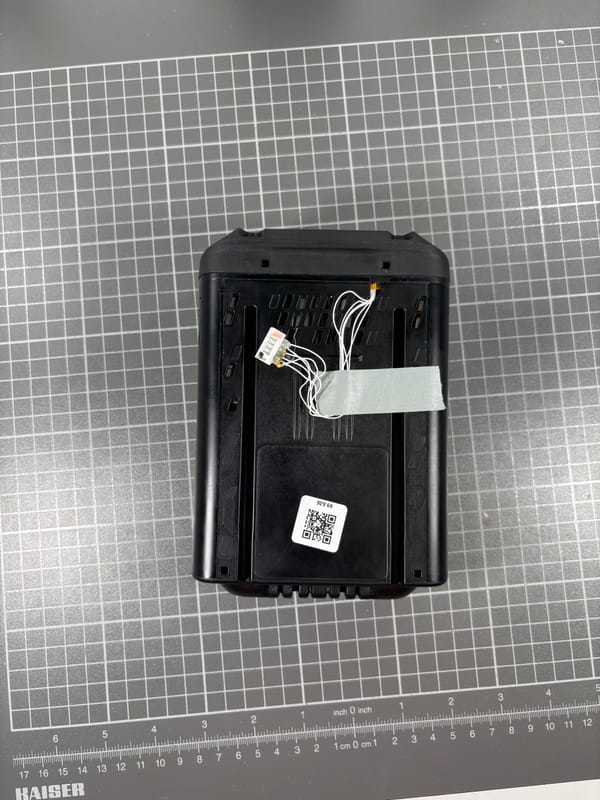

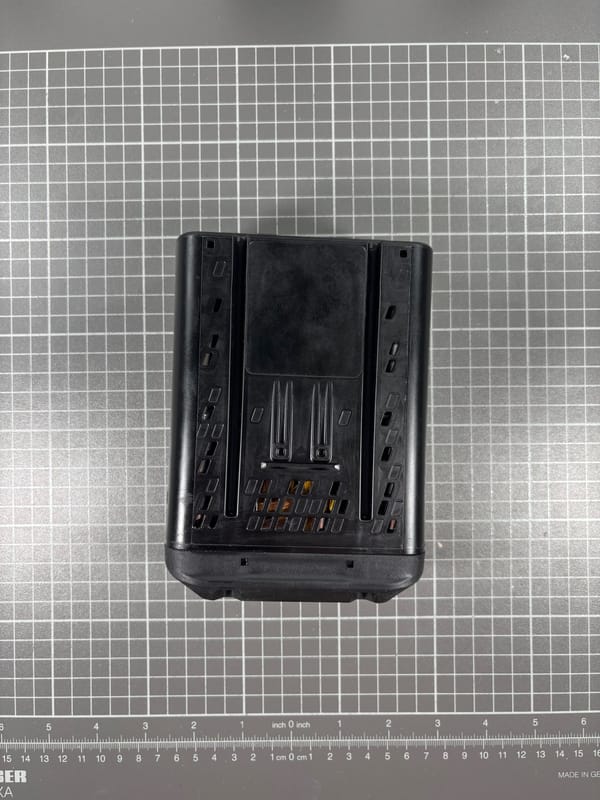

Annex A101 - Photographs No. 1-1311-25-01-01_TR1-A101-R01 March 18, 2026 DescriptionExternal photos of EUT This document is electronically signed and valid without handwritten signature. Public keys for verifcation of the electronic signatures can be requested at the testing laboratory. Michael Dorongovski Lab Manager/ Telecommunication Certification Body (USA/CAN/ JPN) Regulatory Services Radio / Assessment &Approvals authorized by cetecom advanced GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken Document No. 1-1311-25-01-01_TR1-A101-R01 Page 1 of 5 Photo 1 Photo 2 cetecom advanced GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken Document No. 1-1311-25-01-01_TR1-A101-R01 Page 2 of 5 Photo 3 Photo 4 cetecom advanced GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken Document No. 1-1311-25-01-01_TR1-A101-R01 Page 3 of 5 Photo 5 Photo 6 cetecom advanced GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken Document No. 1-1311-25-01-01_TR1-A101-R01 Page 4 of 5 Document History End of document ReleaseApplied changesRelease date R01initial releaseMarch 18, 2026 cetecom advanced GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken Document No. 1-1311-25-01-01_TR1-A101-R01 Page 5 of 5

Test Report No. 1-1311-25-01-03_TR1-R02 March 11. 2026 ApplicantANDREAS STIHL AG & Co. KG ProductAkku ModelAP 300.0 P Tested TechnologyBluetooth LE Test StandardFCC 47 CFR Part 2 VerdictTEST EXEMPTION FULFILLED The test results apply only to the equipment specified in this document. This test report is electronically signed and valid without handwritten signature. Public keys for verification of the electronic signatures can be requested at the testing laboratory. Alexander Hnatovskiy Coordinator Area Regulatory Services Radio authorized by Eric Tuettmann Testing Manager Regulatory Services Radio created by cetecom advanced GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken Document No. 1-1311-25-01-03_TR1-R02 Page 1 of 16 Table of Contents 1.Document history..........................................................................................................................................3 1.1.Current release.................................................................................................................................................................................3 1.2.Previous releases.............................................................................................................................................................................3 2.Disclaimer....................................................................................................................................................4 3.Test laboratory..............................................................................................................................................5 3.1.Contact information.........................................................................................................................................................................5 3.2.Involved test locations......................................................................................................................................................................5 3.3.Subcontracted laboratories...............................................................................................................................................................5 3.4.Laboratory listings and recognitions.................................................................................................................................................5 4.Measurement details....................................................................................................................................6 4.1.Test methodology.............................................................................................................................................................................6 5.Test sample information...............................................................................................................................7 5.1.General Information.........................................................................................................................................................................7 5.1.1.General Data of Main EUT as Declared by Applicant...................................................................................................................7 6.Client information.........................................................................................................................................8 6.1.Applicant..........................................................................................................................................................................................8 6.2.Manufacturer....................................................................................................................................................................................8 7.1.1 General Information................................................................................................................................9 7.1.Notes and Disclaimer.......................................................................................................................................................................9 7.2.References.......................................................................................................................................................................................9 7.3.General RF Exposure Test Exemptions............................................................................................................................................10 8.Simultaneous Transmission........................................................................................................................12 8.1.KDB 447498 D04 Interim General RF Exposure Guidance v01, section 2.2.1:....................................................................................12 8.1.1.Results....................................................................................................................................................................................13 8.1.2.TechnologyShare of Limit........................................................................................................................................................13 9.SAR Based Test Exemption.........................................................................................................................14 9.1.KDB 447498 D04 Interim General RF Exposure Guidance v01, section 2.1.3:....................................................................................14 9.1.1.Results....................................................................................................................................................................................16 cetecom advanced GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken Document No. 1-1311-25-01-03_TR1-R02 Page 2 of 16 1.1.Current release Release No.:R02 Date of release:March 11. 2026 Applied changes:added minimum safety distance descriptor of 5 …

Text truncated - open the document above for the full version.

TEST REPORT Test report no.: 1-1311-25-01-02_TR1-R01 Testing laboratory Applicant cetecom advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: https://cetecomadvanced.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS). The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12047-01-00. ISED Testing Laboratory Recognized Listing Number: DE0001 FCC designation number: DE0002 ANDREAS STIHL AG & Co. KG Andreas-Stihl-Straße 4 71336 Waiblingen / GERMANY Phone: -/- Contact: Christian Huwig e-mail: -/- Manufacturer ANDREAS STIHL AG & Co. KG Andreas-Stihl-Straße 4 71336 Waiblingen / GERMANY Test standard/s FCC - Title 47 CFR Part 15 FCC - Title 47 of the Code of Federal Regulations; Chapter I; Part 15 - Radio frequency devices RSS - 247 Issue 4 Digital Transmission Systems, Frequency Hopping Systems and Licence-Exempt Local Area Network Devices in 902-928 MHz, 2400-2483.5 MHz, 5150-5350 MHz, and 5470-5895 MHz bands For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: Battery pack Model name: AP 300.0 P FCC ID: 2ALP8AP4 ISED certification number: 23431-AP4 Frequency: 2400 MHz to 2483.5 MHz Technology tested: Bluetooth ® LE Antenna: Integrated antenna Power supply: 36 V DC by battery Temperature range: -10°C to +40°C This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorized: Test performed: Marco Bertolino Michael Dorongovski Supervisor Radio Lab Lab Manager Regulatory Services Radio Regulatory Services Radio Test report no.: 1-1311-25-01-02_TR1-R01 © cetecom advanced GmbH Page 2 of 36 1 Table of contents 1 Table of contents .................................................................................................................................... 2 2 General information ................................................................................................................................ 3 2.1 Notes and disclaimer .................................................................................................................... 3 2.2 Application details ........................................................................................................................ 3 2.3 Test laboratories sub-contracted .................................................................................................. 3 3 Test standard/s, references and accreditations ....................................................................................... 4 4 Reporting statements of conformity – decision rule ................................................................................ 5 5 Test environment.................................................................................................................................... 6 6 Test item ................................................................................................................................................ 6 6.1 General description ...................................................................................................................... 6 6.2 Additional information .................................................................................................................. 6 7 Description of the test setup ................................................................................................................... 7 7.1 Shielded semi anechoic chamber .................................................................................................. 8 7.2 Shielded fully anechoic chamber .................................................................................................. 9 7.3 Radiated measurements > 18 GHz .............................................................................................. 10 7.4 Conducted measurement system ................................................................................................ 11 8 Sequence of testing .............................................................................................................................. 12 8.1 Sequence of testing radiated spurious 9 kHz to 30 MHz .............................................................. 12 8.2 Sequence of testing radiated spurious 30 MHz to 1 GHz ............................................................. 13 8.3 Sequence of testing radiated spurious 1 GHz to 18 GHz .............................................................. 14 8.4 Sequence of testing radiated spurious above 18 GHz .................................................................. 15 9 Measurement uncertainty ..................................................................................................................... 16 10 Summary of measurement results ..................................................................................................... 17 11 Additional comments ........................................................................................................................ 18 12 Measurement results ........................................................................................................................ 19 12.1 System gain ............................................................................................................................ 19 12.2 Power spectral density ............................................................................................................ 20 12.3 DTS bandwidth – 6 dB bandwidth ................................................................................…

Text truncated - open the document above for the full version.

Conducted test results No.1-1311-25-01-02_TR1-A201-R01 March 03, 2026 Test Standard(s)FCC 15.247 - NI FCC 15.247, ISED RSS247 - NI NA - NI This document is electronically signed and valid without handwritten signature. Public keys for verification of the electronic signatures can be requested at the testing laboratory. Authorized Michael Dorongovski Lab Manager Radio Labs cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-1311-25-01-02_TR1-A201-R01 Release 1 - Page 1 of 71 Table of Content FCC 15.247 # Bandwidth 6dB DTS ~ BT LE 1 Msps3 FCC 15.247 # Bandwidth 6dB DTS ~ BT LE 1 Msps6 FCC 15.247 # Bandwidth 6dB DTS ~ BT LE 1 Msps9 FCC 15.247, ISED RSS247 # Bandwidth 99PCT and 20dB ~ BT LE 1 Msps12 FCC 15.247, ISED RSS247 # Bandwidth 99PCT and 20dB ~ BT LE 1 Msps17 FCC 15.247, ISED RSS247 # Bandwidth 99PCT and 20dB ~ BT LE 1 Msps22 FCC 15.247 # Maximum peak conducted output power DTS ~ BT LE 1 Msps27 FCC 15.247 # Maximum peak conducted output power DTS ~ BT LE 1 Msps31 FCC 15.247 # Maximum peak conducted output power DTS ~ BT LE 1 Msps35 NA # Peak output power 3MHz/3MHz ~ BT LE 1 Msps39 NA # Peak output power 3MHz/3MHz ~ BT LE 1 Msps43 NA # Peak output power 3MHz/3MHz ~ BT LE 1 Msps47 FCC 15.247 # Peak psd DTS ~ BT LE 1 Msps51 FCC 15.247 # Peak psd DTS ~ BT LE 1 Msps54 FCC 15.247 # Peak psd DTS ~ BT LE 1 Msps57 FCC 15.247 # TX spurious conducted 20dBc ~ BT LE 1 Msps60 FCC 15.247 # TX spurious conducted 20dBc ~ BT LE 1 Msps64 FCC 15.247 # TX spurious conducted 20dBc ~ BT LE 1 Msps68 cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-1311-25-01-02_TR1-A201-R01 Release 1 - Page 2 of 71 FCC 15.247 # Bandwidth 6dB DTS ~ BT LE 1 Msps References TC start02.03.2026 10:18:38 Ambit temp (test rack) [°C] | humidity [rel%] not enabled | not enabled System version6.0.6.0 Standard | Version FCC 15.247 | NI Method DescriptionFCC 15.247 Bandwidth 6dB DTS - BT LE 1 Msps Information EUT Common Settings BT Low Energy Intermodulation value N 3 Image freq. Low | Mid | High [MHz] 0 | 0 | 0 Power class2 1 Mbps supported True | TXpayload 255 | RXpayload 255 2 Mbps supported False | TXpayload 255 | RXpayload 255 Longrange S8 supported False | TXpayload 255 | RXpayload 255 Longrange S2 supportedFalse | TXpayload 255 | RXpayload 255 Signaling settings None | HCI | 1 | 2400 | None | S1 | None | On Signaling RF settings RF1com | 0 | 0 | On | User interaction No Equipment Signal analyzer,Rohde&Schwarz,FSV-30,1321.3008K30/103170,3.70 Switch matrix,cetecom advanced GmbH,USM,A001,1.0.0 Test Parameter Technology to testBT LE 1 Msps EUT portEUT1 Temperaturenom Voltagenom Frequency low to testFalse | Freq [MHz] 2402 Frequency mid to testFalse | Freq [MHz] 2440 Frequency high to testTrue | Freq [MHz] 2480 Auto control enabled power supply | Climatic Box No | No Additional path loss [dB]0.7 Full path typeEUT_SA_GEN_SIG Full path nameEUT1.MP.SIG1/EUT1.SA/EUT1.GEN1/EUT1.GEN2/ cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-1311-25-01-02_TR1-A201-R01 Release 1 - Page 3 of 71 Test Parameter Switch bits 00010001:00010001:00000000:00000001 cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-1311-25-01-02_TR1-A201-R01 Release 1 - Page 4 of 71 Test at TX 2480 MHz RESULT: Reference power cond. DESCRIPTIONLOWER LIMITUPPER LIMITMEASUREDUNITVERDICT Ref. power 1MHz/1MHz cond. -------1.57dBmINFO Ref. frequency------2480.300MHzINFO READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]3.43 | 9.41 | 10 Start [MHz] | Stop [MHz]2479.000 | 2481.000 RBW [MHz] | VBW [MHz]0.100000 | 0.300000 Detector | TraceModePOS | MAXH Sweep: time [ms] | count | points per Section | type50 | 200 | 10001 | SWE 2479.002479.202479.402479.602479.802480.002480.202480.402480.602480.802481.00 MHz Frequency 0.0 -5.0 -10.0 -15.0 -20.0 -25.0 -30.0 -35.0 -40.0 dBm Magnitude BW 6dB RESULT DESCRIPTIONLOWER LIMITUPPER LIMITMEASUREDUNITVERDICT DTS bandwidth (6dB)500---718kHzPASS Verdict PASS cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-1311-25-01-02_TR1-A201-R01 Release 1 - Page 5 of 71 FCC 15.247 # Bandwidth 6dB DTS ~ BT LE 1 Msps References TC start02.03.2026 10:02:00 Ambit temp (test rack) [°C] | humidity [rel%] not enabled | not enabled System version6.0.6.0 Standard | Version FCC 15.247 | NI Method DescriptionFCC 15.247 Bandwidth 6dB DTS - BT LE 1 Msps Information EUT Common Settings BT Low Energy Intermodulation value N 3 Image freq. Low | Mid | High [MHz] 0 | 0 | 0 Power class2 1 Mbps supported True | TXpayload 255 | RXpayload 255 2 Mbps supported False | TXpayload 255 | RXpayload 255 Longrange S8 supported False | TXpayload 255 | RXpayload 255 Longrange S2 supportedFalse | TXpayload 255 | RXpayload 255 Signaling settings None | HCI | 1 | 2400 | None | S1 | None | On Signaling RF settings RF1com | 0 | 0 | On | User interaction No Equipment Signal analyzer,Rohde&Schwarz,FSV-30,1321.3008K30/103170,3.70 Switch matrix,cetecom advanced GmbH,USM,A001,1.0.0 Test Parameter Technology to testBT LE 1 Msps EUT portEUT1 Temperaturenom Voltagenom Frequency low to testFalse | Freq [MHz] 2402 Frequency mid to testTrue | Freq [MHz] 2440 Frequency high to testFalse | Freq [MHz] 2480 Auto control enabled power supply | Climatic Box No | No Additional path loss [dB]0.7 Full path typeEUT_SA_GEN_SIG Full path nameEUT1.MP.SIG1/EUT1.SA/EUT1.GEN1/EUT1.GEN2/ cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-1311-25-01-02_TR1-A201-R01 Release 1 - Page 6 of 71 Test Parameter Switch bits 00010001:00010001:00000000:00000001 cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-1311-25-01-02_TR1-A201-R01 Release 1 - Page 7 of 71 Test at TX 2440 MHz RESULT: Reference power cond. DESCRIPTIONLOWER LIMITUPPER LIMITMEASUREDUNITVERDICT Ref. power 1MHz/1MHz cond. -------0.77dBmINFO Ref. frequency------2440.300MHzINFO READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] …

Text truncated - open the document above for the full version.

Bezeichnung : description : size3,2 x 1,6 A3,2 ± 0,2mm B1,6 ± 0,2mm C1,3 +0,1/-0,2mm D0,5 ± 0,3mm Feeding Point NC Eigenschaften / properties Wert / valueEinheit / unittol. Fre quenzbereich/ frequency range VSWR VSWR Im pedanz / impedance Antennengewinn / peak gain Antennengewinn / average gain Keramik / ceramic AWeVersion 104-10-11 NameÄnderung / modificationDatum / date (XZ-V) typ. A AdBi -0,5 typ. dBi Ω f 2400 ... 2500 MHz 2,0 SMD Antenne WE-MCA Chip-Antenna WE-MCA Z Spezifikation für Freigabe / specification for release DATUM / DATE : 2004-10-11 max. Testbedingungen / test conditions 7488930245 A Mechanische Abmessungen / dimensions: Kunde / customer : Artikelnummer / part number : Ag + Ni + Sn F Werkstoffe & Zulassungen / material & approvals Geprüft / checked ............................................... .................................................................................. Leistung/ power capacity : 3 W max. http://www.we-online.de Datum / date ........................................................................... Unterschrift / signature Kontrolliert / approved Würth Elektronik eiSos GmbH & Co.KG D-74638 Waldenburg · Max-Eyth-Str. 1 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400 .................................................. Würth Elektronik C Abbildung/ apperance: B Elektrische Eigenschaften / electrical properties: Lagerbedingung / storage conditions: 15°C ~ 35°C 0,5 (XZ-V) Basismaterial / base material: Kontakt Material / contact plating: D Prüfgeräte / test equipment: E Testbedingungen / test conditions: 50 Umgebungstemperatur / temperature: Agilent E5071A Freigabe erteilt / general release: Kunde / customer Betriebstemp. / operating temperature: -40°C ~ +85°C G Eigenschaften / general specifications: 45 ~ 75% RH Luftfeuchtigkeit / humidity: 1 2 RoHS compliant LF 50 ~ 70% 20°C ~ 25°C B C A D 1 2 SEITE 1 VON 4 Bezeichnung : description : Without Matching Circuit: With Matching Circuit: Without Matching Circuit: With Matching Circuit: DATUM / DATE : 2004-10-11 Artikelnummer / part number : 7488930245 H Lötpadempfehlung / solder pads: SMD Antenne WE-MCA Chip-Antenna WE-MCA Spezifikation für Freigabe / specification for release Kunde / customer : http://www.we-online.de K Messdiagramme/ measuring diagrams: Würth Elektronik eiSos GmbH & Co.KG D-74638 Waldenburg · Max-Eyth-Str. 1 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400 11.522.533.54 20 15 10 5 0 Frequency (GHz) Return Loss S11 (dB) 11.522.533.54 25 20 15 10 5 0 Frequency (GHz) Return Loss S11 (dB) *Line width should be designed to match 50Ω characteristic impedance, depending on PCB material and thickness. (Matching circuit and component values will be different, depending on PCB layout) 1 1 2 3 1: 2.7625 GHz -21.48 dB 1 1 2 3 1: 2.3575 GHz -10.051 dB 2: 2.47 GHz -18.506 dB 3: …

Text truncated - open the document above for the full version.
