2ALU5E100CTXWireless HDMI Extender

ClearClick ® Present+Share (USB-C Editio n) Wireless Pre sentation & Video Broadcasting System User ’s Manual & Qui ck S tart Guide 2-Year Warranty & USA-Based Tech Support For tech support, email us at: [email protected] Extend your warranty to 3 years for free by registering at: www.ClearClick.com/Register/ www.ClearClick.com 2 FCC STATEMENT This device co mplies with Part 15 of the FCC Rules. Operation is subject to the following two co nditions: (1) (2) Warning: Changes or modifica tions not exp re ssly appro ve d by the party re sponsible for co mplia nce co uld vo id the use r' s authority to operate the equipment. NOTE: This equipment has been test ed and found to co mply with the limits f or a Class B digital devi ce , pursuant to Part 15 of the FCC Rules. These limits are desi gned to pro vi de reasonable pro tect ion against harmful interf erence in a re si dential installa tion. This equipment generates use s and can ra diate radio frequen cy energy and, if not inst alled and used in accordance with the inst ru ct ions, may cause harmful interf erence to radio co mmunica tions. Howeve r, there is no guarantee that interf ere nce will not occu r in a part icu lar inst alla tion. If this equipment does cause harmful interf erence to ra dio or televi si on re ception, which can be determined by t urn ing the equipment off and on, the use r is encouraged to try to co rrect the interf erence by one or more of the follo wing measures: Reorient or re loc ate the re ceivi ng antenna. Increase the se paration between the equipment and re ce ive r. Connect the equipment into an outlet on a ci rcuit different from that to which the re ceiver is co nnected. Consult the dealer or an exp eri enced radio/TV tech nici an for help. RF warning state ment: This device co mplie s with FCC SAR requirements. The highest reported 1g-SAR for body is 0.287 W / Kg Limb Worn Operation This device was test ed for typ ical body-w orn operations. To co mply with RF exposure re quire ments, a mi nimum separation dist ance of 5mm is use d between the use r’s body , incl uding the antenna. Third-party belt- clips, holst ers, and si mi lar access ori es used by t his device sh ould not contain any metallic co mponents. Body-w orn access ori es t hat do not meet these re quire ments may not co mply with RF exposure requirements and sh ould be avo ided. Use only t he suppli ed or an approved antenna. 3 Additional Tra nsmitters Availabl e This system supports up to 8 transmi tters. To purchase additional transmi tters, ple ase vis it : www.ClearC lick.com Extend Your Warranty for FREE! Extend your warranty by one year for free sim ply by registering your product at: www.ClearC lick.com Safety Pre cautions – Important, Please Read: 1. Do n ot disa ss emble t he u nits. 2. Do n ot permit ch ildren to use o r p lay with t his device. 3. Please note t hat th e devices may become v ery warm d uring use . 4. Do n ot operate t he unit around wate r o r rain. Do not operate th e u nit around any unnece ssa ry mach ines or a ppliance s. 5. Unplug the units when not in u se . 6. Use o nly th e i ncl uded acc esso ries with t he d evice . 2-Year Warranty Your purchase co mes wit h a 2-year warranty. This means that if anything goes wrong wit h the unit (other than accidental damage) wit hin the firs t 2 years of ownership, we wil l replace the unit for free, 100% at our cost. Contact us at support @clearc lick.com wit h any is sues. 4 What’s I n The Box? Recommended System Requirement s  PC/Mac/Phone/Netbook/Tablet with USB-C port th at supports USB-C video output (D isplayPort Alt Mode).  Recommended minimum 2018 model year.  Phones/Tablet s must have USB-C port. (Lightn in g p ort & micro USB n ot su pported.) 5 Quick Start Guide 1. Plug in th e rece iver (RX) to your TV, monito r, o r projector via HDMI. 2. Connect the USB-C port of th e rece iver (RX) t o a USB port o r power supply for power (required) . 3. Connect a transmitter ( TX) to your PC/Mac/Netbook/Phone/Table t’s USB-C port. (See System Requirement s on previous p age.) 4. Press th e b utt on o n t he t ransmitt er ( TX) to start transmit ting to the receiver (RX) att ach ed to your TV, monit or, or proj ect or. 5. With in a f ew seco nds, your TV/monito r/proj ecto r wi ll show the video signal that it is receivi ng from your device. 6. IMPORTANT NOTE - HOW TO USE THE SECOND TRANSMITTER (TX): If t he f ir st transmit te r ( TX) is transmitting/in u se , you must f ir st “unli nk” it by pressing t he butto n o n 6 th e first transmitter ( TX) again (or unplugging i t entirely). This will “unlink” th e f ir st transmitt er and all ow you to t ra nsmit f rom th e seco nd transmitter (T X). 7 Technical Spec if ications Tra nsmitt er (TX) Int erface: USB-C Receiver (RX) Interface: HDMI Network: Wi-Fi Max Resolution: 1920x1080/6 0 FPS Latency: 90~120ms Range: Up t o 4 9 fe et 8 For product su pport o r to p urchase a dditional transmit te rs (TX), please visit: www.ClearCli ck.com support @clearc li ck.com © 2023 ClearClick Soft ware LLC. All rights reserved.

TEVII TECHNOLOGY CO., LTD. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: TEVII TECHNOLOGY CO., LTD. Address: 10F, No. 125, Sec. 2, Datong Rd. 22183 Xizhi District, New Taipei City, Taiwan Product Name: Wireless HDMI Extender FCC ID: 2ALU5E100CTX Model(s): E100C TX, Present + Share USB-C Edition 2.911(d)(5)(i) Equipment Type We, [TEVII TECHNOLOGY CO., LTD.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Shelly Liu Date: Jul. 18, 2023 Title: MANAGER Company name: TEVII TECHNOLOGY CO., LTD. Signature: NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

TEVII TECHNOLOGY CO., LTD. 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: TEVII TECHNOLOGY CO., LTD. Address: 10F, No. 125, Sec. 2, Datong Rd. 22183 Xizhi District, New Taipei City, Taiwan Product Name: Wireless HDMI Extender FCC ID: 2ALU5E100CTX Model(s): E100C TX, Present + Share USB-C Edition 2.911(d)(5)(ii) Applicant filing We, [TEVII TECHNOLOGY CO., LTD.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Shelly Liu Date: Jul. 18, 2023 Title: MANAGER Company name: TEVII TECHNOLOGY CO., LTD. Signature: NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

TEVII TECHNOLOGY CO., LTD. 2.911 (d)(7)USA Agentv1.3 Section 2.911(d)(7) USA Agent for Service of Process Company name: TEVII TECHNOLOGY CO., LTD. Address: 10F, No. 125, Sec. 2, Datong Rd. 22183 Xizhi District, New Taipei City, Taiwan Product Name: Wireless HDMI Extender FCC ID: 2ALU5E100CTX Model(s): E100C TX, Present + Share USB-C Edition 2.911(d)(7) USA Designated Agent for Service of Process We, [TEVII TECHNOLOGY CO., LTD.] (“the applicant”) designate [ClearClick Software LLC] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We Acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We Acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: ClearClick Software LLC Address:3006 Teak Place Fullerton, CA 92835 United States Applicant Company name: TEVII TECHNOLOGY CO., LTD. Address:10F, No. 125, Sec. 2, Datong Rd. 22183 Xizhi District, New Taipei City, Taiwan TEVII TECHNOLOGY CO., LTD. 2.911 (d)(7)USA Agentv1.3 FCC Registration Number (FRN):0028131795 Contact Name: Keith Gilbert Telephone No:(714) 215-8016 Email: [email protected] FCC Grantee Code: 2ALU5 Contact Name: Shelly Liu Telephone No: +886-2-86927888 Email:[email protected] Signature: Title: Owner Signature: Title: MANAGER Date:Jul. 03, 2023 Date: Jul. 03, 2023 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference;Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

TEVII TECHNOLOGY CO., LTD. Agent Authorization Company: TEVII TECHNOLOGY CO., LTD. Address: 10F, No. 125, Sec. 2, Datong Rd. 22183 Xizhi District, New Taipei City, Taiwan Product Name: Wireless HDMI Extender Model Number(s): E100C TX, Present + Share USB-C Edition Product Description: Wireless HDMI Extender We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jul. 18, 2023 Name: Shelly Liu Title: MANAGER Company: TEVII TECHNOLOGY CO., LTD.

TEVII TECHNOLOGY CO., LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jul. 18, 2023 Subject; Request for Confidentiality FCC ID: 2ALU5E100CTX To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description SOFTWARE SECURITY DESCRIPTION In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Shelly Liu Title: MANAGER

FCC Software Configuration Control Declaration Rev1.0.docx TEVII TECHNOLOGY CO., LTD. FCC Software Configuration Control Declaration Date: Jul. 18, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product:Wireless HDMI Extender Model No.: E100C TX, Present + Share USB-C Edition Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Date: Jul. 18, 2023 Name:Shelly Liu Title: MANAGER Signature of applicant

TEVII TECHNOLOGY CO., LTD. Model Difference Declaration To Whom It May Concern, We, TEVII TECHNOLOGY CO., LTD. (Wireless HDMI Extender) ; Model Number: E100C TX, Present + Share USB-C Edition; All model’s the function, software and electric circuit are the same, only with a product color, model named and trade mark different. Test sample model: E100C TX. Please contact me if you have any question. Signature: Date: Jul. 18, 2023 Name: Shelly Liu Title: MANAGER

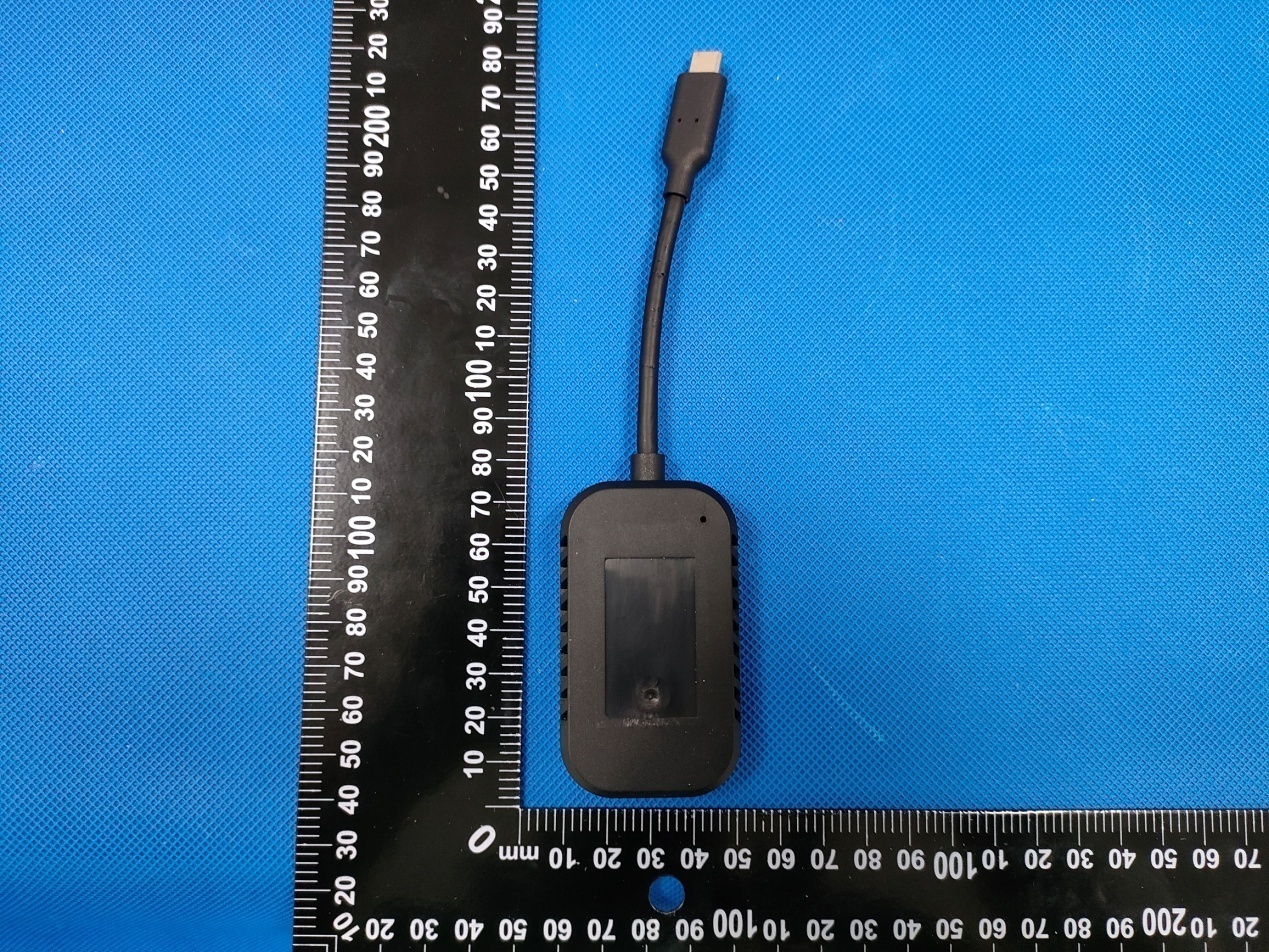

Annex A External Photos Report No.:HK2306092427-E Page 1 of 4 Report No.:HK2306092427-E Page 2 of 4 Report No.:HK2306092427-E Page 3 of 4 Report No.:HK2306092427-E Page 4 of 4

FCC ID LABEL: Ca. 10mm x 20mm Label Location FCC ID: 2ALU5E100CTX

Page 1 of 58 FCC ID: 2ALU5E100CTX Report No.: LCSA061223063E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity SAR TEST REPORT For TEVII TECHNOLOGY CO., LTD. Wireless HDMI Extender Test Model: E100C TX Additional Model No.: Present + Share USB-C Edition Prepared for : TEVII TECHNOLOGY CO., LTD. Address : 10F, No. 125, Sec. 2, Datong Rd. 22183 Xizhi District, New Taipei City, Taiwan Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Building A and 301 Building C, Juji Industrial Park, Yabianxueziwei Shajing Street, Baoan District, Shenzhen, 518000, P.R.C. Tel : (86)755-82591330 Fax : (86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 13, 2023 Number of tested samples Sample No. : : 1 A061223063-1 Serial number : Prototype Date of Test : June 13, 2023 ~June 13, 2023 Date of Report : June 20, 2023 Page 2 of 58 FCC ID: 2ALU5E100CTX Report No.: LCSA061223063E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity SAR TEST REPORT Report Reference No. ................. : LCSA061223063E Date Of Issue ................................ : June 20, 2023 Testing Laboratory Name ........... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 101, 201 Building A and 301 Building C, Juji Industrial Park, Yabianxueziwei Shajing Street, Baoan District, Shenzhen, 518000, P.R.C. Testing Location/ Procedure ......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ........................ : TEVII TECHNOLOGY CO., LTD. Address ......................................... : 10F, No. 125, Sec. 2, Datong Rd. 22183 Xizhi District, New Taipei City, Taiwan Test Specification: Standard ........................................ : IEEE Std C95.1, 2019/IEC-IEEE 62209-1528-2020 /FCC Part 2.1093 Test Report Form No. ................... : LCSEMC-1.0 TRF Originator............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ................................... : Dated 2014-09 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes noresponsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................. : Wireless HDMI Extender Trade Mark .................................... : TEVII, ClearClick, SIIG Model/Type Reference .................. : E100C TX Operation Frequency .................... : WLAN5.2G. Ratings .......................................... : DC 5V From Type-C Result .......................................... : Positive Compiled by: Supervised by: Approved by: Jay Zhan/ File administrators Cary Luo /Technique principal Gavin Liang/ Manager Page 3 of 58 FCC ID: 2ALU5E100CTX Report No.: LCSA061223063E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity SAR -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSA061223063E June 20, 2023 Date of issue Type / Model......................... : E100C TX EUT....................................... : Wireless HDMI Extender Applicant.............................. : TEVII TECHNOLOGY CO., LTD. Address.................................. : 10F, No. 125, Sec. 2, Datong Rd. 22183 Xizhi District, New Taipei City, Taiwan Telephone.............................. : / Fax......................................... : / Manufacturer....................... : TEVII TECHNOLOGY CO., LTD. Address.................................. : 10F, No. 125, Sec. 2, Datong Rd. 22183 Xizhi District, New Taipei City, Taiwan Telephone.............................. : / Fax......................................... : / Factory.................................. : / Address.................................. : / Telephone.............................. : / Fax......................................... : / Page 4 of 58 FCC ID: 2ALU5E100CTX Report No.: LCSA061223063E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Revison History Revision Issue Date Revision Content Revised By 000 June 20, 2023 Initial Issue --- Page 5 of 58 FCC ID: 2ALU5E100CTX Report No.: LCSA061223063E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity TABLE OF CONTENTS 1. TEST STANDARDS AND TEST DESCRIPTION ......................................................…

Text truncated - open the document above for the full version.

Page 1 of 53 Report No.: HK2306092427-E FCC Test Report Test report On Behalf of TEVII TECHNOLOGY CO., LTD. For Wireless HDMI Extender Model No.: E100C TX, Present + Share USB-C Edition FCC ID: 2ALU5E100CTX Prepared For : TEVII TECHNOLOGY CO., LTD. 10F, No. 125, Sec. 2, Datong Rd. 22183 Xizhi District, New Taipei City, Taiwan Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Jun. 08, 2023 ~ Jul. 17, 2023 Date of Report: Jul. 17, 2023 Report Number: HK2306092427-E Page 2 of 53 Report No.: HK2306092427-E Test Result Certification Applicant’s name .................. : TEVII TECHNOLOGY CO., LTD. Address .................................. : 10F, No. 125, Sec. 2, Datong Rd. 22183 Xizhi District, New Taipei City, Taiwan Manufacture's Name ............. : TEVII TECHNOLOGY CO., LTD. Address .................................. : 10F, No. 125, Sec. 2, Datong Rd. 22183 Xizhi District, New Taipei City, Taiwan Product description Trade Mark: TEVII, ClearClick, SIIG Product name ............................ : Wireless HDMI Extender Model and/or type reference . : E100C TX, Present + Share USB-C Edition Standards .............................. : FCC Rules and Regulations Part 15 Subpart E Section 15.407 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Jun. 08, 2023 ~ Jul. 17, 2023 Date of Issue ........................................... : Jul. 17, 2023 Test Result ............................................... : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 53 Report No.: HK2306092427-E Table of Contents 1. Test Result Summary ............................................................................... 5 1.1. Test Procedures and Results ........................................................................................................... 5 1.2. Information of the Test Laboratory ................................................................................................. 5 1.3. Measurement Uncertainty ................................................................................................................ 6 2. EUT Description ........................................................................................ 7 2.1. General Description of EUT ............................................................................................................. 7 2.2. Operation Frequency Each of Channel ........................................................................................... 8 2.3. Operation of EUT During Testing .................................................................................................... 8 2.4. Description of Test Setup ................................................................................................................. 9 3. Genera Information ................................................................................. 10 3.1. Test Environment and Mode .......................................................................................................... 10 3.2. Description of Support Units ......................................................................................................... 11 4. Test Results and Measurement Data .................................................... 12 4.1. Conducted Emission ....................................................................................................................... 12 4.2. Maximum Conducted Output Power ............................................................................................. 16 4.3. 6db Emission Bandwidth ............................................................................................................... 19 4.4. 26db Bandwidth and 99% Occupied Bandwidth .......................................................................... 20 4.5. POWER SPECTRAL DENSITY ........................................................................................................ 25 4.6. BAND EDGE ..................................................................................................................................... 30 4.7. Spurious Emission .......................................................................................................................... 39 4.8. Frequency Stability Measurement ................................................................................................. 47 4.9. Antenna Requirement ..................................................................................................................... 50 5. Photographs of Test Setup .................................................................... 51 6. Photos of the EUT ................................................................................... 53 Page 4 of 53 Report No.: HK2306092427-E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Jul. 17, 2023 Jason Zhou Page 5 of 53 Report No.: HK2306092427-E 1. Test Result Summary 1.1. Test Procedures and Results Requirement CFR 47 Section Result Antenna requirement §15.203 PASS AC Power Line Conducted Emission §15.207 PASS Maximum Conducted Output Power §15.407(a) PASS 6dB Emission Bandwidth §15.407(e) N/A 26dB Emission Bandwidth& 99% Occupied Bandwidth §15.407(a) PASS Power Spectral Density §15.407(a) PASS Band edge §15.407(b)/15.209/15.205 P…

Text truncated - open the document above for the full version.

产品规格书 PRODUCT SPECIFICATION Customer: 深圳市炬力北方微电子有限公司 Customer’s part number: RBT-WIFI-524-004-2P5-L Product description: 2.4G/5G 铁皮天线 1、产品技术指标（PRODUCT TECHNICAL SPECIFICATION） 电性能指标Electrical Specifications 频率范围Frequency Range (MHz) 2400-2500/5150-5350/5700-5850 频带宽度Bandwidth (MHz) 2.4G：100 5G：350 输入阻抗Input Impendence (Ω) 50 电压驻波比V.S.W.R ≤2.0 增益Gain (dBi) 2.4G：<3.04 5.1G：<2.22 5.8G： <2.12 极化形式Polarization Type 垂直Vertical 机械指标Mechanical Specifications 天线长度Antenna Length (mm) 21.5*2.5*4.5mm 辐射体Radiator 钢片镀镍 连接器型号Connect Type DIP 工作温度Working Temp(°C) -20~85 储藏温度Storage Temperature(°C) -40~90 外壳颜色Radome Color 银色 重量Weight (g) 0.5 产品简介 该天线是专为无线内置天线设备设计生产的，天线具有外形美观，结 构小巧，安装方便的优点。材质使用不锈钢镀镍，硬度足够。 2、产品图片（PRODUCT PICTURE） 3、产品规格图(PRODUCT SPECIFICATION CHART) 4、驻波图（STATIONARY WAVE PATTERN） 5.增益效率值： 6.场型图

Radiated Emissions Conducted Emission

Page 1 of 3 FCC ID: 2ALU5E100CTX Report No.: LCSA061223063E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity ANNEX A. PHOTOGRAPH OF THE TEST 0mm body Horizontal-Down Side Setup Photo – Test Position 1 0mm body Horizontal-Up Side Setup Photo – Test Position 2 Page 2 of 3 FCC ID: 2ALU5E100CTX Report No.: LCSA061223063E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 0mm body Vertical-Front Side Setup Photo – Test Position 3 0mm body Vertical- Back Side Setup Photo – Test Position 4 Page 3 of 3 FCC ID: 2ALU5E100CTX Report No.: LCSA061223063E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity ANNEX C. EUT PHOTOGRAPHS Fig.1 Fig.2 WIFI Antenna
