2ALVK--ONN24715ONN. TRUE WIRELESS ANC

QSG说明书 571x108mm，157g铜版纸二专色印刷，风琴折 QSG 2020-10-20 1 尺寸:571x108mm 工艺: 157g铜版纸二专色+单黑印刷, 风琴折 1 Wireless Earphones Quick Start Guide 颜色： 3292C2295C -----Dieline--------------- -------------------- ----- 108±1mm 570±1mm 95±1mm Get to Know Your Wireless EarbudsCharge Your Earphones 1. Earphones x1 pair 2. Charging case x1 3. Eartips x5 pairs, memory foam ear tips installed 4. USB-C charging cable x1 5. Quick Start Guide x1 What’s in the Box? Check to make sure you have everything below 04 12 345 1) Model : 100024715 2) Speaker Diameter : 7mm 3) Speaker Impedance : 32Ω±10% 4) Sensitivity : 109±3dB at 1KHz 5) Speaker Driver Rating Power: 3mW 6) Charging Cable : 25cm 7) 24 hours of total playtime at normal mode (with charging case) 8) IPX5 waterproof rating applies to the earphones, not to the charging case. About 2.5 hours About 4.5 hours M S XL L Earphones charging Case charging L/R earphone charging: The left or right LED light is blinking white, after 10 seconds the LED light will be o, but earphone is still charging until fully charged The Fine PrintThe Fine Print FCC ID : 2ALVK--ONN24715Ver.01 01/01/20 This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: ( 1 ) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not espressly approved by the party responsible for compliance could void the user ́s authority to operate the equipment. Produced for Walmart Inc., Bentonville,AR 72716 Need help? We're here for you every day from 7 a.m.-9 p.m. CST. Give us a call at 1-888-516-2630. Warning: FCC Statement LR Enjoy your music & Take a Clear Phone Call 03 x3 Press x3 Previous Track Use Charging cable Or Wireless charging pad (Not included) 01 First Time Setup Step 1: Place earphones into charging case for initial activation and close the lid to fully charge. Step 2: Open the charging case lid; pairing mode is automatically initiated. Step 3: Connect to your device through Bluetooth wireless technology: Search for the entry ”onn. True Wireless ANC” on your device. 02 If you want to pair with another device, please turn o Bluetooth from your last paired device if it is nearby, then open the charging case cover for pairing, it takes about 6~8 seconds to search for another device Press & Hold for 5 seconds, earphones will be manually Power On/ Power O (If you are carrying the earphones without charging case) Open the charging case lid, earphones will Power On automatically and connect to last paired device Place earphones back into charging case and close the lid, earphones will Power O automatically and disconnect to paired device 5s Power On/ Power O & Pairing When the charging case is fully charged, 3 LED lights will be on. Let's Get Started! Next Track x2 Press x2 (Incoming Call: Reject) for 1 sec During the phone call, cannot enter into Ambient Mode Press & Hold 1s Default: Normal Noise Canceling Ambient x1 (Incoming Call: Answer / Hangup) x1 Press Play / Pause x1 Press + Press & Hold Siri / Google Assistant 8 1 1 3 13 1 2 3 7 06 We’ wit kno d love to hear from you. Scan h your Walmart app and let us w what you think. onn. True Wireless ANC onn. True Wireless ANC Wireless Earphones Quick Start Guide

The following proofs are built in the new onn.™ branded packaging. Please review and limit comments to only the following elements: •UPC •VSN •Accuracy of features listed •Accuracy of logos (Bluetooth, FCC, Intertek, H2R, Made in USA, MfI etc.) shown •The Specs- accuracy of performance specifications, technical details •What’s in the Box? Information (owner’s manuals will NOT be listed) •Disclaimers, Cautions and Warnings (including font size, verbiage and location) Trademark attribution statements Color, creative copy and design elements are established by Walmart branding and are not subject to supplier review. Thank you for your cooperation. ATTENTION ***NO GLOBAL OR MULTI-PAGE COMMENTS ARE PERMITTED*** L Step 3: Connect to your device through Bluetooth wireless technology: Search for the entry "onn. True Wireless ANC" on your device. 100024715 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Walmart Inc. is under license. Other trademarks and trade names are those of their respective owners. * Playtime will vary depending on usage of Active Noise Cancellation, which shortens battery charge life. **IPX5 = water-jet proof protection from any direction Step 1: Place earphones into charging case for initial activation and close the lid to fully charge. Step 2: Open the charging case lid; pairing mode is automatically initiated. First Time Setup The Specs • Active Noise Cancellation or Ambient Sound pass through modes • 3 Built-in microphones in each earphone • Bluetooth® • Up to 24 hours playtime with 3 extra case charges* • Up to 6 hours playtime without using Active Noise Cancellation per charge* • Up to 5 hours playtime while using Active Noise Cancellation per charge* • Up to 33 ft (10 m) wireless range • IPX5 waterproof (earphones only)** What’s in the Box? 1 Pair Wireless Earphones 1 Wireless Charging case 1 USB-C® charging cable 10 in (25 cm) 4 Sizes of silicone ear tips and 1 extra pair of foam ear tips 1 Quick Start Guide The Basics Jam out! We've taken selective hearing to a whole new level! Whether you are working intently at your day job, or settling in for a long day of travel, you'll love the discreet, comfortable fit of our Wireless Earphones with Active noise cancellation and ambient sound pass through. With 6 built-in microphones, your calls will be crystal clear. Tune out the entire world with Active Noise Canceling or switch on Ambient Sound mode to hear direct sounds while continuing to enjoy your audio. How's that for a reprieve from reality? Groove onn.™ Wireless Earphones With Active Noise Canceling/Ambient Sound Active noise cancellation and ambient sound pass through 3 Built-in microphones in each earphone Up to 33 ft (10 m) wireless range Bluetooth ® technology streams audio from all your devices FCC ID : ALVK--ONN 24 hours of playtime* Up to Wireless Earphones With Active Noise Canceling/Ambient Sound 24 Up to hours of playtime* groove IPX5 Water Resistant 681131 312370 Mic Ear tips USB-C® charging cable FPO FPO FPO © Walmart onn. is a trademark of Walmart All Rights Reserved. Distributed by Walmart Inc., Bentonville, AR  MADE IN CHINA 9.78" 248.41mm 18.217" 462.72mm Cosonic 100024715_Tru Wireless Active Noise Cancelling Noodle_P2 OPT01 10.13.2020 3.75” W x 6.75”H x 1.375”D Cut line Fold line Copy safe area Outside bleed Glue area This document is intended only for use as a reference for the individual or entity to which it is being presented and may contain information which is privileged and confidential. No reproduction or distribution is permitted without the consent of r-pac International Corporation. 100024715_cosonic_tru wireless noise cancelling_P2 AR57569 Cosonic China r-pac 212-465-1818 chartreuse cobalt [email protected] TBD 5th panel 3.75” W x 6.75”H x 1.375”D onn D72 100024715 681131312370 TBDTBDTBDTBD 6 Coating: Spot UV Matt Varnish Fonts: Gilroy black gilroy bold Gilroy Light Graphik regular Graphik bold myriad pro cond semibold ATTENTION SUPPLIER: The approval of this artwork for production also indicates that the nal packaging dimensions have been approved by Walmart PD team member and UPC number is correct.

Cosonic Intelligent Technologies Co.,Ltd. Date: 11/12/2020 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2ALVK--ONN24715 To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch and Keny Xu in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Cosonic Intelligent Technologies Co.,Ltd. This authorization is valid until further written notice from the applicant. Sincerely, Print Name: KAI YAN Title: Manager Signature: On behalf of Company: Cosonic Intelligent Technologies Co.,Ltd. Telephone: 0769-86596919 E-mail: [email protected]

Cosonic Intelligent Technologies Co.,Ltd. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Cosonic Intelligent Technologies Co.,Ltd. 5th Floor,1st Building,No.6 South Industry Road Songshan Lake Hi-tech Industrial Development Zone Dongguan 523808 China Regarding: Confidentiality Request regarding application for FCC ID: 2ALVK--ONN24715 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed or 15 days from the grant date, whichever is less. If the device is marketed within aforementioned days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Print Name: KAI YAN Title: Manager Signature: On behalf of Company: Cosonic Intelligent Technologies Co.,Ltd. Telephone: 0769-86596919 E-mail: [email protected]

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Cosonic Intelligent Technologies Co.,Ltd. Address 5th Floor,1st Building,No.6 South Industry Road Songshan Lake Hi-tech Industrial Development Zone Dongguan 523808 China Grantee Code 2ALVK FCC ID 2ALVK--ONN24715 Authorized Contact Name KAI YAN Contact Email [email protected] Contact Phone 0769-86596919 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c)if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: 请签名 Date: 11/17/2020 Print Name: KAI YAN Title: Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

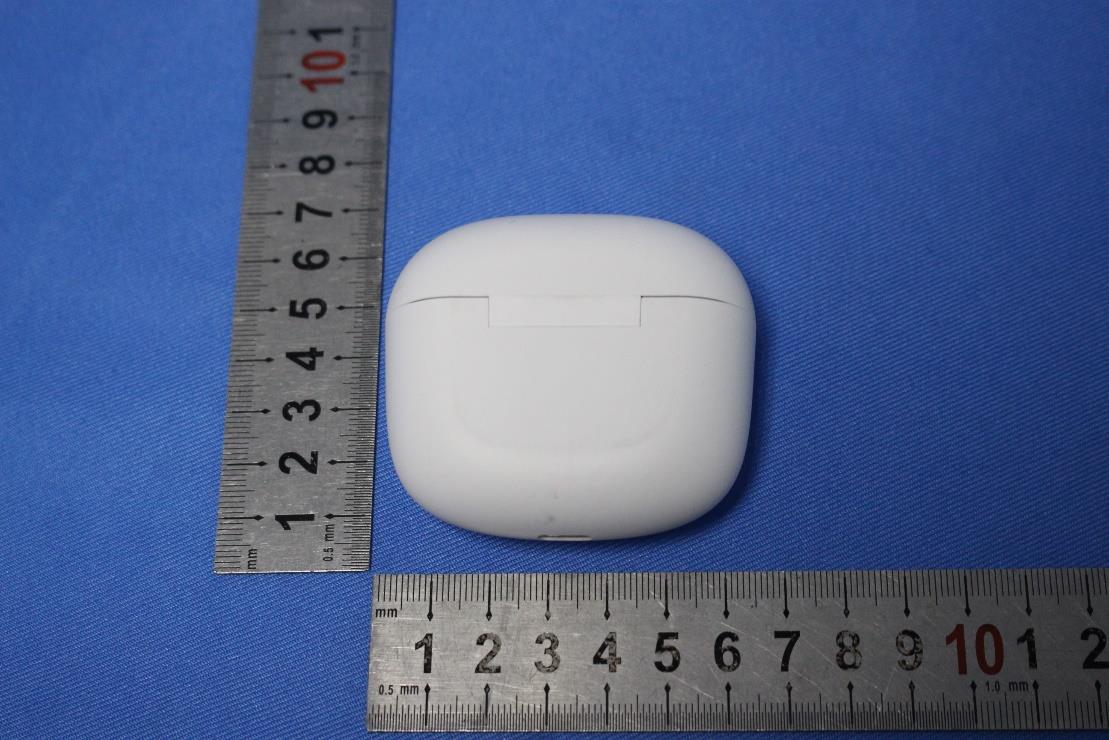

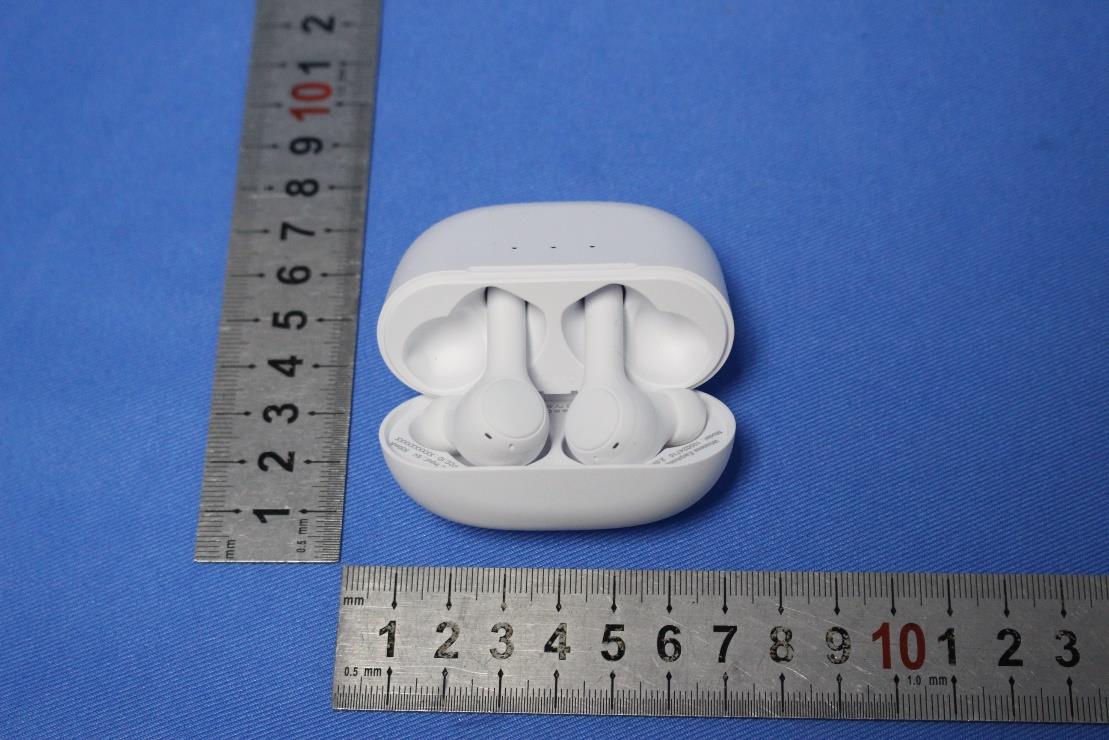

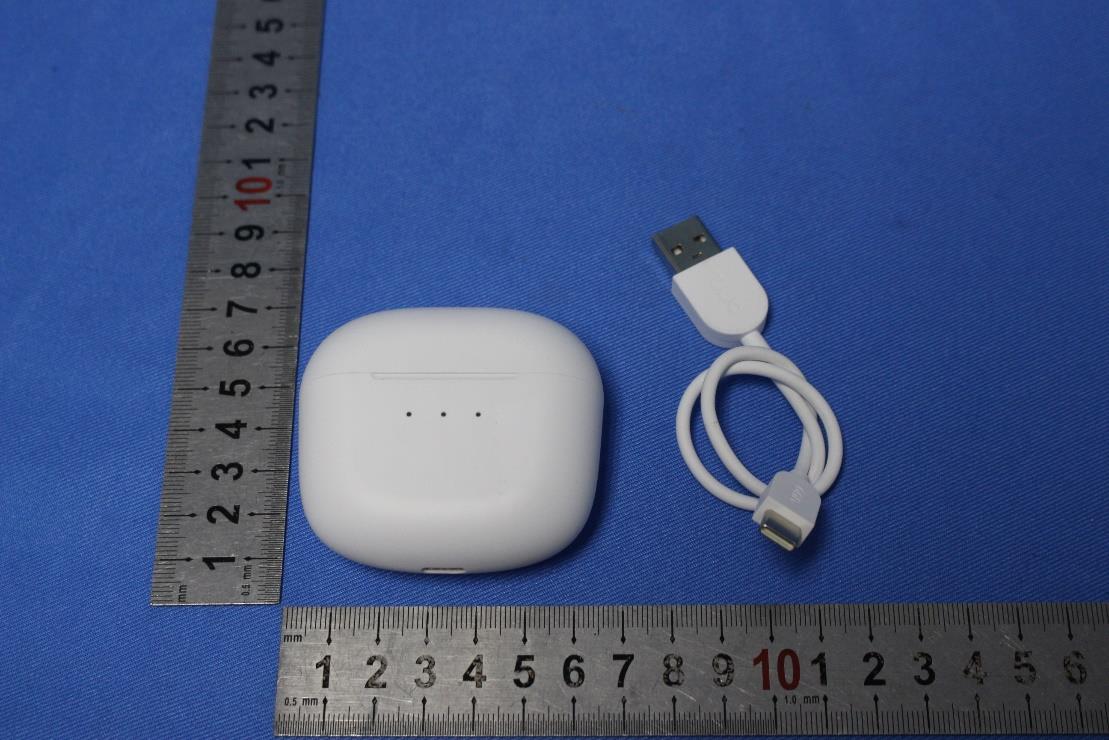

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 6 External Photos for SZEM2011011370CR FCC ID: 2ALVK--ONN24715 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 6 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 5 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 6 of 6

Cosonic Intelligent Technologies Co.,Ltd. Declaration of Label placement To Federal Communication Commission Equipment Authorization Branch 7 435 Oakland Mills Road Columbia, MID 21046 For the following product, Product Name: True Wireless Stereo Earbuds Model No.: 100024715 FCC ID: 2ALVK--ONN24715 The FCC ID is not affixed on the product itself, but described in the product user manual and the product package/case due to below reasons. Reasons： The product is too small to put the label on it. The size is below: Earphone: 25.5 * 24.2 * 37.2 mm Charging Case: 64.00 * 27.10 * 57.50 mm Print Name: KAI YAN Title: Manager Signature: On behalf of Company: Cosonic Intelligent Technologies Co., Ltd. Telephone: 0769-86596919 E-mail: [email protected]

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 9 Internal Photos for SZEM2011011370CR FCC ID: 2ALVK--ONN24715 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 9 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 5 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 6 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 7 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 8 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 9 of 9 Antenna

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201101137002 Page: 1 of 131 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: SZEM2011011370CR Applicant: Cosonic Intelligent Technologies Co., Ltd. Address of Applicant: 5th Floor,1st Building,No.6 South Industry Road Songshan Lake Hi-tech Industrial Development Zone Dongguan China 523808 Manufacturer: Cosonic Intelligent Technologies Co., Ltd. Address of Manufacturer: 5th Floor,1st Building,No.6 South Industry Road Songshan Lake Hi-tech Industrial Development Zone Dongguan China 523808 Factory: Cosonic Electroacoustic Technology Co., Ltd. Address of Factory: No.151, Shipai Section, Dongyuan Avenue, Shipai Town, Dongguan City, Guangdong Province, P.R. China. Equipment Under Test (EUT): EUT Name: ONN. TRUE WIRELESS ANC Model No.: 100024715 Trade Mark: onn. FCC ID: 2ALVK--ONN24715 Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2020-11-11 Date of Test: 2020-11-11 to 2020-11-16 Date of Issue: 2020-11-16 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201101137002 Page: 2 of 131 Revision Record Version Chapter Date Modifier Remark 01 2020-11-16 Original Authorized for issue by: Harry Wu/Project Engineer Eric Fu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201101137002 Page: 3 of 131 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.247(a)(1),(g),(h) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.5 47 CFR Part 15, Subpart C 15.247(b)(1) Pass 20dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.7 47 CFR Part 15, Subpart C 15.247(a)(1) Pass Carrier Frequencies Separation 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.2 47 CFR Part 15, Subpart C 15.247a(1) Pass Hopping Channel Number 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.3 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Dwell Time 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.4 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.6 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.8 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201101137002 Page: 4 of 131 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................. 3 3 CONTENTS ......................................................................................................................................... 4 4 GENERAL INFORMATION .................................................................................................................. 6 4.1 DETAILS OF E.U.T. ......................................................................................................................... 6 4.2 CABLE ........................................................................................................................................... 6 4.3 DESCRIPTION OF SUPPORT UNITS .................................................................................................... 6 4.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 7 4.5 TEST LOCATION ............................................................................................................................. 8 4.6 TEST FACILITY ............................................................................................................................... 8 4.7 DEVIATION FROM STANDARDS ......................................................................................................... 8 4.8 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................. 8 5 EQUIPMENT LIST ............................................................................................................................... 9 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................13 6.1 ANTENNA REQUIREMENT ................................................................................................................13 6.1.1 Test Requirement: ..................................................................................................................13 6.2 OTHER REQUIREMENTS FREQUENCY HOPPING SPREAD SPECTRUM SYSTEM HOPPING SEQUENCE ........14 6.2.1 Test Requirement: ..................................................................................................................14 7 RADIO SPECTRUM MATTER TEST RESULTS .................................................................................16 7.1 CONDUCTED PEAK OUTPUT POWER ...........................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 3 Setup Photos for SZEM2011011370CR FCC ID: 2ALVK--ONN24715 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 3 1 Photographs Radiated Spurious Emissions SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 3
