2ALVKHA-S100NWIRELESS HEADPHONES

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. This product contains rechargeable battery. Contact JVC authorised dealer for disposal. I prodotti e le batterie recanti questa icona (bidone carrellato della spazzatura con il simbolo della croce) non devono essere eliminati come rifiuti solidi urbani. In queste cuffie è installata una batteria ricaricabile. Per informazioni sulla sua eliminazione si raccomanda di rivolgersi al rivenditore autorizzato JVC. Produkty i baterie opatrzone symbolem (przekreślony pojemnik na kółkach) nie mogą być wyrzucane razem z odpadami domowymi. Ten produkt zawiera akumulator. Informacje o usuwaniu odpadów można uzyskać u autoryzowanego dystrybutora JVC. Продуктите и батериите, обозначени със символа (зачертана с кръст кофа за боклук на колелца), не могат да се изхвърлят като битови отпадъци. Продуктът съдържа презареждаема батерия. Свържете се с оторизиран търговец на JVC за начина на изхвърляне. Produsele și bateriile cu simbolul (pubelă tăiată cu un x) nu pot fi aruncate ca deșeuri menajere. Acest produs conține o baterie reîncărcabilă. Dacă doriți să îl aruncați, luați legătura cu distribuitorul autorizat JVC. Izdelkov in baterij s simbolom (prečrtan smetnjak na kolesih) ni dovoljeno odstraniti kot gospodinjske odpadke. Ta izdelek vsebuje akumulatorsko baterijo. Za odstranitev se obrnite na pooblaščenega zastopnika podjetja JVC. Proizvodi i baterije sa simbolom (precrtana kanta za otpad) ne smiju se odlagati u kućanski otpad. Ovaj proizvod sadrži punjivu bateriju. Za informacije o odlaganju obratite se ovlaštenom prodavaču JVC-ovih proizvoda. Gaminių ir baterijų, ant kurių pateiktas perbrautos šiukšliadėžės simbolis, negalima išmesti kartu su buitinėmis atliekomis. Šiame gaminyje sumontuotas akumuliatorius. Dėl utilizavimo kreipkitės į JVC įgaliotąjį prekybos atstovą. Produkti un baterijas ar simbolu (nosvītrots atkritumu konteiners uz riteņiem) nedrīkst tikt likvidēti kā mājsaimniecības atkritumi. Šis produkts satur atkārtoti uzlādējamu bateriju. Sazinieties ar JVC autorizēto dīleri par likvidēšanu. Prodotti u batteriji bis-simbolu (tantk taż-żibel bir-roti maqtugħ) ma jistgħux jintremew bħala skart domestiku. Dan il-prodott fih batterija rikarikabbli. Ikkuntattja lin-negozjant awtorizzat minn JVC rigward ir-rimi. Προϊόντα και μπαταρίες που φέρουν το σύμβολο (διαγραμμένος τροχήλατος κάδος απορριμμάτων) δεν απορρίπτονται ως κοινά οικιακά απορρίμματα. Το παρόν προϊόν περιέχει επαναφορτιζόμενη μπαταρία. Για την ορθή διάθεσή του επικοινωνήστε με τον εξουσιοδοτημένο αντιπρόσωπο της JVC. Produkter og batterier med symbolet (overstreget skraldespand på hjul) kan ikke bortskaffes som husholdningsaffald. Dette produkt indeholder et genopladeligt batteri. Ret henvendelse til en autoriseret JVC-forhandler angående bortskaffelse. Sümboliga (ratastega prügikonteiner, millel on rist peal) tooteid ja akusid ei tohi kõrvaldada majapidamisjäätmetena. See toode sisaldab laetavat akut. Kõrvaldamiseks võtke ühendust JVC volitatud edasimüüjaga. Laitteita ja paristoja, joissa on seuraava merkintä (ruksattu roskapönttö), ei saa hävittää talousjätteiden mukana. Tässä laitteessa on ladattava paristo. Ota yhteys valtuutettuun JVC-edustajaan ja kysy tietoja hävittämisestä. Výrobky a baterie s tímto symbolem (přeškrtnutá popelnice) nelze vyhazovat s domovním odpadem. Tento výrobek obsahuje dobíjecí baterii. Informace o likvidaci vám podá autorizovaný prodejce JVC. Produkty a batérie označené symbolom (preškrtnutá odpadová nádoba) sa nesmú likvidovať spolu s komunálnym odpadom. Tento produkt obsahuje nabíjateľnú batériu. V prípade likvidácie kontaktujte autorizovaného predajcu JVC. Azokat a termékeket, amelyeken az (áthúzott görgős szeméttároló) jelzés található, nem lehet háztartási szemétként eldobni. A termék újratölthető akkumulátorral rendelkezik. Ártalmatlanítás esetén vegye fel a kapcsolatot a JVC szerződéses kereskedőjével. Producten en batterijen met het (afvalcontainer met x-teken) symbool mogen niet als normaal huisvuill worden weggegooid. Dit product bevat een oplaadbare batterij. Raadpleeg een erkende JVC handelaar voor het weggooien. Os produtos e baterias com o símbolo (caixote de lixo com um X) não podem ser deitados fora junto com o lixo doméstico. Este produto contém uma bateria recarregável. Contate o revendedor JVC autorizado para a sua eliminação. Produkter och batterier med denna symbol (en överkryssad soptunna på hjul) får inte kastas med vanliga hushållssopor. Denna produkt innehåller ett laddningsbart batteri. Kontakta en auktoriserad JVC-handlare angående kassering. Das Symbol (durchgestrichene Mülltonne) auf dem Produkt oder seiner Verpackung weist darauf hin, dass dieses Produkt nicht als normaler Haushaltsabfall behandelt werden darf. Dieses Produkt enthält eine Akkubatterie. Wenden Sie sich an einen JVC-Fachhändler bezüglich der Entsorgung. Les produits et piles électriques sur lesquels le pictogramme (poubelle barrée) est apposé ne peuvent pas être éliminés comme ordures ménagères. Ce produit contient une pile rechargeable. Contactez votre revendeur JVC autorisé pour le mettre au rebut. Los productos y las baterías con el símbolo (contenedor con ruedas tachado) no podrán ser desechados como residuos domésticos. Este producto contiene una batería recargable. Para su eliminación, consulte con el distribuidor autorizado de JVC. • Do not listen at high volume for an extended period. Do not use while driving or cycling. • Pay special attention to traffic around you when using the headphones outside. Failure to do so could result in an accident. • This product with a built-in battery shall not be exposed to excessive heat such as sunshine, fire or the like. • This product contains rechargeable battery, which is not replaceable. Danger of explosion if user replaced battery. Do not replace battery user own self. • Hören Sie nicht lange Zeit mit sehr hoher Lautstärke. Nicht beim Fahren von Motorfahrzeugen…

Text truncated - open the document above for the full version.

CosonicIntelligentTechnologiesCo.,Ltd. FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Date:2020-12-14 SUBJECT:FCCApplicationforFCCID:2ALVKHA-S100N ToWhomItMayConcern: We,theundersigned,herebyauthorizeLisaWangatEMTEK(SHENZHEN)CO.,LTD.on ourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment.Any andallactscarriedoutbyEMTEK(SHENZHEN)CO.,LTD.onourbehalfshallhavethe sameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. KAIYAN CosonicIntelligentTechnologiesCo.,Ltd.

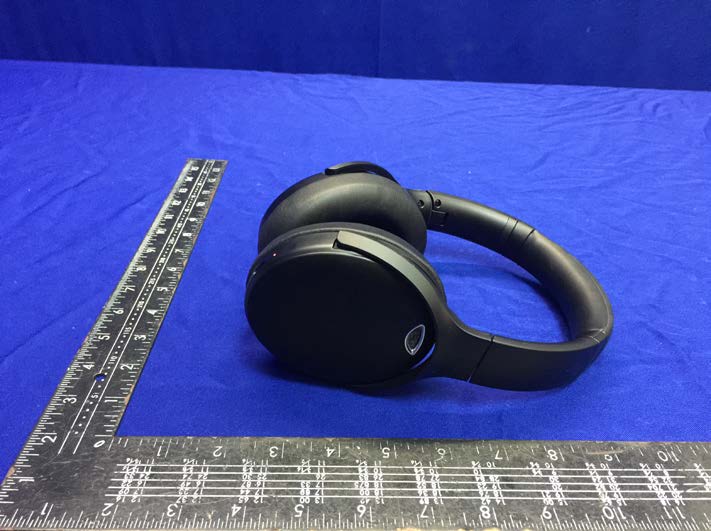

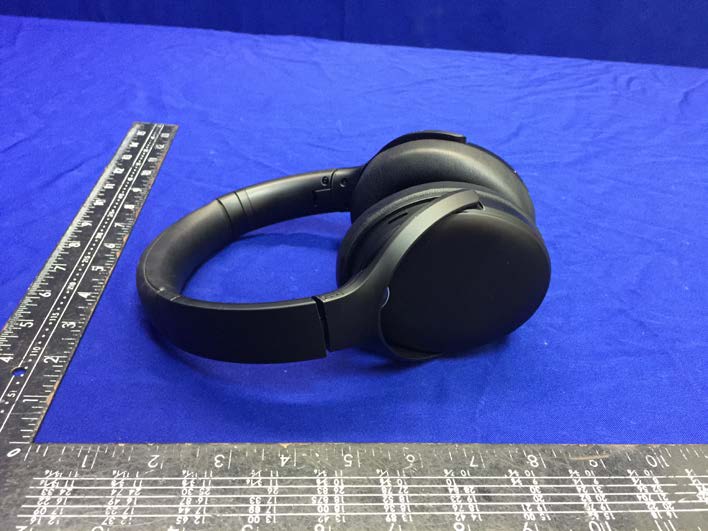

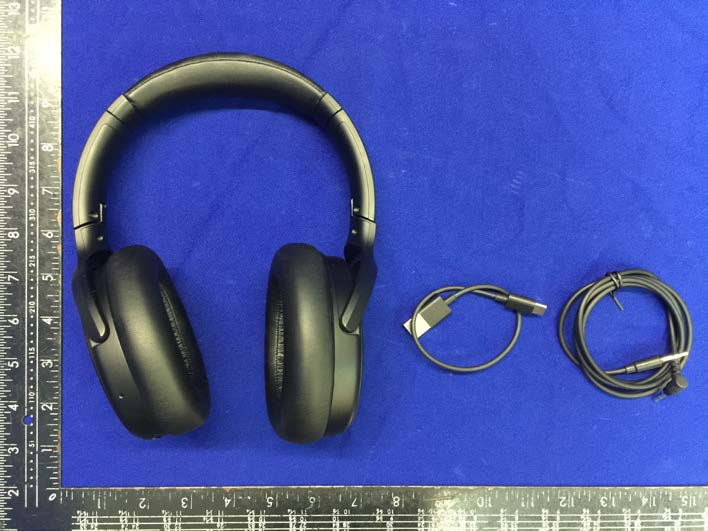

Report No.ES201028056W Page 1 of 3 Ver.1.0 EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Report No.ES201028056W Page 2 of 3 Ver.1.0 EUT View 3 EUT View 4 Report No.ES201028056W Page 3 of 3 Ver.1.0 EUT View 5 EUT View 6 ----------------The end----------------

Label and label location

Report No.ES201028056W Page 1 of 5 Ver.1.0 EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Report No.ES201028056W Page 2 of 5 Ver.1.0 EUT Housing and Board View 3 EUT Housing and Board View 4 Report No.ES201028056W Page 3 of 5 Ver.1.0 Solder Board-Component View 1 Solder Board-Component View 2 ANT Report No.ES201028056W Page 4 of 5 Ver.1.0 Solder Board-Component View 3 Solder Board-Component View 4 Report No.ES201028056W Page 5 of 5 Ver.1.0 Solder Board-Component View 5 Battery ---------------The end----------------

FCC ID: 2ALVKHA-S100N Portable device According to §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz； Power and distance are rounded to the nearest mW and mm before calculation； The result is rounded to one decimal place for comparison； The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate. Maximum measured transmitter power: BT/BLE Channel Freq. (MHz) Max Transmit Power (dBm) Max tune-up power (dBm) Result calculation 1-g SAR GFSK 2402 -1.731 -1.0 0.246 3.0 2441 -1.433 -1.0 0.248 3.0 2480 -1.927 -1.0 0.250 3.0 pi/4-DQPSK 2402 -1.802 -1.0 0.246 3.0 2441 -1.455 -1.0 0.248 3.0 2480 -2.044 -2.0 0.199 3.0 8DPSK 2402 -1.876 -1.0 0.246 3.0 2441 -1.442 -1.0 0.248 3.0 2480 -2.043 -2.0 0.199 3.0 BLE(1M) 2402 2.628 3.0 0.618 3.0 2440 2.999 3.0 0.623 3.0 2480 2.450 3.0 0.628 3.0 BLE(2M) 2402 2.615 3.0 0.618 3.0 2440 2.991 3.0 0.623 3.0 2480 2.451 3.0 0.628 3.0 Conclusion: For the max result : 0.63≤ 3.0 for 1-g SAR extremity SAR, No SAR is required.

Report No.ES201028056W01 Page 1 of 63 Ver.1.0 TEST REPORT Product Name ： WIRELESS HEADPHONES Model Number ： HA-S100N FCC ID ： 2ALVKHA-S100N Prepared for : Cosonic Intelligent Technologies Co.,Ltd. Address : 5th Floor,1st Building,No.6 South Industry Road, Songshan Lake Hi-tech Industrial Development Zone,Dongguan,China Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ES201028056W01 Date(s) of Tests : November 2, 2020 to December 13, 2020 Date of issue : December 14, 2020 $二维码$ Report No.ES201028056W01 Page 2 of 63 Ver.1.0 Table of Contents 1 TEST RESULT CERTIFICAT I O N ................................................................................................................... 3 2 EUT TECHNICAL DESCRIPTION ................................................................................................................. 4 3 SUMMARY OF TEST RESULT ....................................................................................................................... 5 4 TEST METHODOLOGY ................................................................................................................................. 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................................................... 6 4.2 MEASUREMENT EQUIPMENT USED .................................................................................................. 6 4.3 DESCRIPTION OF TEST MODES ........................................................................................................... 7 4.4 TEST SOFTWARE .................................................................................................................................... 7 5 FACILITIES AND ACCREDITATIONS .......................................................................................................... 8 5.1 FACILITIES............................................................................................................................................... 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ........................................................................... 8 6 TEST SYSTEM UNCERTAINTY .................................................................................................................... 9 7 SETUP OF EQUIPMENT UNDER TEST ...................................................................................................... 10 7.1 RADIO FREQUENCY TEST SETUP 1 ................................................................................................... 10 7.2 RADIO FREQUENCY TEST SETUP 2 ................................................................................................... 10 7.3 CONDUCTED EMISSION TEST SETUP .............................................................................................. 12 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ............................................................... 13 7.5 SUPPORT EQUIPMENT......................................................................................................................... 13 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS .............................................................................. 14 8.1 STANDARD APPLICABLE ........................................................................................................................... 14 8.2 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ......................................................................... 14 8.3 EQUAL HOPPING FREQUENCY USE ............................................................................................................ 15 8.4 FREQUENCY HOPPING SYSTEM ................................................................................................................. 15 9 TEST REQUIREMENTS ................................................................................................................................ 16 9.1 20DB BANDWIDTH ............................................................................................................................... 16 9.2 CARRIER FREQUENCY SEPARATION ............................................................................................... 22 9.3 NUMBER OF HOPPING FREQUENCIES ............................................................................................. 28 9.4 AVERAGE TIME OF OCCUPANCY (DWELL TIME) .......................................................................... 30 9.5 MAXIMUM PEAK CONDUCTED OUTPUT POWER ......................................................................... 33 9.6 CONDUCTED SUPRIOUS EMISSION ................................................................................................. 39 9.7 RADIATED SPURIOUS EMISSION ...................................................................................................... 46 9.8 CONDUCTED EMISSION TEST ........................................................................................................... 59 9.9 ANTENNA APPLICATION .................................................................................................................... 62 Report No.ES201028056W01 Page 3 of 63 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : Cosonic Intelligent Technologies Co.,Ltd. Address : 5th Floor,1st Building,No.6 South Industry Road,Songshan Lake Hi-tech Industrial Development Zone,Dongguan,China Manufacturer : Cosonic Intelligent Technologies Co.,Ltd. Address : 5th Floor,1st Building,No.6 South Industry Road,Songshan Lake Hi-tech Industrial Development Zone,Dongguan,China EUT : WIRELESS HEADPHONES Model Name : HA-S100N Trademark : JVC Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurat…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1.1. Photos of Conducted Emission Measurement 1.2. Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) ----------------The end----------------
