2ALYU-EP7Wearable video camera

Introduction Thankyousomuchforpurchasingthisheadwearablevideo camera.Thiscameraimitateseyesviewanglesandcaptureswhat youreyescansee.Itcantakephotosandrecord4Kvideos.In addition,youcandownloadanAPPonsmartphonewhichlets youpreviewandmakeoperationforvideorecordingandphoto shootingonAPPafterWi-Ficonnection.Youcaneditphotosand videosafterdownloadingandsharingtosocialmediaplatforms SafetyTips Donotdrop,bumporpuncturetheproduct. Donotstoretheproductinaplacewithexcessivedust,high temperature,lowtemperature,humidityorstrong vibration.Otherwisetheproductmaybedamaged. Donotusecorrosivechemicalsorsolventstocleanthe product. Therearenouser-serviceablepartsinsidetheproduct.If theproductdamages,pleasereturnit tothesellerforrepair. Cautions Keepchildrenawayfromtheproduct,accessoriesandits packagingmaterials.Itmaycausesuffocation. Donotputtheproductinanopenflame.Otherwiseitmay causeanexplosion. MANUALCONTENTS ProductStandardParts .......................................................................... 1 CameraIntroduction .................................................................................... 2 InstallationAndDisassemblySteps ......................................................... 4 Whatyoudobeforeuse ......................................................................... 6 Charging .......................................................................................................... 6 HowtoinstallMicroSDCard .................................................................... 7 Howtooperatethecamera .................................................................... 8 Video ................................................................................................................ 8 Photo ................................................................................................................ 8 Capture ............................................................................................................ 9 Remotecontrol(Optional) ......................................................................... 9 Howtoconnectwithcomputer .......................................................... 11 RemovablediskMode .............................................................................. 11 PCCamMode .............................................................................................. 11 APPUsing .................................................................................................... 12 APPDownloading ...................................................................................... 12 APPConnecting .......................................................................................... 13 APPVideoMode ........................................................................................ 15 APPPhotoMode ........................................................................................ 15 APPSetting .................................................................................................. 16 MyDevice ..................................................................................................... 17 MyFiles ......................................................................................................... 19 Specifications ............................................................................................. 22 TroubleShooting ...................................................................................... 23 7 2 ...................................................................................... FCC Statement ..... 1 ProductStandardParts Otheraccessories:Pouch,UserManual,Warrantycard ※Wrench：tightenandloosenthescrewtothehoop. ※Hook：preventchargingcabledisconnection. Camera FixingScrew Wrench※ 5PINMicroUSBCable Hook※ Combinedadjustable Headhoop 2 CameraIntroduction No.NameNo.NameNo.Name 1Lens6 Recording MIC 11 MicroSD CardSlot 2HDPort7PowerButton12ResetButton 3 RedStatus Light 8Wi-FiButton13USBPort 4GreenStatus9PhotoButton14Speaker 3 Light 5 BlueStatus Light 10 Recording Button Indicatorlightdescription Status Indicator Light “RED” Charging Light “Green” Shooting Light “Blue” Wi-FiLight OnChargingStandbyConnected Off Fully Charged PowerOffWi-FiOff FlashOnce/Photo/ Flashata frequencyof1 second /VideoWi-FiOn 4 I nstallationanddisassemblysteps A.Installationoftheheadband 1.Alignandinserttheleftandrightparttotheslot. 2.Movethemiddlepartleftandrighttoadjusttheheadband size. B.Disassemblyoftheheadband 5 Pressthemiddlepart(Seepicture)toremovetheleftandright part. C.Camerainstallationsteps 2.Lockthehoopandthe camerawiththewrench andnut. 4.Finished 1.Fixthehoopatthescrew holeofthecamera 3.Installthesoftrubbersleeve ontothescrew. 6 WhatYouDoBeforeUse Bepreparedbeforeusingthecameratogetabetterexperience. Charging Fullychargethecameraforfirsttimeusing. 1.TakeouttheMicroUSBCable. 2.Connectthecamerato5V/1A-2AchargeroraComputer, andtheotherendtotheMicroUSBPortonthebottom ofthecamera. 3.ThecamerawillturnonautomaticallywhenChargingboth theredandgreenindicatorlightwillbelit.theredindicator lightwillturnoffafterthebatteryisfullycharged. NOTICE: 1.Itneedsabout3hoursforfullcharge. 2.Whenthebatteryislow,thespeakerwillemitan alarmsoundof“beep,beep,beep.Pleasecharge itintime”. 7 HowToInstallMicroSDCard 1.Switchoffthepowerbeforeinsertingorremovingthecard. 2.OpenTFcardslot. 3.InsertTFcardtothecardslotintherightdirection. (RecommendedMicroSDCard:U3&Capacityupto256GB) ※Toremovethecard,pressitlightlyanditwillpopout. NOTICE：Underthesituationofthememorycard’s formatisnotcompatiblewiththecamera,thecamerawill sound“PleaseholdonthePhotobuttontoformatthe memorycard”,pleasepressthephotobuttonfor3 secondsaftertheprompttone,thecamerawillformatthe MicroSDcardautomatically.Aftertheformattingis finished,thecamerawillsound“Formatcomplete”. 8 HowToOperateTheCamera PowerOn：PressthePowerbuttonfor3secondsThegreen indicatorlightwillbelit. PowerOff：PressthePowerbuttonfor3seconds.Thegreen indicatorlightwillbeoff. Video 1.StandbyMode. 2.Pressth…

Text truncated - open the document above for the full version.

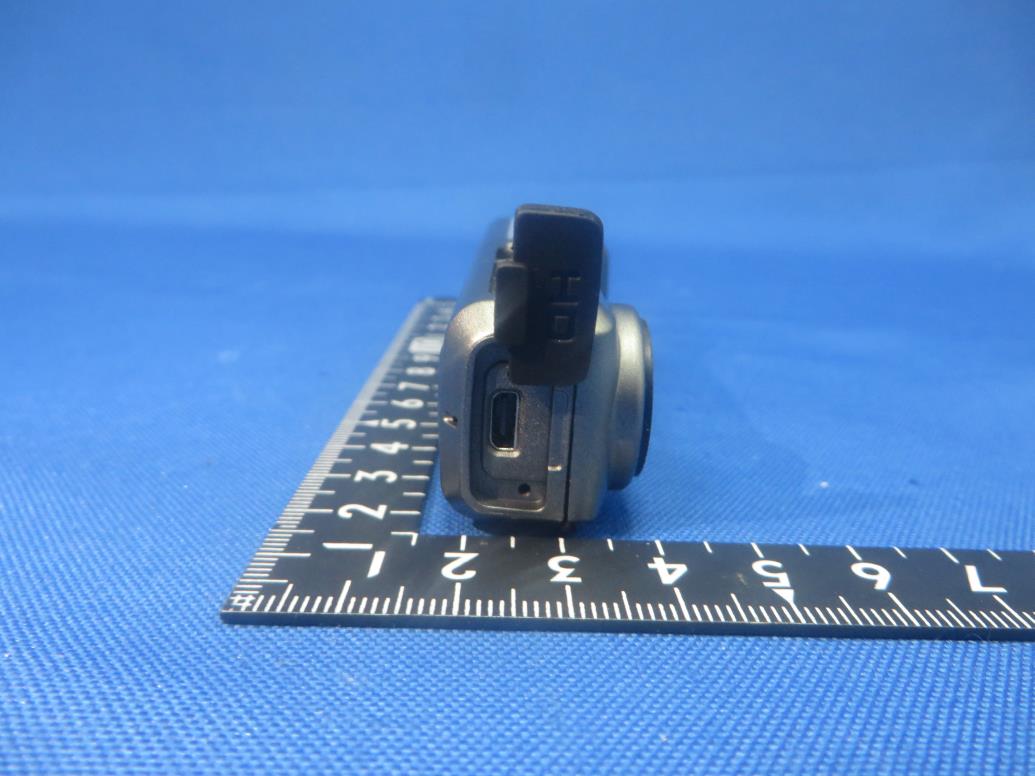

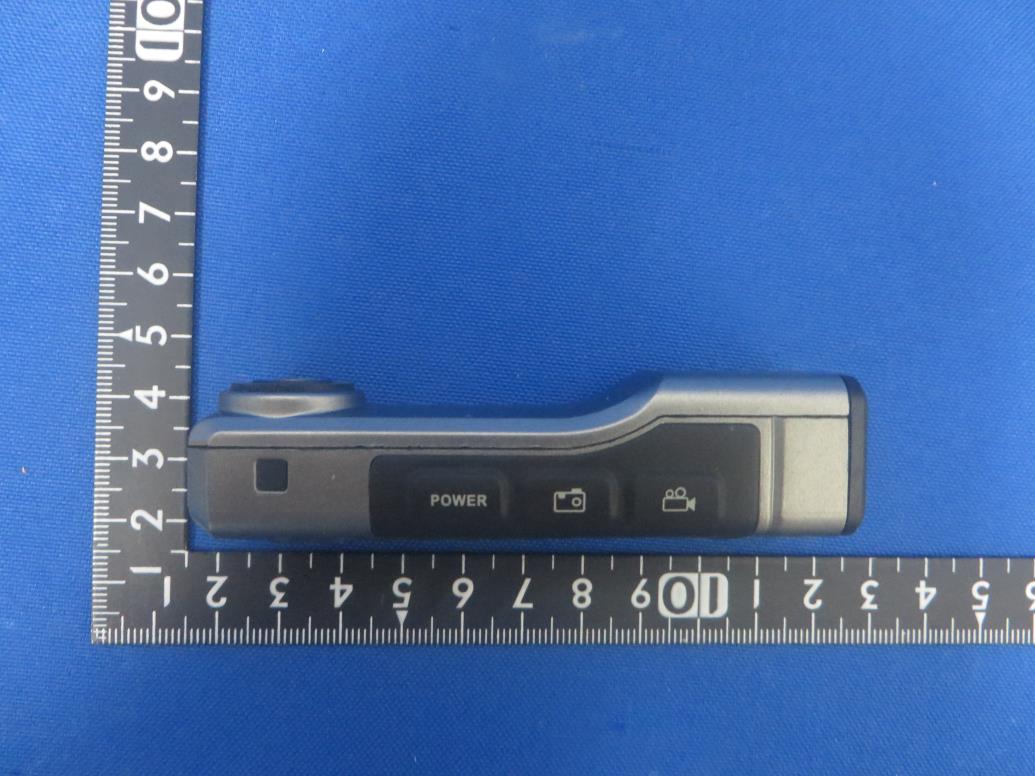

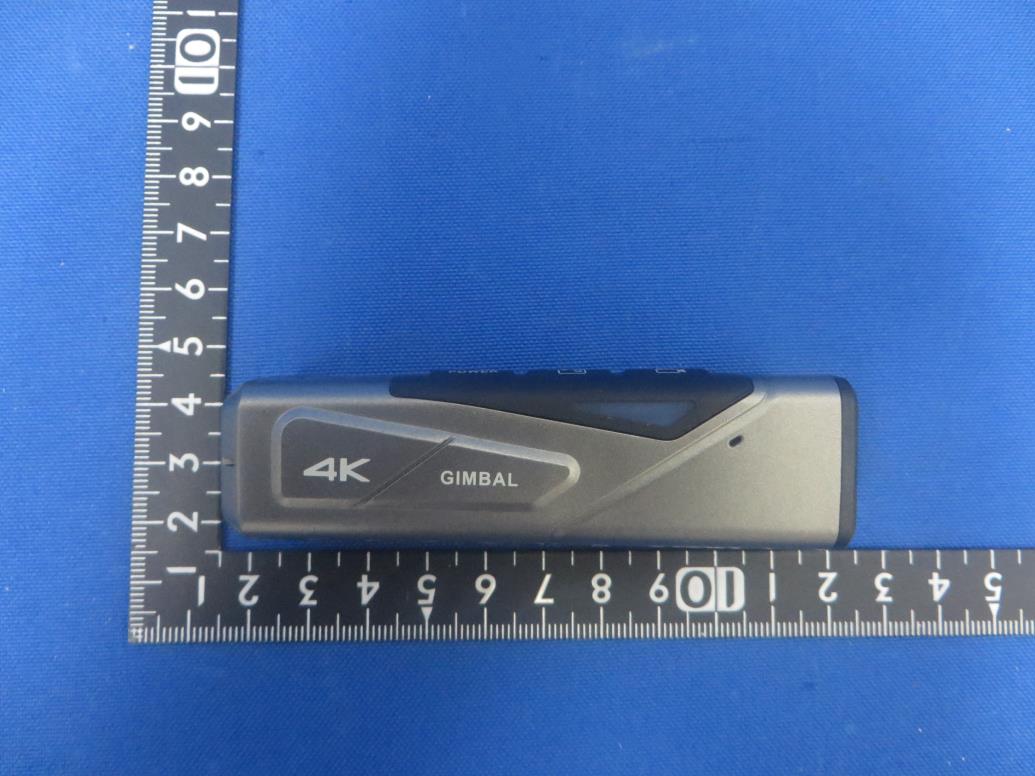

Report No.: 2004RSU016-UE 1 of 4 EUT External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2004RSU016-UE 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 2004RSU016-UE 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 2004RSU016-UE 4 of 4 (7) EUT Photo (8) EUT Photo

Report No.: 2004RSU016-UE 1 of 7 EUT Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2004RSU016-UE 2 of 7 (3) EUT Photo (4) EUT Photo Report No.: 2004RSU016-UE 3 of 7 (5) EUT Photo (6) EUT Photo Report No.: 2004RSU016-UE 4 of 7 (7) EUT Photo (8) EUT Photo Report No.: 2004RSU016-UE 5 of 7 (9) EUT Photo (10) EUT Photo Report No.: 2004RSU016-UE 6 of 7 (11) EUT Photo (12) EUT Photo Report No.: 2004RSU016-UE 7 of 7 (13) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2004RSU016-U2 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 05-18-2020 Page Number: 1 of 7 RF Exposure Evaluation Declaration FCC ID: 2ALYU-EP7 APPLICANT: Shenzhen Pa. Times Technology Co., Ltd Application Type: Certification Product: Wearable video camera Model No.: EP7 Serial Model No.: EP7S, EP7M, EPS Brand Name: ORDRO FCC Classification: Digital Transmission System (DTS) Test Procedure(s): KDB 447498 D01v06 Reviewed By: ( Jame Yuan ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2004RSU016-U2 Page Number: 2 of 7 Revision History Report No. Version Description Issue Date Note 2004RSU016-U2 Rev. 01 Initial Report 05-18-2020 Valid Report No.: 2004RSU016-U2 Page Number: 3 of 7 1. PRODUCT INFORMATION 1.1. Equipment Description 1.2. Product Specification Subjective Product Name: Wearable video camera Model No.: EP7 Serial Model No.: EP7S, EP7M, EPS Brand Name: ORDRO Wi-Fi Specification: 802.11b/g/n Frequency Range: 802.11b/g/n-HT20: 2412 ~ 2462 MHz 802.11n-HT40: 2422 ~ 2452 MHz Type of Modulation: 802.11b: DSSS 802.11g/n: OFDM Data Rate: 802.11b: 1/2/5.5/11Mbps 802.11g: 6/9/12/18/24/36/48/54Mbps 802.11n: up to 150Mbps Antenna Type: FPC Antenna Antenna Gain: 1.26dBi Report No.: 2004RSU016-U2 Page Number: 4 of 7 2. RF Exposure Evaluation 2.1. Limits SAR Test Exclusion Thresholds for 100 MHz - 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The equation and threshold in Note 1 must be applied to determine SAR test exclusion. MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Note: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: Report No.: 2004RSU016-U2 Page Number: 5 of 7 [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where ⚫ f(GHz) is the RF channel transmit frequency in GHz ⚫ Power and distance are rounded to the nearest mW and mm before calculation ⚫ The result is rounded to one decimal place for comparison ⚫ 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Report No.: 2004RSU016-U2 Page Number: 6 of 7 2.2. Test Result of RF Exposure Evaluation Product Wearable video camera Test Item RF Exposure Evaluation Test Mode Frequency Band (MHz) Maximum Output Power SAR Test Exclusion Threshold (mW) (dBm) (mW) 2.4G Wi-Fi 2412 ~ 2462 8.00 6.31 10 Note: Per FCC KDB 447498 D01v06, the SAR exclusion threshold for distances<50mm is defined by the following equation: Based on the maximum conducted power (Include Tune-up Power) of 2.4G Wi-Fi and the antenna to use separation distance, Bluetooth SAR was not required; ( 6.31mW 5 ) * √ 2.412 = 1.96 < 3.00 Note: When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The End Report No.: 2004RSU016-U2 Page Number: 7 of 7 Appendix A - EUT Photograph Refer to “2004RSU016-UE” file.

MRT Technology (Suzhou) Co., LtdReport No.: 2004RSU016-U1 Phone: +86-512-66308358Report Version: V01 Web: www.mrt-cert.comIssue Date: 05-20-2020 Page Number: 1 of 102 FCC ID: 2ALYU-EP7 APPLICANT: Shenzhen Pa. Times Technology Co., Ltd Application Type: Certification Product: Wearable video camera Model No.: EP7 Serial Model No.: EP7S, EP7M, EPS Brand Name: ORDRO FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15 Subpart C (Section 15.247) Test Procedure(s): ANSI C63.10-2013 Test Date: April 25 ~ 30, 2020 MEASUREMENT REPORT FCC PART 15.247 WLAN 802.11b/g/n Reviewed By: ( Jame Yuan ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2004RSU016-U1 Page Number: 2 of 102 Revision History Report No. Version Description Issue Date Note 2004RSU016-U1 Rev. 01 Initial Report 05-20-2020 Valid Report No.: 2004RSU016-U1 Page Number: 3 of 102 CONTENTS Description Page General Information ........................................................................................................................ 5 1. INTRODUCTION ...................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ...................................................................................................... 7 2.1. Feature of Equipment under Test ................................................................................. 7 2.2. Product Specification Subjective to this Report ............................................................ 7 2.3. Working Frequencies for this report .............................................................................. 8 2.4. Test Mode .................................................................................................................... 8 2.5. Test Software ............................................................................................................... 8 2.6. Duty Cycle .................................................................................................................... 9 2.7. EMI Suppression Device(s)/Modifications ................................................................... 10 2.8. Labeling Requirements ............................................................................................... 10 3. DESCRIPTION of TEST ......................................................................................................... 11 3.1. Evaluation Procedure .................................................................................................. 11 3.2. AC Line Conducted Emissions .................................................................................... 11 3.3. Radiated Emissions .................................................................................................... 12 4. ANTENNA REQUIREMENTS................................................................................................. 13 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................. 14 6. MEASUREMENT UNCERTAINTY ......................................................................................... 16 7. TEST RESULT ....................................................................................................................... 17 7.1. Summary .................................................................................................................... 17 7.2. 6dB Bandwidth Measurement ..................................................................................... 18 7.2.1. Test Limit ................................................................................................................ 18 7.2.2. Test Procedure used ............................................................................................... 18 7.2.3. Test Setting ............................................................................................................. 18 7.2.4. Test Setup .............................................................................................................. 18 7.2.5. Test Result .............................................................................................................. 19 7.3. Output Power Measurement ....................................................................................... 24 7.3.1. Test Limit ................................................................................................................ 24 7.3.2. Test Procedure Used .............................................................................................. 24 7.3.3. Test Setting ............................................................................................................. 24 7.3.4. Test Setup .............................................................................................................. 25 Report No.: 2004RSU016-U1 Page Number: 4 of 102 7.3.5. Test Result of Output Power ................................................................................... 26 7.4. Power Spectral Density Measurement ........................................................................ 28 7.4.1. Test Limit ..........................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 2004RSU016-U1 Page Number: 52 of 102 Product Wearable video camera Temperature 23°C Test Engineer David Lv Relative Humidity 53% Test Site AC1 Test Date 2020/04/26 Test Mode 802.11g Test Channel 06 Remark 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level ) Factor (dB) Measure Level Limit Margin (dB) Detector Polarization 4867.5 42.4 5.9 48.3 74.0 -25.7 Peak Horizontal 7307.0 38.0 11.7 49.7 74.0 -24.3 Peak Horizontal * 8879.5 31.7 14.2 45.9 74.8 -28.9 Peak Horizontal * 10316.0 32.0 17.3 49.3 74.8 -25.5 Peak Horizontal 4230.0 34.5 3.8 38.3 74.0 -35.7 Peak Vertical 4876.0 42.2 5.9 48.1 74.0 -25.9 Peak Vertical * 5981.0 34.4 7.7 42.1 74.8 -32.7 Peak Vertical * 6899.0 33.3 10.0 43.3 74.8 -31.5 Peak Vertical Note 1in restricted band, its limit is 20dBc of the fundamental emission level (94.8 or 15.209 which is higher. Note 2: Measure Level (dB) = Reading Level (dB) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 2004RSU016-U1 Page Number: 53 of 102 Product Wearable video camera Temperature 23°C Test Engineer David Lv Relative Humidity 53% Test Site AC1 Test Date 2020/04/26 Test Mode 802.11g Test Channel 11 Remark 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level ) Factor (dB) Measure Level Limit Margin (dB) Detector Polarization 4927.0 41.4 6.1 47.5 74.0 -26.5 Peak Horizontal 7392.0 38.8 11.8 50.6 74.0 -23.4 Peak Horizontal * 8905.0 32.3 14.2 46.5 77.6 -31.1 Peak Horizontal * 9882.5 31.3 16.8 48.1 77.6 -29.5 Peak Horizontal 4000.5 34.9 3.3 38.2 74.0 -35.8 Peak Vertical 4927.0 41.4 6.1 47.5 74.0 -26.5 Peak Vertical * 6202.0 33.1 8.1 41.2 77.6 -36.4 Peak Vertical * 7128.5 33.4 11.3 44.7 77.6 -32.9 Peak Vertical Note 1ot in restricted band, its limit is 20dBc of the fundamental emission level (97.6 or 15.209 which is higher. Note 2: Measure Level (dB) = Reading Level (dB) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 2004RSU016-U1 Page Number: 54 of 102 Product Wearable video camera Temperature 23°C Test Engineer David Lv Relative Humidity 53% Test Site AC1 Test Date 2020/04/26 Test Mode 802.11n-HT20 Test Channel 01 Remark 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level ) Factor (dB) Measure Level Limit Margin (dB) Detector Polarization 4111.0 34.7 3.4 38.1 74.0 -35.9 Peak Horizontal 4825.0 39.9 6.1 46.0 74.0 -28.0 Peak Horizontal * 5632.5 33.2 7.0 40.2 74.0 -33.8 Peak Horizontal * 6567.5 32.4 9.6 42.0 74.0 -32.0 Peak Horizontal 4383.0 35.9 4.5 40.4 74.0 -33.6 Peak Vertical 4825.0 43.4 6.1 49.5 74.0 -24.5 Peak Vertical * 5972.5 33.8 7.7 41.5 74.0 -32.5 Peak Vertical * 6814.0 33.7 9.8 43.5 74.0 -30.5 Peak Vertical Note 1restricted band, its limit is 20dBc of the fundamental emission level (93.4 or 15.209 which is higher. Note 2: Measure Level (dB) = Reading Level (dB) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 2004RSU016-U1 Page Number: 55 of 102 Product Wearable video camera Temperature 23°C Test Engineer David Lv Relative Humidity 53% Test Site AC1 Test Date 2020/04/26 Test Mode 802.11n-HT20 Test Channel 06 Remark 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level ) Factor (dB) Measure Level Limit Margin (dB) Detector Polarization 4119.5 34.9 3.5 38.4 74.0 -35.6 Peak Horizontal 4876.0 41.5 5.9 47.4 74.0 -26.6 Peak Horizontal * 6134.0 32.7 8.1 40.8 74.0 -33.2 Peak Horizontal * 7205.0 33.9 11.5 45.4 74.0 -28.6 Peak Horizontal 4077.0 34.5 3.3 37.8 74.0 -36.2 Peak Vertical 4876.0 41.3 5.9 47.2 74.0 -26.8 Peak Vertical * 6431.5 32.7 9.2 41.9 74.0 -32.1 Peak Vertical * 7120.0 33.6 11.3 44.9 74.0 -29.1 Peak Vertical Note 1in restricted band, its limit is 20dBc of the fundamental emission level (93.8 or 15.209 which is higher. Note 2: Measure Level (dB) = Reading Level (dB) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 2004RSU016-U1 Page Number: 56 of 102 Product Wearable video camera Temperature 23°C Test Engineer David Lv Relative Humidity 53% Test Site AC1 Test Date 2020/04/26 Test Mode 802.11n-HT20 Test Channel 11 Remark 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level ) Factor (dB) Measure Level Limit Margin (dB) Detector Polarization 3839.0 34.6 2.9 37.5 74.0 -36.5 Peak Horizontal 5122.5 33.5 6.7 40.2 74.0 -33.8 Peak Horizontal * 6185.0 32.7 8.2 40.9 74.7 -33.8 Peak Horizontal * 6839.5 32.9 10.0 42.9 74.7 -31.8 Peak Horizontal 3881.5 35.4 3.0 38.4 74.0 -35.6 Peak Vertical 4927.0 35.7 6.1 41.8 74.0 -32.2 Peak Vertical * 5989.5 33.6 7.8 41.4 74.7 -33.3 Peak Vertical * 7196.5 33.2 11.6 44.8 74.7 -29.9 Peak Vertical Note 1in restricted band, its limit is 20dBc of the fundamental emission level (94.7 or 15.209 which is higher. Note 2: Measure Level (dB) = Reading Level (dB) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 2004RSU016-U1 Page Number: 57 of 102 Product Wearable video camera Temperature 23°C Test Engineer David Lv Relative Humidity 53% Test Site AC1 Test Date 2020/04/26 Test Mode 802.11n-HT40 Test Channel 03 Remark 1. Average measurement was not performed if peak level lower than average limit. 2. O…

Text truncated - open the document above for the full version.

Report No.: 2004RSU016-UT 1 of 2 FCC Part 15C Test Setup Photograph Description: Front View of Conducted Emission Test Setup for Power Port Description: Back View of Conducted Emission Test Setup for Power Port Report No.: 2004RSU016-UT 2 of 2 Description: Radiated Emission Test Setup for below 1GHz Description: Radiated Emission Test Setup for above 1GHz
