ALANGO TECHNOLOGIES, LTD. Agent Authorization Company: ALANGO TECHNOLOGIES, LTD. Address: 2 Etgar St., POB62 Tirat Carmel 39100, Israel Product Name: BeHear SMARTO Model Number(s): ABH-410 Product Description: BeHear SMARTO We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-04-14 Name: Michael Bukchin Company: ALANGO TECHNOLOGIES, LTD.

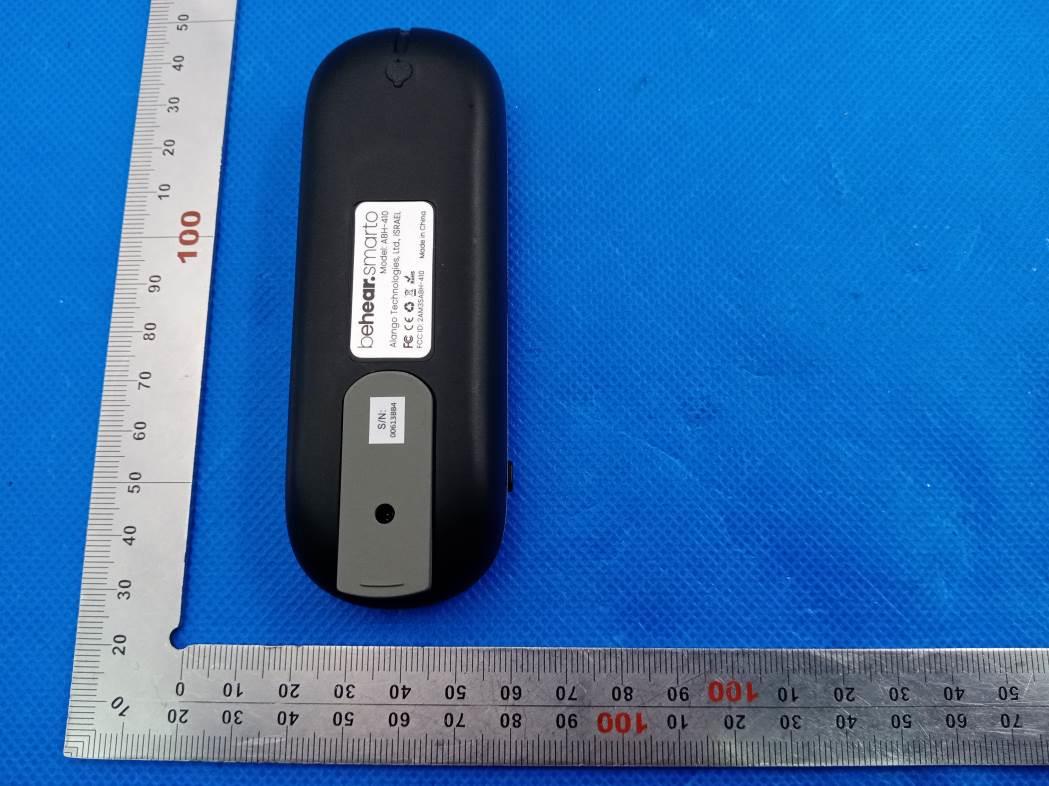

Report No.: AGC06100220302AP02 Page 1 of 4 EXTERNAL PHOTOS All VIEW OF EUT TOP VIEW OF EUT Report No.: AGC06100220302AP02 Page 2 of 4 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC06100220302AP02 Page 3 of 4 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC06100220302AP02 Page 4 of 4 RIGHT VIEW OF EUT ****************************************End of Report****************************************

FCC ID Label Location 15mm&40mm FCC ID: 2AM3SABH-410

Report No.: AGC06100220302AP02 Page 1 of 7 INTERNAL PHOTOS PORT VIEW OF EUT (FIGURE 1) PORT VIEW OF EUT (FIGURE 2) Report No.: AGC06100220302AP02 Page 2 of 7 OPEN VIEW OF EUT (FIGURE 1) OPEN VIEW OF EUT (FIGURE 2) Report No.: AGC06100220302AP02 Page 3 of 7 VIEW OF BATTERY ANTENNA CLOSE-UP PHOTO-1 Antenna Report No.: AGC06100220302AP02 Page 4 of 7 INTERNAL VIEW OF EUT (FIGURE 1) INTERNAL VIEW OF EUT (FIGURE 2) Report No.: AGC06100220302AP02 Page 5 of 7 INTERNAL VIEW OF EUT (FIGURE 3) INTERNAL VIEW OF EUT (FIGURE 4) Report No.: AGC06100220302AP02 Page 6 of 7 INTERNAL VIEW OF EUT (FIGURE 5) INTERNAL VIEW OF EUT (FIGURE 6) Report No.: AGC06100220302AP02 Page 7 of 7 INTERNAL VIEW OF EUT (FIGURE 7) ****************************************End of Report****************************************

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description BeHear SMARTO Test Model ABH-410 FCC ID 2AM3SABH-410 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BE EDR P t =8.725dBm=7.46mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(7.46mW /5mm) .[√2.480(GHz)]= 2.34<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. BLE P t =8.494dBm=7.07mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(7.07mW /5mm) .[√2.480(GHz)]= 2.22<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 44 FCC Test Report Report No.: AGC06100220302FE02 FCC ID : 2AM3SABH-410 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : BeHear SMARTO BRAND NAME : Behear. MODEL NAME : ABH-410 APPLICANT : ALANGO TECHNOLOGIES, LTD. DATE OF ISSUE : Apr. 13, 2022 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC06100220302FE02 Page 2 of 44 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Apr. 13, 2022 Valid Initial Release Report No.: AGC06100220302FE02 Page 3 of 44 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................... 7 2.4. TEST METHODOLOGY ............................................................................................................................. 7 2.5. SPECIAL ACCESSORIES .......................................................................................................................... 7 2.6. EQUIPMENT MODIFICATIONS ................................................................................................................. 7 2.7. ANTENNA REQUIREMENT ....................................................................................................................... 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 8 4. DESCRIPTION OF TEST MODES ................................................................................................................... 9 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 10 5.1. CONFIGURATION OF TESTED SYSTEM ............................................................................................... 10 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 10 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 10 6. TEST FACILITY .............................................................................................................................................. 11 7. PEAK OUTPUT POWER ................................................................................................................................ 12 7.1. MEASUREMENT PROCEDURE .............................................................................................................. 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 13 8. BANDWIDTH .................................................................................................................................................. 15 8.1. MEASUREMENT PROCEDURE .............................................................................................................. 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 15 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 19 9.1. MEASUREMENT PROCEDURE .............................................................................................................. 19 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 19 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 19 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 19 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 26 Report No.: AGC06100220302FE02 Page 4 of 44 10.1. MEASUREMENT PROCEDURE ............................................................................................................ 26 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 26 10.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 26 10.4. LIMITS AND MEASUREMENT RESULT................................................................................................ 26 11. RADIATED EMISSION ................................................................................................................................. 28 11.1. MEASUREMENT PROCEDURE ............................................................................................................ 28 11.2. TEST SETUP .......................................................................................................................................... 29 11.3. LIMITS AND MEASUREMENT RESULT................................................................................................ 3…
