2AM4C-KANEGA002Kanega Watch

Step 3 TM Quick Start Guide What’s in the box? Kanega LTE Watch, Charger, Power Cable, Four Batteries, Quick Start Videos and downloadable User Guide at www.unaliwear.com/support. Charge your Kanega batteries before inserting on the watch. 1. Connect the power cable to one end of the charger and plug into wall. Verify green light on charger jack is on. 2. Insert two (2) batteries into ports by placing the top end with the gold prongs first, and then pressing the bottom of the battery gently downwards until you hear or feel it attach into place. 3. Battery light fades red when batteries are charging and turns green when they are charged. Charging time may take up to 4 hours. Step 1 Install fully-charged Kanega batteries on the watch. 1. To insert a battery, place the top end with the gold prongs first, and then press the bottom of the battery gently downwards until you hear or feel it attach into place. 2. Place a charged battery on both sides of the watchband and put the remaining two batteries on the charger so they are ready when needed. 3. You will see a black/blank screen. After batteries are installed for the first time, the display changes to ‘Kanega Watch’ with moving dots. If you do not see this within 5 seconds, press the crown button once. 4. Initial set up may take up to ten (10) minutes. 5. The display changes to ‘Press crown to begin’ when the watch is ready for you to listen to the short tutorial Listen to welcome voice tutorial through the Kanega watch speaker. 1. One short press of the crown button starts the 5 minute voice tutorial. There is one (1) minute to begin before the watch goes to sleep and returns to black/blank screen. 2. Please wear your Kanega watch during the voice tutorial. Step 2 UnaliWear Customer Success [email protected] 1-888-343-1513, ext. 1 TOP BOTTOM TOP BOTTOM Thank you for purchasing the Kanega watch. Refer to the User Guide for details. PORT JAC K BATTERY F CC ID: 2AM4C - KANEGA002 Contains LTE Module FCC ID: 2AM4C - HL7800M A nd Contains BT/Wi - Fi Module FCC ID: XF6 - M4SB This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The exposure standard for wireless transmitter employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. The highest SAR value for the EUT as reported to the FCC when worn on the body, as described in this user guide, is 0.01 W/kg for LTE module, 0.05 W/kg for BT/Wi-Fi Module. This device contains two modules (BT/Wi-Fi Module and LTE Module) IC: 25867-KANEGA002 Contains LTE Module IC: 25867-HL7800M And Contains BT/Wi-Fi Module IC: 8407A-M4SB This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. Ce dispositif contient une licence qui autorise le (S) émetteur (S)/ récepteur (S) qui est (sont) autorisé (S) avec Innovation, La licence canadienne en matière de Science et de développement économique fait l’objet de deux conditions: (1) ce dispositif peut ne pas causer de gêne. (2) cet appareil doit accepter toute intrusion, y compris celle qui peut provoquer l’indésirabilité Fonctionnement de l’appareil. The exposure standard for wireless transmitter employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the ISED is 1.6W/kg. The highest SAR value for the EUT as reported to the ISED when worn on the body, as described in this user guide, is 0.01 W/kg for LTE module, 0.05 W/kg for BT/Wi-Fi Module. La norme d'exposition pour l'émetteur sans fil utilise une unité de mesure connue sous le nom de taux d'absorption spécifique, ou SAR. La limite SAR fixée par l'IC est de 1,6 W / kg. La valeur SAR la plus élevée pour l'EUT signalée à l'IC lorsqu'elle est portée sur le corps, comme décrit dans ce guide de l'utilisateur, est de 0,01 W/kg pour le module LTE, 0,05 W/kg pour BT/Wi-Fi Module.

UnaliWear, Inc. 3410 Cherry Lane Austin, TX, 78703 Date: 02/28/20 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AM4C-KANEGA002 Contains FCC ID: 2AM4C-HL7800M Contains: FCC ID: XF6-M4SB Confidentiality Letter To whom it may concern, Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of the information accompanying this application as outlined below: • Block Diagram • Schematics • Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Jean Anne Booth CEO

UnaliWear, Inc. 3410 Cherry Lane Austin, TX, 78703 Date: 02/28/20 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Declaration of Authorization To whom it may concern, I the undersigned, hereby authorize, MRT Tehnology (Suzhou) Co., LTD, D8 Building, Youxin Industrial Park, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China (MRT) to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters, for the following product(s): Product: Kanega Watch FCC ID: 2AM4C- Contains FCC ID: 2AM4C-HL7800M Contains FCC ID: XF6-M4SB IC: 25867- Contains IC: 25867-HL7800M Contains IC: 8407A-M4SB Model: KANEGA002 Brand: UnaliWear Any and all acts carried out by MRT on our behalf, of the named product(s) above, shall have the same effects as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 853(a). This authorization is valid for one hundred and twenty days (120) from 02/28/20. Sincerely, Signature: Jean Anne Booth CEO KANEGA002 KANEGA002

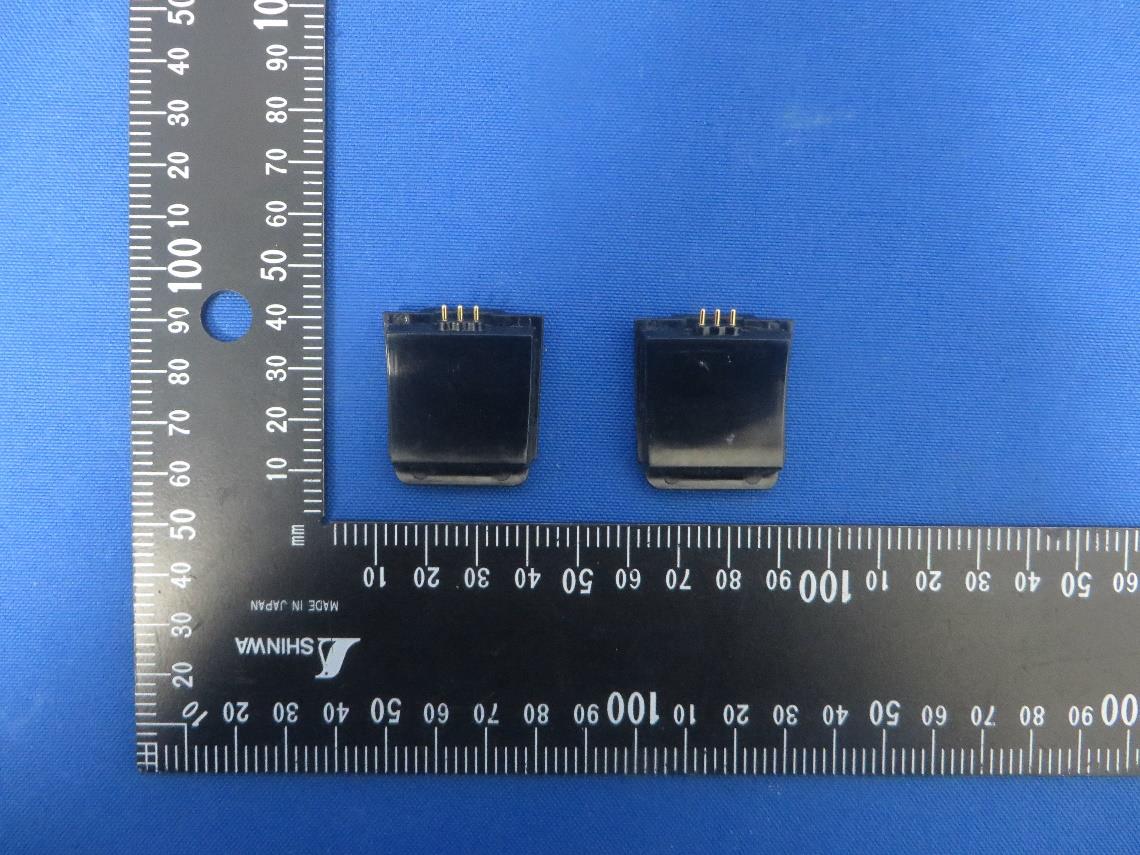

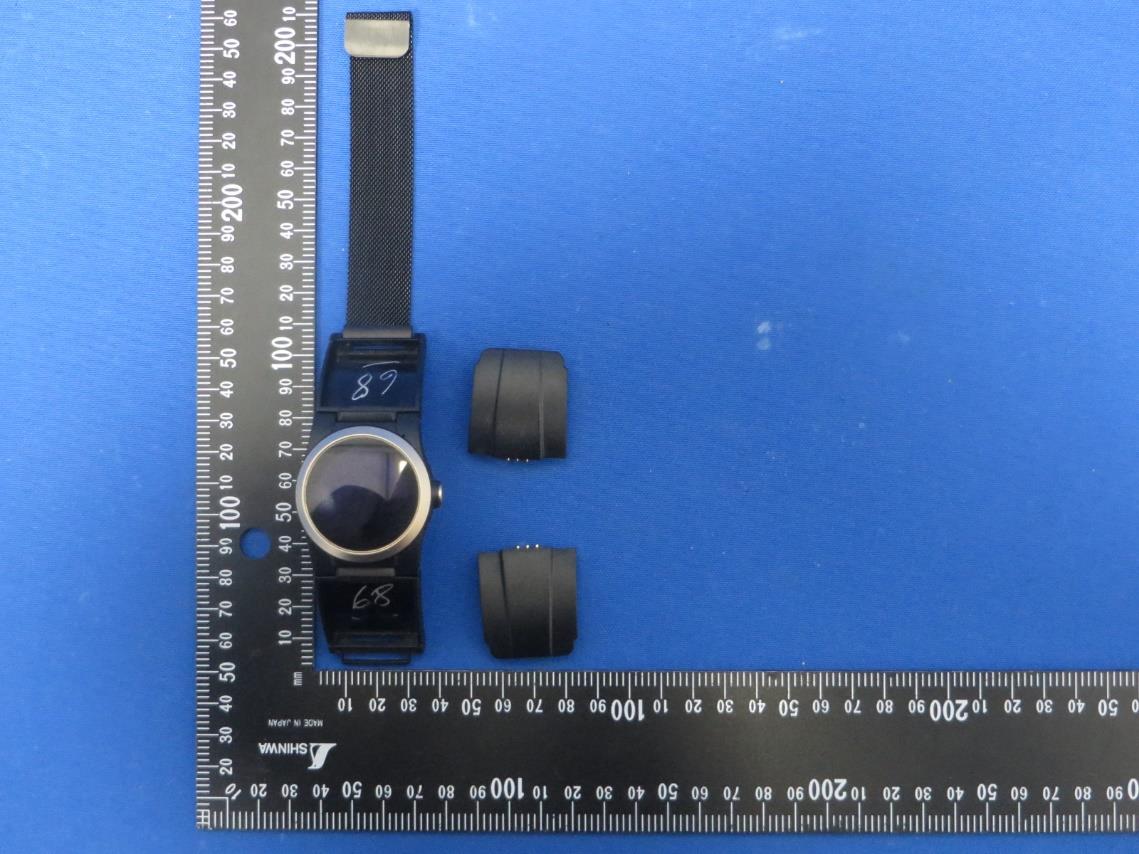

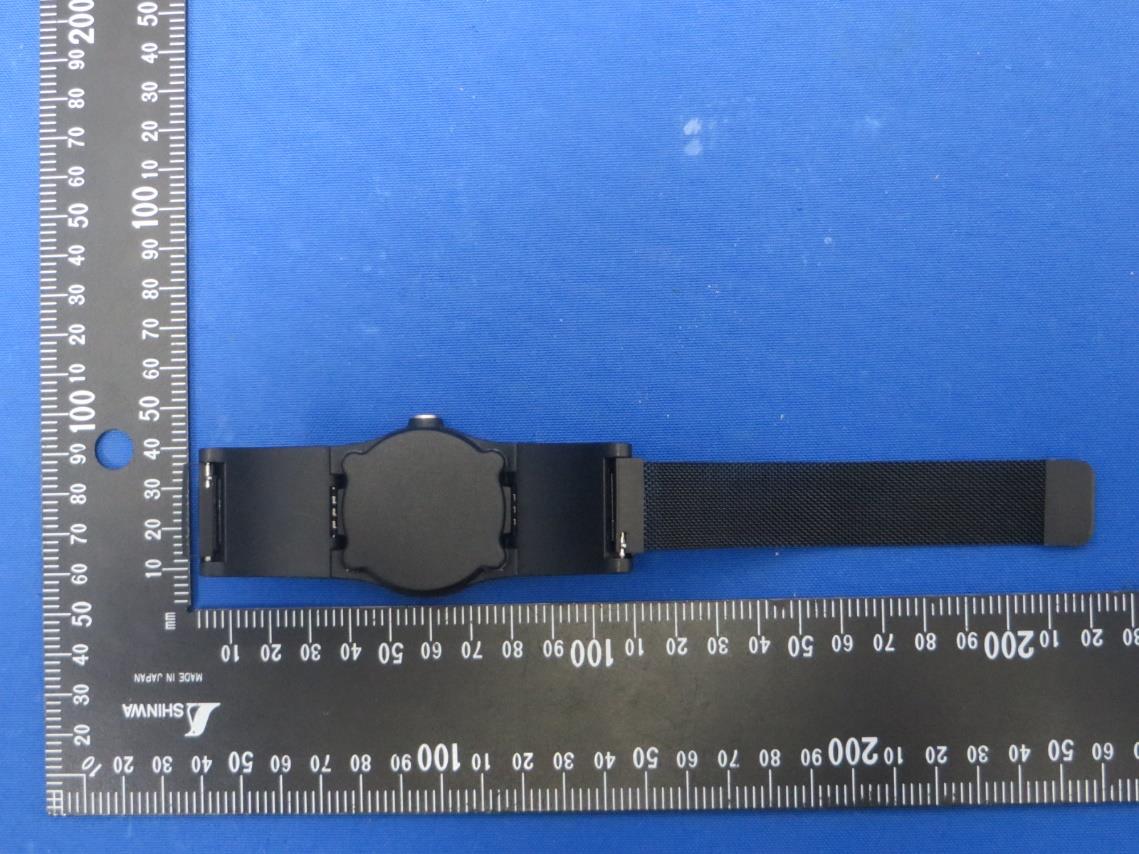

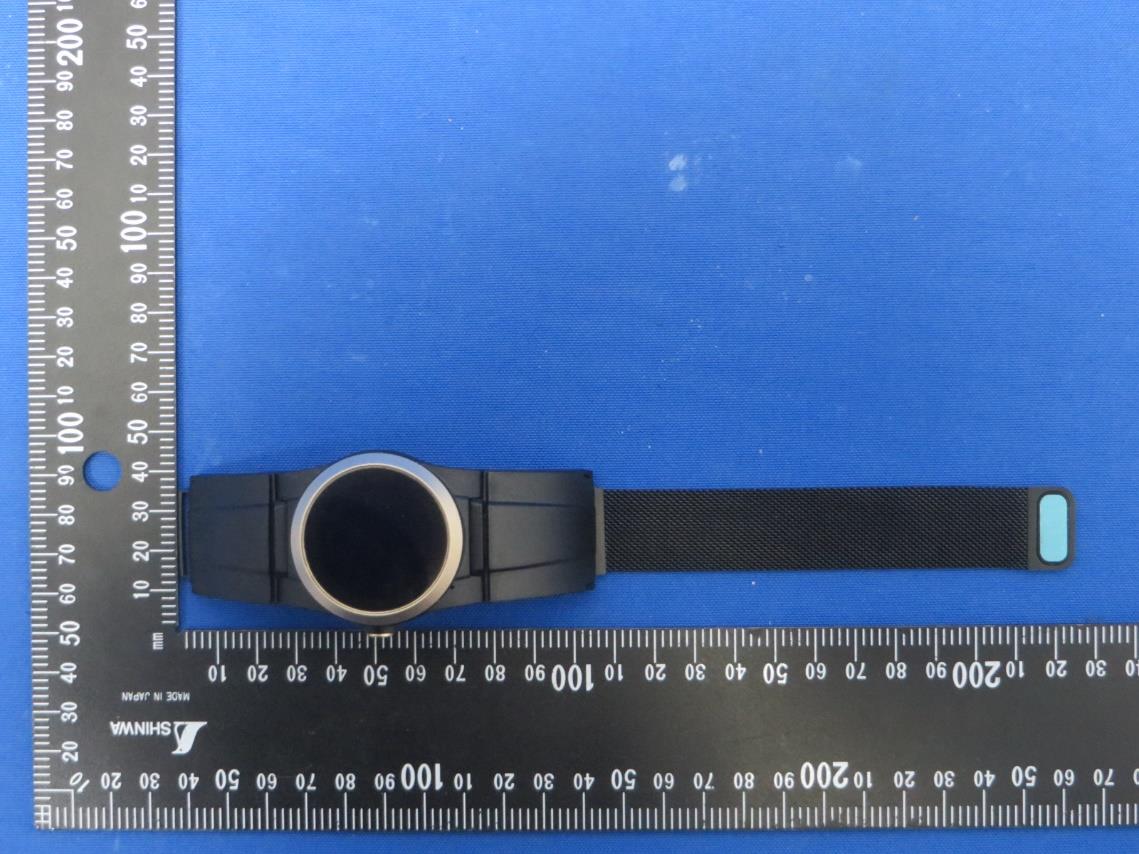

Report No.: 1912RSU024-UE-2 1 of 5 EUT External Photograph (1) EUT Photo (2) EUT Photo Report No.: 1912RSU024-UE-2 2 of 5 (3) EUT Photo (4) EUT Photo Report No.: 1912RSU024-UE-2 3 of 5 (5) EUT Photo (6) EUT Photo Report No.: 1912RSU024-UE-2 4 of 5 (7) EUT Photo (8) EUT Photo Report No.: 1912RSU024-UE-2 5 of 5 (9) EUT Photo

Model: KANEGA002 FCC ID: 2AM4C-KANEGA002 Contains FCC ID: 2AM4C-HL7800M Contains FCC ID: XF6-M4SB IC: 25867-KANEGA002 Contains IC: 25867-HL7800M Contains IC: 8407A-M4SB TO ACCESS THE E-LABEL: 1.Press the crown button once to display the date screen 2.Press the crown button twice to display the user info screen 3.Press the crown button twice to display the above regulatory screen NOTE: 1. Device does not require special accessories or supplemental plug-ins (e.g., the installation of a SIM/USIM card) to access the information. 3410 Cherry Lane, Austin, TX 78703 2.The FCC ID and IC information is part of the device operation software and the information is secured in such a manner that third parties cannot modify it. 3410 Cherry Lane, Austin, TX 78703

Report No.: 1912RSU024-UE-2 1 of 5 EUT Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 1912RSU024-UE-2 2 of 5 (3) EUT Photo (4) EUT Photo Report No.: 1912RSU024-UE-2 3 of 5 (5) EUT Photo (6) EUT Photo Report No.: 1912RSU024-UE-2 4 of 5 (7) EUT Photo (8) EUT Photo Report No.: 1912RSU024-UE-2 5 of 5 (9) EUT Photo (10) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.:1912RSU024-U8 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 03-23-2020 Page Number: 1 of 22 Applicant: UnaliWear, Inc. Address: 3410 Cherry Lane, Austin, TX 78703 USA Application Type: Certification Product: Kanega Watch Model No: KANEGA002 Brand Name: UnaliWear FCC Rule Part(s): FCC Part 15 Subpart B: 2020 ICES Rule(s) ICES-003 Issue 6 Test Procedure(s): ANSI C63.4: 2014 Test Date: December 28, 2019 MEASUREMENT REPORT FCC Part 15 Subpart B / ICES-003 Reviewed By: ( Jame Yuan) Approved By: ( Robin Wu ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2014. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1912RSU024-U8 Page Number: 2 of 22 Revision History Report No. Version Description Issue Date Note 1912RSU024-U8 Rev. 01 Initial Report 03-23-2020 Valid Report No.: 1912RSU024-U8 Page Number: 3 of 22 CONTENTS Description Page General Information ....................................................................................................................... 4 1. INTRODUCTION ..................................................................................................................... 5 1.1. Scope ........................................................................................................................... 5 1.2. MRT Test Location ........................................................................................................ 5 2. PRODUCT INFORMATION ..................................................................................................... 6 2.1. Equipment Description .................................................................................................. 6 2.2. Test Mode .................................................................................................................... 6 2.3. Test Configuration ........................................................................................................ 6 2.4. Test System Details ...................................................................................................... 7 2.5. Test Procedure ............................................................................................................. 7 2.6. EMI Suppression Device(s)/Modifications ..................................................................... 7 3. DESCRIPTION OF TEST ........................................................................................................ 8 3.1. Evaluation Procedure ................................................................................................... 8 3.2. AC Line Conducted Emissions ..................................................................................... 8 3.3. Radiated Emissions ...................................................................................................... 9 4. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 10 5. MEASUREMENT UNCERTAINTY .......................................................................................... 11 6. TEST RESULT ...................................................................................................................... 12 6.1. Summary .................................................................................................................... 12 6.2. Conducted Emission Measurement ............................................................................ 13 6.2.1. Test Limit ................................................................................................................ 13 6.2.2. Test Setup ............................................................................................................... 13 6.2.3. Test Result of Conducted Emissions ....................................................................... 13 6.3. Radiated Emission Measurement ............................................................................... 14 6.3.1. Test Limit ................................................................................................................ 14 6.3.2. Test Setup ............................................................................................................... 14 6.3.3. Test Result of Radiated Emissions .......................................................................... 16 7. CONCLUSION ....................................................................................................................... 20 Appendix A - Test Setup Photograph ......................................................................................... 21 Appendix B - EUT Photograph .................................................................................................... 22 Report No.: 1912RSU024-U8 Page Number: 4 of 22 General Information Applicant: UnaliWear, Inc. Applicant Address: 3410 Cherry Lane, Austin, TX 78703 USA Manufacturer: UnaliWear, Inc. Manufacturer Address: 3410 Cherry Lane, Austin, TX 78703 USA Test Site: MRT Technology (Suzhou) Co., Ltd Test Site Address: D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Test Facility / Accreditations Measurements were performed at MRT Laboratory located in Tian’edang Rd., Suzhou, China.  MRT facility is a FCC registered (MRT Designation No. CN1166) test facility with the site description report on file and has met all the requirements specified in ANSI C63.4-2014.  MRT facility is an IC registered (MRT Reg. No. 11384A-1) test laboratory with the site description on file at Industry Canada.  MRT facility is a VCCI registered…

Text truncated - open the document above for the full version.

Report No.: 1912RSU024-UT-2 1 of 1 EMC Test Setup Photograph Test Mode 1 Description: Radiated Emission Test Setup for below 1GHz Test Mode 1 Description: Radiated Emission Test Setup for above 1GHz
