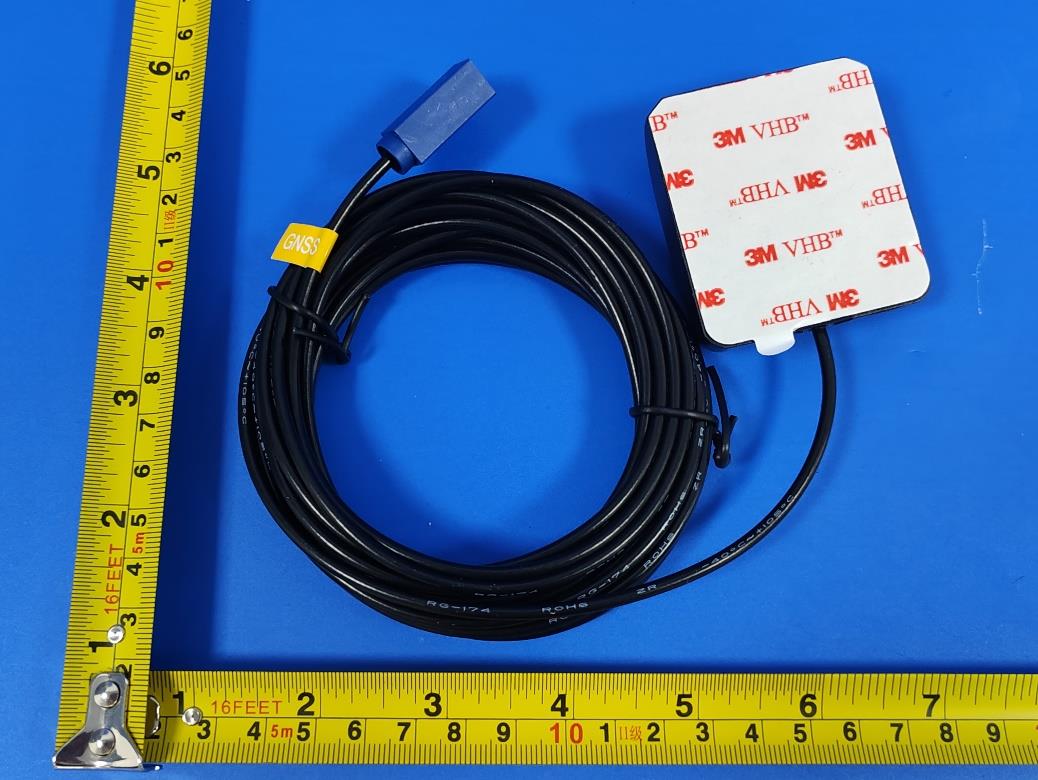

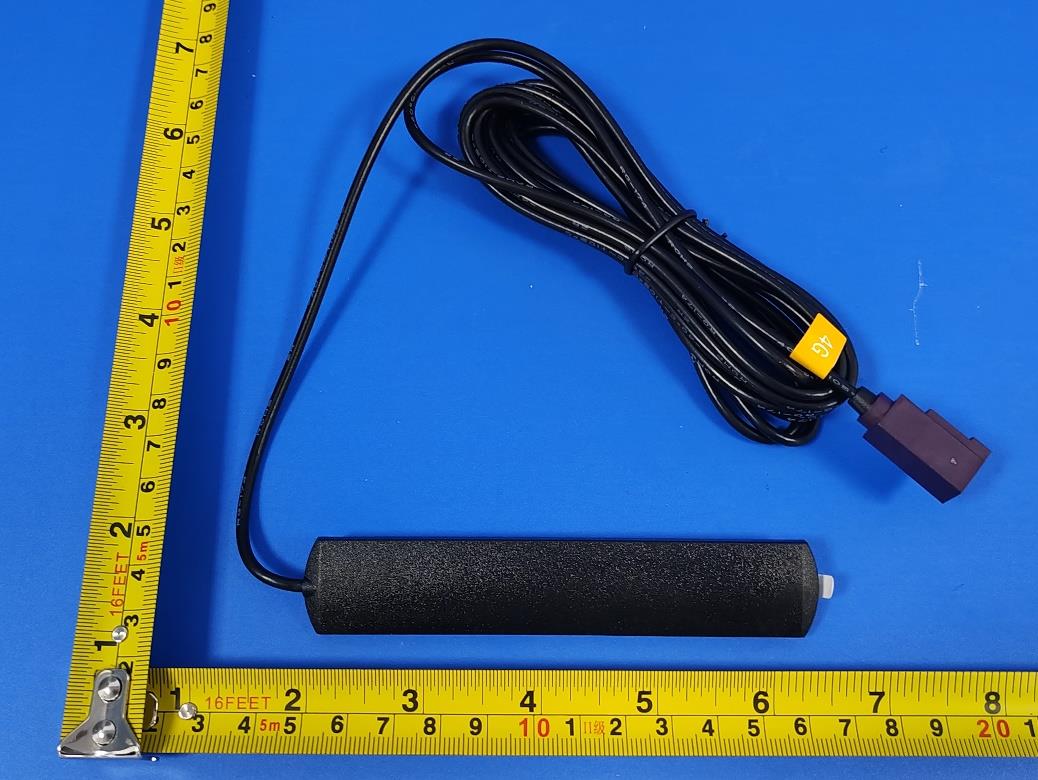

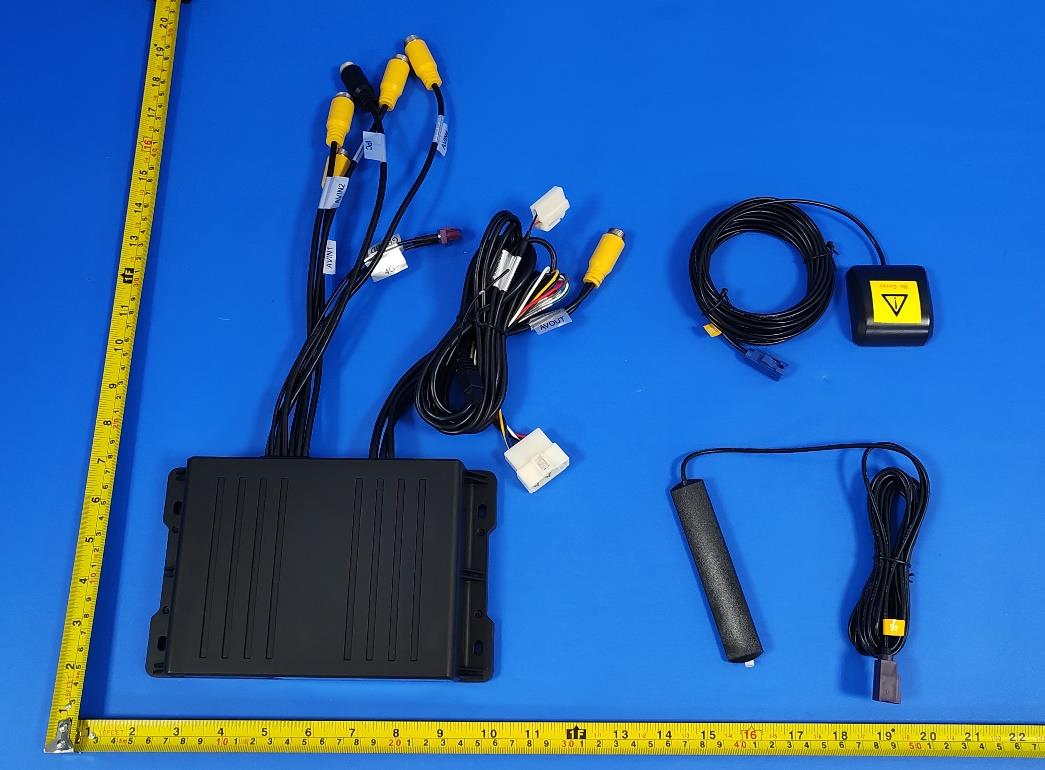

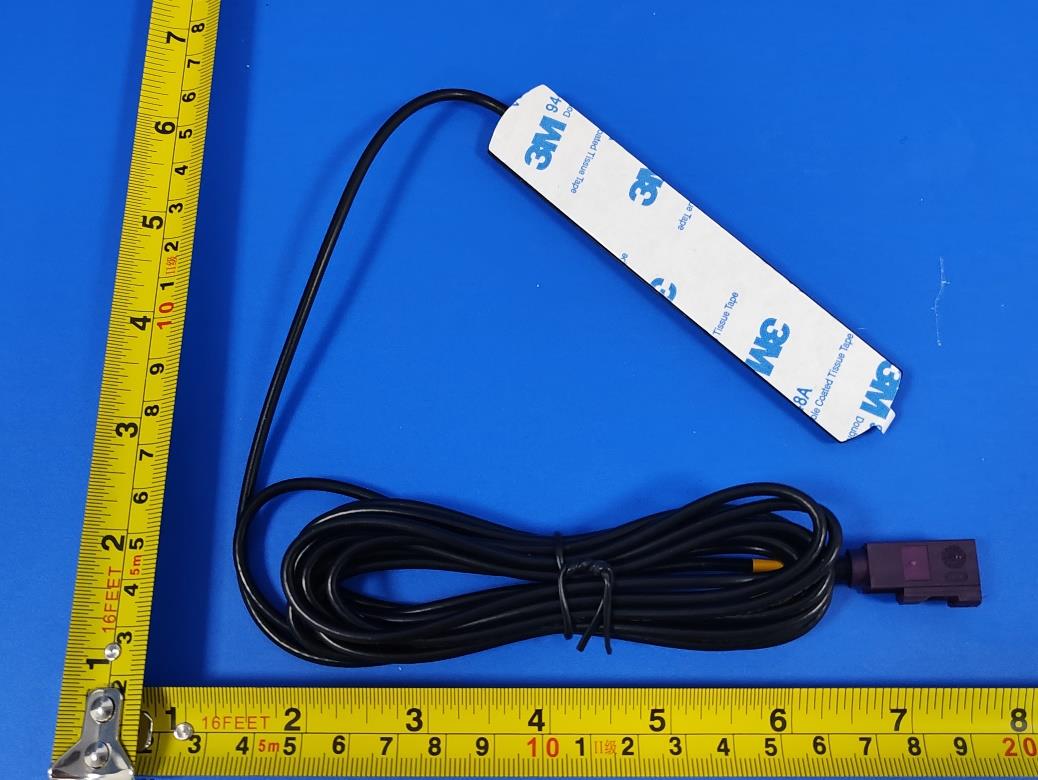

@ Streamax 2020. All Rights Reserved www.en.streamax.com F1N Product Features Advantages F1N is a multifunctional vehicle-mounted intelligent terminal product that consists of storage modules, encoding modules, communication modules and power modules. It integrates on-board video surveillance, remote video surveillance on platforms, and driver behavior analysis. And more, the entire device is IP67 waterproof. The product has powerful video access and encoding capabilities, supporting a maximum of 4 channels coaxial analog AHD high-definition and 1 digital IPC data mixed access. It can simultaneously support 5 channels of 1080P@30fps full HD real-time full-frame encoding recording, ensuring that the video quality and frame rate are not compromised. The product is equipped with a wealth of wireless communication capabilities, supporting 4G full-network high-speed internet access, as well as GPS/BDS positioning systems. The product features powerful NPU processing ⚫ Supports 4 analog high-definition AHD and 1 digital high-definition IPC access ⚫ Full HD 5-channel 1080P@30fps real-time full-frame encoding ⚫ Support CVBS standard-definition output; ⚫ Supports GPS/BDS for more precise positioning; external IP67 waterproof antenna ⚫ Features a high-speed processor and powerful neural network inference engine with built-in intelligent algorithm applications. ⚫ Supports 1 Micro SD local storage, with a maximum capacity of 512G ⚫ The entire system adopts a comprehensive vibration reduction technology that combines mechanical @ Streamax 2020. All Rights Reserved www.en.streamax.com capabilities, based on deep learning algorithms. It supports built-in intelligent computing operations, comprehensively covering the driver behavior analysis system. The product also demonstrates strong anti- interference capabilities in the vehicle environment, meeting ISO16750 and ISO7637 in-vehicle testing standards, suitable for installation and use in various vehicle types. vibration reduction, electronic vibration reduction, and software vibration reduction ⚫ The entire device and tail cable are IP67 waterproof Product parameters Model F1N Items Description Basic parameters RAM 1GB ROM 8GB Operating System Linux Wi-Fi Support 4G TDD-LTE/FDD-LTE/EVDO/TD-SCDMA/WCDMA External Antenna, Vehicle-mounted Fakra Antenna Interface Positioning Supports GPS/BDS/Galileo/GLONASS quad-mode positioning External Antenna, Vehicle-mounted Fakra Antenna Interface Storage Supports 1 Micro SD card with a maximum capacity of 512GB Sensor Supports 3-axis accelerometer sensor Interface Function Video Input 4 channels AHD+1 channel IPC (maximum resolution supports 1080P) Codec Full HD real-time full-frame encoding with the following maximum encoding capabilities PAL: 4*1080P@25fps（AHD）+1*1080P@30fps（IPC） NTSC: 4*1080P@30fps（AHD）+1*1080P@30fps（IPC） Video Output 1 CVBS standard-definition output Audio Input 4 channels analog + 1 channel digital Audio Output 1 channel USB Front-facing Type-A USB 2.0 interface Micro SD 1 Micro SD interface SIM card 1 SIM physical card slot, optional support for digital SIM card eSIM IO 2 inputs, 2 outputs Serial Port 1 RS232、1 RS485 AI Supports 1 channel built-in algorithm, DMS included by default Power Specification @ Streamax 2020. All Rights Reserved www.en.streamax.com Power Input DC 9～36V Consumption Bare Machine Power Consumption < 10W, Typical Operating Power Consumption < 35W Installation Dimensions 205.51*132*38.5mm Weight About 0.85Kg Operating Environment Operating Temperature -30°C～+70°C Storage Temperature -40°C～+70°C Dimension（mm） Panel Interface Front panel @ Streamax 2020. All Rights Reserved www.en.streamax.com Front panel ① Storage interface：1*Micro SD Communication interface：1*SIM slot Transmission interface：1*USB 2.0 传输接口：1*USB 2.0 ② LED indicator（blue：power light red：error light） RearPanel Rear Panel ① Cable interface 1 (see cable definition--signal output line 20PIN for details) ② Cable interface 2 (see cable definition--signal output line 30PIN for details) Cable definition signal output line 20PIN @ Streamax 2020. All Rights Reserved www.en.streamax.com Signal output line 30PIN @ Streamax 2020. All Rights Reserved www.en.streamax.com FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. IC Warning This device complie…

Text truncated - open the document above for the full version.

Report Page 109 of 472 Band2 QPSK BW=5MHz Channel=18625 RB Size=25 Position=#0 Band2 16QAM BW=5MHz Channel=18625 RB Size=25 Position=#0 Band2 QPSK BW=5MHz Channel=18900 RB Size=25 Position=#0 Report Page 110 of 472 Band2 16QAM BW=5MHz Channel=18900 RB Size=25 Position=#0 Band2 QPSK BW=5MHz Channel=19175 RB Size=25 Position=#0 Band2 16QAM BW=5MHz Channel=19175 RB Size=25 Position=#0 Report Page 111 of 472 Band2 QPSK BW=10MHz Channel=18650 RB Size=50 Position=#0 Band2 16QAM BW=10MHz Channel=18650 RB Size=50 Position=#0 Band2 QPSK BW=10MHz Channel=18900 RB Size=50 Position=#0 Report Page 112 of 472 Band2 16QAM BW=10MHz Channel=18900 RB Size=50 Position=#0 Band2 QPSK BW=10MHz Channel=19150 RB Size=50 Position=#0 Band2 16QAM BW=10MHz Channel=19150 RB Size=50 Position=#0 Report Page 113 of 472 Band2 QPSK BW=15MHz Channel=18675 RB Size=75 Position=#0 Band2 16QAM BW=15MHz Channel=18675 RB Size=75 Position=#0 Band2 QPSK BW=15MHz Channel=18900 RB Size=75 Position=#0 Report Page 114 of 472 Band2 16QAM BW=15MHz Channel=18900 RB Size=75 Position=#0 Band2 QPSK BW=15MHz Channel=19125 RB Size=75 Position=#0 Band2 16QAM BW=15MHz Channel=19125 RB Size=75 Position=#0 Report Page 115 of 472 Band2 QPSK BW=20MHz Channel=18700 RB Size=100 Position=#0 Band2 16QAM BW=20MHz Channel=18700 RB Size=100 Position=#0 Band2 QPSK BW=20MHz Channel=18900 RB Size=100 Position=#0 Report Page 116 of 472 Band2 16QAM BW=20MHz Channel=18900 RB Size=100 Position=#0 Band2 QPSK BW=20MHz Channel=19100 RB Size=100 Position=#0 Band2 16QAM BW=20MHz Channel=19100 RB Size=100 Position=#0 Report Page 117 of 472 Band4 QPSK BW=1.4MHz Channel=19957 RB Size=6 Position=#0 Band4 16QAM BW=1.4MHz Channel=19957 RB Size=6 Position=#0 Band4 QPSK BW=1.4MHz Channel=20175 RB Size=6 Position=#0 Report Page 118 of 472 Band4 16QAM BW=1.4MHz Channel=20175 RB Size=6 Position=#0 Band4 QPSK BW=1.4MHz Channel=20393 RB Size=6 Position=#0 Band4 16QAM BW=1.4MHz Channel=20393 RB Size=6 Position=#0 Report Page 119 of 472 Band4 QPSK BW=3MHz Channel=19965 RB Size=15 Position=#0 Band4 16QAM BW=3MHz Channel=19965 RB Size=15 Position=#0 Band4 QPSK BW=3MHz Channel=20175 RB Size=15 Position=#0 Report Page 120 of 472 Band4 16QAM BW=3MHz Channel=20175 RB Size=15 Position=#0 Band4 QPSK BW=3MHz Channel=20385 RB Size=15 Position=#0 Band4 16QAM BW=3MHz Channel=20385 RB Size=15 Position=#0 Report Page 121 of 472 Band4 QPSK BW=5MHz Channel=19975 RB Size=25 Position=#0 Band4 16QAM BW=5MHz Channel=19975 RB Size=25 Position=#0 Band4 QPSK BW=5MHz Channel=20175 RB Size=25 Position=#0 Report Page 122 of 472 Band4 16QAM BW=5MHz Channel=20175 RB Size=25 Position=#0 Band4 QPSK BW=5MHz Channel=20375 RB Size=25 Position=#0 Band4 16QAM BW=5MHz Channel=20375 RB Size=25 Position=#0 Report Page 123 of 472 Band4 QPSK BW=10MHz Channel=20000 RB Size=50 Position=#0 Band4 16QAM BW=10MHz Channel=20000 RB Size=50 Position=#0 Band4 QPSK BW=10MHz Channel=20175 RB Size=50 Position=#0 Report Page 124 of 472 Band4 16QAM BW=10MHz Channel=20175 RB Size=50 Position=#0 Band4 QPSK BW=10MHz Channel=20350 RB Size=50 Position=#0 Band4 16QAM BW=10MHz Channel=20350 RB Size=50 Position=#0 Report Page 125 of 472 Band4 QPSK BW=15MHz Channel=20025 RB Size=75 Position=#0 Band4 16QAM BW=15MHz Channel=20025 RB Size=75 Position=#0 Band4 QPSK BW=15MHz Channel=20175 RB Size=75 Position=#0 Report Page 126 of 472 Band4 16QAM BW=15MHz Channel=20175 RB Size=75 Position=#0 Band4 QPSK BW=15MHz Channel=20325 RB Size=75 Position=#0 Band4 16QAM BW=15MHz Channel=20325 RB Size=75 Position=#0 Report Page 127 of 472 Band4 QPSK BW=20MHz Channel=20050 RB Size=100 Position=#0 Band4 16QAM BW=20MHz Channel=20050 RB Size=100 Position=#0 Band4 QPSK BW=20MHz Channel=20175 RB Size=100 Position=#0 Report Page 128 of 472 Band4 16QAM BW=20MHz Channel=20175 RB Size=100 Position=#0 Band4 QPSK BW=20MHz Channel=20300 RB Size=100 Position=#0 Band4 16QAM BW=20MHz Channel=20300 RB Size=100 Position=#0 Report Page 129 of 472 Band5 QPSK BW=1.4MHz Channel=20407 RB Size=6 Position=#0 Band5 16QAM BW=1.4MHz Channel=20407 RB Size=6 Position=#0 Band5 QPSK BW=1.4MHz Channel=20525 RB Size=6 Position=#0 Report Page 130 of 472 Band5 16QAM BW=1.4MHz Channel=20525 RB Size=6 Position=#0 Band5 QPSK BW=1.4MHz Channel=20643 RB Size=6 Position=#0 Band5 16QAM BW=1.4MHz Channel=20643 RB Size=6 Position=#0 Report Page 131 of 472 Band5 QPSK BW=3MHz Channel=20415 RB Size=15 Position=#0 Band5 16QAM BW=3MHz Channel=20415 RB Size=15 Position=#0 Band5 QPSK BW=3MHz Channel=20525 RB Size=15 Position=#0 Report Page 132 of 472 Band5 16QAM BW=3MHz Channel=20525 RB Size=15 Position=#0 Band5 QPSK BW=3MHz Channel=20635 RB Size=15 Position=#0 Band5 16QAM BW=3MHz Channel=20635 RB Size=15 Position=#0 Report Page 133 of 472 Band5 QPSK BW=5MHz Channel=20425 RB Size=25 Position=#0 Band5 16QAM BW=5MHz Channel=20425 RB Size=25 Position=#0 Band5 QPSK BW=5MHz Channel=20525 RB Size=25 Position=#0 Report Page 134 of 472 Band5 16QAM BW=5MHz Channel=20525 RB Size=25 Position=#0 Band5 QPSK BW=5MHz Channel=20625 RB Size=25 Position=#0 Band5 16QAM BW=5MHz Channel=20625 RB Size=25 Position=#0 Report Page 135 of 472 Band5 QPSK BW=10MHz Channel=20450 RB Size=50 Position=#0 Band5 16QAM BW=10MHz Channel=20450 RB Size=50 Position=#0 Band5 QPSK BW=10MHz Channel=20525 RB Size=50 Position=#0

Page 1 of 1 Report No.: LGT25J078 Appendix - Test Setup photos Set-up for Radiated Spurious Emission, Below 1GHz Set-up for Radiated Spurious Emission, Above 1GHz

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 24 RF TEST REPORT Product Name: MDVR Model Number: F1N, F1N V1.2 FCC ID: 2AM6L-F1N Issued For : Streamax Technology Co., Ltd. 21-23/F, Building B1, Zhiyuan, No. 1001 Xueyuan Avenue, Nanshan District,Shenzhen, Guangdong China 518055 Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT25J078RF03 Sample Received Date: Oct. 14, 2025 Date of Test: Oct. 14, 2025 ~ Nov. 13, 2025 Date of Issue: Nov. 13, 2025 Report No.: LGT25J078RF03 Page 2 of 24 TEST REPORT CERTIFICATION Applicant: Streamax Technology Co., Ltd. Address: 21-23/F, Building B1, Zhiyuan, No. 1001 Xueyuan Avenue, Nanshan District,Shenzhen, Guangdong China 518055 Product Name: MDVR Trademark: Streamax Model Number: F1N, F1N V1.2 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 22H and 24E, 27, 90 KDB 971168 D01 v03r01, ANSI C63.26(2015) PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT25J078RF03 Page 3 of 24 Table of Contents Page 1. TEST LABORATORY & MEASUREMENT UNCERTAINTY 4 2. GENERAL INFORMATION 5 3. CONDUCTED OUTPUT POWER 12 4. RADIATED POWER AND EFFECTIVE ISOTROPIC RADIATED POWER 13 5. RADIATED SPURIOUS EMISSION 15 6. FREQUENCY STABILITY 17 APPENDIX I-TEST DATA 18 RADIATED SPURIOUS EMISSION 18 APPENDIX II-PHOTOS OF TEST SETUP 24 Revision History Rev. Issue Date Contents 00 Nov. 13, 2025 Initial Issue Report No.: LGT25J078RF03 Page 4 of 24 1. TEST LABORATORY & MEASUREMENT UNCERTAINTY 1.1 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Occupied Channel Bandwidth ±0.46% 2 RF Output Power, Conducted ±0.71dB 3 Power Spectral Density, Conducted ±1.57dB 4 Unwanted Emission, Conducted ±0.63dB 5 Conducted emission ±2.80dB 6 All Emissions, Radiated (0.009-30MHz) ±2.16dB 7 All Emissions, Radiated (30MHz-1GHz) ±4.61dB 8 All Emissions, Radiated (1GHz-18GHz) ±5.49dB 9 Temperature ±0.5°C 10 Humidity ±2% 11 Duty Cycle ±2.3% Note: The measurement uncertainty is not included in the test result. Report No.: LGT25J078RF03 Page 5 of 24 2. GENERAL INFORMATION 2.1 TECHNICAL SPECIFICATIONS AND REGULATIONS 2.1.1 PRODUCT DESCRIPTION A major technical description of EUT is described as following: Product Name: MDVR Test Model Number: F1N Series Number: F1N V1.2 Model Difference: Naming differences. Frequency Bands: Band 2/4/5/12/13/14/66 SIM Card: Only one SIM card is supported. Antenna: External Antenna Antenna gain: Band 2: 3.15dBi, Band 4: 2.17dBi, Band 5: 3.66dBi, Band 12: 1.84dBi, Band 13: 2.75dBi, Band 14: 3.04dBi, Band 66: 2.17dBi Rating: Input: DC 9～36V Extreme Vol. Limits: 12V to 24V (Nominal 12V) Extreme Temp. Tolerance: -30°C to +70°C Hardware version: N/A Software version: N/A Note: The antenna information refer the manufacturer provide report, applicable only to the tested sa- mple identified in the report. Report No.: LGT25J078RF03 Page 6 of 24 2.1.2 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD Product Specification Subjective To This Standard Tx Frequency LTE Band 2:1850~1910MHz LTE Band 4:1710~1755MHz LTE Band 5: 824~849MHz LTE Band 12: 699-716MHz LTE Band 13: 777-787MHz LTE Band 14: 788-798MHz LTE Band 66: 1710-1780MHz Rx Frequency LTE Band 2: 1930-1990MHz LTE Band 4: 2110-2155MHz LTE Band 5: 869-894MHz LTE Band 12: 729-746MHz LTE Band 13: 746-756MHz LTE Band 14: 758-768MHz LTE Band 66: 2110-2200MHz Bandwidth LTE Band 2: 1.4MHz / 3MHz / 5MHz / 10MHz / 15MHz / 20MHz LTE Band 4: 1.4MHz / 3MHz / 5MHz / 10MHz / 15MHz /20MHz LTE Band 5: 1.4MHz / 3MHz / 5MHz / 10MHz LTE Band 12: 1.4MHz / 3MHz / 5MHz / 10MHz LTE Band 13: 5MHz / 10MHz LTE Band 14: 5MHz / 10MHz LTE Band 66: 1.4MHz / 3MHz / 5MHz / 10MHz / 15MHz /20MHz Type of Modulation QPSK/16QAM Report No.: LGT25J078RF03 Page 7 of 24 2.1.3 TEST CONFIGURATION OF EQUIPMENT UNDER TEST Antenna port conducted and radiated test items listed below are performed according to KDB 971168 D01 v03r01 and ANSI C63.26 2015 Power Meas. License Digital Systems with maximum output power. Radiated measurements are performed by rotating the EUT in three different orthogonal test planes tofind the maximum emission. Remark: 1. The mark ‘v’means that this configuration is chosen for testing 2. The mark ‘-’means that this bandwidth is not supported. 3. The device is investigated from 30MHz to 10 times of fundamental signal for radiated. ITEMS Band Bandwidth (MHz) Modulation RB # Test Channel 1.4 3 5 10 15 20 QPSK 16QAM 1 Half Full L M H E.R.P.& E.I.R.P. 2 v v v v v v v v v v v v v v 4 v v v v v v v v v v v v v v 5 v v v v v v v v v v v v 12 v v v v v v v v v v v v 13 v v v v v v v v v v 14 v v v v v v v v v v 66 v v v v v v v v v v v v v v Peak&Avera Ratio 2 v v v v v v v v v v v v 4 v v v v v v v v v v v v 5 v v v v v v v v v v 12 v v v v v v v v v v 13 v v v v v v v v 14 v v v v v v v v 66 v v v v v v v v v v v v 26dB&99% Bandwidth 2 v v v v v v v v v v v v 4 v v v v v v v v v v v v 5 v v v v…

Text truncated - open the document above for the full version.

Report Page 433 of 472 Band4 QPSK BW=10MHz Channel=20000 RB Size=1 Position=#0 Band4 16QAM BW=10MHz Channel=20000 RB Size=1 Position=#0 Band4 QPSK BW=10MHz Channel=20175 RB Size=1 Position=#0 Report Page 434 of 472 Band4 16QAM BW=10MHz Channel=20175 RB Size=1 Position=#0 Band4 QPSK BW=10MHz Channel=20350 RB Size=1 Position=#0 Band4 16QAM BW=10MHz Channel=20350 RB Size=1 Position=#0 Report Page 435 of 472 Band4 QPSK BW=15MHz Channel=20025 RB Size=1 Position=#0 Band4 16QAM BW=15MHz Channel=20025 RB Size=1 Position=#0 Band4 QPSK BW=15MHz Channel=20175 RB Size=1 Position=#0 Report Page 436 of 472 Band4 16QAM BW=15MHz Channel=20175 RB Size=1 Position=#0 Band4 QPSK BW=15MHz Channel=20325 RB Size=1 Position=#0 Band4 16QAM BW=15MHz Channel=20325 RB Size=1 Position=#0 Report Page 437 of 472 Band4 QPSK BW=20MHz Channel=20050 RB Size=1 Position=#0 Band4 16QAM BW=20MHz Channel=20050 RB Size=1 Position=#0 Band4 QPSK BW=20MHz Channel=20175 RB Size=1 Position=#0 Report Page 438 of 472 Band4 16QAM BW=20MHz Channel=20175 RB Size=1 Position=#0 Band4 QPSK BW=20MHz Channel=20300 RB Size=1 Position=#0 Band4 16QAM BW=20MHz Channel=20300 RB Size=1 Position=#0 Report Page 439 of 472 Band5 QPSK BW=1.4MHz Channel=20407 RB Size=1 Position=#0 Band5 16QAM BW=1.4MHz Channel=20407 RB Size=1 Position=#0 Band5 QPSK BW=1.4MHz Channel=20525 RB Size=1 Position=#0 Report Page 440 of 472 Band5 16QAM BW=1.4MHz Channel=20525 RB Size=1 Position=#0 Band5 QPSK BW=1.4MHz Channel=20643 RB Size=1 Position=#0 Band5 16QAM BW=1.4MHz Channel=20643 RB Size=1 Position=#0 Report Page 441 of 472 Band5 QPSK BW=3MHz Channel=20415 RB Size=1 Position=#0 Band5 16QAM BW=3MHz Channel=20415 RB Size=1 Position=#0 Band5 QPSK BW=3MHz Channel=20525 RB Size=1 Position=#0 Report Page 442 of 472 Band5 16QAM BW=3MHz Channel=20525 RB Size=1 Position=#0 Band5 QPSK BW=3MHz Channel=20635 RB Size=1 Position=#0 Band5 16QAM BW=3MHz Channel=20635 RB Size=1 Position=#0 Report Page 443 of 472 Band5 QPSK BW=5MHz Channel=20425 RB Size=1 Position=#0 Band5 16QAM BW=5MHz Channel=20425 RB Size=1 Position=#0 Band5 QPSK BW=5MHz Channel=20525 RB Size=1 Position=#0 Report Page 444 of 472 Band5 16QAM BW=5MHz Channel=20525 RB Size=1 Position=#0 Band5 QPSK BW=5MHz Channel=20625 RB Size=1 Position=#0 Band5 16QAM BW=5MHz Channel=20625 RB Size=1 Position=#0 Report Page 445 of 472 Band5 QPSK BW=10MHz Channel=20450 RB Size=1 Position=#0 Band5 16QAM BW=10MHz Channel=20450 RB Size=1 Position=#0 Band5 QPSK BW=10MHz Channel=20525 RB Size=1 Position=#0 Report Page 446 of 472 Band5 16QAM BW=10MHz Channel=20525 RB Size=1 Position=#0 Band5 QPSK BW=10MHz Channel=20600 RB Size=1 Position=#0 Band5 16QAM BW=10MHz Channel=20600 RB Size=1 Position=#0 Report Page 447 of 472 Band12 QPSK BW=1.4MHz Channel=23017 RB Size=1 Position=#0 Band12 16QAM BW=1.4MHz Channel=23017 RB Size=1 Position=#0 Band12 QPSK BW=1.4MHz Channel=23095 RB Size=1 Position=#0 Report Page 448 of 472 Band12 16QAM BW=1.4MHz Channel=23095 RB Size=1 Position=#0 Band12 QPSK BW=1.4MHz Channel=23173 RB Size=1 Position=#0 Band12 16QAM BW=1.4MHz Channel=23173 RB Size=1 Position=#0 Report Page 449 of 472 Band12 QPSK BW=3MHz Channel=23025 RB Size=1 Position=#0 Band12 16QAM BW=3MHz Channel=23025 RB Size=1 Position=#0 Band12 QPSK BW=3MHz Channel=23095 RB Size=1 Position=#0 Report Page 450 of 472 Band12 16QAM BW=3MHz Channel=23095 RB Size=1 Position=#0 Band12 QPSK BW=3MHz Channel=23165 RB Size=1 Position=#0 Band12 16QAM BW=3MHz Channel=23165 RB Size=1 Position=#0 Report Page 451 of 472 Band12 QPSK BW=5MHz Channel=23035 RB Size=1 Position=#0 Band12 16QAM BW=5MHz Channel=23035 RB Size=1 Position=#0 Band12 QPSK BW=5MHz Channel=23095 RB Size=1 Position=#0 Report Page 452 of 472 Band12 16QAM BW=5MHz Channel=23095 RB Size=1 Position=#0 Band12 QPSK BW=5MHz Channel=23155 RB Size=1 Position=#0 Band12 16QAM BW=5MHz Channel=23155 RB Size=1 Position=#0 Report Page 453 of 472 Band12 QPSK BW=10MHz Channel=23060 RB Size=1 Position=#0 Band12 16QAM BW=10MHz Channel=23060 RB Size=1 Position=#0 Band12 QPSK BW=10MHz Channel=23095 RB Size=1 Position=#0 Report Page 454 of 472 Band12 16QAM BW=10MHz Channel=23095 RB Size=1 Position=#0 Band12 QPSK BW=10MHz Channel=23130 RB Size=1 Position=#0 Band12 16QAM BW=10MHz Channel=23130 RB Size=1 Position=#0 Report Page 455 of 472 Band13 QPSK BW=5MHz Channel=23205 RB Size=1 Position=#0 Band13 16QAM BW=5MHz Channel=23205 RB Size=1 Position=#0 Band13 QPSK BW=5MHz Channel=23230 RB Size=1 Position=#0 Report Page 456 of 472 Band13 16QAM BW=5MHz Channel=23230 RB Size=1 Position=#0 Band13 QPSK BW=5MHz Channel=23255 RB Size=1 Position=#0 Band13 16QAM BW=5MHz Channel=23255 RB Size=1 Position=#0 Report Page 457 of 472 Band13 QPSK BW=10MHz Channel=23230 RB Size=1 Position=#0 Band13 16QAM BW=10MHz Channel=23230 RB Size=1 Position=#0 Band14 QPSK BW=5MHz Channel=23305 RB Size=1 Position=#0 Report Page 458 of 472 Band14 16QAM BW=5MHz Channel=23305 RB Size=1 Position=#0 Band14 QPSK BW=5MHz Channel=23330 RB Size=1 Position=#0 Band14 16QAM BW=5MHz Channel=23330 RB Size=1 Position=#0 Report Page 459 of 472 Band14 QPSK BW=5MHz Channel=23355 RB Size=1 Position=#0 Band14 16QAM BW=5MHz Channel=23355 RB Size=1 Position=#0 Band14 QPSK BW=10MHz Channel=23330 RB Size=1 Position=#0 Report Page 460 of 472 Band14 16QAM BW=10MHz Channel=23330 RB Size=1 Position=#0 Band66 QPSK BW=1.4MHz Channel=131979 RB Size=1 Position=#0 Band66 16QAM BW=1.4MHz Channel=131979 RB Size=1 Position=#0 Report Page 461 of 472 Band66 QPSK BW=1.4MHz Channel=132322 RB Size=1 Position=#0 Band66 16QAM BW=1.4MHz Channel=132322 RB Size=1 Position=#0 Band66 QPSK BW=1.4MHz Channel=132665 RB Size=1 Position=#0 Report Page 462 of 472 Band66 16QAM BW=1.4MHz Channel=132665 RB Size=1 Position=#0 Band66 QPSK BW=3MHz Channel=131987 RB Size=1 Position=#0 Band66 16QAM BW=3MHz Channel=131987 RB Size=1 Position=#0 Report Page 463 of 472 Band66 QPSK BW=3MHz Channel=132322 RB Size=1 Position=#0 Band66 16QAM BW=3MHz Channel=132322 RB Size=1 Position=#0 Band66 QPSK BW=3MHz Channel=132657 RB Size=1 Positi…

Text truncated - open the document above for the full version.

Report Page 406 of 472 Band66 16QAM BW=20MHz Channel=132072 RB Size=1 Position=#Max Extended Band66 16QAM BW=20MHz Channel=132072 RB Size=100 Position=#0 Normal Band66 16QAM BW=20MHz Channel=132072 RB Size=100 Position=#0 Extended Report Page 407 of 472 Band66 QPSK BW=20MHz Channel=132572 RB Size=1 Position=#0 Normal Band66 QPSK BW=20MHz Channel=132572 RB Size=1 Position=#0 Extended Band66 QPSK BW=20MHz Channel=132572 RB Size=1 Position=#Max Normal Report Page 408 of 472 Band66 QPSK BW=20MHz Channel=132572 RB Size=1 Position=#Max Extended Band66 QPSK BW=20MHz Channel=132572 RB Size=100 Position=#0 Normal Band66 QPSK BW=20MHz Channel=132572 RB Size=100 Position=#0 Extended Report Page 409 of 472 Band66 16QAM BW=20MHz Channel=132572 RB Size=1 Position=#0 Normal Band66 16QAM BW=20MHz Channel=132572 RB Size=1 Position=#0 Extended Band66 16QAM BW=20MHz Channel=132572 RB Size=1 Position=#Max Normal Report Page 410 of 472 Band66 16QAM BW=20MHz Channel=132572 RB Size=1 Position=#Max Extended Band66 16QAM BW=20MHz Channel=132572 RB Size=100 Position=#0 Normal Band66 16QAM BW=20MHz Channel=132572 RB Size=100 Position=#0 Extended Report Page 411 of 472 Out-of-band emissions Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict Band2 1.4 18607 1 #0 QPSK 19844.20 -38.72 -13 PASS Band2 1.4 18607 1 #0 16QAM 19331.20 -38.62 -13 PASS Band2 1.4 18900 1 #0 QPSK 19081.83 -38.14 -13 PASS Band2 1.4 18900 1 #0 16QAM 18976.85 -38.32 -13 PASS Band2 1.4 19193 1 #0 QPSK 19720.70 -38.03 -13 PASS Band2 1.4 19193 1 #0 16QAM 19743.03 -38.83 -13 PASS Band2 3 18615 1 #0 QPSK 19039.55 -38.69 -13 PASS Band2 3 18615 1 #0 16QAM 19785.78 -38.47 -13 PASS Band2 3 18900 1 #0 QPSK 19534.03 -38.72 -13 PASS Band2 3 18900 1 #0 16QAM 16295.00 -38.51 -13 PASS Band2 3 19185 1 #0 QPSK 18710.38 -37.84 -13 PASS Band2 3 19185 1 #0 16QAM 19071.38 -38.55 -13 PASS Band2 5 18625 1 #0 QPSK 16550.08 -38.25 -13 PASS Band2 5 18625 1 #0 16QAM 19380.60 -37.56 -13 PASS Band2 5 18900 1 #0 QPSK 19765.35 -38.20 -13 PASS Band2 5 18900 1 #0 16QAM 16669.78 -38.47 -13 PASS Band2 5 19175 1 #0 QPSK 19967.23 -38.00 -13 PASS Band2 5 19175 1 #0 16QAM 19668.45 -38.71 -13 PASS Band2 10 18650 1 #0 QPSK 19820.93 -38.77 -13 PASS Band2 10 18650 1 #0 16QAM 18990.63 -38.57 -13 PASS Band2 10 18900 1 #0 QPSK 19087.53 -37.56 -13 PASS Band2 10 18900 1 #0 16QAM 18356.03 -38.32 -13 PASS Band2 10 19150 1 #0 QPSK 19848.95 -38.55 -13 PASS Band2 10 19150 1 #0 16QAM 19834.23 -37.32 -13 PASS Band2 15 18675 1 #0 QPSK 18720.35 -38.85 -13 PASS Band2 15 18675 1 #0 16QAM 19053.33 -38.26 -13 PASS Band2 15 18900 1 #0 QPSK 19053.33 -37.88 -13 PASS Band2 15 18900 1 #0 16QAM 19389.15 -37.96 -13 PASS Band2 15 19125 1 #0 QPSK 19994.30 -38.12 -13 PASS Band2 15 19125 1 #0 16QAM 18794.45 -38.75 -13 PASS Band2 20 18700 1 #0 QPSK 18937.43 -38.30 -13 PASS Band2 20 18700 1 #0 16QAM 19856.08 -38.33 -13 PASS Band2 20 18900 1 #0 QPSK 19286.55 -38.29 -13 PASS Band2 20 18900 1 #0 16QAM 19012.00 -38.65 -13 PASS Band2 20 19100 1 #0 QPSK 19395.80 -38.47 -13 PASS Band2 20 19100 1 #0 16QAM 16178.63 -38.12 -13 PASS Band4 1.4 19957 1 #0 QPSK 16186.95 -40.35 -13 PASS Band4 1.4 19957 1 #0 16QAM 16507.83 -39.13 -13 PASS Band4 1.4 20175 1 #0 QPSK 16699.50 -38.68 -13 PASS Band4 1.4 20175 1 #0 16QAM 16685.48 -39.79 -13 PASS Band4 1.4 20393 1 #0 QPSK 16316.15 -38.67 -13 PASS Band4 1.4 20393 1 #0 16QAM 16674.00 -39.58 -13 PASS Report Page 412 of 472 Band4 3 19965 1 #0 QPSK 16255.80 -38.88 -13 PASS Band4 3 19965 1 #0 16QAM 16258.35 -39.30 -13 PASS Band4 3 20175 1 #0 QPSK 16472.13 -39.63 -13 PASS Band4 3 20175 1 #0 16QAM 16517.18 -40.11 -13 PASS Band4 3 20385 1 #0 QPSK 16332.30 -39.17 -13 PASS Band4 3 20385 1 #0 16QAM 16270.25 -38.97 -13 PASS Band4 5 19975 1 #0 QPSK 16551.60 -39.60 -13 PASS Band4 5 19975 1 #0 16QAM 16473.83 -39.05 -13 PASS Band4 5 20175 1 #0 QPSK 16804.05 -39.18 -13 PASS Band4 5 20175 1 #0 16QAM 16409.65 -39.37 -13 PASS Band4 5 20375 1 #0 QPSK 16390.53 -38.16 -13 PASS Band4 5 20375 1 #0 16QAM 16524.40 -39.60 -13 PASS Band4 10 20000 1 #0 QPSK 16155.50 -40.00 -13 PASS Band4 10 20000 1 #0 16QAM 16325.08 -39.68 -13 PASS Band4 10 20175 1 #0 QPSK 16317.00 -39.32 -13 PASS Band4 10 20175 1 #0 16QAM 16787.90 -38.88 -13 PASS Band4 10 20350 1 #0 QPSK 16403.28 -38.17 -13 PASS Band4 10 20350 1 #0 16QAM 16219.68 -38.47 -13 PASS Band4 15 20025 1 #0 QPSK 16396.05 -38.88 -13 PASS Band4 15 20025 1 #0 16QAM 16655.73 -39.39 -13 PASS Band4 15 20175 1 #0 QPSK 16328.90 -39.11 -13 PASS Band4 15 20175 1 #0 16QAM 16472.13 -39.39 -13 PASS Band4 15 20325 1 #0 QPSK 16821.90 -38.84 -13 PASS Band4 15 20325 1 #0 16QAM 16470.43 -38.76 -13 PASS Band4 20 20050 1 #0 QPSK 16302.13 -39.09 -13 PASS Band4 20 20050 1 #0 16QAM 17360.80 -39.65 -13 PASS Band4 20 20175 1 #0 QPSK 16442.38 -38.86 -13 PASS Band4 20 20175 1 #0 16QAM 16523.13 -39.58 -13 PASS Band4 20 20300 1 #0 QPSK 16314.88 -38.40 -13 PASS Band4 20 20300 1 #0 16QAM 16291.93 -39.19 -13 PASS Band5 1.4 20407 1 #0 QPSK 1648.90 -41.56 -13 PASS Band5 1.4 20407 1 #0 16QAM 1648.90 -41.47 -13 PASS Band5 1.4 20525 1 #0 QPSK 1672.53 -41.81 -13 PASS Band5 1.4 20525 1 #0 16QAM 1672.53 -37.34 -13 PASS Band5 1.4 20643 1 #0 QPSK 1696.38 -36.90 -13 PASS Band5 1.4 20643 1 #0 16QAM 2543.95 -37.28 -13 PASS Band5 3 20415 1 #0 QPSK 1648.90 -40.13 -13 PASS Band5 3 20415 1 #0 16QAM 1648.90 -40.13 -13 PASS Band5 3 20525 1 #0 QPSK 1670.73 -40.06 -13 PASS Band5 3 20525 1 #0 16QAM 1671.40 -39.80 -13 PASS Band5 3 20635 1 #0 QPSK 2539.23 -36.88 -13 PASS Band5 3 20635 1 #0 16QAM 1693.00 -37.68 -13 PASS Band5 5 20425 1 #0 QPSK 1649.13 -39.06 -13 PASS Band5 5 20425 1 #0 16QAM 1649.13 -41.11 -13 PASS Report Page 413 of 472 Band5 5 20525 1 #0 QPSK 1668.93 -37.92 -13 PASS Band5 5 20525 1 #0 16QAM 1669.15 -40.68 -13 PASS Band5 5 20625 1 #0 QPSK 2533.60 -37.11 -13 PASS Band5 5 20625 1 #0 16QAM 1689.63 -36.71 -13 PASS Band5 10 20450 1 #0 QPSK 1650.03 -38.42 -13 PASS Band5 10 20450 1 #0 16QAM 1649.35 -42.58 -13 PASS Band5 10 20525 1 #0 QPSK 1664.65 -38.26 -13 PASS…

Text truncated - open the document above for the full version.

Report Page 379 of 472 Band66 QPSK BW=5MHz Channel=131997 RB Size=1 Position=#0 Normal Band66 QPSK BW=5MHz Channel=131997 RB Size=1 Position=#0 Extended Band66 QPSK BW=5MHz Channel=131997 RB Size=1 Position=#Max Normal Report Page 380 of 472 Band66 QPSK BW=5MHz Channel=131997 RB Size=1 Position=#Max Extended Band66 QPSK BW=5MHz Channel=131997 RB Size=25 Position=#0 Normal Band66 QPSK BW=5MHz Channel=131997 RB Size=25 Position=#0 Extended Report Page 381 of 472 Band66 16QAM BW=5MHz Channel=131997 RB Size=1 Position=#0 Normal Band66 16QAM BW=5MHz Channel=131997 RB Size=1 Pos…
