2AMA9-S31Bluetooth tpms sensor

FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular inst allation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dea ler or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction

ShenzhenDajinTechnologyCo.,Ltd FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 7/17/24 U.S.AgentDesignation ShenzhenDajinTechnologyCo.,Ltd acknowledgestheirconsentforthefollowingcontactlocatedintheUnited Statestoactastheiragentforserviceofprocessfortheequipmentforwhichauthorizationissought(FCCID: 2AMA9-S31): NameandcompanyofU.S.agent:FCARTECHUSA,LLC PhysicalU.S.addressofagent:8441BelairRd,suiteG1,Baltimore,MD21236 FRNofU.S.agent:0033821455 EmailaddressofU.S.agent:[email protected] FCAR TECH USA, LLCacknowledges their obligation to accept service of process on behalf of Shenzhen Dajin Technology Co.,Ltd Shenzhen Dajin Technology Co.,Ltd with the FRN 0026570952accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature YingWuNie Manage ShenzhenDajinTechnologyCo.,Ltd Signature ElbertChen Manage FCARTECHUSA,LLC 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 5

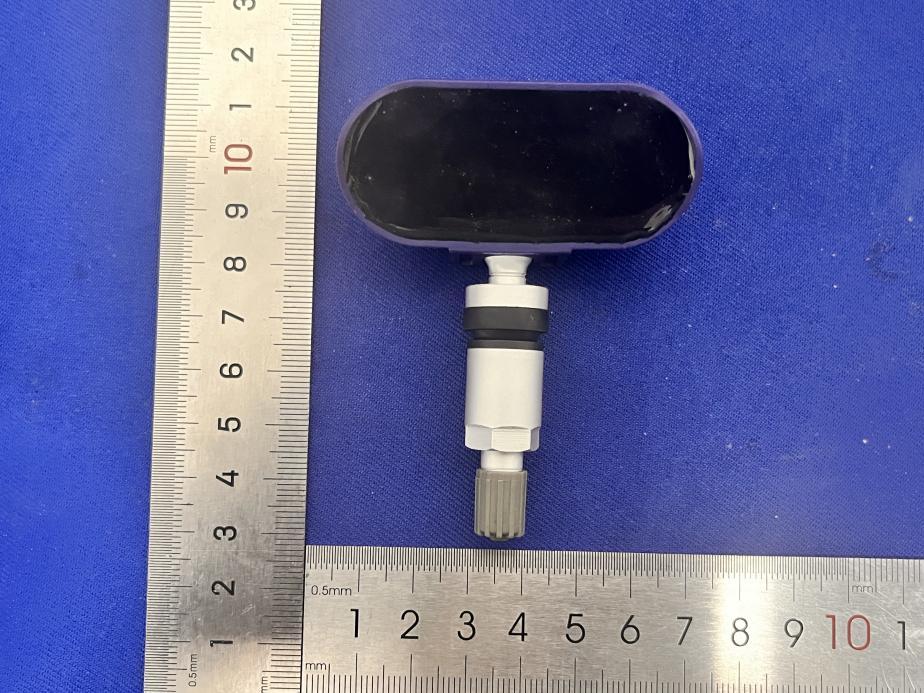

FCCID:2AMA9-S31 EUTPhoto ProductName: Bluetoothtpmssensor ModelNo.: S31,S30,S32,S33,S34,S35 FCCID:2AMA9-S31 FCCID:2AMA9-S31 ----END----

Label and label location 1.5 cm Bluetooth tpms sensor FCC ID:2AMA9-S31 1cm

FCCID:2AMA9-S31 EUTPhoto ProductName: Bluetoothtpmssensor ModelNo.: S31,S30,S32,S33,S34,S35 BT/WIFIANT 125KHzANT FCCID:2AMA9-S31 ----END----

FCCID:2AMA9-S31 RFExposureEvaluation AccordingtoKDB447498D014.3.1)a)b)c),GeneralRFExposureGuidancev06andpart 2.1093，UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures, standalone1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulation exposureconditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition(s),listedbelow,is(are)satisfied. a) For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)][√f(GHz)]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,30where b) For100MHzto6GHzandtestseparationdistances>50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing(alsoillustratedinAppendixB):32 1){[Powerallowedatnumericthresholdfor50mminstepa)]+[(testseparationdistance -50mm)·(f(MHz)/150)]}mW,for100MHzto1500MHz c) Forfrequenciesbelow100MHz,thefollowingmaybeconsideredforSARtestexclusion (alsoillustratedinAppendixC):33 1)Fortestseparationdistances>50mmand<200mm,thepowerthresholdatthe correspondingtestseparationdistanceat100MHzinstepb)ismultipliedby[1+ log(100/f(MHz))] 2)Fortestseparationdistances≤50mm,thepowerthresholddeterminedbytheequation inc)1)for50mmand100MHzismultipliedby½ f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Mode Maxpower (dBm) Maxpower (mW) Frequency (MHz) Min. distance(mm) Calc. thresholds Limit GFSK-0.590.873240250.2713.0 Frequency (MHz) ElectricField (dBuV/m) Maxpower (dBm) Maxpower (mW) Min. distance(mm) Limit 0.12587.51-7.690.175925 Remark:dBuV/mtodBm,dBm=dBuV/m-95.2 BLE/MILIT+125K/LIMIT=0.873/3+0.17/3=0.291＜1

CA-C03规格书 广州寒武纪电子科技有限公司 CA-C03_V02 1 SMD天线规格书 CrossAir TM SMD 天线系列 符合RoHS规范 PN: CA-C03 2.4 GHz ISM 频段天线 CA-C03规格书 广州寒武纪电子科技有限公司 CA-C03_V02 2 特点 1. 尺寸仅5.5 X 2.0 X 1.0 mm 3 的小尺寸SMD贴片天线. 2. 低能量损耗，高天线效率。 3. 在温湿度变化的情况下具有高稳定性。 应用 1. 2.4GHz ISM 频段天线应用 2. 蓝牙、ZigBee、无线应用、智能家居应用等 3. WIFI（仅2.4G） 结构 1、天线馈电端 2、馈电识别标志 3、天线焊接固定端 尺寸 三视图 符号 尺寸(mm) L 5.5±0.2 w 2.0±0.1 T 1.0±0.1 a 0.5±0.1 CA-C03规格书 广州寒武纪电子科技有限公司 CA-C03_V02 3 电气特性 CA-C03 Specification 工作频率范围Working Frequency 2450±50MHz 带宽Band Width >100MHz 阻抗Impedance 50Ω 增益Gain(dBi) 4.3（peak） 驻波比VSWR <2 工作温度Operation Temperature -40°C~+95°C 可承受功率Power Capacity 3W 天线2.4G工作频率需要通过阻抗匹配器件调试来实现. 天线焊盘和走线设计 PCB原理图 设计尺寸图 CA-C03规格书 广州寒武纪电子科技有限公司 CA-C03_V02 4 匹配器件值 串联器件Series 1 电阻0Ω 并联器件Shunt 1 高频电感3nh 串联器件Series 2 电阻0Ω CA-C03规格书 广州寒武纪电子科技有限公司 CA-C03_V02 5 测试板上天线测试 (板厚 1.0mm) 天线 S11 特性 天线 VSWR 特性 CA-C03规格书 广州寒武纪电子科技有限公司 CA-C03_V02 6 效率和辐射图 效率、辐射图、增益等性能是基于测试板设计得到的。 CA-C03天线的规格特性测试数据是 基于测试PCB板尺寸以及下图所示的测试方向所得到的。以下数据是在ETS 3D 微波暗室测 试完成的. 增益和效率 带宽 2.4G-2.5GHz 峰值增益Peak Gain 4.3dBi 带内平均增益 Average Gain across the band 4.1dBi 带内增益范围 Gain Range across the band 3.9dBi~4.3dBi 峰值效率Peak Efficiency 81.7% 带内平均效率 Average Efficiency across the band 80.2% 带内效率范围 Efficiency Range across the band 78.6%~81.7% Z Y X CA-C03规格书 广州寒武纪电子科技有限公司 CA-C03_V02 7 Theta @2.45 GHz Phi @2.45 GHz Total @2.45 GHz 焊接条件 可靠无损的典型焊接规范如下图所示： CA-C03规格书 广州寒武纪电子科技有限公司 CA-C03_V02 8 包装 塑胶载带规格 (单位:mm) CA-C03规格书 广州寒武纪电子科技有限公司 CA-C03_V02 9 Index Ao Bo ΦD T W Dimension (mm) 3.0±0.1 6.0±0.1 1.55±0.05 1.6±0.1 16±0.2 Index E F Po P1 P2 Dimension (mm) 1.75±0.1 7.0±0.1 4.0±0.1 4.0±0.1 2.0±0.1 卷盘尺寸 Index A B C Dimension(mm) 330 100 13.5 标准数量： 3000 PCS/盘. 存储环境 产品存储时应满足下列条件： 温度 : -10°C~+40°C 湿度 : 30% 至 70% 相对湿度 产品放置的位置不要接触腐蚀性气体，如硫磺等。氯气或酸可能导致产品电极氧化 造成可焊接性变差。 产品应放置在工具箱里且避免受潮、灰尘的影响。 产品应存放在仓库中且避免热、振动、阳光直射。 产品应在密闭条件下储存。

ProjectNo.:ZKT-240704L7677E-2 Page 1 of 36 FCCTESTREPORT FCCID:2AMA9-S31 ReportNumber.....................................: ZKT-240704L7677E-2 DateofTest.......................................................: June.18,2024-June.27,2024 Dateofissue.........................................: June.28,2024 Totalnumberofpages .......................... 36 TestResult .......................................... : PASS TestingLaboratory. ........................... : ShenzhenZKTTechnologyCo.,Ltd. Address...............................................: 1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrial Avenue,FuhaiStreet,Bao'anDistrict,Shenzhen,China Applicant'sname.............................:ShenzhenDajinTechnologyCo.,Ltd Address ............................................... : No.505,no.20,LishiPaiDafaPuCommunity,BantianStreet, LonggangDistrict,Shenzhen,China Manufacturer'sname......................:SuzhouZhongjinTechnologyCo.,Ltd Address...............................................: SouthBuildingofE-commerceServicePlatformofGongtoucloud computingindustrialpark,Suzhou,AnhuiHigh-techZone,Anhui Province,China Factory'snameJiangxiFukaTechnologyCo.,Ltd. Address ............................................... : Building7,CICCIndustrialPark,No.203MindeRoad,YuduCounty IndustrialPark,GanzhouCity,JiangxiProvince Testspecification: Standard ................................................ : FCCCFRTitle47Part15SubpartCSection15.247 ANSIC63.10:2013 Testprocedure ..................................... : / Non-standardtestmethod................:N/A TestReportFormNo........................: TRF-EL-111_V0 TestReportForm(s)Originator.....: ZKTTesting MasterTRF ........................................ : Dated:2020-01-06 ThisdevicedescribedabovehasbeentestedbyZKT,andthetestresultsshowthattheequipmentundertest(EUT)is incompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsampleidentifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZKT,thisdocumentmaybealteredor revisedbyZKT,personalonly,andshallbenotedintherevisionofthedocument. Productname.....................................:Bluetoothtpmssensor Trademark...........................................: / Model/Typereference......................: S31,S30,S32,S33,S34,S35 Ratings .................................................. : DC3Vbybuttonbattery ProjectNo.: ZKT-240704L7677E-2 Page 2 of 36 Testingprocedureand testinglocation: TestingLaboratory.......................................:ShenzhenZKT TechnologyCo., Ltd. Address............................................................:1/F, No. 101, BuildingB, No. 6, TangweiCommunity IndustrialAvenue,FuhaiStreet,Bao'anDistrict, Shenzhen,China Jim Liu Testedby (name+ signature).......................: Tom Zou Reviewer(name+ signature).......................: LakeXie Approved(name+ signature).......................: ProjectNo.:ZKT-240704L7677E-2 Page 3 of 36 TableofContents Page 1.VERSION....................................................................................................................5 2.SUMMARYOFTESTRESULTS...............................................................................6 2.1TESTFACILITY.................................................................................................................7 2.2MEASUREMENTUNCERTAINTY....................................................................................7 3.GENERALINFORMATION........................................................................................8 3.1GENERALDESCRIPTIONOFEUT.................................................................................8 3.2DESCRIPTIONOFTESTMODES....................................................................................9 3.3BLOCKDIGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED..............9 3.4DESCRIPTIONOFSUPPORTUNITS(CONDUCTEDMODE)........................................9 3.5EQUIPMENTSLISTFORALLTESTITEMS.................................................................10 4.EMCEMISSIONTEST.............................................................................................12 4.1CONDUCTEDEMISSIONMEASUREMENT..................................................................12 4.1.1POWERLINECONDUCTEDEMISSIONLimits...................................................12 4.1.2TESTPROCEDURE...............................................................................................12 4.1.3DEVIATIONFROMTESTSTANDARD..................................................................12 4.1.4TESTSETUP...........................................................................................................13 4.1.5EUTOPERATINGCONDITIONS...........................................................................13 4.2.1RADIATEDEMISSIONLIMITS...............................................................................14 4.2.2TESTPROCEDURE...............................................................................................15 4.2.3DEVIATIONFROMTESTSTANDARD..................................................................15 4.2.4TESTSETUP...........................................................................................................15 4.2.5EUTOPERATINGCONDITIONS...........................................................................16 5.RADIATEDBANDEMISSIONMEASUREMENT.....................................................21 5.1TESTREQUIREMENT:..............................................................................................21 5.2TESTPROCEDURE..................................................................................................21 5.3DEVIATIONFROMTESTSTANDARD.....................................................................21 5.4TESTSETUP..............................................................................................................22 5.5EUTOPERATINGCONDITIONS..............................................................................22 5.6TESTRESULT.............................…

Text truncated - open the document above for the full version.

FCCID:2AMA9-S31 EUTTESTPHOTO FCCID:2AMA9-S31
