2AMD8PC-QI1001PrimeConnect Alarm Clock Wireless Charger

FCC Caution: 5. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 6. IMPORTANT NOTE: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 7. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 15cm between the radiator& your body.

Software design System structure diagram is as follows： Master MCU FM3313 Power section Internal RTC clock 32.768MHz Button test LED digital display Wireless charge IC management D9100 FOD Wireless charging management D9015 Wireless charging indicator System structure diagram Antenna:CL1:CR2032-BS-2-1 Frequency:110-205kHZ

Shenzhen Ground Enterprises Co.,Ltd Room607, Building F, MingYueHuaDu, Gonghe Industrial Rd, Xixiang,Bao An District Shenzhen China Tel: +86-755-23035105 E-Mail：[email protected] 2021-4-13 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Product Similarity Declaration To Whom It May Concern, We, Shenzhen Ground Enterprises Co.,Ltd. hereby declare that we have a product named as PrimeConnect Alarm Clock Wireless Charger (PCQI-1001-AS, FCC ID: 2AMD8PC-QI1001) was tested by BACL, meanwhile, for our marketing purpose, we would like to list a series models (PCQI-1001-BK, PCQI-1001- BL, PCQI-1001-PK, PCQI-1001-WH) on reports and certificate, all the models are identical schematics, except for the differences as below, 1. All models are the same except for the color. No other changes are made to them. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Company Name: Shenzhen Ground Enterprises Co.,Ltd. Signature: Printed Name: James Cao Title: Manager

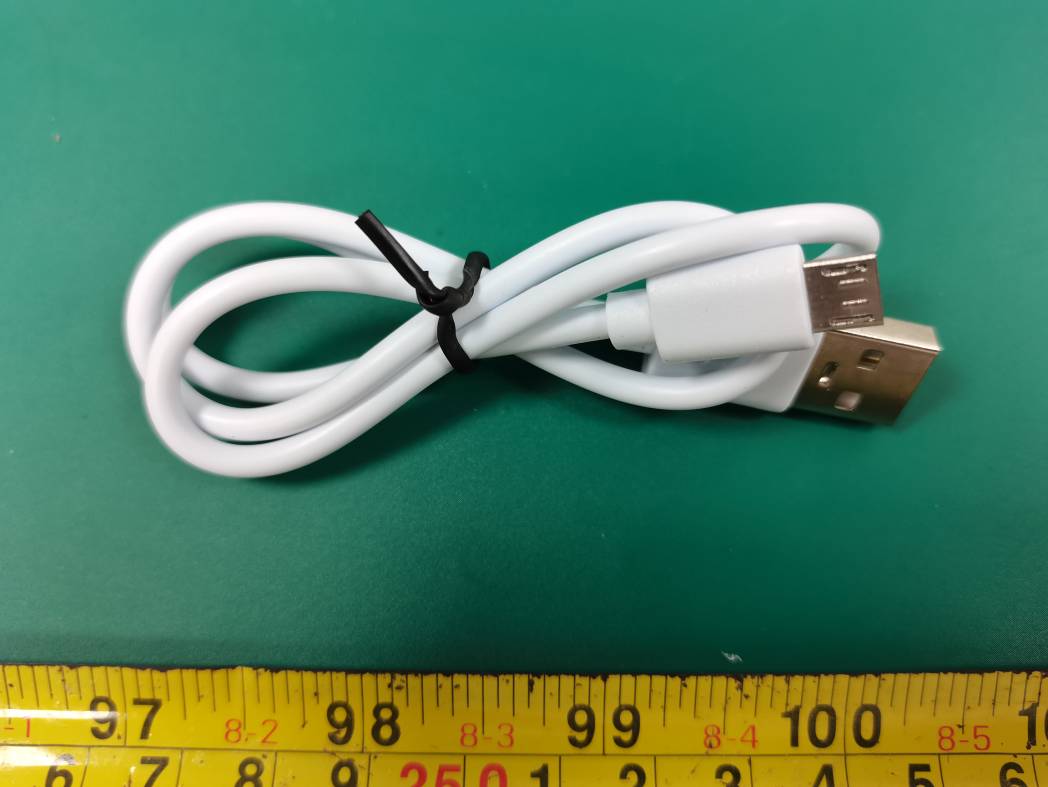

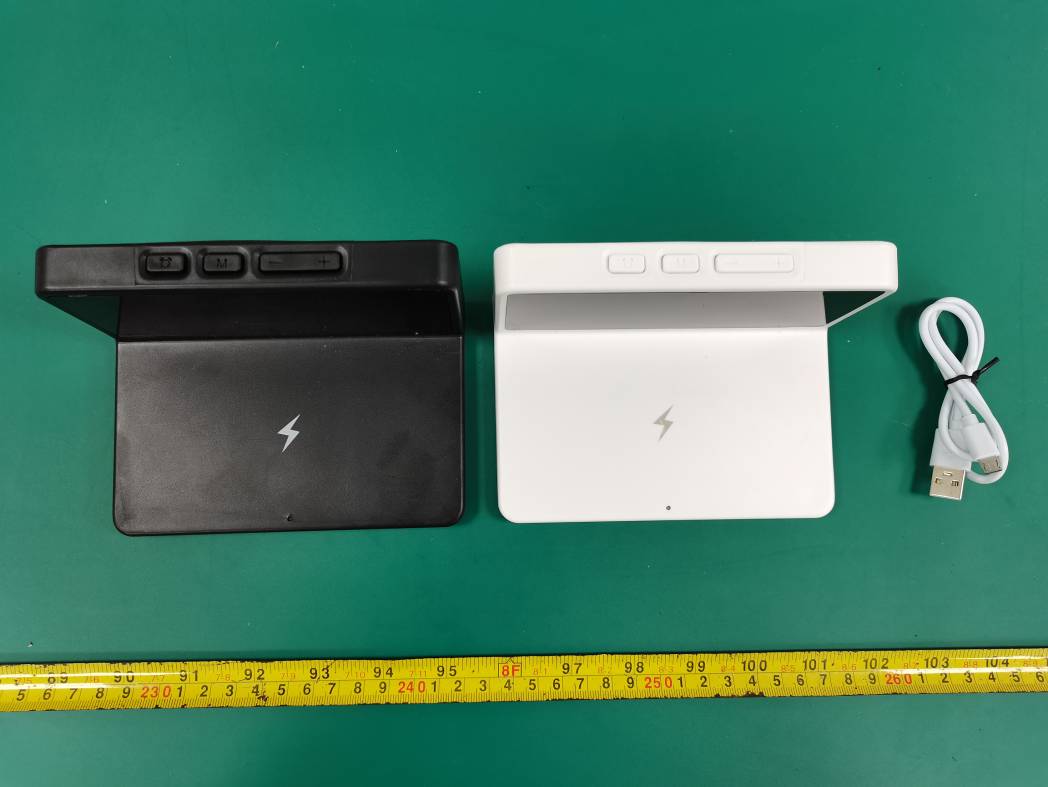

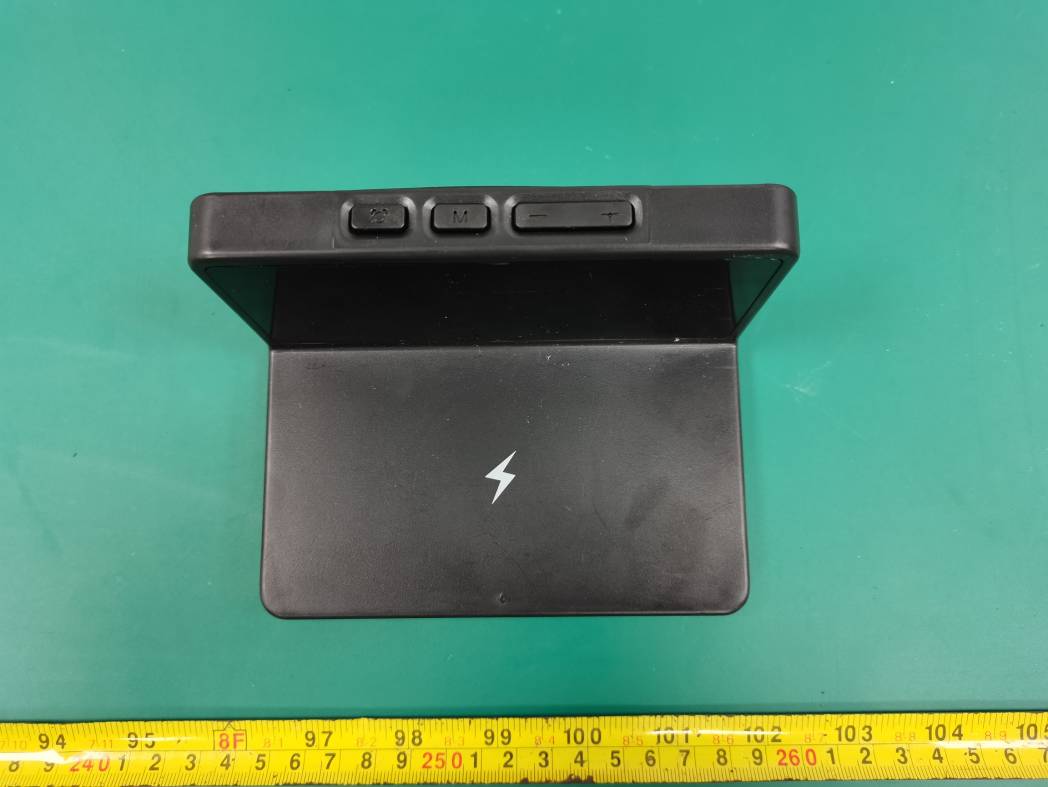

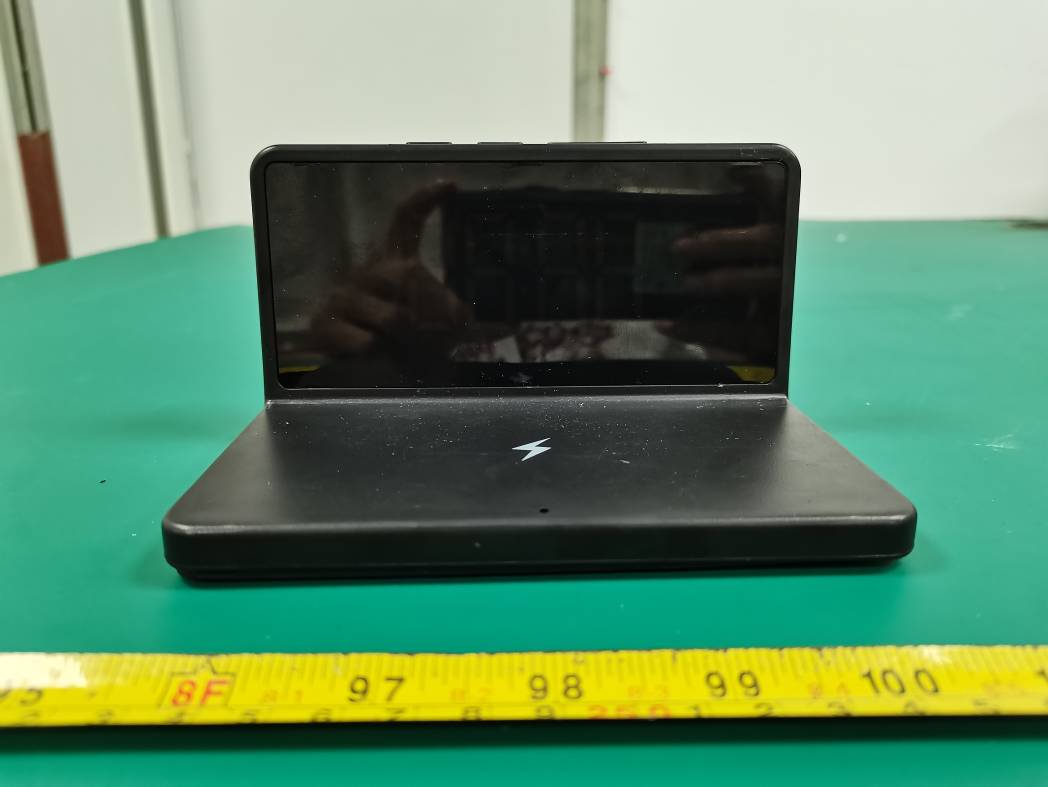

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210316-06921E-RF Page 1 of 4 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210316-06921E-RF Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210316-06921E-RF Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210316-06921E-RF Page 4 of 4

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210316-06921E-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210316-06921E-RF Page 1 of 3 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210316-06921E-RF Page 2 of 3 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210316-06921E-RF Page 3 of 3 Antenna

1. Plug the charging cable into the Microusb port to connect the wireless charging device. 2.The clock is initialized after power on and the display time is 00:00. Manual button can be used to set the clock, alarm clock and display brightness adjustment of the wireless charging device. Refer to "wireless charging clock operation instructions" for specific operation. 3.Put the mobile phone (load) on the wireless charging device platform, the device can automatically detect the mobile phone (load) and start charging, when the charging finish, the device automatically detect the The product adopt the dual chip scheme of Beland D9100 and D9015. It have an integral 32-bit high performance processor. The chip integrates pd3.0 (PPS) / qc3.0/afc fast charging protocol, supports the full range of Pd / QC fast charging functions of apple, Huawei, Xiaomi and Samsung, and can adaptive input voltage of DC5V, with wireless charging output up to 10W. Product detail: This product is powered by an external power adapter via Microusb. It have an integral power management chip, with over-current, over-voltage protection function, the maximum output charging current is 5V / 2a, with clock digital display function, and can set the timing alarm. Input: adaptive input DC 5V Output: adaptive output 5W/7.5W/10W Support: QC2.0/QC3.0/AFC fast charging protocols, etc. Display: High precision clock Antenna Type: Coil Frequency Range: 110-205kHz

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ3210316-06921E-00 FCC Part 15C Page 8 of 20 FCC §1.1310, §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According with KDB 680106 D01 RF Exposure Wireless Charging Apps v03r01 clause 3 c) According to KDB 680106 D01 RF Exposure Wireless Charging App v03r01 clause 5 b) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ3210316-06921E-00 FCC Part 15C Page 9 of 20 Block Diagram of Test Setup Note: 20 cm for Top test. Test Data Environmental Conditions Temperature:25.6 °C Relative Humidity: 56 % ATM Pressure: 101.0 kPa The testing was performed by Blaker Zhang on 2021-04-13. Test Mode: Wireless Charging 15cm Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ3210316-06921E-00 FCC Part 15C Page 10 of 20 H-Field Strength Frequency Range (kHz) Position A (A/m) Position B (A/m) Position C (A/m) Position D (A/m) Position E (A/m) 50% Limit (A/m) Limit (A/m) 110-205 0.262 0.252 0.253 0.249 0.253 0.815 1.63 E-Field Strength Frequency Range (kHz) Position A (V/m) Position B (V/m) Position C (V/m) Position D (V/m) Position E (V/m) 50% Limit (V/m) Limit (V/m) 110-205 1.156 1.139 1.185 1.073 1.134 307 614 Note: Test with 15cm distance from the center of the probe(s) to the edge of the device, 20 cm for top test. Result: Pass Considerations of compliance 680106 D01 RF Exposure Wireless Charging App v03r01 clause 5 b: (1) Power transfer frequency is less than 1 MHz. Yes, the operation frequency is 110-205 kHz. (2) Output power from each primary coil is less than or equal to 15 watts. Yes, the maximum output power of primary coil is 10Watts. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. The transfer system includes one primary coils to detect and allow coupling only between individual pairs of coils. (4) Client device is placed directly in contact with the transmitter. Yes, client device is placed directly in contact with the transmitter (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes, mobile exposure conditions only (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. Yes, the test result for H and E-Field strength less than 50% of the MPE limit.

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. FCC PART 15C TEST REPORT For Shenzhen Ground Enterprises Co.,Ltd Room607, Building F, MingYueHuaDu, Gonghe Industrial Rd, Xixiang,Bao An District Shenzhen China Report Type: Original Report Product Type: PrimeConnect Alarm Clock Wireless Charger Re port Number: SZ3210316-06921E-00 Re port Date: 2021-04-15 Reviewed B y: Jacob Kong RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) ,6F,7F,the 3rd Phase of Wan Li Industrial Building D,Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn FCC ID: 2AMD8PC-QI1001 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ3210316-06921E-00 FCC Part 15C Page 2 of 20 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 LOCAL SUPPORT EQUIPMENT ....................................................................................................................................... 5 EXTERNAL I/O CABLE .................................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 5 SUMMARY OF TEST RESULTS ............................................................................................................................... 6 TEST EQUIPMENT LIST ........................................................................................................................................... 7 FCC §1.1310, §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 9 TEST DATA .................................................................................................................................................................. 9 FCC§15.203 – ANTENNA REQUIREMENT ........................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTED CONSTRUCTION .................................................................................................................... 11 FCC §15.207 – AC LINE CONDUCTED EMISSION ............................................................................................. 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §15.205 & §15.209 - RADIATED EMISSIONS TEST .................................................................................... 16 APPLICABLE STANDARD .............................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210316-06921E-RF Page 1 of 7 EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210316-06921E-RF Page 2 of 7 Radiated Emissions View (9k-30MHz) Radiated Emissions View (30MHz-1GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210316-06921E-RF Page 3 of 7 H-Field Strength View Position A (Distance 15cm) Position B (Distance 15cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210316-06921E-RF Page 4 of 7 Position C (Distance 15cm) Position D (Distance 15cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210316-06921E-RF Page 5 of 7 Position E (Distance 20cm) E-Field Strength View Position A (Distance 15cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210316-06921E-RF Page 6 of 7 Position B (Distance 15cm) Position C (Distance 15cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210316-06921E-RF Page 7 of 7 Position D (Distance 15cm) Position E (Distance 20cm)
