2AMH2-BH079AWireless USB Dongle

User Manual If the computer closes the control page of function operation accidentally, just double-click the paired Wireless device on computer ( except for windows 10 ). The Wireless USB dongle will connect to the last paired smart device automatically when turned on next time. ( Turn your smart device’s Wireless on first, then turn on the product ) Use InstantlyWith the preloaded drive in Windows 8/8.1/10, you can use the dongle right after plugged in Tip for Installation in Laptops: Please disable the built-in Bluetooth driver in your laptop before installation. System Repair: it’s recommended to uninstall third-party Bluetooth drivers and residual data files on your PC or laptop, and conduct a system inspection and repair before using the dongle. Plug the Wireless USB dongle into the USB port, then put the CD into your computer, select right file according to your computer system and double-click the “setup” drive file to install software. ( If your computer doesn't have a CD driver, you can copy the file from other computer which has a CD driver. ) You need to restart your computer after the installation. In the bottom on the right of the taskbar, you can find the Wireless mark and click to choose “Add a Wireless Device” option. There will be a search Wireless device page. Turn your smart device’s Wireless on first, and the computer will search for Wireless devices automatically. Select the name of Wireless device to pair on the computer. If pairing is successful, the computer will show a control page of function operation. You need to select and connect the function you want to use. Note For the first time to use Wireless USB dongle, you had better connect the computer to the Internet. If you want to pair another smart device, you need to disconnect the Wireless of the first smart device on the computer manually. MODEL: BH079A WIRELESS USB DONGLE Windows 7Windows 8Windows 10Windows XPWindows Vista Broadcom BCM20702 Wireless EDR Work with Wireless printer and stereo headphones Faster transfer speed and wider working distance than Wireless V3.0,2.1 Wireless EDR,compatible with Wireless 1.2/2.0/2.1/3.0 Dual-mode Wireless transfer, support Wireless voice data Full-speed USB 2.0 interface, USB 1.1 Compatible System Support: Windows 10/8.1/7/Vista/XP Broadcom Widcomm software supports Multi languages Copyright © MPOW Inc. All rights reserved. www.xmpow.com | [email protected] YooRen GmbH Oberstr. 88 20149 Hamburg - Harvestehude [email protected] WIRELESS USB DONGLE WIRELESS USB DONGLE Specifications Features Manufacturer: MPOW TECHNOLOGY CO.,LIMITED FLAT/RM 605 6/F FA YUEN COMMERCIAL BUILDING 75-77 FA YUEN STREET MONGKOK KL HONG KONG FCC ID: 2AMH2-BH079A MADE IN CHINA MPBH079AB EU Importer: QIUTROSE LTD [email protected] Operation Instruction You can click the link to download the driver : https://www.xmpow.com/drivers Correct Disposal of This Product FCC Statement ( Waste Electrical & Electronic Equipment ) (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household user should contact either the retailer where they purchased this product or their local government oce for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

QA-FR-170-B MPOW TECHNOLOGY CO.,LIMITED ADD: FLAT/RM 605 6/F FA YUEN COMMERCIAL BUILDING 75-77 FA YUEN STREET MONGKOK KL HONG KONG TEL: 18566621145 FAX: +86-755-26008484 E-mail: [email protected] FCC Authorization Date: 2019-12-4 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , MPOW TECHNOLOGY CO.,LIMITED, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Derric Bai Compliance Manager

QA-FR-171-A MPOW TECHNOLOGY CO.,LIMITED Add: FLAT/RM 605 6/F FA YUEN COMMERCIAL BUILDING 75-77 FA YUEN STREET MONGKOK KL HONG KONG Tel: 18566621145 Fax: +86-755-26008484 Email: [email protected] FCC Confidential Authorization Date: 2019-12-4 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AMH2-BH079A In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (MPOW TECHNOLOGY CO.,LIMITED) hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Derric Bai Compliance Manager

MPOW TECHNOLOGY CO.,LIMITED Add: FLAT/RM 605 6/F FA YUEN COMMERCIAL BUILDING 75-77 FA YUEN STREET MONGKOK KL HONG KONG Tel: 18566621145 Fax: +86-755-26008484 Email: [email protected] DECLARATION OF SIMILARITY Date: 2019-12-4 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: We, MPOW TECHNOLOGY CO.,LIMITED, hereby declare that the product: Wireless USB Dongle , FCC ID: 2AMH2-BH079A model: BH079B,BH079C is electrically identical with the model: BH079A which was tested by BACL with the same electromagnetic emissions and electromagnetic compatibility characteristics. A description of the differences between those models and that are declared similar are as follows: They are the same product, and just the different model name, the rest are the same. Please contact me should there be need for any additional clarification or information. Best Regards, Signature: Derric Bai Compliance Manager

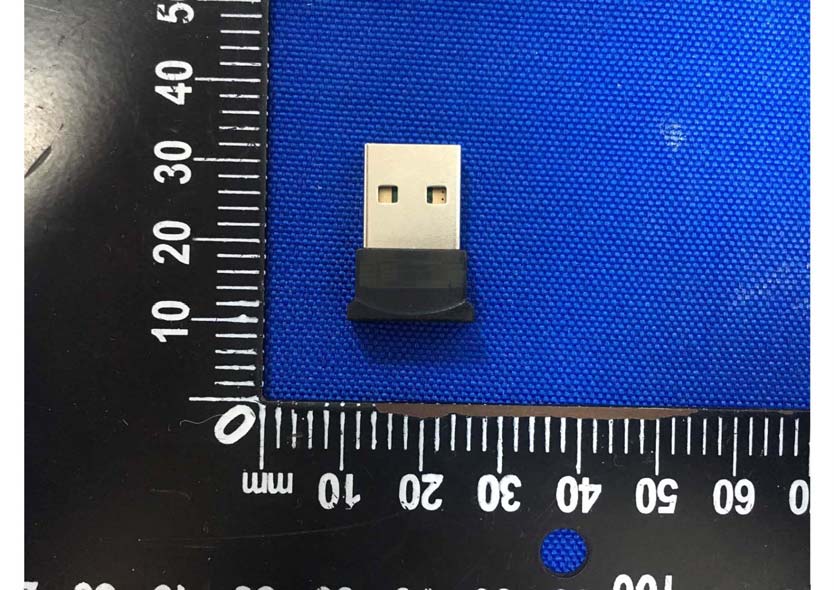

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

FCC ID: 2AMH2-BH079A

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG191202007-00 Page 10 of 54 FCC §15.247 (i) & §1.1310 & §2.1093- RF EXPOSURE Applicable Standard According to§15.247(i) and §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB447498 D01 General RF Exposure Guidance v06: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Measurement Result The max conducted power including tune-up tolerance is 3.5 dBm (2.24 mW). [(max. power of channel, mW)/(min. test separation distance, mm)][√f(GHz)] =2.24/5*(√2.480) =0.71< 3.0 So the stand-alone SAR evaluation is not necessary.

FCC PART 15.247 TEST REPORT For MPOW TECHNOLOGY CO.,LIMITED FLAT/RM 605 6/F FA YUEN COMMERCIAL BUILDING 75-77 FA YUEN STREET MONGKOK KL HONG KONG FCC ID: 2AMH2-BH079A Report Type: Original Report Product Name: Wireless USB Dongle Re port Number: RDG191202007-00 Re port Date: 2019-12-27 Reviewed By: Gavin Xu RF Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG191202007-00 Page 2 of 54 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS ........................................................................................................ 7 SUPPORT CABLE LIST AND DETAILS ............................................................................................................................ 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 FCC §15.247 (i) & §1.1310 & §2.1093- RF EXPOSURE .......................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 13 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 16 APPLICABLE STANDARD ............................................................................................................................................ 16 EUT SETUP ................................................................................................................................................................ 16 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 17 TEST PROCEDURE .......................................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Rear View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
