2AMH2-BH129CBluetooth Music Receiver

Bluetooth Music Receiver User Manual · Le mode d'emploi Istruzioni · Manual de usuario [email protected] www.xmpow.com English ---------------------02 Deutsch --------------------13 Français -------------------23 Italiano --------------------33 Li-Po 180mAh -02--03- Frequency Range 2.402-2.48GHz Output Pow er CategoryClass 1 Bluetooth ModeHFP/HSP/A2DP/ AVRCP Bluetooth Rangeup to 30 feet Power Supply Charge voltageDC 5.0v P roduct Diagram 1. P ower ON/OFF 2. Audio Output 3. Micro USB Charging Port 4. Microphone 5. Previous Song/Volume Down 6. Next Song/Volume Up 7. Indicator Light 8. Play/Pause; Answer/Hang up 1 2 3 4 5 6 7 8 Specifications ENGLISH www.xmpow.com -04--05- Connect Two Smart Devices Power On/Off Pair To Your Device Power on Turn the power switch to “ON” side, this receiver will power on automatically. Red light will stay on for 1s then the red and blue lights flash alternately. Power off Turn the power switch to “OFF” side, red light will stay on for 1s and then this receiver will power off automatically. Note:If there is no operation or connection after the product powers on, it will automatically enter sleep mode after 10 minutes. Short press “ ” button for 1 second to wake it up. When the product disconnects with the mobile phone, it will automatically enter sleep mode after 20 minutes. Short press “ ” button for 1 second to wake it up. For the first time using the receiver, you should pair it to your smart device first. 1. Power on the receiver, it will enter into pairing mode. The red and blue lights flash alternately. 2. Turn on the Bluetooth function of your smart device. 3. Search for the Bluetooth device “BH129” and connect to it. 4. Enter the code “0000” if needed. If it pairs successfully, the indicator light will blink once every two seconds. 5. Connect the receiver to your non Bluetooth headphone/Home Speakers or Car Stereo System with 3.5mm audio cable. 6. Now you can enjoy music through your Headphone, Speakers, Stereo System, or answer hands-free calls after connecting with smart phones. 1. Pair the Bluetooth receiver to the first device. 2. After successfully pairing, turn off the Bluetooth function of the first device. 3. The receiver will enter pairing mode again. -06--07- · Short press the button “ ”, hang up the first call and answer to the new call. · Long press the button “ ” for about 1s, hang on the first call and answer the new call. HANDS-FREE CALL Answer A Call 1. When there is a incoming call, short press the button “ ” to answer it. When get through, long press “ ”for 1s that you can choose to answer the call through Bluetooth or phone. 2. If there is a second incoming call while you are speaking: Reject A Call End A Call Redial The Last Called Number Long press the button “ ” for about 1s. Short press the button “ ” or just hang up your phone. Double press the button “ ” to redial the last called number. Play Music 1. Play/Pause: Short press the button “ ” 2. Next Song: Short press the button “ + ” 3. Previous Song: Short press the button “ - ” 4. Volume Up: Long press the button “+” 5. Volume Down: Long press the button “ - ” Note: When the receiver is on ， it will connect to the last connected device automatically. (Please make sure the Bluetooth function of your device is enabled before turning on the receiver.) 4. Pair the Bluetooth receiver to the second device. 5. After successfully paring, turn on the Bluetooth function of the first device. Select the “BH129” and click “connect”. 6. Two devices will both connect the Bluetooth receiver at the same time. -08--09- Charge The Receiver When the receiver is in low power state, it will alarm automatically that the red light flashes 15 times quickly. After that, the red light will flash once every two seconds instead. In this case, please charge it through USB charging port with DC 5V power supply input. During charging the red indicator will stay on. When it finishes charging, the red indicator will go off. FAQ Q1: The product can’t pair with the Bluetooth of your smart device. 1. Please make sure the product have entered pairing mode. 2. Make sure there is only one Bluetooth enabled device around you. 3. Wipe out the paring history of your Bluetooth enabled devices and receiver, then try again. Q2: The Bluetooth range or the sound quality is not good. 1. Bluetooth signal can be blocked by surrounding objects and reduce the audio quality, please put it in the right position without barrier between receiver and your smart devices. 2. Wipe out the paring history of the product, then try again. Voice Assistant Long Press the “ ” button for about 1s to start or end voice assistant function. Wipe Out Bluetooth Connection History When the receiver is off, long press the button “ ” for about 8s, the system will wipe out the Bluetooth Connection history. Note: You can only wipe out the audio connection history of the receiver through this operation. Can’t wipe out the Bluetooth history of your smart devices. -10--11- FCC STATEMENT 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Note 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the eq…

Text truncated - open the document above for the full version.

MPOW TECHNOLOGY CO.,LIMITED Add: FLAT/RM 605 6/F FA YUEN COMMERCIAL BUILDING 75-77 FA YUEN STREET MONGKOK KL HONG KONG Tel: 18566621145 Fax: +86-755-26008484 Email: [email protected] DECLARATION OF SIMILARITY Date: 2019-09-05 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: We, MPOW TECHNOLOGY CO.,LIMITED, hereby declare that the product: Bluetooth Music Receiver, FCC ID: 2AMH2-BH129C, model: BH129B,BH129C,BH129D is electrically identical with the model: BH129A which was tested by BACL with the same electromagnetic emissions and electromagnetic compatibility characteristics. A description of the differences between those models and that are declared similar are as follows: They are the same product, and just the different model name, the rest are the same. Please contact me should there be need for any additional clarification or information. Best Regards, Signature: Derric Bai Compliance Manager

QA-FR-170-B MPOW TECHNOLOGY CO.,LIMITED ADD: FLAT/RM 605 6/F FA YUEN COMMERCIAL BUILDING 75-77 FA YUEN STREET MONGKOK KL HONG KONG TEL: 18566621145 FAX: +86-755-26008484 E-mail: [email protected] FCC Authorization Date: 2020-09-05 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , MPOW TECHNOLOGY CO.,LIMITED, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Derric Bai Compliance Manager

QA-FR-171-A MPOW TECHNOLOGY CO.,LIMITED Add: FLAT/RM 605 6/F FA YUEN COMMERCIAL BUILDING 75-77 FA YUEN STREET MONGKOK KL HONG KONG Tel: 18566621145 Fax: +86-755-26008484 Email: [email protected] FCC Confidential Authorization Date: 2020-09-05 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AMH2-BH129C In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (MPOW TECHNOLOGY CO.,LIMITED) hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Derric Bai Compliance Manager

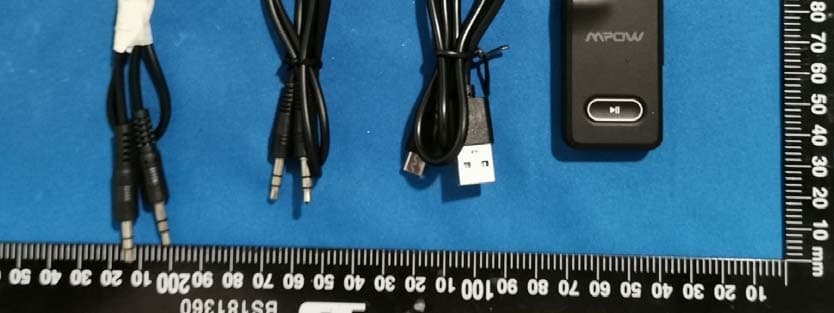

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Port Port

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Antenna

FCC PART 15.247 TEST REPORT For MPOW TECHNOLOGY CO.,LIMITED FLAT/RM 605 6/F FA YUEN COMMERCIAL BUILDING 75-77 FA YUEN STREET MONGKOK KL HONG KONG Report Type: Original Report Product Name: Bluetooth Music Receiver Re port Number: RDG200806002-00A Re port Date: 2020-09-02 Reviewed By: Ivan Cao Assistant Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: 2AMH2-BH129C Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200806002-00A Page 2 of 34 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 SUPPORT CABLE LIST AND DETAILS ............................................................................................................................ 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 FCC §15.247 (i) & §1.1310 & §2.1093- RF Exposure ............................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA INFORMATION AND CONNECTOR CONSTRUCTION ..................................................................................... 11 FCC §15.207 (a)– AC LINE CONDUCTED EMISSIONS ...................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 13 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 13 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 14 FCC §15.209, §15.205, §15.247(d) - SPURIOUS EMISSIONS ................................................................................. 17 APPLICABLE STANDARD ............................................................................................................................................ 17 EUT SETUP ................................................................................................................................................................ 17 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 18 TEST PROCEDURE ...........................................................................................................................…
