2AMHH-2046010HY-VS-VSOP-XO KIT DE CHARGE PAD LUMINOUS

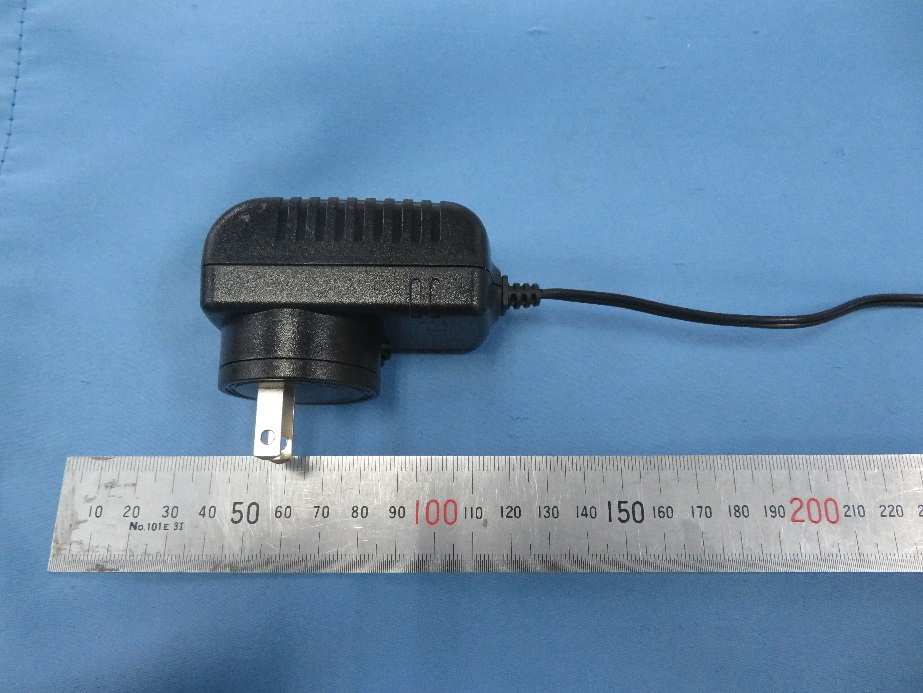

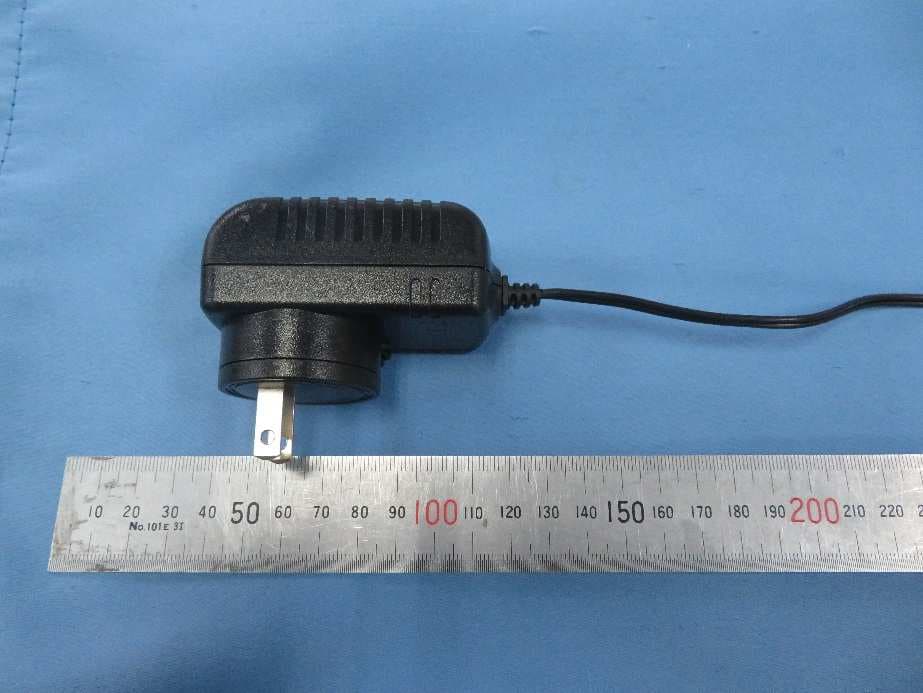

2046012 HY-VS LUMINOUS DUMMY 175cl 2046013 HY-VSOP LUMINOUS DUMMY 175cl 2046014 HY-XO LUMINOUS DUMMY 150cl 2046010 HY-VS/VSOP/XO KIT CHARGE LUMINOUS DUMMY User guide / 產品說明書 CONTENT / 產品內容 : CONTENT / 產品內容 CONTENT / 產品內容 1 – Bottle LUMINOUS DUMMY 酒瓶模型 2 – Induction base ref 2046010 充電底坐 3 – Adaptor ref AK18WG-0500200DP 變壓器 4 – Connecting wire (50cm) 連接線 (50cm) HY-XO LUMINOUS DUMMY 150cl HY-VSOP LUMINOUS DUMMY 175cl HY-VS LUMINOUS DUMMY 175cl ON / OFF Button / 開關 FUNCTION / 功能 : ON / OFF Button / 開關 HY-XO LUMINOUS DUMMY 150cl HY-VSOP LUMINOUS DUMMY 175cl HY-VS LUMINOUS DUMMY 175cl Press to light On / 按下開燈 ON / OFF Button / 開關 INDUCTION CHARGE / 發光底坐 : The LUMINOUS DUMMIES can be charged individually or linked with other induction bases thanks to the specific connecting wire. 發光酒瓶可以單獨充電或使用特定的連接線，與其他底座連接充電. Up to 6 LUMINOUS DUMMIES can be charged in the same time. / 每次最多6個發光酒瓶可同時充電. The induction base is compatible to all 3 bottles: VS ; VSOP ; XO. / 充電底坐適用於VS ; VSOP ; XO酒瓶. LUMINOUS DUMMIES can be used on induction base in back bar during charging. / 發光酒瓶充電時, 可同時發光並放在底坐上作展示用途. Connecting wire / 連接線 (50cm) 1 – Plug the induction base with the adaptor. 跟變壓器連接 2 – Place the LUMINOUS DUMMY on induction base following bottle shape printed on the top. 按照底坐上的瓶底圖案位置把發光酒瓶放上去. 3 – The LED indicator on the front of the base turns ON in red color when the LUMINOUS DUMMY is charging 底坐的顯示燈, 充電中是紅色. 4 – The LED indicator switches to green when the bottle is fully charged. 充滿電是綠色 5 – To charge several bottles together, use the connected wire and plug the induction bases together (max. 6 induction bases) 當跟其他底坐連接充電時, 請使用配套的連接線. Charging indicator/ 顯示燈 Press to light On / 按下開燈 Press to light On / 按下開燈 2046012 HY-VS LUMINOUS DUMMY 175cl / 2046013 HY-VSOP LUMINOUS DUMMY 175cl / 2046014 HY-XO LUMINOUS DUMMY 150cl Fabriqué en CHINE / Made in CHINA / 中国制造 Produit par / Produced by / 生产商DGD International limited – Unit B/C/D, 5th Floor Kimley Commercial Building, 142-146 Queen’s Road, Central - HONG KONG Pour / For / 进口商 Jas Hennessy & CO, Rue de la Richonne, 16100 Cognac - FRANCE – Tel +33 5 45 35 72 72 Ce symbole, apposé sur le produit ou son emballage, indique que ce produit ne doit pas être traité avec les déchets ménagers. Il doit être remis à un point de collecte approprié pour le recyclage des piles et batteries usagées, et des équipements électriques et électroniques. / This symbol, affixed to the product of its packaging, indicates that this product should not be treated with household waste. It must be handed over to an appropriate collection point for the recycling of end of life batteries, and electrical and electronic equipment. / 此標誌貼在其包裝產品上，表示該產品不應與生活垃圾一起處理。必須將其移交給適當的回收點，以便回收廢棄電池，電器和電子設備。 En s’assurant que ce produit est bien mis au rebut de manière appropriée, vous aiderez à prévenir les conséquences négatives potentielles pour l’environnement et la santé humaine. Le recyclage des matériaux aidera à conserver les ressources naturelles / By ensuring that this product is disposed of appropriately, you will help prevent potential negative consequences for the environment and human health. Recycling materials will help conserve natural resources. / 通過確保妥善處理本產品，您將有助於防止對環 境和人類健康造成潛在的負面影響。回收材料將有助於保護自然資源。 1. Do not fill the LUMINOUS DUMMIES with liquid. / 不要把液體倒進酒瓶內. 2. Do not bump the assembly LUMINOUS DUMMIES: risk of scratching. / 不要將酒瓶互相碰撞. 3. To be stored in a dry area between 10°C and 25°C. / 貯藏溫度為10°C 至 25°C. 4. Do not immerse light pads or induction base in ice bucket. / 不可把發光酒瓶或充電坐放進冰桶. 5. Do not place in dishwasher. / 不可使用洗碗碟機. 6. Do not place into the freezer. / 不可放進冰櫃. 7. The luminous bulbs are not replaceable. When the luminous bulbs are at their end of life, the whole item must be replaced. / 發光酒瓶的LED燈是不可以更換的, 當LED 壽命完結時，必須更換整個產品. 8. Do not dismantle, do not open and do not tear up the item. / 不可拆開產品. 9. Do not expose the batteries to the heat or fire. Avoid any storage in the direct sunlight. / 不可將電池放於火, 高溫, 或直接在太陽底下. 10. Do not use any detergent products. / 不可使用任何洗滌劑產品. 11. The labels’ autonomy is 4 hours without intensity fading. / 發光貼的LED可以於4小時亮並沒有明顯發光差別. 12. The batteries used are Li-Ion batteries 302535 (210Mah). They are not replaceable. / 產品裡的電池是302535 鯉電(210Mah), 電池不可更換. 13. The induction base only charges the lighted bottles, it cannot charge a mobile phone or other type of items. / 感應充電座只能供發光酒瓶使用，不能為手機或其他類 型的物品充電。 14. Adaptor model / 充電器型號: AK18WG-0500200DP Adaptor/Battery Charger used with this product is to be regularly examined for damage to the cord, plug and enclosure and in other parts, and in the events of such damage, Adaptor / battery charger must not be used until the damage has been repaired / 應定期檢查與本產品一起使用的適配器/電池充電器是否損壞了電源線，插頭和外殼 以及其他部件，如果發生此類損壞，在修復損壞之前不得使用適配器/電池充電器。 15. Do not use any charger other than that specifically provided for use with the product / 除本產品專用的充電器外，請勿使用其他充電器。 16. Do not dismantle, open or shred batteries. / 請勿拆卸，打開或切碎電池。 17. Do not short-circuit a battery. / 請勿使電池短路。 18. Do not leave a battery on prolonged charge when not in use. / 不使用時，請勿將電池長時間充電。 19. After extended periods of storage, it may be necessary to charge and discharge the batteries several times to obtain maximum performance. / 產品長時間存放後，可能 需要對電池進行幾次充電和放電以獲得最佳性能。 20. Keep this information for future reference. / 請保留此信息以備將來參考。 CAUTION / 注意 : RECYCLING / 回收 : HY-XO LUMINOUS DUMMY 150cl HY-VSOP LUMINOUS DUMMY 175cl HY-VS LUMINOUS DUMMY 175cl Pull the tongue / 從酒瓶底撕下 Pull the tongue / 從酒瓶底撕下 Pull the tongue / 從酒瓶底撕下 FCC ID: 2AMHH-2046010 This device complies with part 15 and part 18 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. Please note that changes or modifications of this product is not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.…

Text truncated - open the document above for the full version.

DGD International Limited Oct 31, 2019 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement DGD International Limited FCC ID: 2AMHH-2046010 To Whom It May Concern: We, DGD International Limited hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number (2AMHH-2046010) under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is Oct 31, 2019. The Limited Agency Agreement expires Oct 31, 2020, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, Sign: DGD International Limited Title: Senior Manager

DGD International Limited Cover Letter-Wireless Charger Approval Date: 2019-12-30 FCC ID: 2AMHH-2046010 There’s a Wireless Charger (contain Wireless charging pad), which would like to have your authorization as Inductive wireless power transfer applications approval Applicant Name & Address : DGD International Limited Unit B-D, 5/F, Kimley Commercial Building, 142-146 Queen’s Road, Central, HONG KONG, CHINA Model No. : 2046010 FCC ID: 2AMHH-2046010 DGD International Limited KDB 680106 D01 Section 5.2 Requirements: Product Technical Specification Result 1) Power transfer frequency is less than 1 MHz 542kHz Complied 2) Output power from each primary coil is less than or equal to 15 watts 0.52Watts Complied 3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils The device include one primary coil Complied 4) Client device is Placed directly in contact with the transmitter Client device is placed directly in contact with the transmitter Complied 5) Mobile exposure conditions only Mobile device Complied 6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Max H-Filed Strength: 0.0016A/m Complied DGD International Limited Sincerely, By: Benson Chong (Signature 1) (Print name) Title: Senior Manager On behalf of: DGD International Limited Telephone: + 852 2457 1000

DGD International Ltd. Attention: Application Examiner RE: Request for Confidentiality Applicant: DGD International Ltd FCC ID: 2AMHH-2046010 To Whom It May Concern: Permanent Confidentiality Request is hereby submitted by DGD International Ltd to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block Diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: DGD International Ltd has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] [For FCC certification; delete for TCB certification: The fee for confidentiality has been submitted along with the fee for certification.] If you have questions or need further information, please contact the undersigned. Sincerely, Sign: DGD International Ltd Title: Senior Manager

63.26mm 75.5mm 10mm 11.97mm 13.8mm 43.0mm HY-VS-VSOP-XO KIT DE CHARGE PAD LUMINOUS MODEL: 2046010 MADE IN CHINA Wireless output: 3.7V ----- 0.14A ; 0.52W DC Input: 4.96V ----- 0.3A ; 1.49W for single charged base Total Input8.94W for 6 pic charged base DATE CODE: 1019 Produced by DGD – Unit B/C/D, 5th Floor, Kimley Commercial Building, 142-146Queen’s Road, Central, HONG-KONG For JAS HENNESSY & CO, Rue de la Richonne, 16101 Cognac, FRANCE FCC ID2AMHH-2046010 This device complies with Part 18 of the FCC Rules. 63.26mm 75.5mm 10mm 11.97mm 13.8mm 43.0mm HY-VS-VSOP-XO KIT DE CHARGE PAD LUMINOUS MODEL: 2046010 MADE IN CHINA Wireless output: 3.7V ----- 0.14A ; 0.52W DC Input: 4.96V ----- 0.3A ; 1.49W for single charged base Total Input8.94W for 6 pic charged base DATE CODE: 1019 Produced by DGD – Unit B/C/D, 5th Floor, Kimley Commercial Building, 142-146Queen’s Road, Central, HONG-KONG For JAS HENNESSY & CO, Rue de la Richonne, 16101 Cognac, FRANCE FCC ID2AMHH-2046010 This device complies with Part 18 of the FCC Rules.

Inside

DGD International Limited TEST REPORT SCOPE OF WORK EMC TESTING–2046010 REPORT NUMBER 190905013GZU-001 ISSUE DATE [REVISED DATE] 30-December-2019 [---------------------] PAGES 21 DOCUMENT CONTROL NUMBER FCC Part 18:2018-d © 2017 INTERTEK TEST REPORT Block E, No.7-2 Guang Dong Software Science Park, Caipin Road, Guangzhou Science City, GETDD Guangzhou, China Telephone: 86-20-8213 9688 Facsimile: 86-20-3205 7538 www.intertek.com This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Version: 06-June-2019 Page 2 of 21 FCC Part 18:2018-d Applicant Name & Address : DGD International Limited Unit B-D, 5/F, Kimley Commercial Building, 142-146 Queen’s Road, Central, HONG KONG, CHINA Manufacturing Site : Same as applicant Intertek Report No: FCC ID: 190905013GZU-001 2AMHH-2046010 Test standards 47 CFR Part 18 [2018 Edition] Sample Description Product : HY-VS-VSOP-XO KIT DE CHARGE PAD LUMINOUS Model No. : 2046010 Electrical Rating : For single charge pad input:4.96Vdc, 0.3A(Powered by adaptor) For six charge pads input: 8.94W Wireless output: 3.7Vdc, 0.14A, 0.52W max. Adaptor: Model: AK 18WG-0500200DP Input: 100-240V, 50/60Hz 0.5A Power cord: 1.8m x 2 wires unscreened DCcable Serial No. Not Labeled Date Received : 05 September2019 Date Test Conducted : 05 September 2019-05 December 2019 Prepared and Checked By Daniel He Project Engineer Intertek Guangzhou Approved By: Helen Ma Team Leader Intertek Guangzhou TEST REPORT Intertek Report: No: 190905013GZU-001 Version: 06-June-2019 Page 3 of 21 FCC Part 18:2018-d CONTENT TEST REPORT ....................................................................................................................... 1 CONTENT ......................................................................................................................... 3 1. TEST RESULTS SUMMARY ......................................................................................... 4 2. EMC RESULTS CONCLUSION...................................................................................... 5 3. LABORATORY MEASUREMENTS ................................................................................ 6 4. EQUIPMENT USED DURING TEST .............................................................................. 8 5. EMI TEST ................................................................................................................ 10 5.1 FCC PART 18 CONTINUOUS CONDUCTED DISTURBANCE VOLTAGE TEST ................................ 10 5.1.1 Block Diagram of Test Setup ............................................................................ 10 5.1.2 Test Setup and Procedure ................................................................................ 10 5.1.3 Limit ................................................................................................................. 11 5.1.4 Test Data and curve ......................................................................................... 12 5.2 FCC PART 18 RADIATED EMISSION 9 KHZ TO 30 MHZ ....................................................... 14 5.2.1 Block Diagram of Test Setup ............................................................................ 14 5.2.2 Test Setup and Procedure ................................................................................ 14 5.2.3 Limit ................................................................................................................. 15 5.2.4 Test Data and Curve ........................................................................................ 16 5.3 FCC PART 18 RADIATED EMISSION 30 MHZ -1000 MHZ .................................................. 18 5.3.1 Block Diagram of Test Setup ............................................................................ 18 5.3.2 Test Setup and Procedure ................................................................................ 18 5.3.3 Limit ................................................................................................................. 19 5.3.4 Test Data and Curve ........................................................................................ 20 TEST REPORT Intertek Report: No: 190905013GZU-001 Version: 06-June-2019 Page 4 of 21 FCC Part 18:2018-d 1. TEST RESULTS SUMMARY Test Item Standard Result Conducted disturbance voltage at mains ports FCC Part 18Pass Radiated Emission (9 kHz to 30 MHz) FCC Part 18Pass Radiated Emission (30 MHz to 1 GHz) FCC Part 18Pass Remark: Reference publication is used for methods of measurement: FCC OST/ MP-5:1986 Remark: 1. The symbol “N/A” in above table means Not Applicable. 2. When determining the test results, measurement uncertainty of tests has been considered. TEST REPORT Intertek Report: No: 190905013GZU-001 Version: 06-June-2019 Page 5 of 21 FCC Part 18:2018-d 2. EMC RESULTS CONCLUSION RE: EMC Testing Pursuant to FCC part 18 authorized under the Certification was performed on the HY-VS-VSOP-XO KIT DE CHARGE PAD LUMINOUS, Models: 2046010. We tested the HY-VS-VSOP-XO KIT DE CHARGE PAD LUMINOUS, Model: 2046010, to determine if it was in compliance with the relevant standard as marked on the Test Results Summary. We fou…

Text truncated - open the document above for the full version.

DGD International Limited TEST REPORT SCOPE OF WORK EMC TESTING–2046010 REPORT NUMBER 190905013GZU-002 ISSUE DATE [REVISED DATE] 30-December-2019 [---------------------] PAGES 9 DOCUMENT CONTROL NUMBER © 2017 INTERTEK TEST REPORT Block E, No.7-2 Guang Dong Software Science Park, Caipin Road, Guangzhou Science City, GETDD Guangzhou, China Telephone: 86-20-8213 9688 Facsimile: 86-20-3205 7538 www.intertek.com This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Version: 21 August 2017 Page 2 of 9 Applicant Name & Address : DGD International Limited. Unit B-D, 5/F, Kimley Commercial Building, 142-146 Queen’s Road, Central, HONG KONG, CHINA Manufacturing Site : Same as applicant Intertek Report No: FCC ID: 190905013GZU-002 2AMHH-2046010 Test standards 47 CFR PART 1, Subpart I, Section 1.1310 KDB 680106 D01 RF Exposure Wireless Charging Apps v03 Sample Description Product : HY-VS-VSOP-XO KIT DE CHARGE PAD LUMINOUS Model No. : 2046010 Electrical Rating : Input: 4.96Vdc, 0.3A (Powered by adaptor) for single charge pad Total Input: 8.94W for 6 Pic charge pad Wireless output: 3.7Vdc, 0.14A, 0.52W max. Adaptor: Model: AK 18WG-0500200DP Input: 100-240V, 50/60Hz 0.5A Power cord: 1.8m x 2 wires unscreened DCcable Serial No. Not Labeled Date Received : 05 September2019 Date Test Conducted : 05 September 2019-05 December 2019 Prepared and Checked By Daniel He Project Engineer Intertek Guangzhou Approved By: Helen Ma Team Leader Intertek Guangzhou TEST REPORT Intertek Report: No: 190905013GZU-002 Version: 21 August 2017 Page 3 of 9 FCC Part 15.225-a CONTENT TEST REPORT ........................................................................................................................... 1 CONTENT ............................................................................................................................. 3 1.0 TEST RESULT SUMMARY ............................................................................................ 4 2.0 GENERAL DESCRIPTION ............................................................................................. 5 2.1 P RODUCT DESCRIPTION ........................................................................................................ 5 2.2 T EST FACILITY ..................................................................................................................... 5 2.3 EUT EXERCISING SOFTWARE ................................................................................................. 5 2.4 S PECIAL ACCESSORIES .......................................................................................................... 5 2.5 E QUIPMENT MODIFICATION ................................................................................................. 5 2.6 S UPPORT EQUIPMENT LIST AND DESCRIPTION .......................................................................... 6 3.0 EMF TEST ................................................................................................................. 7 3.1 STANDARD REQUIREMENT .......................................................................................................... 7 3.2 TEST DATA ............................................................................................................................... 8 4.0 TEST EQUIPMENT LIST ............................................................................................... 9 TEST REPORT Intertek Report: No: 190905013GZU-002 Version: 21 August 2017 Page 4 of 9 FCC Part 15.225-a 1.0 TEST RESULT SUMMARY Classification of EUT: Class B Test ItemStandardResult EMF 47 CFR PART 1, Subpart I, Section 1.1310 PASS Remark: When determining the test results, measurement uncertainty of tests has been considered. TEST REPORT Intertek Report: No: 190905013GZU-002 Version: 21 August 2017 Page 5 of 9 FCC Part 15.225-a 2.0 General Description 2.1 Product Description Operating Frequency 542KHz Type of Modulation: MSK Antenna Type Inductive loop coil antenna Antenna gain: 0 dBi Power Supply: Input: 5Vdc, 2A (Powered by adaptor) Wireless output: 3.7Vdc, 0.14A, 0.52W max. Power cord: 1.8m x 2 wires unscreened DC cable 2.2 Test Facility Block E, No.7-2 Guang Dong Software Science Park, Caipin Road, Guangzhou Science City, GETDD Guangzhou, China A2LA Certificate Number 0078.10 Intertek Testing Services Shenzhen Ltd. Guangzhou Branch is accredited by A2LA and Listed in FCC website. FCC accredited test labs may perform both Certification testing under Parts 15 and 18 and Declaration of Conformity testing. 2.3 EUT Exercising Software N/A 2.4 Special Accessories N/A 2.5 Equipment Modification Any modifications installed previous to testing by DGD International Limited will be incorporated in each production model sold / leased in the United States. No modifications were installed by Intertek Testing Services Shenzhen Ltd. Guangzhou Branch. TEST REPORT Intertek Report: No: 190905013GZU-002 Version: 21 August 2017 Page 6 of 9 FCC Part 15.225-a 2.6 Support Equipment List and Description This product was tested with corresponding support equipment as below: Support Equipment: Equipment Model No. RatingSupplier Lighting pads 2…

Text truncated - open the document above for the full version.

1. Radiated Emissions in Restricted Bands: 9kHz to 30MHz 30MHz to 1GHz: 2. Conducted Emission Test:

Side 1: Side 2: Side 3: Side 4: Top:
