2AMI2-92125HUSKY 1500 Lumen Compact Lantern with Bluetooth Speaker

USE AND CARE GUIDE 1500 LUMEN RECHARGEABLE LANTERN WITH BLUETOOTH SPEAKER Item # 1015 412 299 Model # 92125 THANK YOU We appreciate the trust and confidence you have placed in Husky through the purchase of this Bluetooth lantern. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line o f products a va ila ble for your home improve ment needs. Thank you for choosing Husky! Questions, problems, missing parts? Before returning to the store, call Husky Customer Service 8 a.m. – 7 p.m., EST, Monday-Friday 9 a.m. – 6 p.m., EST, Saturday 1-888-HD-HUSKY HUSKYTOOLS.COM DISTRIBUTED BY: HOME DEPOT 2455 PACES FERRY ROAD, ATLANTA, GA 30339 Rating: INPUT 5V 2A MAX Table Of Contents ............................................. 2 Safety Information ............................................ 2 Warranty ............................................................. 3 Pre-Operation .................................................... 3 Specification ..................................................... 3 Operation ....................................................... 4-6 Table of Contents Safety Information 2 Use caution and good judgment when operating your rechargeable lantern. Failure to adhere to the safety warnings and guidelines in this manual could result in body injury or property damage. Read and follow all warnings and instructions in this manual to avoid personal injury or property damage. Save this manual for future reference. NOTICE: Always unplug the USB cable from the power source when not in use. DO NOT place the lantern in water. Keep all components dry and out of water at all times. Dry location use only. Only use charging devices that are provided with the LED lantern or its replacements. DO NOT disassemble or tamper with the battery. DO NOT attempt to charge or operate this lantern if USB, battery, bulb, or any part of the lantern is damaged or corroded. CAUTION: Never tip the lantern onto its side when the light is on or is still hot from recent use. Doing so could burn/ignite surfaces such as seats, carpeting, and so forth, and cause major property damage. Always turn the lantern off when not in use. DO NOT cover or touch the sides of the lantern when the light is on or if it was recently on. The sides will be hot and could cause serious burns. DO NOT use this product for other than its intended use. DO NOT allow children to handle or operate this lantern. WARNING: DO NOT touch the lens of the lantern when light is on or if it was recently on. The lens will be hot and could cause serious burns. To prevent damage to eyesight, never look into light when the light is on. Do not shine light into the face of someone else. DO NOT charge or operate in close proximity of combustible or flammable materials. DO NOT charge battery in gastight enclosures. DO NOT dispose of battery in fire as this may result in explosion. Operating the Lantern ....................................................... 4 Operating the Bluetooth Speaker ............................... 5 Operating the Interconnect Function ..................... 5-6 Charging the Rechargeable Lantern .......................... 6 Care and Maintenance ...................................... 6 Troubleshooting ................................................ 7 PACKAGE CONTENTS 3 Warranty This product is guaranteed to be free of defects in materials and workmanship for 3 years from the date of purchase. If this product is defective, call 1-888-HD-HUSKY or visit www.huskytools.com. Guarantee does not include normal wear and tear, USB cable, or rechargeable batteries. Pre-Operation Specification A B 1500 Lumen Compact Rechargeable Bluetooth Lantern Type-C USB Charging Cable with USB-A Adapter 1 1 PartQuantityDescription B HUSKYTOOLS.COM Please contact 1-888-HD-HUSKY for further assistance. IMPORTANT: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. A Product InformationProduct Information Input Battery Bluetooth work distance DC 5 V 2 A MAX 4600mAh, 16.56Wh 10 m 5.4 Version 3.5 Hours Bluetooth Charging Time Run Time at high light3 Hours Bluetooth pair nameHusky Lantern Bluetooth 1. Press the power button to activate the light. 2. Continue pressing the power button to cycle through the various settings. IMPORTANT: Battery is ready to use when purchased. Do not recharge before first use. A fully-charged battery will provide approximately 3 hours of continuous light at high mode. Do not allow the battery to completely lose its charge. A dim light indicates a low battery. Turn OFF the lantern and recharge the battery as soon as possible. 4 Operation Operating the Lantern 1 HIGH 1500 LUMENS 3 h 20 m15 m8 m 5 h8 h 800 LUMENS 300 LUMENS MEDIUMLOW NOTE: The memory function will activate after a mode has been left on for 10 seconds. BATTERY INDICATOR 100% to 75%75% to 50%50% to 25%25% to 0% WARM HIGHHIGHMEDIUMLOWWARM LOWOFF 1 X 1 1 Power button High (1500 lm) X 1 Medium (800 lm) X 1 X 1 X 1 Low (300 lm) Warm highWarm low X 1 OFF 5 Operation (continued) Volume Down-Press to decrease the volume. Press to turn on/off interconnect function (Connection between speakers). Hold for 2s to disconnect the Bluetooth connection from the current device. Volume Up-Press to increase the volume. Skip Back-Press to skip to the previous song. Hold for 2s to turn on and off, bluetooth will enter pairing mode automatically. Indicator will flash blue while pairing and solid blue once paired successfully. Press to play or pause music. Skip Forward-Press to skip to next song. Operating the Interconnect Function 3 Operating the Bluetooth Speaker 2 Interconnect Button Bluetooth Button Bluetooth Button Interconnect Button Press the Bluetooth button to activate Bluetooth. The lantern acts as the primary speaker. Pair it with your devices; the LED indicator turns solid blue when paired successfully. Press …

Text truncated - open the document above for the full version.

HangzhouGreatStarIndustrialCo.,Ltd. (2026-06-03) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestfor(FCCID:2AMI2-92125) [HangzhouGreatStarIndustrialCo.,Ltd.](“theapplicant”)certifiesthattheequipment forwhichauthorizationissoughtisnot“covered”equipmentprohibitedfromreceiving anequipmentauthorizationpursuanttosection2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,theequipmentdoes notutilizecyber-securityoranti-virussoftwarefromKasperskyLab,Inc,oranyofits successorsandassignees,whichisalsoonthe“coveredlist”. Sincerely, JiameiHan Manager HangzhouGreatStarIndustrialCo.,Ltd. No.35,JiuhuanRoad,JiangganDistrict,Hangzhou,310019,China HangzhouGreatStarIndustrialCo.,Ltd. (2026-06-03) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestfor(FCCID:2AMI2-92125) [HangzhouGreatStarIndustrialCo.,Ltd.](“theapplicant”)certifiesthat,asofthedate ofthefilingoftheapplication,theapplicantisnotidentifiedontheCoveredListasan entityproducing“covered”equipment. Sincerely, JiameiHan Manager HangzhouGreatStarIndustrialCo.,Ltd. No.35,JiuhuanRoad,JiangganDistrict,Hangzhou,310019,China

HangzhouGreatStarIndustrialCo.,Ltd. 2026-06-03 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeGuangdongGlobalTestingTechnologyCo.,Ltd.toact onourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthe signingofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, JiameiHan Manager HangzhouGreatStarIndustrialCo.,Ltd. No.35,JiuhuanRoad,JiangganDistrict,Hangzhou,310019,China

HangzhouGreatStarIndustrialCo.,Ltd. 2026-06-03 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:CONFIDENTIALITYREQUESTFOR(EUTName:HUSKY1500Lumen CompactLanternwithBluetoothSpeaker/Model:92125/FCCID:2AMI2-92125) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459 ofCFR47.Wehaverequestedthatthe(BlockDiagram,OperationalDescription,Schematics) requiredtobesubmittedwiththisapplicationbepermanentlywithheldfrompublic review. Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedtothepublic.The publicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovideunjustifiedbenefitstoitscompetitors. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, JiameiHan Manager HangzhouGreatStarIndustrialCo.,Ltd. No.35,JiuhuanRoad,JiangganDistrict,Hangzhou,310019,China

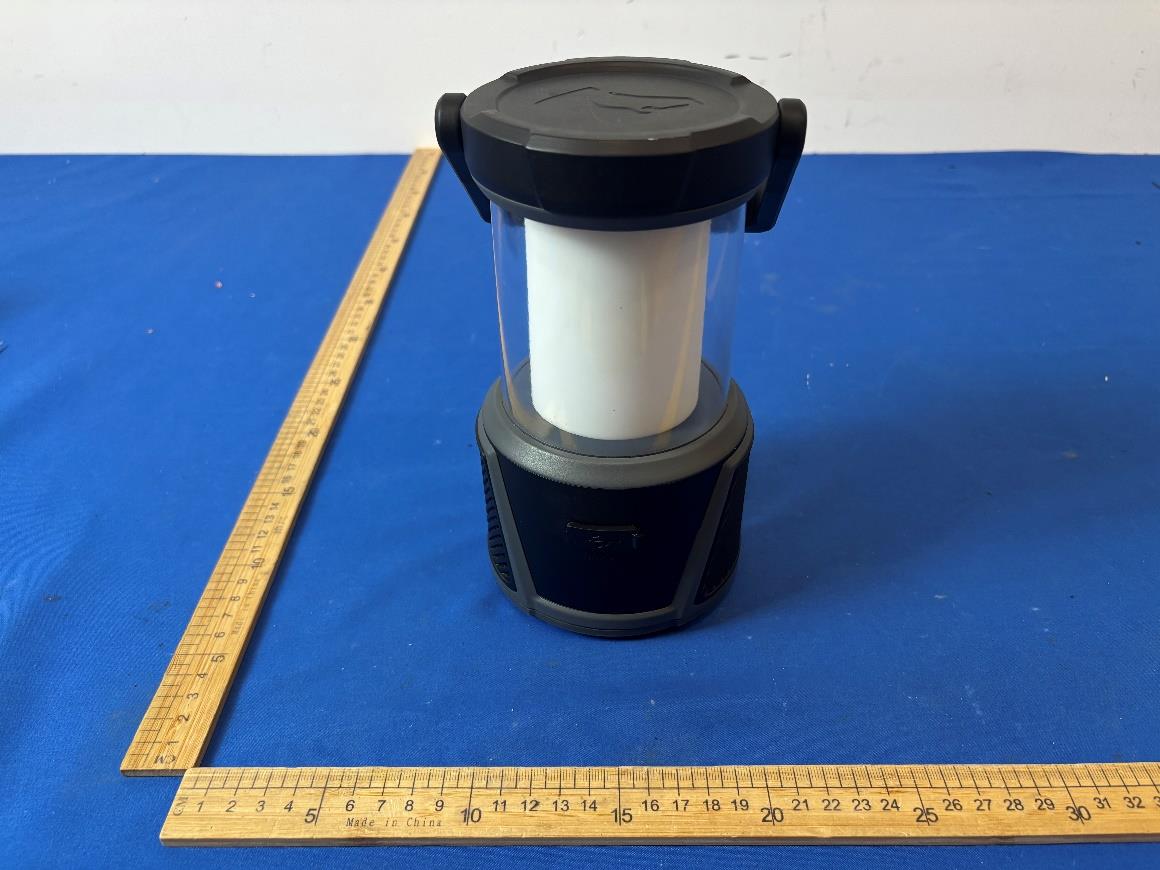

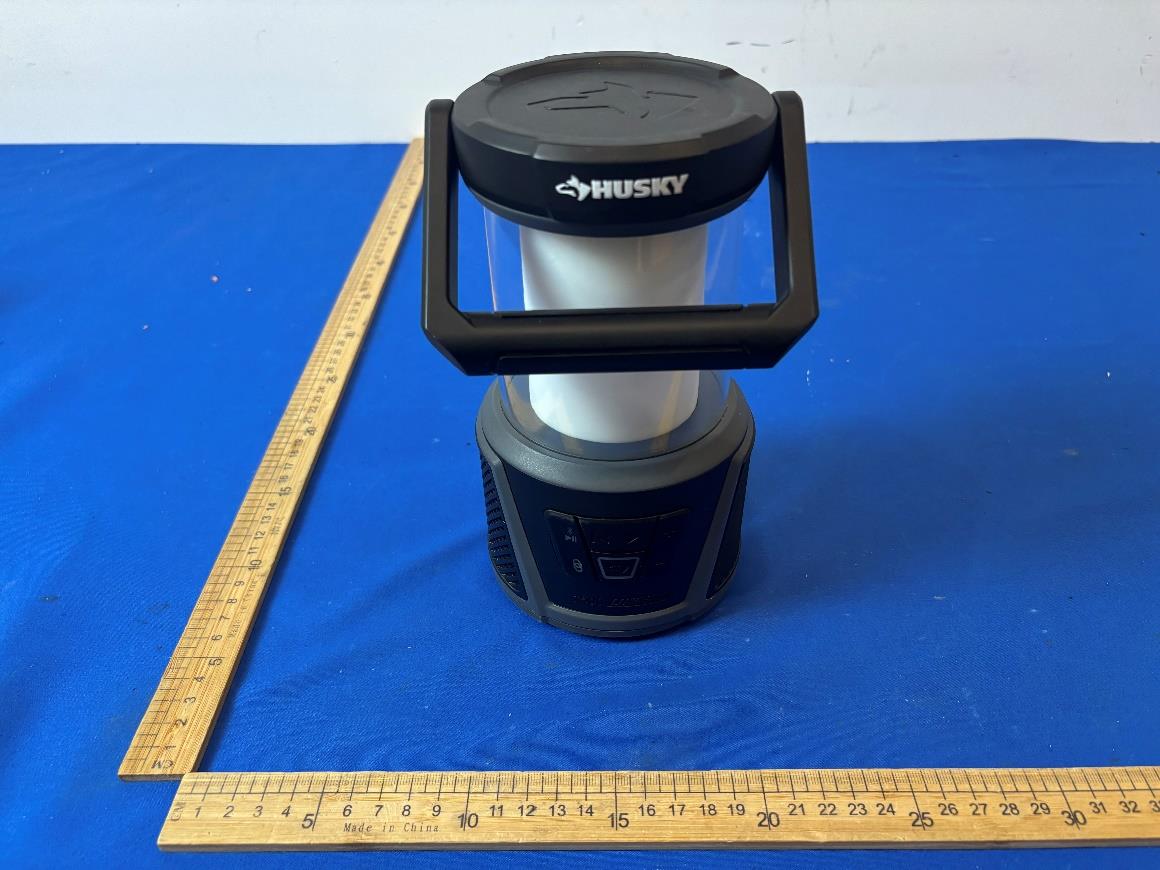

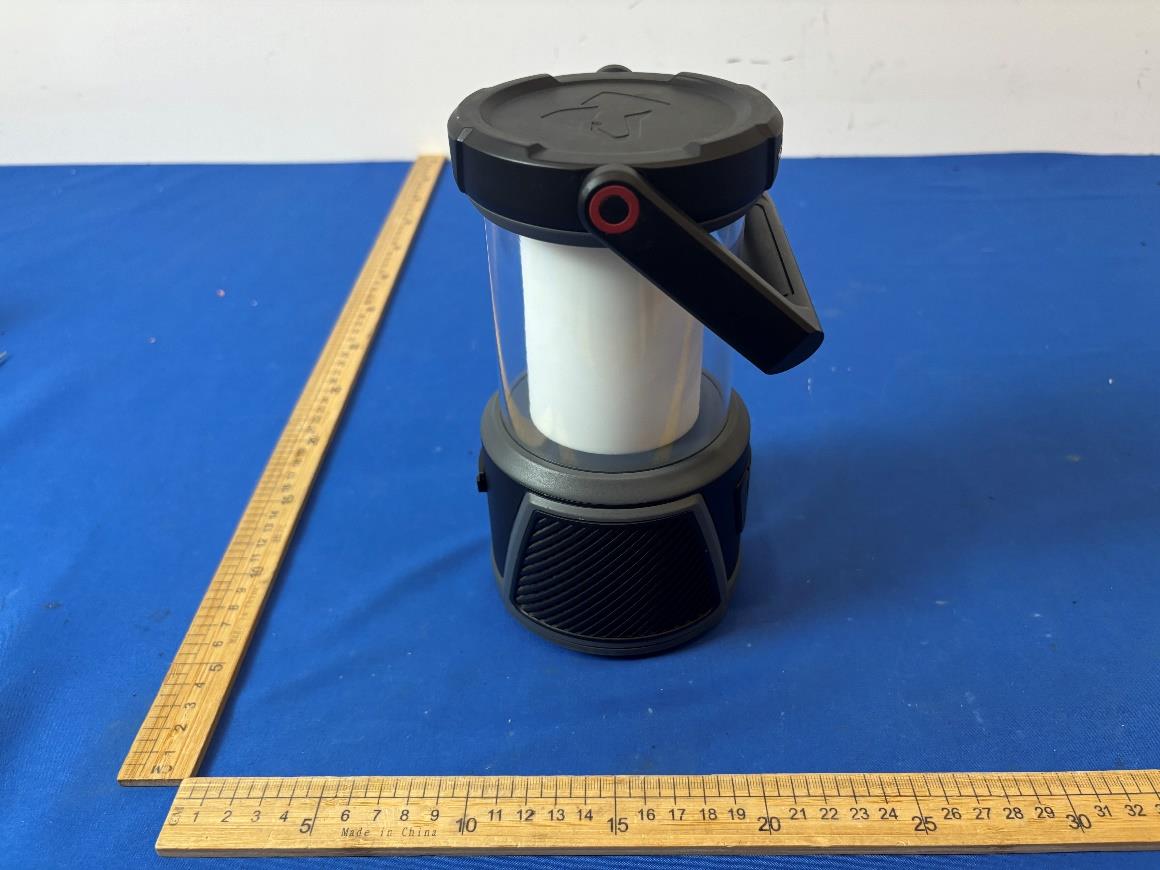

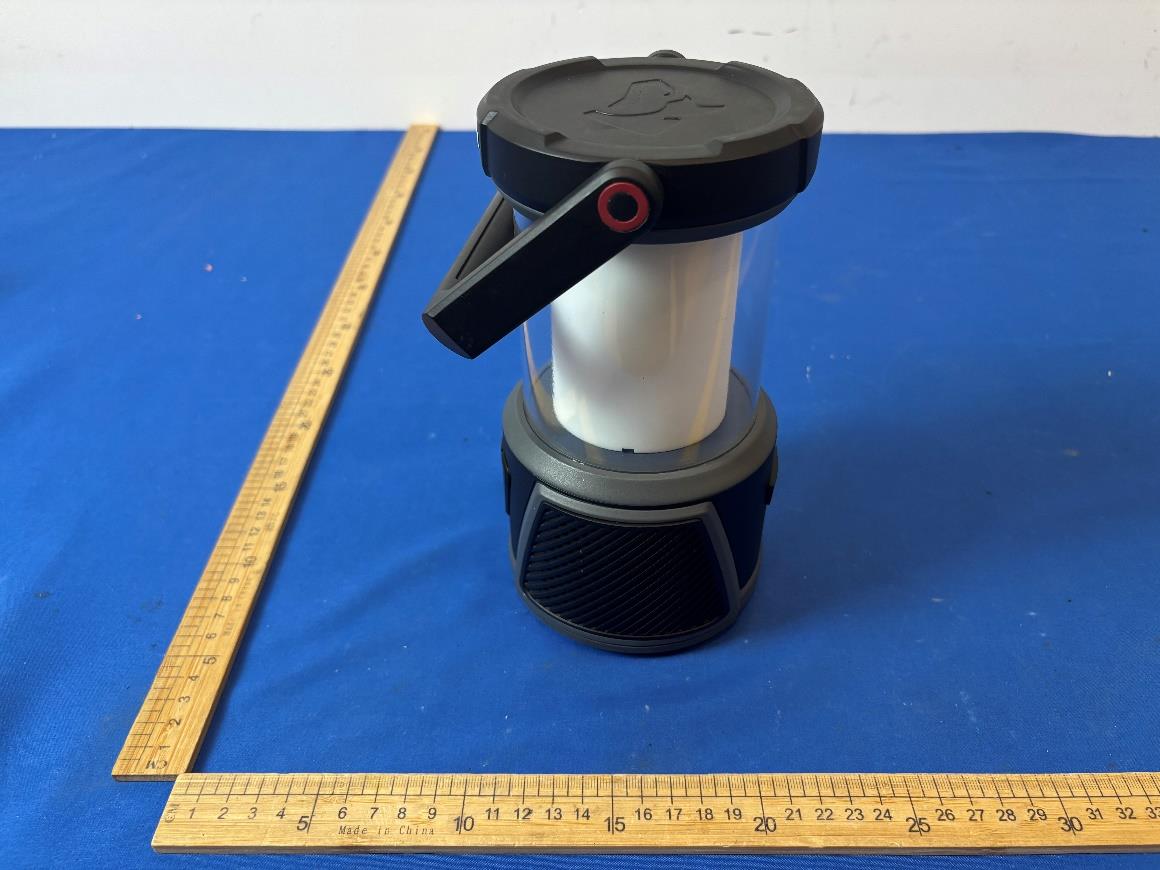

External Photographs View of EUT-1 View of EUT-2 Page 2 of 3 View of EUT-3 View of EUT-4 Page 3 of 3 View of EUT-5 View of EUT-6

Internal Photographs Internal View of EUT-1 Internal View of EUT-2 Page 2 of 5 Internal View of EUT-3 Internal View of EUT-4 BT Antenna Page 3 of 5 Internal View of EUT-5 Internal View of EUT-6 Page 4 of 5 Internal View of EUT-7 Internal View of EUT-8 Page 5 of 5 Internal View of EUT-9

RF EXPOSURE EVALUATION EUT Specification FCC ID 2AMI2-92125 Antenna gain (Max) -0.58 dBi Operation Frequency 2402-2480MHz Classification Per Stipulated Test Standard §15.247(i), §2.1093 Modulation GFSK, π/4-DQPSK, 8DPSK Max. output power 5.39 dBm(3.459mW) Test Requirement: According to ß15.247(i) and ß1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Routine SAR evaluation refers to that specifically required by ß2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to quality for TCB approval. One antenna is available for the EUT. The minimum separation distance is 5mm. Transmit Frequency (MHz) Mode Measured Power (dBm) Tune up Power (dBm) Max tune up power(dBm) Calculation Result 1-g SAR 2441 3DH5 5.39 5±1 6 1.24398 3 Note: No need for SAR test Signature: Alan He Date: 2026-06-01

Appendix A Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT 1-DH5 2402 Ant1 77.01 1.13 0.35 NVNT 1-DH5 2441 Ant1 76.98 1.14 0.35 NVNT 1-DH5 2480 Ant1 77.02 1.13 0.35 NVNT 2-DH5 2402 Ant1 77.15 1.13 0.35 NVNT 2-DH5 2441 Ant1 77.11 1.13 0.35 NVNT 2-DH5 2480 Ant1 77.15 1.13 0.35 NVNT 3-DH5 2402 Ant1 77.19 1.12 0.35 NVNT 3-DH5 2441 Ant1 77.19 1.12 0.35 NVNT 3-DH5 2480 Ant1 77.18 1.13 0.35 2 / 66 Duty Cycle NVNT 1-DH5 2402MHz Ant1 Duty Cycle NVNT 1-DH5 2441MHz Ant1 3 / 66 Duty Cycle NVNT 1-DH5 2480MHz Ant1 Duty Cycle NVNT 2-DH5 2402MHz Ant1 4 / 66 Duty Cycle NVNT 2-DH5 2441MHz Ant1 Duty Cycle NVNT 2-DH5 2480MHz Ant1 5 / 66 Duty Cycle NVNT 3-DH5 2402MHz Ant1 Duty Cycle NVNT 3-DH5 2441MHz Ant1 6 / 66 Duty Cycle NVNT 3-DH5 2480MHz Ant1 7 / 66 Maximum Peak Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Total Conducted Power (W) Limit Conducted(dBm) Verdict NVNT 1-DH5 2402 Ant1 4.04 0.00254 30 Pass NVNT 1-DH5 2441 Ant1 4.2 0.00263 30 Pass NVNT 1-DH5 2480 Ant1 3.78 0.00239 30 Pass NVNT 2-DH5 2402 Ant1 4.88 0.00308 30 Pass NVNT 2-DH5 2441 Ant1 5.02 0.00318 30 Pass NVNT 2-DH5 2480 Ant1 4.57 0.00286 30 Pass NVNT 3-DH5 2402 Ant1 5.32 0.0034 30 Pass NVNT 3-DH5 2441 Ant1 5.39 0.00346 30 Pass NVNT 3-DH5 2480 Ant1 4.87 0.00307 30 Pass 8 / 66 Peak Power NVNT 1-DH5 2402MHz Ant1 Peak Power NVNT 1-DH5 2441MHz Ant1 9 / 66 Peak Power NVNT 1-DH5 2480MHz Ant1 Peak Power NVNT 2-DH5 2402MHz Ant1 10 / 66 Peak Power NVNT 2-DH5 2441MHz Ant1 Peak Power NVNT 2-DH5 2480MHz Ant1 11 / 66 Peak Power NVNT 3-DH5 2402MHz Ant1 Peak Power NVNT 3-DH5 2441MHz Ant1 12 / 66 Peak Power NVNT 3-DH5 2480MHz Ant1 13 / 66 -20dB Bandwidth Condition Mode Frequency (MHz) Antenna -20 dB Bandwidth (MHz) Limit -20 dB Bandwidth (MHz) Verdict NVNT 1-DH5 2402 Ant1 1.013 0 Pass NVNT 1-DH5 2441 Ant1 1.021 0 Pass NVNT 1-DH5 2480 Ant1 1.035 0 Pass NVNT 2-DH5 2402 Ant1 1.311 0 Pass NVNT 2-DH5 2441 Ant1 1.275 0 Pass NVNT 2-DH5 2480 Ant1 1.281 0 Pass NVNT 3-DH5 2402 Ant1 1.296 0 Pass NVNT 3-DH5 2441 Ant1 1.296 0 Pass NVNT 3-DH5 2480 Ant1 1.308 0 Pass 14 / 66 -20dB Bandwidth NVNT 1-DH5 2402MHz Ant1 -20dB Bandwidth NVNT 1-DH5 2441MHz Ant1 15 / 66 -20dB Bandwidth NVNT 1-DH5 2480MHz Ant1 -20dB Bandwidth NVNT 2-DH5 2402MHz Ant1 16 / 66 -20dB Bandwidth NVNT 2-DH5 2441MHz Ant1 -20dB Bandwidth NVNT 2-DH5 2480MHz Ant1 17 / 66 -20dB Bandwidth NVNT 3-DH5 2402MHz Ant1 -20dB Bandwidth NVNT 3-DH5 2441MHz Ant1 18 / 66 -20dB Bandwidth NVNT 3-DH5 2480MHz Ant1 19 / 66 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT 1-DH5 2402 Ant1 0.93577 NVNT 1-DH5 2441 Ant1 0.95618 NVNT 1-DH5 2480 Ant1 0.92588 NVNT 2-DH5 2402 Ant1 1.1887 NVNT 2-DH5 2441 Ant1 1.1987 NVNT 2-DH5 2480 Ant1 1.1949 NVNT 3-DH5 2402 Ant1 1.2056 NVNT 3-DH5 2441 Ant1 1.207 NVNT 3-DH5 2480 Ant1 1.1985 20 / 66 OBW NVNT 1-DH5 2402MHz Ant1 OBW NVNT 1-DH5 2441MHz Ant1 21 / 66 OBW NVNT 1-DH5 2480MHz Ant1 OBW NVNT 2-DH5 2402MHz Ant1 22 / 66 OBW NVNT 2-DH5 2441MHz Ant1 OBW NVNT 2-DH5 2480MHz Ant1 23 / 66 OBW NVNT 3-DH5 2402MHz Ant1 OBW NVNT 3-DH5 2441MHz Ant1 24 / 66 OBW NVNT 3-DH5 2480MHz Ant1 25 / 66 Carrier Frequencies Separation Condition Mode Antenna Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH5 Ant1 2401.984 2403.01 1.026 0.675 Pass NVNT 1-DH5 Ant1 2440.996 2442 1.004 0.681 Pass NVNT 1-DH5 Ant1 2479.002 2479.996 0.994 0.69 Pass NVNT 2-DH5 Ant1 2401.988 2403 1.012 0.874 Pass NVNT 2-DH5 Ant1 2441.002 2441.986 0.984 0.85 Pass NVNT 2-DH5 Ant1 2479.002 2480.004 1.002 0.854 Pass NVNT 3-DH5 Ant1 2401.992 2402.99 0.998 0.864 Pass NVNT 3-DH5 Ant1 2441.136 2442.136 1 0.864 Pass NVNT 3-DH5 Ant1 2478.838 2479.916 1.078 0.872 Pass 26 / 66 CFS NVNT 1-DH5 2402MHz Ant1 CFS NVNT 1-DH5 2441MHz Ant1 27 / 66 CFS NVNT 1-DH5 2480MHz Ant1 CFS NVNT 2-DH5 2402MHz Ant1 28 / 66 CFS NVNT 2-DH5 2441MHz Ant1 CFS NVNT 2-DH5 2480MHz Ant1 29 / 66 CFS NVNT 3-DH5 2402MHz Ant1 CFS NVNT 3-DH5 2441MHz Ant1 30 / 66 CFS NVNT 3-DH5 2480MHz Ant1 31 / 66 Number of Hopping Channel Condition Mode Antenna Hopping Number Limit Verdict NVNT 1-DH5 Ant1 79 15 Pass NVNT 2-DH5 Ant1 79 15 Pass NVNT 3-DH5 Ant1 79 15 Pass 32 / 66 Hopping No. NVNT 1-DH5 2402MHz Ant1 Hopping No. NVNT 2-DH5 2402MHz Ant1 33 / 66 Hopping No. NVNT 3-DH5 2402MHz Ant1 34 / 66 Dwell Time Condition Mode Frequency (MHz) Antenna Pulse Time (ms) Total Dwell Time (ms) Burst Count Period Time (ms) Limit (ms) Verdict NVNT 1-DH5 2402 Ant1 2.886 311.688 108 31600 400 Pass NVNT 1-DH5 2441 Ant1 2.869 281.162 98 31600 400 Pass NVNT 1-DH5 2480 Ant1 2.886 256.854 89 31600 400 Pass NVNT 2-DH5 2402 Ant1 2.891 306.446 106 31600 400 Pass NVNT 2-DH5 2441 Ant1 2.891 326.683 113 31600 400 Pass NVNT 2-DH5 2480 Ant1 2.878 305.068 106 31600 400 Pass NVNT 3-DH5 2402 Ant1 2.894 318.34 110 31600 400 Pass NVNT 3-DH5 2441 Ant1 2.884 299.936 104 31600 400 Pass NVNT 3-DH5 2480 Ant1 2.873 367.744 128 31600 400 Pass 35 / 66 Dwell NVNT 1-DH5 2402MHz Ant1 One Burst Dwell NVNT 1-DH5 2402MHz Ant1 Accumulated 36 / 66 Dwell NVNT 1-DH5 2441MHz Ant1 One Burst Dwell NVNT 1-DH5 2441MHz Ant1 Accumulated 37 / 66 Dwell NVNT 1-DH5 2480MHz Ant1 One Burst Dwell NVNT 1-DH5 2480MHz Ant1 Accumulated 38 / 66 Dwell NVNT 2-DH5 2402MHz Ant1 One Burst Dwell NVNT 2-DH5 2402MHz Ant1 Accumulated 39 / 66 Dwell NVNT 2-DH5 2441MHz Ant1 One Burst Dwell NVNT 2-DH5 2441MHz Ant1 Accumulated 40 / 66 Dwell NVNT 2-DH5 2480MHz Ant1 One Burst Dwell NVNT 2-DH5 2480MHz Ant1 Accumulated 41 / 66 Dwell NVNT 3-DH5 2402MHz Ant1 One Burst Dwell NVNT 3-DH5 2402MHz Ant1 Accumulated 42 / 66 Dwell NVNT 3-DH5 2441MHz Ant1 One Burst Dwell NVNT 3-DH5 2441MHz Ant1 Accumulated 43 / 66 Dwell NVNT 3-DH5 2480MHz Ant1 One Burst Dwell NVNT 3-DH5 2480MHz Ant1 Accumulated 44 / 66 Band Edge Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 No-Hopping -51.09 -20 Pass NVNT 1-DH5 2480 Ant1 No-Hopping -49.3 -20 Pass NVNT 2-DH5 2402 Ant1 No-Hopping -51.47 -20 Pass NVNT 2-DH5 24…

Text truncated - open the document above for the full version.

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C TEST REPORT For HUSKY 1500 Lumen Compact Lantern with Bluetooth Speaker MODEL NUMBER: 92125 REPORT NUMBER: E04A26040374F01501 ISSUE DATE: June 1, 2026 FCC ID: 2AMI2-92125 Prepared for Hangzhou Great Star Industrial Co., Ltd. No.35, Jiuhuan Road, Jianggan District, Hangzhou, 310019, China Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A26040374F01501 Page 2 of 48 TRF No.: 04-E001-0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 June 1, 2026 Initial Issue REPORT NO.: E04A26040374F01501 Page 3 of 48 TRF No.: 04-E001-0B Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC 15.203 RSS-GEN Clause 6.8 Pass AC Power Line Conducted Emission ANSI C63.10-2020 Clause 6.2 FCC Part 15.207 RSS-GEN Clause 8.8 Pass Conducted Output Power ANSI C63.10-2020 Clause 7.8.5 FCC 15.247 (b) (1) RSS-247 Clause 6.2.3.2 Pass 20 dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2020 Clause 6.9.2 & 6.9.3 FCC 15.247 (a) (1) RSS-247 Clause 6.2.3.1 (a) RSS-Gen Clause 6.7 Pass Carrier Hopping Channel Separation ANSI C63.10-2020 Clause 7.8.2 FCC 15.247 (a) (1) RSS-247 Clause 6.2.3.1 (a) Pass Number of Hopping Frequency ANSI C63.10-2020 Clause 7.8.3 15.247 (a) (1) III RSS-247 Clause 6.2.3.1 (b) Pass Time of Occupancy (Dwell Time) ANSI C63.10-2020 Clause 7.8.4 15.247 (a) (1) III RSS-247 Clause 6.2.3.1 (b) Pass Conducted Bandedge and Spurious Emission ANSI C63.10-2020 Clause 6.10.4 & Clause 7.8.7 FCC 15.247 (d) RSS-247 Clause 6.6 Pass Radiated Band edge and Spurious Emission ANSI C63.10-2020 Clause 6.4 & 6.5 & 6.6 & 7.8.8 FCC 15.247 (d) FCC 15.209 FCC 15.205 RSS-247 Clause 6.6 RSS-GEN Clause 8.9 RSS-GEN Clause 8.10 Pass Duty Cycle ANSI C63.10-2020, Clause 11.6 None; for reporting purposes only. Pass Note: For ISED, this report is also performed according to ANSI C63.10-2020 + Cor.1-2023 + C63.10a-2024 + Errata to C63.10a-2024 standards. *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A26040374F01501 Page 4 of 48 TRF No.: 04-E001-0B Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 8 5.3. MAXIMUM CONDUCTED OUTPUT POWER ........................................................... 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................ 9 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................ 9 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ......................................................... 10 5.7. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 10 5.8. SETUP DIAGRAM .................................................................................................. 11 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 12 7. ANTENNA PORT TEST RESULTS ..................................................................................... 14 7.1. Conducted Output Power ........................................................................................ 14 7.2. 20 dB Bandwidth and 99% Occupied Bandwidth..................................................... 15 7.3. Carrier Hopping Channel Separation ...................................................................... 16 7.4. Number of Hopping Frequency ............................................................................... 18 7.5. Time of Occupancy (Dwell Time) ............................................................................ 19 7.6. Conducted Bandedge and Spurious Emission ........................................................ 21 7.7. Duty Cycle .............................................................................................................. 23 8. RADIATED TEST RESULTS ............................................................................................... 24 8.1. Radiated Band edge and Spurious Emission .......................................................... 31 9. ANTENNA REQUIREMENT ................................................................................................ 43 10.…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dB PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal:2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical:2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs˖Attestation of Global Compliance Co., Ltd.

Setup Photographs AC Power Line Conducted Emission Radiated Band edge and Spurious Emission Page 2 of 2
