2AMJS-BTWB01Wireless Button

RideCare companion User Manual | v1.6 1 | 51 Data subject not change without notice | Printed in USA | January 06, 2023 RideCare companion User Manual Version: v1.6 RideCare companion User Manual | v1.6 2 | 51 Data subject not change without notice | Printed in USA | January 06, 2023 Table of contents 1 Product Description 4 1.1 Specifications .............................. 5 2 Before Installing 6 2.1 Safety Related Warnings ............. 6 2.2 General Safety Instructions ....... 10 2.3 General Installation info............. 14 2.4 Package & Required Tools ........ 16 3 General Use 19 3.1 Device Installation & Start-up .... 19 3.2 Using the companion cam ......... 21 3.3 Mounting Bracket ...................... 23 RideCare companion User Manual | v1.6 3 | 51 Data subject not change without notice | Printed in USA | January 06, 2023 3.4 Wireless Button ......................... 27 3.5 Cameras ................................... 30 3.6 companion Element & LEDs ..... 31 3.7 Device Button............................ 37 3.8 Mounting Tape .......................... 38 3.9 Cable positioning ...................... 39 3.10 De-Installation ........................... 41 4 Appendix 44 4.1 Cellular bands and power .......... 44 4.2 FCC/IC Compliance .................. 48 RideCare companion User Manual | v1.6 4 | 51 Data subject not change without notice | Printed in USA | January 06, 2023 1 Product Description The RideCare companion is a solution for Ride Hailing service providers. It is intended for, and has been validated for, installation and operation in street-legal passenger cars with a rated voltage of 12V. RideCare companion is not intended to detect vehicle accidents, fire, or act as an emergency device. Please follow the instructions in this manual to obtain the optimal results from this unit. We also recommend that you keep this manual handy for future reference. This manual is valid for part numbers: 7.507.650.521, 7.507.650.522, and 7.507.650.523. Make sure to read through all safety related information (pages 6-13) when using and/or installing this device. RideCare companion User Manual | v1.6 5 | 51 Data subject not change without notice | Printed in USA | January 06, 2023 1.1 Specifications ENVIRONMENTAL & PERFORMANCE Operating Temp. -10°C to +60°C Storage Temp. -20°C to +85°C Relative Operating Humidity 20% to 80% non- condensing Input Voltage +12V DC Power Consumption Max 1.2A @ 12VDC Dimensions (LxWxH) 127x37x60 mm Weight 369 g FoV Interior camera 118deg H x 62deg V FoV Exterior camera 136deg H x 70deg V RideCare companion User Manual | v1.6 6 | 51 Data subject not change without notice | Printed in USA | January 06, 2023 2 Before Installing 2.1 Safety Related Warnings Read and follow the instructions and precautions in this guide and all documents referenced in this guide when installing this device. Always refer to the vehicle manufacturer’s service manual for proper installation and wiring of any aftermarket devices, including this device. Failure to do so may result in property damage and/or personal injury. Park the vehicle on a level surface before beginning any maintenance or installation. Highest specified charging temperature 60±3 °C Lowest specified charging temperature 0±3 °C RideCare companion User Manual | v1.6 7 | 51 Data subject not change without notice | Printed in USA | January 06, 2023 Block the wheels to prevent the vehicle from moving. Never work under a vehicle supported only by jacks as jacks can slip and fall over. Do not pound on the RideCare companion for any reason as this could crack the vehicle’s windshield. To avoid injury, do not look directly at the infrared LEDs (located below the interior- facing camera) within 20cm. Wire Protection: Take all necessary measures to protect all wires running through a metal surface with a grommet or other device and all wires running outside the vehicle cab with a loom. Always protect against wire fatigue and harness abrasion by properly mounting wires at closely spaced intervals, while avoiding contact with sharp edges or doing anything else that might result in exposed wires. All wires should be secured via tie wraps or other method at least every 1 ft (30 cm/300 mm) or less. Do not over- tighten any tie wraps. The wireless button contains a coin / button cell battery. If the coin / button cell battery RideCare companion User Manual | v1.6 8 | 51 Data subject not change without notice | Printed in USA | January 06, 2023 is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.  Do not ingest battery, Chemical Burn Hazard  Keep new and used batteries away from children.  If the battery compartment does not close securely, stop using the product and keep it away from children.  If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. The wireless button complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0.5 cm between the radiator & your body. The wireless button complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0.5 cm between the radiator & your body. RideCare companion User Manual | v1.6 9 | 51 Data subject not change without notice | Printed in USA | January 06, 2023 The companion cam contains an internal battery. Failure to follow the guidelines below may result in this internal lithium-ion battery experiencing a shortened life span or may present a risk of damage to the device, fire, chemical burn, electrolyte leak, and/or injury.  Use only the provided battery charger when charging.  Do not expose the device to a heat source  Do not puncture or incinerate the device or battery.  When storing the companion cam for greater than 3 months: make sure the battery is charged, and store within the temp…

Text truncated - open the document above for the full version.

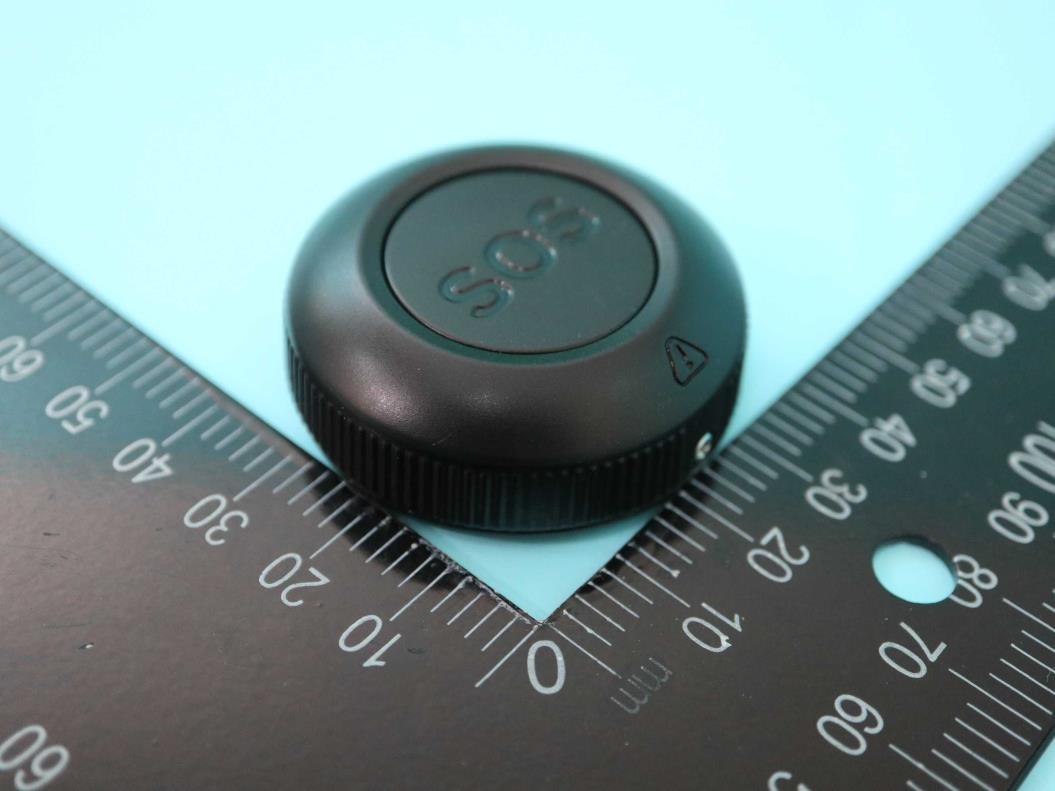

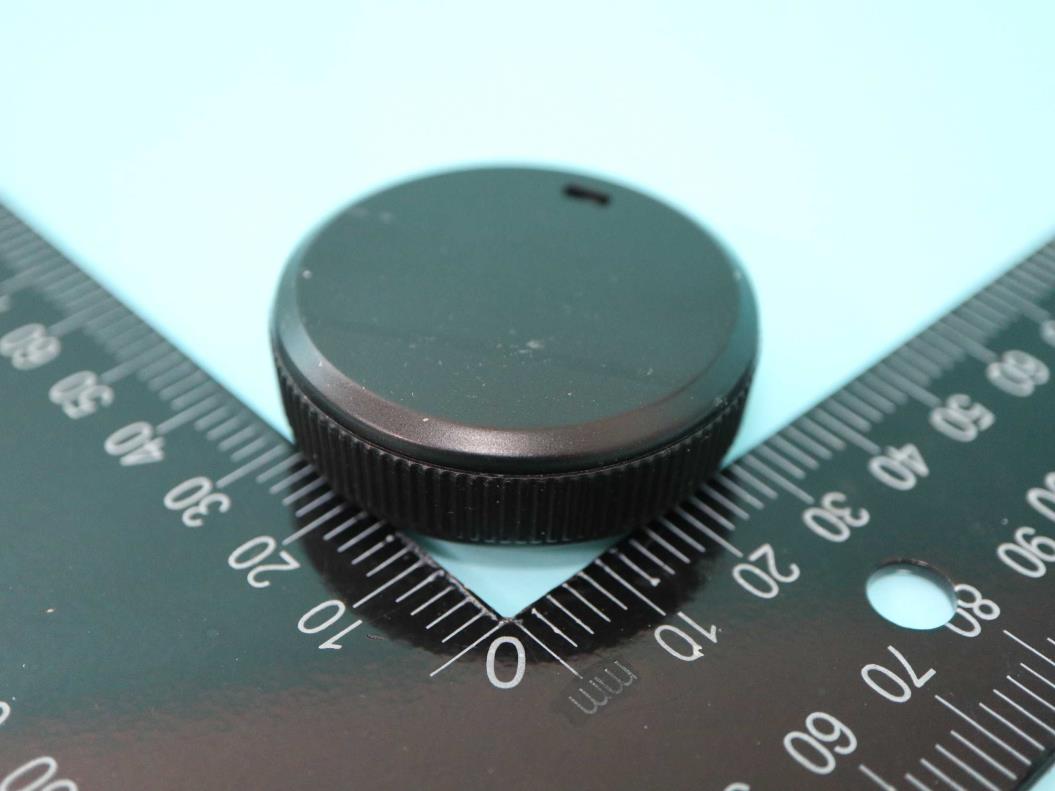

PHOTOGRAPHS OF EUT EP272002-01 Sporton International Inc. Page No. : 1 of 8 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 01, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP272002-01 Sporton International Inc. Page No. : 2 of 8 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 01, 2022 Report Version : 1

Label Information

PHOTOGRAPHS OF EUT EP272002-01 Sporton International Inc. Page No. : 3 of 8 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 10, 2023 Report Version : 1 PHOTOGRAPHS OF EUT EP272002-01 Sporton International Inc. Page No. : 4 of 8 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 10, 2023 Report Version : 1 PHOTOGRAPHS OF EUT EP272002-01 Sporton International Inc. Page No. : 5 of 8 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 10, 2023 Report Version : 1 BT-LE PHOTOGRAPHS OF EUT EP272002-01 Sporton International Inc. Page No. : 6 of 8 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 10, 2023 Report Version : 1 PHOTOGRAPHS OF EUT EP272002-01 Sporton International Inc. Page No. : 7 of 8 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 10, 2023 Report Version : 1 Battery PHOTOGRAPHS OF EUT EP272002-01 Sporton International Inc. Page No. : 8 of 8 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 10, 2023 Report Version : 1 ______________THE END______________

RF Exposure Evaluation Report Report No. : FA272002-01 TEL : 886-3-327-3456 Page Number : 1 of 5 FAX : 886-3-327-0973 Issued Date : Dec. 01, 2022 Report Template No.: HE1-A3 Ver5.0 Report Version : 01 FCC ID: 2AMJS-BTWB01 RF Exposure Evaluation Report FCC ID : 2AMJS-BTWB01 Equipment : Wireless Button Brand Name : Robert Bosch LLC Model Name : Wireless Button Applicant : Robert Bosch LLC 15000 N Haggerty Rd, Plymouth, Michigan,USA,Zip - 48170 Manufacturer : Chicony Electronics Co., Ltd 36F., No. 69, Sec 2, Guangfu Rd., Sanchong Dist., New Taipei City 241, Taiwan Standard : 47 CFR FCC Part 2 Subpart J, section 2.1093 The product was received on Aug. 11, 2022, and testing was started from Sep. 21, 2022 and completed on Sep. 21, 2022. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in KDB 447498 D04 Interim General RF Exposure Guidance v01 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Jackson Tsai SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) RF Exposure Evaluation Report Report No. : FA272002-01 TEL : 886-3-327-3456 Page Number : 2 of 5 FAX : 886-3-327-0973 Issued Date : Dec. 01, 2022 Report Template No.: HE1-A3 Ver5.0 Report Version : 01 FCC ID: 2AMJS-BTWB01 Table of Contents History of This Test Report ........................................................................................................................................ 3 1. General Description............................................................................................................................................... 4 1.1. EUT General Information .................................................................................................................................................................... 4 1.2. Testing Location Information ............................................................................................................................................................... 4 2. RF Exposure Evaluation ....................................................................................................................................... 5 2.1. Applicable Standard ............................................................................................................................................................................ 5 2.2. SAR evaluation ................................................................................................................................................................................... 5 Photographs of EUT V01 RF Exposure Evaluation Report Report No. : FA272002-01 TEL : 886-3-327-3456 Page Number : 3 of 5 FAX : 886-3-327-0973 Issued Date : Dec. 01, 2022 Report Template No.: HE1-A3 Ver5.0 Report Version : 01 FCC ID: 2AMJS-BTWB01 History of This Test Report Report No. Version Description Issued Date FA272002-01 01 Initial issue of report Dec. 01, 2022 Reviewed by: Ryan Hsiao Report Producer: Amber Chiu RF Exposure Evaluation Report Report No. : FA272002-01 TEL : 886-3-327-3456 Page Number : 4 of 5 FAX : 886-3-327-0973 Issued Date : Dec. 01, 2022 Report Template No.: HE1-A3 Ver5.0 Report Version : 01 FCC ID: 2AMJS-BTWB01 1. General Description 1.1. EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type Bluetooth 2400-2483.5 2402-2480 LE: DSSS (GFSK) 1.2. Testing Location Information Test Lab.：Sporton International Inc. Hsinhua Laboratory Hsinhua ADD: No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) (TAF: 3785) TEL: 886-3-327-3456 FAX: 886-3-327-0973 Test site Designation No. TW3785 with FCC. Wen 33rd.St. ADD: No.14-1, Ln. 19, Wen 33rd St., Guishan Dist., Taoyuan City 333010, Taiwan (R.O.C.) (TAF: 3785) TEL: 886-3-318-0787 FAX: 886-3-318-0287 Test site Designation No. TW0008 with FCC. RF Exposure Evaluation Report Report No. : FA272002-01 TEL : 886-3-327-3456 Page Number : 5 of 5 FAX : 886-3-327-0973 Issued Date : Dec. 01, 2022 Report Template No.: HE1-A3 Ver5.0 Report Version : 01 FCC ID: 2AMJS-BTWB01 2. RF Exposure Evaluation 2.1. Applicable Standard In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEE C95.1-1992, and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. 2.2. SAR evaluation 1. Per KDB 447498 D04 Interim General RF Exposure Guidance v01, Option (B): 1.1307(b)(3)(i)(B): Device operates between 300 MHz and 6 GHz and the maximum time-averaged power or effective radiated power (ERP), whichever is greater, <= Pth. Mode DG (dBi) Power (dBm) EIRP (dBm) Tolerance (dB) Tune-up ERP (mW) Distance (cm) Option TL ERP (mW) 2.4G;BT-LE 2.35 3.46 5.81 0.50 2.61 0.5 B 2.717 2. Per KDB 447498 D04 Interim General RF Exposure Guidance v01 exclusion thresholds is 2.61 < 2.717, RF exposure evaluation is not required. ─────THE END────

Metal Antenna 2.4~2.5 GHz Working Frequency P/N: RFMTA190800NNAB003 Customer： Customer ‘s Part No.： 0790A2013L-A11 Approval No.： Issue Date： INPAQ TECHNOLOGY CO., LTD 2022/12/6 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：邱瑩鈺 CHECKED BY：詹惠雯 DESIGNED BY：葉子維 APPROVED BY：陳振榮 TITLE：RFMTA190800NNAB003 DOCUMENT ENS070025890-000803719713 SPEC REV. NO. A1 PAGE 1 OF 22 品名：RFMTA190800NNAB003 History List 版本 REV. 修訂者 EDITOR 修訂頁次 PAGE 修訂內容 ITEMS OF CHANGE 申請日期 DATE 生效日期 VALID DATE ECN編號 ECN NO. A0 邱瑩鈺 ALL New drawing Release 2022/07/22 依PLM 發行日期 N/A A1 邱瑩鈺 ALL 變更測報 2022/09/30 依PLM 發行日期 N/A INPAQ TECHNOLOGY CO., LTD 2022/12/6 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：邱瑩鈺 CHECKED BY：詹惠雯 DESIGNED BY：葉子維 APPROVED BY：陳振榮 TITLE：RFMTA190800NNAB003 DOCUMENT ENS070025890-000803719713 SPEC REV. NO. A1 PAGE 2 OF 22 品名：RFMTA190800NNAB003 1. Explanation of part number： RF MTA 1908 00 N N A B 0 03 Type Code Product Code PCB Dimension (Unit: mm) Cable Length (unit: cm) Connector Brand Type of Connector Application Project status Wire Diameter Project RF Device Antenna Per 2 digits of length, width e.g.: 1614 Length 160.0mm, Width140.0m m 2 digits for cable length e.g.:20 5G1：Length 17.5cm 5G2：Length 17.5cm 2G1：Length 20.0cm 2G2：Length 13.0cm BT：Length 7.0cm A: N C:MCX D:IPEX III E: IPEX IV F: IPEX A13 H: Hirose I: IPEX M: MMCX S: SMA T: TNC U:MURATA N: None A: Reverse Female B: Reverse Male F: Female M: Male N: None 0: 0GHz 3: 3GHz 6: 6GHz 5: 5GHz A: 2.4GHz ISM band B: GSM 900/1800 dual band G: GPS band L: 2.4/5.X GHz tri-band N: NFC T: LTE band W: WCDMA band B: MP T:During Test X: Pile Run 0:None 1:∅0.81 2:∅1.32 3:∅1.13 4:Low Loss ∅1.13 5:∅0.5 6:RG316 7: ∅1.37 8:RG178 9:Low Loss ∅1.37 01~99 series number 2. Electrical Specification： Item Specification Working Frequency Range 2.4~2.5 GHz Peak Gain Typical @ 2.35 dBi Finger Touch @ 3.87 dBi Finger Touch+Metal @ 2.45 dBi Return Loss -10dB(Max) VSWR 2 max. Polarization Linear Radiation Pattern Omni-directional Impedance 50 Operation Temperature －20°C ～ ＋65°C INPAQ TECHNOLOGY CO., LTD 2022/12/6 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：邱瑩鈺 CHECKED BY：詹惠雯 DESIGNED BY：葉子維 APPROVED BY：陳振榮 TITLE：RFMTA190800NNAB003 DOCUMENT ENS070025890-000803719713 SPEC REV. NO. A1 PAGE 3 OF 22 3. Drawing： INPAQ TECHNOLOGY CO., LTD 2022/12/6 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：邱瑩鈺 CHECKED BY：詹惠雯 DESIGNED BY：葉子維 APPROVED BY：陳振榮 TITLE：RFMTA190800NNAB003 DOCUMENT ENS070025890-000803719713 SPEC REV. NO. A1 PAGE 4 OF 22 4. Test Report ■ Experimental Setup INPAQ TECHNOLOGY CO., LTD 2022/12/6 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：邱瑩鈺 CHECKED BY：詹惠雯 DESIGNED BY：葉子維 APPROVED BY：陳振榮 TITLE：RFMTA190800NNAB003 DOCUMENT ENS070025890-000803719713 SPEC REV. NO. A1 PAGE 5 OF 22 INPAQ TECHNOLOGY CO., LTD 2022/12/6 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：邱瑩鈺 CHECKED BY：詹惠雯 DESIGNED BY：葉子維 APPROVED BY：陳振榮 TITLE：RFMTA190800NNAB003 DOCUMENT ENS070025890-000803719713 SPEC REV. NO. A1 PAGE 6 OF 22 INPAQ TECHNOLOGY CO., LTD 2022/12/6 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：邱瑩鈺 CHECKED BY：詹惠雯 DESIGNED BY：葉子維 APPROVED BY：陳振榮 TITLE：RFMTA190800NNAB003 DOCUMENT ENS070025890-000803719713 SPEC REV. NO. A1 PAGE 7 OF 22 ■ ELECTRICAL CHARACTERISTICS S-Parameter INPAQ TECHNOLOGY CO., LTD 2022/12/6 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：邱瑩鈺 CHECKED BY：詹惠雯 DESIGNED BY：葉子維 APPROVED BY：陳振榮 TITLE：RFMTA190800NNAB003 DOCUMENT ENS070025890-000803719713 SPEC REV. NO. A1 PAGE 8 OF 22 INPAQ TECHNOLOGY CO., LTD 2022/12/6 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOG…

Text truncated - open the document above for the full version.

FCC Radio Test Report Report No. : FR272002-01AL TEL : 886-3-3273456 Page Number : 1 of 21 FAX : 886-3-3270973 Issued Date : Dec. 01, 2022 Report Template No.: HE1-C10 Ver4.3 Report Version : 01 FCC ID: 2AMJS-BTWB01 FCC Radio Test Report FCC ID : 2AMJS-BTWB01 Equipment : Wireless Button Brand Name : Robert Bosch LLC Model Name : Wireless Button Applicant : Robert Bosch LLC 15000 N Haggerty Rd, Plymouth, Michigan,USA,Zip - 48170 Manufacturer : Chicony Electronics Co., Ltd 36F., No. 69, Sec 2, Guangfu Rd., Sanchong Dist., New Taipei City 241, Taiwan Standard : 47 CFR FCC Part 15.247 The product was received on Aug. 11, 2022, and testing was started from Sep. 21, 2022 and completed on Sep. 29, 2022. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Jackson Tsai __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) FCC Radio Test Report Report No. : FR272002-01AL TEL : 886-3-3273456 Page Number : 2 of 21 FAX : 886-3-3270973 Issued Date : Dec. 01, 2022 Report Template No.: HE1-C10 Ver4.3 Report Version : 01 FCC ID: 2AMJS-BTWB01 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 7 1.3 Testing Location Information .................................................................................................................. 7 1.4 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION OF EUT......................................................................................................... 8 2.1 Test Channel Mode ................................................................................................................................ 8 2.2 The Worst Case Measurement Configuration ........................................................................................ 9 2.3 Accessories .......................................................................................................................................... 10 2.4 Support Equipment ............................................................................................................................... 10 2.5 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 12 3.1 DTS Bandwidth..................................................................................................................................... 12 3.2 Maximum Conducted Output Power .................................................................................................... 13 3.3 Power Spectral Density ........................................................................................................................ 15 3.4 Emissions in Non-restricted Frequency Bands .................................................................................... 16 3.5 Emissions in Restricted Frequency Bands ........................................................................................... 17 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 21 APPENDIX A. TEST RESULTS OF DTS BANDWIDTH APPENDIX B. TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER APPENDIX C. TEST RESULTS OF POWER SPECTRAL DENSITY APPENDIX D. TEST RESULTS OF EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS APPENDIX E. TEST RESULTS OF EMISSIONS IN RESTRICTED FREQUENCY BANDS APPENDIX F. TEST PHOTOS PHOTOGRAPHS OF EUT V01 FCC Radio Test Report Report No. : FR272002-01AL TEL : 886-3-3273456 Page Number : 3 of 21 FAX : 886-3-3270973 Issued Date : Dec. 01, 2022 Report Template No.: HE1-C10 Ver4.3 Report Version : 01 FCC ID: 2AMJS-BTWB01 History of this test report Report No. Version Description Issued Date FR272002-01AL 01 Initial issue of report Dec. 01, 2022 FCC Radio Test Report Report No. : FR272002-01AL TEL : 886-3-3273456 Page Number : 4 of 21 FAX : 886-3-3270973 Issued Date : Dec. 01, 2022 Report Template No.: HE1-C10 Ver4.3 Report Version : 01 FCC ID: 2AMJS-BTWB01 Summary of Test Result Report Clause Ref.Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS Only employ battery power. 3.1 15.247(a) DTS Bandwidth PASS - 3.2 15.247(b) Maximum Conducted Output Power PASS - 3.3 15.247(e) Power Spectral Density PASS - 3.4 15.247(d) Emissions in Non-restricted Frequency Bands PASS - 3.5 15.247(d) Emissions in Restricted Frequency Bands PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presen…

Text truncated - open the document above for the full version.

Test Photos Appendix F Sporton International Inc. Page No. : F1 of F2 1. Photographs of Radiated Emissions Test Configuration For radiated emissions 30MHz~1GHz Front view Rear view Test Photos Appendix F Sporton International Inc. Page No. : F2 of F2 For radiated emissions above 1GHz Front view Rear view ─────THE END─────
