2AMK9-CFXBLE-22.4 GHz ISM Band Transceiver Tag

PRODUCT User Manual Confidex Viking™ Solar CONFIDENTIAL © Confidex 2022 [email protected] www.confidex.com 1/2 Ener gy efficient and maintenance free Bluetooth® LE beacon for industrial asset tracking applications and people flow management. Built-in solar panel and power management IC (PMIC) absorbs energy from the surrounding light sources enabling battery free operation and extremely long lifetime. Omnidirectional antenna is designed especially for accurate positioning in both indoor and outdoor applications. ELECTRICAL SPECIFICATION Device type Bluetooth® LE beacon Wireless interface protocol Bluetooth® 5.0 supported NFC: ISO/IEC 15693 Compliancy (Declaration of Conformity) Europe (CE), USA (FCC), Canada (IC) Operational frequency ISM: 2402 - 2480 MHz NFC: 13,56 MHz Configuration interface NFC interface with USB reader and PC software tool Sensors* Built-in temperature sensor Light level sensor Receive Sensitivity -97 dBm sensitivity (Bluetooth® Low Energy) Max range** Up to 100 m / 328 ft. Measured on and off metal. Battery type (optional) CR2032 (220 mAh), rechargeable Applicable surface materials Can be attached to any surface * Temperature sensor is located inside the plastic housing, which limits real time measurement of the ambient temperature. ** Range is measured in laboratory environment and there can be some variation in real application. MECHANICAL SPECIFICATION Enc losure IP67, high quality PC/ASA Weight 15 g Tag dimensions 46,5 x 35 x 11,2 mm / 1.83 x 1.38 x 0.44 in Hole diameter 6mm ENVIRONMENTAL RESISTANCE Operating temperature -20°C to +60°C / -4°F to +140°F EN 60068-2-14: 2009, Test N: Change of temperature Vibration resistance EN 60068-2-6: 2008, Test Fc: Vibration, 10G EN 60068-2-27: 2009, Test Ea: Shock, 20G ESD immunity ±8 kV according to EN 61000-4-2 (air discharge) ±4 kV according to EN 61000-4-2 (contact discharge) Chemical resistance No physical or performance changes in: - 168h Motor oil exposure - 48h Salt water (salinity 10%) exposure - 48h Sulfuric acid (10%, pH 2) exposure - 48h NaOH (10%, pH 13) exposure Generally good resistance with moderate concentrations of acids, alcohols, alkalis, detergents, and cleaners. Acetone should be avoided. Expected lifetime*** >10 years in typical indoor environment *** B eacon lifetime is not limited by the battery capacity due to power harvesting technology but is mainly limited by the typical component aging and environmental factors. Confidex offers 12 months warranty as standard for the product and its components. CONFIDENTIAL © Confidex 2022 [email protected] www.confidex.com 2/2 SUPPORTED FRAMES Con fidex Viking™ Solar beacon can be configured to broadcast Eddystone™ (trademark of Google) or iBeacon (trademark of Apple) open standard frame formats ensuring straightforward implementation to existing Bluetooth LE systems and infrastructures. In addition, a proprietary frame with sensor data can be sent. B eacons can be delivered as fully pre-configured with the defined settings or customer can easily configure them with an NFC reader and PC application provided by Confidex. F ollowing frame types are supported: -Eddystone™-UID frame broadcasts 16-byte Beacon ID composed of a 10-byte namespace a nd a 6-b yte instance. -Eddystone™-URL frame broadcasts a URL using a co mpressed encoding format. -Eddystone™-TLM frame broadcasts telemetry information, like battery voltage and temperature. -iBeacon open frame format advertising 16 bytes UUID, 2 bytes Major, and 2 bytes Minor. -Confidex frame broadcasting sensor data INSTALLATION INSTRUCTIONS Confidex Viking™ Solar can be attached with several fixing methods: 1.Mechanical fixing – Screw Mechanical fixing is recommended to be used in every application that includes risk for high mechanical stress o r lo w temperature during tag fixing. Screw size M6 is to be used for fixing. 2.Mechanical fixing – Cable tie Plastic or metallic cable ties can also be used for fixing Confidex Viking TM . Maximum width of cable tie is 5 mm. Or it can be hang up like key chains. 3.High performance acrylic adhesive When mounting the tag with adhesive, clean and dry the surface for obtaining the maximum bond strength. APPLICATION NOTES Confidex Viking™ Solar is completely battery-free BLE beacon device, powered by the solar panel which can harvest energy from indoor and outdoor light. It can also have an optional rechargeable battery as an energy storage to allow tag to work more frequently. Th e device needs certain time to charge itself for first time use which is called cold start. The cold start time is depending on the light intensity – the higher the light intensity, the faster the beacon starts advertising. As an example, it can take around 10 minutes to cold start in typical room light (~200lux). Placed on the window (>2000 lux), it needs about 30 seconds to cold start. O nce the device has received enough energy to cold start, it starts advertising with the configured interval. To maintain certain advertising interval the beacon requires certain amount of light. If the configured interval is shorter than what is possible by the power harvested from the environment, it will advertise until all energy is consumed. See below chart for more detail information. Light intensity Environment Cold start time Advertise interval 1 ~ 99 Moonlight Not work Not work 100 ~ 199 Street light 10 min 50s ~ 80s 200 ~ 399 Museum 5min 30s ~ 50s 400 ~ 499 Office light 4~5 min 15s ~ 30s 1000 lux Window 2~4 min 3s ~ 15s The configuration of the Confidex Viking™ Solar is done with an NFC reader and PC desktop software tool provided by Confidex. Confidex can also offer pre-configuration and customized label design as a personalization service. ORDER INFORMATION A vailability: Please contact Confidex Smart Industries Sales at www.confidex.com/contact-us Fo r additional information and technical support, please contact us in [email protected] DISCLAIMER THE MATERIALS, PRODUCTS AND SERVICES ARE SO…

Text truncated - open the document above for the full version.

郔 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Declaration Applicant Legal Business Name Address Grantee Code FCCID Authorized Contact Name Contact Ema仆 Confidex Oy Lumpeenkatu 6 Tampere 33900 Finland 2AMK. 9 2AMK9-CFXBLE-2 Jukka Ristimaki [email protected] Contact Phone +358503027505 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in acco「dancewith 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made 1n this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with 1S017065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has「ead, understood, accepts and agrees to abide by the post market surveillance「equirements (1) the Applicant understands, accepts and agrees that a sample may be「equestedfor surveillance testing (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant's expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other ha「dwareor software「equiredfor evaluation, review, certification and audit surveillance of products certified by SGS f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-0「ug Abuse Act of 1988, 21 U.S.C. §862 b ecause of a conv1ct1on for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a "party" for these purposes. g) the Applicant has「ead, understood, accepts and agrees to abide by the SGS North America, lnc.(TCB) terms and conditions Link to CFRs: hit s://www.fcc. ov/wireless/bureau-divisions/technolo ies-s stems-and-innovation-division/rules-re ulations-title-47 Link to KDBs: https://apps.fcc.qov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.qc.ca/eic/site/smt-qst.nsf/enq/sf01130.html Applicant Signatu「e. 么三 Date:2022-09-06 尸 ｀ -- Pnnt Name: I Jukka伈st 1mak1 Ti tle. I Product Line Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database Applicant Declaration Rev:0.0

Confidex Oy Current Date :2022-09-05 To : SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. No. 588 West Jindu Road, Songjiang District, Shanghai, China. 201612 Dear Sir/Madam, Subject: Declaration Letter about Identity of Products *WE (Confidex Oy) HEREBY DECLARED THAT Product Description 2.4 GHz ISM Band Transceiver Tag Model No. CFXBLE-2S, CFXBLE-2B Manufacturer’s Name Confidex Oy Manufacturer’s Address Lumpeenkatu 6 33900, Tampere Finland *Except that the model number and appearance deviation, are identical with the original product as follows: Note: The definition of identical should be “electrically identical”. A device will be considered to be electrically identi cal if no changes are made to the devices’ schematics, board layouts, component layouts, chip sets, resistors and all other electrical aspects of the device are identical. with the model(s) below which samples we chose to be tested by SGS Model No. (型号): CFXBLE-2C Manufacturer’s Name (生产商名称): Confidex Oy Manufacturer’s Address（生产商商地址): Lumpeenkatu 6 33900, Tampere Finland Sincerely, Signature (签字): Printed Name (姓名): Jukka Ristimaki Position/Title (职位): Product Line Manager Contact Number (联系电话): +358503027505

d' CONFIDEX TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Date: 2022-09-05 Regarding: 2AMK9-CFXBLE-2 To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on ou「 behalf in all manners relating to application for quipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes F CC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsib小ty for complying with the terms and conditions for Certification, as specified by SGS No「th A merica, Inc., still resides with Confidex Oy. T his authorization is valid until further written notice from the applicant. Name (Printed): Jukka Ristimaki //� On b ehalf of Company: Confidex Oy Telephone: +358503027505 Confidex Ltd. Lumpeenkatu 6 33900 Tampere, Finland www.confidex.com Title: Product Line Manager

o' CONFIDEX To: From: Regarding: SGS North America Inc. 620 Ol d Peachtree Road SUITE 100 Suwanee, Georg旧 United States Confidex Oy Lumpeenkatu 6 Tampere 33900 Finland C onfidentiality Request regarding application for FCC ID 2AMK9-CFXBLE-2 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission's rules, the applicant hereby request confidential treatment of the documents listed below, associated with the ce「tificationapplication referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may p「oveharmful to the business of the applicant. Sincerely , ，产三 Printed Name (on file with the FCC associated with the Grantee Code) : Jukka Ristimaki T itle : Product Line Manager Company Name : Confidex Oy Confidex Ltd Lumpeenkatu 6 33900 Tampere, Finland www.confidex.com

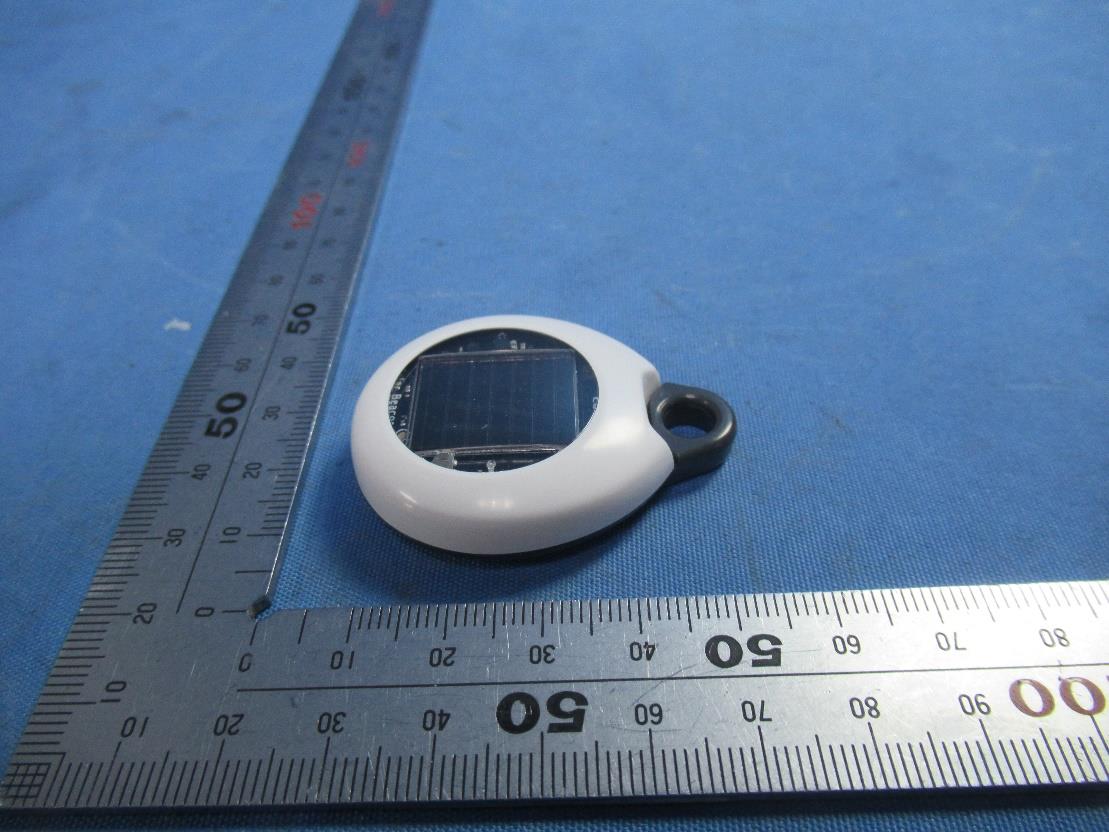

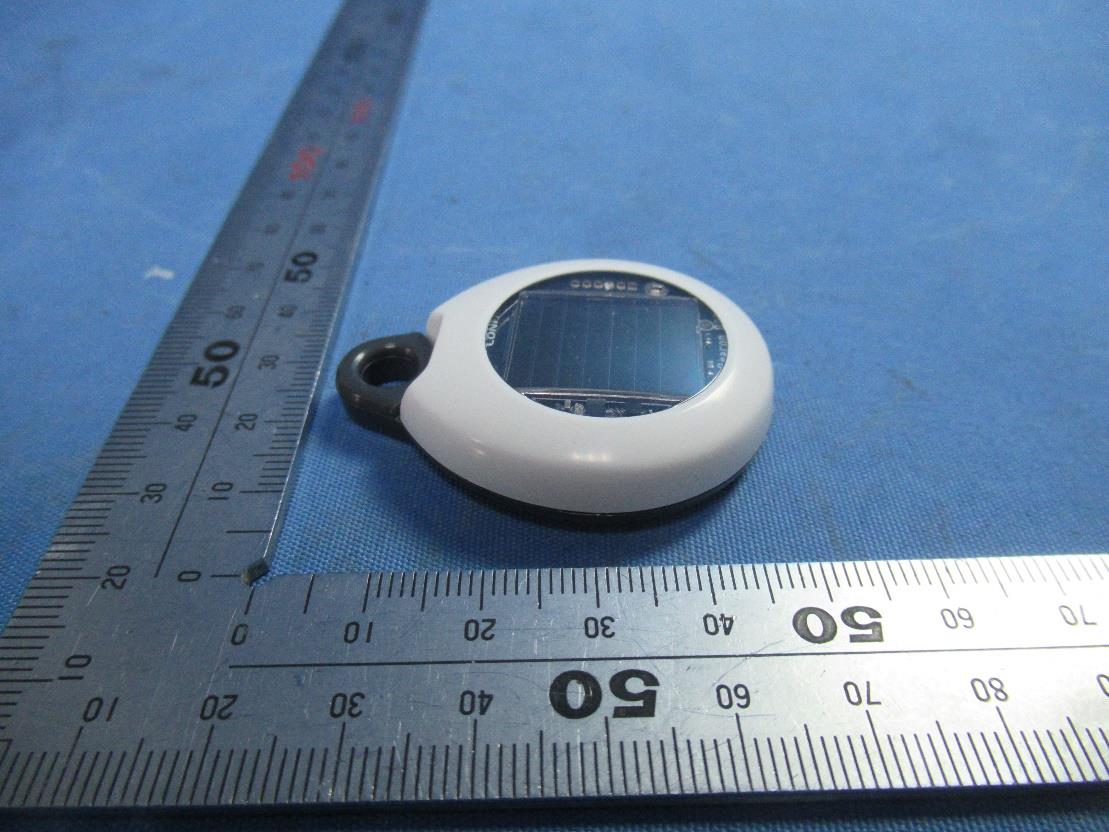

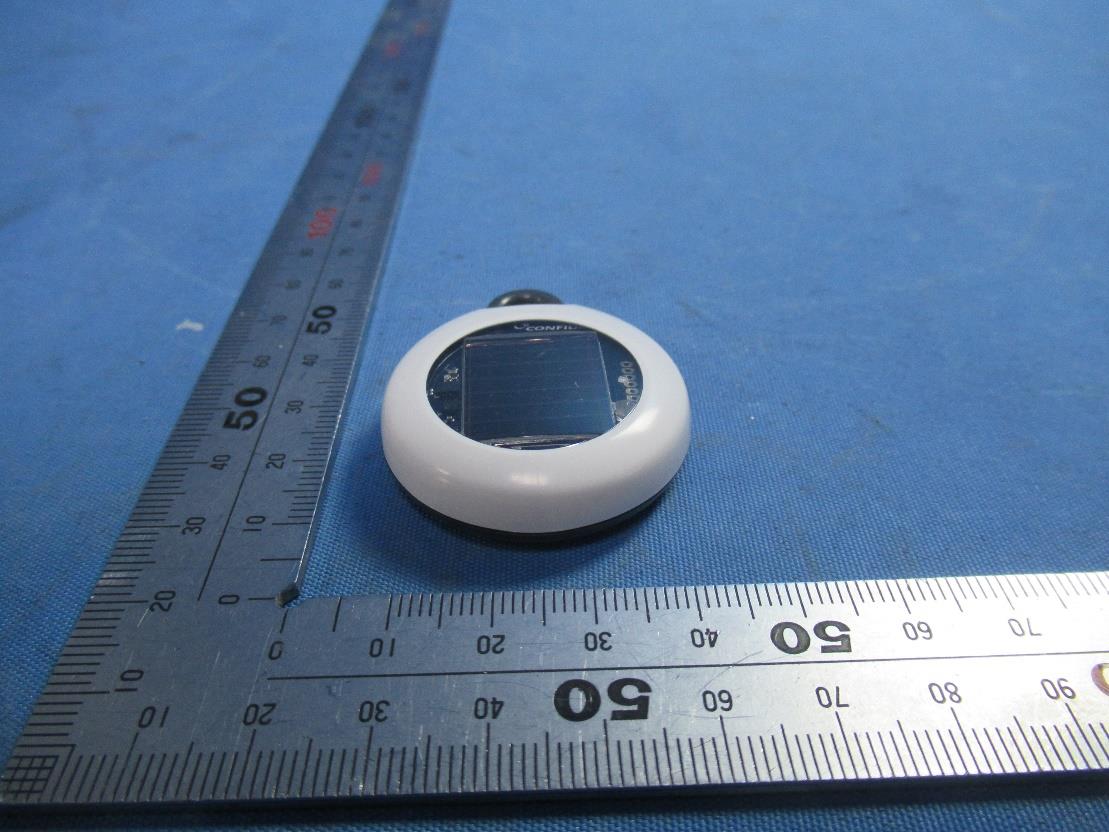

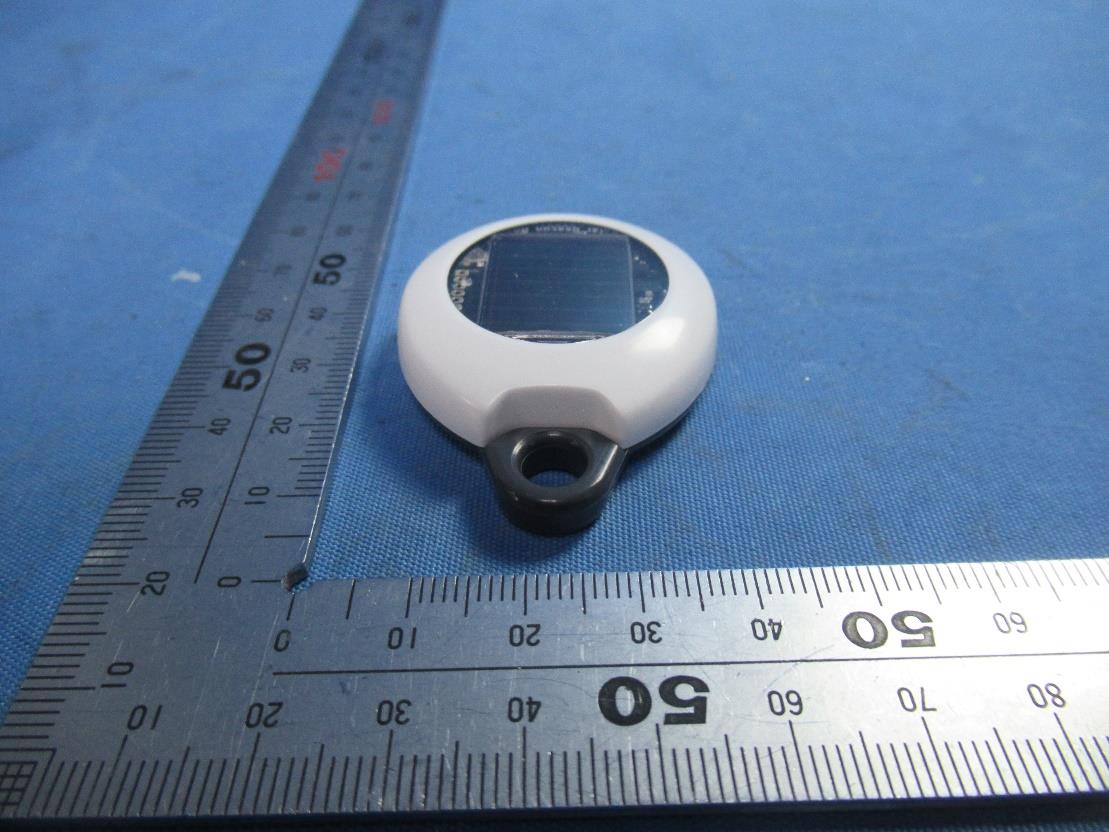

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 4 External Photos for SHCR2208001806AT SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 4 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 4 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 4

Model：CFXBLE-2C Model：CFXBLE-2B Model: CFXBLE-2S Remark: It’s hard to put FCC statement on the product due to device’s irregular appearance. FCC statement will be placed in the user manual which the device is marketed.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 3 Internal Photos for SHCR2208001806AT SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 3 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 3

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220800180602 Page: 1 of 9 Parlam Zhan Laboratory Manager 1 Cover Page RF Exposure Evaluation Report Application No.: SHCR2208001806AT FCC ID: 2AMK9-CFXBLE-2 IC: 22897-CFXBLE2 Applicant: Confidex Oy Address of Applicant: Lumpeenkatu 6 33900, Tampere Finland Manufacturer: Confidex Oy Address of Manufacturer: Lumpeenkatu 6, 33900, Tampere, Finland Factory: Guangzhou Confidex Electronics Science and Technology Co., Ltd. Address of Factory: 1&2nd Floor, Building 4, No. 7 Guanda Road, Yunpu Industrial Park, Huangpu District, Guangzhou, 510530, P.R. China Equipment Under Test (EUT): EUT Name: 2.4 GHz ISM Band Transceiver Tag Model No.: CFXBLE-2C Add Model No.: CFXBLE-2S, CFXBLE-2B Trade Mark: Confidex Viking™ Solar Standard(s) : FCC Rules 47 CFR §2.1093 KDB 447498 D04 interim General RF Exposure Guidance v01 RSS-102 Issue 5 Amendment 1 (February 2, 2021) Date of Receipt: 2022-08-29 Date of Test: 2022-08-29 to 2022-09-10 Date of Issue: 2022-09-16 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220800180602 Page: 2 of 9 Revision Record Version Description Date Remark 00 Original 2022-09-16 / Authorized for issue by: Bill Wu / Project Engineer Parlam Zhan /Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220800180602 Page: 3 of 9 2 Contents Page 1 COVER PAGE .................................................................................................................................... 1 2 CONTENTS ........................................................................................................................................ 3 3 GENERAL INFORMATION ................................................................................................................ 4 3.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................ 4 3.2 DETAILS OF E.U.T. ....................................................................................................................... 4 3.3 SEPARATION DISTANCE ................................................................................................................ 4 3.4 TEST LOCATION ............................................................................................................................ 5 3.5 TEST FACILITY .............................................................................................................................. 5 4 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS .......................................................... 6 4.1 BLANKET 1 MW BLANKET EXEMPTION ........................................................................................... 6 4.2 MPE-BASED EXEMPTION .............................................................................................................. 6 4.3 SAR-BASED EXEMPTION ............................................................................................................... 7 5 IC RADIOFREQUENCY RADIATION EXPOSURE LIMITS .............................................................. 8 6 MEASUREMENT AND CALCULATION ............................................................................................ 9 6.1 MAXIMUM TRANSMIT POWER ......................................................................................................... 9 6.2 RF EXPOSURE CALCULATION ........................................................................................................ 9 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220800180602 Page: 4 of 9 3 General Information 3.1 General Description of E.U.T. Power supply: DC 3V by CR2032 or ML2032 Product Type: Portable device Mobile device Fixed device 3.2 Details of E.U.T. Operation Frequency: 2402MHz to 2480MHz Bluetooth Version: V5.0 LE Modulation Type: GFSK Data Rate： 1Mbps,2Mbps Number of Channels: 40 Channel Spacing: 2MHz Antenna Type: Embedded PIFA antenna Antenna Gain: 2dBi (Provided by manufacturer) S/N: 3004063 Firmware Version: V1.0.0 3.3 Separation Distance Separation distance between the antenna to person (R): ＜5mm Remark: This minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220800180602 Page: 5 of 9 3.4 Test Location All tests were performed at: SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. E&E Lab 588 West Jindu Road, Xinqiao, Songjiang, 201612 Shanghai, China. Tel: +86 21 6191 5666 Fax: +86 21 6191 5678 No tests were sub-contracted. Note: 1. SGS is not responsible for wrong test results due to incorrect information (e.g. max. clock frequency, highest internal frequency, antenna gain, cable loss, etc ) is provided by the applicant. (if applicable). 2. SGS is not responsible for the authenticity, integrity and the validity of the conclusion based on results of the data provided by applicant. (if applicable). 3.5 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L0599) CNAS has accredited SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. to ISO/IEC 17025:2017 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS- CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • A2LA (Certificate No. 6332.01) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. is accredited by the American Association for Laboratory Accreditation(A2LA). • FCC (Designation Number: CN1301) SGS-CSTC Sta…

Text truncated - open the document above for the full version.

Confidential Document Confidex Ltd. Lumpeenkatu 6 33900 Tampere, Finland www.confidex.com Confidex Viking™ Solar 2.4GHz Antenna Spec V1.0 Manufacturer: Confidex Oy Model name: Confidex Viking™ 2.4GHz Antenna Spec, (CFXBLE-2C, CFXBLE-2B, CFXBLE-2S) Type: Embedded PIFA Dimensions: 19mm×4mm Gain: 2 dBi Radiation pattern at 2.45 GHz: Confidential Document Confidex Ltd. Lumpeenkatu 6 33900 Tampere, Finland www.confidex.com

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220800180601 Page: 1 of 72 Parlam Zhan Laboratory Manager TEST REPORT Application No.: SHCR2208001806AT FCC ID: 2AMK9-CFXBLE-2 IC: 22897-CFXBLE2 Applicant: Confidex Oy Address of Applicant: Lumpeenkatu 6 33900, Tampere Finland Manufacturer: Confidex Oy Address of Manufacturer: Lumpeenkatu 6, 33900, Tampere, Finland Factory: Guangzhou Confidex Electronics Science and Technology Co., Ltd. Address of Factory: 1&2nd Floor, Building 4, No. 7 Guanda Road, Yunpu Industrial Park, Huangpu District, Guangzhou, 510530, P.R. China Equipment Under Test (EUT): EUT Name: 2.4 GHz ISM Band Transceiver Tag Model No.: CFXBLE-2C, CFXBLE-2S, CFXBLE-2B  Remark : Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade Mark: Confidex Viking™ Solar Standard(s) : 47 CFR Part 15, Subpart C 15.247 RSS-247 Issue 2, February 2017 RSS-Gen Issue 5 April 2018 Amendment 2 Date of Receipt: 2022-08-29 Date of Test: 2022-08-29 to 2022-09-10 Date of Issue: 2022-09-16 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220800180601 Page: 2 of 72 Revision Record Version Description Date Remark 00 Original 2022-09-16 / Authorized for issue by: Bill Wu/Project Engineer Parlam Zhan/Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220800180601 Page: 3 of 72 2 Test Summary Radio Spectrum Technical Requirement Item FCC Requirement IC Requirement Method Result Antenna Requirement 47 CFR Part 15, Subpart C 15.203 & 15.247(c) RSS-Gen Clause 6.8 N/A Customer Declaration N/A: Not applicable Radio Spectrum Matter Part Item FCC Requirement IC Requirement Method Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.207 RSS-Gen Clause 8.8 ANSI C63.10 (2013) Section 6.2 Pass Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247a(2) RSS-247 Clause 5.2(a) ANSI C63.10 (2013) Section 11.8.1 Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247(b)(3) RSS-247 Clause 5.4(d) ANSI C63.10 (2013) Section 11.9.1 Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247(e) RSS-247 Clause 5.2(b) ANSI C63.10 (2013) Section 11.10.2 Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247(d) RSS-247 Clause 5.5 ANSI C63.10 (2013) Section 11.13.3.2 Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247(d) RSS-247 Clause 5.5 ANSI C63.10 (2013) Section 11.11 Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.209 & 15.247(d) RSS-247 Section 3.3 & RSS-Gen Section 8.9 ANSI C63.10 (2013) Section 6.10.5 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.209 & 15.247(d) RSS-247 Section 3.3 & RSS-Gen Section 8.9 ANSI C63.10 (2013) Section 6.4,6.5,6.6 Pass 99% Bandwidth - RSS-Gen Section 6.7 ANSI C63.10 Section 6.9.3 Pass Declaration of EUT Family Grouping: Note: There are series models mentioned in this report, and they are the similar in electrical and electronic characters. Only the model CFXBLE-2C was tested since their differences were the model number and appearance. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220800180601 Page: 4 of 72 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 TEST SUMMARY ....................................................................................................................................... 3 3 CONTENTS ................................................................................................................................................ 4 4 GENERAL INFORMATION ........................................................................................................................ 6 4.1 DETAILS OF E.U.T. ............................................................................................................................... 6 4.2 DESCRIPTION OF SUPPORT UNITS ......................................................................................................... 6 4.3 POWER LEVEL SETTING USING IN TEST: .................................................................................................. 6 4.4 MEASUREMENT UNCERTAINTY & DECISION RULE ................................................................................... 7 4.5 TEST LOCATION .................................................................................................................................... 7 4.6 TEST FACILITY ...................................................................................................................................... 8 4.7 DEVIATION FROM STANDARDS ............................................................................................................... 8 4.8 ABNORMALITIES FROM STANDARD CONDITIONS ..................................................................................... 8 5 EQUIPMENT LIST ...................................................................................................................................... 9 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................... 10 6.1 ANTENNA REQUIREMENT .................................................................................................................... 10 6.1.1 Test Requirement: ....................................................................................................................... 10 6.1.2 Conclusion ................................................................................................................................... 10 7 RADIO SPECTRUM MATTER TEST RESULTS ..................................................................................... 11…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 3 Appendix Photographs of Test Setup for SHCR2208001806AT Test Model No.: CFXBLE-2C SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 3 Test Setup Photo RF Conducted Radiated Spurious Emissions Below 1GHz SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 3 Radiated Spurious Emissions Above 1GHz Zoom
