2AML5-BTW86Wireless Earphone

FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

KVANCE TECHNOLOGY CO.,LTD Model Difference 2022/06/29 EUT NAME: Wireless Earphone FCC ID: 2AML5-BTW86 MODEL : BTW86, BTW96, BTW92,BTW91, BTW98 Airdopes 141 Pro, Airdopes 148 Pro, Airdopes 143 Pro, BTW41, BTW42, BTW45, BTW46, BTW47 All the model are the same circuit and RF module, except model names. Sincerely Client’s signature Client’s name / title : Levy Xie / Manager Contact information / address: 4 floor, Building A, No. 103, Baonan Road, Longgang District, Shenzhen, Guangdong, 518116,China

KVANCE TECHNOLOGY CO.,LTD Agent Authorization Company: KVANCE TECHNOLOGY CO.,LTD Address: 4 floor, Building A, No. 103, Baonan Road, Longgang District, Shenzhen, Guangdong, 518116,China Product Name: Wireless Earphone Model Number(s): BTW86, BTW96, BTW92,BTW91, BTW98, Airdopes 141 Pro, Airdopes 148 Pro, Airdopes 143 Pro, BTW41, BTW42, BTW45, BTW46, BTW47 Product Description: Wireless Earphone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022/06/29 Name: Levy Xie Title: Manager Company: KVANCE TECHNOLOGY CO.,LTD

KVANCE TECHNOLOGY CO.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022/06/29 Subject; Request for Confidentiality FCC ID: 2AML5-BTW86 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Levy Xie Title: Manager

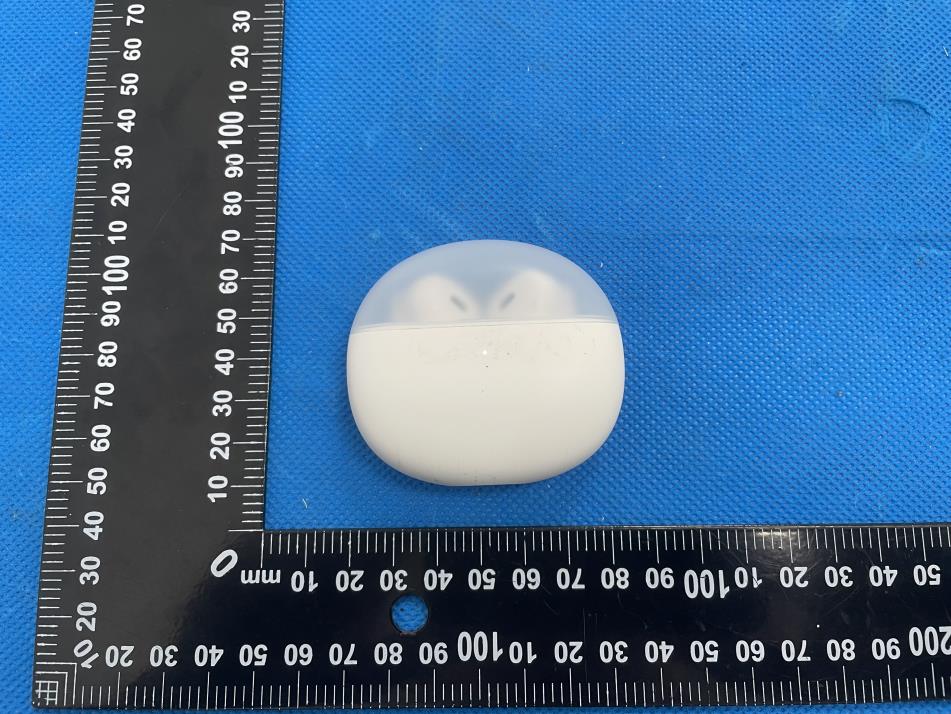

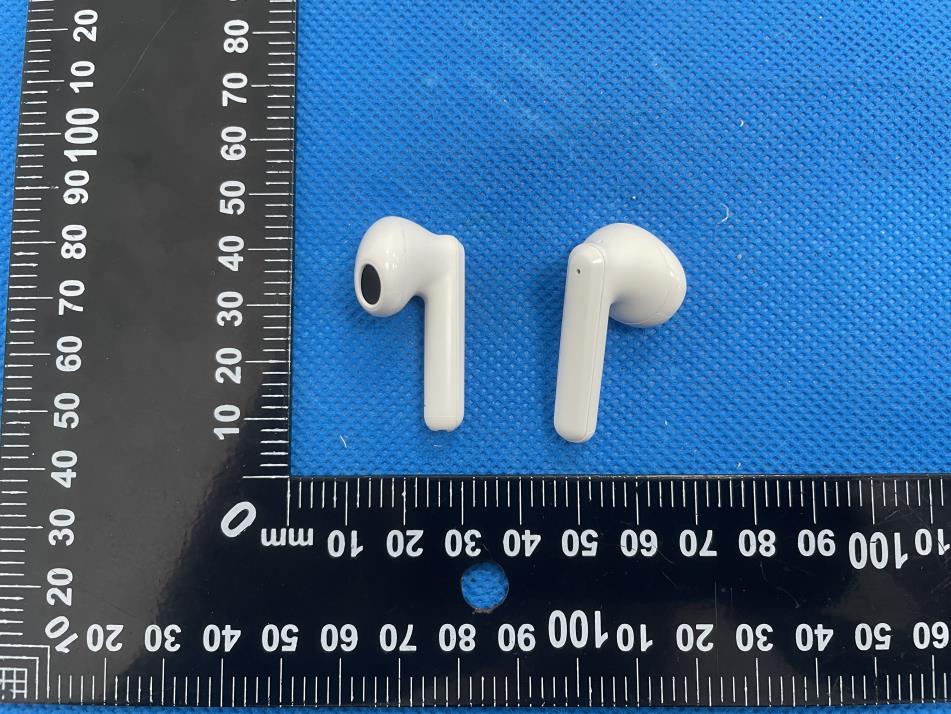

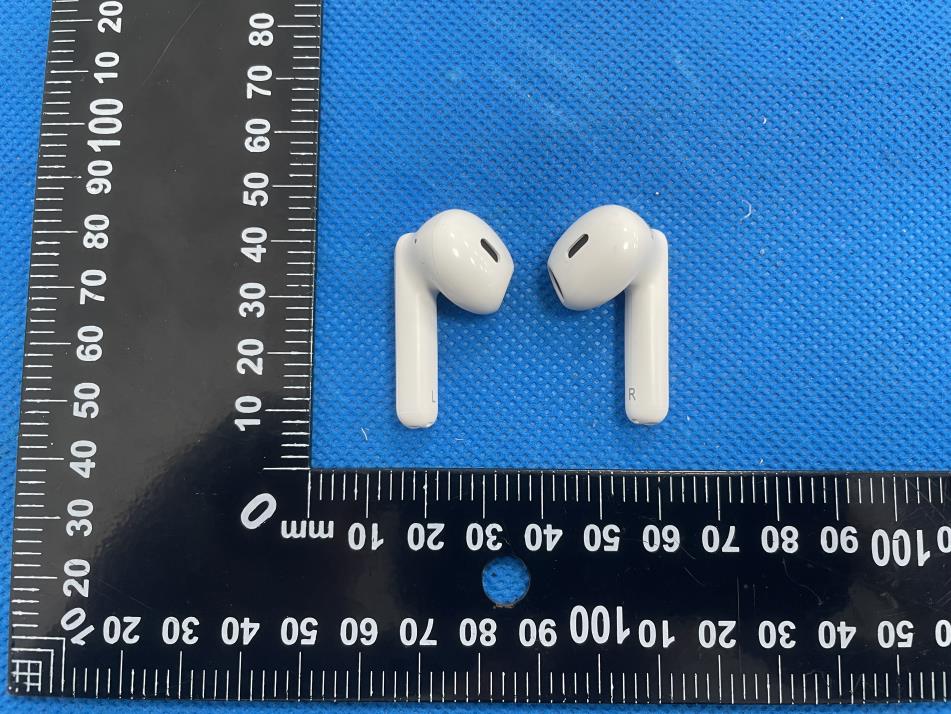

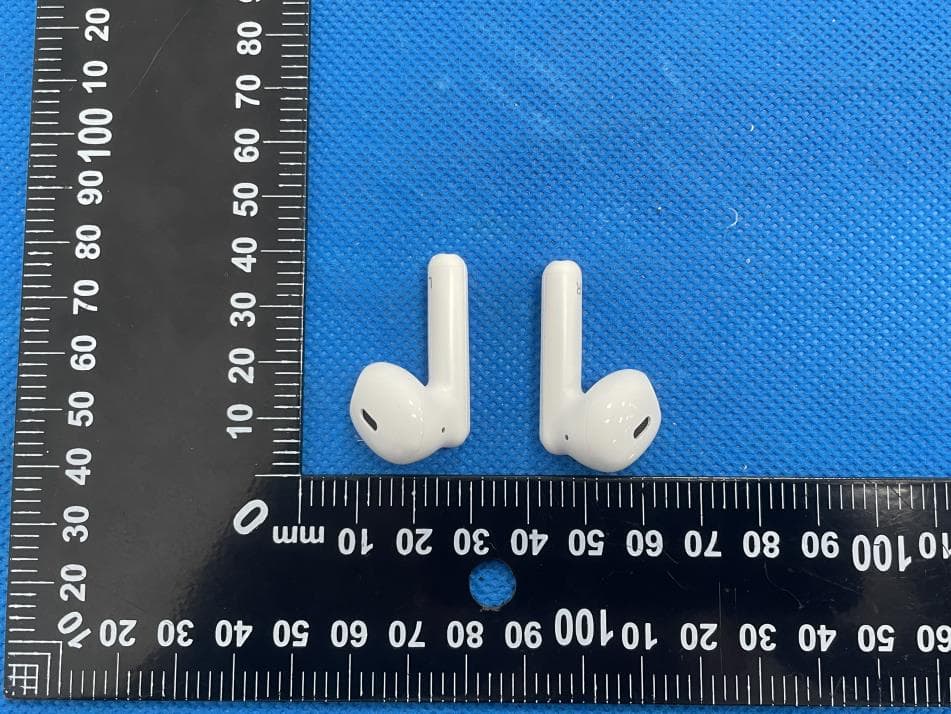

External Photos

Size:10*10mm FCC ID: 2AML5-BTW86 Label location Label location

Internal Photos Antenna

FCC ID: 2AML5-BTW86 RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison  GFSK Modulation Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR π/ 4 DQPSK 2.480 1.16 1±1 2 1.58 5 0.50 3.0 Conclusion: For the max result : 0.50W/Kg ≤ FCC Limit 3.0 for 1g SAR. The Product unsupported at the same time to Transmitting.

No.：BCTC/RF-EMC-007 Page: 1 of 65 Edition：A.4 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2206782705E Applicant: KVANCE TECHNOLOGY CO.,LTD Product Name: Wireless Earphone Model/Type reference: BTW86 Tested Date: 2022-06-08 to 2022-06-15 Issued Date: 2022-06-15 Report No.: BCTC2206782705E No.：BCTC/RF-EMC-007 Page: 2 of 65 Edition：A.4 FCC ID:2AML5-BTW86 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Wireless Earphone Trademark: KVANCE,BOAT,TONEMAC Model/Type Reference: BTW86 BTW96, BTW92, BTW91,BTW98, Airdopes 141 Pro, Airdopes 148 Pro, Airdopes 143 Pro, BTW41, BTW42, BTW45, BTW46, BTW47 Prepared For: KVANCE TECHNOLOGY CO.,LTD Address: 4 floor, Building A, No. 103, Baonan Road, Longgang District, Shenzhen, Guangdong, 518116,China Manufacturer: SHENZHEN SOUND BASS TECHNOLOGY CO.,LTD Address: 4 floor, Building B, No. 103, Baonan Road, Longgang District, Shenzhen, Guangdong, 518116,China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2022-06-08 Sample tested Date: 2022-06-08 to 2022-06-15 Issue Date: 2022-06-15 Report No.: BCTC2206782705E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Brave Zeng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2206782705E No.：BCTC/RF-EMC-007 Page: 3 of 65 Edition：A.4 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 24 8.1 Block Diagram Of Test Setup .............................................................................. 24 8.2 Limit .................................................................................................................... 24 8.3 Test procedure .................................................................................................... 25 8.4 EUT operating Conditions ................................................................................... 25 8.5 Test Result .......................................................................................................... 26 9. Spurious RF Conducted Emissions ..................................................................... 27 9.1 Block Diagram Of Test Setup .............................................................................. 27 9.2 Limit .................................................................................................................... 27 9.3 Test procedure ...............................................................................................…

Text truncated - open the document above for the full version.

Report No.: BCTC2206782705E No.：BCTC/RF-EMC-007 Page: 63 of 65 Edition：A.4 17. EUT Test Setup Photographs Conducted emissions Report No.: BCTC2206782705E No.：BCTC/RF-EMC-007 Page: 64 of 65 Edition：A.4 Radiated Measurement Photos
