2AMLF-JM-C21GNSS Vehicle Terminal

JM-C21 GNSS Vehicle Terminal (User Manual) Email: [email protected] Website: www.lncoon.com Tracking Platform: Lncoon App @Lncoon @lncoon.gps +86 13423860204 Part I - Product Introduction 1.1 Product Overview GPS: Blue Indicator GSM: Green Indicator Back Cover Power Cable Power Switch 1.2 Product Schematic No. Name Quantity Unit Remark 1 Device 1 piece 2 Power Cable 1 piece 1M length 3 Relay 1 set 4 User Manual 1 piece 1.3 Interface Definition V+ V- ACC Relay Red Black Orange Yellow Anode ( 9-90V ) Negative ACC Detection Oil & Power Cut 1.4 Indicator Definition (1) GPS Signal Status Status Meaning Quick Blinking (on 0.3s, off 0.3s) Searching GPS signal Solid on Get GPS Location Off Sleep Mode or Not Working (2) GSM Signal Status Status Meaning Quick Blinking (on 0.3s, off 0.3s) GSM Initializing Slow Blinking (on 0.3s, off 2s) GSM Signal Receiving Normally Solid on GSM call/GPRS is active Off No signal received (3) External Power Status Status Meaning Blue&Green Light Solid on 3s Connected to External Power Part II - Specification & Features 2.1 Product Specification Item Specifications Tracking GPS+BDS+LBS Voltage 9-90V DC Accuracy <10m (just for reference） Battery 60mAh/3.7V lithium polymer battery Current ≦5mA（Battery powered） Temperature -20°C to +35°C Dimension 71.9（L）*30.2（W）* 12.9（H）mm 2.2 Product Features Functions Triggering Conditions Power Off Alert Triggered by the Illegal wire cutting Fall off Alert Triggered by the attitude of the equipment changes after the terminal is installed to recognize the vehicle attitude Remove Alert when the device is removed Low Battery Alert Triggered an alarm when the voltage of external power or its own built-in battery current is low Geo Fence Alert Triggered an alarm when the terminal enters and exits the designated area Overspeed Alert When the vehicle's speed is greater than the speed threshold within the set time Part III - Product Installation 3.1 Device Installation (1)Check Device Confirm whether the appearance of the equipment is good and whether the relevant accessories are complete. 3.2 Wiring Diagram (1)Use a multimeter to find the battery positive and negative power leads (2)Use a multimeter to find the ACC line, the judgment method: The red pen of the multimeter is connected to the ACC line, and the black pen is connected to the negative electrode. When the motorcycle key is in the OFF state, the voltage is 0V. When the motorcycle key is turned ON, the multimeter displays Motorcycle power supply voltage; (2)The terminal is equipped with the red wire (positive pole) of the power cord and the positive pole of the motorcycle battery; (4)Insert the connector as shown above. 3.3 Electric Vehicle Installation Position Mounted on Headlights (priority position ) Under the Pedal ( priority position ) Inside the headlight cover, near the stopwatch Under the rear seat Car Rear or Inside plastic parts 3.4 Motorcycle Installation Position Note: the satellites signal will greatly degrade if be installed under the driver Under the Pedal Inside Front Cover ( priority position ) Car Rear or Inside plastic parts 3.5 Car Installation Position Note: The device should be installed face up to the sky. If the windshield is pasted with a metal thermal insulation layer or a heating layer, it will reduce the signal strength of the satellite, which may make it difficult to locate the satellite. Please change the installation location. Under the front Trim Panel Around Dashboard Rear Windshield Part V - Platform Operation 5.1 Register & Login into Platform Login Lncoon platform(us.lncoon.com) with your account and password and check whether the location is correct on it. If not, please take your device to OPEN SKY for better signal intensity. 5.1 Bundle Device with Platform Attention: If the activation is not successful, please check if you have successfully subscribed to the plan, or check if the power switch is turned on. Solution Unable to add device Check the external power cable. Check your subscription status Try find better cellular signals Check that the cables are well connected Go to the open area and try again Part VI - Troubleshooting Check your IMEI number Check your account region Problem Go to open sky area and try again Try find better cellular signals The device is offline on the platform Unable to Locate Location Drifts Check command format Check if the device is online Check if parameters are within limits Not responding to commands Caution: Intended for sale and application in a business environment. Use the Product in the environment with the temperature Between -20°C and 35°C; Otherwise, it may damage your product. Products can only be used below 2000m altitude F or the following equipment: Product Name: GNSS Vehicle Terminal Brand Name: JIMI Model No.: JM-C21 Shenzhen Jimi IOT Co., Ltd E- mail: [email protected] hereby declares that this [Name: GNSS Vehicle Terminal, Model: JM-C21] is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. This product is intended for sale and application in a business environment. RED Article 10 2 -This product can be used across EU member states RED Article 10 10 -The product is class 1 product, No restrictions The RF distance between body and product is 20cm 2G Frequency Range: GPRS900: Tx: 880-915MHz, Rx: 925-960MHz RF Out put Power: GPRS900: 31.96dBm, GPRS1800: 29.08dBm GPS Frequency Range: 1575.42MHz Receiving FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipme…

Text truncated - open the document above for the full version.

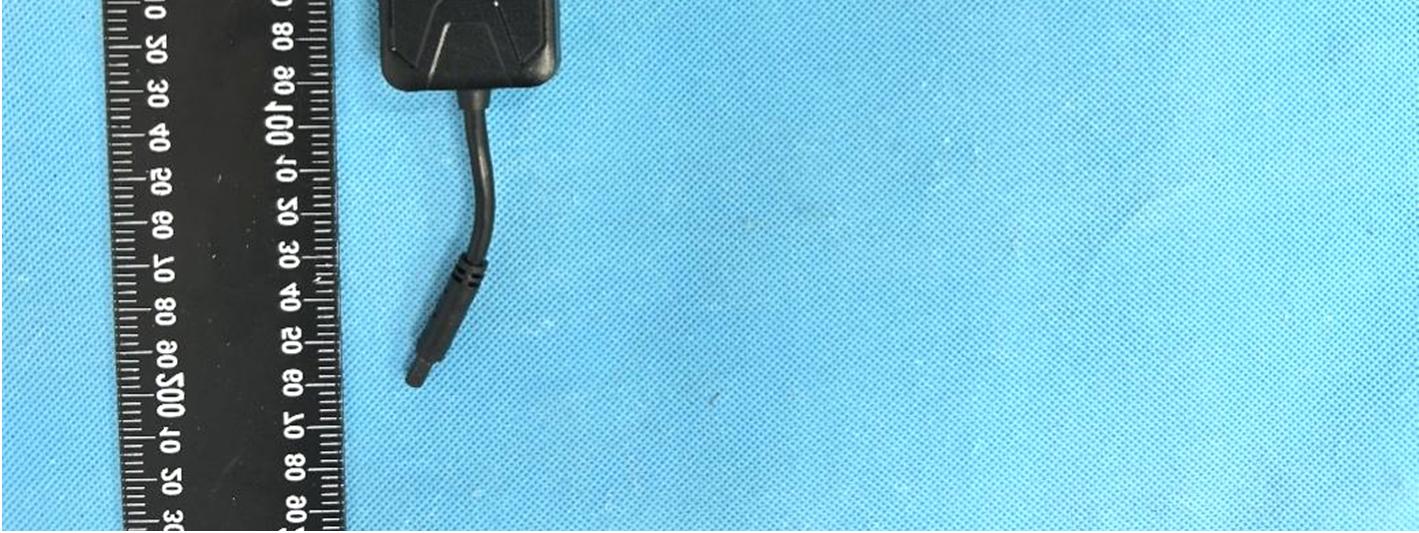

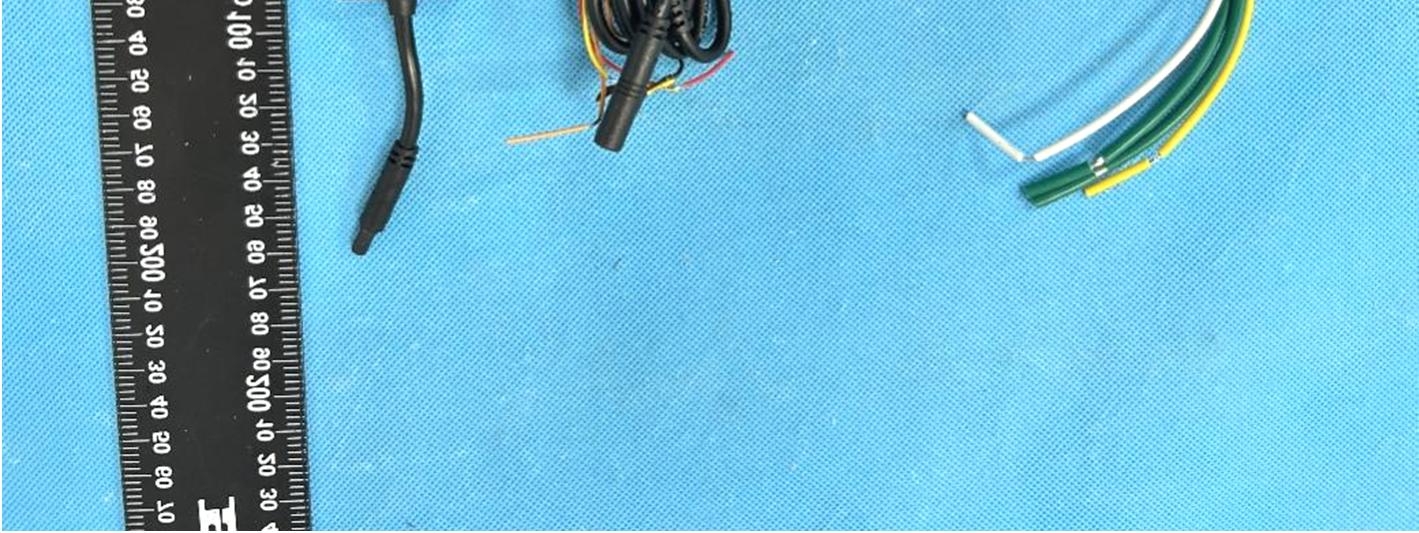

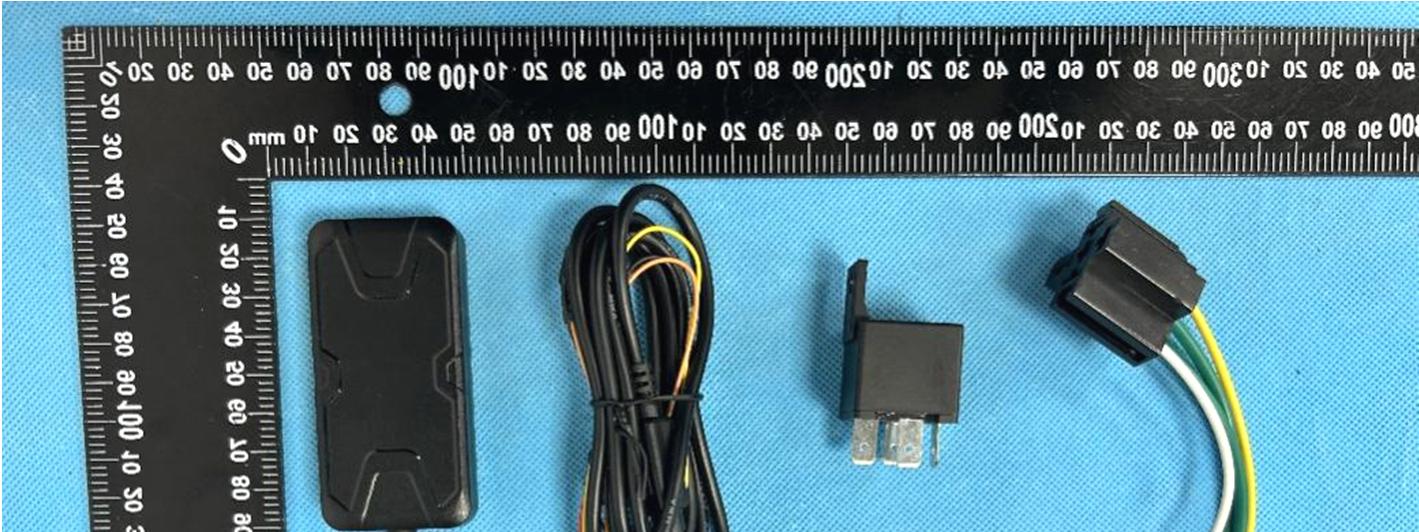

Reference No.: WTX23X06138738W001 Page 2 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX23X06138738W001 Page 3 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTX23X06138738W001 Page 4 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6 Reference No.: WTX23X06138738W001 Page 5 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 7

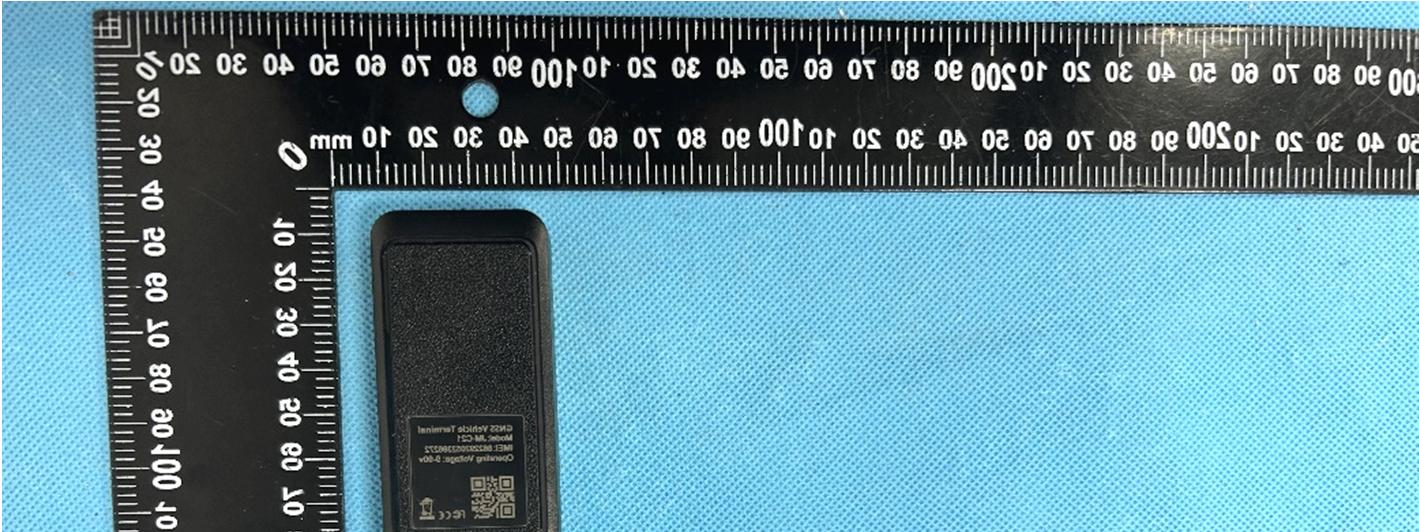

Reference No.: WTX23X06138738W001 Page 1 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2AMLF-JM-C21 Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX23X06138738W001 Page 6 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTX23X06138738W001 Page 7 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTX23X06138738W001 Page 8 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 3 Solder Board-Component View 4 Reference No.: WTX23X06138738W001 Page 9 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Antenna View

1. RF Exposure Requirements 1.1 General Information Client Information Applicant: Shenzhen Jimi IOT Co., Ltd Address of applicant: 3-4/F, Block A, Building #7, Shenzhen International Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, Guangdong, China Manufacturer: Shenzhen Jimi IOT Co., Ltd Address of manufacturer: 3-4/F, Block A, Building #7, Shenzhen International Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, Guangdong, China General Description of EUT: Product Name: GNSS Vehicle Terminal Trade Name: JIMI Model No.: JM-C21 Adding Model(s): / Rated Voltage: Battery DC3.7V DC12V/24V Battery: / Adapter Model: / FCC ID: 2AMLF-JM-C21 Equipment Type: Mobile device Technical Characteristics of EUT: 2G Support Networks: GPRS Support Band: GPRS850/GPRS1900 Uplink Frequency: GPRS850: 824~849MHz GPRS1900: 1850~1910MHz Downlink Frequency: GPRS850: 869~894MHz GPRS1900: 1930~1990MHz Max RF Output Power: GPRS850: 32.22dBm, GPRS1900: 28.87dBm Type of Emission: GPRS850:245KGXW, GPRS1900: 246KGXW Type of Modulation: GMSK, 8PSK Type of Antenna: Integral Antenna Antenna Gain: GSM850: 3dBi; GSM1900: 3dBi GPRS/EDGE Class: Class 12 1.2 RF Exposure Exemption According to §1.1307(b)(3) and KDB 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Prediction Frequency Tune-up Power Antenna Gain Duty Cycle Factor Tune-up Time-Averaged Power ERP (MHz) (dBm) (dBi) (dB) (dBm) (dBm) GPRS850(1 slots) 824 32.5 3.0 9 23.50 24.35 GPRS850(2 slots) 824 32.0 3.0 6 26.00 26.85 GPRS850(3 slots) 824 30.5 3.0 4.25 26.25 27.10 GPRS850(4 slots) 824 29.5 3.0 3 26.50 27.35 GPRS1900(1 slots) 1850 29.0 3.0 9 20.00 20.85 GPRS1900(2 slots) 1850 28.5 3.0 6 22.50 23.35 GPRS1900(3 slots) 1850 27.5 3.0 4.25 23.25 24.10 GPRS1900(4 slots) 1850 26.0 3.0 3 23.00 23.85 Radio Access Technology Option Min. Distance Max. Power Exposure Limit Ratio Result (cm) (dBm) (mW) (mW) Pass/Fail GPRS850(1 slots) C 20.00 24.35 272.27 421.89 0.65 Pass GPRS850(2 slots) B 20.00 26.85 484.17 1680.96 0.29 Pass GPRS850(3 slots) B 20.00 27.10 512.86 1680.96 0.31 Pass GPRS850(4 slots) B 20.00 27.35 543.25 1680.96 0.32 Pass GPRS1900(1 slots) C 20.00 20.85 121.62 768.00 0.16 Pass GPRS1900(2 slots) C 20.00 23.35 216.27 768.00 0.28 Pass GPRS1900(3 slots) C 20.00 24.10 257.04 768.00 0.33 Pass GPRS1900(4 slots) C 20.00 23.85 242.66 768.00 0.32 Pass Note: 1. For GSM, Duty cycle factor = 9 dB for 1 Tx slot, 6 dB for 2 Tx slots, 4.25 dB for 3 Tx slots, 3 dB for 4 Tx slots; 2. Tune-up time-average power = Tune-up Power - Duty cycle factor in dB 2. Output Power=EIRP- Antenna Gain; ERP=EIRP-2.15dB 3. Option A, B and C refers as clause 1.2. 4. For option B, Max (time-averaged power, effective radiated power (ERP)) converts to Max. Power. For option C, ERP converts to Max. Power; 5. For option B, P th (mW) converts to Exposure Limit (mW); For option C, ERP (W) converts to Exposure Limit (mW). 6. Ratio= Tune-up ERP (mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Simultaneous Ratio Limit Result Pass/Fail -- -- -- -- -- -- Note：GPRS850 and GPRS1900 can’t transmit at the same time. Result: Pass

Reference No.: WTX23X06138738W001 Page 1 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Appendix for GPRS850&1900 Product Name: GNSS Vehicle Terminal Model No: JM-C21 Reference No.: WTX23X06138738W001 Page 2 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Appendix A: Effective (Isotropic) Radiated Power Output Data Test Result Band Channel Slot Power(dBm) Limit(dBm) Verdict GPRS850 128 1 31.58 38.45 PASS GPRS850 128 2 30.94 38.45 PASS GPRS850 128 3 29.51 38.45 PASS GPRS850 128 4 28.59 38.45 PASS GPRS850 190 1 32.02 38.45 PASS GPRS850 190 2 31.40 38.45 PASS GPRS850 190 3 29.99 38.45 PASS GPRS850 190 4 29.08 38.45 PASS GPRS850 251 1 32.22 38.45 PASS GPRS850 251 2 31.60 38.45 PASS GPRS850 251 3 30.21 38.45 PASS GPRS850 251 4 29.20 38.45 PASS GPRS1900 512 1 28.56 33.00 PASS GPRS1900 512 2 27.85 33.00 PASS GPRS1900 512 3 26.31 33.00 PASS GPRS1900 512 4 25.43 33.00 PASS GPRS1900 661 1 28.87 33.00 PASS GPRS1900 661 2 28.25 33.00 PASS GPRS1900 661 3 26.76 33.00 PASS GPRS1900 661 4 25.88 33.00 PASS GPRS1900 810 1 28.66 33.00 PASS GPRS1900 810 2 28.02 33.00 PASS GPRS1900 810 3 26.51 33.00 PASS GPRS1900 810 4 25.57 33.00 PASS Reference No.: WTX23X06138738W001 Page 3 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Appendix B: Peak-to-Average Ratio(CCDF) Test Result Band Channel Result(dB) Limit(dB) Verdict GPRS850 128 8.9 13 PASS GPRS850 190 8.9 13 PASS GPRS850 251 8.9 13 PASS GPRS1900 512 8.9 13 PASS GPRS1900 661 9.74 13 PASS GPRS1900 810 8.96 13 PASS Reference No.: WTX23X06138738W001 Page 4 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Test Graphs GPRS850-128 GPRS850-190 GPRS850-251 Reference No.: WTX23X06138738W001 Page 5 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn GPRS1900-512 GPRS1900-661 GPRS1900-810 Reference No.: WTX23X06138738W001 Page 6 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Reference No.: WTX23X06138738W001 Page 7 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Appendix C: 26dB Bandwidth and Occupied Bandwidth Test Result Band Channel Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Limit (MHz) Verdict GPRS850 128 0.245 0.32 --- PASS GPRS850 190 0.245 0.32 --- PASS GPRS850 251 0.243 0.32 --- PASS GPRS1900 512 0.246 0.32 --- PASS GPRS1900 661 0.244 0.32 --- PASS GPRS1900 810 0.245 0.32 --- PASS Reference No.: WTX23X06138738W001 Page 8 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Test Graphs GPRS850-128 GPRS850-190 GPRS850-251 Reference No.: WTX23X06138738W001 Page 9 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn GPRS1900-512 GPRS1900-661 GPRS1900-810 Reference No.: WTX23X06138738W001 Page 10 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Reference No.: WTX23X06138738W001 Page 11 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Appendix D: Band Edge Test Result Band Channel Freq (MHz) Result (dBm) Limit(dBm) Verdict GPRS850 128 823.98 -17.36 -13 PASS GPRS850 251 849.00 -18.40 -13 PASS GPRS1900 512 1849.97 -17.64 -13 PASS GPRS1900 810 1910.01 -19.38 -13 PASS Reference No.: WTX23X06138738W001 Page 12 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Test Graphs GPRS850-128 GPRS850-251 GPRS1900-512 Reference No.: WTX23X06138738W001 Page 13 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn GPRS1900-810 Reference No.: WTX23X06138738W001 Page 14 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Appendix E: Conducted Spurious Emission Test Result Band Channel Frequency Range(MHz) Max.Freq. (MHz) Result (dBm) Limit (dBm) Verdict GPRS850 128 0.009~0.15MHz 0.01 -76.41 -33 PASS GPRS850 128 0.15~30MHz 0.17 -63.8 -23 PASS GPRS850 128 30~1000MHz 940.05 -51.85 -13 PASS GPRS850 128 1000~10000MHz 1648.43 -37.77 -13 PASS GPRS850 190 0.009~0.15MHz 0.01 -76.8 -33 PASS GPRS850 190 0.15~30MHz 0.21 -63.81 -23 PASS GPRS850 190 30~1000MHz 985.13 -52.2 -13 PASS GPRS850 190 1000~10000MHz 1673.93 -41.55 -13 PASS GPRS850 251 0.009~0.15MHz 0.01 -72.49 -33 PASS GPRS850 251 0.15~30MHz 0.24 -63.71 -23 PASS GPRS850 251 30~1000MHz 973.23 -51.72 -13 PASS GPRS850 251 1000~10000MHz 6606.36 -50.3 -13 PASS GPRS1900 512 0.009~0.15MHz 0.01 -70.08 -43 PASS GPRS1900 512 0.15~30MHz 0.16 -63.17 -33 PASS GPRS1900 512 30~1000MHz 951.97 -49.03 -13 PASS GPRS1900 512 1000~3000MHz 2946.07 -37.94 -13 PASS GPRS1900 512 3000~18000MHz 5550.66 -44.57 -13 PASS GPRS1900 661 0.009~0.15MHz 0.01 -70.88 -43 PASS GPRS1900 661 0.15~30MHz 0.49 -63.46 -33 PASS GPRS1900 661 30~1000MHz 893.84 -49.16 -13 PASS GPRS1900 661 1000~3000MHz 2914.6 -38.1 -13 PASS GPRS1900 661 3000~18000MHz 3759.72 -35.18 -13 PASS GPRS1900 810 0.009~0.15MHz 0.01 -71.68 -43 PASS GPRS1900 810 0.15~30MHz 0.18 -64.13 -33 PASS GPRS1900 810 30~1000MHz 978.61 -49.03 -13 PASS GPRS1900 810 1000~3000MHz 2974.4 -38.21 -13 PASS GPRS1900 810 3000~18000MHz 3819.22 -35.18 -13 PASS Reference No.: WTX23X06138738W001 Page 15 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Test Graphs GPRS850-128-0.009~0.15MHz GPRS850-128-0.15~30MHz GPRS850-128-30~1000MHz Reference No.: WTX23X06138738W001 Page 16 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn GPRS850-128-1000~10000MHz GPRS850-190-0.009~0.15MHz GPRS850-190-0.15~30MHz

Reference No.: WTX23X06138738W001 Page 17 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn GPRS850-190-30~1000MHz GPRS850-190-1000~10000MHz GPRS850-251-0.009~0.15MHz Reference No.: WTX23X06138738W001 Page 18 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn GPRS850-251-0.15~30MHz GPRS850-251-30~1000MHz GPRS850-251-1000~10000MHz Reference No.: WTX23X06138738W001 Page 19 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn GPRS1900-512-0.009~0.15MHz GPRS1900-512-0.15~30MHz GPRS1900-512-30~1000MHz Reference No.: WTX23X06138738W001 Page 20 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn GPRS1900-512-1000~3000MHz GPRS1900-512-3000~18000MHz GPRS1900-661-0.009~0.15MHz Reference No.: WTX23X06138738W001 Page 21 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn GPRS1900-661-0.15~30MHz GPRS1900-661-30~1000MHz GPRS1900-661-1000~3000MHz Reference No.: WTX23X06138738W001 Page 22 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn GPRS1900-661-3000~18000MHz GPRS1900-810-0.009~0.15MHz GPRS1900-810-0.15~30MHz Reference No.: WTX23X06138738W001 Page 23 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn GPRS1900-810-30~1000MHz GPRS1900-810-1000~3000MHz GPRS1900-810-3000~18000MHz Reference No.: WTX23X06138738W001 Page 24 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Appendix F: Frequency Stability Test Result Voltage Band Channel Voltage [Vdc] Temperature (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict GPRS850 128 VL NT -17.72 -0.021500 ±2.5 PASS GPRS850 128 VN NT -14.85 -0.018017 ±2.5 PASS GPRS850 128 VH NT -12.91 -0.015664 ±2.5 PASS GPRS850 190 VL NT -15.17 -0.018133 ±2.5 PASS GPRS850 190 VN NT -17.66 -0.021109 ±2.5 PASS GPRS850 190 VH NT -13.72 -0.016400 ±2.5 PASS GPRS850 251 VL NT -13.79 -0.016246 ±2.5 PASS GPRS850 251 VN NT -17.40 -0.020500 ±2.5 PASS GPRS850 251 VH NT -12.91 -0.015210 ±2.5 PASS GPRS1900 512 VL NT -33.61 -0.018166 ±2.5 PASS GPRS1900 512 VN NT -26.73 -0.014447 ±2.5 PASS GPRS1900 512 VH NT -25.18 -0.013609 ±2.5 PASS GPRS1900 661 VL NT -25.09 -0.013346 ±2.5 PASS GPRS1900 661 VN NT -33.93 -0.018048 ±2.5 PASS GPRS1900 661 VH NT -27.22 -0.014479 ±2.5 PASS GPRS1900 810 VL NT -27.06 -0.014169 ±2.5 PASS GPRS1900 810 VN NT -30.90 -0.016180 ±2.5 PASS GPRS1900 810 VH NT -29.61 -0.015504 ±2.5 PASS Reference No.: WTX23X06138738W001 Page 25 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Temperature Band Channel Voltage [Vdc] Temperature (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict GPRS850 128 NV -30 -15.82 -0.019194 ±2.5 PASS GPRS850 128 NV -20 -17.60 -0.021354 ±2.5 PASS GPRS850 128 NV -10 -10.88 -0.013201 ±2.5 PASS GPRS850 128 NV 0 -14.04 -0.017035 ±2.5 PASS GPRS850 128 NV 10 -13.37 -0.016222 ±2.5 PASS GPRS850 128 NV 20 -13.56 -0.016452 ±2.5 PASS GPRS850 128 NV 30 -9.59 -0.011636 ±2.5 PASS GPRS850 128 NV 40 -13.27 -0.016100 ±2.5 PASS GPRS850 128 NV 50 -11.91 -0.014450 ±2.5 PASS GPRS850 190 NV -30 -15.14 -0.018097 ±2.5 PASS GPRS850 190 NV -20 -13.98 -0.016710 ±2.5 PASS GPRS850 190 NV -10 -12.62 -0.015085 ±2.5 PASS GPRS850 190 NV 0 -12.46 -0.014894 ±2.5 PASS GPRS850 190 NV 10 -8.85 -0.010579 ±2.5 PASS GPRS850 190 NV 20 -13.20 -0.015778 ±2.5 PASS GPRS850 190 NV 30 -12.98 -0.015515 ±2.5 PASS GPRS850 190 NV 40 -15.50 -0.018527 ±2.5 PASS GPRS850 190 NV 50 -13.59 -0.016244 ±2.5 PASS GPRS850 251 NV -30 -13.95 -0.016435 ±2.5 PASS GPRS850 251 NV -20 -7.91 -0.009319 ±2.5 PASS GPRS850 251 NV -10 -10.49 -0.012359 ±2.5 PASS GPRS850 251 NV 0 -13.62 -0.016046 ±2.5 PASS GPRS850 251 NV 10 -14.08 -0.016588 ±2.5 PASS GPRS850 251 NV 20 -11.40 -0.013431 ±2.5 PASS GPRS850 251 NV 30 -14.63 -0.017236 ±2.5 PASS GPRS850 251 NV 40 -14.24 -0.016777 ±2.5 PASS GPRS850 251 NV 50 -15.53 -0.018296 ±2.5 PASS GPRS1900 512 NV -30 -27.28 -0.014744 ±2.5 PASS GPRS1900 512 NV -20 -48.53 -0.026230 ±2.5 PASS GPRS1900 512 NV -10 -45.94 -0.024830 ±2.5 PASS GPRS1900 512 NV 0 -52.24 -0.028235 ±2.5 PASS GPRS1900 512 NV 10 -41.33 -0.022338 ±2.5 PASS GPRS1900 512 NV 20 -38.42 -0.020765 ±2.5 PASS GPRS1900 512 NV 30 -42.39 -0.022911 ±2.5 PASS GPRS1900 512 NV 40 -41.65 -0.022511 ±2.5 PASS GPRS1900 512 NV 50 -36.77 -0.019874 ±2.5 PASS GPRS1900 661 NV -30 -28.86 -0.015351 ±2.5 PASS Reference No.: WTX23X06138738W001 Page 26 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn GPRS1900 661 NV -20 -24.50 -0.013032 ±2.5 PASS GPRS1900 661 NV -10 -51.66 -0.027479 ±2.5 PASS GPRS1900 661 NV 0 -39.78 -0.021160 ±2.5 PASS GPRS1900 661 NV 10 -44.30 -0.023564 ±2.5 PASS GPRS1900 661 NV 20 -33.09 -0.017601 ±2.5 PASS GPRS1900 661 NV 30 -29.32 -0.015596 ±2.5 PASS GPRS1900 661 NV 40 -34.42 -0.018309 ±2.5 PASS GPRS1900 661 NV 50 -29.48 -0.015681 ±2.5 PASS GPRS1900 810 NV -30 -30.77 -0.016112 ±2.5 PASS GPRS1900 810 NV -20 -31.83 -0.016667 ±2.5 PASS GPRS1900 810 NV -10 -41.00 -0.021468 ±2.5 PASS GPRS1900 810 NV 0 -37.10 -0.019426 ±2.5 PASS GPRS1900 810 NV 10 -39.16 -0.020505 ±2.5 PASS GPRS1900 810 NV 20 -35.39 -0.018531 ±2.5 PASS GPRS1900 810 NV 30 -38.71 -0.020269 ±2.5 PASS GPRS1900 810 NV 40 -28.83 -0.015096 ±2.5 PASS GPRS1900 810 NV 50 -32.83 -0.017190 ±2.5 PASS Reference No.: WTX23X06138738W001 Page 27 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Appendix G: Modulation Characteristics Test Result Band Channel Result Verdict GPRS850 128 PASS PASS GPRS850 190 PASS PASS GPRS850 251 PASS PASS GPRS1900 512 PASS PASS GPRS1900 661 PASS PASS GPRS1900 810 PASS PASS Reference No.: WTX23X06138738W001 Page 28 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Test Graphs GPRS850-128 GPRS850-190 GPRS850-251 Reference No.: WTX23X06138738W001 Page 29 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn GPRS1900-512 GPRS1900-661 GPRS1900-810 Reference No.: WTX23X06138738W001 Page 30 of 30 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 30 TEST REPORT Reference No. .................... : WTX23X06138738W001 FCC ID ................................ : 2AMLF-JM-C21 Applicant ........................... : Shenzhen Jimi IOT Co., Ltd Address.............................. : 3-4/F, Block A, Building #7, Shenzhen International Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, Guangdong, China Manufacturer ..................... : The same as Applicant Address.............................. : The same as Applicant Product Name ................... : GNSS Vehicle Terminal Model No. ........................... : JM-C21 Standards .......................... : FCC Part 22H, FCC Part 24E Date of Receipt sample .... : 2023-06-27 Date of Test........................ : 2023-06-27 to 2023-07-13 Date of Issue ..................... : 2023-07-13 Test Report Form No. ....... : WTX_Part 22_ Part 24W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Dashan Chen Silin Chen Reference No.: WTX23X06138738W001 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 30 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ...............................................................................4 1.2 TEST STANDARDS ...................................................................................................................................................5 1.3 TEST METHODOLOGY .............................................................................................................................................5 1.4 TEST FACILITY .......................................................................................................................................................5 1.5 EUT SETUP AND TEST MODE .................................................................................................................................6 1.6 MEASUREMENT UNCERTAINTY ..............................................................................................................................8 1.7 TEST EQUIPMENT LIST AND DETAILS .....................................................................................................................9 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 11 3. RF OUTPUT POWER ............................................................................................................................................ 12 3.1 STANDARD APPLICABLE ....................................................................................................................................... 12 3.2 TEST PROCEDURE ................................................................................................................................................. 12 3.3 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 12 4. PEAK-TO-AVERAGE RATIO (PAR) OF TRANSMITTER ............................................................................. 14 4.1 STANDARD APPLICABLE ....................................................................................................................................... 14 4.2 TEST PROCEDURE ................................................................................................................................................. 14 4.3 SUMMARY OF TEST RESULTS ............................................................................................................................... 14 5. EMISSION BANDWIDTH ..................................................................................................................................... 15 5.1 STANDARD APPLICABLE ....................................................................................................................................... 15 5.2 TEST PROCEDURE ................................................................................................................................................. 15 5.3 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 15 6. OUT OF BAND EMISSIONS AT ANTENNA TERMINAL ............................................................................... 16 6.1 STANDARD APPLICABLE ....................................................................................................................................... 16 6.2 TEST PROCEDURE ................................................................................................................................................. 16 6.3 SUMMARY OF TEST RESULTS/PLOTS ................................................…

Text truncated - open the document above for the full version.
