2AMLF-JM-VG02UGPS VEHICLE TERMINAL with GSM

Rollover alert FCC ID : 2AMLF-JM-VG02U This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for hority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Please keep 20cm use distance away from human body.

ShenZhen Jimi loT Co., Ltd Date: 2021/03/03 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: ShenZhen Jimi loT Co., Ltd FCC ID: 2AMLF-JM-VG02U Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. ShenZhen Jimi loT Co., Ltd requests that the following documents regarding this submission for FCC ID:2AMLF-JM-VG02U be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematic.pdf Operational Description Operational description.pdf Part list Tune Up limit BOM.pdf Power Tune-up Tolerance Those documents contain detailed system and equipment description and related information about the product which ShenZhen Jimi loT Co., Ltd considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, ShenZhen Jimi loT Co., Ltd considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely,

ShenZhen Jimi loT Co., Ltd Date: 2021/03/03 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The ShenZhen Jimi loT Co., Ltd, the undersigned, hereby authorizes Mrs. Wendy Zhan from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the ShenZhen Jimi loT Co., Ltd solely in matters relating to the application for an FCC equipment authorization for FCC ID: 2AMLF-JM-VG02U including the signing of documents in connection with this Application. Necessary acts carried out Shenzhen Morlab Communications Technology Co., Ltd. on our behalf of the ShenZhen Jimi loT Co., Ltd in connection with the Application shall have the same effect as acts of the ShenZhen Jimi loT Co., Ltd. ShenZhen Jimi loT Co., Ltd also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Thank you for your attention to this matter. Yours Sincerely, Signatory: Contact name:Chosen Gao Title:administrator Tel:+86-755-29121200 Email:[email protected] Company name: ShenZhen Jimi loT Co., Ltd

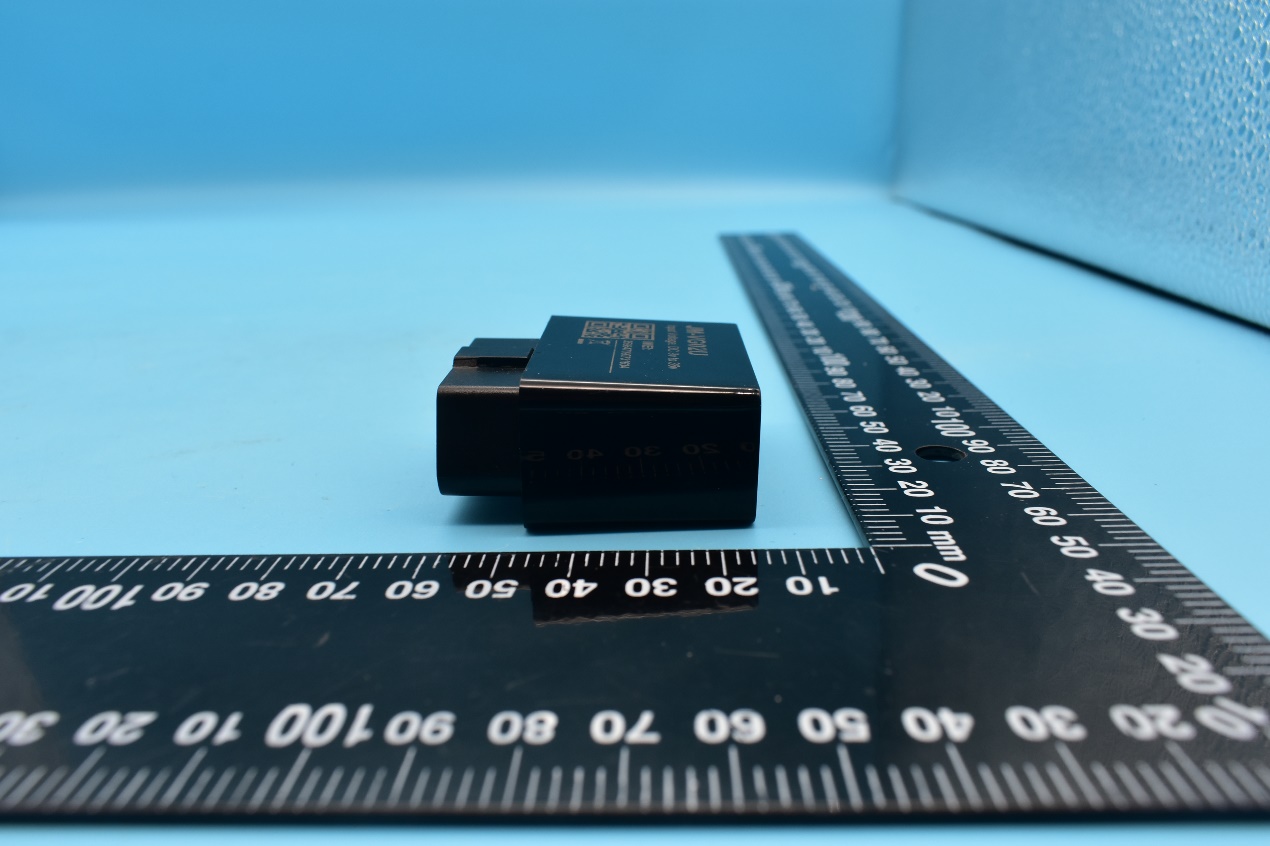

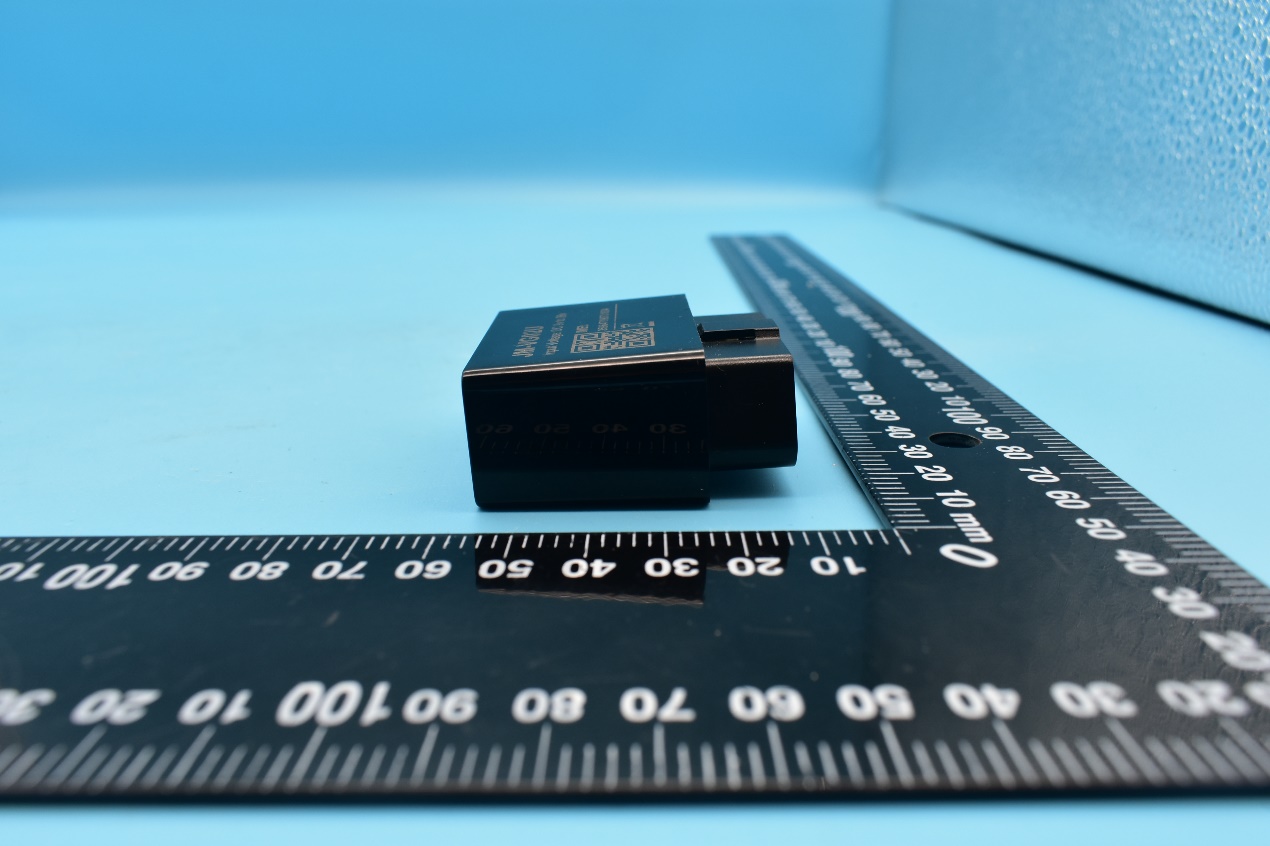

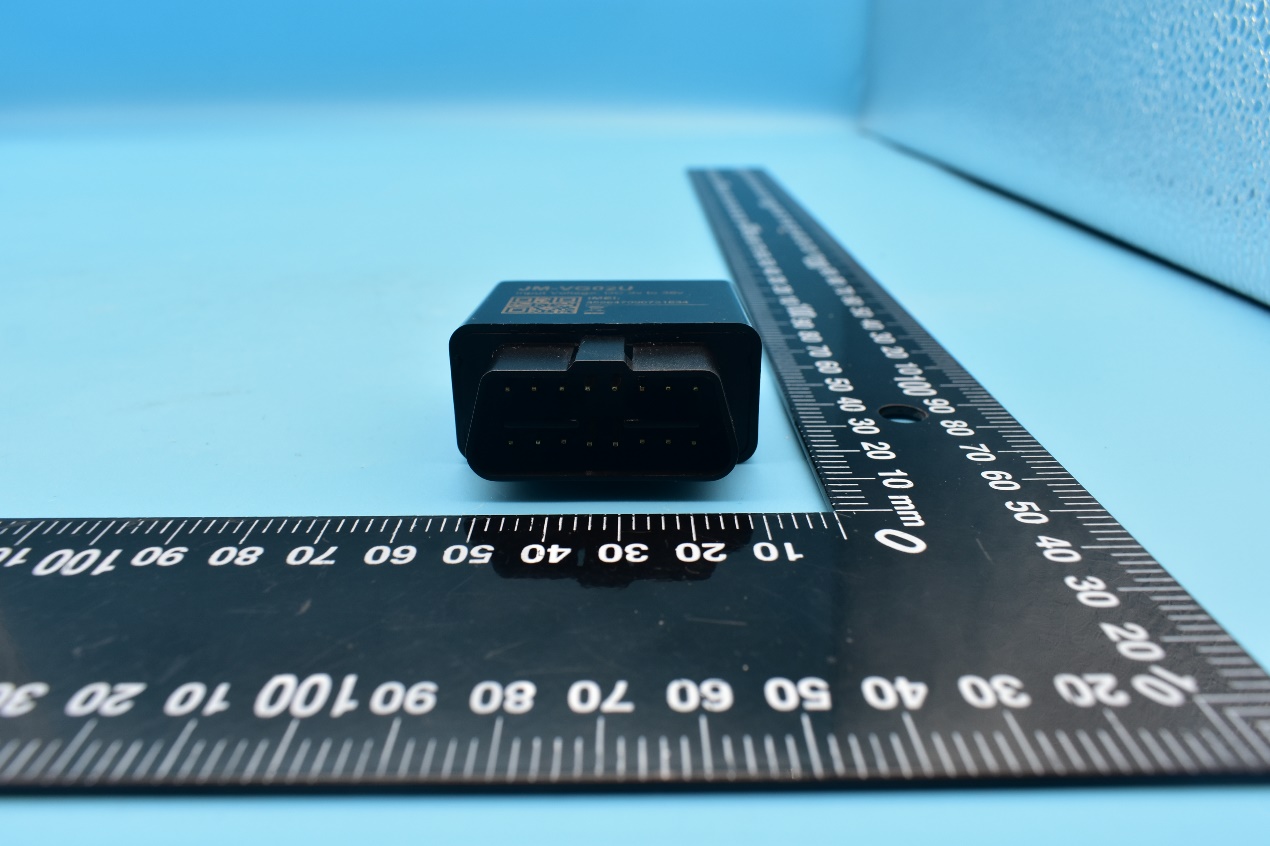

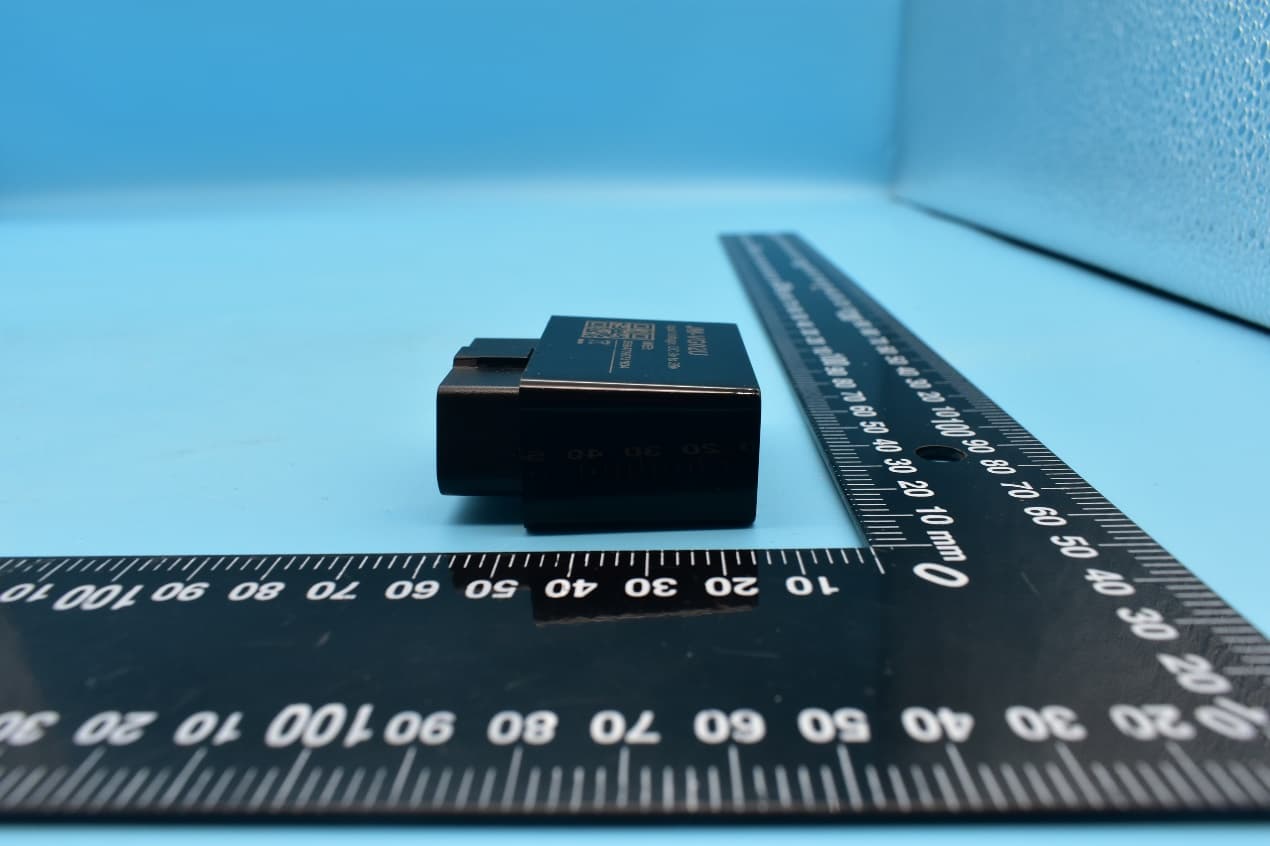

FCC ID:2AMLF-JM-VG02U External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view

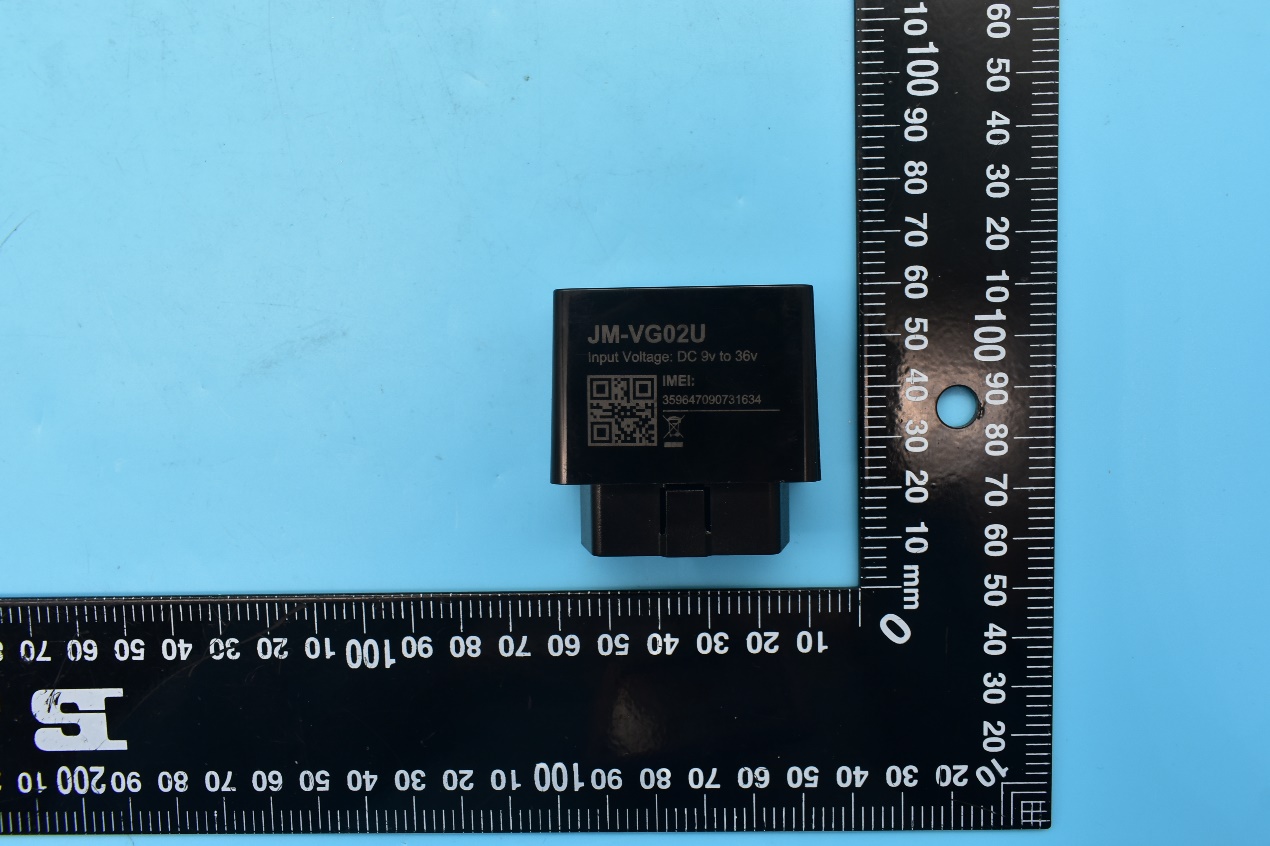

JM-VG02U Input Voltage: DC 9v to 36v FCC ID: 2AMLF-JM-VG02U IMEI: 357301091884276

FCC ID:2AMLF-JM-VG02U Internal Photos 1. EUT uncover view 2. Antenna view GSM Antenna

NOTE: This document is issued by MORLAB, the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 9 REPORT No.：SZ21010259S01 RF EXPOSURE EVALUATION REPORT APPLICANT : ShenZhen Jimi loT Co., Ltd PRODUCT NAME : GPS VEHICLE TERMINAL MODEL NAME : JM-VG02U, VG02U BRAND NAME : JIMI FCC ID : 2AMLF-JM-VG02U STANDARD(S) : 47CFR 2.1091 KDB 447498 RECEIPT DATE : 2021-01-25 TEST DATE : 2021-02-07 ISSUE DATE : 2020-03-01 Edited by: Gan Yueming (Rapporteur) Approved by: Peng Huarui (Supervisor) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ21010259S01 Page 2 of 9 DIRECTORY 1. Technical Information········································································································ 3 1.1 Applicant and Manufacturer Information ····································································· 3 1.2 Equipment under Test (EUT) Description ···································································· 3 1.3 Applied Reference Documents ····················································································· 4 2. Device Category and RF Exposure Limit ······································································· 5 3. Test Equipment List ··········································································································· 6 4. RF Output Power ··············································································································· 7 5. RF Exposure Assessment ································································································ 8 Annex A General Information ································································································· 9 Change History Version Date Reason for Change 1.0 2021-03-01 First edition MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ21010259S01 Page 3 of 9 1. Technical Information Note: Provide by applicant. 1.1 Applicant and Manufacturer Information Applicant: ShenZhen Jimi loT Co., Ltd Applicant Address: Subregion B, Room 05,Floor 4th, Building C, Gaoxingi Industrial Park, Liuxian 1st Road, Street Xin'an,district 67, Bao'an, Shenzhen, Guangdong,China Manufacturer: Huizhou Jimi Zhizao Technology Co. Ltd Manufacturer Address: No.12 Songyang Road, ZhongKai Development Zone, Huizhou Guangdong 1.2 Equipment under Test (EUT) Description Product Name: GPS VEHICLE TERMINAL Hardware Version: V3.0 Software Version: NF6132_10_61DA1R1_D23_R0_V02_WM_20200323_1739 Frequency Bands: GSM 850: 824 MHz ~ 849 MHz GSM 1900: 1850 MHz ~ 1910 MHz Modulation Mode: GPRS: GMSK Antenna Type: FPC Antenna Antenna Gain: GSM850: -2.5dBi GSM1900: -1.5dBi Note: When the test result is a critical value, we will use the measurement uncertainty give the judgment result based on the 95% risk level. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ21010259S01 Page 4 of 9 1.3 Applied Reference Documents Leading reference documents for testing: No. Identity Document Title Note 1: Method determination /Remark 1 47 CFR§2.1091 Radio Frequency Radiation Exposure Assessment: mobile devices Note 2: No deviation 2 KDB 447498 D01v06 General RF Exposure Guidance Note 3: No deviation Note 1: The test item is not applicable. Note 4: Note 2: Additions to, deviation, or exclusions from the method shall be judged in the "method determination" column of add, deviate or exclude from the specific method shall be explained in the "Remark" of the above table. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ21010259S01 Page 5 of 9 2. Device Category and RF Exposure Limit Per user manual, Based on 47CFR 2.1091, this device belongs to mobile device category with General Population/Uncontrolled exposure. Mobile Devices: 47CFR 2.1091(b) For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile devices if they meet the 20 centimeter separation requirement. General Population/Uncontrolled Exposure: The general population/uncontro…

Text truncated - open the document above for the full version.

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 39 REPORT No.：SZ21010259W01 TEST REPORT APPLICANT : ShenZhen Jimi loT Co., Ltd PRODUCT NAME : GPS VEHICLE TERMINAL MODEL NAME :JM-VG02U, VG02U BRAND NAME : JIMI FCC ID : 2AMLF-JM-VG02U STANDARD(S) : 47 CFR Part 22 Subpart H 47 CFR Part 24 Subpart E RECEIPT DATE : 2021-01-25 TEST DATE :2021-02-08 to 2021-02-25 ISSUE DATE :2021-03-12 Edited by: Peng Mi (Rapporteur) Approved by: Peng Huarui (Supervisor) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 39 REPORT No.：SZ21010259W01 DIRECTORY 1. Technical Information ··················································································· 3 1.1. Applicant and Manufacturer Information ······················································· 3 1.2. Equipment Under Test (EUT) Description ······················································ 3 1.3. Maximum E.R.P./E.I.R.P. and Emission Designator ········································· 5 1.4. Test Standards and Results ········································································ 6 1.5. Environmental Conditions ·········································································· 7 2. 47 CFR Part 2, Part 22H , 24E Requirements ···················································· 8 2.1. Conducted RF Output Power ······································································· 8 2.2. Peak to Average Ratio ··············································································· 10 2.3. Occupied Bandwidth ················································································· 13 2.4. Frequency Stability ··················································································· 17 2.5. Conducted Out of Band Emissions ····························································· 19 2.6. Band Edge ······························································································· 22 2.7. Determining E.R.P. and/or E.I.R.P. from conducted RF output power measurements ································································································· 24 2.8. Radiated Out of Band Emissions ································································ 26 Annex A Test Uncertainty ················································································ 35 Annex B Testing Laboratory Information ··························································· 36 Change History Version Date Reason for change 1.0 2021-03-12 First edition MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 39 REPORT No.：SZ21010259W01 1. Technical Information Note: Provide by applicant. 1.1. Applicant and Manufacturer Information Applicant: ShenZhen Jimi loT Co., Ltd Applicant Address: Subregion B, Room 05,Floor 4th, Building C, Gaoxingi Industrial Park, Liuxian 1st Road, Street Xin'an, district 67, Bao'an, Shenzhen, Guangdong, China Manufacturer: Huizhou Jimi Zhizao Technology Co. Ltd Manufacturer Address: No.12 Songyang Road, ZhongKai Development Zone, Huizhou Guangdong 1.2. Equipment Under Test (EUT) Description Product Name: GPS VEHICLE TERMINAL Serial No.: (N/A, marked #1 by test site) Hardware Version: V3.0 Software Version: NF6132_10_61DA1R1_D23_R0_V02_WM_20200323_1739 Modulation Type: GSM/GPRS Mode with GMSK Modulation EDGE Mode with 8PSK Modulation Operating Frequency Range: GSM 850MHz Tx: 824MHz-849MHz Rx: 869MHz-894MHz GSM 1900MHz Tx: 1850MHz-1910MHz Rx: 1930MHz-1990MHz Antenna Type: FPC Antenna Antenna Gain: GSM 850: -3.0dBi GSM1900: -1.8dBi Accessory Information: Battery Brand Name: Miyear Model No.: M301520 Serial No.: (N/A, marked #1 by test site) Capacity: 50.00mAh Rated Voltage: 3.70V Charge Limit: 4.28V Manufacturer: Dongguan Miyear Battery Co., Ltd MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 39 REPORT No.：SZ21010259W01 Note 1: According to the certificate holder, they declared that the models: JM-VG02U and VG02U only the model numbers are different, everything else is the same. The main measuring model is JM-VG02U, only the results for JM-VG02U were recorded in this report. Note 2: The transmitter (Tx) frequency arrangement of the Cellular 850MHz band used by the EUT can be represented with the formula F(n)=824.2+0.2*(n-128), 128<=n<=251; the lowest, middle, highest channel numbers (ARFCHs) used and tested in this report are separately 128 (824.2MHz), 189 (836.4MHz) and 251 (848.8MHz). Note 3: The transmitter (Tx) frequency arrangement of the PCS 1900MHz band used by the EUT can be represented with the formula F(n)=1850.2+0.2*(n-512), 512<=n<=810; the lowest, middle and highest channel numbers (ARFCHs) used and tested in this report are separately 512 (1850.2MHz), 661 (1880.0MHz) and 810 (1909.8MHz). Note 4: All test modes and data rates were considered and evaluated respectively by performing full test. Test modes are chosen to be reported as the worst case below: GSM mode and EDGE mode for GSM 850; GSM mode and EDGE mode for GSM 1900; Note 5: For a more detailed description, please refer to Specification or User’s Manual supplied by th…

Text truncated - open the document above for the full version.

FCC ID:2AMLF-JM-VG02U Test Setup Photos 1. RF measurement setup (GPRS) 2. Radiated Spurious Emission(30MHz-1GHz) 3. Radiated Spurious Emission(above 1GHz)
