2AMLF-JM-VL03GNSS Vehicle Terminal

FCC Radiation Exposure Statement: This equ ipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and o perated with minimum distance 20cm between the radiator & your body. FCC Warning This d evice comp lies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this d evice must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

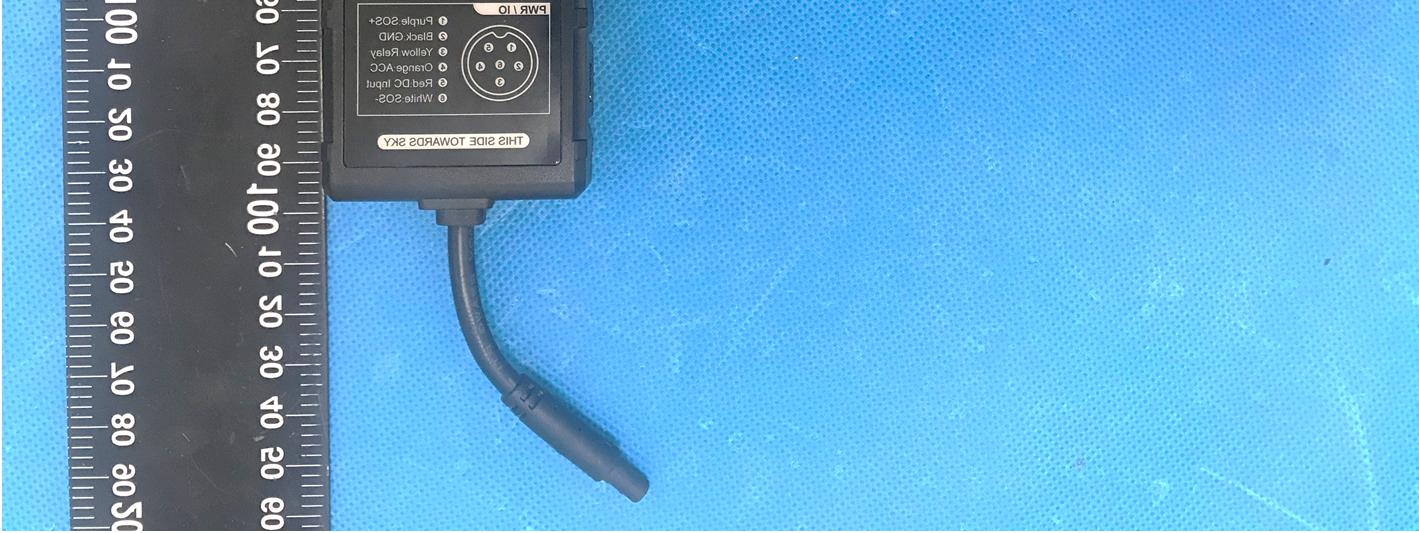

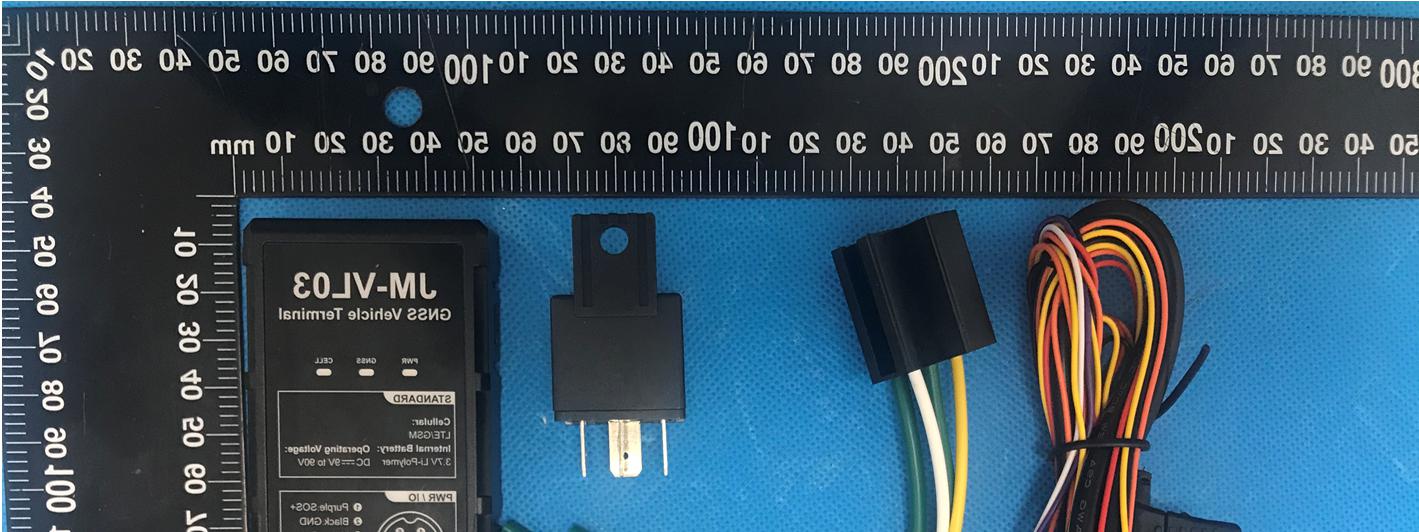

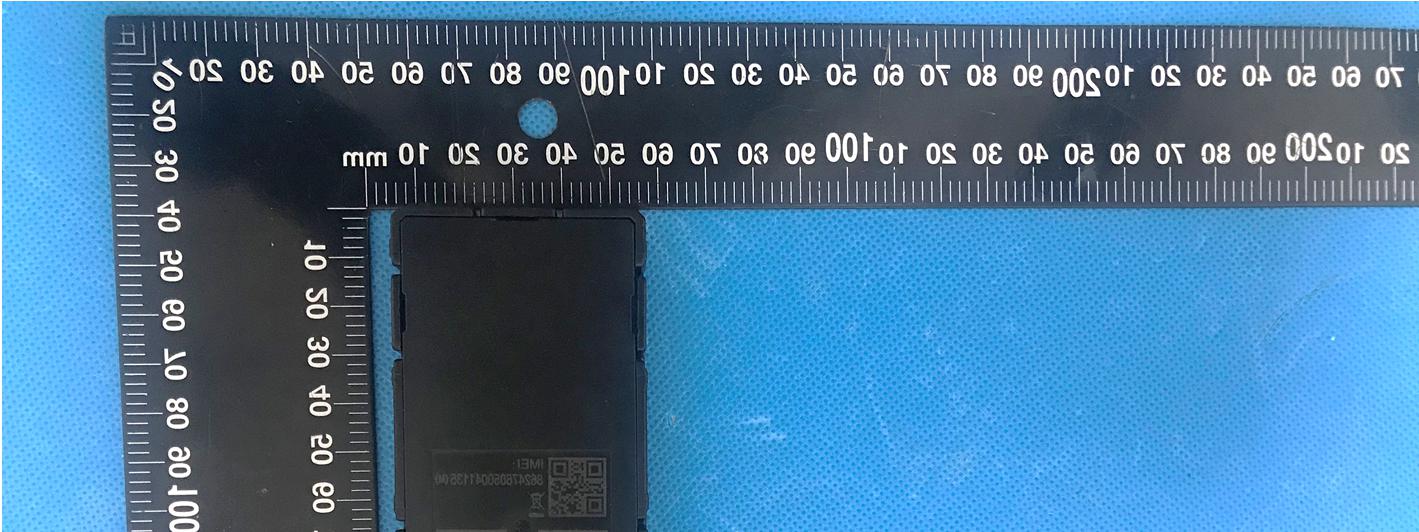

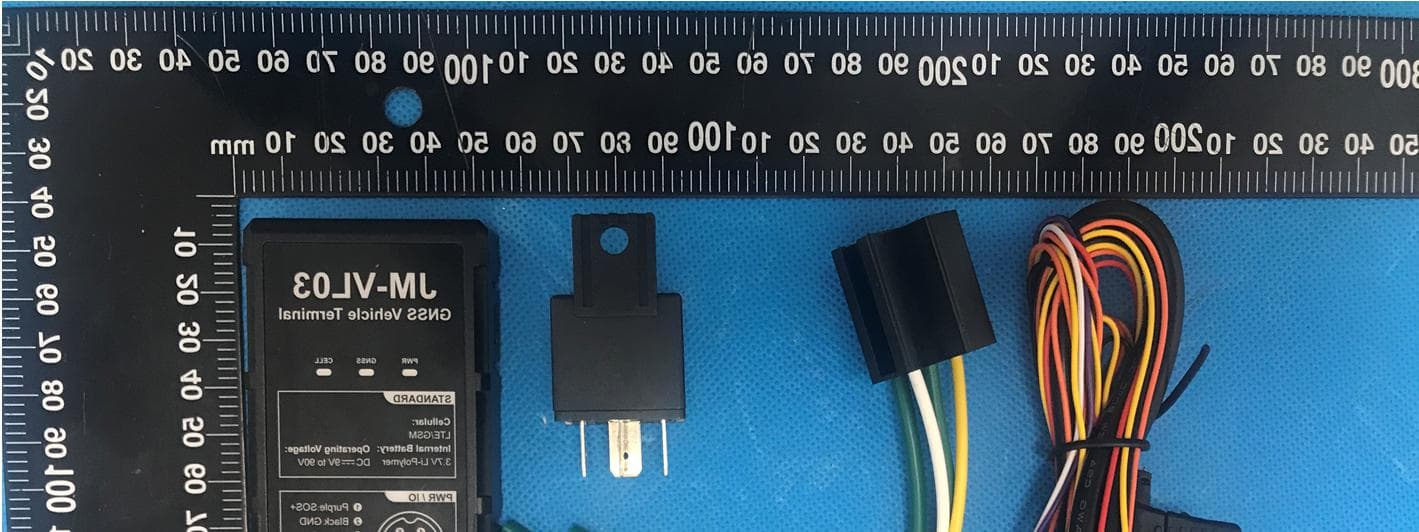

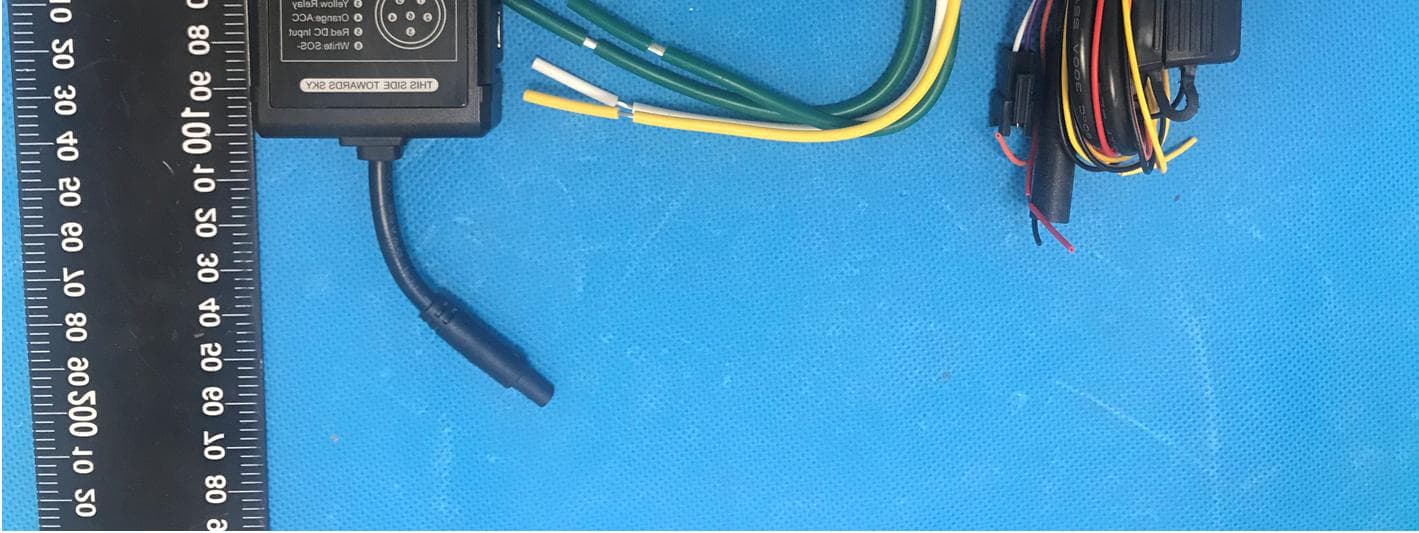

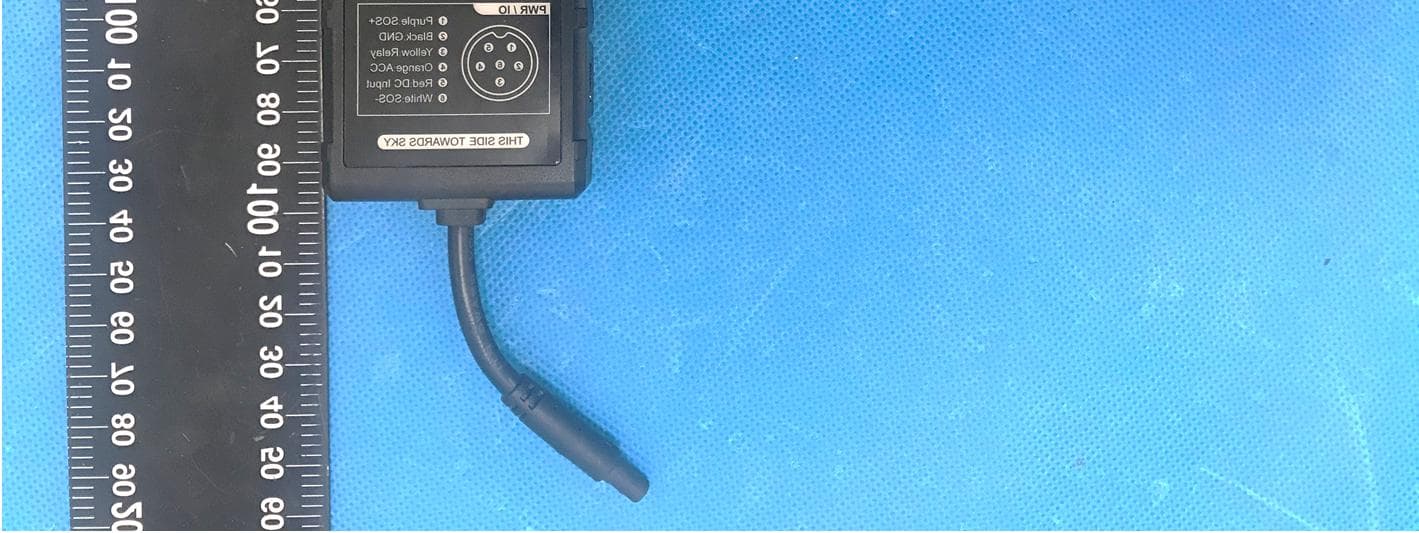

Reference No.: WTX21X06058400W-1/2 Page 2 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX21X06058400W-1/2 Page 3 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTX21X06058400W-1/2 Page 4 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6 Reference No.: WTX21X06058400W-1/2 Page 5 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 7

Reference No.: WTX21X06058400W-1/2 Page 1 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX21X06058400W-1/2 Page 6 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Reference No.: WTX21X06058400W-1/2 Page 7 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 2 Solder Board-Component View 3 Reference No.: WTX21X06058400W-1/2 Page 8 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 4 Antenna View

1. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 General Information Client Information Applicant: Shenzhen Jimi IOT Co., Ltd Address of applicant: 4/F, Gaoxinqi Industrial Park, Area 67, Xingdong Community, Xin'an Subdistrict, Bao'an District, Shenzhen Applicant: Shenzhen Jimi IOT Co., Ltd Address of applicant: 4/F, Gaoxinqi Industrial Park, Area 67, Xingdong Community, Xin'an Subdistrict, Bao'an District, Shenzhen General Description of EUT: Product Name: GNSS Vehicle Terminal Trade Name JIMI Model No.: JM-VL03 Adding Model(s): JM-VL03L, JM-VL03M, JM-VL03E, VL03, JM-EL103, EL103, JM-EV40, EV40 Rated Voltage: Input:DC12/24V Battery: Built-in battery DC3.7V Adapter Model: / Software Version: VT81_V141_WAAP Hardware Version: VT81-MB FCC ID: 2AMLF-JM-VL03 Equipment Type: Mobile Technical Characteristics of EUT: 2G Support Networks: GSM, GPRS Support Band: GSM850/PCS1900 Uplink Frequency: GSM/GPRS 850: 824~849MHz GSM/GPRS 1900: 1850~1910MHz Downlink Frequency: GSM/GPRS 850: 869~894MHz GSM/GPRS 1900: 1930~1990MHz Max RF Output Power: GSM850: 32.69dBm, GSM1900: 29.62dBm Type of Emission: GSM850: 235KGXW, GSM1900: 236KGXW Type of Modulation: GMSK Type of Antenna: Integral Antenna Antenna Gain: GSM850: -2.4dBi; GSM1900: -2.1dBi GPRS/EDGE Class: Class 12 4G Support Networks: FDD-LTE Support Band: FDD-LTE Band 2, 4, 5, 7,12, 13 Uplink Frequency: FDD-LTE Band 2: Tx: 1850-1910MHz, FDD-LTE Band 4: Tx: 1710-1755MHz, FDD-LTE Band 5: Tx: 824-849MHz, FDD-LTE Band 7: Tx: 2500-2570MHz, FDD-LTE Band 12: Tx: 699-716MHz, FDD-LTE Band 13: Tx: 777-787MHz, Downlink Frequency: FDD-LTE Band 2: Rx: 1930-1990MHz, FDD-LTE Band 4: Rx: 2110-2155MHz, FDD-LTE Band 5: Rx: 869-894MHz, FDD-LTE Band 7: Rx: 2620-2690MHz, FDD-LTE Band 12: Rx: 729-746MHz, FDD-LTE Band 13: Rx: 746-756MHz, RF Output Power: FDD-LTE Band 2: 24.22dBm, FDD-LTE Band 4: 24.41dBm, FDD-LTE Band 5: 23.83dBm, FDD-LTE Band 7: 23.57dBm, FDD-LTE Band 12: 23.91dBm, FDD-LTE Band 13: 23.96dBm, Type of Emission: FDD-LTE Band 2: 17M9G7D, 17M9W7D FDD-LTE Band 4: 17M9G7D, 17M9W7D FDD-LTE Band 5: 8M98G7D, 8M97W7D FDD-LTE Band 7: 17M9G7D, 17M9W7D FDD-LTE Band 12: 9M00G7D, 8M99W7D FDD-LTE Band13: 8M99G7D, 8M99W7D Type of Modulation: QPSK, 16QAM Antenna Type: Integral Antenna Antenna Gain: FDD-LTE Band 2: -2.1dBi, FDD-LTE Band 4: -1.8dBi, FDD-LTE Band 5: -2.4dBi, FDD-LTE Band 7: -1.6dBi, FDD-LTE Band 12: -2.8dBi, FDD-LTE Band 13: -2.5dBi 1.2 Standard Applicable According to §1.1307(b)(1) and KDB 447498 D01 General RF Exposure Guidance v06, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. (a) Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 / / F/300 6 1500-100000 / / 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-100000 / / 1 30 Note: f = frequency in MHz: * = Plane-wave equivalents power density 1.3 MPE Calculation Method S = (30*P*G) / (377*R 2 ) S = power density (in appropriate units, e.g., mw/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mw) G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor is normally numeric gain. R = distance to the center of radiation of the antenna (in appropriate units, e.g., cm) 1.4 MPE Calculation Result For GSM850 Maximum Tune-Up output power: 33.0(dBm) Maximum peak output power at antenna input terminal: 1995.26 (mW) Prediction distance: >20(cm) Prediction frequency: 836.6 (MHz) Antenna gain: -2.4(dBi) Directional gain (numeric gain): 0.58 The worst case is power density at prediction frequency at 20cm: 0.2284 (mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 0.5577 (mw/cm 2 ) For PCS1900 Maximum Tune-Up output power: 30.0(dBm) Maximum peak output power at antenna input terminal: 1000.00 (mW) Prediction distance: >20(cm) Prediction frequency: 1880.0 (MHz) Antenna gain: -2.1 (dBi) Directional gain (numeric gain): 0.62 The worst case is power density at prediction frequency at 20cm: 0.1227 (mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) For FDD-LTE Band 2 Maximum Tune-Up output power: 24.5(dBm) Maximum peak output power at antenna input terminal: 281.84 (mW) Prediction distance: >20(cm) Prediction frequency: 1900.0 (MHz) Antenna gain: -2.1 (dBi) Directional gain (numeric gain): 0.62 The worst case is power density at prediction frequency at 20cm: 0.0346 (mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) For FDD-LTE Band 4 Maximum Tune-Up output power: 24.5 (dBm) Maximum peak output power at antenna input terminal: 281.84 (mW) Prediction distance: >20(cm) Prediction frequency: 1745.0 (MHz) Antenna gain: -1.8 (dBi) Directional gain (numeric gain): 0.66 The worst case is power density at prediction frequency at 20cm: 0.0370 (mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) For FDD-LTE Band 5 Maximum Tune-Up output power: 24.0(dBm) Maximum peak output power at antenna input terminal: 251.19 (mW) Prediction distance: >20(cm) Prediction frequency: 844.0 (MHz) Antenna gain: -2.4 (dBi) Directional gain (numeric gain): 0.58 The worst case is power density at prediction frequency at 20cm: 0.0288 (mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 0.5626 (mw/cm 2 ) For FDD-LTE Band 7 Maximum Tune-Up output po…

Text truncated - open the document above for the full version.

Reference No.: WTX21X06058400W-2 Page 1 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Appendix for Band 2 Appendix A: Average Power Output Data Test Result Band Bandwidth Modulation Channel RB Configuration Result(dBm) Verdict Band2 1.4MHz QPSK 18607 1RB#0 20.91 PASS Band2 1.4MHz QPSK 18607 1RB#2 21.90 PASS Band2 1.4MHz QPSK 18607 1RB#5 21.14 PASS Band2 1.4MHz QPSK 18607 3RB#0 20.85 PASS Band2 1.4MHz QPSK 18607 3RB#1 20.90 PASS Band2 1.4MHz QPSK 18607 3RB#3 21.09 PASS Band2 1.4MHz QPSK 18607 6RB#0 20.55 PASS Band2 1.4MHz QPSK 18900 1RB#0 21.09 PASS Band2 1.4MHz QPSK 18900 1RB#2 21.67 PASS Band2 1.4MHz QPSK 18900 1RB#5 20.80 PASS Band2 1.4MHz QPSK 18900 3RB#0 20.78 PASS Band2 1.4MHz QPSK 18900 3RB#1 20.86 PASS Band2 1.4MHz QPSK 18900 3RB#3 20.69 PASS Band2 1.4MHz QPSK 18900 6RB#0 20.44 PASS Band2 1.4MHz QPSK 19193 1RB#0 21.93 PASS Band2 1.4MHz QPSK 19193 1RB#2 21.80 PASS Band2 1.4MHz QPSK 19193 1RB#5 21.31 PASS Band2 1.4MHz QPSK 19193 3RB#0 21.57 PASS Band2 1.4MHz QPSK 19193 3RB#1 21.51 PASS Band2 1.4MHz QPSK 19193 3RB#3 21.29 PASS Band2 1.4MHz QPSK 19193 6RB#0 20.65 PASS Band2 1.4MHz 16QAM 18607 1RB#0 20.67 PASS Band2 1.4MHz 16QAM 18607 1RB#2 20.70 PASS Band2 1.4MHz 16QAM 18607 1RB#5 20.97 PASS Band2 1.4MHz 16QAM 18607 3RB#0 20.75 PASS Band2 1.4MHz 16QAM 18607 3RB#1 20.66 PASS Band2 1.4MHz 16QAM 18607 3RB#3 20.84 PASS Band2 1.4MHz 16QAM 18607 6RB#0 20.45 PASS Band2 1.4MHz 16QAM 18900 1RB#0 20.86 PASS Band2 1.4MHz 16QAM 18900 1RB#2 20.53 PASS Reference No.: WTX21X06058400W-2 Page 2 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2 1.4MHz 16QAM 18900 1RB#5 20.70 PASS Band2 1.4MHz 16QAM 18900 3RB#0 20.56 PASS Band2 1.4MHz 16QAM 18900 3RB#1 20.64 PASS Band2 1.4MHz 16QAM 18900 3RB#3 20.44 PASS Band2 1.4MHz 16QAM 18900 6RB#0 20.39 PASS Band2 1.4MHz 16QAM 19193 1RB#0 20.81 PASS Band2 1.4MHz 16QAM 19193 1RB#2 20.82 PASS Band2 1.4MHz 16QAM 19193 1RB#5 20.39 PASS Band2 1.4MHz 16QAM 19193 3RB#0 20.45 PASS Band2 1.4MHz 16QAM 19193 3RB#1 20.50 PASS Band2 1.4MHz 16QAM 19193 3RB#3 20.21 PASS Band2 1.4MHz 16QAM 19193 6RB#0 20.66 PASS Band2 3MHz QPSK 18615 1RB#0 20.91 PASS Band2 3MHz QPSK 18615 1RB#8 22.27 PASS Band2 3MHz QPSK 18615 1RB#14 21.41 PASS Band2 3MHz QPSK 18615 8RB#0 21.32 PASS Band2 3MHz QPSK 18615 8RB#4 21.28 PASS Band2 3MHz QPSK 18615 8RB#7 21.83 PASS Band2 3MHz QPSK 18615 15RB#0 20.80 PASS Band2 3MHz QPSK 18900 1RB#0 21.04 PASS Band2 3MHz QPSK 18900 1RB#8 21.77 PASS Band2 3MHz QPSK 18900 1RB#14 20.17 PASS Band2 3MHz QPSK 18900 8RB#0 21.32 PASS Band2 3MHz QPSK 18900 8RB#4 21.28 PASS Band2 3MHz QPSK 18900 8RB#7 20.85 PASS Band2 3MHz QPSK 18900 15RB#0 20.39 PASS Band2 3MHz QPSK 19185 1RB#0 21.47 PASS Band2 3MHz QPSK 19185 1RB#8 22.02 PASS Band2 3MHz QPSK 19185 1RB#14 20.45 PASS Band2 3MHz QPSK 19185 8RB#0 21.66 PASS Band2 3MHz QPSK 19185 8RB#4 21.65 PASS Band2 3MHz QPSK 19185 8RB#7 21.22 PASS Band2 3MHz QPSK 19185 15RB#0 20.81 PASS Band2 3MHz 16QAM 18615 1RB#0 20.73 PASS Band2 3MHz 16QAM 18615 1RB#8 21.09 PASS Band2 3MHz 16QAM 18615 1RB#14 20.59 PASS Band2 3MHz 16QAM 18615 8RB#0 20.59 PASS Reference No.: WTX21X06058400W-2 Page 3 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2 3MHz 16QAM 18615 8RB#4 20.57 PASS Band2 3MHz 16QAM 18615 8RB#7 20.79 PASS Band2 3MHz 16QAM 18615 15RB#0 20.73 PASS Band2 3MHz 16QAM 18900 1RB#0 20.80 PASS Band2 3MHz 16QAM 18900 1RB#8 20.80 PASS Band2 3MHz 16QAM 18900 1RB#14 20.37 PASS Band2 3MHz 16QAM 18900 8RB#0 20.64 PASS Band2 3MHz 16QAM 18900 8RB#4 20.59 PASS Band2 3MHz 16QAM 18900 8RB#7 20.86 PASS Band2 3MHz 16QAM 18900 15RB#0 20.35 PASS Band2 3MHz 16QAM 19185 1RB#0 20.53 PASS Band2 3MHz 16QAM 19185 1RB#8 21.04 PASS Band2 3MHz 16QAM 19185 1RB#14 20.46 PASS Band2 3MHz 16QAM 19185 8RB#0 20.67 PASS Band2 3MHz 16QAM 19185 8RB#4 20.67 PASS Band2 3MHz 16QAM 19185 8RB#7 20.29 PASS Band2 3MHz 16QAM 19185 15RB#0 20.84 PASS Band2 5MHz QPSK 18625 1RB#0 20.90 PASS Band2 5MHz QPSK 18625 1RB#12 22.13 PASS Band2 5MHz QPSK 18625 1RB#24 22.22 PASS Band2 5MHz QPSK 18625 12RB#0 21.05 PASS Band2 5MHz QPSK 18625 12RB#6 21.14 PASS Band2 5MHz QPSK 18625 12RB#13 22.09 PASS Band2 5MHz QPSK 18625 25RB#0 21.20 PASS Band2 5MHz QPSK 18900 1RB#0 21.47 PASS Band2 5MHz QPSK 18900 1RB#12 21.40 PASS Band2 5MHz QPSK 18900 1RB#24 20.59 PASS Band2 5MHz QPSK 18900 12RB#0 21.19 PASS Band2 5MHz QPSK 18900 12RB#6 21.16 PASS Band2 5MHz QPSK 18900 12RB#13 20.43 PASS Band2 5MHz QPSK 18900 25RB#0 20.46 PASS Band2 5MHz QPSK 19175 1RB#0 22.10 PASS Band2 5MHz QPSK 19175 1RB#12 22.05 PASS Band2 5MHz QPSK 19175 1RB#24 20.64 PASS Band2 5MHz QPSK 19175 12RB#0 21.83 PASS Band2 5MHz QPSK 19175 12RB#6 21.82 PASS Band2 5MHz QPSK 19175 12RB#13 21.17 PASS Reference No.: WTX21X06058400W-2 Page 4 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2 5MHz QPSK 19175 25RB#0 21.16 PASS Band2 5MHz 16QAM 18625 1RB#0 20.98 PASS Band2 5MHz 16QAM 18625 1RB#12 21.16 PASS Band2 5MHz 16QAM 18625 1RB#24 21.27 PASS Band2 5MHz 16QAM 18625 12RB#0 20.50 PASS Band2 5MHz 16QAM 18625 12RB#6 20.66 PASS Band2 5MHz 16QAM 18625 12RB#13 21.15 PASS Band2 5MHz 16QAM 18625 25RB#0 20.50 PASS Band2 5MHz 16QAM 18900 1RB#0 20.61 PASS Band2 5MHz 16QAM 18900 1RB#12 20.56 PASS Band2 5MHz 16QAM 18900 1RB#24 20.41 PASS Band2 5MHz 16QAM 18900 12RB#0 20.56 PASS Band2 5MHz 16QAM 18900 12RB#6 20.47 PASS Band2 5MHz 16QAM 18900 12RB#13 20.46 PASS Band2 5MHz 16QAM 18900 25RB#0 20.45 PASS Band2 5MHz 16QAM 19175 1RB#0 21.16 PASS Band2 5MHz 16QAM 19175 1RB#12 21.17 PASS Band2 5MHz 16QAM 19175 1RB#24 20.89 PASS Band2 5MHz 16QAM 19175 12RB#0 20.97 PASS Band2 5MHz 16QAM 19175 12RB#6 20.92 PASS Band2 5MHz 16QAM 19175 12RB#13 20.59 PASS Band2 5MHz 16QAM 19175 25RB#0 20.57 PASS Band2 10MHz QPSK 18650 1RB#0 22.36 PASS Band2 10MHz QPSK 18650 1RB#24 23.40 PASS Band2 10MHz QPSK 18650 1RB#49 23.23 PASS Band2 10MHz QPSK 18650 25RB#0 22.53 PASS Band2 10MHz QPSK 18650 25RB#12 22.54 PASS Band2 10MHz QPSK 18650 25RB#25 23.10 PASS Band2 10MHz QPSK 18650 50RB#0 22.47 PASS …

Text truncated - open the document above for the full version.

Reference No.: WTX21X06058400W-2 Page 29 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-15MHz-16QAM-18900-75RB#0 Band2-15MHz-16QAM-19125-1RB#0 Band2-15MHz-16QAM-19125-75RB#0 Reference No.: WTX21X06058400W-2 Page 30 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-20MHz-QPSK-18700-1RB#0 Band2-20MHz-QPSK-18700-100RB#0 Band2-20MHz-QPSK-18900-1RB#0 Reference No.: WTX21X06058400W-2 Page 31 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-20MHz-QPSK-18900-100RB#0 Band2-20MHz-QPSK-19100-1RB#0 Band2-20MHz-QPSK-19100-100RB#0 Reference No.: WTX21X06058400W-2 Page 32 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-20MHz-16QAM-18700-1RB#0 Band2-20MHz-16QAM-18700-100RB#0 Band2-20MHz-16QAM-18900-1RB#0 Reference No.: WTX21X06058400W-2 Page 33 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-20MHz-16QAM-18900-100RB#0 Band2-20MHz-16QAM-19100-1RB#0 Band2-20MHz-16QAM-19100-100RB#0 Reference No.: WTX21X06058400W-2 Page 34 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Reference No.: WTX21X06058400W-2 Page 35 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Appendix C: 26dB Bandwidth and Occupied Bandwidth Test Result Band Bandwidth Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Band2 1.4MHz QPSK 18607 6RB#0 1.0851 1.310 PASS Band2 1.4MHz QPSK 18900 6RB#0 1.0865 1.332 PASS Band2 1.4MHz QPSK 19193 6RB#0 1.0870 1.367 PASS Band2 1.4MHz 16QAM 18607 6RB#0 1.0864 1.344 PASS Band2 1.4MHz 16QAM 18900 6RB#0 1.0855 1.342 PASS Band2 1.4MHz 16QAM 19193 6RB#0 1.0881 1.331 PASS Band2 3MHz QPSK 18615 15RB#0 2.6801 2.995 PASS Band2 3MHz QPSK 18900 15RB#0 2.6828 3.020 PASS Band2 3MHz QPSK 19185 15RB#0 2.6899 3.002 PASS Band2 3MHz 16QAM 18615 15RB#0 2.6810 2.996 PASS Band2 3MHz 16QAM 18900 15RB#0 2.6791 3.016 PASS Band2 3MHz 16QAM 19185 15RB#0 2.6775 2.978 PASS Band2 5MHz QPSK 18625 25RB#0 4.4781 4.903 PASS Band2 5MHz QPSK 18900 25RB#0 4.4697 4.882 PASS Band2 5MHz QPSK 19175 25RB#0 4.4769 4.881 PASS Band2 5MHz 16QAM 18625 25RB#0 4.4763 4.891 PASS Band2 5MHz 16QAM 18900 25RB#0 4.4714 4.857 PASS Band2 5MHz 16QAM 19175 25RB#0 4.4693 4.879 PASS Band2 10MHz QPSK 18650 50RB#0 8.9897 9.578 PASS Band2 10MHz QPSK 18900 50RB#0 8.9921 9.591 PASS Band2 10MHz QPSK 19150 50RB#0 8.9570 9.537 PASS Band2 10MHz 16QAM 18650 50RB#0 8.9709 9.608 PASS Band2 10MHz 16QAM 18900 50RB#0 8.9745 9.643 PASS Band2 10MHz 16QAM 19150 50RB#0 8.9632 9.592 PASS Band2 15MHz QPSK 18675 75RB#0 13.469 14.36 PASS Band2 15MHz QPSK 18900 75RB#0 13.464 14.38 PASS Band2 15MHz QPSK 19125 75RB#0 13.430 14.29 PASS Band2 15MHz 16QAM 18675 75RB#0 13.461 14.31 PASS Band2 15MHz 16QAM 18900 75RB#0 13.451 14.38 PASS Band2 15MHz 16QAM 19125 75RB#0 13.423 14.29 PASS Band2 20MHz QPSK 18700 100RB#0 17.970 19.00 PASS Band2 20MHz QPSK 18900 100RB#0 17.971 19.09 PASS Band2 20MHz QPSK 19100 100RB#0 17.933 18.99 PASS Band2 20MHz 16QAM 18700 100RB#0 17.959 19.02 PASS Reference No.: WTX21X06058400W-2 Page 36 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2 20MHz 16QAM 18900 100RB#0 17.983 19.05 PASS Band2 20MHz 16QAM 19100 100RB#0 17.938 19.01 PASS Test Graphs Band2-1.4MHz-QPSK-18607-6RB#0 Band2-1.4MHz-QPSK-18900-6RB#0 Band2-1.4MHz-QPSK-19193-6RB#0 Reference No.: WTX21X06058400W-2 Page 37 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-1.4MHz-16QAM-18607-6RB#0 Band2-1.4MHz-16QAM-18900-6RB#0 Band2-1.4MHz-16QAM-19193-6RB#0 Reference No.: WTX21X06058400W-2 Page 38 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-3MHz-QPSK-18615-15RB#0 Band2-3MHz-QPSK-18900-15RB#0 Band2-3MHz-QPSK-19185-15RB#0 Reference No.: WTX21X06058400W-2 Page 39 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-3MHz-16QAM-18615-15RB#0 Band2-3MHz-16QAM-18900-15RB#0 Band2-3MHz-16QAM-19185-15RB#0 Reference No.: WTX21X06058400W-2 Page 40 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-5MHz-QPSK-18625-25RB#0 Band2-5MHz-QPSK-18900-25RB#0 Band2-5MHz-QPSK-19175-25RB#0 Reference No.: WTX21X06058400W-2 Page 41 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-5MHz-16QAM-18625-25RB#0 Band2-5MHz-16QAM-18900-25RB#0 Band2-5MHz-16QAM-19175-25RB#0 Reference No.: WTX21X06058400W-2 Page 42 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-10MHz-QPSK-18650-50RB#0 Band2-10MHz-QPSK-18900-50RB#0 Band2-10MHz-QPSK-19150-50RB#0 Reference No.: WTX21X06058400W-2 Page 43 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-10MHz-16QAM-18650-50RB#0 Band2-10MHz-16QAM-18900-50RB#0 Band2-10MHz-16QAM-19150-50RB#0 Reference No.: WTX21X06058400W-2 Page 44 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-15MHz-QPSK-18675-75RB#0 Band2-15MHz-QPSK-18900-75RB#0 Band2-15MHz-QPSK-19125-75RB#0 Reference No.: WTX21X06058400W-2 Page 45 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-15MHz-16QAM-18675-75RB#0 Band2-15MHz-16QAM-18900-75RB#0 Band2-15MHz-16QAM-19125-75RB#0 Reference No.: WTX21X06058400W-2 Page 46 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-20MHz-QPSK-18700-100RB#0 Band2-20MHz-QPSK-18900-100RB#0 Band2-20MHz-QPSK-19100-100RB#0 Reference No.: WTX21X06058400W-2 Page 47 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-20MHz-16QAM-18700-100RB#0 Band2-20MHz-16QAM-18900-100RB#0 Band2-20MHz-16QAM-19100-100RB#0 Reference No.: WTX21X06058400W-2 Page 48 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Reference No.: WTX21X06058400W-2 Page 49 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Appendix D: Band Edge Test Result Band Bandwidth Modulation Channel RB Configuration Verdict Band2 1.4MHz QPSK 18607…

Text truncated - open the document above for the full version.

Reference No.: WTX21X06058400W-2 Page 55 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-3MHz-QPSK-18615-1RB#0 Band2-3MHz-QPSK-18615-1RB#14 Band2-3MHz-QPSK-18615-15RB#0 Reference No.: WTX21X06058400W-2 Page 56 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-3MHz-QPSK-19185-1RB#0 Band2-3MHz-QPSK-19185-1RB#14 Band2-3MHz-QPSK-19185-15RB#0 Reference No.: WTX21X06058400W-2 Page 57 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-3MHz-16QAM-18615-1RB#0 Band2-3MHz-16QAM-18615-1RB#14 Band2-3MHz-16QAM-18615-15RB#0 Reference No.: WTX21X06058400W-2 Page 58 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-3MHz-16QAM-19185-1RB#0 Band2-3MHz-16QAM-19185-1RB#14 Band2-3MHz-16QAM-19185-15RB#0 Reference No.: WTX21X06058400W-2 Page 59 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-5MHz-QPSK-18625-1RB#0 Band2-5MHz-QPSK-18625-1RB#24 Band2-5MHz-QPSK-18625-25RB#0 Reference No.: WTX21X06058400W-2 Page 60 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-5MHz-QPSK-19175-1RB#0 Band2-5MHz-QPSK-19175-1RB#24 Band2-5MHz-QPSK-19175-25RB#0 Reference No.: WTX21X06058400W-2 Page 61 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-5MHz-16QAM-18625-1RB#0 Band2-5MHz-16QAM-18625-1RB#24 Band2-5MHz-16QAM-18625-25RB#0 Reference No.: WTX21X06058400W-2 Page 62 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-5MHz-16QAM-19175-1RB#0 Band2-5MHz-16QAM-19175-1RB#24 Band2-5MHz-16QAM-19175-25RB#0 Reference No.: WTX21X06058400W-2 Page 63 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-10MHz-QPSK-18650-1RB#0 Band2-10MHz-QPSK-18650-1RB#49 Band2-10MHz-QPSK-18650-50RB#0 Reference No.: WTX21X06058400W-2 Page 64 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-10MHz-QPSK-19150-1RB#0 Band2-10MHz-QPSK-19150-1RB#49 Band2-10MHz-QPSK-19150-50RB#0 Reference No.: WTX21X06058400W-2 Page 65 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-10MHz-16QAM-18650-1RB#0 Band2-10MHz-16QAM-18650-1RB#49 Band2-10MHz-16QAM-18650-50RB#0 Reference No.: WTX21X06058400W-2 Page 66 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-10MHz-16QAM-19150-1RB#0 Band2-10MHz-16QAM-19150-1RB#49 Band2-10MHz-16QAM-19150-50RB#0 Reference No.: WTX21X06058400W-2 Page 67 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-15MHz-QPSK-18675-1RB#0 Band2-15MHz-QPSK-18675-1RB#74 Band2-15MHz-QPSK-18675-75RB#0 Reference No.: WTX21X06058400W-2 Page 68 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-15MHz-QPSK-19125-1RB#0 Band2-15MHz-QPSK-19125-1RB#74 Band2-15MHz-QPSK-19125-75RB#0 Reference No.: WTX21X06058400W-2 Page 69 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-15MHz-16QAM-18675-1RB#0 Band2-15MHz-16QAM-18675-1RB#74 Band2-15MHz-16QAM-18675-75RB#0 Reference No.: WTX21X06058400W-2 Page 70 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-15MHz-16QAM-19125-1RB#0 Band2-15MHz-16QAM-19125-1RB#74 Band2-15MHz-16QAM-19125-75RB#0 Reference No.: WTX21X06058400W-2 Page 71 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-20MHz-QPSK-18700-1RB#0 Band2-20MHz-QPSK-18700-1RB#99 Band2-20MHz-QPSK-18700-100RB#0 Reference No.: WTX21X06058400W-2 Page 72 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-20MHz-QPSK-19100-1RB#0 Band2-20MHz-QPSK-19100-1RB#99 Band2-20MHz-QPSK-19100-100RB#0 Reference No.: WTX21X06058400W-2 Page 73 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-20MHz-16QAM-18700-1RB#0 Band2-20MHz-16QAM-18700-1RB#99 Band2-20MHz-16QAM-18700-100RB#0

Reference No.: WTX21X06058400W-2 Page 74 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2-20MHz-16QAM-19100-1RB#0 Band2-20MHz-16QAM-19100-1RB#99 Band2-20MHz-16QAM-19100-100RB#0 Reference No.: WTX21X06058400W-2 Page 75 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Reference No.: WTX21X06058400W-2 Page 76 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Appendix E: Conducted Spurious Emission Test Result Band Bandwidth Modulation Channel RB Configuration Frequency Range Verdict Band2 1.4MHz QPSK 18607 1RB#0 Range1:0.009~0.15MHz PASS Band2 1.4MHz QPSK 18607 1RB#0 Range2:0.15~30MHz PASS Band2 1.4MHz QPSK 18607 1RB#0 Range3:30~1000MHz PASS Band2 1.4MHz QPSK 18607 1RB#0 Range4:1000~2000MHz PASS Band2 1.4MHz QPSK 18607 1RB#0 Range5:2000~20000MHz PASS Band2 1.4MHz QPSK 18900 1RB#0 Range1:0.009~0.15MHz PASS Band2 1.4MHz QPSK 18900 1RB#0 Range2:0.15~30MHz PASS Band2 1.4MHz QPSK 18900 1RB#0 Range3:30~1000MHz PASS Band2 1.4MHz QPSK 18900 1RB#0 Range4:1000~2000MHz PASS Band2 1.4MHz QPSK 18900 1RB#0 Range5:2000~20000MHz PASS Band2 1.4MHz QPSK 19193 1RB#0 Range1:0.009~0.15MHz PASS Band2 1.4MHz QPSK 19193 1RB#0 Range2:0.15~30MHz PASS Band2 1.4MHz QPSK 19193 1RB#0 Range3:30~1000MHz PASS Band2 1.4MHz QPSK 19193 1RB#0 Range4:1000~2000MHz PASS Band2 1.4MHz QPSK 19193 1RB#0 Range5:2000~20000MHz PASS Band2 1.4MHz 16QAM 18607 1RB#0 Range1:0.009~0.15MHz PASS Band2 1.4MHz 16QAM 18607 1RB#0 Range2:0.15~30MHz PASS Band2 1.4MHz 16QAM 18607 1RB#0 Range3:30~1000MHz PASS Band2 1.4MHz 16QAM 18607 1RB#0 Range4:1000~2000MHz PASS Band2 1.4MHz 16QAM 18607 1RB#0 Range5:2000~20000MHz PASS Band2 1.4MHz 16QAM 18900 1RB#0 Range1:0.009~0.15MHz PASS Band2 1.4MHz 16QAM 18900 1RB#0 Range2:0.15~30MHz PASS Band2 1.4MHz 16QAM 18900 1RB#0 Range3:30~1000MHz PASS Band2 1.4MHz 16QAM 18900 1RB#0 Range4:1000~2000MHz PASS Band2 1.4MHz 16QAM 18900 1RB#0 Range5:2000~20000MHz PASS Band2 1.4MHz 16QAM 19193 1RB#0 Range1:0.009~0.15MHz PASS Band2 1.4MHz 16QAM 19193 1RB#0 Range2:0.15~30MHz PASS Band2 1.4MHz 16QAM 19193 1RB#0 Range3:30~1000MHz PASS Band2 1.4MHz 16QAM 19193 1RB#0 Range4:1000~2000MHz PASS Band2 1.4MHz 16QAM 19193 1RB#0 Range5:2000~20000MHz PASS Band2 3MHz QPSK 18615 1RB#0 Range1:0.009~0.15MHz PASS Band2 3MHz QPSK 18615 1RB#0 Range2:0.15~30MHz PASS Band2 3MHz QPSK 18615 1RB#0 Range3:30~1000MHz PASS Band2 3MHz QPSK 18615 1RB#0 Range4:1000~2000MHz PASS Band2 3MHz QPSK 18615 1RB#0 Range5:2000~20000MHz PASS Reference No.: WTX21X06058400W-2 Page 77 of 148 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band2 3MHz QPSK 18900 1RB#0 Range1:0.009~0.15MHz PASS Band2 3MHz QPSK 18900 1RB#0 Range2:0.15~30MHz PASS Band2 3MHz QPSK 18900 1RB#0 Range3:30~1000MHz PASS Band2 3MHz QPSK 18900 1RB#0 Range4:1000~2000MHz PASS Band2 3MHz QPSK 18900 1RB#0 Range5:2000~20000MHz PASS Band2 3MHz QPSK 19185 1RB#0 Range1:0.009~0.15MHz PASS Band2 3MHz QPSK 19185 1RB#0 Range2:0.15~30MHz PASS Band2 3MHz QPSK 19185 1RB#0 Range3:30~1000MHz PASS Band2 3MHz QPSK 19185 1RB#0 Range4:1000~2000MHz PASS Band2 3MHz QPSK 19185 1RB#0 Range5:2000~20000MHz PASS Band2 3MHz 16QAM 18615 1RB#0 Range1:0.009~0.15MHz PASS Band2 3MHz 16QAM 18615 1RB#0 Range2:0.15~30MHz PASS Band2 3MHz 16QAM 18615 1RB#0 Range3:30~1000MHz PASS Band2 3MHz 16QAM 18615 1RB#0 Range4:1000~2000MHz PASS Band2 3MHz 16QAM 18615 1RB#0 Range5:2000~20000MHz PASS Band2 3MHz 16QAM 18900 1RB#0 Range1:0.009~0.15MHz PASS Band2 3MHz 16QAM 18900 1RB#0 Range2:0.15~30MHz PASS Band2 3MHz 16QAM 18900 1RB#0 Range3:30~1000MHz PASS Band2 3MHz 16QAM 18900 1RB#0 Range4:1000~2000MHz PASS Band2 3MHz 16QAM 18900 1RB#0 Range5:2000~20000MHz PASS Band2 3MHz 16QAM 19185 1RB#0 Range1:0.009~0.15MHz PASS Band2 3MHz 16QAM 19185 1RB#0 Range2:0.15~30MHz PASS Band2 3MHz 16QAM 19185 1RB#0 Range3:30~1000MHz PASS Band2 3MHz 16QAM 19185 1RB#0 Range4:1000~2000MHz PASS Band2 3MHz 16QAM 19185 1RB#0 Range5:2000~20000MHz PASS Band2 5MHz QPSK 18625 1RB#0 Range1:0.009~0.15MHz PASS Band2 5MHz QPSK 18625 1RB#0 Range2:0.15~30MHz PASS Band2 5MHz QPSK 18625 1RB#0 Range3:30~1000MHz PASS Band2 5MHz QPSK 18625 1RB#0 Range4:1000~2000MHz PASS Band2 5MHz QPSK 18625 1RB#0 Range5:2000~20000MHz PASS Band2 5MHz QPSK 18900 1RB#0 Range1:0.009~0.15MHz PASS Band2 5MHz QPSK 18900 1RB#0 Range2:0.15~30MHz PASS Band2 5MHz QPSK 18900 1RB#0 Range3:30~1000MHz PASS Band2 5MHz QPSK 18900 1RB#0 Range4:1000~2000MHz PASS Band2 5MHz QPSK 18900 1RB#0 Range5:2000~20000MHz PASS Band2 5MHz QPSK 19175 1RB#0 Range1:0.009~0.15MHz PASS Band2 5MHz QPSK 19175 1RB#0 Range2:0.15~30MHz PASS Band2 5MHz QPSK 19175 1RB#0 Range3:30~1000MHz PASS Band2 5MHz Q…

Text truncated - open the document above for the full version.
