2AMLF-VL502LTE OBDII GNSS Tracker

VL502 LTE OBDII GNSS TRACKER User Manual V1.0 The product specifications and information in this document are for reference only and no prior notice will be given if any change is made. Unless otherwise stated, the content of this document is not a guarantee in any form. CONTENTS 5·······Precautions·About·Battery 7·······Troubleshooting 8·······Warranty·Card 1·······Overview 1.1 Appearance -------------------------------------------------01 1.2 Pinout -----------------------------------------------------01 1.3 Status LED Indication ------------------------------------02 2·······Installation 2.1 SIM Card Attachment -------------------------------------03 2.2 Installing the Device --------------------------------------04 6·······Warranty·Instructions·and·Service 6.1 Special Note ------------------------------------------------10 6.2 Warranty Terms --------------------------------------------10 6.3 Note ----- -----------------------------------------------------11 3·······Quick·SMS·Configuration 3.1 Configuring APN and Server Parametes -------------04 3.2 Default configuration settings -------------------------05 4·······Introduction 4.1 Features -----------------------------------------------------06 4.2 Basic characteristics --------------------------------------06 01 Overview 1.1·Appearance 1.2·Pinout Pin NumberPin Namedescription 4GND(-)Ground 5GND(-)Ground 6CAN_HCAN high 7K-Line 14CAN_LCAN low 15L-Line 16VCC(9-36)V DC(+)Power supply(9-36V DC) Making connections simpler 02 1.3·Status·LED·Indication Fast blink [0.1s-0.1s(on-off)]The battery is low. Slow blink [2s-2s(on-off)]The device is charging. Solid onThe charging is complete. Slow blink [0.1s-2s(on-off)]The device operates correctly. Off The battery is under voltage or encounters an internal failure. Power·indicator(Red) Fast blink [0.3s-0.3s(on-off)] The device is searching for satellite signals. Solid on The GNSS module is already fixed a position. Off Device is in sleep mode or not operating. GNSS·indicator(Blue) Fast blink [0.3s-0.3s(on-off)]The GMS is initializing. Solid onThe device is in a call/online. OffNetwork error or no SIM card. Network·indicator(Green) 03 Installation 2.1·SIM·Card·Attachment ・Step 1 Prepare a Nano-SIM. ・ Step 2 Attach the SIM. Place the Nano-SIM card on the SIM card tray and insert it into the SIM card slot. Tips: ・A fter the SIM is in inserted, the device powers on using the backup battery. If the device fails to power due to low battery, you can connect the device to the OBDIl connector of the vehicle to obtain power. ・The SIM card must be inserted correctly, If the SIM is identified and requires a PIN, please disable the PIN request. Making connections simpler 04 2.2·Installing·the·Device ・Connecting the device to the vehicle: Find OBDII Connector in your vehicle (the following figure shows most of common OBD II connector locations). Quick SMS configuration 3.1·Configuring·APN·and·Server·Parameters· To ensure the device gets online and operates correctly, you are advised to check the APN and server settings. You can set the APN and the server via SMS commands if necessarily. ・APN settings It is recommended to contact your network operator to confirm the APN information. Then you can use your phone to deliver the following SMS command to the VL502: APN, apnname# For example: APN, internet# 05 3.2·Default·configuration·settings· Or if your local APN contains a user name and password, you can use the following command to set the APN: APN, apnname, user, password# For example: APN, internet, CLENTE, AMENA# ・Server settings It is recommended to contact your platform service provide to confirm the domain name and IP address of their serve. Then you can use your phone to deliver the following command to the VL502: SERVER, mode, domain name/IP, port, protocol# For example: SERVER,1, www. ydpat. com,8011,0# SERVER,0,211.154.135.113,8011,0# "Mode=1"means to set the server parameters via the domain name; "Mode=0"means to set the server parameters via the IP address. "Protocol=0"means to connect to the server using TCP protocol. ・Movement and ignition detection: Vehicle movement will be detected by accelerometer. Ignition will be detected by vehicle power voltage between 9-36 V. ・Device will send a alert notification to the server if one of these events happen: Vehicle keeps moving at speeds above the threshold for a preset duration. Driver steps on the brake or gas pedal hard, corners rapidly. The device is plugged or unplugged from the OBDII connector. Making connections simpler 06 Introduction 4.1·Features· 4.2·Basic·characteristics ・Communication via 4G LTE networks. Two complementary positioning systems ensure the locations to be accurately displayed on cloud platform. ・Obtains real data of vehicle (accurate mileage, fault code, ACC status, fuel consumption statistics, battery voltage, engine speed, etc.) ・Two complementary positioning systems ensure the locations to be accurately displayed on cloud platform ・Get instant alerts for 4 kinds of dangerous driving behavior, depending on your needs. ・Instant alerts for atypical events such as car fault, collision, overspeed, device pull-out, engine idling, low battery, geo-fence entry/exit, etc. ・Through bluetooth connection you can configure parameters, upgrade software, and debug. ・Ensures constant tracking in the area with poor GPS signal or even without it. ・Simply plug this device into OBD Il socket, you don't have to turn to professionals. Positioning systemGPS/BDS Frequency L1 Positioning accuracy<2.5m CEP Track sensitivity-162 dBm Acquisition sensitivity-148 dBm (cold) /-156 dBM (hot) TTFF (open sky) Avg. hot start <1sec Avg. cold start ≤ 32sec GNSS 07 Communication networkLTE Cat M1&NB Frequency Cat M1： B2/ B4/B5 /B12/B13 Cat NB2: B2 /B4/B5/B12/B13 Cellular Battery160mA/3.7V Input voltage9-36VDC Power· DataK-Line, CAN Bus Data Data Reading Allow information to be read from OBDII port upports OBD protocols: ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230…

Text truncated - open the document above for the full version.

Shenzhen Jimi IoT Co., Ltd. 3‐4/F, Block A, Building#7,Shenzhen International, Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, China Date:July 26, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AMLF-VL502 US Agent – Attestation Statement / Part 2.911(d)(7) Shenzhen Jimi IoT Co., Ltd.certifies, that as ofJuly 26, 2023, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2AMLF-VL502. Shenzhen Jimi IoT Co., Ltd., accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of Shenzhen Jimi IoT Co., Ltd.for FCC ID:2AMLF-VL502. Designated Agent Information: Company Name: FCC US Agent, LLC Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN: 0033402884 Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company:Shenzhen Jimi IoT Co., Ltd. Designated Agent: FCC US Agent, LLC Company Representative: Yi Xie Designated Agent Representative: Tim Payne Signature: Signature:

Shenzhen Jimi IoT Co., Ltd. Agent Authorization Company: Shenzhen Jimi IoT Co., Ltd. Address: 3-4/F, Block A, Building #7, Shenzhen International Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, Guangdong, China Product Name: LTE OBDII GNSS Tracker Model Number(s): VL502, VL502(A), VL502_A, VL04NA, VL04(NA), VL502A Product Description: LTE OBDII GNSS Tracker We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023-07-26 Name: Yi Xie Title: System Engineer Company: Shenzhen Jimi IoT Co., Ltd.

SimilarityDeclaration From:ShenzhenJimiIoTCo.,Ltd. 3-4/F,BlockA,Building#7,ShenzhenInternationalInnovationValley,Dashi1stRoad, NanshanDistrict,Shenzhen,Guangdong,China ShenzhenJimiIoTCo.,Ltd.asownerofthetechnologyand manufactureroftheproducts,VL502andVL502(A), VL502_A,VL04NA,VL04(NA),VL502Adeclaresthatthe productsareidenticalforPCBA,electricalandelectronic parts,theonlydifferenceisthemodelname. Regards, _______________________________ AuthorizedSignature PrintedName：XieYi NameoftheCompany:ShenzhenJimiIoTCo.,Ltd Position:SystemEngineer

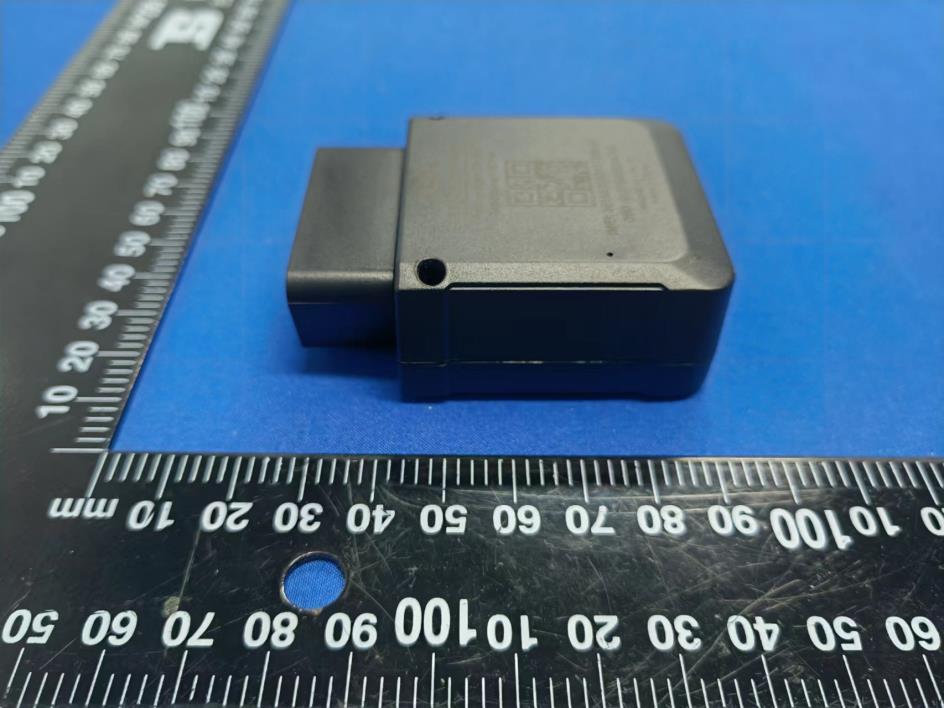

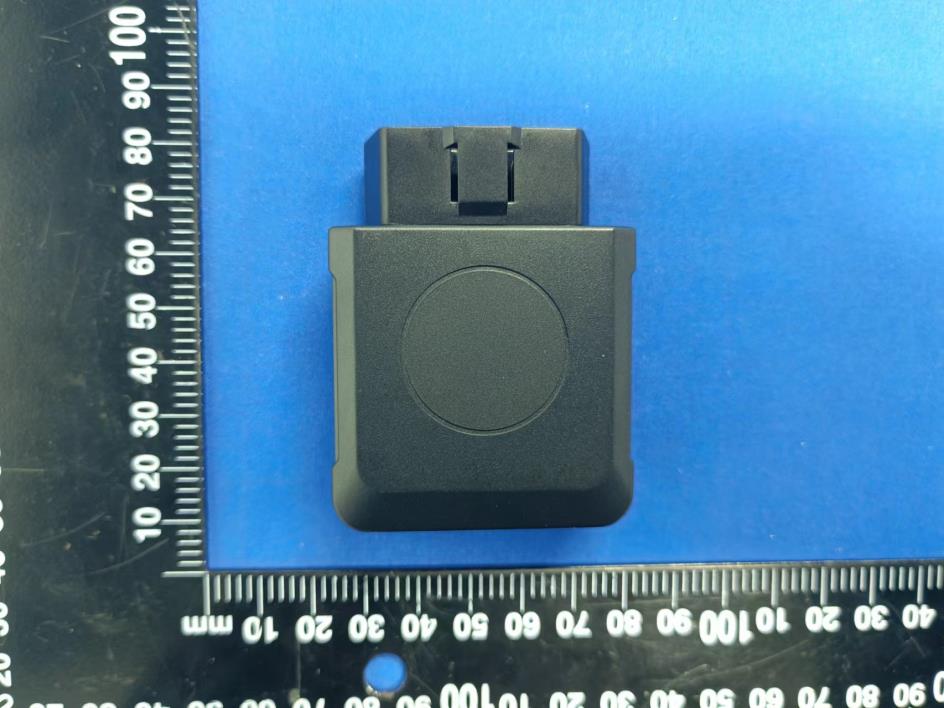

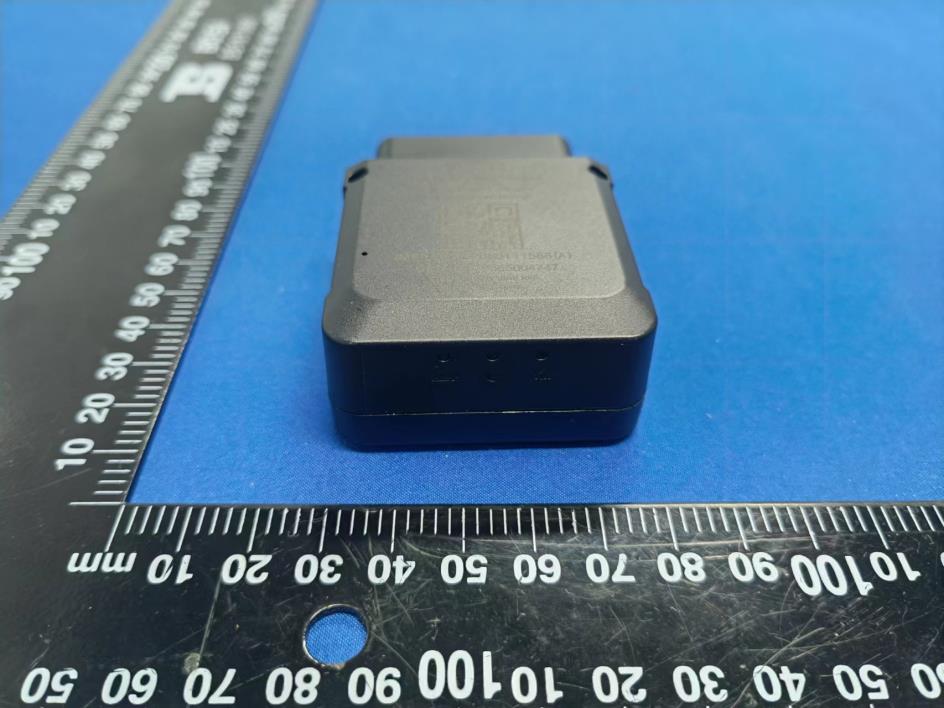

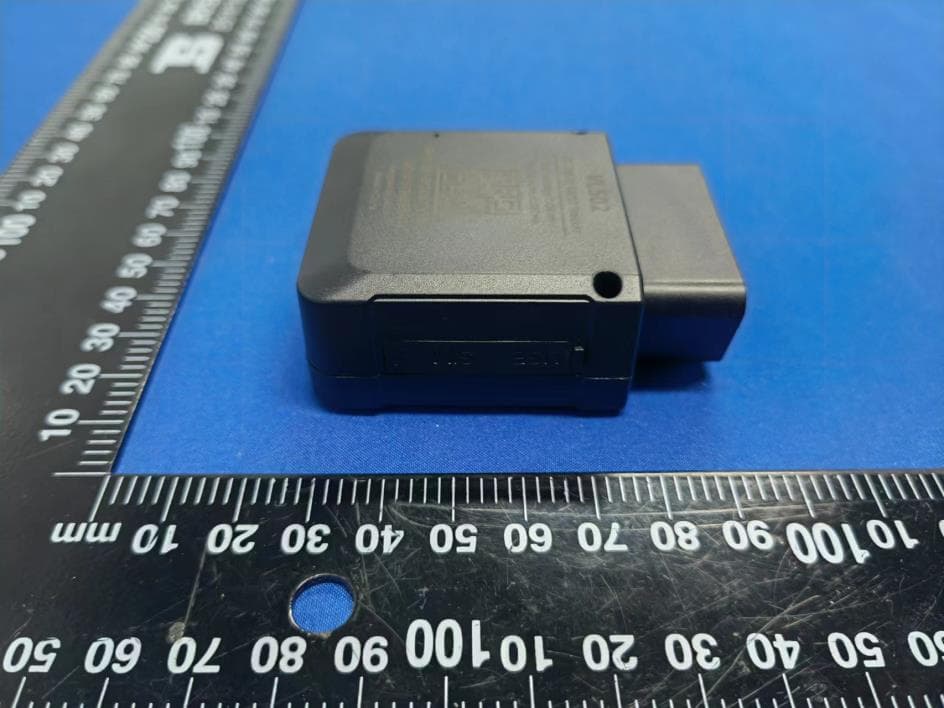

Report No.: BL-SZ2360686-AW 1 / 3 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Report No.: BL-SZ2360686-AW 2 / 3 LEFT SIDE VIEW OF EUT RIGHT SIDE OF EUT Report No.: BL-SZ2360686-AW 3 / 3 TOP VIEW OF EUT BOTTOM VIEW OF EUT --BLANK BELOW--

6.47 11.22 -- 镭雕 -- -- -- -- 2023-04-21 洪淑瑜 变更记录： V1.0

Report No.: BL-SZ2360686-AI 1 / 7 EUT INTERNAL PHOTOS EUT UNCOVER VIEW EUT UNCOVER VIEW Report No.: BL-SZ2360686-AI 2 / 7 EUT UNCOVER VIEW MAIN BOARD TOP VIEW 1 (WITH SHIELDING) BLE ANTENNA 4G Network FDD LTE Band 2/4/5/12/13 Report No.: BL-SZ2360686-AI 3 / 7 MAIN BOARD REAR VIEW 1 (WITH SHIELDING) MAIN BOARD TOP VIEW 1 (WITHOUT SHIELDING) Report No.: BL-SZ2360686-AI 4 / 7 MAIN BOARD REAR VIEW 1 (WITHOUT SHIELDING) MAIN BOARD TOP VIEW 2 (WITH SHIELDING) GPS ANTENNA Report No.: BL-SZ2360686-AI 5 / 7 MAIN BOARD REAR VIEW 2 (WITH SHIELDING) MAIN BOARD TOP VIEW 2 (WITHOUT SHIELDING) Report No.: BL-SZ2360686-AI 6 / 7 MAIN BOARD REAR VIEW 2 (WITHOUT SHIELDING) Battery Photo (TOP) 0 RF Chip Report No.: BL-SZ2360686-AI 7 / 7 Battery Photo (REAR) --BLANK BELOW--

Report No.: BL-SZ2360686-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Shenzhen Jimi IoT Co., Ltd. Address: 3-4/F, Block A, Building #7, Shenzhen International Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, Guangdong, China Equipment Type: LTE OBDII GNSS Tracker Model Name: VL502 (refer to section 2.4) Brand Name: Jimi FCC ID: 2AMLF-VL502 Test Standard: 47 CFR Part 2.1091 KDB 447498 D04 v01 Sample Arrival Date: May 18, 2023 Test Date: Jun. 16, 2023 – Jul. 12, 2023 Date of Issue: Aug. 04, 2023 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Xiong Lining Checked by: Xu Rui Approved by: Tolan Tu (Testing Director) _______________ _______________ _______________ Report No.: BL-SZ2360686-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Content Rev. 01 Jul. 24, 2023 Initial Issue Rev. 02 Aug. 04, 2023 Updated output power and evaluation result in section 5 TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................... 3 1.1 Test Laboratory .............................................................................................................. 3 1.2 Test Location .................................................................................................................. 3 2 PRODUCT INFORMATION ......................................................................................................... 4 2.1 Applicant Information ...................................................................................................... 4 2.2 Manufacturer Information ............................................................................................... 4 2.3 Factory Information ........................................................................................................ 4 2.4 General Description for Equipment under Test (EUT) ................................................... 4 2.5 Ancillary Equipment ........................................................................................................ 4 2.6 Technical Information ..................................................................................................... 5 3 SUMMARY OF TEST RESULT ................................................................................................... 6 3.1 Test Standards ............................................................................................................... 6 4 DEVICE CATEGORY AND LEVELS LIMITS .............................................................................. 7 5 ASSESSMENT RESULT ............................................................................................................. 9 5.1 Output Power ................................................................................................................. 9 5.2 Tune-up power ............................................................................................................. 10 5.3 RF Exposure Evaluation Result ................................................................................... 10 5.4 Conclusion .................................................................................................................... 10 Report No.: BL-SZ2360686-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Test Location Name Shenzhen BALUN Technology Co., Ltd. Location Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1/F, Building B, Ganghongji High-tech Intelligent Industrial Park, No. 1008, Songbai Road, Yangguang Community, Xili Sub-district, Nanshan District, Shenzhen, Guangdong Province, P. R. China Accreditation Certificate The laboratory is a testing organization accredited by FCC as a accredited testing laboratory. The designation number is CN1196. Report No.: BL-SZ2360686-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant Shenzhen Jimi IoT Co., Ltd. Address 3-4/F, Block A, Building #7, Shenzhen International Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, Guangdong, China 2.2 Manufacturer Information Manufacturer Shenzhen Jimi IoT Co., Ltd. Address 3-4/F, Block A, Building #7, Shenzhen International Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, Guangdong, China 2.3 Factory Information Factory Huizhou Newthinking Electronics Co., Ltd. Address The third&sixth floor, 1&2 Factory Buildings, Jimi Industrial Park, No.101 Jinfu Road, Xiaojinkou street, Huicheng District, Huizhou 2.4 General Description for Equipment under Test (EUT) EUT Name LTE OBDII GNSS Tracker Model Name Under Test VL502 Series Model Name VL502(A), VL502_A, VL04NA, VL04(NA), VL502A Description of Model name differentiation All models are same with electrical parameters and in…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2360686-601 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 50 Web: www.titcgroup.com Template No.: TRP-FCC Part 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Shenzhen Jimi IoT Co., Ltd. Address: 3-4/F, Block A, Building #7, Shenzhen International Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, Guangdong, China Equipment Type: LTE OBDII GNSS Tracker Model Name: VL502 (refer to section 2.4) Brand Name: Jimi FCC ID: 2AMLF-VL502 Test Standard: 47 CFR Part 15 Subpart C (refer to section 3.1) Sample Arrival Date: Jun. 15, 2023 Test Date: Jun. 28, 2023 - Jun. 29, 2023 Date of Issue: Jul. 24, 2023 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Julie Zhu Checked by: Ye Hongji Approved by: Liao Jianming (Technical Director) _______________ _______________ _______________ Report No.: BL-SZ2360686-601 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 50 Web: www.titcgroup.com Template No.: TRP-FCC Part 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Rev. 01 Jul. 24, 2023 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................... 4 1.1 Test Laboratory .............................................................................................................. 4 1.2 Test Location .................................................................................................................. 4 2 PRODUCT INFORMATION ......................................................................................................... 5 2.1 Applicant Information ...................................................................................................... 5 2.2 Manufacturer Information ............................................................................................... 5 2.3 Factory Information ........................................................................................................ 5 2.4 General Description for Equipment under Test (EUT) ................................................... 5 2.5 Technical Information ..................................................................................................... 6 3 SUMMARY OF TEST RESULTS ................................................................................................. 7 3.1 Test Standards ............................................................................................................... 7 3.2 Test Verdict .................................................................................................................... 7 4 GENERAL TEST CONFIGURATIONS ........................................................................................ 8 4.1 Test Environments ......................................................................................................... 8 4.2 Test Equipment List ........................................................................................................ 8 4.3 Test Software List ........................................................................................................... 8 4.4 Measurement Uncertainty .............................................................................................. 9 4.5 Description of Test Setup ............................................................................................... 9 4.6 Measurement Results Explanation Example ................................................................ 12 5 TEST ITEMS .............................................................................................................................. 13 5.1 Antenna Requirements ................................................................................................. 13 5.2 Output Power ............................................................................................................... 14 5.3 Occupied Bandwidth .................................................................................................... 16 5.4 Conducted Spurious Emission ..................................................................................... 17 Report No.: BL-SZ2360686-601 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 50 Web: www.titcgroup.com Template No.: TRP-FCC Part 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 5.5 Band Edge (Authorized-band band-edge) .................................................................... 19 5.6 Conducted Emission .................................................................................................... 21 5.7 Radiated Spurious Emission ........................................................................................ 22 5.8 Band Edge (Restricted-band band-edge) ..................................................................... 27 5.9 Power Spectral density (PSD) ...................................................................................... 28 ANNEX A TEST RESULT ............................................................................................................. 29 A.1 Output Power, Duty Cycle ............................................................................................ 29 A.2 Occupied Bandwidth .................................................................................................... 31 A.3 Conducted Spurious Emissions ................................................................................... 33 A.4 Band Edge (Authorized-band band-edge) .................................................................... 36 A.5 Conducted Emissions .......................................…

Text truncated - open the document above for the full version.

1 Antenna SPEC Supplier Name Sunnyway Material Name BT Antenna Specifications Black PIFA, 9.3*15.83mm, spectrum:BT, screen printing: SY-VL04NA-BT-V1.0(JM -V L04NA / Sunnyway) Project Model VL502 Pigment Black Material code/material number Environmental requirements RoHS compliant no-RoHS Confirmed to REACH no-REACH Type New product recognitionMaterial change will be admittedSpecification changes will be admitted State Structure sample qualified Appearance sample qualified Color samples qualified Description of replacement material Date Change description Signature Fill in by supplier Producer/Dat e Reviewer/Dat e Approver/Date Fill in by the company Structural recognition Project recognition Procurement recognition Quality recognition Hardware recognition 第 2 页 共 10 页 Antenna SPEC Customer name：JimiloT Entry name：VL04NA Working frequency band:BT Motherboard version： Sunnyway Material specification Specification type Sunnyway number Customer number BT Antenna SZ23098IB75-2 Revision history Date of preparation/change Change content Altered person Edition 203.07.27 New issue Chen min A Sunnyway Countersign column RD ME： To examine： QE： Approval： RF： To examine： Customer will sign the column Electronic Engineer Project manager Structural Engineer Quality Engineer Tel：＋86-021-64842326 （shanghai）；＋86-0755-82504258（shenzhen） Fax：＋86-021－64842328 Fax：＋86-021－64842328 Shanghai R&D Center Address：Shanghai xuhui district hong cao road 421 (no. 65 hong cao garden) floor, room 302 Shenzhen R&D Center Address: Shenzhen nanshan district Joan yu road no. 8 405 jinke building 4th floor Sunny-way Technology（china）ltd. Company Antenna Specification 第 3 页 共 10 页 ITEM PROJECT PICTURES Antenna SPEC ................................................. 2 1 project pictures ......................................... 3 2．TEST FIXTURE .............................................. 4 3. MATCHING CIRCUIT ........................................ 5 4. S11 test .................................................. 5 5. CHAMBER TEST DATA ......................................... 6 7. Mass production antenna Spec .............................. 9 8. Structural drawings ....................................... 9 Sunny-way Technology（china）ltd. Company Antenna Specification 第 4 页 共 10 页 1. PROJECT PICTURES project pictures shown below： PS： To ensure that the antenna shipment quality, the final prototype Clients validated the antenna’s performance, should be kept in our company for at least a year time, facilitate solving antenna amount during abnormal situation, 2．TEST FIXTURE Purpose： To test antenna passive parameters as accurately as possible。 methods：the fixture is to use a 50 ohm coaxial cable, one end is connected to the pad after the antenna ‘s matching circuit (the front of the antenna switch) , and the other end is connected to the SMA connector. Sunny-way Technology（china）ltd. Company Antenna Specification 第 5 页 共 10 页 3. MATCHING CIRCUIT 4. S11 test 4.0 S11 test method instructions Test equipment：LNA(Agilent E5071B) Test method：With a 50 ohm CABLE ,CABLE export from instrument testing port ，After the calibration with calibration Key, connected to the SMA connector，Records the return loss and VSWR of the related frequency points. Test schematic diagram is as follows： Test schematic diagram item Matching parameters C205 2.7nH L4 0Ω C206 N/C Sunny-way Technology（china）ltd. Company Antenna Specification 第 6 页 共 10 页 4.1 S11 parameter BT ANT VSWR frequency（MHZ） 2400 2500 VSWR 1.83 1.91 5. CHAMBER TEST DATA Test equipment Test system: chamber Test environment: the temperature of 22 °C + 3 °C, humidity of 50% plus or minus 15% Test equipment: to test passive status , use Agilent 5071C to test active status, use CMW500. Sunny-way Technology（china）ltd. Company Antenna Specification 第 7 页 共 10 页 Efficiency & gain Radiation pattern 3D For 24500MHz Phi0° Phi90 ° Theta90° Sunny-way Technology（china）ltd. Company Antenna Specification 第 8 页 共 10 页 6. The model environment processing mode Sunny-way Technology（china）ltd. Company Antenna Specification 第 9 页 共 10 页 6. Ground handling Environmental treatment is not added, according to the customer's original environmental treatment. 7. Mass production antenna Spec During Mass production, to test VSWR as production test standard According to the difference of the project itself, the following specification: Frequency SPEC , Mass Production 2400-2500MHz VSWR（MP performance）<VSWR(Verify performance)+0.5 8. Structural drawings Sunny-way Technology（china）ltd. Company Antenna Specification 第 10 页 共 10 页

Report No.: BL-SZ2360686-AR 1 / 3 TEST SETUP PHOTOS 1 Radiated Test Photo Below 30MHz Close-up Report No.: BL-SZ2360686-AR 2 / 3 30MHz-1GHz Above 1GHz Report No.: BL-SZ2360686-AR 3 / 3 Close-up 2 Conducted Test Photo Conducted Test --BLANK BELOW--
