2AMLFJM-LG04GPS+LBS positioning

FCC regulatory conformance： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. RF Exposure: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

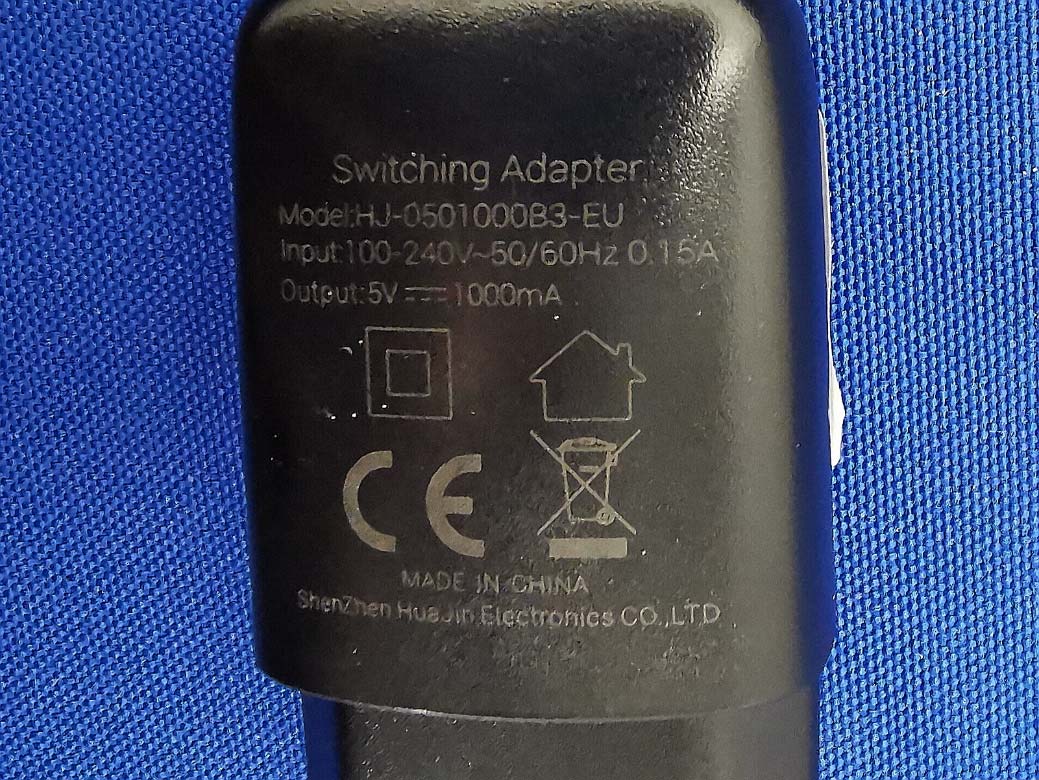

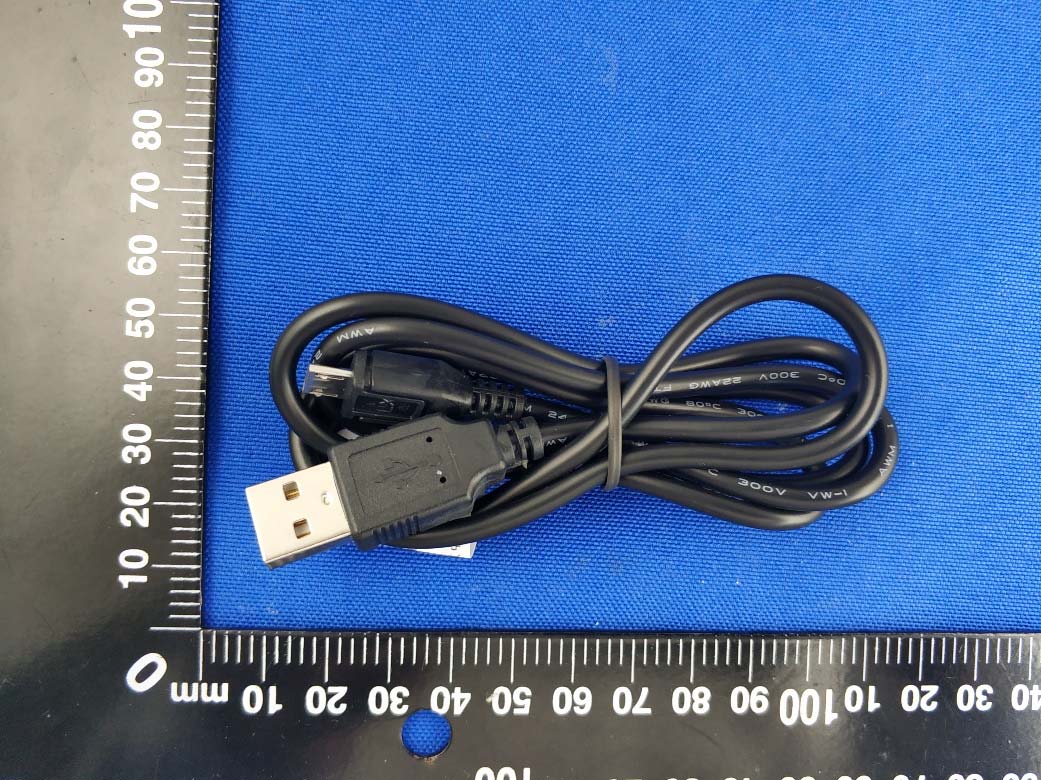

Annex No.: BL-SZ19C0507-AW 1 / 5 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Annex No.: BL-SZ19C0507-AW 2 / 5 LEFT SIDE VIEW OF EUT RIGHT SIDE OF EUT Annex No.: BL-SZ19C0507-AW 3 / 5 TOP VIEW OF EUT BOTTOM VIEW OF EUT B Annex No.: BL-SZ19C0507-AW 4 / 5 Accessory-Adapter 9 CLOSE-UP Annex No.: BL-SZ19C0507-AW 5 / 5 Accessory-USB Cable

Label Note: label is located in back of the device back usb port

Annex No.: BL-SZ19C0507-AI 1 / 4 EUT INTERNAL PHOTOS EUT UNCOVER VIEW EUT UNCOVER VIEW Annex No.: BL-SZ19C0507-AI 2 / 4 MAIN BOARD TOP VIEW (WITH SHIELDING) MAIN BOARD REAR VIEW (WITHOUT SHIELDING) Annex No.: BL-SZ19C0507-AI 3 / 4 MAIN BOARD TOP VIEW (WITHOUT SHIELDING) FPC Antenna GPS Antenna Annex No.: BL-SZ19C0507-AI 4 / 4 Battery Photo (FRONT) Battery Photo (REAR)

RF Exposure Evaluation for FCC ID: 2AMLFJM-LG04 Refer user manual this device is a GPS+LBS positioning, and this device was designed used in Mobile devices that the minimum distance between human’s body is 20cm. Based on the 47CFR 2.1091, this device belongs to Mobile device. The definition of the category as following: Mobile Derives: CFR Title 47 §2.1091(b) (b) For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. FCC KDB 447498 D01 General RF Exposure Guidance v06 Limit Devices operating in standalone mobile exposure conditions may contain a single transmitter or multiple transmitters that do not transmit simultaneously. A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. The minimum test separation distance required for a device to comply with mobile exposure conditions must be clearly identified in the installation and operating instructions, for all installation and exposure conditions, to enable users and installers to comply with RF exposure requirements. For mobile devices that have the potential to operate in portable device exposure conditions, similar to the configurations described in § 2.1091(d)(4), a KDB inquiry is required to determine the SAR test requirements for demonstrating compliance. When the categorical exclusion provision of § 2.1091(c) applies, the minimum test separation distance may be estimated, when applicable, by simple calculations according to plane-wave equivalent conditions, to ensure the transmitter and its antenna(s) can operate in manners that meet or exceed the estimated distance. The source-based time-averaged maximum radiated power, according to the maximum antenna gain, must be applied to calculate the field strength and power density required to establish the minimum test separation distance. When the estimated test separation distance becomes overly conservative and does not support compliance, MPE measurement or computational modeling may be used to determine the required minimum separation distance. According to FCC Part 1.1307, systems operating under the provisions of this section shall be operated in a manner the ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidelines. Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength(E)(V/m) Magnetic Field Strength (H)(A/m) Power Density (S)(mW/cm 2 ) 0.3-1.34 614 1.63 (100)* 1.34-30 824/f 2.19/f (180/f2)* 30-300 27.5 0.073 0.2 300-1500 f/1500 1500-100,000 1.0 MPE calculation formula Where: S = power density P = output power (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = Separation distance between radiator and human body (cm) Test data GPRS Mode GPRS 850 GPRS 1900 Low Channel Middle Channel High Channel Low Channel Middle Channel High Channel Peak Power (dBm) 32.45 32.72 32.82 30.37 30.11 29.80 Note: This report listed the worst case peak power value, please refer to RF test report for more details. Turn-up power Mode Range (dBm) GPRS 850 32.00-33.00 GPRS 1900 29.50-30.50 Test result Evolution mode Maximum peak output power (dBm) Antenna Gain (typical) (dBi) Total Power (mw) Distance (cm) Power Density (mW/cm²) Limit of Power Density (mW/cm²) Verdict GPRS 850 33.00 0.5 2238.72 20 0.45 0.55 Pass GPRS 1900 30.50 0.5 1258.93 20 0.25 1.00 Pass Note: 1. The GPS+LBS positioning work frequency range used is 824 MHz ~ 849 MHz and 1850 MHz ~ 1910 MHz, the result close to the limit by the above formula, so we select worst case power to calculate the exclusion power threshold. 2. More power list please refer to RF test report. Conclusion: RF exposure Evaluation Results: Compliance

Report No.: BL-SZ19C0507-401 2 / 23 Revision History Version Issue Date Revisions Content Rev. 01 Apr. 07, 2020 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ..................................................................................................................... 4 1.1 Identification of the Testing Laboratory ............................................................................................. 4 1.2 Identification of the Responsible Testing Location ............................................................................ 4 1.3 Laboratory Condition ......................................................................................................................... 4 1.4 Announce .......................................................................................................................................... 4 2 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 Applicant Information ........................................................................................................................ 5 2.2 Manufacturer Information .................................................................................................................. 5 2.3 Factory Information ........................................................................................................................... 5 2.4 General Description for Equipment under Test (EUT) ...................................................................... 5 2.5 Ancillary Equipment .......................................................................................................................... 6 2.6 Technical Information ........................................................................................................................ 6 3 SUMMARY OF TEST RESULTS ............................................................................................................. 7 3.1 Test Standards .................................................................................................................................. 7 3.2 Verdict ............................................................................................................................................... 7 3.3 Test Uncertainty ................................................................................................................................ 7 4 GENERAL TEST CONFIGURATIONS .................................................................................................... 8 4.1 Test Environments ............................................................................................................................ 8 4.2 Test Equipment List .......................................................................................................................... 8 4.3 Test Enclosure list ........................................................................................................................... 10 4.4 Test Configurations ......................................................................................................................... 11 4.5 Test Setups ..................................................................................................................................... 12 4.6 Test Conditions ............................................................................................................................... 14 5 TEST ITEMS .......................................................................................................................................... 15 5.1 Emission Tests ................................................................................................................................ 15 ANNEX A TEST RESULTS ....................................................................................................................... 17 Report No.: BL-SZ19C0507-401 3 / 23 A.1 Radiated Emission .......................................................................................................................... 17 A.2 Conducted Emission ....................................................................................................................... 21 ANNEX B TEST SETUP PHOTOS ........................................................................................................... 23 ANNEX C EUT EXTERNAL PHOTOS ...................................................................................................... 23 ANNEX D EUT INTERNAL PHOTOS ....................................................................................................... 23 Report No.: BL-SZ19C0507-401 4 / 23 1 GENERAL INFORMATION 1.1 Identification of the Testing Laboratory Company Name Shenzhen BALUN Technology Co.,Ltd. Address Block B, 1st FL, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 Fax Number +86 755 6182 4271 1.2 Identification of the Responsible Testing Location Test Location Shenzhen BALUN Technology Co.,Ltd. Address Block B, 1st FL, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Accreditation Certificate The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 11524A-1. The laboratory is a testing organizatin accredited by FCC as a accredited testing laboratory. The designation number is CN1196. The laboratory is a testing organization accredited by American Association for Laboratory Accreditation(A2LA) according to ISO/IEC 17025.The accreditation certificate is 4344.01. The laboratory is a testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L6791. Description All measurement fa…
