2AMLFJM-LG05Asset GPS Tracker(GSM)

FCC ID:2AMLFJM-LG05 The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types JM-LG05, GT420D, LG05 (FCC ID: 2AMLFJM-LG05) has also been tested against this SAR limit.The highest SAR value reported under this standard during product certification for use when properly worn on the body is 1.161W/kg. This device was tested for typical body kept 10mm. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 10mm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help.

Shenzhen Jimi IOT Co.,Ltd Date: 2020.05.12 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Shenzhen Jimi IOT Co.,Ltd, the undersigned, hereby authorizes Mrs. Wendy Zhan from Shenzhen Morlab Communications Technology Co., Ltd.,toact on the behalf of the Shenzhen Jimi IOT Co.,Ltd solely in matters relating to the application for an FCC equipment authorization for FCC ID:2AMLFJM-LG05 including the signing of documents in con nection with this Application. Nec essary acts carried out Shenzhen Morlab Communications Technology Co., Lt d. on our behalf of the Shenzhen Jimi IOT Co.,Ltd in connection with the Application shall have the same effect as acts of the Shenzhen Jimi IOT Co.,Ltd.Shenzhen Jimi IOT Co.,Ltd also hereby certify that no party to this application is subject to a denial of benefits, inc luding FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Thank you for your attention to this matter. Yours Sincerely, Signatory: Contact name:Chosen Gao Title:Manager Tel:+86-755-29121200 Email:[email protected] Company name: Shenzhen Jimi IOT Co.,Ltd

Shenzhen Jimi IOT Co.,Ltd Date:2020.05.12 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Request of Confidentiality for FCC ID:2AMLFJM-LG05 To Whom it may concern: Pursuant to sections 0.457 and 0.459 of Commission’s Rules(CFR 47), and Section 552(b)(4) of the Freedom of Information Act,Shenzhen Jimi IOT Co.,Ltdhereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality till date 11/10/2020(max time 180 days from grant date) as outlinedin Public Notice DA04-1705. This provision will giveShenzhen Jimi IOT Co.,Ltdtemporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST ExhibitDescription PERMANENT 1Block Diagram 2Operational Description 3Schematics 4BOM 5Tune up procedure SHORT-TERM 6External Photos 7Internal Photos 8Test-Setup Photos 9User Manual The Applicant understands that pursuantto Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Signatory: Contact name:Chosen Gao Title:Manager Tel:+86-755-29121200 Email:[email protected]

Shenzhen Jimi IOT Co.,Ltd Supplier’s Declaration Of Conformity for the FCC SDoC Procedure The following Equipment adapt FCC SDoC Procedure according to FCC part 2.906 : Product Name: Asset GPS Tracker Brand Nam: Jimi Model Number:JM-LG05, GT420D, LG05 Report Number:SZ19120309E01 It’s herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. It is understood that each unit marketed is identical to the device as tested, and any changes to the device that could adversely affect the emission characteristics will require retest. The following importer / responsible party in United States: Not Available at Certification Stage Company Name: NA Company Address: NA Telephone:NA Fax: NA Person is responsible for marking this declaration: Chosen Gao Manager ____________________________________ ______________________________________ Name (Full name ) Position / Title 2020.05.13 ____________________________________ ______________________________________ Legal Signature Date

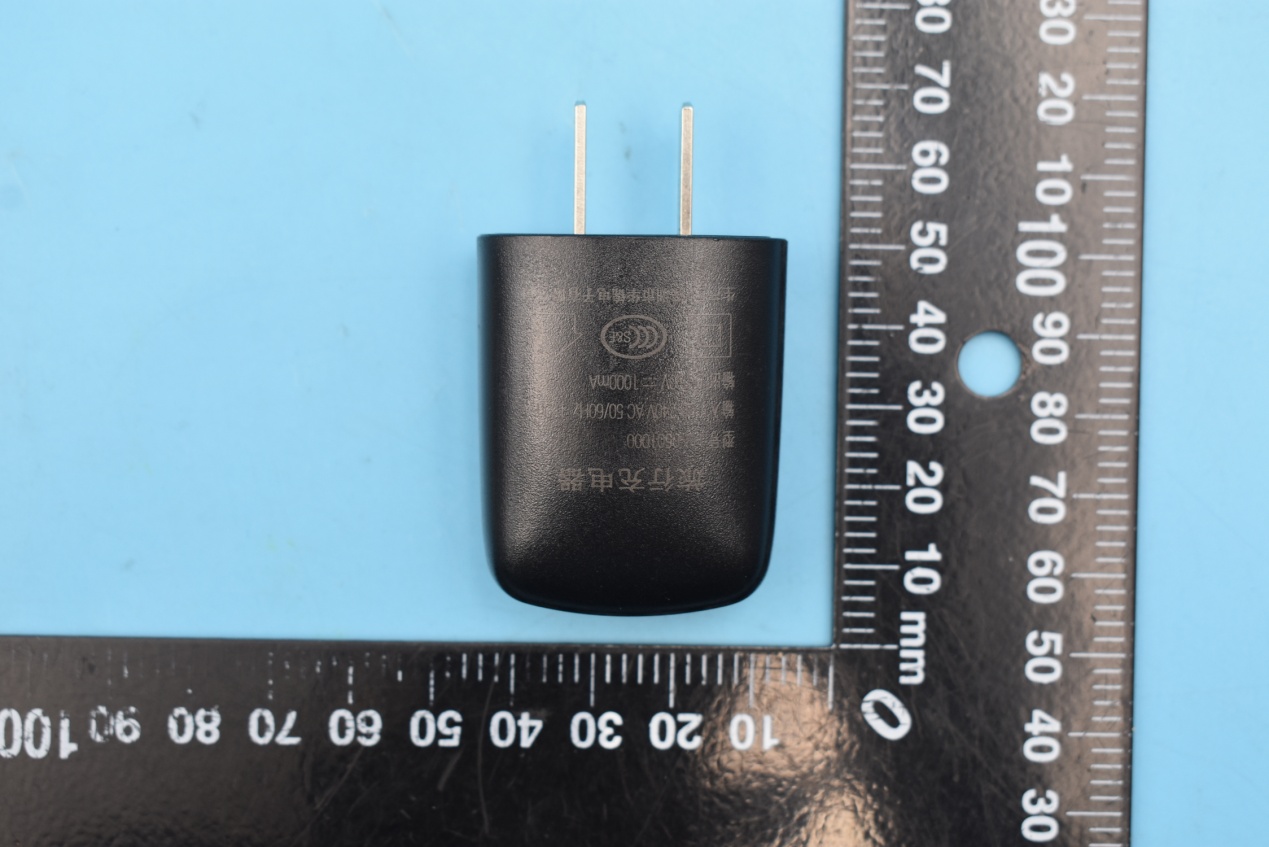

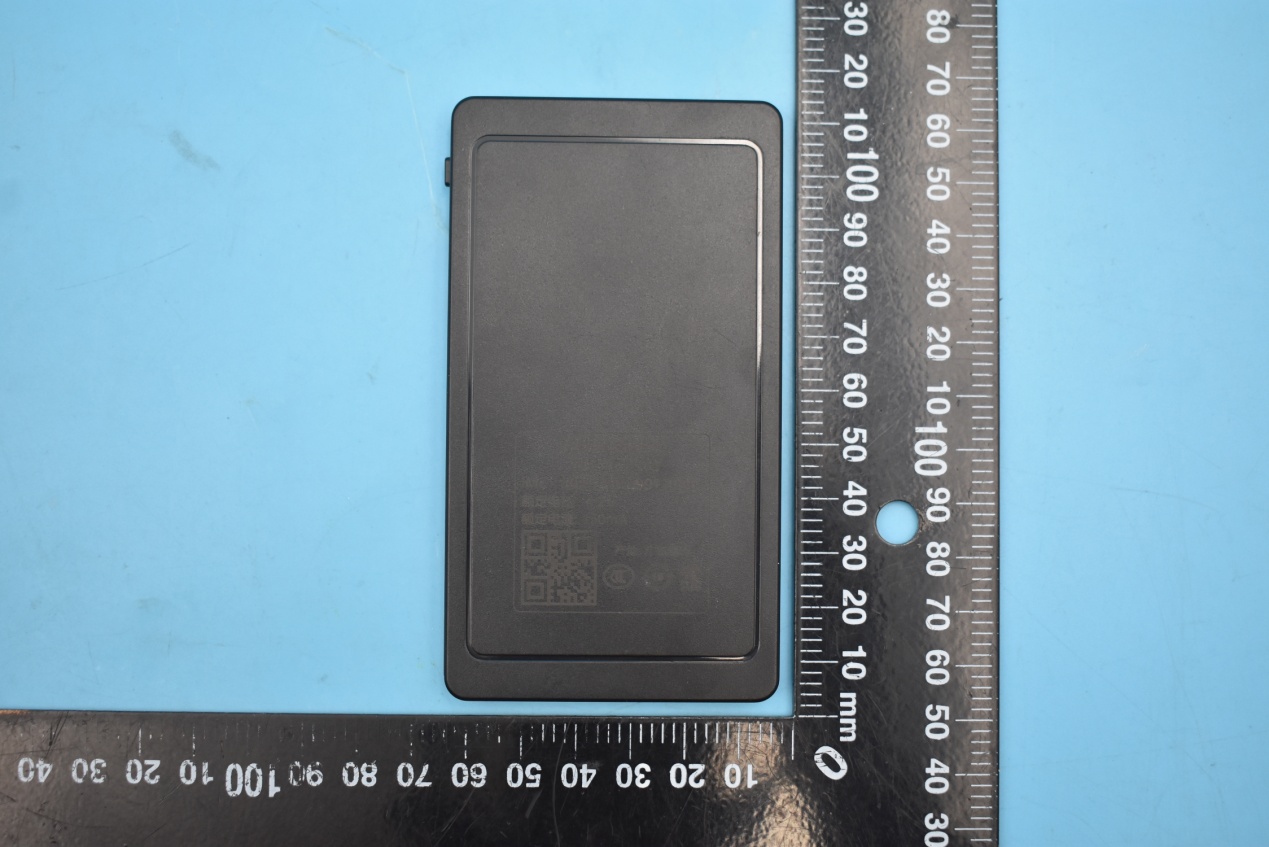

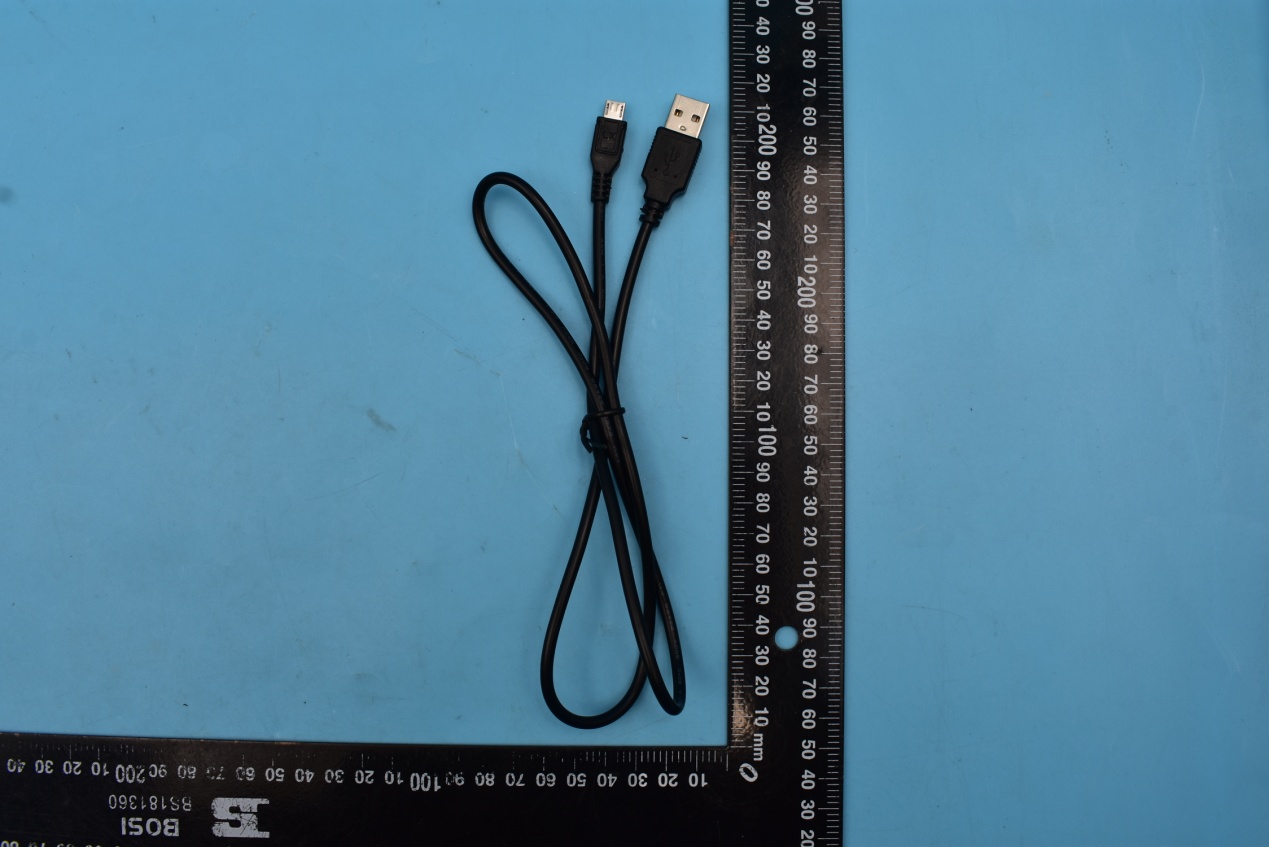

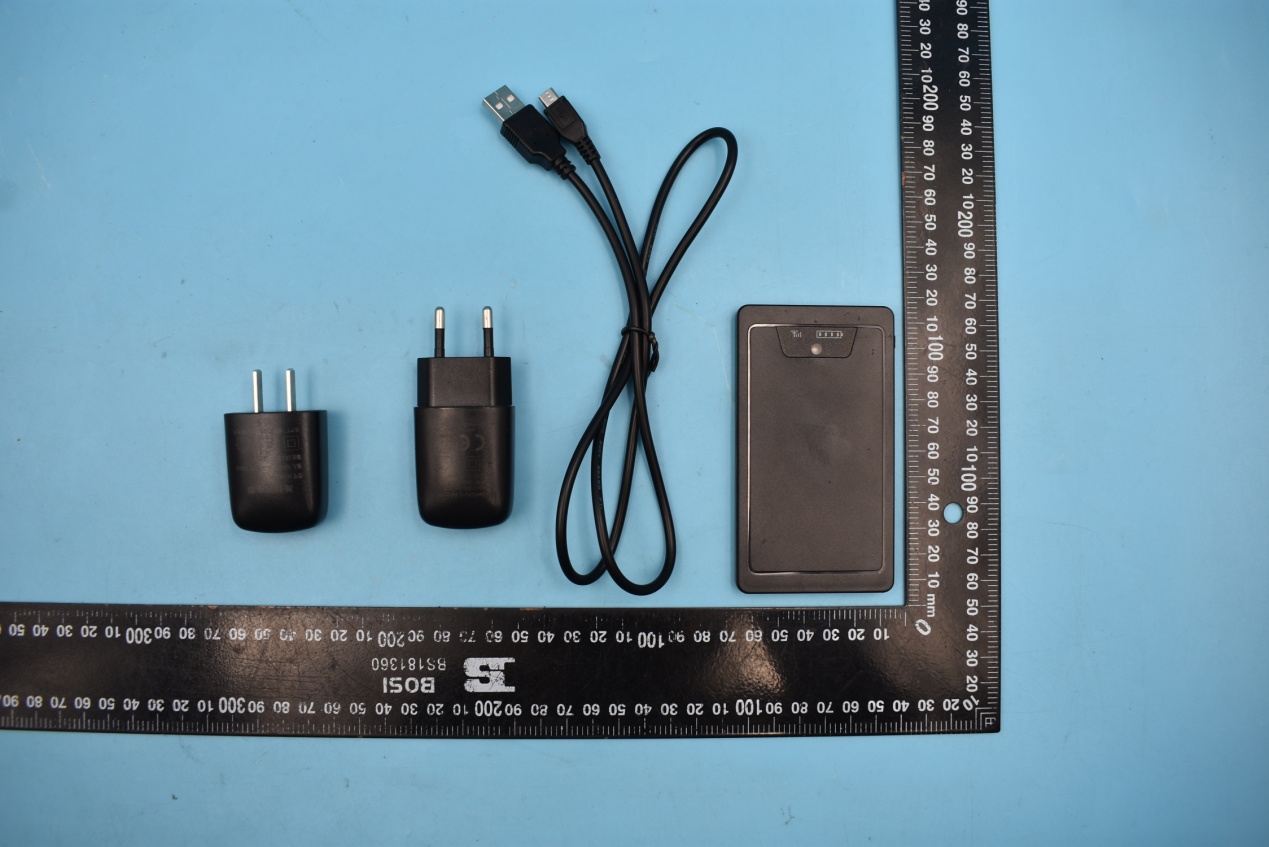

FCC ID:2AMLFJM-LG05 External Photos 1.EUT front view 2.EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Device information 8. Ports supported by this device 9. Accessories

Label FCC ID: 2AMLFJM-LG05 Model: JM-LG05 Brand Name: Jimi Label location

FCC ID:2AMLFJM-LG05 Internal Photos 1.EUT uncover view 2. Antenna view GSM Antenna WIFI Antenna GPS Antenna

NOTE: This document is issued by MORLAB, the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 45 REPORT No.：SZ19120309S01 TEST REPORT APPLICANT : Shenzhen Jimi IOT Co., Ltd PRODUCT NAME : Asset GPS Tracker MODEL NAME : JM-LG05, GT420D, LG05 BRAND NAME : Jimi FCC ID : 2AMLFJM-LG05 STANDARD(S) : 47 CFR Part 2(2.1093) IEEE 1528-2013 RECEIPT DATE : 2020-01-07 TEST DATE : 2020-07-17 ISSUE DATE : 2020-07-24 Edited by : Liang Yumei (Rapporteur) Approved by: Peng Huarui (Supervisor) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 45 REPORT No.：SZ19120309S01 DIRECTORY 1. SAR Results Summary ······································································································ 5 2. Technical Information········································································································ 6 2.1. Applicant and Manufacturer Information ····································································· 6 2.2. Equipment Under Test (EUT) Description ··································································· 6 2.3. Environment of Test Site/Conditions ··········································································· 7 3. Specific Absorption Rate (SAR)······················································································· 8 3.1. Introduction ····················································································································· 8 3.2. SAR Definition ················································································································· 8 4. RF Exposure Limits ··········································································································· 9 4.1. Uncontrolled Environment ···························································································· 9 4.2. Controlled Environment ································································································· 9 5. Applied Reference Documents ······················································································ 10 6. SAR Measurement System ····························································································· 11 6.1. E- Field Probe ················································································································· 12 6.2. Data Acquisition Electronics (DAE)············································································ 13 6.3. Robot ······························································································································ 14 6.4. Measurement Server ···································································································· 14 6.5. Light Beam Unit············································································································· 15 6.6. Phantom ························································································································· 15 6.7. Device Holder ················································································································ 16 6.8. Data Storage and Evaluation ······················································································· 17 6.9. Test Equipment List ······································································································ 20 7. Tissue Simulating Liquids ······························································································ 22 8. SAR System Verification ································································································· 24 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 45 REPORT No.：SZ19120309S01 8.1. Purpose of System Performance check ···································································· 24 8.2. System Setup ················································································································ 24 8.3. Validation Results ········································································································· 25 9. EUT Testing Position ······································································································· 26 9.1. Body-worn Configurations ·························································································· 26 9.2. Hotspot Mode Exposure Position Conditions ·························································· 26 10. Measurement Procedures ······························································································ 28 10.1. Spatial Peak SAR Evaluation······················································································· 29 10.2. Power Reference Measurement ·················································································· 29 10.3. Area Scan Procedures ································································································· 30 10.4. Zoom Scan Procedures ··…

Text truncated - open the document above for the full version.

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ19120309S01 Annex C Plots of System Performance Check Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.07.17 System Check_835MHz_Head Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835 Medium parameters used: f = 835 MHz; σ = 0.942 S/m; ε r = 42.881; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(9.3, 9.3, 9.3); Calibrated: 2020.01.03; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1471 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW835/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.58 W/kg CW835/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.69 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 3.56 W/kg SAR(1 g) = 2.42 W/kg; SAR(10 g) = 1.55 W/kg Maximum value of SAR (measured) = 2.61 W/kg 0 dB = 2.61 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.07.17 System Check_1900MHz_Head Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900 Medium parameters used: f = 1900 MHz; σ = 1.359 S/m; ε r = 39.745; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7.74, 7.74, 7.74); Calibrated: 2020.01.03; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1471 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW1900/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 11.5 W/kg CW1900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 93.55 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 18.6 W/kg SAR(1 g) = 10 W/kg; SAR(10 g) = 5.22 W/kg Maximum value of SAR (measured) = 11.3 W/kg 0 dB = 11.3 W/kg

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ19120309S01 Annex D Plots of Maximum SAR Test Results Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.07.17 GSM850_GPRS(2 TX slots)_Back Side_10mm_Ch128 Communication System: UID 0, GSM850(class 10) (0); Frequency: 824.2 MHz;Duty Cycle: 1:4.15 Medium: HSL_835 Medium parameters used: f = 824.2 MHz; σ = 0.924 S/m; ε r = 42.769; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(9.3, 9.3, 9.3); Calibrated: 2020.01.03; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1471 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch128/Area Scan (61x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.66 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.46 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.49 W/kg SAR(1 g) = 1 W/kg; SAR(10 g) = 0.672 W/kg Maximum value of SAR (measured) = 1.06 W/kg 0 dB = 1.06 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.07.17 GSM1900_GPRS(4 TX slots)_Front Side_10mm_Ch810 Communication System: UID 0, PCS1900(class 12) (0); Frequency: 1909.8 MHz;Duty Cycle: 1:2.08 Medium: HSL_1900 Medium parameters used: f = 1910 MHz; σ = 1.322 S/m; ε r = 39.646; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7.74, 7.74, 7.74); Calibrated: 2020.01.03; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1471 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch810/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.04 W/kg Ch810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.695 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.58 W/kg SAR(1 g) = 0.887 W/kg; SAR(10 g) = 0.514 W/kg Maximum value of SAR (measured) = 0.926 W/kg 0 dB = 0.926 W/kg

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ19120309S01 Annex E DASY Calibration Certificate

3 Add: No.5 I Xueyuan Road, HaTel: +86-10-62304633-2079 dan District, Beijing, 100191, China vnuorvt i ivnFax: +86-10-62304633-2504 11111h, CNAS L0570 E-mail: [email protected] http://www.chinattl.cn Cl ient KEHU Certificate No: Z18-60195 CALIBRATN CERTIFICATE Object D835V2 SN: 4d227 Ca l ibration Procedure(s) Calibration Procedures for d ipole validation kits Calibration date: June 22, 2018 This ca-ibration Certificate documents the traceabi lity to national standards, which realize the physical units of measurements(S I). The measurements and the uncertainties with confidence probability are given on the following pages and are part of the certificate. All calibrations have been conducted in the closed laboratory facility: environment temperature(223)C and humidity<70%. Cal ibration Equipment used (M&TE critical for ca ibration) Primary Standards D # Ca l Date(Calibrated by, Certificate No.) Scheduled Calibration Power Meter NRVD Power sensor NRV-Z5 Reference Probe EX3DV4 DAE4 Secondary Standards 102083 01-Nov-17 (CTTL, No.J17X08756) Oct-18 100542 01-Nov-17 (CTTL, N J 17X08756) Oct-18 SN 7464 12-Sep-17(SPEAG,N EX3-7464-Sep17) Sep-18 SN 1525 02-Oct-17(SPEAG,No.DAE4-1525_Oct17) Oct-18 ID # Ca l Date(Cal ibrated by, Certificate No.) Scheduled Calibration S ignal Generator E4438C NetworkAna lyzer E5071 C MY49071430 23-Jan-18 (CTTL, No.J18X00560) Jan-19 MY46110673 24-Jan18 (CTTL, No.J18X00561) Jan-19 Name Function Signature Ca l ibrated by Reviewed by Approved by Issued: June 26, 2018 This ca libration certificate shall not be reproduced except in full without written approval of the laboratory. Certificate No: Z 18-60195 Page I of 8 In Collaboration with z71 Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel86-10-62304633-2079 Fax86-10-62304633-2504 E-mail: [email protected] http://wwwchinattl.cn Glossary: TSL tissue simu lating l iqu id ConvF sensitivity in TSL / NORMx,y,z N/A not applicable or not measured Ca-ibration is Performed According to the Following Standards: a EEE Std 1528-2013, " IEEE Recommended Practice for Determ in ing the Peak SpatiaAveraged Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques", June 2013 b) IEC 62209-1, "Measurement procedure for assessment of specific absorption rate of human exposure to rad frequency fields from hand-held and body-mounted wireless commun ication devices- Part 1: Device used next to the ear (Frequency range of 300MHz to 6GHz)", July 2016 c) IEC 62209-2, "Procedure to measure the Specific Absorption Rate (SAR) For wireless commun ication devices used in close proximity to the human body (frequency range of 30MHz to 6GHz)", March 2010 d) KDB865664, SAR Measurement Requirements for 100 MHz to 6 GHz Additional Documentation: e) DASY4/5 System Handbook Methods Applied and nterpretation of Parameters: Measurement Conditions: Further deta ils are ava i lable from the Va l idation Report at the end of the certificate. Al l figures stated in the certificate are va lid at the frequency indicated . Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed point exact-y below the center marking of the flat phantom section, with the arms oriented paral lel to the body axis. . Feed Point Impedance and Return Loss: These parameters are measured with the d ipole positioned under the liquid fil led phantom. The impedance stated is transformed from the measurement at the SMA connector to the feed pointThe Return Loss ensures low reflected power. No uncertainty required . Electrical Delay: One-way delay between the SMA connector and the antenna feed point No uncertainty required. SAR measured: SAR measured at the stated antenna input power. SAR normalized: SAR as measured, norma l ized to an input power of 1 W at the antenna connector. . SAR for nominal TSL parameters: The measured TSL parameters are used to ca cu late the nominal SAR resu lt. The reported uncertainty of measurement is stated as the standard uncerta inty of Measurement mu ltipl ied by the coverage factor k=2, wh ich for a normal d istribution Corresponds to a coverage probabi l ity of approx-mately 95%. Certificate No: Z18-60195 Page 2 of 8 9 In Collaboration with s CAUBRA71ON LABORATORY Add: No.5 1 Xueyuan Road, Haidian District, Beijing, 100191, China Tel86-10-62304633-2079 Fax86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Measurement Conditions Xy9D9Dp99D91 DASY Version DASY52 1 52.10.1.1476 4 Extrapolation Advanced Extrapolation Phantom Triple Flat Phantom 5.1C I Distance Dipole Center - TSL iZoom Scan Resolution dx, dy, dz = 5 mm I L I Frequency l Head TSL parameters SAR resu-t with Head TSL SAR averaged over 1 Cm3 (1 g) of Head TSL Condition SAR measured 250 mW input power 2.38mW/g SAR for nomina l Head TSL parameters norma lized to 1W 9.34mW/g18.8 % (k=2) SAR averaged over 10 cm3 (10 g) of Head TSL Condition SAR measured 250 mW input power 1.54mW/g SAR for nom ina l Head TSL parameters normalized to 1W 6.07 mW /g18.7 % (k=2) Body TSL parameters SAR result with Bodv TSL SAR averaged over 1 cm3 (1 g) of Body TSL SAR measured SAR for nom ina l Body TSL parameters norma l ized to 1W 1 9.61 mW /g18.8 % (k=2) I SAR averaged over 10 cm3 (10 g) of Body TSL SAR measured 250 mW input power I 1.61 mW / g SAR for nomina l Body TSL parameters normal ized to 1W 1 6.31 mW /g18.7 % (k=2) Certificate No: Z 18-60195 Page 3 of 8 In Collaboration with ,7_111: T _ ` j r . I *-1:7' 1L*1;i1 Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel86-10-62304633-2079 Fax86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Appendix (Additiona-assessments outside the scope of CNAS L0570) Antenna Parameters with Head TSL Impedance, transformed to feed point 54.00 1.13j0 Return Loss - 28.0dB Antenna Parameters with Body TSL -mpedance, transformed to feed point 48.60- 3.91j0 Return Loss -27.5dB General Antenna Parameters and Design After long term use with …

Text truncated - open the document above for the full version.

-40 - In Collaboration with vr ch M., I "T CALIBRATION LABORATORY L 'TWA Add: N5 1 Xueyuan Road, Haidian District, Beijing, 100191, China vnLionn i IVI\ Tel: +86-10-62304633-2079 Fax86-10-62304633-2504 h h, I, %'W"' 1NAb LUO/U E-mail: [email protected] http://www.chinattl.cn Cl ient KEHU Certificate No: Z18-60197 CALIBRATION CERTIF-CATE Object Ca libration Procedure(s) Ca-ibration Procedures for dipole validation kits Calibration date This calibration Certificate documents the traceabi-ity to nationa standards, which realize the phys cal un its of measurements(S I). The measurements and the uncertainties with confidence probability are g iven on the fol lowing pages and are part of the certificate A l l calibrations have been conducted in the closed laboratory fac ility: env ironment temperature(223)C and humidity<70%. Calibration Equipment used (M&TE critical for calibration) Primary Standards ID # Cal Date(Cal ibrated by, Certificate N Scheduled Calibration Power Meter NRVD Power sensor NRV-Z5 Reference Probe EX3DV4 DAE4 Secondary Standards 102083 01-Nov-17 (CTTL, No.J17X08756) Oct-18 100542 01-Nov-17 (CTTL, No.JI7X08756) Oct-18 SN 7464 12-Sep-I 7(SPEAG, No. EX3-7464-Sep17) Sep-18 SN 1525 02-Oct-17(SPEAG,No.DAE4-1525_Oct17) Oct-18 ID # Cal Date(Calibrated by, Certificate No.) Scheduled Calibration Signa-Generator E4438C NetworkAnalyzer E5071 C MY49071430 23-Jan-18 (CTTL, N J18X00560) Jan-19 MY46110673 24-Jan-18 (CTTL, No.J18X00561) Jan-19 Name Function Signature Calibrated by: Zhao Jing SAR Test Engineer v \ fx f i7 v Reviewed by Approved by Issued: June 26, 2018 This calibration certificate shall not be reproduced except in full without written approval of the laboratory Certificate No: Z18-60197 Page 1 of 8 In Collaboration with se CAUBRATION LAORATORY Add: No.5 I Xueyuan Road, Haidian District, Beijing, 100191, China Tel86-10-62304633-2079 Fax86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn ssary: TSL ConvF sensitivity in TSL / NORMx,y,z N/A not applicable or not measured Calibration is Performed According to the Flowing Standards: a) IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak SpatiaAveraged Specific Absorption Rate (SAR n the Human Head from Wireless Commun ications Devices: Measurement Techn iques", June 2013 b) IEC 62209-1, "Measurement procedure for assessment of specific absorption rate of human exposure to rad frequency fields from hand-held and body-mounted w-reless commun ication devices- Part 1: Device used next to the ear (Frequency range of 300MHz to 6GHz)", July 2016 c) IEC 62209-2, "Procedure to measure the Specific Absorption Rate (SAR) For wireless commun ication devices used in close proxim ity to the human body (frequency range of 30MHz to 6GHz)", March 2010 d) KDB865664, SAR Measurement Requirements for 100 MHz to 6 GHz Additional Documentation: e) DASY4/5 System Handbook Methods App-ied and Interpretation of Parameters: . Measurement Conditions: Further details are available from the Validation Report at the end of the certificate. Al l figures stated in the certificate are valid at the frequency indicated. . Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed point exactly below the center mark-ng of the flat phantom section, with the arms oriented parallel to the body axis. . Feed Point Impedance and Return Loss: These parameters are measured with the d ipole positioned under the liqu id filled phantom. The impedance stated is transformed from the measurement at the SMA connector to the feed point. The Return Loss ensures low reflected power. No uncerta inty requ ired. Electrical Delay: One-way delay between the SMA connector and the antenna feed point No uncertainty requ ired. SAR measured: SAR measured at the stated antenna input power. SAR normalized: SAR as measured, normalized to an input power of 1 W at the antenna connector. . SAR for nominal TSL parameters: The measured TSL parameters are used to calcu late the nominal SAR resu lt. The reported uncertainty of measurement is stated as the standard uncertainty of Measurement mu ltiplied by the coverage factor k=2, wh ich for a norma l d stribution Corresponds to a coverage probability of approximately 95% Certificate No: Z18-60197 Page 2 of 8 In Collaboration wi 17z CALIBRATION LABORATORY Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel86-1062304633-2079 Fax86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Measurement Conditions Q991L991p9 DASY Version DASY52 52.10.1.1476 Extrapolation Advanced Extrapolation Phantom Triple F lat Phantom 5.1C l Distance Dipole Center - TSL 10 mm with Spacer Zoom Scan Resolution dx, dy, dz = 5 mm Frequency 1900 MHz 1 MHz I Head TSL parameters SAR result with Head TSL SAR averaged over 1 cm3 (1 g) of Head TSL Condition SAR measured 250 mW input power9.74mW/g SAR for nomina l Head TSL parameters norma lized to 1W 39.5mW/g18.8 % (k=2) SAR averaged over 10 cm3 (10 g) of Head TSL Condition SAR measured 250 mW input power5.10mW/g SAR for nomina l Head TSL parameters normal ized to 1W 20.6 mW /g 18.7 % (k=2) Body TSL parameters SAR result with Body TSL SAR averaged over 1 Cm3 (1 g) of Body TSL Condition SAR measured 250 mW nput power I 10.1 mW / g SAR for nomina l Body TSL parameters normal ized to 1W 39.9 mW /g18.8 % (k=2) I SAR averaged over 10 cm3 (10 g) of Body TSL SAR measured 250 mW input power I 5.21 mW / g L4 SAR for nomina Body TSL parameters normalized to 1W 120.7 mW /g t 18.7 % (k=2) Certificate No: Z18-60197 Page 3 of 8 In Collaboration with CALIBRATION LABORATORY Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel86-10-62304633-2079 Fax86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Appendix (Additiona-assessments outside the scope of CNAS L0570) Antenna Parameters with Head TSL…

Text truncated - open the document above for the full version.
