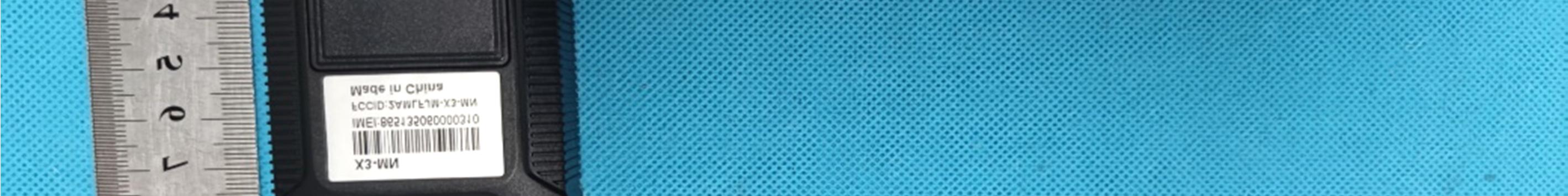

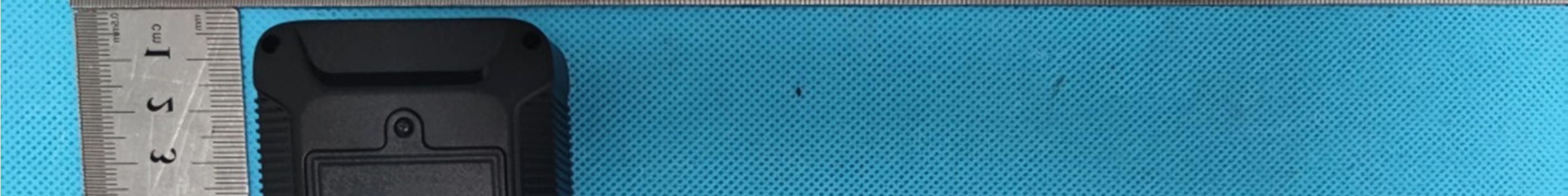

Reference No.: WTX22X08159604W001 Page 2 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX22X08159604W001 Page 3 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTX22X08159604W001 Page 4 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6 Reference No.: WTX22X08159604W001 Page 5 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 7

Reference No.: WTX22X08159604W001 Page 1 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX22X08159604W001 Page 6 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTX22X08159604W001 Page 7 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTX22X08159604W001 Page 8 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 3 Solder Board-Component View 4 Reference No.: WTX22X08159604W001 Page 9 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Antenna View

1. RF Exposure Requirements 1.1 General Information Client Information Applicant: Shenzhen Jimi IOT Co., Ltd Address of applicant: 3-4/F, Block A, Building #7, Shenzhen International Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, Guangdong, China Manufacturer: Shenzhen Jimi IOT Co., Ltd Address of manufacturer: 3-4/F, Block A, Building #7, Shenzhen International Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, Guangdong, China General Description of EUT: Product Name: VEHICLE GPS TRACKER Trade Name: JIMI Model No.: X3-MN Adding Model(s): / Rated Voltage: Input: DC 9-36V Battery: DC3.7V Battery: 450mAh FCC ID: 2AMLFJM-X3-MN XXX Equipment Type: Mobile device Technical Characteristics of EUT: 2G Support Networks: GSM, GPRS Support Band: GSM850/PCS1900 Uplink Frequency: GSM/GPRS 850: 824~849MHz GSM/GPRS 1900: 1850~1910MHz Downlink Frequency: GSM/GPRS 850: 869~894MHz GSM/GPRS 1900: 1930~1990MHz Max RF Output Power: GSM850: 33.03dBm, GSM1900: 29.71dBm Type of Emission: GSM850: 244KGXW, GSM1900: 246KGXW Type of Modulation: GMSK Type of Antenna: Integral Antenna Antenna Gain: GSM850:-0.81dBi; GSM1900: 1.26dBi GPRS/EDGE Class: Class 12 1.2 RF Exposure Exemption According to §1.1307(b)(3) and 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Min. Frequency Max. Radiated Power Tune-Up EIRP Option Min. Distance Tune-Up ERP Exposure Limit Ratio Result (MHz) (dBm) (dBm) (cm) (dBm) (mW) (mW) Pass/Fail GSM850 824.20 29.27 -- B 20 29.50 845.28 1681.368 0.50 Pass GSM1900 1850.2 27.46 27.5 B 20 25.35 342.77 3060 0.11 Pass Note: 1. ERP=EIRP-2.15dB; EIRP= Output Power + Antenna gain 2. Option A, B and C refers as clause 1.2. 3. For option B, Pth(mW) convert to Exposure Limit(mW); For option C, ERP(W) convert to Exposure Limit(mW). 4. Ratio= Tune-Up ERP(mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Simultaneous Ratio Limit Result Pass/Fail -- -- -- -- -- -- Note：GSM850 and GSM1900 can’t transmit at the same time. Result: Pass

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 56 TEST REPORT Reference No. .................... : WTX22X08159604W001 FCC ID ................................ : 2AMLFJM-X3-MN Applicant ........................... : Shenzhen Jimi IOT Co., Ltd Address.............................. : 3-4/F, Block A, Building #7, Shenzhen International Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, Guangdong, China Manufacturer ..................... : The same as Applicant Address.............................. : The same as Applicant Product Name ................... : VEHICLE GPS TRACKER Model No. ........................... : X3-MN Standards .......................... : FCC Part 22H, FCC Part 24E Date of Receipt sample .... : 2022-08-05 Date of Test........................ : 2022-08-05 to 2022-11-03 Date of Issue ..................... : 2022-11-03 Test Report Form No. ....... : WTX_Part 22_ Part 24W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Dashan Chen Silin Chen Reference No.: WTX22X08159604W001 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 56 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ...............................................................................4 1.2 TEST STANDARDS ...................................................................................................................................................5 1.3 TEST METHODOLOGY .............................................................................................................................................5 1.4 TEST FACILITY .......................................................................................................................................................5 1.5 EUT SETUP AND TEST MODE .................................................................................................................................6 1.6 MEASUREMENT UNCERTAINTY ..............................................................................................................................8 1.7 TEST EQUIPMENT LIST AND DETAILS .....................................................................................................................9 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 11 3. RF OUTPUT POWER ............................................................................................................................................ 12 3.1 STANDARD APPLICABLE ....................................................................................................................................... 12 3.2 TEST PROCEDURE ................................................................................................................................................. 12 3.3 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 12 4. PEAK-TO-AVERAGE RATIO (PAR) OF TRANSMITTER ............................................................................. 15 4.1 STANDARD APPLICABLE ....................................................................................................................................... 15 4.2 TEST PROCEDURE ................................................................................................................................................. 15 4.3 SUMMARY OF TEST RESULTS ............................................................................................................................... 15 5. EMISSION BANDWIDTH ..................................................................................................................................... 16 5.1 STANDARD APPLICABLE ....................................................................................................................................... 16 5.2 TEST PROCEDURE ................................................................................................................................................. 16 5.3 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 16 6. OUT OF BAND EMISSIONS AT ANTENNA TERMINAL ............................................................................... 17 6.1 STANDARD APPLICABLE ....................................................................................................................................... 17 6.2 TEST PROCEDURE ................................................................................................................................................. 17 6.3 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 17 7. SPURIOUS RADIATED EMISSIONS .................................................................................................................. 18 7.1 STANDARD APPLICABLE ....................................................................................................................................... 18 7.2 TEST PROCEDURE .....................…
