2AMLFXQ600-LAwireless communication module

XQ600_LA wireless communication module LTE Cat1 for M2M and IoT application Product Introduction XQ600_LA wireless communication module is base on ASR1603 platform, and developed as a low-cost LTE communication module supports the LTECat1/ EGPRS network and conforms to 3GPP specifications. XQ600_LA support standard functional Interface (USB / UART / PCM / STATUS); this module can be used in various IoT applications, such as adaptive environment, attitude, gas and other sensors for various application scenarios. Functional •Support LTE Cat 1, GPRS/EGPRS； •Ultra-thin LGA package； •Baseband chip integrated RAM and ROM flash; •support FOTA firmware update； •support USB 2.0 High-Speed interface； •sup port IOT sensor interface； Specification Operating frequency GSM: 850/900/1800/1900; Support GPRS multi-slot class 12 and EDGE multi-slot class 12 FDD： B1/B2/B3/B4/B5/B7/B8/B28 TX Frequency Range TX Frequency Range GSM/GPRS/EGPRS 850: 824 MHz ~ 849 MHz GSM/GPRS/EGPRS 1900: 1850 MHz ~ 1910 MHz FDD LTE Band 2: 1850 MHz ~ 1910 MHz FDD LTE Band 4: 1710 MHz ~ 1755 MHz FDD LTE Band 5: 824 MHz ~ 849 MHz FDD LTE Band 7: 2500 MHz ~ 2570 MHz Rx Frequency Range GSM/GPRS/EGPRS 850: 869 MHz ~ 894 MHz GSM/GPRS/EGPRS 1900: 1930 MHz ~ 1990 MHz FDD LTE Band 2: 1930 MHz ~ 1990 MHz FDD LTE Band 4: 2110 MHz ~ 2155 MHz FDD LTE Band 5: 869 MHz ~ 894 MHz FDD LTE Band 7: 2620 MHz ~ 2690 MHz Power class GSM/GPRS 850: 4 GSM/GPRS 1900: 1 EGPRS 850/1900: E2 LTE-FDD Class 3 (23dBm±2dB) Data transmission GSM: Coding scheme: CS-1, CS-2, CS-3 and CS-4 Max. 80Kbps (DL), Max. 80Kbps (UL) EDGE: Downlink coding schemes: MCS 1-9 Uplink coding schemes: MCS 1-9 Max. 236.8Kbps (DL), Max. 236.8Kbps (UL) LTE-FDD： Max.10(DL)/Max.5(UL);LTE-TDD:Max.7.88(DL)/Max.3(UL) GSM function •GSM CS Voice •SMS •Point-to-point MO and MT； •SMS Cell Broadcast； •Text and PDU Mode Temperature -30°C ~ +70°C Power Dc 3.4V~4.2V, 3.8V Typ Physical characteristics Package: LGA 152 Pin Size: 22.9mm × 23.9mm × 2.4mm Weight: about 2.6g Interface USB2.0 high-speed interface X1 ; UART ports X3; digital voice PCM interface X1; ADC interfaces X2; MIC input X1 audio output X1; I2C ports X2; 1.8/3.0V SIM port X1 ; LCD interface X1; Camera interface X1 SDIO port X1 • RESET (active at low level) X1 • PWRKEY(active low level) X1 Antenna LTE Main antenna AT Command 3GPP TS 27.007 and 27.005 SIM Support 1.8V USIM/SIM Support eSIM Package The XQ600 module is packaged with tape and sealed in a vacuum bag. Each carrier is 8.64 meters long, With 250 pic modules, The diameter of the coil is 330 mm. Specific specifications are as follows FCC Warning Important Notice to OEM integrators 1. This module is limited to OEM installation ONLY. 2. This module is limited to installation in mobile or fixed applications, according to Part 2.1091(b). 3. The separate approval is required for all other operating configurations, including portable configurations with respect to Part 2.1093 and different antenna configurations 4. For FCC Part 15.31 (h) and (k): The host manufacturer is responsible for additional testing to verify compliance as a composite system. When testing the host device for compliance with Part 15 Subpart B, the host manufacturer is required to show compliance with Part 15 Subpart B while the transmitter module(s) are installed and operating. The modules should be transmitting and the evaluation should confirm that the module's intentional emissions are compliant (i.e. fundamental and out of band emissions). The host manufacturer must verify that there are no additional unintentional emissions other than what is permitted in Part 15 Subpart B or emissions are complaint with the transmitter(s) rule(s). The Grantee will provide guidance to the host manufacturer for Part 15 B requirements if needed. Important Note notice that any deviation(s) from the defined parameters of the antenna trace, as described by the instructions, require that the host product manufacturer must notify to Shenzhen Jimi IoT Co., Ltd. that they wish to change the antenna trace design. In this case, a Class II permissive change application is required to be filed by Shenzhen Jimi IoT Co., Ltd, or the host manufacturer can take responsibility through the change in FCC ID (new application) procedure followed by a Class II p ermissive change application. End Product Labeling When the module is installed in the host device, the FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily re-moved. If not, a second label must be placed on the outside of the final device that contains the following text: “Contains FCC ID: 2AMLFXQ600-LA” The FCC ID can be used only when all FCC compliance requirements are met. Antenna Installation (1) The antenna must be installed such that 20 cm is maintained between the antenna and users, (2) The transmitter module may not be co-located with any other transmitter or antenna. (3) Only antennas of the same type and with equal or less gains as shown below may be used with this module. Other types of antennas and/or higher gain antennas may require additional authorization for operation. In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID/IC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC/IC authorization. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digi…

Text truncated - open the document above for the full version.

Shenzhen Jimi IoT Co. , Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, M D 21046 USA Date: Februar y 6th 2023 Ref: Attestation Statements Part 2.911(d)(S)(i) Filing F CC ID: 2AMLFXQ600-LA Shenzhen Jimi loT Co., Ltd. certifies that t he equipment for which authorization is sought单旦旦！ "covered ” equipment prohibited from receiving an equipment authorization pursuant to section 2 .903 of the FCC rules. Sincerel y , ... 飞 叫 μ Rev 1/26/2023

Shenzhen Jimi IoT Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, M D 21046 USA Date: February 6th 2023 Ref: Att estation Statements Part 2.911(d)(S)(ii) Filing FCC ID: 2AMLFXQ600-LA Shenzhen Jimi loT Co., Ltd. c ertifies that, as of the date of the filing of the application, the applicant单旦旦E identified on the Covered List as an entity producing "covered ” equipment. Sincerely, \a队也� Rev 1/26/2023

Shenzhen Jimi IoT Co., Ltd. 3-4/F, Block A, Building #7, Shenzhen International Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, Guangdong, China Shenzhen, Guangdong，518000 China Date: March 7, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AMLFXQ600-LA US Agent – Attestation Statement / Part 2.911(d)(7) Shenzhen Jimi IoT Co., Ltd. certifies, that as of March 7, 2023, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2AMLFXQ600-LA Shenzhen Jimi IoT Co., Ltd., accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of Shenzhen Jimi IoT Co., Ltd. for FCC ID: 2AMLFXQ600-LA Designated Agent Information: Company Name: FCC US Agent, LLC Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN: 0033402884 Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: Shenzhen Jimi IoT Co., Ltd. Designated Agent: FCC US Agent, LLC Company Representative: Kathy Luo Designated Agent Representative: Tim Payne Signature: Signature:

Shenzhen Jimi IoT Co., Ltd. Agent Authorization Company: Shenzhen Jimi IoT Co., Ltd. Address: 3-4/F, Block A, Building#7, Shenzhen International, Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, China Product Name: wireless communication module Model Number(s): XQ600_LA Product Description: wireless communication module We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023/2/2 Name: Kathy Luo Title: System engineer Company: Shenzhen Jimi IoT Co., Ltd.

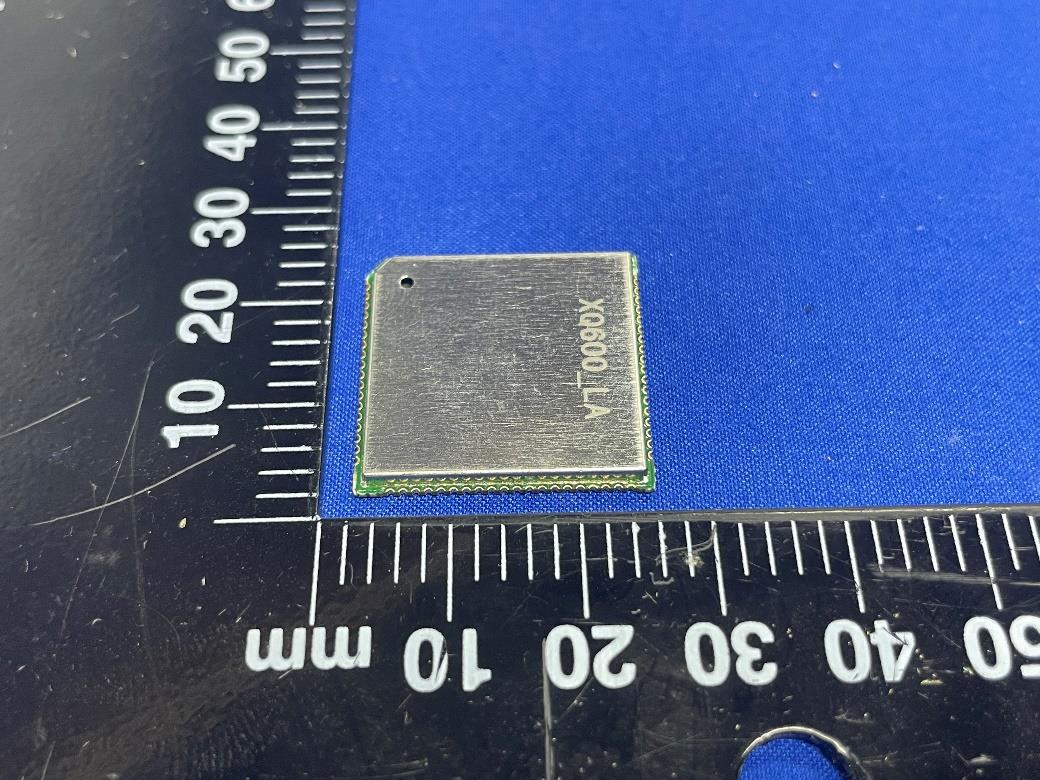

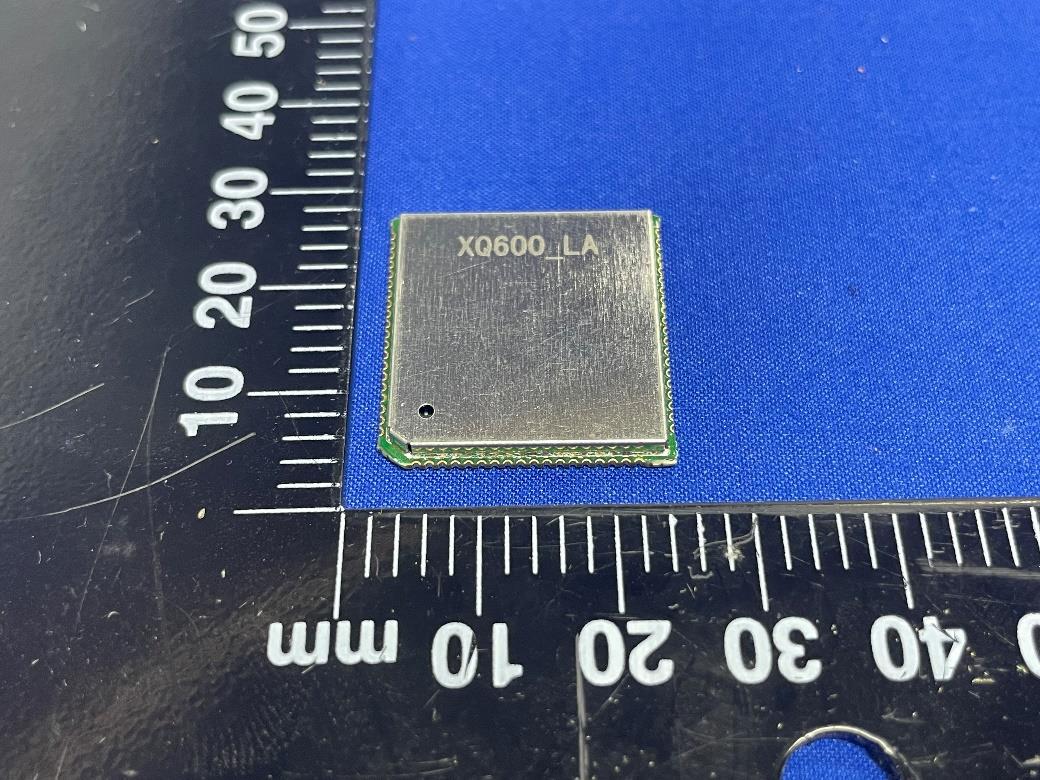

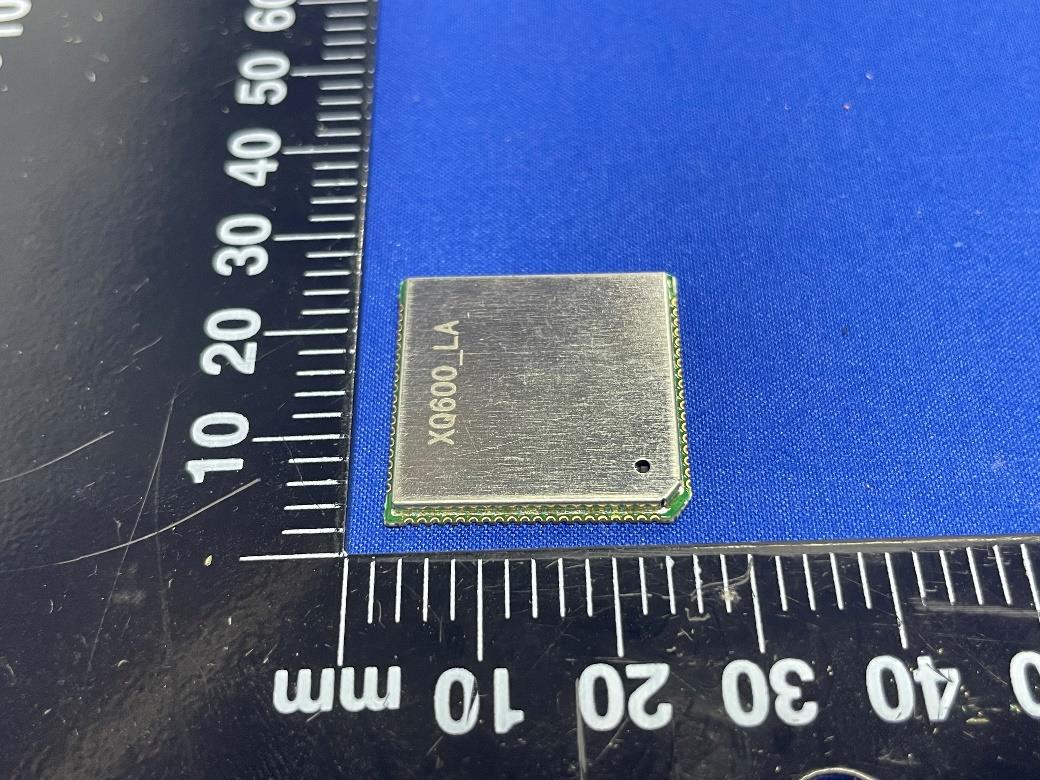

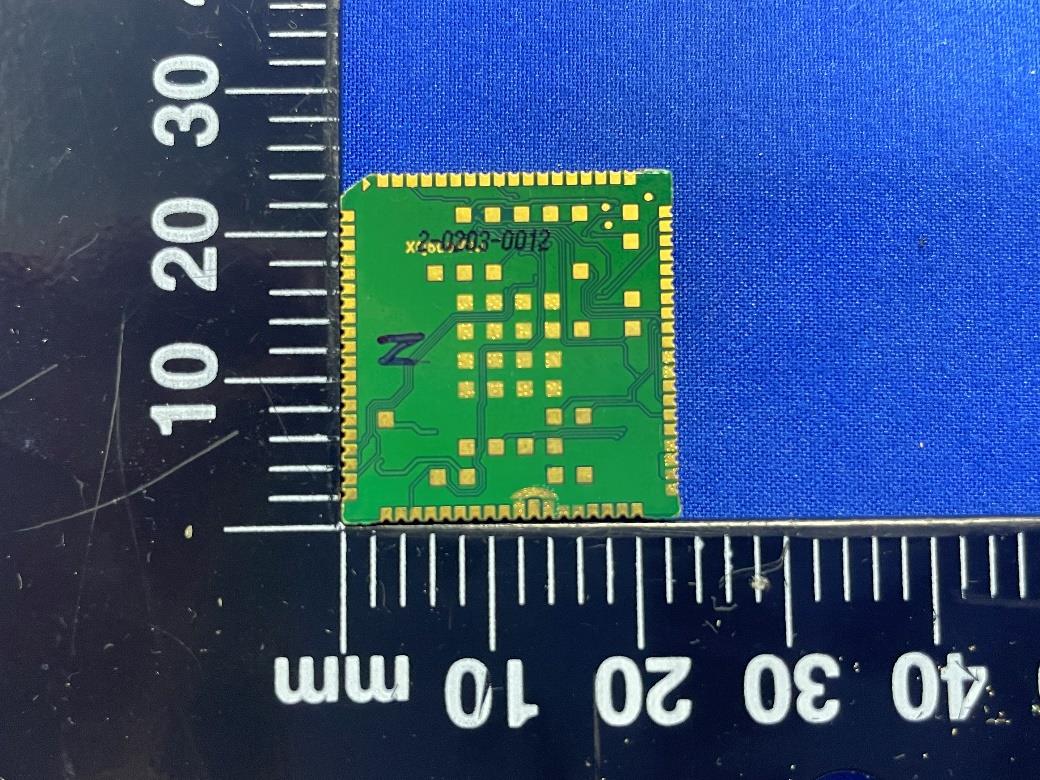

Report No.: BL-SZ2270935-AW 1 / 4 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Report No.: BL-SZ2270935-AW 2 / 4 LEFT SIDE VIEW OF EUT RIGHT SIDE OF EUT Report No.: BL-SZ2270935-AW 3 / 4 TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: BL-SZ2270935-AW 4 / 4 ANTENNA

Label Label location

Report No.: BL-SZ2270935-AI 1 / 1 EUT INTERNAL PHOTOS EUT UNCOVER VIEW EUT UNCOVER BACK VIEW

Report No.: BL-SZ2270935-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Shenzhen Jimi IoT Co., Ltd. Address: 3-4/F, Block A, Building #7, Shenzhen International Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, Guangdong, China Equipment Type: wireless communication module Model Name: XQ600_LA Brand Name: JIMI FCC ID: 2AMLFXQ600-LA Test Standard: 47 CFR Part 2.1091 KDB 447498 D04 v01 Sample Arrival Date: Jul. 26, 2022 Test Date Jul. 29, 2022 - Aug. 29, 2022 Date of Issue: Feb. 01, 2023 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Zhong Weiqiang Checked by: Xu Rui Approved by: Wei Yanquan (Chief Engineer) _______________ _______________ _______________ Report No.: BL-SZ2270935-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Content Rev. 01 Jan. 04, 2023 Initial Issue Rev. 02 Feb. 01, 2023 Updated Section 2.6 TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................ 3 1.1 Test Laboratory ............................................................................................................ 3 1.2 Test Location ................................................................................................................ 3 2 PRODUCT INFORMATION ....................................................................................................... 4 2.1 Applicant Information .................................................................................................... 4 2.2 Manufacturer Information .............................................................................................. 4 2.3 Factory Information ....................................................................................................... 4 2.4 General Description for Equipment under Test (EUT) ................................................... 4 2.5 Ancillary Equipment ...................................................................................................... 4 2.6 Technical Information ................................................................................................... 5 3 SUMMARY OF TEST RESULT ................................................................................................. 6 3.1 Test Standards ............................................................................................................. 6 4 DEVICE CATEGORY AND LEVELS LIMITS ............................................................................. 7 5 ASSESSMENT RESULT ........................................................................................................... 9 5.1 Output Power ............................................................................................................... 9 5.2 Tune-up power ........................................................................................................... 10 5.3 RF Exposure Evaluation Result .................................................................................. 10 5.4 Conclusion .................................................................................................................. 10 Report No.: BL-SZ2270935-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Test Location Name Shenzhen BALUN Technology Co., Ltd. Location Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1/F, Building B, Ganghongji High-tech Intelligent Industrial Park, No. 1008, Songbai Road, Yangguang Community, Xili Sub-district, Nanshan District, Shenzhen, Guangdong Province, P. R. China Accreditation Certificate The laboratory is a testing organization accredited by FCC as a accredited testing laboratory. The designation number is CN1196. Report No.: BL-SZ2270935-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant Shenzhen Jimi IoT Co., Ltd. Address 3-4/F, Block A, Building #7, Shenzhen International Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, Guangdong, China 2.2 Manufacturer Information Manufacturer Shenzhen Jimi IoT Co., Ltd. Address 3-4/F, Block A, Building #7, Shenzhen International Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, Guangdong, China 2.3 Factory Information Factory N/A Address N/A 2.4 General Description for Equipment under Test (EUT) EUT Name wireless communication module Model Name Under Test XQ600_LA Series Model Name N/A Description of Model name differentiation N/A Hardware Version XQ600 V2.0 Software Version VL802_FACTORY_ASR_LA_220613.1048 Dimensions (Approx.) N/A Weight (Approx.) N/A 2.5 Ancillary Equipment Not applicable. Report No.: BL-SZ2270935-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 5 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15)…

Text truncated - open the document above for the full version.

Document No: BL-SZ2270935 Page 1 of 38 Annex A.2 Peak to Average Ratio Document No: BL-SZ2270935 Page 2 of 38 1. LTE_Band2 1.1. LTE Peak to Average Ratio(NTNV)(Subtest:1, Channel:18700, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 4.97 13 Pass Document No: BL-SZ2270935 Page 3 of 38 1.2. LTE Peak to Average Ratio(NTNV)(Subtest:2, Channel:18700, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 5.58 13 Pass Document No: BL-SZ2270935 Page 4 of 38 1.3. LTE Peak to Average Ratio(NTNV)(Subtest:3, Channel:18700, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 5.67 13 Pass Document No: BL-SZ2270935 Page 5 of 38 1.4. LTE Peak to Average Ratio(NTNV)(Subtest:4, Channel:18900, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 5.11 13 Pass Document No: BL-SZ2270935 Page 6 of 38 1.5. LTE Peak to Average Ratio(NTNV)(Subtest:5, Channel:18900, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 5.48 13 Pass Document No: BL-SZ2270935 Page 7 of 38 1.6. LTE Peak to Average Ratio(NTNV)(Subtest:6, Channel:18900, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 5.86 13 Pass Document No: BL-SZ2270935 Page 8 of 38 1.7. LTE Peak to Average Ratio(NTNV)(Subtest:7, Channel:19100, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 5.11 13 Pass Document No: BL-SZ2270935 Page 9 of 38 1.8. LTE Peak to Average Ratio(NTNV)(Subtest:8, Channel:19100, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 5.48 13 Pass Document No: BL-SZ2270935 Page 10 of 38 1.9. LTE Peak to Average Ratio(NTNV)(Subtest:9, Channel:19100, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 5.72 13 Pass Document No: BL-SZ2270935 Page 11 of 38 2. LTE_Band4 2.1. LTE Peak to Average Ratio(NTNV)(Subtest:1, Channel:20050, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1720 0.1 5.02 13 Pass Document No: BL-SZ2270935 Page 12 of 38 2.2. LTE Peak to Average Ratio(NTNV)(Subtest:2, Channel:20050, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1720 0.1 5.58 13 Pass Document No: BL-SZ2270935 Page 13 of 38 2.3. LTE Peak to Average Ratio(NTNV)(Subtest:3, Channel:20050, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1720 0.1 6.09 13 Pass Document No: BL-SZ2270935 Page 14 of 38 2.4. LTE Peak to Average Ratio(NTNV)(Subtest:4, Channel:20175, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1732.5 0.1 4.45 13 Pass Document No: BL-SZ2270935 Page 15 of 38 2.5. LTE Peak to Average Ratio(NTNV)(Subtest:5, Channel:20175, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1732.5 0.1 5.58 13 Pass Document No: BL-SZ2270935 Page 16 of 38 2.6. LTE Peak to Average Ratio(NTNV)(Subtest:6, Channel:20175, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1732.5 0.1 5.2 13 Pass Document No: BL-SZ2270935 Page 17 of 38 2.7. LTE Peak to Average Ratio(NTNV)(Subtest:7, Channel:20300, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1745 0.1 4.64 13 Pass Document No: BL-SZ2270935 Page 18 of 38 2.8. LTE Peak to Average Ratio(NTNV)(Subtest:8, Channel:20300, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1745 0.1 5.67 13 Pass Document No: BL-SZ2270935 Page 19 of 38 2.9. LTE Peak to Average Ratio(NTNV)(Subtest:9, Channel:20300, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1745 0.1 5.67 13 Pass Document No: BL-SZ2270935 Page 20 of 38 3. LTE_Band5 3.1. LTE Peak to Average Ratio(NTNV)(Subtest:1, Channel:20450, Bandwidth:10, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 829 0.1 4.31 13 Pass Document No: BL-SZ2270935 Page 21 of 38 3.2. LTE Peak to Average Ratio(NTNV)(Subtest:2, Channel:20450, Bandwidth:10, Modulation:QPSK, RB Number: 50, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 829 0.1 5.3 13 Pass Document No: BL-SZ2270935 Page 22 of 38 3.3. LTE Peak to Average Ratio(NTNV)(Subtest:3, Channel:20450, Bandwidth:10, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 829 0.1 5.3 13 Pass Document No: BL-SZ2270935 Page 23 of 38 3.4. LTE Peak to Average Ratio(NTNV)(Subtest:4, Channel:20525, Bandwidth:10, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 836.5 0.1 4.08 13 Pass Document No: BL-SZ2270935 Page 24 of 38 3.5. LTE Peak to Average Ratio(NTNV)(Subtest:5, Channel:20525, Bandwidth:10, Modulation:QPSK, RB Number: 50, RB Position:LOW) Center Frequency(MHz) PAR P…

Text truncated - open the document above for the full version.

Document No: BL-SZ2270935 Page 1 of 104 Annex A.3 Occupied Bandwidth Document No: BL-SZ2270935 Page 2 of 104 1. GSM_GSM850 1.1. GSM Occupied Bandwidth(NTNV)(Channel:128) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 824.2 99 26 0.004 Peak 0.244 0.313 0.3 Pass Document No: BL-SZ2270935 Page 3 of 104 1.2. GSM Occupied Bandwidth(NTNV)(Channel:190) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 836.6 99 26 0.004 Peak 0.244 0.31 0.3 Pass Document No: BL-SZ2270935 Page 4 of 104 1.3. GSM Occupied Bandwidth(NTNV)(Channel:251) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 848.8 99 26 0.004 Peak 0.246 0.314 0.3 Pass Document No: BL-SZ2270935 Page 5 of 104 2. GSM_PCS 2.1. GSM Occupied Bandwidth(NTNV)(Channel:512) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1850.2 99 26 0.004 Peak 0.244 0.302 0.3 Pass Document No: BL-SZ2270935 Page 6 of 104 2.2. GSM Occupied Bandwidth(NTNV)(Channel:661) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1880 99 26 0.004 Peak 0.243 0.31 0.3 Pass Document No: BL-SZ2270935 Page 7 of 104 2.3. GSM Occupied Bandwidth(NTNV)(Channel:810) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1909.8 99 26 0.004 Peak 0.245 0.306 0.3 Pass Document No: BL-SZ2270935 Page 8 of 104 3. EGPRS_GSM850 3.1. EGPRS Occupied Bandwidth(NTNV)(Channel:128) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 824.2 99 26 0.004 Peak 0.247 0.311 0.3 Pass Document No: BL-SZ2270935 Page 9 of 104 3.2. EGPRS Occupied Bandwidth(NTNV)(Channel:190) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 836.6 99 26 0.004 Peak 0.247 0.314 0.3 Pass Document No: BL-SZ2270935 Page 10 of 104 3.3. EGPRS Occupied Bandwidth(NTNV)(Channel:251) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 848.8 99 26 0.004 Peak 0.244 0.303 0.3 Pass Document No: BL-SZ2270935 Page 11 of 104 4. EGPRS_PCS 4.1. EGPRS Occupied Bandwidth(NTNV)(Channel:512) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1850.2 99 26 0.004 Peak 0.242 0.309 0.3 Pass Document No: BL-SZ2270935 Page 12 of 104 4.2. EGPRS Occupied Bandwidth(NTNV)(Channel:661) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1880 99 26 0.004 Peak 0.244 0.31 0.3 Pass Document No: BL-SZ2270935 Page 13 of 104 4.3. EGPRS Occupied Bandwidth(NTNV)(Channel:810) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1909.8 99 26 0.004 Peak 0.246 0.311 0.3 Pass Document No: BL-SZ2270935 Page 14 of 104 5. LTE_Band2 5.1. LTE Occupied Bandwidth(NTNV)(Subtest:1, Channel:18607, Bandwidth:1.4, Modulation:QPSK, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1850.7 99 26 0.027 Peak 1.087 1.265 1.4 Pass Document No: BL-SZ2270935 Page 15 of 104 5.2. LTE Occupied Bandwidth(NTNV)(Subtest:2, Channel:18607, Bandwidth:1.4, Modulation:Q16, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1850.7 99 26 0.027 Peak 1.089 1.273 1.4 Pass Document No: BL-SZ2270935 Page 16 of 104 5.3. LTE Occupied Bandwidth(NTNV)(Subtest:3, Channel:18900, Bandwidth:1.4, Modulation:QPSK, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1880 99 26 0.027 Peak 1.086 1.281 1.4 Pass Document No: BL-SZ2270935 Page 17 of 104 5.4. LTE Occupied Bandwidth(NTNV)(Subtest:4, Channel:18900, Bandwidth:1.4, Modulation:Q16, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1880 99 26 0.027 Peak 1.085 1.255 1.4 Pass Document No: BL-SZ2270935 Page 18 of 104 5.5. LTE Occupied Bandwidth(NTNV)(Subtest:5, Channel:19193, Bandwidth:1.4, Modulation:QPSK, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1909.3 99 26 0.027 Peak 1.096 1.274 1.4 Pass Document No: BL-SZ2270935 Page 19 of 104 5.6. LTE Occupied Bandwidth(NTNV)(Subtest:6, Channel:19193, Bandwidth:1.4, Modulation:Q16, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1909.3 99 26 0.027 Peak 1.089 1.289 1.4 Pass Document No: BL-SZ2270935 Page 20 of 104 5.7. LTE Occupied Bandwidth(NTNV)(Subtest:7, Channel:18615, Bandwidth:3, Modulation:QPSK, RB Number: 15, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1851.5 99 26 0.062 Peak 2.702 2.955 3 Pass Document No: BL-SZ2270935 Page 21 of 104 5.8. LTE Occupied Bandwidth(NTNV)(Subtest:8, Channel:18615, Bandwidth:3, Modulation:Q16, RB Number: 15, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1851.5 99 26 0.062 Peak 2.69 2.956 3 Pass Document No: BL-SZ2270935 Page 22 of 104 5.9. LTE Occupied Bandwidth(NTNV)(Subtest:9, Channel:…

Text truncated - open the document above for the full version.

DocumentNo:BL-SZ2270935 Page 1 of 134 AnnexA.5SpuriousEmissionatAntenna Terminals DocumentNo:BL-SZ2270935 Page 2 of 134 1.GSM_GSM850 1.1.GSMSpuriousEmissionatAntennaTerminals(NTNV)(Channel:190) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.0090.150.001Peak0.009-55.85-13Pass401 0.15300.01Peak0.28-54.98-13Pass2985 305000.1Peak375.073-44.17-13Pass4700 50010000.1Peak836.56731.02-13N/A5000 1000100001Peak7044.738-22.84-13Pass9000 DocumentNo:BL-SZ2270935 Page 3 of 134 1.2.GSMSpuriousEmissionatAntennaTerminals(NTNV)(Channel:128) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.0090.150.001Peak0.009-58.64-13Pass401 0.15300.01Peak0.77-53.68-13Pass2985 305000.1Peak353.869-44.98-13Pass4700 50010000.1Peak824.16531.3-13N/A5000 1000100001Peak7226.76-22.88-13Pass9000 DocumentNo:BL-SZ2270935 Page 4 of 134 1.3.GSMSpuriousEmissionatAntennaTerminals(NTNV)(Channel:251) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.0090.150.001Peak0.009-58.33-13Pass401 0.15300.01Peak0.26-55.31-13Pass2985 305000.1Peak466.493-43.64-13Pass4700 50010000.1Peak848.7731.39-13N/A5000 1000100001Peak7218.759-22.8-13Pass9000 DocumentNo:BL-SZ2270935 Page 5 of 134 2.GSM_PCS 2.1.GSMSpuriousEmissionatAntennaTerminals(NTNV)(Channel:512) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.0090.150.001Peak0.009-62.06-13Pass401 0.15300.01Peak0.18-59.5-13Pass2985 3010000.1Peak858.012-50.07-13Pass9699 100030001Peak1849.42523.27-13N/A2000 3000200001Peak3701.086-39.25-13Pass17000 DocumentNo:BL-SZ2270935 Page 6 of 134 2.2.GSMSpuriousEmissionatAntennaTerminals(NTNV)(Channel:661) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.0090.150.001Peak0.009-63.45-13Pass401 0.15300.01Peak1.45-60.82-13Pass2985 3010000.1Peak975.968-48.61-13Pass9699 100030001Peak1880.4429-13N/A20…

Text truncated - open the document above for the full version.
