2AMSFT90Barcode Scanner

FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This equipment should be installed and operated with a minimum distance of 0mm between the radiator and your body. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful i nterference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

CILICO MICROELECTRONICS LIMITED Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020-09-10 Subject; Request for Long Term Confidentiality FCC ID: 2AMSFT90 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Ksai Wen Title: Project Manager

CILICO MICROELECTRONICS LIMITED Letter of Authorization Company: CILICO MICROELECTRONICS LIMITED Address: #10406 4th floor, Unit1, Building 1, Huixin IBC, south of zhangba east Rd., Hi-tech Zone, Xi'an, China Product Name: Barcode Scanner Model Number: CT90 FCC ID: 2AMSFT90 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Ksai Wen Date: 2020-09-10 Title: Project Manager

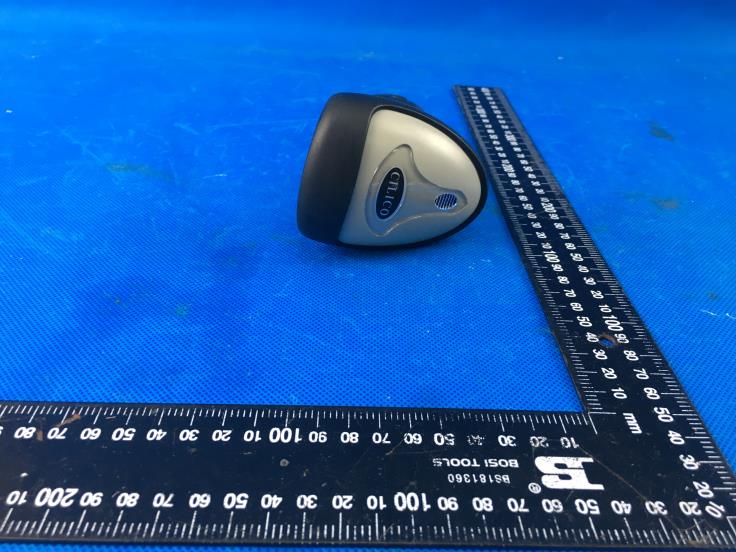

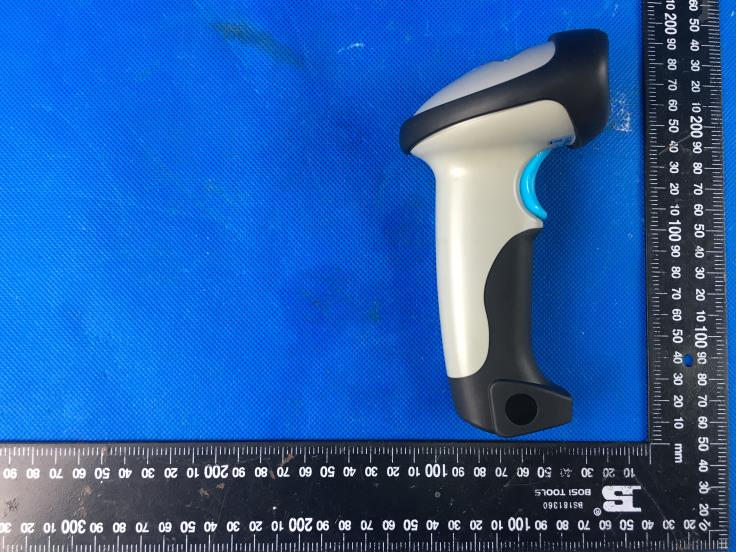

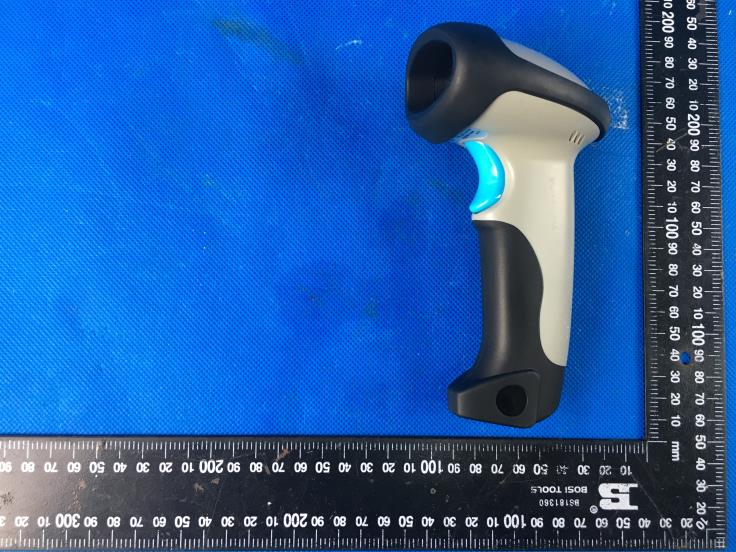

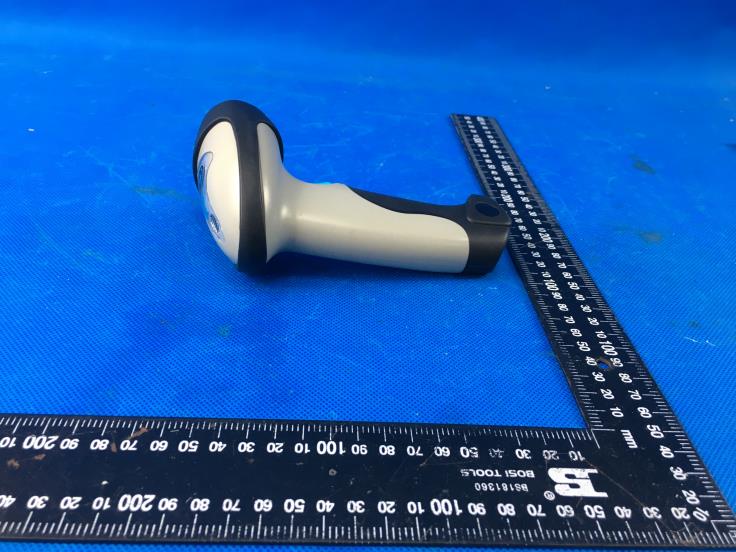

7.EXTERANAL AND INTERNAL PHOTOS External Photos of the EUT M odel:CT90

Internal Photos of the EUT Model:CT90

FCC ID: 2AMSFT90 RF Exposure Evaluation REQUIREMENT KDB447498 D01 General RF Exposure Guidance v06, Clause 4.3.1(a) [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 7.5 Where -f(GHz) is the RF channel transmit frequency in GHz -Power and distance are rounded to the nearest mW and mm before calculation -The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. TEST RESULT Passed Not Applicable Type Maximum Tune-up (dBm) Conducted Average Power BT-EDR -1.68~0.32 Type Conducted Average Power (dBm) Maximum Tune-up (dBm) Calculating data Limit Result BT EDR 0.32 0.32 0.0003 7.5 Pass Note: 1) The maximum antenna gain is 1.5dBi 2) The exposure evaluation safety distance is 0mm.

Page: 1 of 42 TEST REPORT Report No. ...................................... : CHTEW20070054 Report Verification: Project No.................................： SHT2006066501EW FCC ID ............................................. : 2AMSFT90 Applicant’s name ........................... : CILICO MICROELECTRONICS LIMITED Address ............................................. : #10406 4th floor, Unit1, Building 1, Huixin IBC, south of zhangba east Rd., Hi-tech Zone, Xi'an, China Manufacturer.....................................: CILICO MICROELECTRONICS LIMITED Address..............................................: #10406 4th floor, Unit1, Building 1, Huixin IBC, south of zhangba east Rd., Hi-tech Zone, Xi'an, China Test item description .................... : Barcode Scanner Trade Mark ....................................... : CILICO Model/Type reference ....................... : CT90 Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample..........: Jun. 12, 2020 Date of testing.............................: Jun. 13, 2020- Jul. 08, 2020 Date of issue...............................: Jul. 09, 2020 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Silvia Li Supervised by (Position+Printed name+Signature): Project Engineer Chengxiao Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW20070054 Page: 2 of 42 Issued: 2020-07-09 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) Contents 1. TEST S T AN D AR D S A N D R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test mode 7 4.4. Support unit used in test configuration and system 8 4.5. Testing environmental condition 8 4.6. Measurement uncertainty 8 4.7. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. Peak Output Power 15 5.4. 20 dB Bandwidth 16 5.5. 99% Occupied Bandwidth 17 5.6. Carrier Frequencies Separation 18 5.7. Hopping Channel Number 19 5.8. Dwell Time 20 5.9. Duty Cycle Correction Factor (DCCF) 21 5.10. Pseudorandom Frequency Hopping Sequence 22 5.11. Conducted Band edge and Spurious Emission 23 5.12. Radiated Band edge Emission 25 5.13. Radiated Spurious Emission 27 6. TEST SETUP PHOTOS 32 7. EXTERANAL AND INTERNAL PHOTOS 34 8. APPENDIX REPORT 42 Report No.: CHTEW20070054 Page: 3 of 42 Issued: 2020-07-09 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 1. TEST STAND ARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2020-07-09 Original Report No.: CHTEW20070054 Page: 4 of 42 Issued: 2020-07-09 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result 5.1 Antenna Requirement 15.203/15.247 (c) PASS 5.2 AC Conducted Emission 15.207 PASS 5.3 Peak Output Power 15.247 (b)(1) PASS 5.4 20 dB Bandwidth 15.247 (a)(1) PASS 5.5 99% Occupied Bandwidth - PASS *1 5.6 Carrier Frequency Separation 15.247 (a)(1) PASS 5.7 Hopping Channel Number 15.247 (a)(1) PASS 5.8 Dwell Time 15.247 (a)(1) PASS 5.9 Duty Cycle Correction Factor - PASS *1 5.10 Pseudorandom Frequency Hopping Sequence 15.247(b)(4) PASS 5.11 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS 5.12 Radiated Band Edge Emission 15.205/15.209 PASS 5.13 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW20070054 Page: 5 of 42 Issued: 2020-07-09 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 3. SUMMARY 3.1. Client Information Applicant: CILICO MICROELECTRONICS LIMITED Address: #10406 4th floor, Unit1, Building 1, Huixin IBC, south of zhangba east Rd., Hi-tech Zone, Xi'an, China Manufacturer: CILICO MICROELECTRONICS LIMITED Address: #10406 4th floor, Unit1, Building 1, Huixin IBC, south of zhangba east Rd., Hi-tech Zone, Xi'an, China 3.2. Product Description Name of EUT: Barcode Scanner Trade Mark: CILICO Model …

Text truncated - open the document above for the full version.

Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR APPENDIX REPORT Project No. SHT2006066501EW Radio Specification Bluetooth EDR Test sample No. YPHT20060665002 Model No. CT90 Start test date 2020/6/29 Finish date 2020/6/29 Temperature 25°C Humidity 50% Test Engineer Jiongsheng.Feng Auditor Appendix clause Test item Result A Peak Output Power PASS B 20 dB Bandwidth PASS C 99% Occupied Bandwidth PASS D Carrier Frequencies Separation PASS E Hopping Channel Number PASS F Dwell Time PASS G Duty Cycle Correction Factor (DCCF) PASS H Band edge and Spurious Emissions(coducted) PASS Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR Appendix A：Peak Output Power Modulation type Channel Output power (dBm) Average Output power (dBm) Limit (dBm) Result GFSK 00 0.36 0.32 ≤ 30.00 Pass 39 -0.39 -0.40 78 -1.39 -1.41 Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR Modulation Type: GFSK CH00 CH39 CH78 Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR Appendix B : 20 dB Bandwidth Modulation type Channel 20 dB Bandwidth (kHz) Limit (kHz) Result GFSK 00 922.50 - Pass 39 922.50 78 925.00 Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR Modulation Type: GFSK CH00 CH39 CH78 Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 5 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR Appendix C：99% Occupied Bandwidth Modulation type Channel 99% Occupied Bandwidth (MHz) Limit (MHz) Result GFSK 00 0.88 - Pass 39 0.87 78 0.87 Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 6 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR Modulation Type: GFSK CH00 CH39 CH78 Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 7 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR Appendix D：Carrier Frequencies Separation Modulation type Channel Carrier Frequencies Separation (MHz) Limit (kHz) * Result GFSK 39 1.00 ≥925 Pass Note: *: GFSK limit = The maximum 20 dB Bandwidth for GFSK modulation on the appendix B. π/4DQPSK limit = 2/3 * The maximum 20 dB Bandwidth for π/4DQPSK modulation on the appendix B. 8DPSK limit = 2/3 * The maximum 20 dB Bandwidth for 8DPSK modulation on the appendix B Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 8 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR GFSK Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 9 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR Appendix E：Hopping Channel Number Modulation type Channel number Limit Result GFSK 79 ≥15.00 Pass Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 10 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR GFSK Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 11 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR Appendix F：Dwell Time Modulation type Packet Burst Width [ms] Total Hops[hop*ch] Dwell time (Second) Limit (Second) Result DH5 2.88 117.00 0.34 ≤ 0.40 PASS Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 12 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR Modulation Type: GFSK DH5 Burst width DH5 Burst number Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 13 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR Appendix G：Duty Cycle Correction Factor (DCCF) DCCF Calculate Formula DCCF=20 * Log(duty cycle) = 20 * Log(T on time / T period ) Modulation type Test Frequency （MHz） T on time for single burst [ms] T period [ms] Burst Quantity DCCF [dB] GFSK 2441 2.87 100 2.00 -24.82 Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 14 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR GFSK T on time for single burst Burst Quantity Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 15 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR Appendix H：Band edge and Spurious Emissions (conducted) Test Item: Band edge Modulation type: GFSK CH00 No hopping mode CH00 Hopping mode CH78 No hopping mode Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 16 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR CH78 Hopping mode Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 17 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR Test Item: Spurious Emission Modulation type: GFSK CH00 Reference level CH00 30MHz~1000MHz CH00 1GHz~26GHz Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 18 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR CH39 Reference level CH39 30MHz~1000MHz CH39 1GHz~26GHz Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 19 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR CH78 Reference level CH78 30MHz~1000MHz CH78 1GHz~26GHz Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 20 of 21 Project No.: SHT2006066501EW Radio Specification: Bluetooth EDR --------End of Report-------- Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 21 of 21

6.TEST SETUP PHOTOS Radiated Emission M odel:CT90 AC Conducted Emission
