2AMSOCPA89FDTrue Wireless Speaker

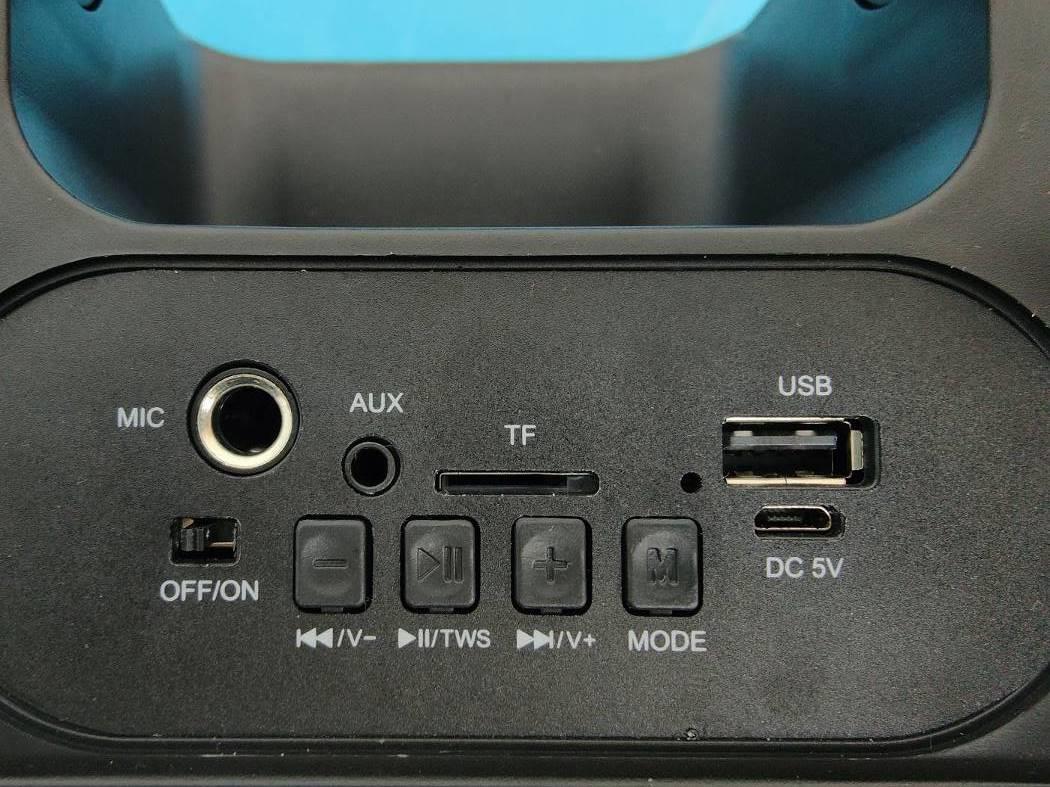

User Manual Manual de usuario True Wireless Speaker Verdadero altavoz inalámbrico para fiestas CPA89FD EN ... 01 09 ... ES User Manual Buttons and Parts Charging Top Control Panel Volume Up/Next track button Play/Pause, TWS pairing button Mode button Micro USB charging port USB Port TF Card Slot 1 x User Manual 1 x Micro USB Cable 1 x Drop Card 1 x True Wireless Party Speaker AUX-IN Port Mic In Port Status LED Indicator Power Switch Speaker RGB Light Handle Volume Down / Previous track button Steady red (Status LED indicator) Charging Fully charged Charging time Off (Status LED indicator) 5 hours English EN 01 Note: When the battery power level is low, the RGB light may not work, and the volume will turn lower, indicating that it requires charging. When the speaker's battery power gets used up, it will automatically power off. Slide the Power Switch to the "ON" position to turn on the speaker. Once the speaker is on, it will default to Bluetooth mode, and the RGB light will be on. To turn off the speaker, slide the Power Switch to the "OFF" position, and the RGB light will be off. Bluetooth Mode Bluetooth connection with your device When the speaker is on, it will automatically enter Bluetooth pairing mode (If the speaker is in other playback modes, repeatedly press the Mode button M until the status LED indicator quickly flashes blue to enter Bluetooth mode.). Turn on Bluetooth in your device’s settings and search for ‘‘CPA89FD’’, then tap ‘‘CPA89FD’’ to connect. Enter Bluetooth pairing mode Connected to a device (Successfully paired with your device). Quickly flashing blue (Status LED indicator) Steady blue (Status LED indicator) Connected tone notification Bluetooth mode tone notification ? NOTES: 1. Press and hold the button for 2 seconds to unpair the speaker from the current connected device. 2. The speaker will automatically be paired with your last successfully con- nected media device the next time it is turned on. EN 01 Powering on/off ? True Wireless Stereo connection The CPA89FD supports True Wireless Pairing, which lets you stream your music from your device to two CPA89FD speakers acting as left and right audio channels for definitive and immersive stereo sound quality. To pair two speakers together, follow the steps below: 1. Bring the two speakers next to each other and turn them on. Make sure neither speaker is connected to any other Bluetooth devices, such as your phone, tablet, or laptop. 2. Press the button twice on either speaker until you hear a tone notification, which means both speakers are paired with each other successfully. 3. Turn on your Bluetooth in your device’s settings and search for ‘‘CPA89FD“, then tap ‘‘CPA89FD’’ to connect. After they are successfully connected, you can stream music from your phone to both speakers. EN 02 For Music Playback Play / PausePress the button once Next track Press the + button once Previous trackPress the button once Volume up Press and hold the + button Volume downPress and hold the button Next radio station Press the + button once Previous radio stationPress the button once Volume up Press and hold the + button Volume downPress and hold the button Note: When you receive or make a call, the music that is playing will automat- ically pause, and the person’s voice on the other end of the line can only be heard through your phone. When you end the call, the music will resume. EN 03 NOTES: · Both speakers will reconnect auto - matically the next time they are both on, in range and pairing mode. · To unpair speakers, press the button twice on either speaker; To pair again, press the button twice again. Repeatedly press the Mode button M to switch to the FM Radio mode. Insert the included Micro USB charging cable into the charging port as an antenna to adjust for better signals. Press the button to automatically search for the radio stations, then all available radio stations will be stored by the preset channel number in order, and the first preset radio station will broadcast automatically. While searching for the radio stations, press the button again to stop searching and broadcast the current frequency radio. FM Radio mode Playing from external device USB / TF card/AUX mode Under any mode, insert a TF card/USB disk into the TF card slot/USB port of your speaker, or connect the AUX cable(not included) to the AUX In port of the speaker and to the Audio Out of your media device (such as your phone). It will immediately play the music files in the TF card, USB disk, or Audio Out device. The music playback controls are the same as the Bluetooth mode. The speaker will take the newly connected USB disk, TF card, or Audio out device as the first priority for the music playback. If the USB disk, TF card, and Audio Out device are connected to the speaker at the same time, you can repeatedly press the Mode button M to toggle these playback modes, and the playback mode will change as follows: Note: Under AUX mode, you can mute the music playback sound, adjust the volume level on the speaker, and for other music playback controls, you can operate them through your media device. EN 04 Microphone Mode The speaker has a 6.35mm Microphone In port, which allows the user to connect the speaker with your microphone (not included): Plug one end of the microphone cable (not included) into the Mic In port of the speaker, and the other end into the MIC Out port of the microphone. Now you can stream your sound from the microphone to the speaker. MIC Out Port MIC In Port Notes: 1. You can also connect other audio output instruments to the speaker, such as electronic guitar and piano. 2. The Microphone mode is available under any playback mode. Bluetooth Mode FM Radio Mode USB Mode AUX Mode TF Card Mode Specifications I Model NO./ NameCPA89FD/ True Wireless Party Speaker Power Input5V / 0.5A Power Consumption3W Battery TypeLithium-ion Charging Time5 Hours PlaytimeUp to 7 hours Frequency Response80Hz-18kHz FM Frequency Range87.5-108.0Mhz Bluetooth Ver…

Text truncated - open the document above for the full version.

C5266091_X24_Ed.1 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Summit Electronics LLC Grantee code: 2AMSO FCC ID: 2AMSOCPA89FD Contact Name: Moshe Dancikier Address: 1 Rewe Street, Brooklyn,New York,11211 United States Telephone No: 212-260-0666 Fax No: 212-473-1873 Email:[email protected] i.[Summit Electronics LLC] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii.[Summit Electronics LLC] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. Date: 2023-02-24 Applicant’s Name: Moshe Dancikier Title: Sourcing Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Summit Electronics LLC 1 Rewe Street, Brooklyn,New York,11211 United States Declaration letter Dear Sir, We, _Summit Electronics LLC_declare product: _ True Wireless Speaker _with the model numbers CPA89FD, CPA895BK, CPA895_, all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name. Please kindly handle on the project. FCC ID: 2AMSOCPA89FD Thank you! Sincerely, Signature Moshe Dancikier Sourcing Summit Electronics LLC

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: Summit Electronics LLC Address: 1 Rewe Street, Brooklyn,New York,11211 United States Product Name: True Wireless Speaker Model Number: CPA89FD, CPA895BK, CPA895 FCC Identifier: 2AMSOCPA89FD We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Moshe Dancikier Date: 2/24/2023 Title: Sourcing Signature of applicant:

C5266091_X10_Ed.1 1/1 Summit Electronics LLC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2/24/2023 Subject: Request for Confidentiality FCC ID: 2AMSOCPA89FD To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Moshe Dancikier Title: Sourcing

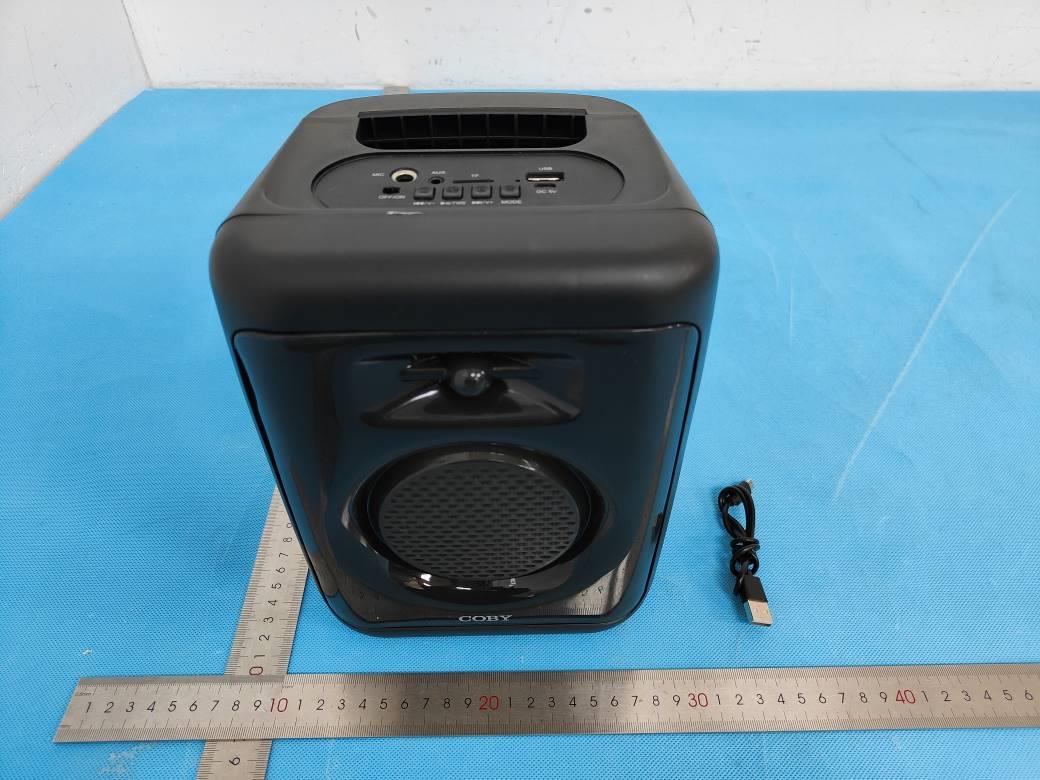

FCC ID: 2AMSOCPA89FD External photos FCC ID: 2AMSOCPA89FD FCC ID: 2AMSOCPA89FD FCC ID: 2AMSOCPA89FD FCC ID: 2AMSOCPA89FD

CPA895 (9410X) 60x40mm 80g铜版纸不干胶贴纸 表面覆光膜

FCC ID: 2AMSOCPA89FD Internal photos FCC ID: 2AMSOCPA89FD RF Antenna RF Chip FCC ID: 2AMSOCPA89FD FCC ID: 2AMSOCPA89FD

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2302150F-1 FCC ID: 2AMSOCPA89FD RF EXPOSURE EVALUATION EUT Specification EUT True Wireless Speaker Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others(Bluetooth: 2.402GHz ~ 2.480GHz) Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power -1.92dBm(0.64mW) Antenna gain -0.58dBi Evaluation applied MPE Evaluation SAR Evaluation Standard Requirement Portable Device According to §15.247(i) and §1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance v06, section 4.3.1. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where ·f(GHz) is the RF channel transmit frequency in GHz ·Power and distance are rounded to the nearest mW and mm before calculation17 ·The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2302150F-1 FCC ID: 2AMSOCPA89FD Measurement Result Channel Channel Frequency (MHz) Max Output power (dBm) Max Output power (mW) Calculati on Value (Note 1) Threshold Value GFSK Low 2402 -2.78 0.53 0.1643 3.0 Middle 2441 -4.14 0.39 0.1219 3.0 High 2480 -3.65 0.43 0.1354 3.0 π/4-DQPSK Low 2402 -1.92 0.64 0.1984 3.0 Middle 2441 -3.29 0.47 0.1469 3.0 High 2480 -2.80 0.52 0.1638 3.0 Note 1: Calculation Value =[(max. power of channel, mW)/(min. test separation distance, mm)] ·[√f(GHz)]. Fox example: 0.64/5*√2.402=0.1984 ≤ 3.0 According to KDB447498 D01 V06, threshold at which no SAR required is ≤3.0 for 1-g SAR, separation distance is 5mm, and no simultaneous SAR measurement is required.

-0.58 -0.58dBi

Report No.: NTC2302150FV00 Page 2 of 45 Table of Contents 1. Summary of Test Result ......................................................................................................................... 4 2. General Description of EUT .................................................................................................................... 5 3. Test Channels and Modes Detail ............................................................................................................ 8 4. Configuration of EUT .............................................................................................................................. 8 5. Modification of EUT................................................................................................................................. 8 6. Description of Support Device ................................................................................................................. 9 7. Test Facility and Location ..................................................................................................................... 10 8. Applicable Standards and References .................................................................................................. 11 9. Deviations and Abnormalities from Standard Conditions ....................................................................... 11 10. Test Conditions ................................................................................................................................... 12 11. Measurement Uncertainty ................................................................................................................... 13 12. Sample Calculations ........................................................................................................................... 14 13. Test Items and Results ....................................................................................................................... 15 13.1 Conducted Emissions Measurement ................................................................................................. 15 13.2 Radiated Spurious Emissions and Restricted Bands Measurement .................................................. 19 13.3 Channel Separation test .................................................................................................................... 26 13.4 20dB Bandwidth ................................................................................................................................ 29 13.5 Hopping Channel Number ................................................................................................................. 32 13.6 Time of Occupancy (Dwell Time) ...................................................................................................... 34 13.7 Maximum Peak Output Power........................................................................................................... 37 13.8 Band Edge Conducted Spurious Emission Measurement ................................................................. 40 13.9 Antenna Requirement ....................................................................................................................... 44 14. Test Equipment List ............................................................................................................................ 45 Report No.: NTC2302150FV00 Page 3 of 45 Revision History Report Number Description Issued Date NTC2302150FV00 Initial Issue 2023-02-24 Report No.: NTC2302150FV00 Page 4 of 45 1. Summary of Test Result FCC Rules Description of Test Result Remarks §15.247(a)(1) Channel Separation test PASS --- §15.247(a)(1) 20dB Bandwidth PASS --- §15.247(a)(1)(iii) Hopping Channel Number PASS --- §15.247(a)(1)(iii) Time of Occupancy (Dwell Time) PASS --- §15.247(b) Max Peak output Power test PASS --- §15.247(d) Band edge test PASS --- §15.207 (a) AC Power Conducted Emission PASS --- §15.247(d),§15.209, §15.205 Radiated Emission PASS --- §15.203 Antenna Requirement PASS --- §15.247(d) Conducted Spurious Emission PASS --- Report No.: NTC2302150FV00 Page 5 of 45 2. General Description of EUT Product Information Product name: True Wireless Speaker Main Model Name: CPA89FD Additional Model Name: CPA895BK ,CPA895 Model Difference: These models have the same circuitry, electrical mechanical, PCB Layout and physical construction. The difference is model name due to marketing purpose. S/N: 2302-0841 Brand Name COBY Hardware version: Not Stated Software version: Not Stated Rating: DC 5V come from USB port or DC 3.7V from internal battery Classification: Class B Typical arrangement: Tabletop I/O Port: Refer to the user manual. Accessories Information Adapter: N/A Cable: USB Line: 0.24m, unshielded, detachable Other: N/A Additional Information Note: N/A Remark: All the information above are provided by the manufacturer. More detailed feature of the EUT please refers to the user manual. Report No.: NTC2302150FV00 Page 6 of 45 Technical Specification Bluetooth Version: V5.3 Frequency Range: 2402-2480MHz Modulation Type: GFSK, π/4-DQPSK Number of Channel: 79 (refer to following channel list for details) Channel Space: 1MHz Antenna Type: PCB antenna Antenna Gain: -0.58 dBi (Declared by manufacturer) Note: The EUT does not support Bluetooth Low Energy feature in accordance with the manufacturer declaration. Report No.: NTC2302150FV00 Page 7 of 45 Channel List Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 1 2402 21 2422 41 2442 61 2462 2 2403 22 2423 42 2443 62 2463 3 2404 23 2424 43 2444 63 2464 4 2405 24 2425 44 2445 64 2465 5 2406 25 2426 45 2446 65 2466 6 2407 26 2427 46 2447 66 2467 7 2408 27 2428 47 2448 67 2468 8 2409 28 2429 48 2449 68 2469 9 2410 29 2430 49 2450 69 2470 10 2411 30 2431 50 2451 70 2471 11 2412 31 2432 51 2452 71 2472 12 2413 32 2433 52 2453 72 2473 13 2414 33 2434 53 2454 73 2474 14 2415 34 2435 54 2455 74 2475 15 2416 …

Text truncated - open the document above for the full version.

FCC ID: 2AMSOCPA89FD Test Photo Radiated emission (Below 30MHz) Radiated emission (30-1000MHz) FCC ID: 2AMSOCPA89FD Radiated emission (Above 1000MHz) Conducted emission
