2AMWAS150AS-100T IOT

Welcome to Spin’s S-100T electric scooter, hereafterreferred to as S-100T! S-100T is designed specifically and exclusively for rental asa shared e-scooter.1 Riding Safety1 Diagram4 Charging4 Replace the battery4 Learning to Ride4 Warnings4 Maintenance4 Specifications4 Certifications4 Trademark and Legal Statement4 Welcome to Spin’s S-100T electric scooter, hereafterreferred to as S-100T! S-100T is designed for rental as a shared e-scooter. This manual willhighlight some of S-100T’s many features. Let’s take it for a Spin! Riding Safety 1.S-100T is a recreational product. As with any vehicleor mobility product, practice is required to master riding skills. Spin is not responsiblefor any injuries or damage caused by a rider's inexperience or failure to follow theinstructions in this document. 2.Please understand that you can reduce the risk byfollowing all the instructions and warnings in this manual, but you cannot eliminateall the risks. Remember that whenever you ride the S-100T, you risk injury from loss ofcontrol, collisions, and falls. When entering into public spaces always comply with thelocal laws and regulations. As with other vehicles, faster speeds require longer brakingdistance. Sudden braking on low traction surfaces could lead to wheel slip, or falls.Be cautious and always keep a safe distance between you and other people or vehicleswhen riding. Be alert and slow down when entering unfamiliar areas. 3.Always wear a helmet when riding. Use an approvedbicycle or skateboard helmet that fits properly with the chin strap in place, and providesprotection for the back of your head. 4.Do not attempt your first ride in any area where youmight encounter children, pedestrians, pets, vehicles, bicycles, or other obstaclesand potential hazards. 5.Follow all local regulations related to sidewalk riding, riding in bike lanes, and riding in no ride zones or slow ride zones. 6.If you do encounter a pedestrian while riding in alegal riding area, respect pedestrians by always yielding the right of way. Pass on the leftwhenever possible. If approaching a pedestrian from the front, stay to the right and slowdown. Avoid startling pedestrians. When approaching from behind, announce yourself andslow down to walking speed when passing. Please obey local traffic laws and regulationsif the situation is different. 7.In the absence of local regulation, comply with thesafety guidelines outlined in this manual. Spin is not responsible for any property damage,personal injury/death, accidents, or legal disputes caused by violationsof the safety instructions. 8.Do not allow other riders to rent S-100T using youraccount, and do not ride with another rider on the same scooter. 9.Follow all instructions provided to you by S-100Tduring the ride. If S-100T tells you that you’re in a no ride zone, move to an area where youcan legally ride. If S-100T presents an error code or a fault or error message, end yourride and complete your ride on another nearby Spin scooter. 10.Be alert! Scan both far ahead and in front of yourS-100T — your eyes are your best tool for safely avoiding obstacles and low traction surfaces(including, but not limited to, wet ground, loose sand, loose gravel, and ice). 11.Do not attempt to ride at an unsafe speed. 12.Do not ride if the road or environmental conditionsare unsafe. 13.Do not ride if you are under the age of 18 years old. 14.To reduce risk of injury, you must read and followall “CAUTION” and “WARNING” notices in this document. Always follow these safetyinstructions: a.People who should not ride the S-100T include: i.Anyone under the influence of alcohol or drugs. ii.Anyone who suffers from disease that puts them atrisk if they engage in strenuous physical activity. iii.Anyone who has problems with balance or with motorskills that would interfere with their ability to maintain balance. iv.Anyone whose weight is outside the stated limits (seeSpecifications). v.Pregnant women. b.Comply with local laws and regulations when ridingthis product. Do not ride where prohibited by local laws. c.To ride safely, you must be able to clearly see whatis in front of you and you must be clearly visible to others. d.Do not ride in the snow, in the rain, or on roadswhich are wet, muddy, icy, or that are slippery for any reason. Do not ride over obstacles(sand, loose gravel, or sticks). Doing so could result in a loss of balanceor traction and could cause a fall. 15.Do not attempt to charge S-100T if it, the charger,or the power outlet is wet. 16.As with any electronic device, use a surge protectorwhen charging to help protect S-100T from damage due to power surges and voltagespikes. Only use the Spin supplied charger. Do not use a charger from any otherdifferent product models. 17.Use only Spin approved parts and accessories, and follow the standard Spin operating procedures. Do not modify S-100T. Modifications toS-100T could interfere with its operation and could result in serious injury and/ordamage. 18.Children should not play with the S-100T or partsof it nor should cleaning or maintenance be done by children. The use of the machineresults in the transmission of vibrations throughout the rider’s body. 19.Always park S-100T on a flat and stable surface, withthe kickstand enabled. Never place S-100T with the front facing down the slope,as the kickstand may close and tip the machine. Once the S-100T is parked, enable thekickstand and check its stability to avoid any risk of falling (by slip, wind or slightjolt). Do not park the S-100T in a busy area, but rather at a bike rack, designated parkingarea, or against a wall away from pedestrian traffic. Do not ever park S-100T in a waythat blocks pedestrian traffic or accessibility entryways or exits. Do not ever blockpoints of egress from a building. 20.S-100T is not designed to be maintained by riderswho rent S-100T. 21.Riders who rent S-100T should not attempt to change,remove, or charge the battery. 22.Riders who rent S-100T should not touch the brakes…

Text truncated - open the document above for the full version.

Skinny Labs, Inc. 188 King St, Unit 203,San Francisco, California UnitedStates 94107 Date: June 25, 2021 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative AuthorizationLetter FCC ID:2AMWAS150A To whom it may concern: Wetheundersigned,herebyauthorizefollowingpersontoactasouragentinthe preparationofanapplicationforequipmentauthorizationofmodelS-100TIOTtothe FCC Rules and Regulations. International Certification Corp. Address: No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., TaoYuanCity 333, Taiwan (R.O.C.) Name:Gary Chang Job Title:Manager e-mail: [email protected] Webs Wefurthercertifiesthatneithertheapplicantnoranypartytothisapplication,as definedin47CFRCh.1.2002(b),issubjecttoadenialtoFederalbenefits,that includeFCCbenefits,pursuanttosection5301oftheAnti-DrugAbuseActof1998, 21 U.S.C. 862. ThisappointmentalsoincludestheauthoritytocompleteFCCForm731onour behalf and sign the application as an authorized agent.

Skinny Labs, Inc. 188 King St, Unit 203,San Francisco, California UnitedStates 94107 Date: May 19, 2021 Subject: Ad Hoc Mode Function Declaration FCC ID: 2AMWAS150A To Whom it may concern, We, Skinny Labs, Inc. declare that the device doesnot support any non-US channels and country code selection and Channel12 and 13 in 2.4 GHz band in all the operational mode(s). Regards,

Skinny Labs, Inc. 188 King St, Unit 203,San Francisco, California UnitedStates 94107 Date: May 20, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID:2AMWAS150A To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice,in order to comply with the marketing regulationsin 47CFR §2.803 and the importation rules in 47 CFR §2.1204,while ensuring that business sensitive information remains confidential until the actual marketing ofnewly authorized devices. We are requesting the commissionto grantshort-term confidentialityrequest on the followingattachments until180 days. ☒Internal Photographs ☒External Photographs ☒User's manual ☒Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’sRules, the Applicant Hereby requests confidential treatment of information accompanying this ApplicationAs outlined below: ☒Block Diagram ☒Schematics ☒Operational Description ☒Tune up procedure The above materials contain trade secrets and proprietaryinformation not customarily released to the public. The public disclosure of these materials may be harmfulto the applicant and provide unjustified benefitsto its competitors. The applicant understands that pursuant to Section0.457 of the Rules, disclosure of this applicationand all accompanying documentation will not be made beforethe date of the Grant for this application. Should you require any further information, pleasecontact the undersigned. Thank you for your consideration in this matter.

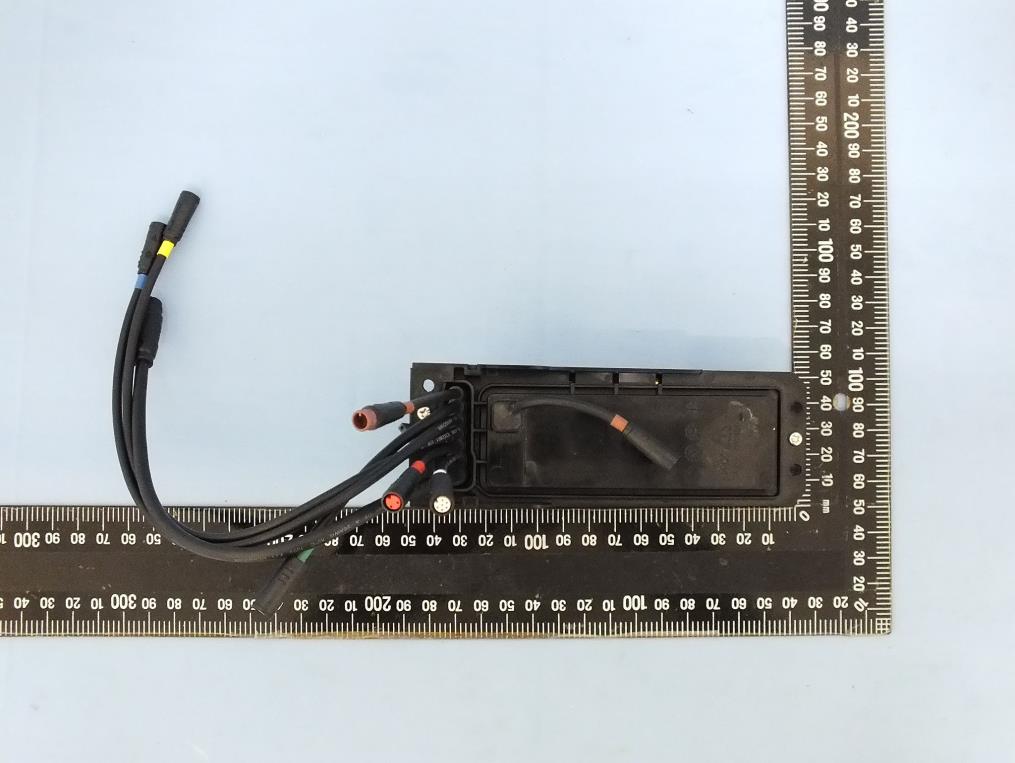

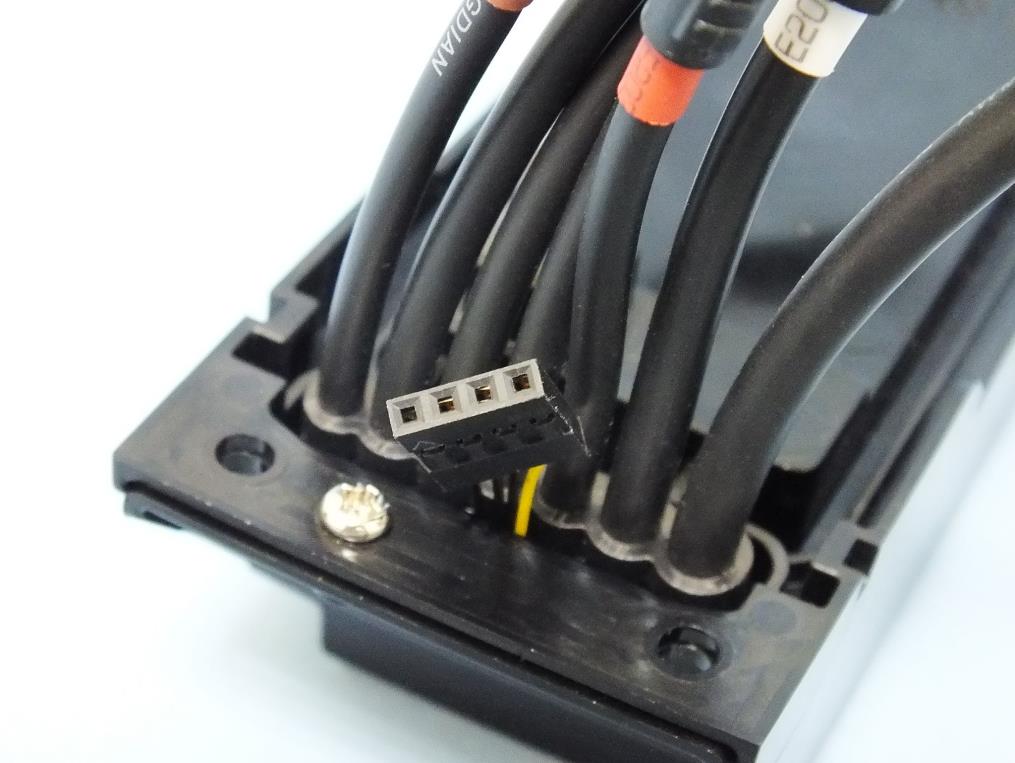

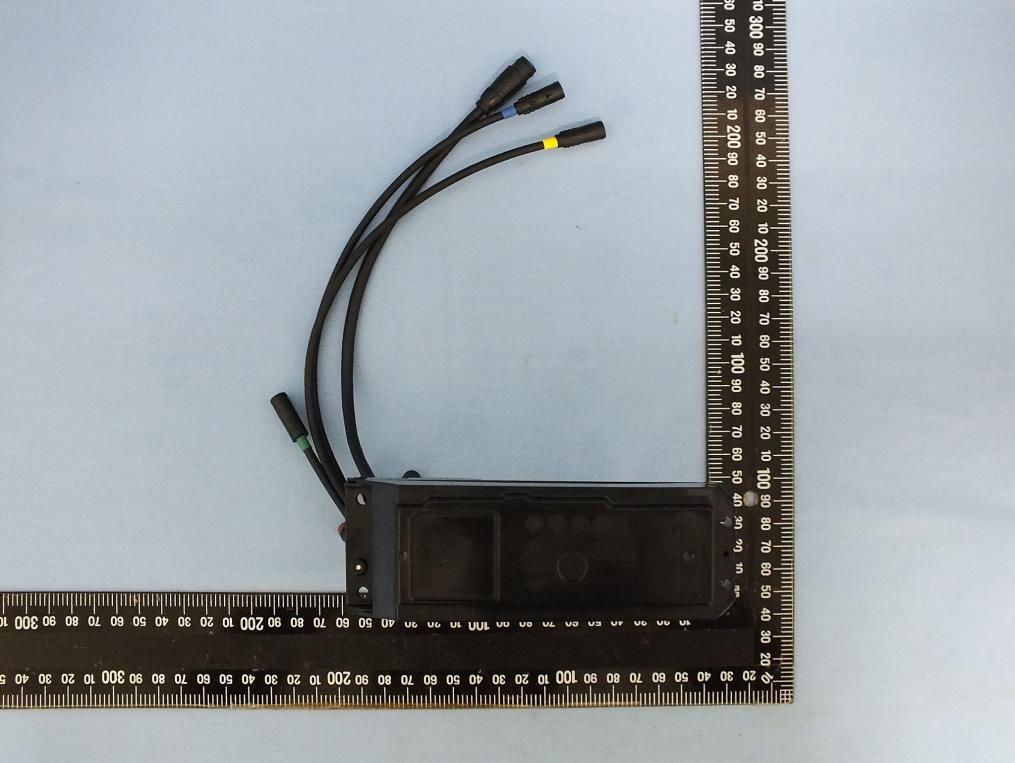

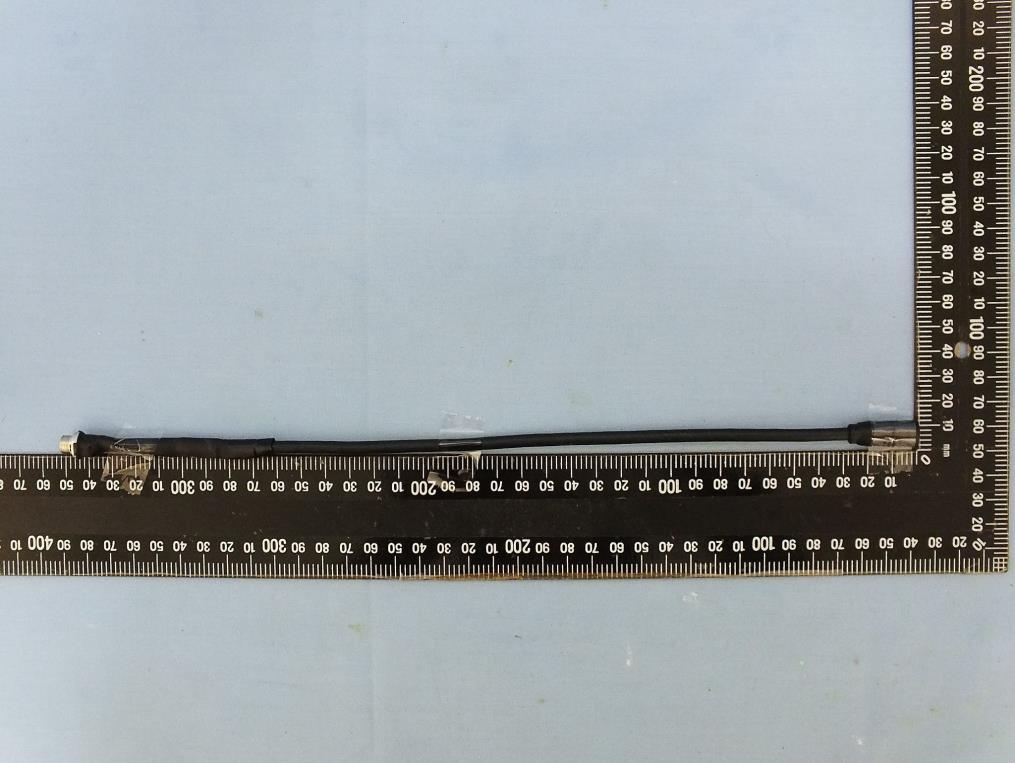

Project No.:EP121001 Page No. : 1 of 22 Photographs of EUT Project No.:EP121001 Page No. : 2 of 22 Project No.:EP121001 Page No. : 3 of 22 Project No.:EP121001 Page No. : 4 of 22 Project No.:EP121001 Page No. : 5 of 22 Project No.:EP121001 Page No. : 6 of 22 Project No.:EP121001 Page No. : 7 of 22 Project No.:EP121001 Page No. : 8 of 22

Side of EUT

Project No.:EP121001 Page No. : 9 of 22 Project No.:EP121001 Page No. : 10 of 22 Project No.:EP121001 Page No. : 11 of 22 Project No.:EP121001 Page No. : 12 of 22 Project No.:EP121001 Page No. : 13 of 22 Project No.:EP121001 Page No. : 14 of 22 Project No.:EP121001 Page No. : 15 of 22 Project No.:EP121001 Page No. : 16 of 22 Project No.:EP121001 Page No. : 17 of 22 Project No.:EP121001 Page No. : 18 of 22 Project No.:EP121001 Page No. : 19 of 22 Project No.:EP121001 Page No. : 20 of 22 Project No.:EP121001 Page No. : 21 of 22 Project No.:EP121001 Page No. : 22 of 22

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/5/30 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_210530 Medium parameters used: f = 750 MHz; σ = 0.896 mho/m; ε r = 42.8; ρ = 1000 kg/m 3 Ambient Temperature：23.7 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: ES3DV3 - SN3124; ConvF(6.36, 6.36, 6.36); Calibrated: 2020/11/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2020/9/16 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1815 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.45 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.8 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 2.99 W/kg SAR(1 g) = 2.06 mW/g; SAR(10 g) = 1.39 mW/g Maximum value of SAR (measured) = 2.39 mW/g 0 dB = 2.39mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/5/29 System Check_Head_1750MHz DUT: D1750V2-1112 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_210529 Medium parameters used: f = 1750 MHz; σ = 1.36 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3124; ConvF(5.46, 5.46, 5.46); Calibrated: 2020/11/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2020/9/16 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1815 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.5 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 85.1 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 15.5 W/kg SAR(1 g) = 8.85 mW/g; SAR(10 g) = 4.77 mW/g Maximum value of SAR (measured) = 10.9 mW/g 0 dB = 10.9mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/5/31 System Check_Head_1900MHz DUT: D1900V2-5d041 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_210531 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3124; ConvF(5.1, 5.1, 5.1); Calibrated: 2020/11/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2020/9/16 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1815 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 13.1 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 85.3 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 18.0 W/kg SAR(1 g) = 9.88 mW/g; SAR(10 g) = 5.11 mW/g Maximum value of SAR (measured) = 12.4 mW/g 0 dB = 12.4mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/5/28 System Check_Head_2450MHz DUT: D2450V2-736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_210528 Medium parameters used: f = 2450 MHz; σ = 1.82 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3124; ConvF(4.62, 4.62, 4.62); Calibrated: 2020/11/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2020/9/16 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1815 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (71x71x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 3.70 mW/g Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 43.1 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 5.45 W/kg SAR(1 g) = 2.72 mW/g; SAR(10 g) = 1.28 mW/g Maximum value of SAR (measured) = 3.58 mW/g 0 dB = 3.58mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/5/31 #01_LTE Band 2_20M_QPSK_1_0_Front_5mm_Ch18900 Communication System: LTE; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL_1900_210531 Medium parameters used: f = 1880 MHz; σ = 1.43 mho/m; ε r = 40; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3124; ConvF(5.1, 5.1, 5.1); Calibrated: 2020/11/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2020/9/16 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1815 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.134 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.55 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 0.166 W/kg SAR(1 g) = 0.102 mW/g; SAR(10 g) = 0.064 mW/g Maximum value of SAR (measured) = 0.124 mW/g 0 dB = 0.124mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/5/29 #02_LTE Band 4_20M_QPSK_1_0_Front_5mm_Ch20175 Communication System: LTE; Frequency: 1732.5 MHz;Duty Cycle: 1:1 Medium: HSL_1750_210529 Medium parameters used: f = 1732.5 MHz; σ = 1.35 mho/m; ε r = 41; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3124; ConvF(5.46, 5.46, 5.46); Calibrated: 2020/11/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2020/9/16 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1815 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.110 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.86 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.130 W/kg SAR(1 g) = 0.076 mW/g; SAR(10 g) = 0.048 mW/g Maximum value of SAR (measured) = 0.090 mW/g 0 dB = 0.090mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/5/30 #03_LTE Band 13_10M_QPSK_1_0_Front_5mm_Ch23230 Communication System: LTE; Frequency: 782 MHz;Duty Cycle: 1:1 Medium: HSL_750_210530 Medium parameters used: f = 782 MHz; σ = 0.933 mho/m; ε r = 42.5; ρ = 1000 kg/m 3 Ambient Temperature：23.7 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: ES3DV3 - SN3124; ConvF(6.36, 6.36, 6.36); Calibrated: 2020/11/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2020/9/16 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1815 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.084 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.60 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.102 W/kg SAR(1 g) = 0.076 mW/g; SAR(10 g) = 0.054 mW/g Maximum value of SAR (measured) = 0.086 mW/g 0 dB = 0.086mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/5/28 #04_WLAN2.4GHz_802.11b 1Mbps_Front_5mm_Ch6 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: HSL_2450_210528 Medium parameters used: f = 2437 MHz; σ = 1.81 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3124; ConvF(4.62, 4.62, 4.62); Calibrated: 2020/11/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2020/9/16 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1815 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (71x151x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 0.791 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.69 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 1.26 W/kg SAR(1 g) = 0.597 mW/g; SAR(10 g) = 0.267 mW/g Maximum value of SAR (measured) = 0.791 mW/g 0 dB = 0.791mW/g Communication System: LTE; Frequency: 1860 MHz;Duty Cycle: 1:1 Medium: HSL_1900_210531 Medium parameters used: f = 1860 MHz; σ = 1.41 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3124; ConvF(5.1, 5.1, 5.1); Calibrated: 2020/11/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2020/9/16 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1815 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.255 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.2 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.421 W/kg SAR(1 g) = 0.227 mW/g; SAR(10 g) = 0.122 mW/g Maximum value of SAR (measured) = 0.281 mW/g 0 dB = 0.281mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/5/31 #05_LTE Band 2_20M_QPSK_1_0_Edge 3_0mm_Ch18700 Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/5/29 #06_LTE Band 4_20M_QPSK_1_0_Edge 3_0mm_Ch20050 Communication System: LTE; Frequency: 1720 MHz;Duty Cycle: 1:1 Medium: HSL_1750_210529 Medium parameters used: f = 1720 MHz; σ = 1.34 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3124; ConvF(5.46, 5.46, 5.46); Calibrated: 2020/11/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2020/9/16 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1815 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (int…

Text truncated - open the document above for the full version.

~ .. : In Collaboratio wi -TTL s P e a g CALIBRATION 11.ABORATORY Add: No.SI Xueyuan Road, Haidian District, Beijing, 100191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Client Sporton Certificate No: 219-60054 CALIBRATION CERTIFICATE Object D750V3 - SN: 1107 Calibration Procedure(s) FF-211-003-01 Calibration Procedures for dipole validation kits Calibration date: March 8, 2019 This calibration Certificate documents the traceability to national standards, which realize the physical units of measurements(SI). The measurements and the uncertainties with confidence probability are given on the following pages and are part of the certificate. All calibrations have been conducted in the closed laboratory facility: environment temperature(22±3)'C and humidity<70%. Calibration Equipment used (M&TE critical for calibration) Primary Standards Power Meter NRP2 Power sensor NRP8S Reference Probe EX3DV4 DAE4 Secondary Standards Signal Generator E4438C NetworkAnalyzer E5071 C Calibrated by: Reviewed by: Approved by: ID# Cal Date(Calibrated by, Certificate No.) Scheduled Calibration 106277 20-Aug-18 (CTTL, No.J18X06862) Aug-19 104291 20-Aug-18 (CTIL, No.J18X06862) Aug-19 SN 3617 31-Jan-19(SPEAG,No.EX3-3617 _Jan19) Jan-20 SN 1331 06-Feb-19(SPEAG,No.DAE4-1331_Feb19) Feb-20 ID# Cal Date(Calibrated by, Certificate No.) MY49071430 23-Jan-19 (CTTL, No.J19X00336) MY46110673 24-Jan-19 (CTTL, No.J19X00547) Name Function Zhao Jing SAR Test Engineer Yu Zongying SAR Test Engineer Qi Dianyuan SAR Project Leader Scheduled Calibration Jan-20 Jan-20 Sigrn:iture T/,-· - --£-' - -:4-~;., - ~ Issued: March 10, 2019 This calibration certificate shall not be reproduced except in full without written approval of the laboratory. Certificate No: Z19-60054 Page I of8 ~ -TTL In Col aboratio wi s p e a g CALIBRATION lABORA.TOln' Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http: //www.chinattl.cn Glossary: TSL ConvF N/A tissue simulating liquid sensitivity in TSL / NORMx,y,z not applicable or not measured Calibration is Performed According to the Following Standards: a) IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak Spatial-Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques", June 2013 b) IEC 62209-1, "Measurement procedure for assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices-Part 1: Device used next to the ear (Frequency range of 300MHz to 6GHz)", July 2016 c) IEC 62209-2, "Procedure to measure the Specific Absorption Rate (SAR) For wireless communication devices used in close proximity to the human body (frequency range of 30MHz to 6GHz)", March 2010 d) KDB865664, SAR Measurement Requirements for 100 MHz to 6 GHz Additional Documentation: e) DASY4/5 System Handbook Methods Applied and Interpretation of Parameters: • Measurement Conditions: Further details are available from the Validation Report at the end of the certificate. All figures stated in the certificate are valid at the frequency indicated. • Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed point exactly below the center marking of the flat phantom section, with the arms oriented parallel to the body axis. • Feed Point Impedance and Return Loss: These parameters are measured with the dipole positioned under the liquid filled phantom. The impedance stated is transformed from the measurement at the SMA connector to the feed point. The Return Loss ensures low reflected power. No uncertainty required. • Electrical Delay: One-way delay between the SMA connector and the antenna feed point. No uncertainty required. • SAR measured: SAR measured at the stated antenna input power. • SAR normalized: SAR as measured, normalized to an input power of 1 Wat the antenna connector. • SAR for nominal TSL parameters: The measured TSL parameters are used to calculate the nominal SAR result. The reported uncertainty of measurement is stated as the standard uncertainty of Measurement multiplied by the coverage factor k=2, which for a normal distribution Corresponds to a coverage probability of approximately 95%. Certificate No: Z 19-60054 Page 2 of8 In Col aboratio wi s p e a g CAUBRA: ON LABORATORY Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http: //www.chinattl.cn Measurement Conditions D S f f A Y system con iguration, as ar as no a1ven on oaae t . DASY Version DASY52 52.10.2.1495 Extrapolation Advanced Extrapolation Phantom Triple Flat Phantom 5.1 C Distance Dipole Center -TSL 15 mm with Spacer Zoom Scan Resolution dx, dy, dz = 5 mm Frequency 750 MHz ± 1 MHz Head TSL parameters Th ill. t d I If e o owmq parame ers an ca cu a ions were app 1e . r d Temperature Permittivity Conductivity Nominal Head TSL parameters 22.0 °C 41.9 0.89 mho/m Measured Head TSL parameters (22.0 ± 0.2) °C 43.1 ± 6 % 0.86 mho/m ± 6 % Head TSL temperature change during test <1.0 °C ---- ---- SAR result with Head TSL SAR averaged over 1 cm 3 (1 g) of Head TSL Condition SAR measured 250 mW input power 2.02 W/kg SAR for nominal Head TSL parameters normalized to 1W 8.32 W/kg ± 18.8 % (k=2) SAR averaged over 10 cm 3 (10 g) of Head TSL Condition SAR measured 250 mW input power 1.37 W/kg SAR for nominal Head TSL parameters normalized to 1 W 5.61 W/kg ± 18.7 % (k=2) Body TSL parameters Thfll' t dllf e o owmq parame ers an ca cu a ions were aoo11e . r d Temperature Permittivity Conductivity Nominal Body TSL parameters 22.0 °C 55.5 0.96 mho/m Measured Body TSL parameters (22.0 ± 0.2) °C 54.8 ±6 % 0.94 mho/m ± 6 % Body TSL temperature change during test <1.0 °C -------- SAR It "th B d TSL resu WI O IY SAR averaged over 1 cm 3 (1 g) of Body …

Text truncated - open the document above for the full version.

TEL : 886-3-327-3456 Page 1 of 28 FAX : 886-3-328-4978 Issued Date : Jun. 17, 2021 Template version: 200414 FCC SAR TEST REPORT Report No. : FA151715 FCC SAR TEST REPORT FCC ID : 2AMWAS150A Equipment : S-100T IOT Brand Name : SPIN Model Name : S-100T IOT Applicant : Skinny Labs, Inc. 188 King St, Unit 203,San Francisco, California United States 94107 Manufacturer : Gemtek Technology Co., Ltd. No.15-1 Zhoughua Rd, Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan, R.O.C Standard : FCC 47 CFR Part 2 (2.1093) The product was received on May 26, 2021 and testing was started from May 28, 2021 and completed on May 31, 2021. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample provide by manufacturer and the test data has been evaluated in accordance with the test procedures given in 47 CFR Part 2.1093 and FCC KDB and has been pass the FCC requirement. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. Sporton International Inc. EMC & Wireless Communications Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page 2 of 28 FAX : 886-3-328-4978 Issued Date : Jun. 17, 2021 Template version: 200414 FCC SAR TEST REPORT Report No. : FA151715 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Guidance Applied .......................................................................................................................................................... 4 3. Equipment Under Test (EUT) Information ................................................................................................................... 5 3.1 General Information ............................................................................................................................................... 5 3.2 General LTE SAR Test and Reporting Considerations ........................................................................................... 6 4. RF Exposure Limits....................................................................................................................................................... 7 4.1 Uncontrolled Environment ...................................................................................................................................... 7 4.2 Controlled Environment .......................................................................................................................................... 7 5. Specific Absorption Rate (SAR) ................................................................................................................................... 8 5.1 Introduction ............................................................................................................................................................ 8 5.2 SAR Definition ........................................................................................................................................................ 8 6. System Description and Setup .................................................................................................................................... 9 6.1 Test Site Location ................................................................................................................................................... 9 6.2 E-Field Probe ........................................................................................................................................................10 6.3 Data Ac…

Text truncated - open the document above for the full version.
