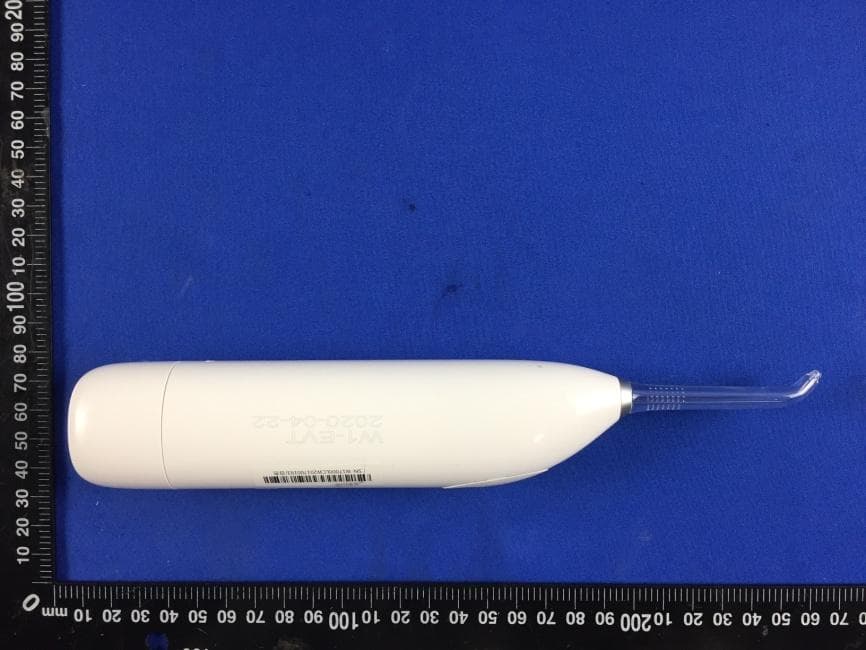

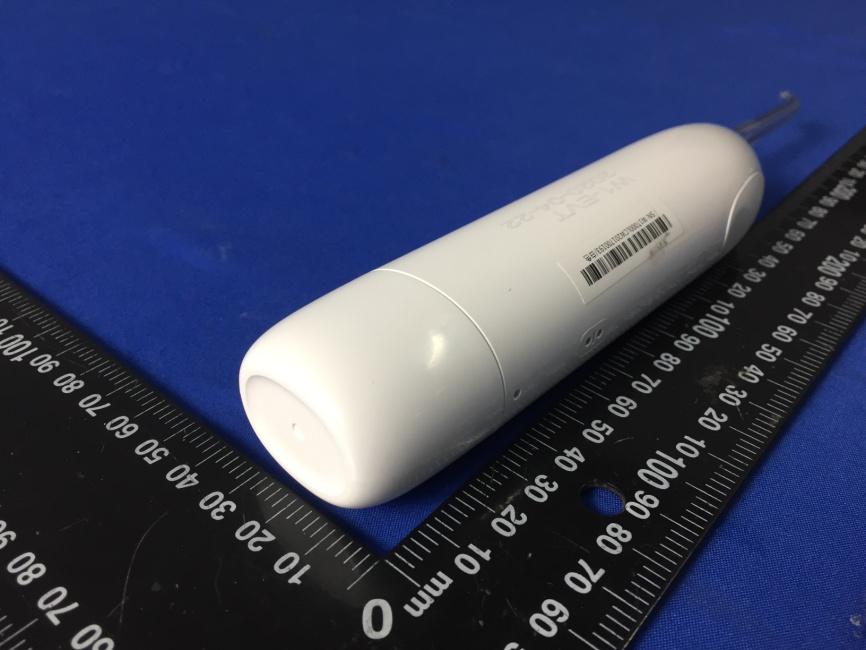

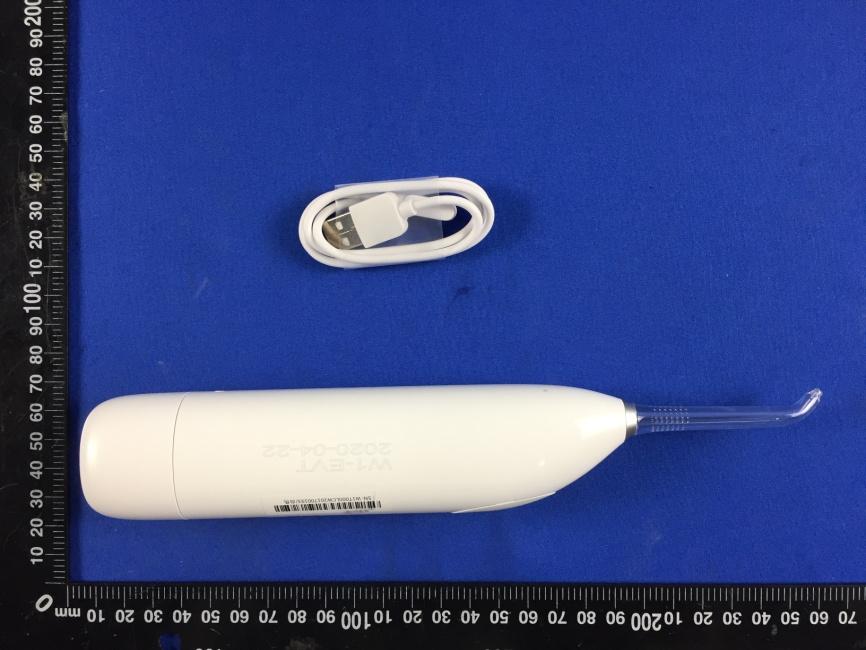

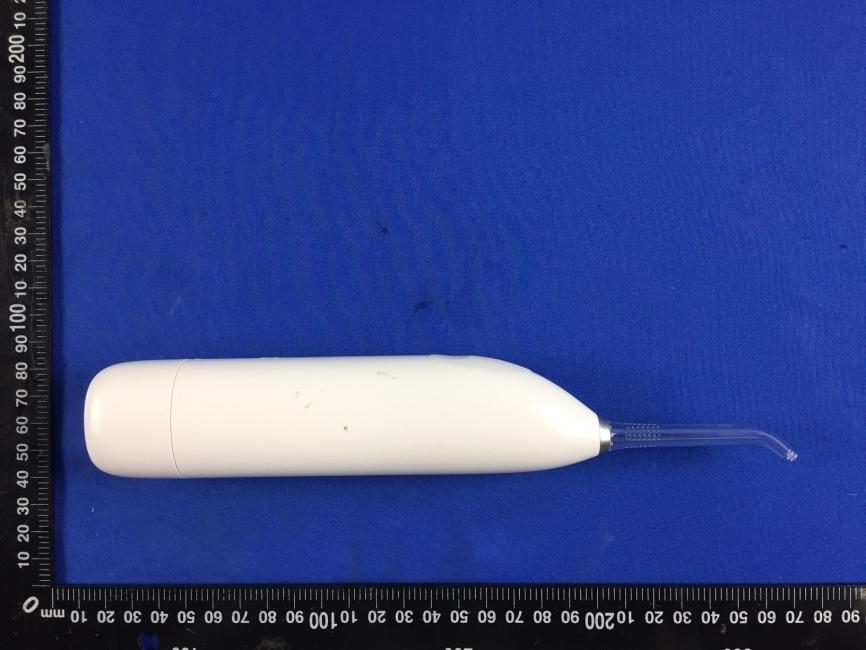

2AN5D-OCLEANW1Oclean W1 Smart Oral Irrigator

Oclean W1 Quick Guide ■Nozzle It can be 360 degrees rotation. When replacing nozzle, pull it out vertically. When inserting it, insert it to bottom until it is close to the device body. ■Mode switch button Short press the button can switch the different mode. ■Mode indicator light Light 1 : Standard mode Light 2 : Sensitive mode Light 3 : Massage mode ■Water tank Pull down the water tank with a little force. It can irrigate about 120 times when it has full water. ■On-Off button/charging indicator light Holding the ON/OFF button to irrigate. Release button to stop irrigate. The charging indicator light is in a breathing flashing state when charging, the charging light is on constantly when fully charged. The power light flashed in red when battery is low. ■Charging port Charge with the magnetic charging cable. It can be fully charged in 3 hours. Using Steps 1. Make sure there is power in the device, it needs to charge firstly if no power. 2. Refill the water tank, insert the nozzle into the device body，Put the nozzle intermittently close to the slit between teeth (The distance between nozzle and slit is about 2CM) ,Press and hold the power button to start cleaning. Slowly move to the next zone. 3. Release the spray button after cleaning. Download the Oclean App for more setting Oclean WeChat official Account Oclean APP FCC statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC ID Label Information 1. Label location: 2. FCC ID Label: FCC ID:2AN5D-OCLEANW1 FCCID Label Location

BT Antenna

version01 Shenzhen Yunding information Technology Co.,Ltd #32G,Tower E,CR Land Building, Tong Gu Road 5#,Nanshan District, Shenzhen, China Tel: +86-075522670350 Fax: N/A Declaration concerning Antenna Specification It is hereby declared that the product Model No.: Oclean W1 FCC ID: 2AN5D-OCLEANW1 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for PCB antenna type(s) described below: Model No. of antenna: W1 Type of antenna: PCB Gain of the antenna: 0.8dBi Frequency range: 2402~2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shenzhen Yunding information Technology Co.,Ltd Address: #32G,Tower E,CR Land Building, Tong Gu Road 5#,Nanshan District, Shenzhen, China City: Shenzhen ZIP / Postal code: Country: China Place: Shenzhen Date: 2020-06-04 Signature:

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison pt=-2.92dBm =0.511mW at 2402MHz So (0.511mW/5mm)x √2.402GHz =0.158<3 Then SAR evaluation is not required

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL2004294031-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Nice Nong (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : Oclean W1 Smart Oral Irrigator Model/Type reference ................ : Oclean W1 List Model(s) ............................... : N/A Trade Mark .................................. : Oclean FCC ID ......................................... : 2AN5D-OCLEANW1 Applicant’s name ....................... : Shenzhen Yunding information Technology Co.,Ltd Address of applicant ................. : #32G,Tower E,CR Land Building, Tong Gu Road 5#,Nanshan District, Shenzhen, China Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : May 11, 2020 Date of sampling ........................ : May 11, 2020 Date of Test Date ........................ : May 11, 2020–May 19, 2020 Data of Issue .............................. : May 27, 2020 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 32 Report No.: CTL2004294031-WF TEST REPORT Test Report No. : CTL2004294031-WF May 27, 2020 Date of issue Equipment under Test : Oclean W1 Smart Oral Irrigator Model /Type : Oclean W1 Listed Models : N/A Applicant : Shenzhen Yunding information Technology Co.,Ltd Address : #32G,Tower E,CR Land Building, Tong Gu Road 5#,Nanshan District, Shenzhen, China Manufacturer : Shenzhen Yunding information Technology Co.,Ltd Address : #32G,Tower E,CR Land Building, Tong Gu Road 5#,Nanshan District, Shenzhen, China Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 32 Report No.: CTL2004294031-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2020-05-27 CTL2004294031-WF Tracy Qi V1.0 Page 4 of 32 Report No.: CTL2004294031-WF Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................................................ 9 2.6. MODIFICATIONS ........................................................................................................................................................... 9 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 10 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 10 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 13 3.3. MAXIMUM CONDUCTED OUTPUT POWER ..............................................................................................…

Text truncated - open the document above for the full version.

1 / 19 Annex for BLE FCC Part 15.247 Test Report No.:CTL2004294031-WF 1. Bandwidth 1.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) Limits (MHz) 1M 2402 SISO 1 0.673 ≥0.5 PASS 2440 SISO 1 0.662 ≥0.5 PASS 2480 SISO 1 0.662 ≥0.5 PASS 2M 2402 SISO 1 1.153 ≥0.5 PASS 2440 SISO 1 1.157 ≥0.5 PASS 2480 SISO 1 1.197 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 1M 2402 SISO 1 1.022 Only for Report Use 2440 SISO 1 1.017 Only for Report Use 2480 SISO 1 1.009 Only for Report Use 2M 2402 SISO 1 1.989 Only for Report Use 2440 SISO 1 1.991 Only for Report Use 2480 SISO 1 2.005 Only for Report Use 1.2 Test Graph - 6dB Bandwidth 2 / 19 3 / 19 4 / 19 1.3 Test Graph - 99% Occupied Bandwidth 5 / 19 6 / 19 7 / 19 2. Maximum Conducted Output Power 2.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 1M 2402 SISO -2.92 30 PASS 2440 SISO -3.00 30 PASS 2480 SISO -3.58 30 PASS 2M 2402 SISO -3.02 30 PASS 2440 SISO -3.00 30 PASS 2480 SISO -3.54 30 PASS 2.2 Test Graph 8 / 19 9 / 19 10 / 19 3. Maximum Power Spectral Density (PSD) 3.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 1M 2402 SISO -11.86 ≤8 PASS 2440 SISO -12.03 ≤8 PASS 2480 SISO -13.79 ≤8 PASS 2M 2402 SISO -15.24 ≤8 PASS 2440 SISO -17.36 ≤8 PASS 2480 SISO -17.73 ≤8 PASS 3.2 Test Graph 11 / 19 12 / 19 13 / 19 4. Unwanted Emissions in Non-restricted Frequency Bands 4.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict 1M 2402 SISO 1 Refer to test graph -23.01 PASS 2440 SISO 1 Refer to test graph -23.01 PASS 2480 SISO 1 Refer to test graph -23.01 PASS 2M 2402 SISO 1 Refer to test graph -22.96 PASS 2440 SISO 1 Refer to test graph -22.96 PASS 2480 SISO 1 Refer to test graph -22.96 PASS 14 / 19 4.2 Test Graph 15 / 19 16 / 19 17 / 19 18 / 19 19 / 19
