2AN6F-4218000Device_UI_Pretech_651G

User manual 301'HYLFHB8,B3UHWHFKB* This radio transmitter (ISED certification number: 23338-4218000) has been approved by Industry Canada to operate with the antenna types listed with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Le présent émetteur radio (ISED certification number: 23338-4218000) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal. Les types d'antenne non inclus dan s cette liste, et dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.

WHILL, Inc. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 12/15/2023 U.S. Agent Designation WHILL, Inc. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AN6F-4218000): Name and company of U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of WHILL, Inc.. WHILL, Inc. with the FRN 0026957001 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. S incerely, Signature Tsuyoshi Iriyama WHILL, Inc. Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V05

Sincerely, Name/Title： Tsuyoshi Iriyama/ Company: WHILL, Inc. Address: 2-1-11 Higashishinagawa, Shinagawa-ku Tokyo Japan Phone: +81-3-6718-4006 Fax: +81-3-6718-4007 E-Mail: [email protected]

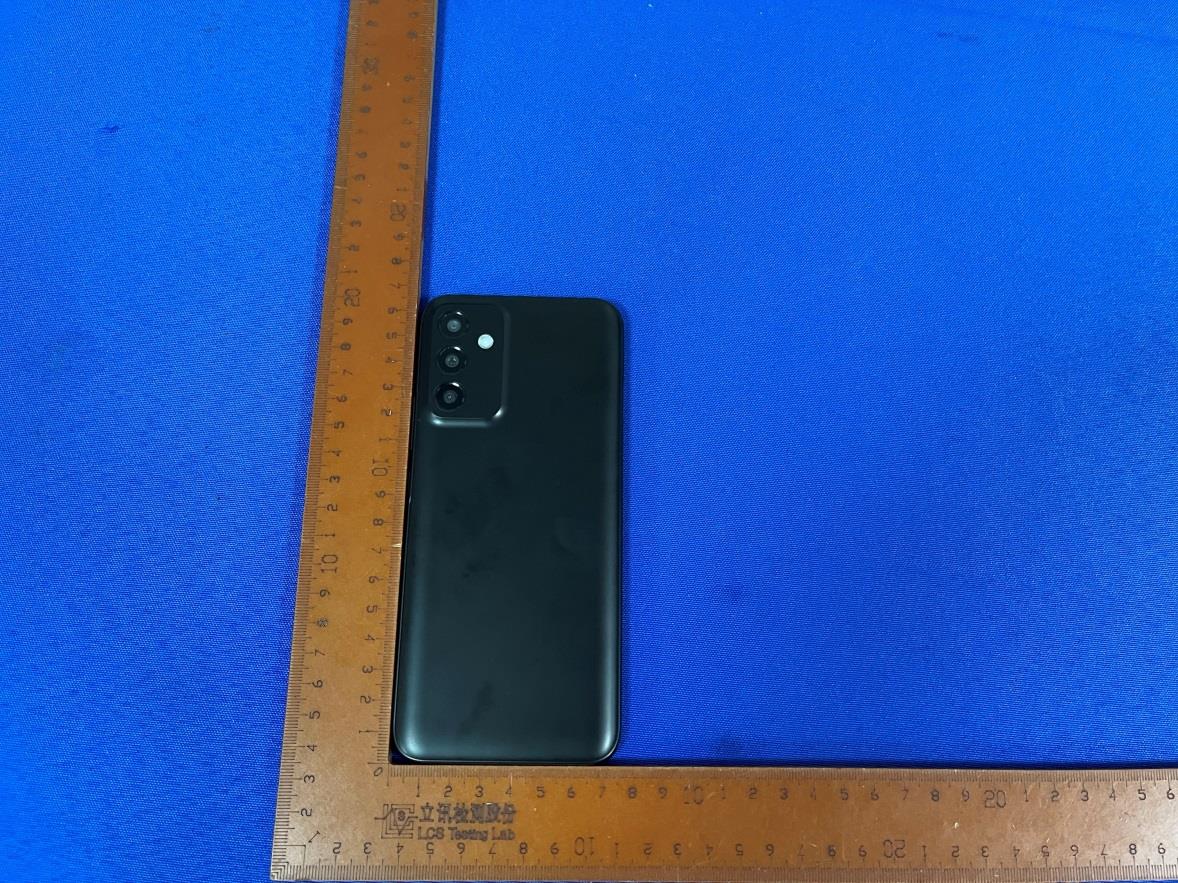

Page 1 of 4 FCC ID:2AN6F-4218000 IC:23338-4218000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity External Photos of the EUT Fig. 1 Fig. 2 Page 2 of 4 FCC ID:2AN6F-4218000 IC:23338-4218000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 4 FCC ID:2AN6F-4218000 IC:23338-4218000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 4 FCC ID:2AN6F-4218000 IC:23338-4218000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7

Page 1 of 8 FCC ID:2AN6F-4218000 IC:23338-4218000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Internal Photos of the EUT Fig. 1 Fig. 2 Page 2 of 8 FCC ID:2AN6F-4218000 IC:23338-4218000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 8 FCC ID:2AN6F-4218000 IC:23338-4218000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 8 FCC ID:2AN6F-4218000 IC:23338-4218000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7 Fig. 8 Page 5 of 8 FCC ID:2AN6F-4218000 IC:23338-4218000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 9 Fig. 10 Page 6 of 8 FCC ID:2AN6F-4218000 IC:23338-4218000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 11 Fig. 12 Page 7 of 8 FCC ID:2AN6F-4218000 IC:23338-4218000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 13 Fig. 14 LTE Main ANT Page 8 of 8 FCC ID:2AN6F-4218000 IC:23338-4218000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 15 Fig. 16 LTE Diversity ANT BT/WIFI/GPS ANT

Page 1 of 58 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix C Calibration certificate 1. Dipole D750V3-SN 1191(2023-06-15) D835V2-SN 4d124(2023-06-20) D1750V2-SN 1035(2023-06-12) D1900V2-SN 5d055 (2023-06-20) D2450V2-SN 965(2023-06-12) D2600V2-SN 1071(2023-06-20) D5GHzV2-SN 1046(2023-06-20) 2. DAE DAE3-SN 419(2023-06-20) 3. Probe EX3DV4-SN 3805(2023-06-21) Page 2 of 58 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 3 of 58 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 4 of 58 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 5 of 58 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 6 of 58 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 7 of 58 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 8 of 58 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 9 of 58 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 10 of 58 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 11 of 58 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 12 of 58 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 13 of 58 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 14 of 58 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 15 of 58 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 16 of 58 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 17 of 58 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhe…

Text truncated - open the document above for the full version.

Page 1 of 9 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix A Detailed System Check Results 1. System Performance Check System Performance Check 750 MHz Head System Performance Check 835 MHz Head System Performance Check 1750 MHz Head System Performance Check 1900 MHz Head System Performance Check 2450 MHz Head System Performance Check 2600 MHz Head System Performance Check 5250 MHz Head System Performance Check 5800 MHz Head Date: 2023/11/6 Test Laboratory: LCS-SAR Lab Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity System Check_750Mhz DUT: D750V3; Type: D750V3; Serial: 1191 Communication System: UID 0, CW (0); Frequency: 750 MHz; ;Duty Cycle: 1:1 Medium parameters used: f = 750 MHz; σ = 0.898 S/m; ε r = 41.66; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3805; ConvF(10.02, 10.02, 10.02); Calibrated: 2023/6/21;  Sensor-Surface: 2mm (Mechanical Surface Detection)  Electronics: DAE3 Sn419; Calibrated: 2023/6/20  Phantom: SAM v5.0; Type: SAM; Serial: 1850  DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration 2/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.69 W/kg Configuration 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.78 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 3.32 W/kg SAR(1 g) = 2.14 W/kg; SAR(10 g) = 1.45 W/kg Maximum value of SAR (measured) = 2.78 W/kg 0 dB = 2.78 W/kg = 4.44 dBW/kg Date: 2023/11/9 Test Laboratory: LCS-SAR Lab Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity System Check_835Mhz DUT: D835V2; Type: D835V2; Serial: 4d124 Communication System: UID 0, CW (0); Frequency: 835 MHz; ;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.909 S/m; ε r = 42.048; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3805; ConvF(9.62, 9.62, 9.62); Calibrated: 2023/6/21;  Sensor-Surface: 2mm (Mechanical Surface Detection)  Electronics: DAE3 Sn419; Calibrated: 2023/6/20  Phantom: SAM v5.0; Type: SAM; Serial: 1850  DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Unnamed procedure/Area Scan (5x18x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 3.28 W/kg Configuration/Unnamed procedure/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.62 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 3.85 W/kg SAR(1 g) = 2.51 W/kg; SAR(10 g) = 1.65 W/kg Maximum value of SAR (measured) = 3.32 W/kg 0 dB = 3.32 W/kg = 5.21 dBW/kg Date: 2023/11/13 Test Laboratory: LCS-SAR Lab Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity System Check_1750Mhz DUT: D1750V2; Type: D1750V2; Serial: 1035 Communication System: UID 0, CW (0); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1750 MHz; σ = 1.318 S/m; ε r = 40.413; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3805; ConvF(8.35, 8.35, 8.35); Calibrated: 2023/6/21;  Sensor-Surface: 2mm (Mechanical Surface Detection)  Electronics: DAE3 Sn419; Calibrated: 2023/6/20  Phantom: SAM v5.0; Type: SAM; Serial: 1850  DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Body/d=10mm, Pin=250mW/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 11.6 W/kg Body/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 88.16 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 17.8 W/kg SAR(1 g) = 9.48 W/kg; SAR(10 g) = 5.05 W/kg Maximum value of SAR (measured) = 14.9 W/kg 0 dB = 14.9 W/kg = 11.73 dBW/kg Date: 2023/11/16 Test Laboratory: LCS-SAR Lab Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity System Check_1900Mhz DUT: D1900V2; Type: D1900V2; Serial: 5d055 Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.449 S/m; ε r = 38.457; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3805; ConvF(8.05, 8.05, 8.05); Calibrated: 2023/6/21;  Sensor-Surface: 2mm (Mechanical Surface Detection)  Electronics: DAE3 Sn419; Calibrated: 2023/6/20  Phantom: SAM v5.0; Type: SAM; Serial: 1850  DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Unnamed procedure/Area Scan (4x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 13.9 W/kg Configuration/Unnamed procedure/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.64 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 18.8 W/kg SAR(1 g) = 10.2 W/kg; SAR(10 g) = 5.34 W/kg Maximum value of SAR (measured) = 15.0 W/kg 0 dB = 15.0 W/kg = 11.76 dBW/kg Date: 2023/11/22 Test Laboratory: LCS-SAR Lab Shenzhen LCS Compliance Testing Laboratory…

Text truncated - open the document above for the full version.

Page 1 of 25 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix B Detailed Test Results 1. GSM GSM850 for Head& Body GSM1900 for Head& Body 2. WCDMA WCDMA Band II for Head& Body WCDMA Band V for Head& Body 3. LTE LTE Band 2 for Head& Body LTE Band 5 for Head& Body LTE Band 7 for Head& Body LTE Band 12 for Head& Body LTE Band 66 for Head& Body 4. WIFI WIFI 2.4GHz for Head& Body WIFI 5.2GHz for Head& Body WIFI 5.8GHz for Head& Body Date: 2023/11/9 Test Laboratory: LCS-SAR Lab Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity GSM850 GSM 128CH Right cheek DUT: 42-18000-0; Type: Device_UI_Pretech_651G; Serial: A10163122-1 Communication System: UID 0, GSM Only Communication System (0); Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.897 S/m; ε r = 42.078; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration:  Probe: EX3DV4 - SN3805; ConvF(9.62, 9.62, 9.62); Calibrated: 2023/6/21;  Sensor-Surface: 2mm (Mechanical Surface Detection)  Electronics: DAE3 Sn419; Calibrated: 2023/6/20  Phantom: SAM v5.0; Type: SAM; Serial: 1850  DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.324 W/kg Configuration/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.967 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.374 W/kg SAR(1 g) = 0.282 W/kg; SAR(10 g) = 0.212 W/kg Maximum value of SAR (measured) = 0.321 W/kg 0 dB = 0.321 W/kg = -4.93 dBW/kg Date: 2023/11/9 Test Laboratory: LCS-SAR Lab Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity GSM850 GPRS 3TS 190CH Rear side 10mm DUT: 42-18000-0; Type: Device_UI_Pretech_651G; Serial: A10163122-1 Communication System: UID 0, GPRS Mode(3up) Communication System (0); Frequency: 836.5 MHz;Duty Cycle: 1:2.77 Medium parameters used: f = 837 MHz; σ = 0.901 S/m; ε r = 42.028; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3805; ConvF(9.62, 9.62, 9.62); Calibrated: 2023/6/21;  Sensor-Surface: 2mm (Mechanical Surface Detection)  Electronics: DAE3 Sn419; Calibrated: 2023/6/20  Phantom: SAM v5.0; Type: SAM; Serial: 1850  DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.351 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.64 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.483 W/kg SAR(1 g) = 0.258 W/kg; SAR(10 g) = 0.145 W/kg Maximum value of SAR (measured) = 0.362 W/kg 0 dB = 0.362 W/kg = -4.41 dBW/kg Date: 2023/11/16 Test Laboratory: LCS-SAR Lab Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity GSM1900 GSM 661CH Left cheek DUT: 42-18000-0; Type: Device_UI_Pretech_651G; Serial: A10163122-1 Communication System: UID 0, GSM Only Communication System (0); Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.431 S/m; ε r = 38.544; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration:  Probe: EX3DV4 - SN3805; ConvF(8.05, 8.05, 8.05); Calibrated: 2023/6/21;  Sensor-Surface: 2mm (Mechanical Surface Detection)  Electronics: DAE3 Sn419; Calibrated: 2023/6/20  Phantom: SAM v5.0; Type: SAM; Serial: 1850  DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0340 W/kg Configuration/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.982 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.0470 W/kg SAR(1 g) = 0.029 W/kg; SAR(10 g) = 0.014 W/kg Maximum value of SAR (measured) = 0.0380 W/kg 0 dB = 0.0380 W/kg = -14.20 dBW/kg Date: 2023/11/16 Test Laboratory: LCS-SAR Lab Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity GSM1900 GPRS 3TS 512CH Rear side 10mm DUT: 42-18000-0; Type: Device_UI_Pretech_651G; Serial: A10163122-1 Communication System: UID 0, GPRS Mode(3up) Communication System (0); Frequency: 1850.2 MHz;Duty Cycle: 1:2.77 Medium parameters used: f = 1850.2 MHz; σ = 1.402 S/m; ε r = 38.652; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3805; ConvF(8.05, 8.05, 8.05); Calibrated: 2023/6/21;  Sensor-Surface: 2mm (Mechanical Surface Detection)  Electronics: DAE3 Sn419; Calibrated: 2023/6/20  Phantom: SAM v5.0; Type: SAM; Serial: 1850  DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.628 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11…

Text truncated - open the document above for the full version.

Page 1 of 7 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix D Photographs 1. SAR measurement System 2. Photographs of Tissue Simulate Liquid 3. Photographs of EUT test position 4. EUT Constructional Details Page 2 of 7 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 1. SAR measurement System Page 3 of 7 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 2. Photographs of Tissue Simulate Liquid Photo 1: Tissue Simulant Liquid for Head 750 Photo 2: Tissue Simulant Liquid for Head 835 Photo 3: Tissue Simulant Liquid for Head 1750 Photo 4: Tissue Simulant Liquid for Head 1900 Photo 5: Tissue Simulant Liquid for Head 2450 Photo 6: Tissue Simulant Liquid for Head 2600 Photo 7: Tissue Simulant Liquid for Head 5-6GHz NA Page 4 of 7 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 5 of 7 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 3. Photographs of EUT test position Photo 8: Left touch cheek Photo 9: Left tilted 15 degree Photo 10: Right touch cheek Photo 11: Right tilted 15 degree Photo 12: Front side 10mm Photo 13: Back side 10mm Page 6 of 7 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Photo 14: Left side 10mm Photo 15: Right side 10mm Photo 16: Top side 10mm Photo 17: Bottom side 10mm Page 7 of 7 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 4. EUT Constructional Details Photo 18: Front View Photo 19: Back View

Page 1 of 87 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity SAR TEST REPORT For WHILL, Inc. Device_UI_Pretech_651G Test Model: 42-18000-0 Prepared for : WHILL, Inc. Address : 2-1-11 Higashishinagawa, Shinagawa-ku, Tokyo 140-0002, Japan Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (86)755-82591330 Fax : (86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : October 19, 2023 Number of tested samples Sample number : : 1 A10163121-1 Serial number : Prototype Date of Test : October 19, 2023 ~ November 25, 2023 Date of Report : November 28, 2023 Page 2 of 87 FCCID: 2AN6F-4218000 Report No.: LCSA10163121EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity SAR TEST REPORT Report Reference No. ................. : LCSA10163121EB Date Of Issue ............................. : November 28, 2023 Testing Laboratory Name ........... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................…
