2AN9I-AN4513Bluetooth voice remote control

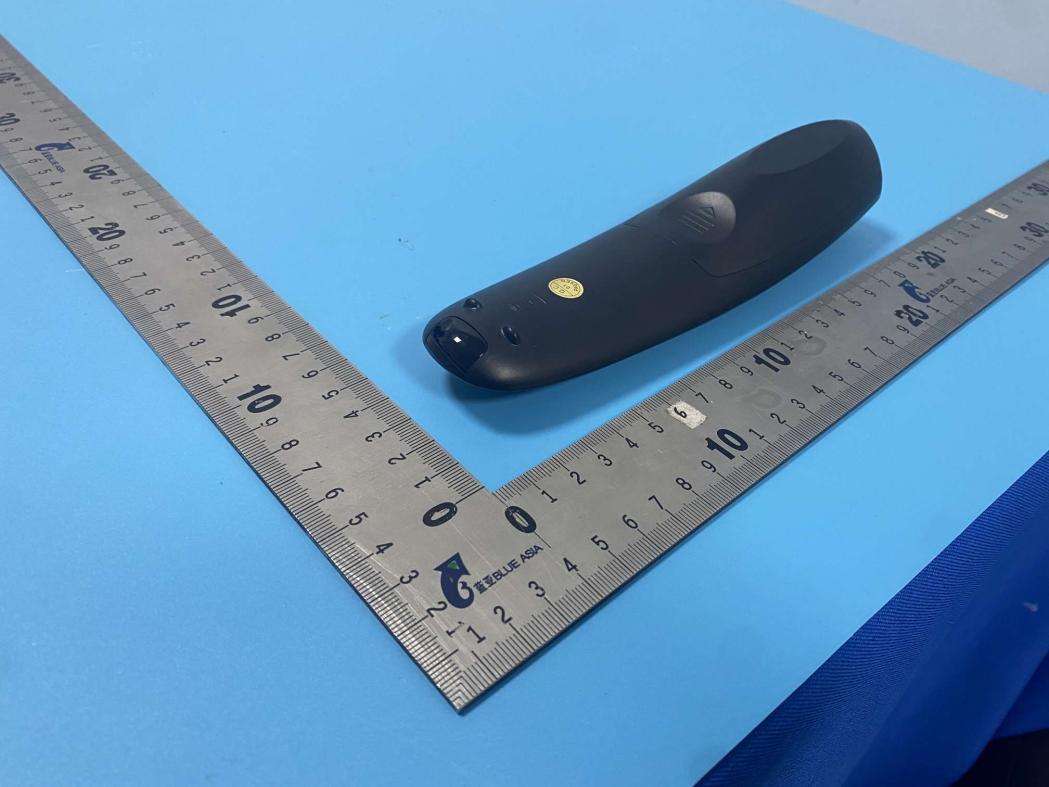

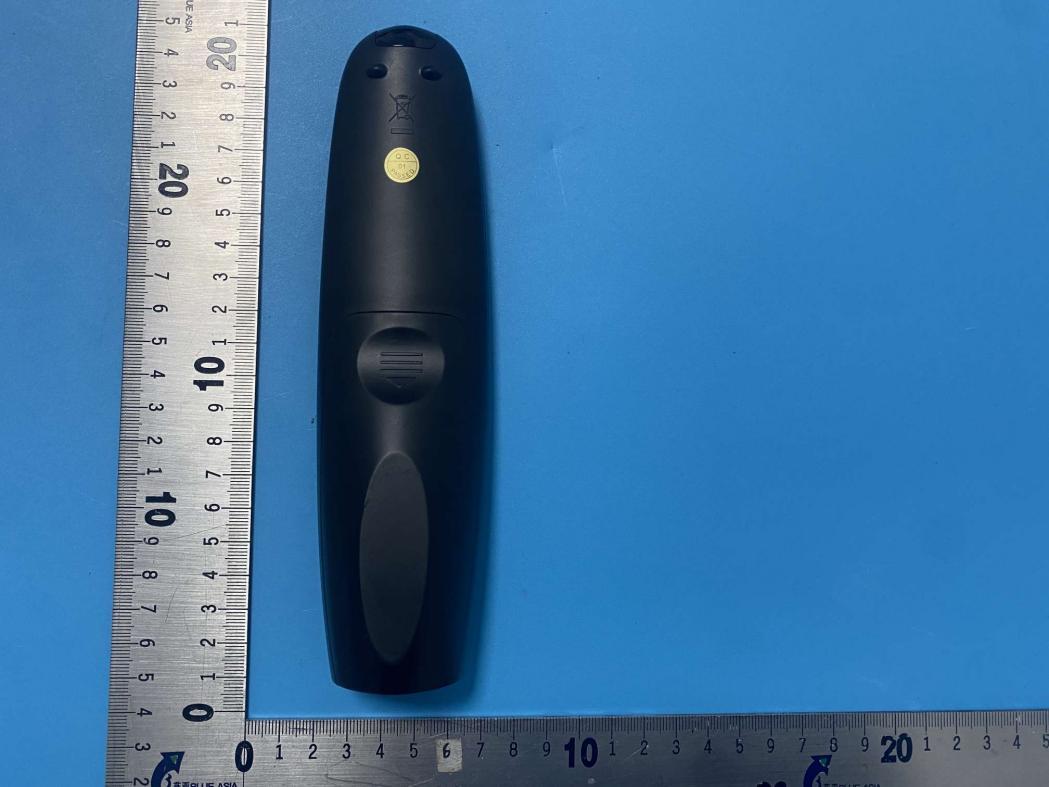

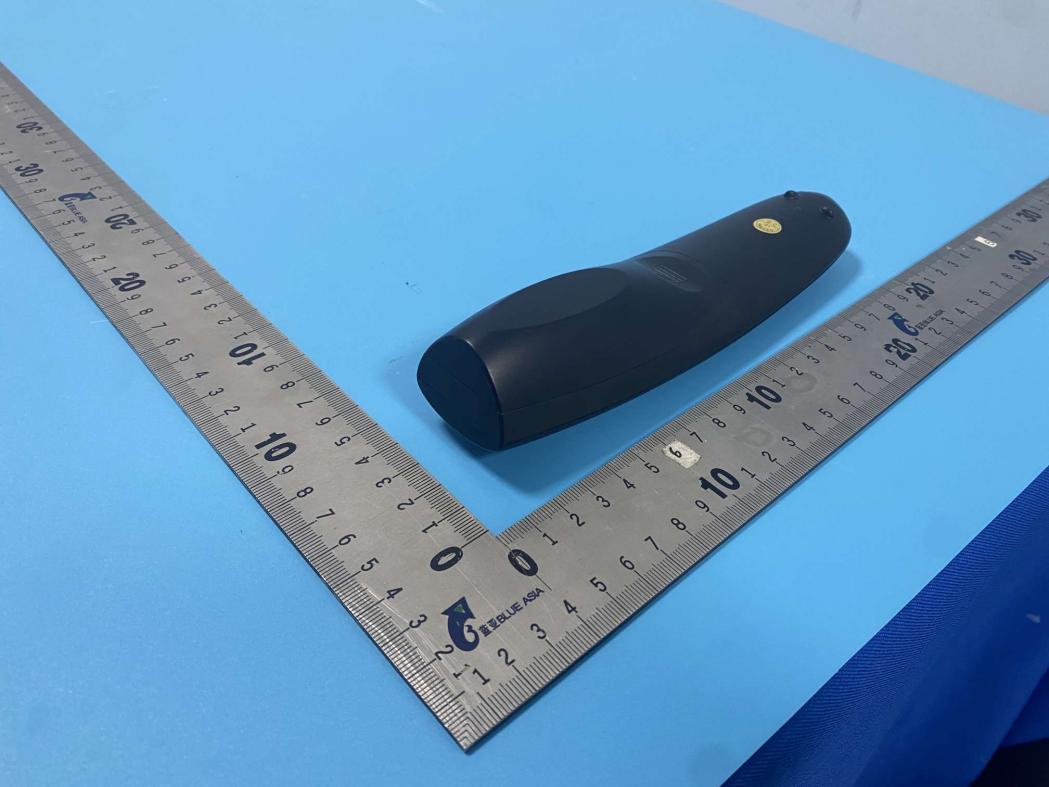

 Appearance  Size : L190.5 × W51 × D35.3(mm) Appearance FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment* RF warning for Portable device: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. RCU Specification  RF Specification - Wireless technique : Bluetooth Energy- Working range : >8 meters (line of sight) Electrical Specification  Rating - Operating voltage range : DC 2.2V to 3.6V - Operating temperature/humidity range : -10°C to +40°C, 20% to 80% RH *Without dew condensation - Storage temperature/humidity range : -20°C to +60°C, 20% to 95% RH *except Batteries - Power Source Used (3.0V DC) : IR Remote with BT-Voice  LR03 battery x 2p - M ass : about 92g (excluding the battery × 2)  Electrical Performance - IR-LED Operation range ・ On shaft : Higher than 7m ・ Specified angle : Higher than 7m

Dongguan Anycon Intelligent Technology Co.,Ltd Model Confirmation Letter We, Dongguan Anycon Intelligent Technology Co.,Ltd declare that for Model: AN4513-0CX-043 ; AN4513-0CX-053/56/.61/71/72//57/058/616 , Their electrical circuit design, layout, components used and internal wiring are identical, Only Model no and color are different. Date:2022/12/28 Job Title (representative):manager Signature: Name: Qiao Lu

ModelNo.: AN4513-0CX-043

HVIN:V0.3

ModelNo.: AN4513-0CX-043

RFExposureevaluation Accordingto447498D04InterimGeneralRFExposureGuidancev01 Antgain=1dBi MaxOutputpower=1.254dBm@BR@2442MHz ERP=1.254dBm+1dBi-2.15=0.104dBm So worsecase ： 10^0.1254=1.334mW<2.75mW So ComplywithRFexposureexemptionlimit.

Page 1 of 58 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd. Add:No.41,SouthofBeihuanRoad,ShangwuCommunity,ShiyanSubdistrict,Bao’anDistrict,Shenzhen,Guangdong,China Tel:+86-755-23059481Email:[email protected] TESTREPORT ProductName: Bluetoothvoiceremotecontrol BrandMark: N/A ModelNo.: AN4513-0CX-043 ExtensionModel: AN4513-0CX-053/56/.61/71/72//57/058/616. FCCID: 2AN9I-AN4513 ReportNumber: BLA-EMC-202212-A8602 DateofSample Receipt : 2022/12/27 DateofTest: 2022/12/27to2023/1/6 DateofIssue: 2023/1/6 TestStandard: 47CFRPart15,SubpartC15.247 TestResult:Pass Preparedfor: DongguanAnyconIntelligentTechnologyCo.,Ltd No12,LiminRoad,JinxiaotangIndustrialPark,Fenggang Preparedby: BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd. No.41,SouthofBeihuanRoad,ShangwuCommunity,ShiyanSubdistrict, Bao’anDistrict,Shenzhen,Guangdong,China TEL:+86-755-23059481 Compiledby:Reviewby: Approvedby:Date:2023/1/6 ReportNo.:BLA-EMC-202212-A8602 Page 2 of 58 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] REPORTREVISERECORD VersionNo.DateDescription 002023/1/6Original ReportNo.:BLA-EMC-202212-A8602 Page 3 of 58 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TABLEOFCONTENTS 1TESTSUMMARY........................................................................................................................................5 2GENERALINFORMATION.........................................................................................................................6 3GENERALDESCRIPTIONOFE.U.T..........................................................................................................6 4TESTENVIRONMENT................................................................................................................................7 5TESTMODE................................................................................................................................................7 6MEASUREMENTUNCERTAINTY..............................................................................................................7 7DESCRIPTIONOFSUPPORTUNIT..........................................................................................................8 8LABORATORYLOCATION.........................................................................................................................8 9TESTINSTRUMENTSLIST........................................................................................................................9 10CONDUCTEDBANDEDGESMEASUREMENT......................................................................................11 10.1LIMITS................................................................................................................................................................11 10.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................11 10.3TESTDATA...........................................................................................................................................................12 11RADIATEDSPURIOUSEMISSIONS........................................................................................................13 11.1LIMITS................................................................................................................................................................13 11.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................14 11.3PROCEDURE.......................................................................................................................................................14 11.4TESTDATA...........................................................................................................................................................16 12ANTENNAREQUIREMENT......................................................................................................................24 12.1CONCLUSION.........................................................................................................................................................24 13RADIATEDEMISSIONSWHICHFALLINTHERESTRICTEDBANDS.................................................25 13.1LIMITS................................................................................................................................................................25 13.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................26 13.3PROCEDURE.......................................................................................................................................................26 13.4TESTDATA...........................................................................................................................................................28 14CONDUCTEDSPURIOUSEMISSIONS...................................................................................................32 14.1LIMITS................................................................................................................................................................32 14.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................32 14.3TESTDATA...........................................................................................................................................................33 ReportNo.:BLA-EMC-202212-A8602 Page 4 of 58 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 15POWERSPECTRUMDENSITY...............................................................................................................34 15.1LIMITS................................…

Text truncated - open the document above for the full version.

≤1dbi PCB Antenna Test Equipment:AN4513 1. Electrical Characteristics No. Item Specifications 1 Working Central Frequency 24 0 MHz 4 2 Band Width ±75 MHz ( 2375 ～2525MHz ) 3 Gain 4 V.S.W.R (in BW)2.0 5 Polarization Linear 6 Azimuth Beam width Omni-directional 7 Impedance 50 Dongguan Jiayungu Electronic Technology Co., Ltd. No. 3 Tangfu Road, Tangxia Town, Dongguan City, Guangdong Province 10 . 0.8 3.2 18.0 2.Shape of the antenna Unit:mm tolerance: +/- 0.05

ModelNo.: AN4513-0CX-043 RadiatedSpuriousEmissions
