FCC ID: 2ANHPDQAPT RF Exposure Evaluation LIMIT The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 - - f/300 6 1500–100,000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 - - f/1500 30 1500–100,000 - - 1.0 30 Note: f = frequency in MHz EVALUATION METHOD Transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW, G = gain of antenna in linear scale; Pi = 3.1416, R = distance between observation point and center of the radiator in cm TEST RESULT Passed Not Applicable Radio Type Frequency range (MHz) Conducted Average Power (dBm) Maximum Tune-up (dBm) Power Density (mW/cm2) Limit (mW/cm2) Result Bluetooth 2402-2480 -6.02 -6.00 0.00003347 1.0000 Pass Note: 1) The maximum antenna gain is-1.73dBi 2) The exposure evaluation safety distance is 20cm.

Page: 1 of 32 TEST REPORT For Bluetooth-LE Report No. ...................................... : CHTEW23030047 Report Verification: Project No.................................： SHT2211046601EW FCC ID ............................................. : 2ANHPDQAPT Applicant’s name ........................... : Guangzhou Longest Science & Technology Co., Ltd. Address ............................................. : Floor 3&4, Building B&C, #96 Chuangqiang Road, Ningxi Street, Zengcheng District, 511399 Guangzhou, P.R. China Product Name ................................ : APT Performer Trade Mark ....................................... : - Model No. ......................................... : DQAPT Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C § 15.247 Date of receipt of test sample..........: Jan.06, 2023 Date of testing.............................: Jan.06, 2023-Mar.10, 2023 Date of issue...............................: Mar.13, 2023 Result .................. ........................: PASS Compiled by ( position+printedname+signature) ... : File administrators Fanghui Zhu Supervised by (position+printedname+signature) .... : Project Engineer Kiki Kong Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW23030047 Page: 2 of 32 Date of issue: 2023-03-13 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05(2023-03) Contents 1. TEST S T AN D AR D S A N D R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test sample information 7 4.4. Support unit used in test configuration and system 8 4.5. Testing environmental condition 8 4.6. Statement of the measurement uncertainty 8 4.7. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 10 5.1. Antenna Requirement 10 5.2. AC Conducted Emission 11 5.3. Peak Output Power 13 5.4. Power Spectral Density 14 5.5. 6dB bandwidth 15 5.6. 99% Occupied Bandwidth 16 5.7. Duty Cycle 17 5.8. Conducted Band edge and Spurious Emission 18 5.9. Radiated Band edge Emission 19 5.10. Radiated Spurious Emission 21 6. TEST SETUP PHOTOS 26 7. EXTERNAL AND INTERNAL PHOTOS 28 7.1. External Photos 28 7.2. Internal Photos 30 8. APPENDIX REPORT 32 Report No.: CHTEW23030047 Page: 3 of 32 Date of issue: 2023-03-13 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05(2023-03) 1. TEST STAND ARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC CFR Title 47 Part 15 Subpart C § 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2023-03-13 Original Report No.: CHTEW23030047 Page: 4 of 32 Date of issue: 2023-03-13 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05(2023-03) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result Test Engineer 5.1 Antenna Requirement 15.203/15.247(c) PASS Xiaoqin Li 5.2 AC Conducted Emission 15.207 PASS Chuanfeng Li 5.3 Peak Output Power 15.247(b)(3) PASS Xiaoqin Li 5.4 Power Spectral Density 15.247(e) PASS Xiaoqin Li 5.5 6dB Bandwidth 15.247(a)(2) PASS Xiaoqin Li 5.6 99% Occupied Bandwidth - PASS *1 Xiaoqin Li 5.7 Duty cycle - PASS *1 Xiaoqin Li 5.8 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS Xiaoqin Li 5.9 Radiated Band Edge Emission 15.205/15.209 PASS Yifan Wang 5.10 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Yifan Wang Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW23030047 Page: 5 of 32 Date of issue: 2023-03-13 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05(2023-03) 3. SUMMARY 3.1. Client Information Applicant: Guangzhou Longest Science & Technology Co., Ltd. Address: Floor 3&4, Building B&C, #96 Chuangqiang Road, Ningxi Street, Zengcheng District, 511399 Guangzhou, P.R. China Manufacturer: Compass Health Brands Corp Address: 6753 Engle Road , Middleburg Heights, Ohio, United States44130 Factory: Guangzhou Longest Science & Technology Co., Ltd. Address: Floor 3&4, Building B&C, #96 Chuangqiang Road, Ningxi Street, Zengcheng District, 511399 Guangzhou, P.R. China 3.2. Product Description Main unit information: Product Name: APT Performer Trade Mark: - Model No.: DQAPT Listed Model(s): - Power supply: AC 120V from AC power Hardware version: V1.0 Software version: 5100DA (A06) 3.3. Radio Specification Description …

Text truncated - open the document above for the full version.

Project No.: SHT2211046601EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 14 APPENDIX REPORT Project No. SHT2211046601EW Radio Specification Bluetooth BLE Test sample No. YPHT22110466001 Model No. DQAPT Start test date 2023-02-01 Finish date 2023-02-01 Temperature 24.2°C Humidity 49% Test Engineer Xiaoqin Li Auditor Appendix clause Test item Result A Peak Output Power PASS B Power Spectral Density PASS C 6 dB Bandwidth PASS D 99% Occupied Bandwidth PASS E Duty cycle PASS F Band edge and Spurious Emissions (conducted) PASS Project No.: SHT2211046601EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 14 Appendix A：Peak Output Power Type Channel Peak Output power (dBm) Average Output power (dBm) Limit (dBm) Result BT-BLE 00 -5.98 -6.02 ≤ 30.00 Pass 19 -6.44 -6.46 39 -8.58 -8.61 Project No.: SHT2211046601EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 14 CH00 Date: 1.FEB.2023 12:59:38 CH19 Date: 1.FEB.2023 13:02:55 CH39 Date: 1.FEB.2023 13:04:32 Project No.: SHT2211046601EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 14 Appendix B：Power Spectral Density Type Channel Power Spectral Density(dBm/3KHz) Limit (dBm/3KHz) Result BT-BLE 00 -20.16 ≤8.00 Pass 19 -19.91 39 -22.66 Project No.: SHT2211046601EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 5 of 14 CH00 Date: 1.FEB.2023 12:59:53 CH19 Date: 1.FEB.2023 13:03:10 CH39 Date: 1.FEB.2023 13:04:47 Project No.: SHT2211046601EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 6 of 14 Appendix C：6dB bandwidth Type Channel 6dB Bandwidth(kHz) Limit (kHz) Result BT-BLE 00 786.00 ≥500 Pass 19 782.00 39 778.00 Project No.: SHT2211046601EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 7 of 14 CH00 Date: 1.FEB.2023 12:59:17 CH19 Date: 1.FEB.2023 13:02:38 CH39 Date: 1.FEB.2023 13:04:15 Project No.: SHT2211046601EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 8 of 14 Appendix D：99% Occupied Bandwidth Type Channel 99% Occupied Bandwidth(MHz) Limit (kHz) Result BT-BLE 00 1.05 - Pass 19 1.05 39 1.05 Project No.: SHT2211046601EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 9 of 14 CH00 Date: 1.FEB.2023 12:59:29 CH19 Date: 1.FEB.2023 13:02:46 CH39 Date: 1.FEB.2023 13:04:23 Project No.: SHT2211046601EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 10 of 14 Appendix E：Duty cycle Test Frequency （MHz） T on time for single burst (ms) T period (ms) Duty cycle 1/T on time (kHz) 2440 0.43 0.62 69.4% 2.33 Date: 1.FEB.2023 13:02:24 Project No.: SHT2211046601EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 11 of 14 Appendix F：Band edge and Spurious Emissions (conducted) Test Item: Band edge CH00 Date: 1.FEB.2023 13:00:40 CH39 Date: 1.FEB.2023 13:04:57 Project No.: SHT2211046601EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 12 of 14 Test Item: SE CH00 Reference level Date: 1.FEB.2023 13:01:06 CH00 30MHz~1000MHz Date: 1.FEB.2023 13:01:22 CH00 1GHz~26GHz Date: 1.FEB.2023 13:01:38 Project No.: SHT2211046601EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 13 of 14 CH19 Reference level Date: 1.FEB.2023 13:03:17 CH19 30MHz~1000MHz Date: 1.FEB.2023 13:03:33 CH19 1GHz~26GHz Date: 1.FEB.2023 13:03:49 Project No.: SHT2211046601EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 14 of 14 CH39 Reference level Date: 1.FEB.2023 13:05:04 CH39 30MHz~1000MHz Date: 1.FEB.2023 13:05:19 CH39 1GHz~26GHz Date: 1.FEB.2023 13:05:36 --------End of Report--------

ReportNo.:RFI-LAB-RF-202303-CC47 QP030-E41 Page1of9 TestingReport CustomerName:GuangzhouLongestScience&TechnologyCo.,Ltd. ProductName:PCBantenna SampleModel:/ ReferenceStandard:GB/T9410-2008;ANSI/IEEEStd149-1979 IssueDate:2023.4.4 Engineer:Date: Auditor:Date: Approver:Date: ReportNo.:RFI-LAB-RF-202303-CC47 QP030-E41 Page2of9 Version VersionNo.DateDescriptionFormulateApproval A02023.4.4Forthefirsttime,formulateZkrisEason Contents 1.GeneralInformation.........................................................................................................................3 1.1Generalinformationoftestinginstitutions...........................................................................3 1.2Testingprinciple...................................................................................................................3 1.3Testequipment......................................................................................................................4 1.4Testenvironment...................................................................................................................4 1.5Statement..............................................................................................................................4 2.SampleInformation.........................................................................................................................5 2.1Clientinformation.................................................................................................................5 2.2DescriptionofEUT(S)..........................................................................................................5 2.3EUTappearance....................................................................................................................6 2.4EUTsetupphotooffreespaceOTAtesting.........................................................................6 3.TestResults......................................................................................................................................7 3.1Teststandard.........................................................................................................................7 3.2Testuncertainty.....................................................................................................................7 3.3Testdata................................................................................................................................7 3.3.1Typicalfreespaceefficiencyandgain......................................................................7 3.3.2Typicalfreespaceradiationpattern...........................................................................8 （Thefollowingisblank）................................................................................................................9 ReportNo.:RFI-LAB-RF-202303-CC47 QP030-E41 Page3of9 1.GeneralInformation 1.1Generalinformationoftestinginstitutions Name ShenzhenRFI-LABCommunicationTechnologyCo.,Ltd. Address 10/FA,LingyunBld,LiufangRd,BaoanDistrict,SZ Tel 13682621346 E-mail [email protected] Equipment AlltheequipmentusedinthereportisfixedinZoneB,WestSideof1/F,Building1, TingweiIndustrialPark,No.6LiufangRoad,Bao'anDistrict,Shenzhen 1.2Testingprinciple ReportNo.:RFI-LAB-RF-202303-CC47 QP030-E41 Page4of9 1.3Testequipment EquipmentModelNo.SerialNo.Manufacturer Calibration date Next calibration date OTATest System RayZone-5000 RFI-LAB-RF -D00 GTS2023.3.142025.3.13 Network Analyzer E5071C RFI-LAB-RF -D01 KEYSIGHT2022.5.132023.5.12 1.4Testenvironment Temperature 23.8°C Humidity 59%RH Pressure 100.19kPa 1.5Statement (1)Thetestresultsinthereportareonlyapplicabletothetestedsamplesandthetestedsamples workundertheenvironmentdescribedinthereport. (2)OnlyShenzhenRFI-LABCommunicationTechnologyCo.,Ltd.havetherighttomodifythe report,andthemodificationinformationshallbeannotatedintherevisionform. (3)Anyobjectiontothisreportshallberaisedwithin30daysafterformalconfirmationofthe report. (4)Thisreportisinvalidifthereisanyevidencethatthesampleinformationprovidedisfalsified. (5)Thereportisinvalidwithoutthesignatureoftheauditorandapprover. ReportNo.:RFI-LAB-RF-202303-CC47 QP030-E41 Page5of9 2.SampleInformation 2.1Clientinformation Manufacturer GuangzhouLongestScience&TechnologyCo.,Ltd. Address Floor3&4,BuildingB&C,#96ChuangqiangRoad,NingxiStreet, ZengchengDistrict,511399Guangzhou,P.R.China 2.2DescriptionofEUT(S) ProductName PCBantenna SampleModel / AntennaSize / SerialNo. / AntennaType PCBAntenna TestItem Antennagain;Efficiency;Radiationpattern FrequencyRange 2400-2500MHz ReceivedDate 2023.3.28 TestDate 2023.4.3 Remark ThelengthoftheRFcableis90mm ReportNo.:RFI-LAB-RF-202303-CC47 QP030-E41 Page6of9 2.3 EUTappearance 2.4EUTsetupphotooffreespaceOTAtesting Planform Frontview ReportNo.:RFI-LAB-RF-202303-CC47 QP030-E41 Page7of9 3.TestResults 3.1Teststandard NameParameterMethodStandardno. Mobile communication antenna Antennagain Genericspecification forantennasusedinthe mobilecommunications GB/T 9410-2008 Radiationpattern Antenna Radiationefficiency IEEEStandardTest ProceduresforAntennas ANSI/IEEEStd 149-1979 Gainanddirectivity 3.2Testuncertainty TheuncertaintywascalculatedonthebasisoftheGUMpublishedbyISO,usingthe inclusionfactorofK=2andthe95%confidenceleveltoexpresstheextended uncertainty. ItemUncertainty Antennagain±0.72dB Radiationefficiency±0.72dB 3.3 Testdata 3.3.1Typicalfreespaceefficiencyandgain Frequency/MHz 24002410242024302440245024602470248024902500 PeakGain/dBi -4.57-4.14-3.74-3.52-3.18-2.61-2.37-2.35-2.25-2.03-1.73 Efficiency/% 15.0016.4518.5219.6821.1023.2324.7226.1827.1228.6229.98 ReportNo.:RFI-LAB-RF-202303-CC47 QP030-E41 Page8of9 3.3.2Typicalfreespaceradiationpattern (1)X-ZPlane(unit:dBi): (2)Y-ZPlane(unit:dBi): ReportNo.:RFI-LAB-RF-202303-CC47 QP030-E41 Page9of9 (3)X-YPlane(unit:dBi): (4)TypicalFreeSpace3DRadiationPatternat2.5GHz(unit:dBi): -------------------------------------------------End------------------------------------------------ （Thefollowingisblank）

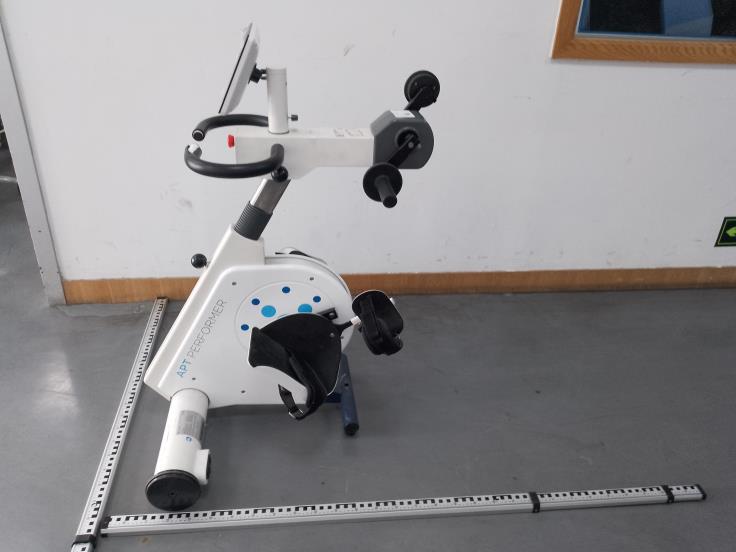

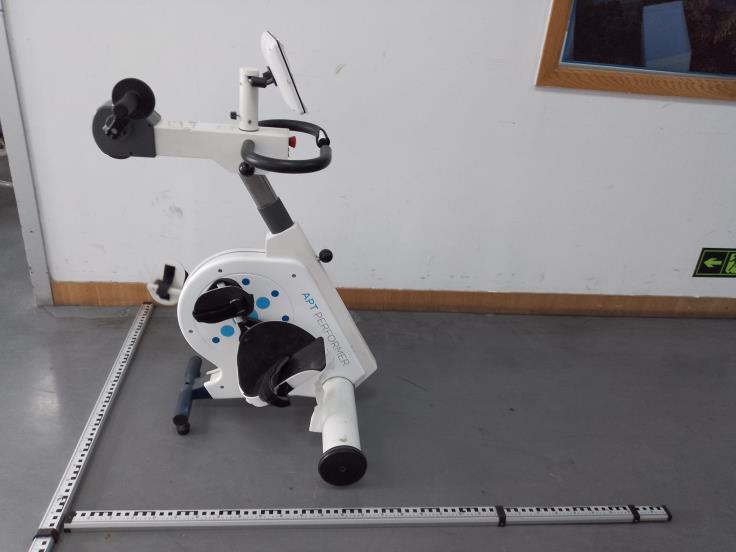

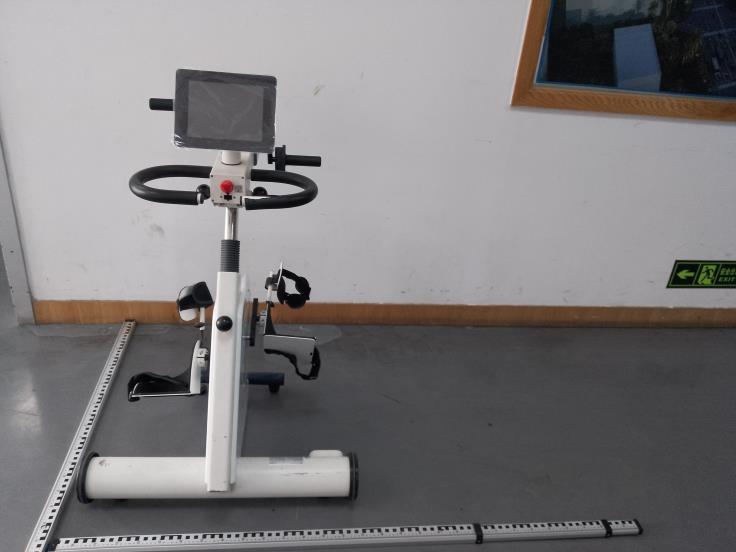

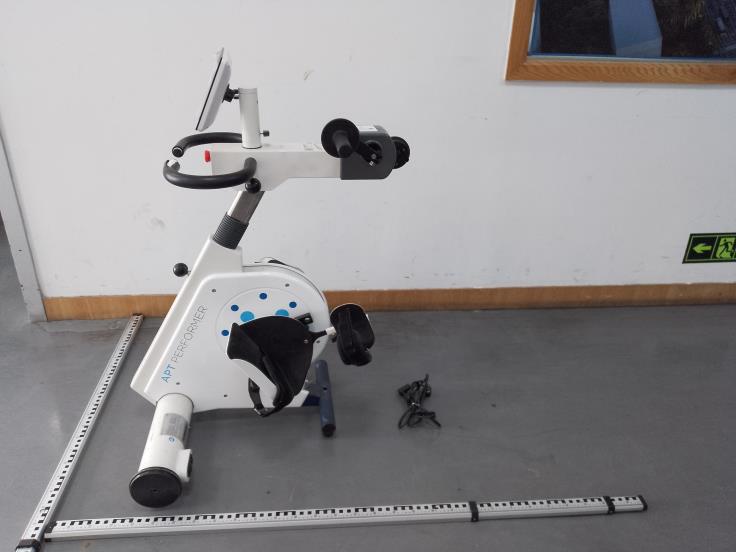

TEST SETUP PHOTOS Radiated Emission AC Conducted Emission
