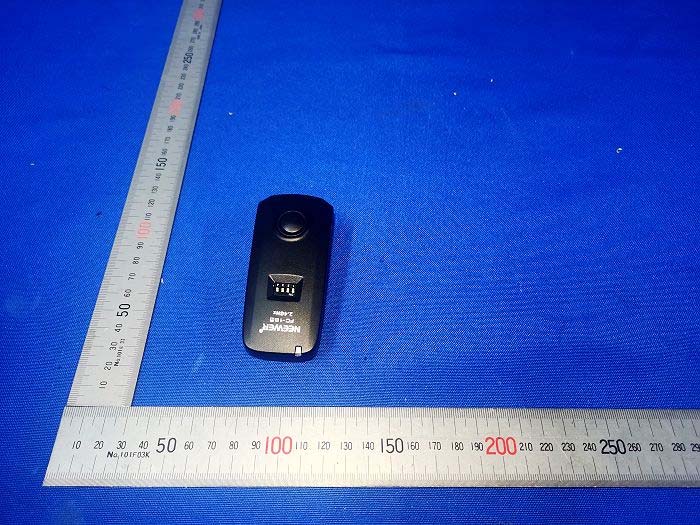

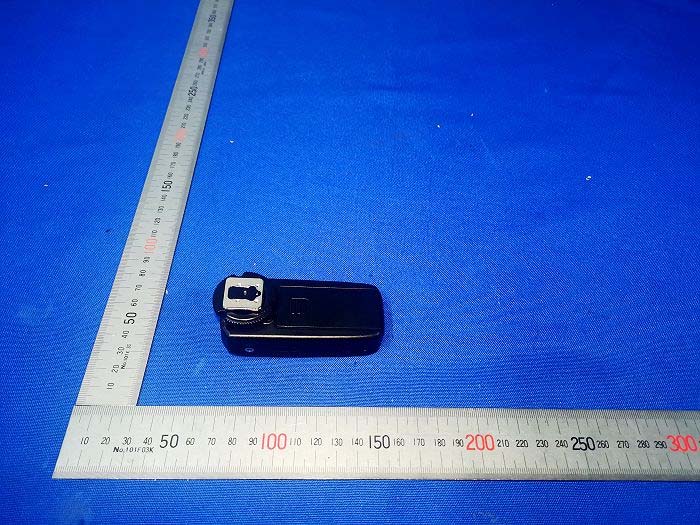

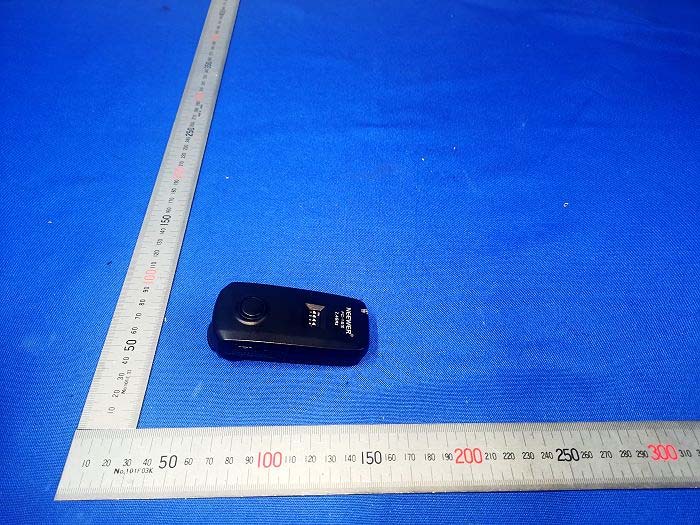

2ANIV-FC-162.4GHz TRIGGER

Shenzhen Neewer Technology Co., Ltd Statement We Shenzhen Neewer Technology Co., Ltd Hereby Declare that The product 2.4GHz TRIGGER, models no. FC-16, VC-16, FC-16T, VC-16TX are all identical in the schematics, PCB layout, Only the model name is different. Your assistance on this matter is highly appreciated. Dated this: April 19, 2021 Agency agreement expiration date: 12 Months By: Ting Peng Signature Printed Title: Direct On behalf of: Shenzhen Neewer Technology Co., Ltd Tel No: +8675525984843

April 19, 2021 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen Timeway Testing Laboratories/ Zone C, 1st Floor, Block B, Jun Xiang Da Building, Zhongshan Park Road West, Tong Le Village, Nanshan District, Shenzhen, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen Neewer Technology Co., Ltd / ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023, CHUNFENG RD LUO HU DISTRICT,SHENZEN, China Dated this: April 19, 2021 Agency agreement expiration date: 12 Months By: Ting Peng Signature Printed Title: Director On behalf of: Shenzhen Neewer Technology Co., Ltd Tel No: +8675525984843

April 19, 2021 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ANIV-FC-16 Product Name: 2.4GHz TRIGGER Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this: April 19, 2021 Agency agreement expiration date: 12 Months By: Ting Peng Signature Printed Title: Direct On behalf of: Shenzhen Neewer Technology Co., Ltd Tel No: +8675525984843

Label Location NEEWER FC-16T DC3V FCC ID:2ANIV-FC-16

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/ 20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 89.76 dBuV/m @3m Ant gain =-2.0dBi; so Ant numeric gain= 0.631 So pt= {[10 ( 89.76 /20) /10 6 x3] 2 /30x0.631 }x1000 mW =0.45mW So (0.45mW/5mm)x √ 2.474GHz = 0.14 <3 Then SAR evaluation is not required

RF Att 10 dB A Ref Lvl 0 dBm Ref Lvl 0 dBmUnitdBm RBW 100 kHz VBW 300 kHz SWT 5 ms Center 2.408 GHzSpan 5 MHz500 kHz/ 1MAX1MA -90 -80 -70 -60 -50 -40 -30 -20 -10 -100 0 1 T1 T2 Marker 1 [T1 ndB] ndB 20.00 dB BW 2.30460922 MHz 1 [T1] -5.86 dBm 2.40853607 GHz ndB 20.00 dB BW 2.30460922 MHz T1 [T1] -25.82 dBm 2.40688277 GHz T2 [T1] -26.03 dBm 2.40918737 GHz Date: 13.APR.2021 15:48:19 RF Att 10 dB A Ref Lvl 0 dBm Ref Lvl 0 dBmUnitdBm RBW 100 kHz VBW 300 kHz SWT 5 ms 1MAX1MA Center 2.44 GHzSpan 5 MHz500 kHz/ -90 -80 -70 -60 -50 -40 -30 -20 -10 -100 0 1 T1 T2 Marker 1 [T1 ndB] ndB 20.00 dB BW 2.31462926 MHz 1 [T1] -4.61 dBm 2.44054609 GHz ndB 20.00 dB BW 2.31462926 MHz T1 [T1] -24.27 dBm 2.43887275 GHz T2 [T1] -25.00 dBm 2.44118737 GHz Date: 13.APR.2021 15:46:42 RF Att 10 dB A Ref Lvl 0 dBm Ref Lvl 0 dBmUnitdBm RBW 100 kHz VBW 300 kHz SWT 5 ms 1MAX1MA Center 2.474 GHzSpan 5 MHz500 kHz/ -90 -80 -70 -60 -50 -40 -30 -20 -10 -100 0 1 T1 T2 Marker 1 [T1 ndB] ndB 20.00 dB BW 2.32464930 MHz 1 [T1] -3.18 dBm 2.47455611 GHz ndB 20.00 dB BW 2.32464930 MHz T1 [T1] -23.35 dBm 2.47287275 GHz T2 [T1] -23.21 dBm 2.47519739 GHz Date: 13.APR.2021 15:47:22

Radiated emission test view:
