2ANIV-G1WIFI SPORTS CAMERA

SPORTS Operating Attentions Product Features 1 .This is a high-precision product, please do not let it fall or strike. 2 .Please do not let the camera close to the objects with strong-magnetic, such as magnet and power-driven machine. In addition, please also avoid closing to the objects which can launch strong radio wave. Because the strong magnetic field may cause product breakdown or destroy the image and sound. 3 .Please do not put the camera in the place with high temperature or direct sunshine. 4 .Please choose the Micro SD card with brands, because ordinary card can not be guaranteed for using regularly. 5 .Please do not let the Micro SD card put in or close to the places with the strong-magnetic in order to avoid losing the data of the Micro SD card.6 .During the process of charging up the battery, if the product gives out heat and smoke or gives off peculiar smell, please immediately unplug the power to avoid the fire.7 .when charging up the battery, please let the product put in the places where children can not touch, because the power cable may cause the children stifle or suffer from electric shock.8 .Please let the product put in the shady, dry and insulated places. The product is a high-end high definition and athletic camping product . And the product has many functions,such as digital video photography, slow photography, voice, video display and removable battery. Besides, the functions of outdoor sports, home security and deep waterproof can meet any need of photographing. >Waterproof case is convenient for you to take a photo in water sports and can up to 30 meters deep waterproof.>Photography>Slow photography>The max resolution of video is 4K @30fps>Wide-angle 170°HD camera lens.>16-megapixel HD lens>Low power consumption and be used for about 90 minutes when WIFI is open.>Super HD 2.0-inch display screen, display and rebroadcast wonderful video. >Battery is removable and convenient to replace and can extend its life.>Charge up the battery and get a video at the same time. > HDMI: high definition output.>Support 64G memory card.>Many patterns of recording video:4K, 2.7K, 1080P, 720P>H.264 pattern record video>Many photography pattern: common, timing, automatically, sports trail>Many record video pattern: common, loop, stop-motion>Mini appearance: many optional colors>Support APP upgrade for long-distance Foreword Multipurpose Outdoor sports Marine sports Diving Home burglar Working indicator LED light Charging indicator LED light Display screen Speaker Up key/WIFI Down key The diagram of product: Door of the battery OK/shutter HDMI Lens USB MIC Micro SD Indicator LED light Switch / mode The diagram of waterproof: Down key Switch of waterproof case OK/shutter Lens Up key Switch / mode The diagram of accessory: waterproof case bicycle bracket pedestal 1 pedestal 2 Back clip fixed base switch support 1 switch support 2 switch support 3 commutator helmet pedestal bandage shell ribbon wire cable 3M mat data cable adapter user manual cleaning cloth SPORTS waterproof case waterproof case short pole/support 3 short pole/support 2 helmet pedestal helmet pedestal Application diagram of assemble: c ase /long pole long pole pedestal 1 pedestal 1 camera waterproof case bicycle bracket back clip clip long pole/support 3 /long pole camera Guide of operating 1 .plug the Micro SD card Attentions: please choose the Micro SD card with the brands and use it after formatting on the computer. Ordinary card can not be guaranteed to work regularly .2 .install and take out the battery a.stir downward the battery cover and turn on it.b.according to the plus-minus pole and the arrow on the battery, take the battery into the product and install it correctly.c.the quantity of electricity of the battery: please reference the diagram.d.stir downward the battery cover then take out the battery3 .charge up the battery a.use the USB cable to connect the computer or the adapter to charge up the battery.b.charge up the battery and record video at the same time.c.charging up the battery is available when the product is power off.4 . Power on and power off the camera a.press the power key for about 3-5 seconds then power on/offb.open the screen then power on and close the screen then power off.5 . Open/close the WIFI a.open the WIFI: shortly press the up key then open successfully,the LED light turn to flashing yellow light. b.close the WIFI: after opening the WIFI,shortly press the up key, the yellow light is black out.6 .change the mode Power on then shortly press the key of the power on/off, you can change the modes between record video/photography/slow photography/playback file and setting.7 .The LED light The LED light of working: the blue light is at work.The LED light of WIFI: the yellow light flashes when WIFI is opening; the yellow light is bright when WIFI is connected;the yellow light turns off when WIFI is closed.The LED light of charging up the battery:the red light is bright when the product is charging up the battery; the red light tur ns off when the quantity of electricity is enough.8 . How to photography and photographic options set a. Photography and video settingsThe camera gets into video mode, press the Enter key to start recording. When recording , the bottom • sign is flashing then press the Enter key to stop recording while • mark disappears.Video Mode: Normal, loop recording (2 minutes, 3 minutes, 5 minutes), time-lapse video (0.5 seconds, 1 second, 2 seconds, 5 seconds, 10 seconds, 30 seconds, 60 seconds).b.take pictures and picture-taking settingsTurn the power on, when the camera enters the mode option to select the camera mode, the upper left corner of the screen has pictures sign and then enter the camera mode. Press the Enter key to take the picture.picture-taking Mode: Normal, the timing (3 seconds, 5 seconds, 10 seconds, 20 seconds), automatic (3 seconds, 10 seconds, 15 seconds, 20 seconds, 30 seconds), the trajectory (3P / S, 5P / S, 10P / S, 20P / S)c. Slow photography …

Text truncated - open the document above for the full version.

Neewer Technology Co., Ltd Add: ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT SHENZHEN China Tel: 86 755 25984843 Fax: 86 755 25984843 Date: 2020-08-07 Dear Sir/Madam, We, Neewer Technology Co., Ltd Hereby declares the following statement , PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for marketing purpose: Product name: WIFI SPORTS CAMERA Models No.: G1, G2, G3, G4, G5, G6 Sincerely, Client’s name / title : Xiaowen Pan / QE Contact information / address: ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT SHENZHEN China Tel: 86 755 25984843 Fax: 86 755 25984843 E-Mail: [email protected]

Neewer Technology Co., Ltd Agent Authorization Company: Neewer Technology Co., Ltd Address: ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT SHENZHEN China Product Name: WIFI SPORTS CAMERA Trade Mark: NEEWER Model Number: G1, G2, G3, G4, G5, G6 FCC ID: 2ANIV-G1 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-08-07 Name: Xiaowen Pan Title: QE Company: Neewer Technology Co., Ltd

Neewer Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-08-07 Subject; Request for Confidentiality FCC ID: 2ANIV-G1 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Xiaowen Pan Title: QE

Neewer Technology Co., Ltd Add: ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT SHENZHEN China Tel: 18194021006 Fax: / Date: 2020-08-07 To: MiCOM Labs, Inc 575 Boulder Court, Pleasanton California 94566, USA Dear Sir/Madam, We, Neewer Technology Co., Ltd Hereby declares the following statement for MiCOM Labs, Inc, PCB board, structure and internal of these model(s) are the same, only the Shell and models name is different for these models: Product name: WIFI SPORTS CAMERA Model No.: G1, G2, G3, G4, G5, G6 Sincerely, Client’s name / title : Xiaowen Pan / QE Address: ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT SHENZHEN China Tel: 86 755 25984843 Fax: 86 755 25984843 E-mail: [email protected]

Page 1 of 1 Rev.2.0 Neewer Technology Co., Ltd WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2ANIV-G1 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo-location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: Xiaowen Pan / QE Signature: Phone: 86 755 25984843 Email: [email protected] Date: 2020-08-07

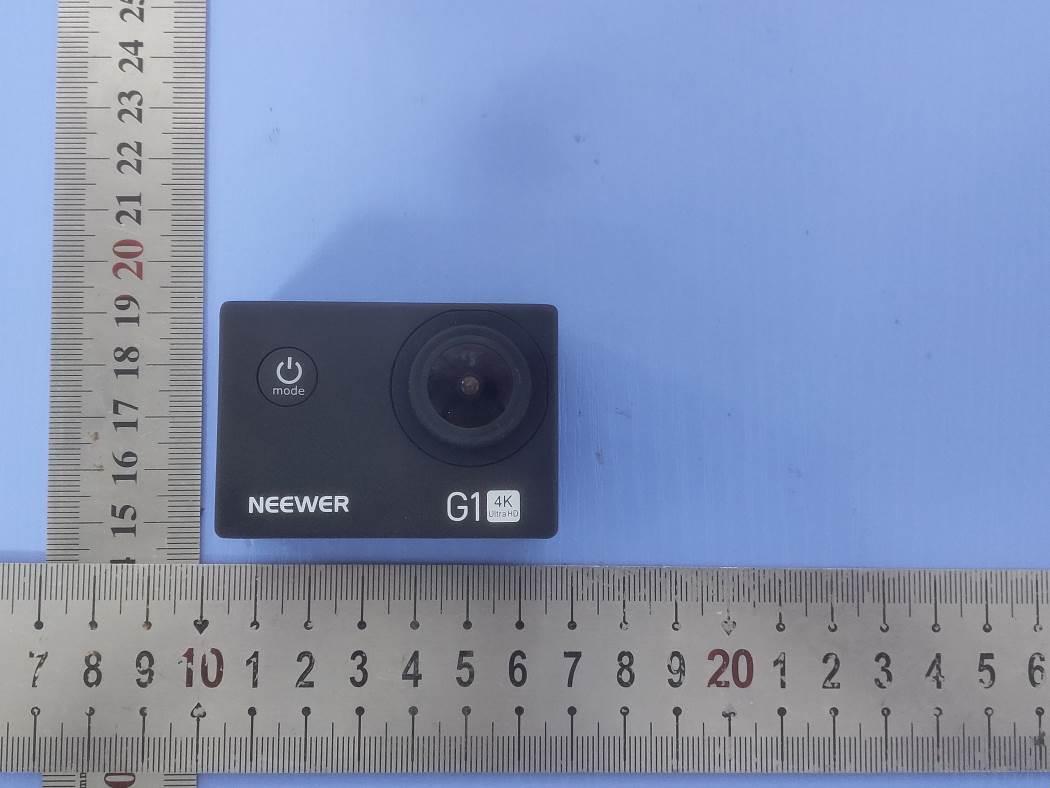

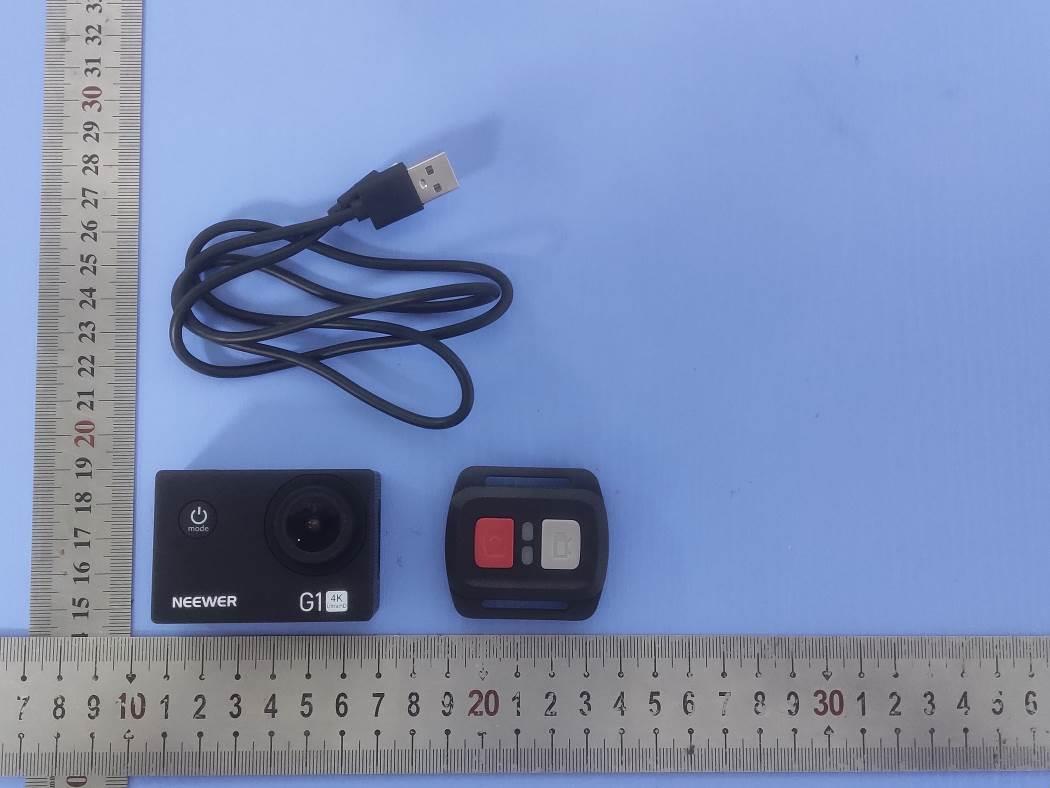

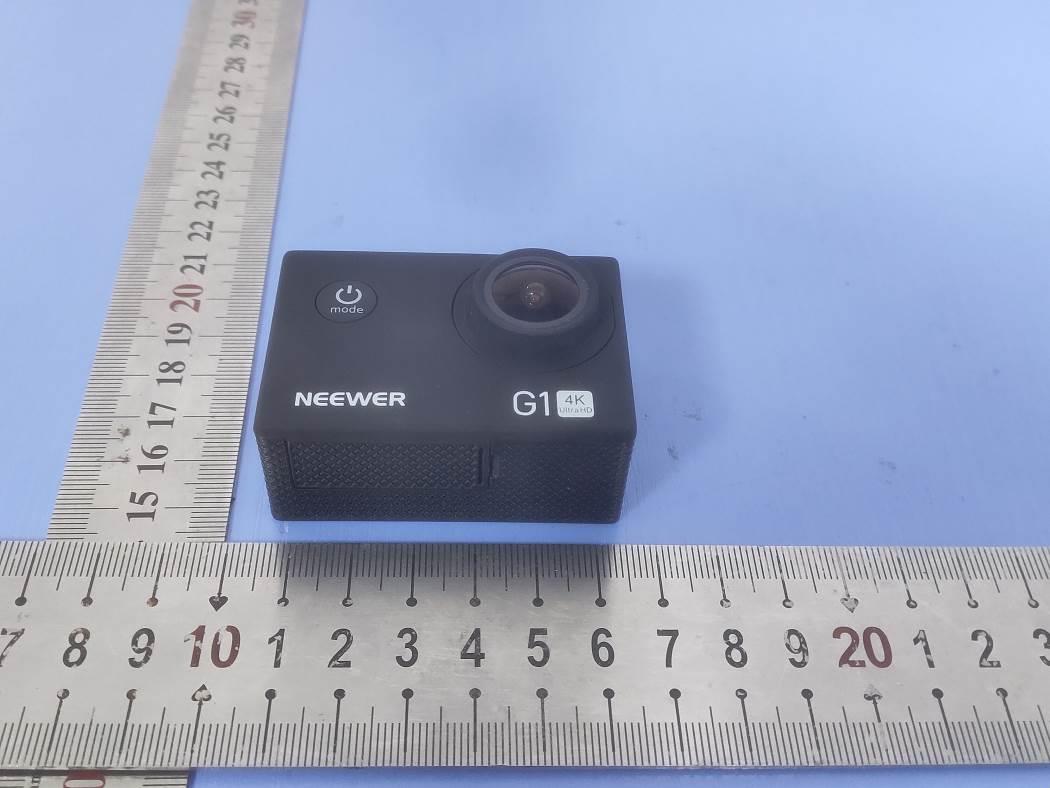

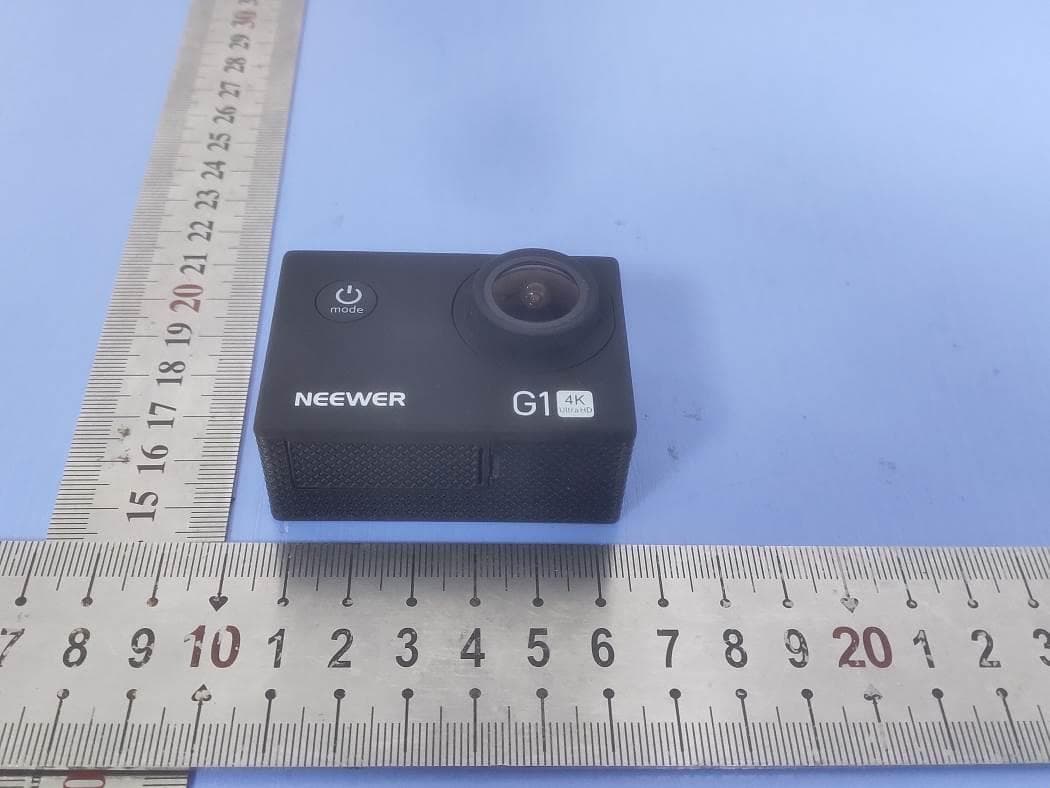

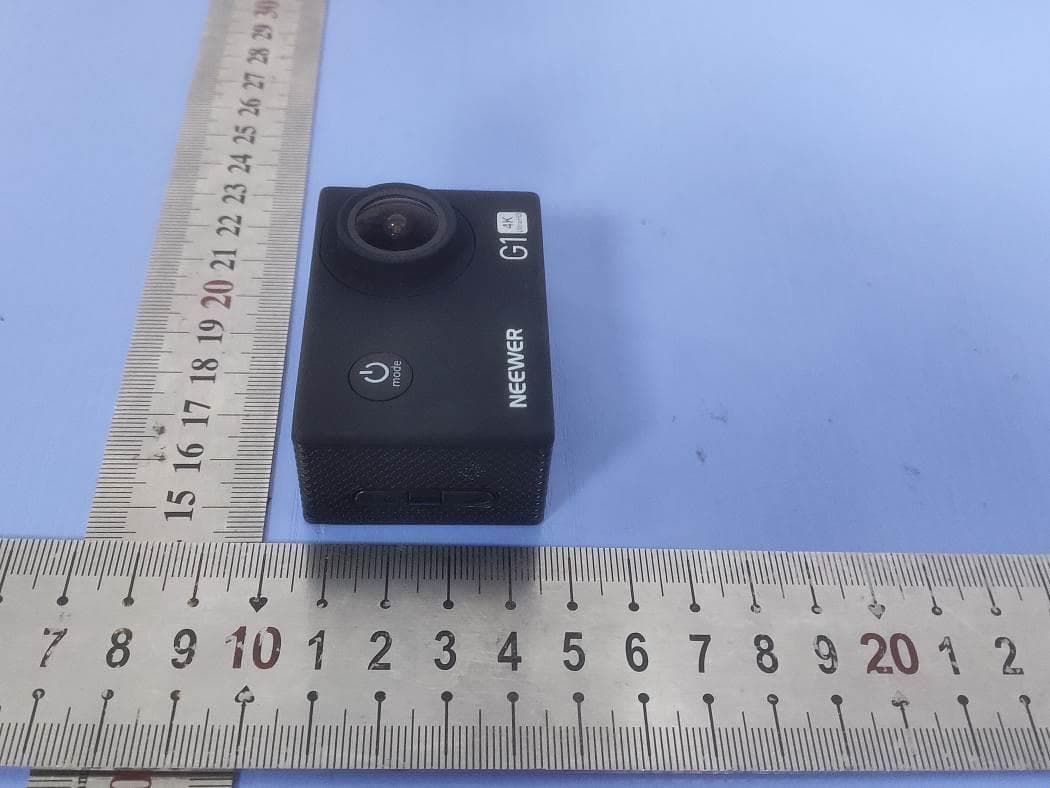

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 5 Fig.9 Fig.10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L1.5m x 0.5cm) Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location FCC ID: 2ANIV-G1 IC: 22889-G1

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 Internal Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 Fig.7 Fig.8 WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 5 Fig.9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2ANIV-G1 Product name WIFI SPORTS CAMERA Test Model G1 Model List No. G1, G2, G3, G4, G5, G6 Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power supply DC 3.7V By Battery(900mAh) Recharged By DC 5V Modulation Type 802.11b: DSSS; 802.11g/n: OFDM Channel Number 11 channels for 20MHz bandwidth(2412MHz~2462MHz) Channel Spacing 5MHz Antenna Type PCB Antenna Antenna Gain 2.11 dBi (maximum) Hardware version V1.0 Software version V1.0 Operation frequency 2412MHz~2462MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device Model Declaration / 2. Evaluation Method and Limit According to KDB447498 D01 General RF Exposure Guidance v06Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results 4.1 Test Setup Block Diagram 4.2 Test Equipment Item Kind of Equipment Manufacturer Type No. Serial No. Calibrated until 1 Power Meter R&S NRVS 100444 2021-06-15 2 Power Sensor R&S NRV-Z32 10057 2021-06-15 Remark: all calibration period of equipment list is one year. 4.3 Test Procedure a. The EUT was directly connected to the power meter and antenna output port as show in the block diagram Test Setup; b. Setup EUT work at duty cycle more than 98%; c. Read power sensor values in RMS detector; SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 ________________________________________________________________________ ___ This report shall …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 1 of 40 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: WIFI SPORTS CAMERA Trade Mark: NEEWER Test Model: G1 Environmental Conditions Temperature: 23.7  C Relative Humidity: 53.9% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 2 of 40 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 3 of 40 Duty Cycle_11N20SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 4 of 40 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 2.327 30 PASS MCH 1.808 30 PASS HCH 1.622 30 PASS 11G LCH 2.022 30 PASS MCH 1.935 30 PASS HCH 1.857 30 PASS 11N20SISO LCH 1.148 30 PASS MCH 0.858 30 PASS HCH 0.671 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 5 of 40 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -3.931 8 PASS MCH -3.231 8 PASS HCH -3.930 8 PASS 11G LCH -7.741 8 PASS MCH -8.012 8 PASS HCH -8.182 8 PASS 11N20SISO LCH -8.388 8 PASS MCH -8.273 8 PASS HCH -8.326 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 6 of 40 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 7 of 40 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 8 of 40 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 9 of 40 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 10 of 40 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 9.057 ≥0.5 PASS MCH 9.049 ≥0.5 PASS HCH 9.054 ≥0.5 PASS 11G LCH 16.45 ≥0.5 PASS MCH 16.44 ≥0.5 PASS HCH 16.45 ≥0.5 PASS 11N20SISO LCH 17.58 ≥0.5 PASS MCH 17.58 ≥0.5 PASS HCH 17.58 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 11 of 40 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 12 of 40 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 13 of 40 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 14 of 40 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 15 of 40 A.5 Occupied Bandwidth Mode Channel Occupied Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 12.684 ≥0.5 PASS MCH 12.703 ≥0.5 PASS HCH 12.708 ≥0.5 PASS 11G LCH 16.533 ≥0.5 PASS MCH 16.527 ≥0.5 PASS HCH 16.524 ≥0.5 PASS 11N20SISO LCH 17.621 ≥0.5 PASS MCH 17.621 ≥0.5 PASS HCH 17.616 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 16 of 40 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 17 of 40 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 18 of 40 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 19 of 40 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 20 of 40 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH 2.945 -48.045 -17.05 PASS MCH 0.213 -48.207 -19.79 PASS HCH -2.191 -48.607 -22.19 PASS 11G LCH -0.713 -44.597 -20.71 PASS MCH -3.254 -44.875 -23.25 PASS HCH -5.571 -48.986 -25.57 PASS 11N20 SISO LCH -0.672 -46.251 -20.67 PASS MCH -3.409 -48.921 -23.41 PASS HCH -5.504 -47.962 -25.50 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 21 of 40 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 22 of 40 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 23 of 40 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 24 of 40 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 25 of 40 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 26 of 40 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 27 of 40 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 28 of 40 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 29 of 40 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 30 of 40 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict 11B LCH 0.500 -55.908 -19.50 PASS HCH 0.296 -46.915 -19.70 PASS 11G LCH -3.539 -56.913 -23.54 PASS HCH -3.814 -50.071 -23.81 PASS 11N20SISO LCH -3.597 -57.689 -23.60 PASS HCH -3.680 -48.576 -23.68 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 31 of 40 11B/HCH 11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 IC: 22889-G1 Page 32 of 40 11…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 Report No.: LCS200615128AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 37 FCC TEST REPORT For Neewer Technology Co., Ltd WIFI SPORTS CAMERA Model No.: G1 Additional Model No.: G2, G3, G4, G5, G6 Prepared for : Neewer Technology Co., Ltd Address : ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT SHENZHEN China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 15, 2020 Number of tested samples : 2 Sample No. : 200615128A-1, 200615128A-2 Serial number : Prototype Date of Test : June 15, 2020 ~ July 23, 2020 Date of Report : July 23, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-G1 Report No.: LCS200615128AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 37 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS200615128AEA Date of Issue ................................... : July 23, 2020 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Neewer Technology Co., Ltd Address ........................................... : ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT SHENZHEN China Test Specification Standard .......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : WIFI SPORTS CAMERA Trade Mark ...................................... : NEEWER Model/ Type reference .................... : G1 Ratings ............................................ : DC 3.7V By Battery(900mAh) Recharged By DC 5V Result ............................................ : Positive Compiled by: Supervised by: Approved by: Cherry Chen / Administrators Jin Wang / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. F…

Text truncated - open the document above for the full version.
