2ANIV-RC-2Remote Control

2.4G wireless remote control user's manual Safety instructions: In order to prevent your product from any damage or user safety, please read the following safety precautions thoroughly before use, and keep the information in this manual, so that all users of this product can read it at any time. Before operating this device, please read the following instructions carefully and keep them in a safe place for future reference. 1. Product structure introduction: 1. LCD display: display channel, group, brightness, colortemperature, power and other information. 2. CH/GRP button: switch channel setting and group setting 3. Add button: increase the value 4. Decrease button: Decrease value 5. ON/OFF button: Long press to switch the display of the remote control, short press to switch the product after power on. 6. SET button: Press the SET button to set the color temperature value 7. Rear shell: The rear shell of the remote control can be removed by pushing down to install and unload the battery. 2. Features This product is a 2.4G remote control with a display screen, with a 1.3-inch LCD display screen and a backlight, which is convenient for users to use at night. This product can match most types of photographic fill light produced by our company. 3. Operation 1. Install the battery Push the battery back cover in the direction of the arrow marked on the back cover, and after hearing a "click", remove the battery back cover. Assemble two 1.5V AAA batteries correctly according to the + and-signs in the battery compartment. Then install the back shell. 2. The remote control turns on and off When the remote control is properly installed with batteries, press and hold the ON/OFF button for 3 seconds to turn on the remote control. In the power-on state, press and hold the ON/OFF button for 3 seconds to turn off the remote control. 3. Channel and group settings After the remote control is turned on, press the CH/GRP button, and the letter representing the group on the display will flash. Press the + and-buttons to switch between the groups: A, B, C, and ABC. Press the CH/GRP button again, the value behind CH on the display will flash, press the + and-buttons to set the channel value of the remote control. 4. Brightness and color temperature adjustment After the remote control is turned on, the + and-buttons default to brightness addition and subtraction. Short pressing the + and-buttons will increase or decrease the brightness by 1%. Long press the + and-keys, the brightness will increase or decrease continuously in 5% steps. Press the SET button and the color temperature value on the display will flash. Short press the + and-keys to increase or decrease the color temperature by 100K. Long press the + and-keys, the color temperature will continue to increase or decrease in steps of 200K. 4． Product Size Unit: mm Tolerance: ±1.0mm L=138 W=38 H=16 5. Basic product parameters Number Item Specification 1 Scope of application This product can be applied to the SL-360A-RC, LED-540A-RC, SL-288A-RC, SL-272A-RC, SL-200A-RC, SL-236A-RC, AL-600A- RC, AL-900A-RC, LED-1200A-RC and other photography fill light.。 2 Input Voltage 3V 3 Battery Model 2pcs 1.5V AAA battery 4 Remote type 2.4G Wireless Remote 5 Control function Brightness +/-, color temperature +/-, group, remote control channel. 6 Display method 1.3 inch LCD screen (with backlight) 7 Display content Channel, group, brightness, color temperature, power and other information 8 Wireless frequency 2.4G-2.48G (ISM open frequency point) 9 power 0dBm 10 Remote control distance About 40 metre 11 Remote control channel CH1-CH40 12 Body material 70%ABS+30%PC、ABS 13 Product Weight About 40g（not include battery） 14 Working temperature 0°C~40°C 15 Storage temperature -10°C～50°C 16 Relative humidity 20%～90% 17 Product Size 138X38X16 mm 6. Precautions 1. Please use the battery specified in the product specification, otherwise the product may not turn on or be damaged. 2. This product is not waterproof. 3. The product is a precision instrument, please do not drop the product to the ground, subject it to collision or strong impact. 4. When the power display icon of the product flashes, please replace the battery as soon as possible. 5. The connector of the product is used to connect the camera shutter cable port to use as a shutter cable. It is forbidden to insert any plug other than the camera cable into the connector, otherwise the product will be damaged. ● Product specifications and appearance are subject to change without notice. FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2021-03-12> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ANIV-RC-2 RC-2 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Client’s name / title : Xiaowen Pan / QE Company: Shenzhen Neewer Technology Co., Ltd Address: ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT, SHENZHEN, GUANGDONG, 518001, CHINA Phone: 86 755 25984843 Fax: 86 755 25984843 E-mail: [email protected]

Shenzhen Neewer Technology Co., Ltd Add: ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT, SHENZHEN, GUANGDONG, 518001, CHINA Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021/03/12 To whom it may concern: We, Shenzhen Neewer Technology Co., Ltd the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ANIV-RC-2 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Xiaowen Pan / QE Company: Shenzhen Neewer Technology Co., Ltd Address: ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT, SHENZHEN, GUANGDONG, 518001, CHINA Phone: 86 755 25984843 Fax: 86 755 25984843 E-Mail: [email protected]

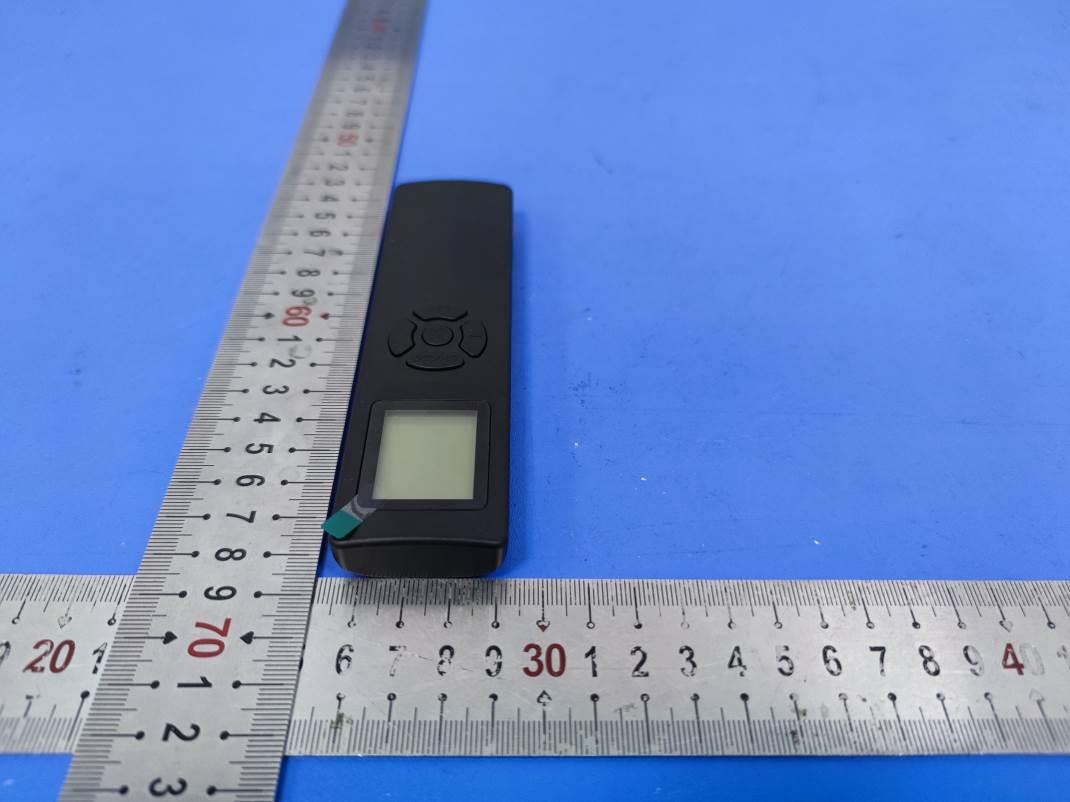

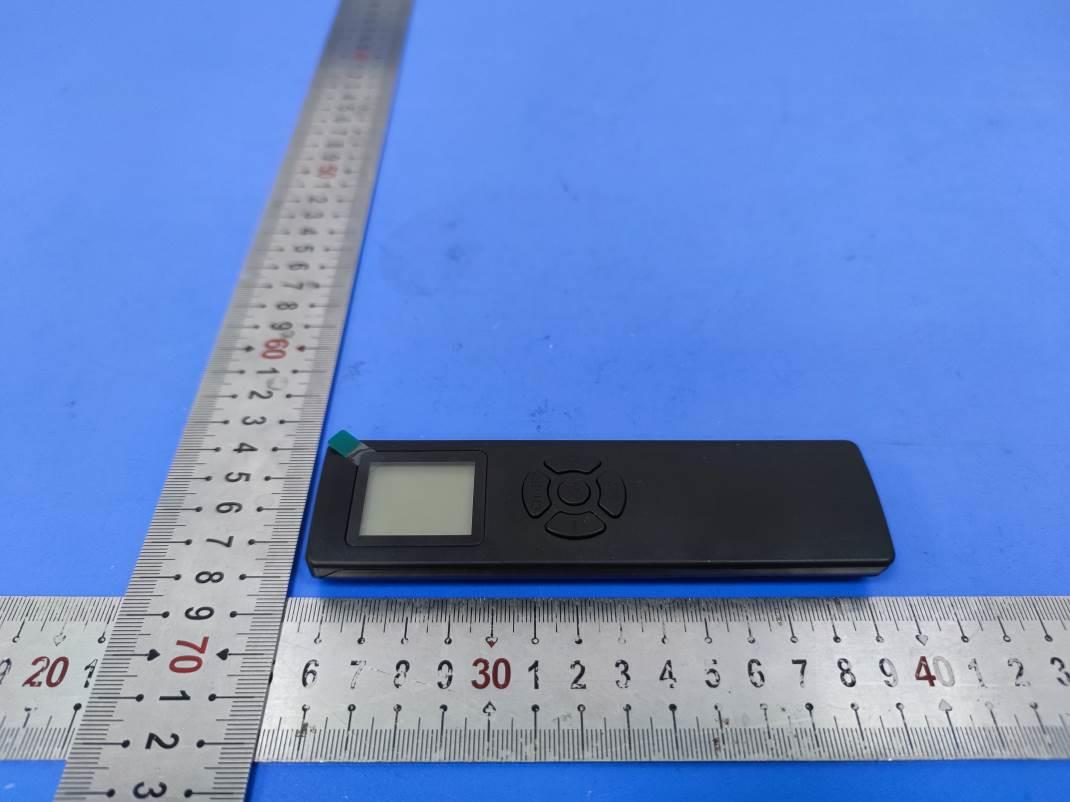

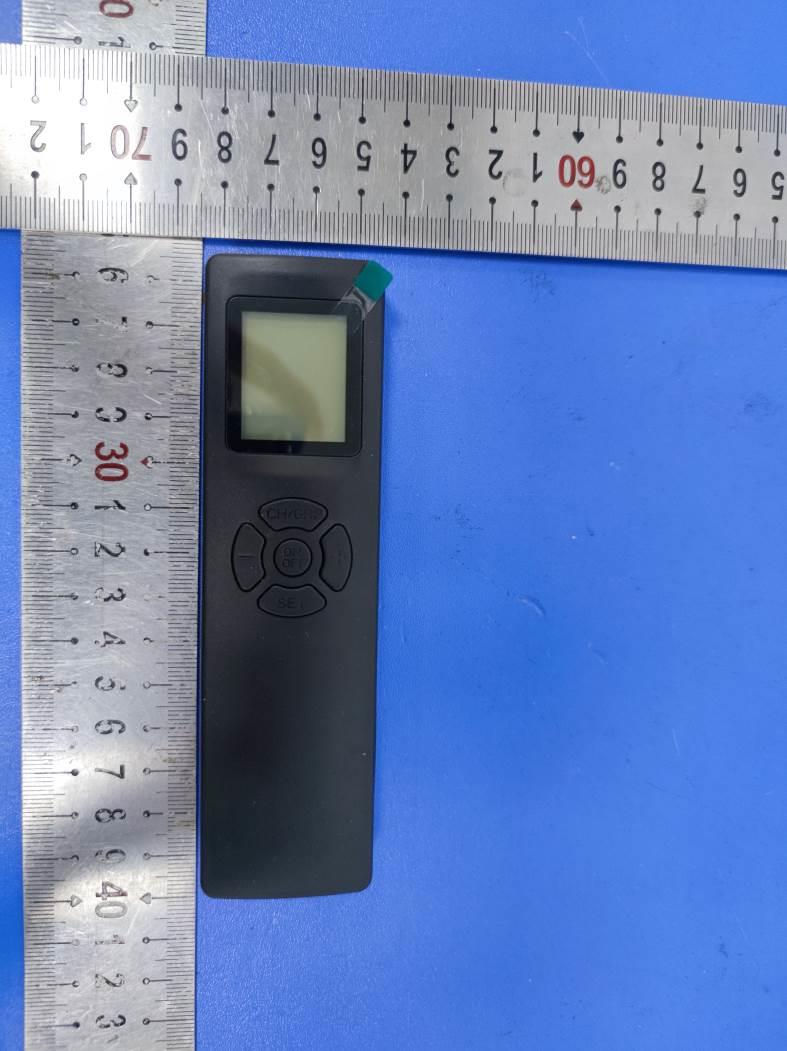

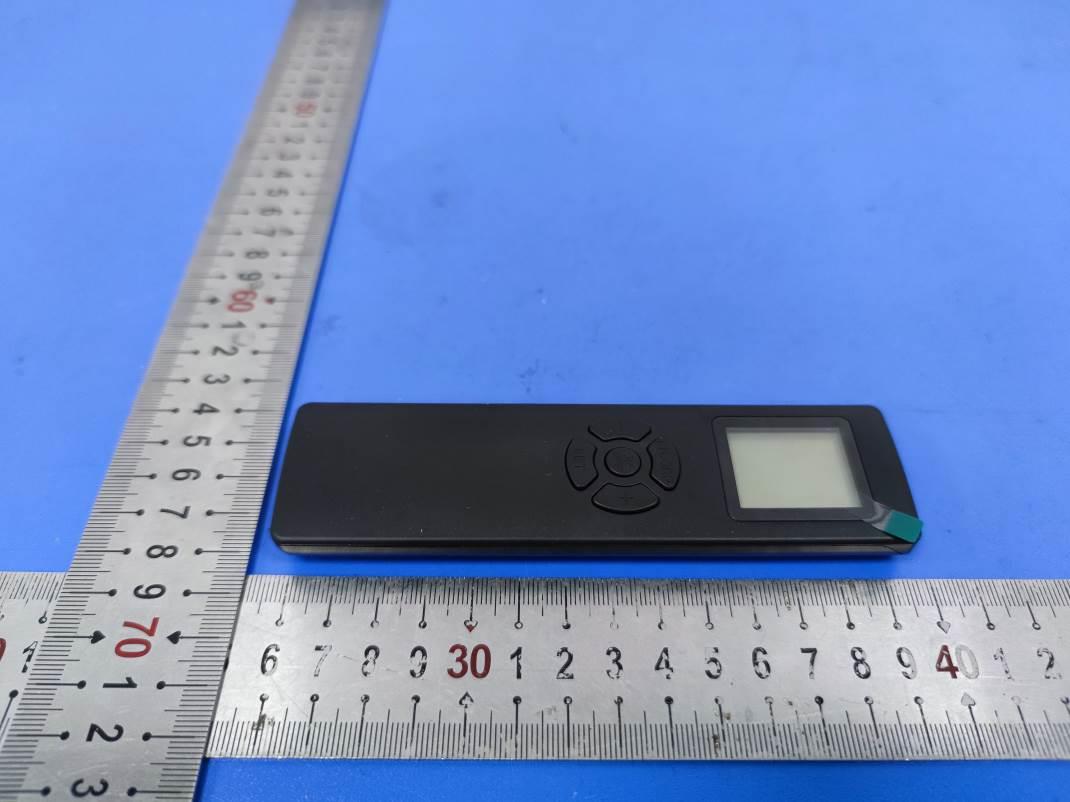

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Fig. 5 Fig. 6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L1.0cm*W0.5cm Label Location FCC ID: 2ANIV-RC-2

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 2.4G Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Fig. 3

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2ANIV-RC-2 Product name Remote Control Model number RC-2 Model List No. RC-2 Power supply DC 3.0V By 2*AAA Battery Modulation Type GFSK Channel Sepration 2 MHz Channel Number 40 channels Antenna Type Internal Antenna Antenna Gain 0 dBi (maximum) Hardware version V1.1 Software version VER 3.2 Operation frequency 2401.5 MHz-2479.5 MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results 2.4GHz Transmit Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) GFSK 1 2401.5 0.931 19 2437.5 0.260 40 2479.5 0.210 5. Manufacturing Tolerance 2.4GHz Transmit GFSK (Peak) Channel Channel 1 Channel 19 Channel 40 Target (dBm) 0 0 0 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW GFSK 2.480 5 1.0 1.2589 0.4 < 3.0 Yes Remark: (1). RF output power including tune up tolerance; (2). When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 of KDB 447498 is applied to determine SAR test exclusion. 6.2 Simultaneous Transmission for SAR Exclusion The sample support one Radio modular and one antenna, no need consider simultaneous transmission; SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Report No.: LCS210208022AEA Page 1 of 14 Appendix A RF Test Data for 2.4G (Conducted Measurement) Product Name: Remote Control Trade Mark: NEEWER Test Model: RC-2 Environmental Conditions Temperature: 25  C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict GFSK 2437.5 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Report No.: LCS210208022AEA Page 2 of 14 A.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict GFSK LCH 0.931 30 PASS GFSK MCH 0.260 30 PASS GFSK HCH 0.210 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Report No.: LCS210208022AEA Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Report No.: LCS210208022AEA Page 4 of 14 A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict GFSK LCH -6.312 8 PASS GFSK MCH -6.552 8 PASS GFSK HCH -6.583 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Report No.: LCS210208022AEA Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Report No.: LCS210208022AEA Page 6 of 14 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.5602 ≥0.5 PASS GFSK MCH 0.5531 ≥0.5 PASS GFSK HCH 0.5538 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Report No.: LCS210208022AEA Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Report No.: LCS210208022AEA Page 8 of 14 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 0.293 -45.487 -19.71 PASS GFSK MCH -0.052 -41.290 -20.05 PASS GFSK HCH 0.047 -49.013 -19.95 PASS GFSK_LCH_Graphs Pref/GFSK/LCH Puw/GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Report No.: LCS210208022AEA Page 9 of 14 GFSK_MCH_Graphs Pref/GFSK/MCH Puw/GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Report No.: LCS210208022AEA Page 10 of 14 GFSK_HCH_Graphs Pref/GFSK/HCH Puw/GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Report No.: LCS210208022AEA Page 11 of 14 A.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict GFSK LCH 0.538 -29.383 -19.46 PASS GFSK HCH -0.047 -47.190 -20.05 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Report No.: LCS210208022AEA Page 12 of 14 A.7 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct GFSK 2402 Ant1 2310.0 -50.054 2.0 0 47.18 PEAK 74 PASS Ant1 2310.0 -61.610 2.0 0 35.62 AV 54 PASS Ant1 2390.0 -49.512 2.0 0 47.72 PEAK 74 PASS Ant1 2390.0 -59.564 2.0 0 37.67 AV 54 PASS 2480 Ant1 2483.5 -43.166 2.0 0 54.06 PEAK 74 PASS Ant1 2483.5 -52.124 2.0 0 45.11 AV 54 PASS Ant1 2500.0 -48.130 2.0 0 49.10 PEAK 74 PASS Ant1 2500.0 -61.277 2.0 0 35.95 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Report No.: LCS210208022AEA Page 13 of 14 Restrict-band band-edge measurements_GFSK_2402_Ant1_PEAK Restrict-band band-edge measurements_GFSK_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Report No.: LCS210208022AEA Page 14 of 14 Restrict-band band-edge measurements_GFSK_2480_Ant1_PEAK Restrict-band band-edge measurements_GFSK_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Report No.: LCS210208022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 31 FCC TEST REPORT For Shenzhen Neewer Technology Co., Ltd Remote Control Test Model: RC-2 Prepared for : Shenzhen Neewer Technology Co., Ltd Address : ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT, SHENZHEN, GUANGDONG, 518001, CHINA Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : February 19, 2021 Number of tested samples : 1 Sample number : 210208022A Serial number : Prototype Date of Test : February 19, 2021 ~ March 12, 2021 Date of Report : March 12, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Report No.: LCS210208022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 31 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS210208022AEA Date of Issue ................................... : March 12, 2021 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Shenzhen Neewer Technology Co., Ltd Address ........................................... : ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT, SHENZHEN, GUANGDONG, 518001, CHINA Test Specification Standard .......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2020-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : Remote Control Trade Mark ...................................... : NEEWER Model/ Type reference .................... : RC-2 Ratings ............................................ : DC 3.0V By 2*AAA Battery Result ............................................ : Positive Compiled by: Supervised by: Approved by: Lh Li/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Report No.: LCS210208022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 31 FCC -- TEST REPORT Type / Model........................... : RC-2 EUT......................................... : Remote Control Applicant............................... : Shenzhen Neewer Technology Co., Ltd Address.................................. : ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT, SHENZHEN, GUANGDONG, 518001, CHINA Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Neewer Technology Co., Ltd Address................................... : ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT, SHENZHEN, GUANGDONG, 518001, CHINA Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Neewer Technology Co., Ltd Address................................... : ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT, SHENZHEN, GUANGDONG, 518001, CHINA Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210208022AEA March 12, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Report No.: LCS210208022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 31 Revision History Revision Issue Date Revisions Revised By 000 March 12, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 Report No.: LCS210208022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 31 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. SUPPORT EQUIPMENT LIST .....................................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RC-2 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2
