2ANIV-RT-103Remote Control

02 0304 05 User Manual Many thanks for purchasing our product! This is a portable wireless controler, used for mobile phone, MID, TV box, smart TV, PC and so on.It can be used as gamepad, VR remote, wireless mouse, music control, E-book page, PPT presentation etc. and support iOS, Android, Windows and so on. Important Note: Products are subject to change without any notice. And this product has applied for patents, counterfeiting is not pemitted. Universal Wireless VR Remote & Gamepad Operating instructions: 1.Power On: Press button until LED is on (about 2 seconds).( First put the batteries.) 2.Power Off: Press button until LED is off (about 5 seconds). Note: If no connecting with wireless device after 5mins, system will power off automatically; after connecting with wire- less device, if no any operation, system will power off after 30mins. 3.Pair and connect: after power on, LED indicator will flash, the device will enter into the wireless pair mode automatically to find the address and name of this device(MOCUTE- 052-xxxx), click then can connect. Pair and connect successfully, LED indicator will turn off. Next power on, it can connect and match the last wireless device. Under turn off state, press (over 8 seconds), LED will flash, then go to pair mode again, and can't connect last paired device automatically. 4. KEY Mode: Turn switch on side to KEY (there is “KEY” on the side). (as shown to the right) 4.1 Music/Video operation: After connecting with wireless, open mobile's music player (like Samsung's player), click play, then can use this device to operate, like music play, pause, changing songs and so on. There are some difference due to different software and system, like: key is for mute under iOS, but menu key under Android. 4.2 Selfile operation: For iOS mobile, press key to shutter; for Android Samsung mobile, then press key to shutter, Volume key to adjust focus; for other Android mobile, please enter camera setup first , then set volume key to shutter or scan QR code to download camera software. 4.3 Mouse operation( just for Android): When the controller is in the music operation function,Press ， then joystick can change to mouse function, is for mouse confirm key, is for mouse right key. Press again, then can switch to music mode. If need move mouse function, please press the confirm key on the top and at same move the joystic. MENU function: press is MENU key function. 4.4 E-Book flip function: In iReader: use Volume+/- to turn page up down; In Kindle or PPT for iOS, use joystic in Game mode to turn page. 5. VR (Game/Video) function: Turn side switch to Game side (there is “GAME” on side). 5.1 VR (Game/Video) function on Android: VR App Download: use QR code software to scan QR code on the packing ( or enter into website: http://www.migamepad.com/) to enter into MIGAMEPAD download center, then you can download MIGAMEPAD game application or third party's VR application. such as: Baofeng VR app, 3D Bobo etc. VR game: from these applications download games, if support the Gamepad, connect wireless can be directly used to operate the game (note that the side of the switch to GAME side).This kind of games such as: Zombie Hunter, Virtual Reality FPS, etc.. (Some games maybe need set to use gamepad control when playing) VR video operation: VR software generally: key play / pause, key to return, the analog stick fast forward and rewind operation.(Note: the Baofeng VR App must be download from the website of www.migamepad.com (QR code center) ,can to connect the gamepad ) . Touch OK function keys: in the Samsung VR Oculus Gear or other VR games , the general need to touch the screen to click the cursor point, to start Games etc. when using the handle, press the button . 5.2 iOS VR APP operation: VR APP download: Enter into iOS APP store or use QR code software to scan QR code on the packing ( or enter into website: http://www.migamepad.com/) to enter into MIGAMEPAD download center, then you can download MIGAMEPAD game application or third party's VR application. such as: Baofeng VR app, 3D Bobo etc. VR game: before entering the VR application, the soft keyboard input method, set the status of the English input, you can enter the English alphabet.Enter the address bar of the browser, there will be a keyboard input state. Then connect the wireless, you can operate the gamepad. (Note: in the Baofeng VR application need to select the handle -MOCUTE option). such as ZombieFight or Zombie Warfare,Virtual Reality FPS,SCW VR Free etc iCade games, you can use the gamepad operation. Or enter the APPStore search "iCade", you will find support for the games of iCade type , download and install, Such as: Lite Brotherhood, TTR, Premium Akane, etc.(Some games maybe need set to use iCade control when playing). VR video operation: set to English input method, which can in the Baofeng VR APP or 3D Bobo control video operation (play, pause, fast forward, rewind, etc.) (Note: the Baofeng VR App need to choose the handle -MOCUTE option). In addition, if you use Apple's official video software, you can also use KEY mode of music control functions to control the video operation. 6. Battery: Our product is need two 1.5V batteries of type size AAA, when power is low, LED will flash, please change the batteries. Scan above QR code to get more details , help and game resource. 7. Product Specifications Size 116mmx45mmx13.5mm Wireless Protocol Bluetooth 3.0 compliant Wireless Distance 2-10 Meters OS Android /iOS/PC CPU ARM968E-S Core Battery Type size alkaline AAA 1.5V x 2 Working time (Continuous game) About 40 hours Work current 0.5~8mA Standby current 0.5-1mA Shutdown current <20uA Item Specifications Notes: 1. When accident cause not boot or unable to shutdown, please use needle to take out the bat- teries. 2. If can't connect, please Press B+Y+Power button to Power On,then Power Off the device to restore factory settings. FCC Statement This device complies with part 15 of the FCC rules. Operation is sub…

Text truncated - open the document above for the full version.

Shenzhen Neewer Technology Co., Ltd ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT, SHENZHEN, GUANGDONG, 518001, CHINA Date: March 12, 2021 FCC ID: 2ANIV-RT-103 Model Number: RT-103 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Shenzhen Neewer Technology Co., Ltd hereby declare that our product (Remote Control) Model Number: RT-103 will disable Bluetooth Lower Energy function (Bluetooth V4.2 LE) by software and only open Bluetooth Classics function (GFSK, π/4-DQPSK, 8-DPSK) although Bluetooth modular BK3231 support both Bluetooth Classics function (GFSK, π/4-DQPSK, 8-DPSK) and Bluetooth Lower Energy function (Bluetooth V4.2 LE) due to marketing purposes. End-user will only use Bluetooth Classics function (GFSK, π/4-DQPSK, 8-DPSK) in USA market. Please contact me if you have any question. Sincerely, (Signed) Name/Title: Xiaowen Pan / QE Company: Shenzhen Neewer Technology Co., Ltd Address: ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT, SHENZHEN, GUANGDONG, 518001, CHINA Phone: 86 755 25984843 Fax: 86 755 25984843 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2021-03-12> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ANIV-RT-103 RT-103 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Client’s name / title : Xiaowen Pan / QE Company: Shenzhen Neewer Technology Co., Ltd Address: ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT, SHENZHEN, GUANGDONG, 518001, CHINA Phone: 86 755 25984843 Fax: 86 755 25984843 E-mail: [email protected]

Shenzhen Neewer Technology Co., Ltd Add: ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT, SHENZHEN, GUANGDONG, 518001, CHINA Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021/03/12 To whom it may concern: We, Shenzhen Neewer Technology Co., Ltd the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ANIV-RT-103 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Xiaowen Pan / QE Company: Shenzhen Neewer Technology Co., Ltd Address: ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT, SHENZHEN, GUANGDONG, 518001, CHINA Phone: 86 755 25984843 Fax: 86 755 25984843 E-Mail: [email protected]

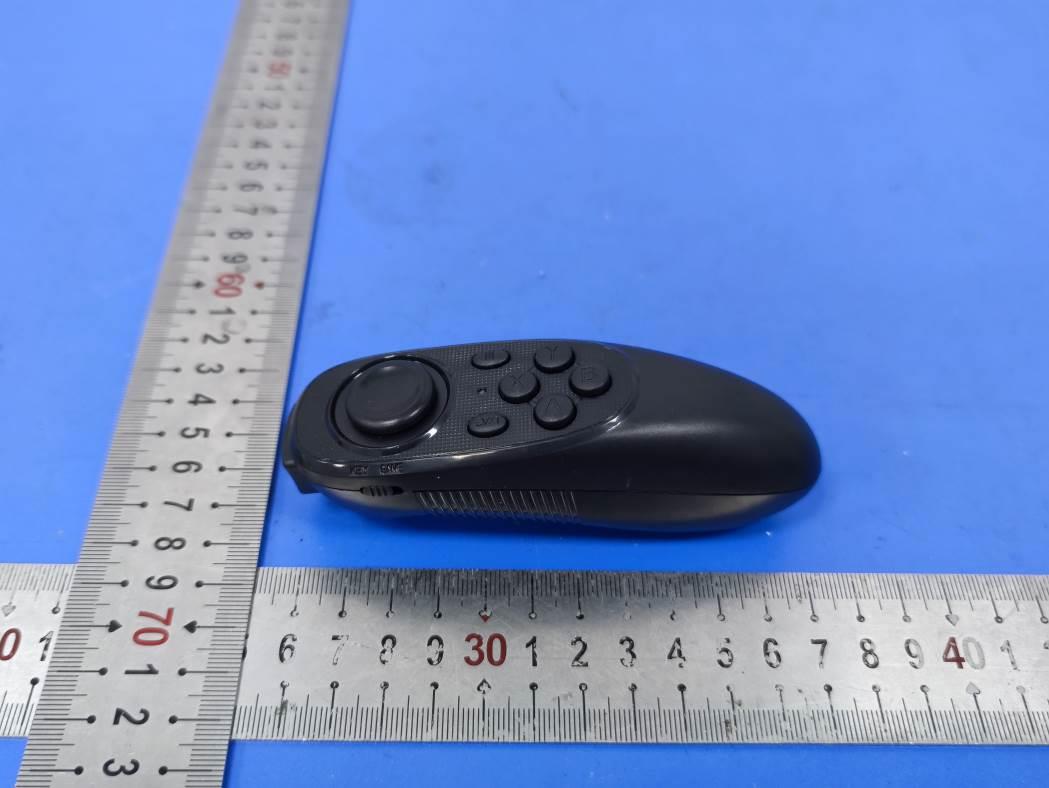

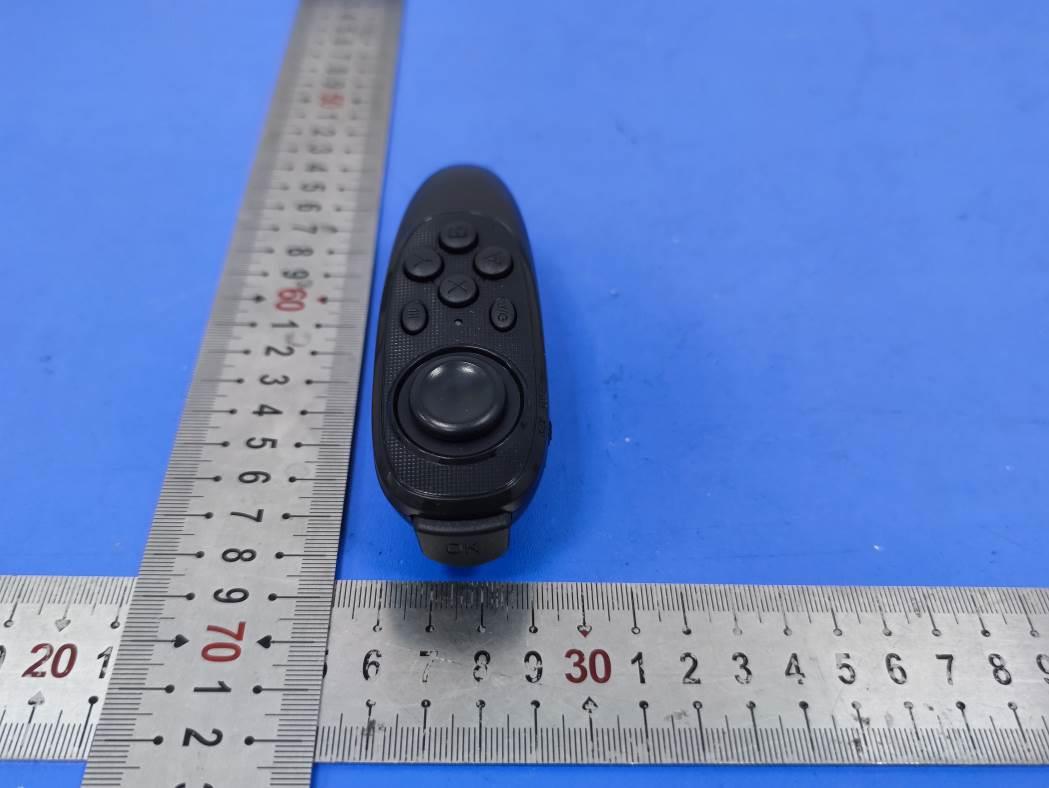

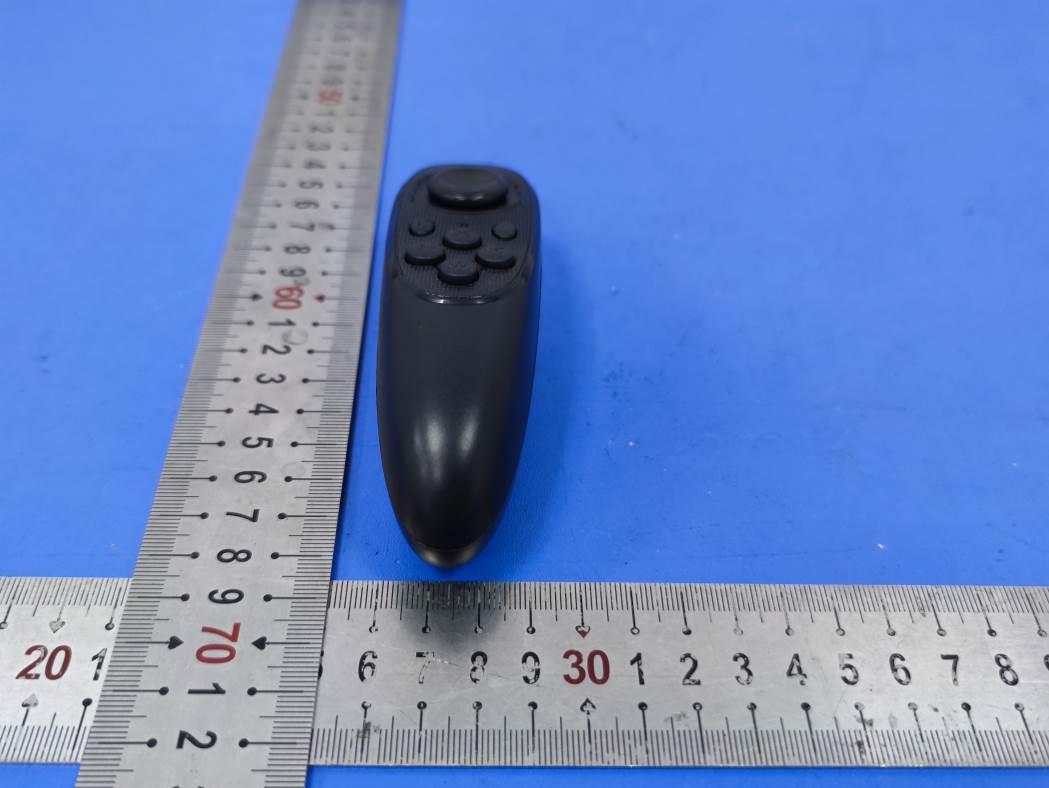

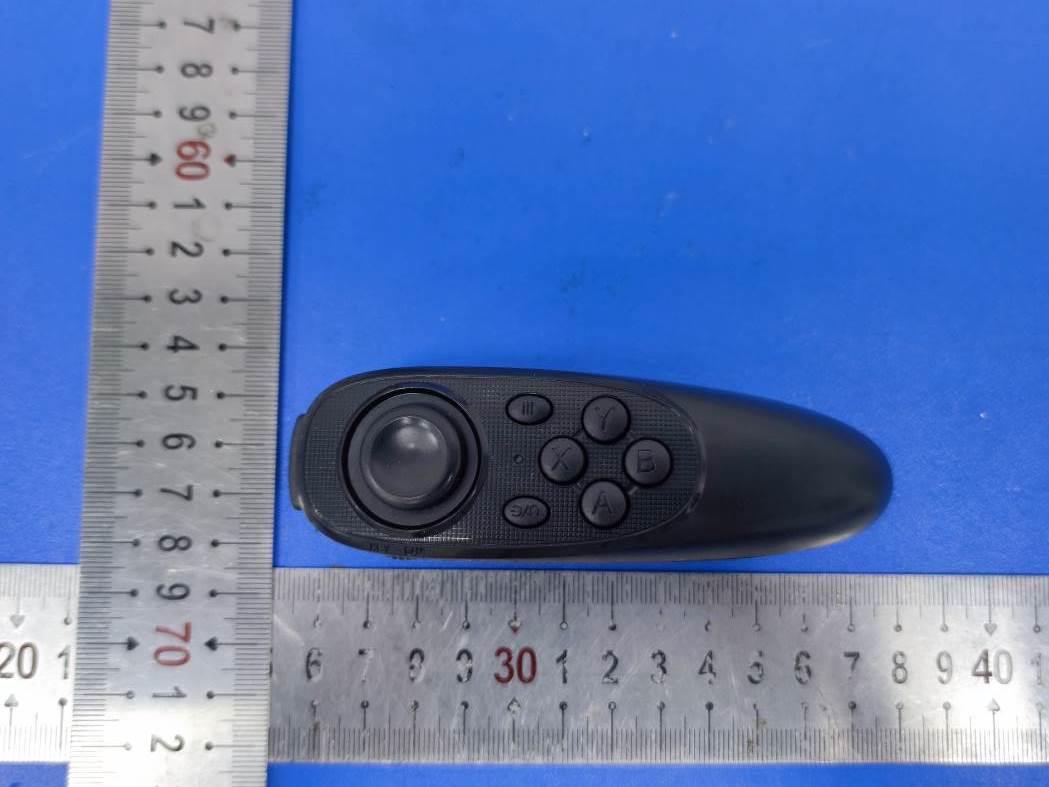

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L2.0cm*W1.5cm Label Location FCC ID: 2ANIV-RT-103 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 Bluetooth Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Fig.3

This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 3.572 39 2441 4.013 78 2480 3.753 0 2402 4.176 39 2441 4.628 78 2480 4.359 8-DPSK 0 2402 4.156 39 2441 4.618 78 2480 4.374 GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 4.0 4.0 4.0 Tolerance ±(dB) 1.0 1.0 1.0 -DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 4.0 4.0 4.0 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 4.0 4.0 4.0 Tolerance ±(dB) 1.0 1.0 1.0 Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW GFSK 2480 5 5.00 3.16 1.0 < 3.0 Yes 2480 5 5.00 3.16 1.0 < 3.0 Yes 8-DPSK 2480 5 5.00 3.16 1.0 < 3.0 Yes This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 ----------------THE END OF REPORT---------------

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 1 of 47 Appendix A RF Test Data for BT V4.2(BDR/EDR) (Conducted Measurement) Product Name: Remote Control Trade Mark: NEEWER Test Model: RT-103 Environmental Conditions Temperature: 25  C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 3.572 21 PASS MCH 4.013 21 PASS HCH 3.753 21 PASS π/4DQPSK LCH 4.176 21 PASS MCH 4.628 21 PASS HCH 4.359 21 PASS 8DPSK LCH 4.156 21 PASS MCH 4.618 21 PASS HCH 4.374 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9556 Not Specified PASS MCH 0.9545 Not Specified PASS HCH 0.9529 Not Specified PASS π/4DQPSK LCH 1.313 Not Specified PASS MCH 1.312 Not Specified PASS HCH 1.314 Not Specified PASS 8DPSK LCH 1.313 Not Specified PASS MCH 1.313 Not Specified PASS HCH 1.314 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.998 0.637 PASS MCH 0.692 0.637 PASS HCH 1.164 0.637 PASS π/4DQPSK LCH 1.170 0.876 PASS MCH 0.876 0.876 PASS HCH 1.022 0.876 PASS 8DPSK LCH 1.200 0.876 PASS MCH 1.164 0.876 PASS HCH 1.148 0.876 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.308 0.4 PASS 2DH5 MCH 2.88 106.7 0.307 0.4 PASS 2DH5 HCH 2.88 106.7 0.307 0.4 PASS 8DPSK 3DH5 LCH 2.88 106.7 0.307 0.4 PASS 3DH5 MCH 2.88 106.7 0.307 0.4 PASS 3DH5 HCH 2.88 106.7 0.308 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 2.889 -38.210 -17.111 PASS MCH 3.358 -37.575 -16.642 PASS HCH 3.097 -37.038 -16.903 PASS π/4DQPSK LCH 2.916 -37.102 -17.084 PASS MCH 3.531 -37.684 -16.469 PASS HCH 2.814 -37.678 -17.186 PASS 8DPSK LCH 2.865 -37.893 -17.135 PASS MCH 3.336 -36.982 -16.664 PASS HCH 3.087 -38.148 -16.913 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 34 FCC TEST REPORT FOR Shenzhen Neewer Technology Co., Ltd Remote Control Test Model: RT-103 Prepared for : Shenzhen Neewer Technology Co., Ltd Address : ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT, SHENZHEN, GUANGDONG, 518001, CHINA Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : February 19, 2021 Number of tested samples : 2 Sample number : 210208019A-1, 210208019A-2 Serial number : Prototype Date of Test : February 19, 2021 ~ March 12, 2021 Date of Report : March 12, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 34 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS210208019AEA Date of Issue ................................... : March 12, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Shenzhen Neewer Technology Co., Ltd Address ........................................... : ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT, SHENZHEN, GUANGDONG, 518001, CHINA Test Specification Standard.......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2019-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Remote Control Trade Mark ...................................... : NEEWER Test Model ...................................... : RT-103 Ratings ............................................ : DC 3.0V By 2*AAA Battery Result ........................................... : Positive Compiled by: Supervised by: Approved by: Lh Li/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 34 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210208019AEA March 12, 2021 Date of issue Test Model........................... : RT-103 EUT......................................... : Remote Control Applicant............................... : Shenzhen Neewer Technology Co., Ltd Address.................................. : ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT, SHENZHEN, GUANGDONG, 518001, CHINA Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Neewer Technology Co., Ltd Address................................... : ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT, SHENZHEN, GUANGDONG, 518001, CHINA Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Neewer Technology Co., Ltd Address................................... : ROOM 1901-1903, Block A, LU SHAN BUILDING NO.3023 CHUNFENG RD LUO HU DISTRICT, SHENZHEN, GUANGDONG, 518001, CHINA Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 34 Revision History Revision Issue Date Revisions Revised By 000 March 12, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 Report No.: LCS210208019AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 34 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...................................................................................................................................... 6 1.1 DESCRIPTION OF DEVICE (EUT) ................................................................................................................... 6 1.2 SUPPORT EQUIPMENT LIST ...................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANIV-RT-103 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2
