2ANJN-VT1611-EG91TrackLight

TrackLight User and Installation Guide V T 1611 truck.anytrek.com Introduction Thank you for purchasing the TrackLight GPS tracker from Anytrek. Your TrackLight provides the ultimate ‘plug and drive’ covert tracker providing the ability to track your asset in real time from any web connected device. It comes complete with an integrated SIM card for the tracking function and is simple and quick to install. With your TrackLight, you also have access to the Anytrek web portal, as well as the smartphone apps for both Android and iOS devices. The Quick Start guide for the portal can be downloaded from anytrek.com. You should have your user credentials to login to the portal by now, if you don’t please contact Anytrek on 1 844 872 6987. Operating Characteristics. Reporting Frequency : From 15 minute reporting cycle whilst motion/movement is detected 12 hour reporting cycle while stationary Power characteristics: Power/Recharge from both tail and brake light circuits Battery recharge temperature range; -5° C to +55° C (Outside this range the charging function is suspended) truck.anytrek.com Installation TrackLight has been designed to look, function and install exactly the same as a standard 4” LED tail light. It can be mounted using either a standard rubber grommet, stainless steel mounting ring or Anytrek’s Perma-Lock snap fit mounting ring. TrackLight connects to the vehicle’s standard wiring lead using a Fit N Forget connector. If your vehicle uses an earlier PL-3 connector, Anytrek offers adaptor cables that removes the need to cut the existing wiring leads. Perma-Lok retaining ring truck.anytrek.com Important TrackLight connects to the tail light and brake light circuits in order to draw power. Please ensure that your TrackLight is fitted to an existing tail/brake light, and not a turning indicator or reversing light.   truck.anytrek.com Installation The following short video clip shows the installation process for a TrackLight GPS tracker using an existing rubber grommet. If the existing tail light is held in place with a steel mounting ring, it will have to be removed first. Click on the logo below to view the installation video on YouTube. Activation Please follow the steps below to create your user account and register the tracker. If you already have an account for the Anytruck portal, log in, go to Device Manager and add your new tracker. 1. Go to truck.anytrek.com and click on Sign up 2. Enter required information. 3. Create your login credentials. 4. Register your tracker using the 6 digit passcode found on the label attached to the tracker. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: The equipment complies with FCC Radiation exposure limits set forth for uncontrolled enviroment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. IC Warning English: This device complies with Industry Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES‐3 (B)/NMB‐3(B). ‐ French: Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnement. l'appareil numérique du ciem conforme canadien peut ‐ 3 (b) / nmb ‐ 3 (b). This device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS 102 RF exposure, users can obtain Canadian information on RF exposure and compliance. cet appareil est conforme à l'exemption des limites d'évaluation courante dans la section 2.5 du cnr - 102 et conformité avec rss 102 de l'exposition aux rf, les utilisateurs peuvent obtenir des données canadiennes sur l'exposition aux champs rf et la conformité. This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your …

Text truncated - open the document above for the full version.

Anytrek Corporation Agent Authorization Date: 2020-07-13 Company: Anytrek Corporation Address: 4405 E Airport Dr, Suite 106, Ontario, CA 91761 Product Description: TrackLight FCC ID Number: 2ANJN-VT1611-EG91 Tested Model Number: VT1611 We authorize Eurofins Product Service GmbH, Storkower Strasse 38c, D-15526 Reichenwalde, Germany, to act on our behalf on all matters concerning the certification of above mentioned equipment. We declare that Eurofins Product Service GmbH is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We, Anytrek Corporation, the undersigned, hereby authorize Shenzhen Toby Technology Co., Ltd. (Ivan Su, Supervisor of EMC Dep.), Shenzhen Microwave Certification Services Co., Ltd. (Gilbert Lui, Marketing Manager) and Ka.Ma.S UG (Karin Schmidt, CEO) on our behalf, to apply to the Federal Communications Commission on our equipment. We, the undersigned, hereby authorize Shenzhen Toby Technology Co., Ltd. (Ivan Su, Supervisor of EMC Dep.) to act on our behalf in matters relating to the application for a FCC equipment authorization for mentioned FCC ID Number including the signing of Form 731, necessary forms and documents in connection with this application. Any and all acts carried out by Shenzhen Toby Technology Co., Ltd. (Ivan Su, Supervisor of EMC Dep.) on our behalf shall have the same effect as acts of our own. This authorization expires on February 28, 2022. Yours Sincerely, <Signature of Haijian Zeng > ----------------------------------------------------------------------------------- Name： Haijian Zeng Company: Anytrek Corporation Address: 4405 E Airport Dr, Suite 106, Ontario, CA 91761 Phone: 626-541-3507 Fax: N/A E-Mail: [email protected]

Anytrek Corporation CONFIDENTIALITY REQUEST for Certification under the FCC Rules Date: July 13, 2020 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the following product: FCC ID Number: 2ANJN-VT1611-EG91 Tested Model Number: VT1611 For the product stated above, we request that the following information be held confidential: Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days Block Diagram Schematic Diagram/ Circuit Diagram Circuit Description/ Operational Description Parts List Tune Up Information User’s Manual External Photos Internal Photos Test Setup Photos The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. Please do not hesitate to contact me if you have any queries. Yours Sincerely, <Signature of Haijian Zeng > ----------------------------------------------------------------------------------- Name： Haijian Zeng Company: Anytrek Corporation Address: 4405 E Airport Dr, Suite 106, Ontario, CA 91761 Phone: 626-541-3507 Fax: N/A E-Mail: [email protected]

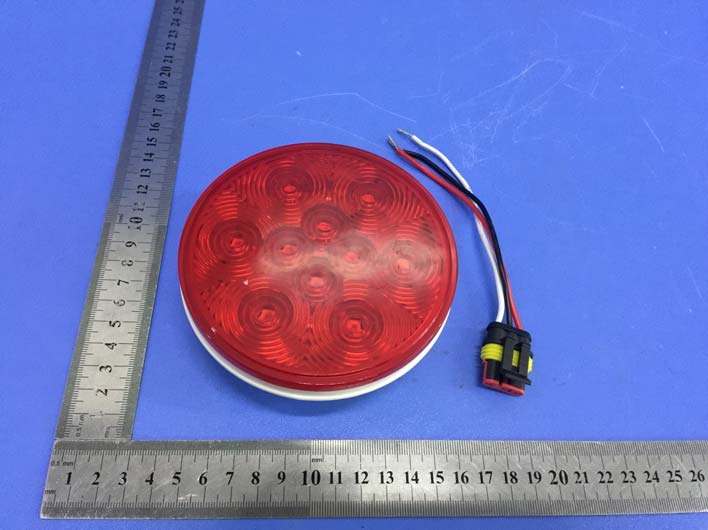

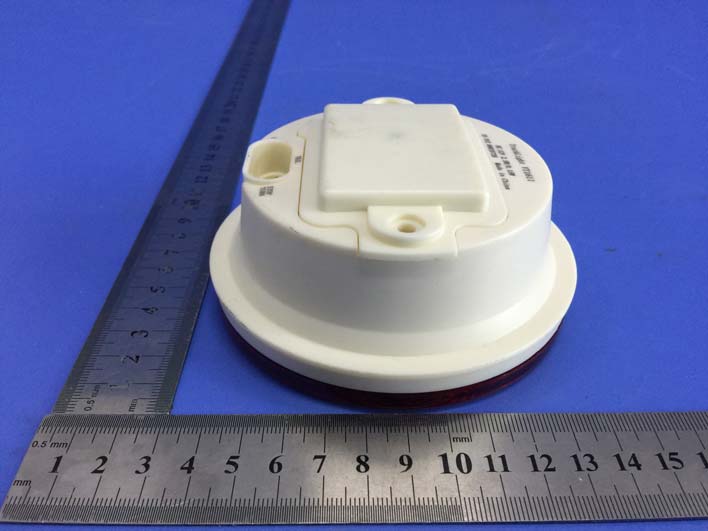

Report No.: TB-FCC174178 Page: 3 of 11 FCC ID: 2ANJN-VT1611-EG91 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC174178 Page: 4 of 11 FCC ID: 2ANJN-VT1611-EG91 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Report No.: TB-FCC174178 Page: 5 of 11 FCC ID: 2ANJN-VT1611-EG91 TB-RF-075-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT Report No.: TB-FCC174178 Page: 6 of 11 FCC ID: 2ANJN-VT1611-EG91 TB-RF-075-1.0 Photo 7 Appearance of EUT

Report No.: TB-FCC174178 Page: 2 of 11 FCC ID: 2ANJN-VT1611-EG91 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC174178 Page: 1 of 11 FCC ID: 2ANJN-VT1611-EG91 TB-RF-074-1.0 Appendix IFCC ID Label Size: 40mm X 15mm

Report No.: TB-FCC174178 Page: 7 of 11 FCC ID: 2ANJN-VT1611-EG91 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 8 Appearance of PCB Photo 9 Appearance of PCB Report No.: TB-FCC174178 Page: 8 of 11 FCC ID: 2ANJN-VT1611-EG91 TB-RF-075-1.0 Photo 10 Appearance of PCB Photo 11 Appearance of PCB Report No.: TB-FCC174178 Page: 9 of 11 FCC ID: 2ANJN-VT1611-EG91 TB-RF-075-1.0 Photo 12 Appearance of PCB Photo 13 Appearance of PCB Report No.: TB-FCC174178 Page: 10 of 11 FCC ID: 2ANJN-VT1611-EG91 TB-RF-075-1.0 Photo 14 Appearance of PCB Photo 15 Appearance of PCB Antenna3/4 Antenna1/2

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE174181 Page: 1 of 3 TB-RF-075-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 Maximum Permissible Exposure Evaluation FCC ID: 2ANJN-VT1611-EG91 1. Client Information Applicant : Anytrek Corporation Address : 4405 E Airport Dr, Suite 106, Ontario, CA 91761 Manufacturer : Shenzhen Anxingzhiyuan Technology Co., Ltd. Address : No.302, Building No.6, COFCO(Fuan)Robot Intelligent Building Industrial Park, No.90 Dayang Road, Fuhai Street, Baoan District, Shenzhen, Guangdong, China 2. General Description of EUT EUT Name : TrackLight Models No. : VT1611 Sample ID : 20200527-07_1-01 S/N : VT-2006904-01000001 UMTS Band II: TX:1850MHz-1910MHz, RX: 1930MHz-1990MHz UMTS Band IV: TX:1710MHz-1755MHz, RX: 2110MHz-2155MHz UMTS Band V: TX: 824MHz-849MHz, RX: 869MHz-894MHz LTE Band 2:TX: 1850MHz-1910MHz, RX: 1930MHz-1990MHz LTE Band 4:TX: 1710MHz-1755MHz, RX: 2110MHz-2155MHz LTE Band 5:TX: 824MHz-849MHz, RX: 869MHz-894MHz LTE Band 12: TX: 699MHz -716MHz, RX: 729MHz-746MHz LTE Band 13: TX: 777MHz -787MHz, RX: 746MHz-756MHz LTE Band 25:TX: 1850MHz-1915MHz, RX: 1930MHz-1995MHz LTE Band 26:TX: 814MHz-849MHz, RX: 859MHz-894MHz Antenna Type: PCB Antenna Product Description : Antenna Gain: UMTS Band II: 0.46dBi UMTS Band IV: 1.43dBi UMTS Band V: 0.45dBi LTE: B2: 1.31dBi; B4: 1.35dBi; B5: 0.41dBi; B12: 0.20dBi; B13: 0.30dBi; B25: 1.32dBi; B26: 0.42dBi; Power Rating : Input: DC 12*1A or DC 3.7V by 3000mAh Li-Po. Software Version : V1.0.52 Hardware Version : V7.01 Report No.: TB-MPE174181 Page: 2 of 3 TB-RF-075-1.0 MPE Calculations 1. Antenna Gain: Band Antenna Type Antenna Gain UMTS Band II PCB 0.46 dBi UMTS Band IV PCB 1.43 dBi UMTS Band V PCB 0.45 dBi LTE Band 2 PCB 1.31 dBi LTE Band 4 PCB 1.35 dBi LTE Band 5 PCB 0.41 dBi LTE Band 12 PCB 0.20 dBi LTE Band 13 PCB 0.30 dBi LTE Band 25 PCB 1.32 dBi LTE Band 26 PCB 0.42 dBi 2. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 3. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 4. Test Result: Worst Maximum MPE Result Mode N TX Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] WCDMA Band II 1 22.45 22±1 23 0.46 20 0.0441 WCDMA Band IV 1 22.54 22±1 23 1.43 20 0.0552 WCDMA Band V 1 22.65 22±1 23 0.45 20 0.0440 LTE Band 2 1 22.96 23±1 24 1.31 20 0.0676 LTE Band 4 1 22.97 23±1 24 1.35 20 0.0682 LTE Band 5 1 24.22 24±1 25 0.41 20 0.0691 LTE Band 12 1 23.99 24±1 25 0.20 20 0.0659 LTE Band 13 1 24.30 24±1 25 0.30 20 0.0674 LTE Band 25 1 23.09 24±1 25 1.32 20 0.0853 LTE Band 26 1 24.46 24±1 25 0.42 20 0.0693 Note: (1) N TX = Number of Transmit Antennas RF Output power specifies that Maximum Conducted Peak Output Power. Report No.: TB-MPE174181 Page: 3 of 3 TB-RF-075-1.0 5. Conclusion: As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure (MPE), Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 300-1500MHz: The worst MPE is calculated as 0.0693 mW / cm 2 < limit 846.6/1500=0.5644 mW/cm 2 . So, RF exposure limit warning or SAR test are not required. 1500-100000MHz: The worst MPE is calculated as 0.0853 mW / cm 2 < limit 1mW/cm 2 . So, RF exposure limit warning or SAR test are not required. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47 CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference. Note For a more detailed features description, please refer to the RF Test Report. -----END OF THE REPORT-----

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC174178 Page: 1 of 72 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2ANJN-VT1611-EG91 Original Grant Report No. : TB-FCC174178 Applicant : Anytrek Corporation Equipment Under Test (EUT) EUT Name : TrackLight Model No. : VT1611 S/N : VT-2006904-01000001 Brand Name : ANYTREK Sample ID : 20200527-07_1-01 Receipt Date : 2020-06-11 Test Date : 2020-06-12 to 2020-07-12 Issue Date : 2020-07-13 Standards : FCC Part 2, FCC Part 22 Subpart H, FCC Part 24 Subpart E, FCC Part 27 ANSI/TIAC63.26: 2015 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Jack Deng Engineer Supervisor Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC174178 Page: 2 of 72 TB-RF-074-1.0 Contents CONTENTS .............................................................................................................................................2 1. GENERAL INFORMATION ABOUT EUT ..............................................................................5 1.1 Client Information .................................................................................................................5 1.2 General Description of EUT (Equipment Under Test) ....................................................5 1.3 Block Diagram Showing the Configuration of System Tested ......................................6 1.4 Description of Support Units ...............................................................................................6 1.5 Description of Test Mode ....................................................................................................7 1.6 Measurement Uncertainty ...................................................................................................8 1.7 Test Facility ...........................................................................................................................8 2. TEST SUMMARY .......................................................................................................................9 3. TEST SOFTWARE .....................................................................................................................9 4. TEST EQUIPMENT ..................................................................................................................10 5. FREQUENCY STABILITY ......................................................................................................11 5.1 Test Standard and Requirement .....................................................................................11 5.2 Test Setup ...........................................................................................................................11 5.3 Test Procedure ...................................................................................................................12 5.4 Deviation From Test Standard .........................................................................................12 5.5 EUT Operating Condition ..................................................................................................12 5.6 Test Data .............................................................................................................................12 6. CONDUCTED RF OUTPUT POWER ...................................................................................13 6.1 Test Standard and Limit ....................................................................................................13 6.2 Test Setup ...........................................................................................................................13 6.3 Test Procedure ...................................................................................................................13 6.4 Deviation From Test Standard .........................................................................................13 6.5 EUT Operating Condition ..................................................................................................13 6.6 Test Data .............................................................................................................................13 7. PEAK-AVERAGE RATIO .......................................................................................................14 7.1 Test Standard and Limit ....................................................................................................14 7.2 Test Setup ...........................................................................................................................14 7.3 Test Procedure ...................................................................................................................14 7.4 Deviation From Test Standard .........................................................................................14 7.5 EUT Operating Condition ..................................................................................................14 7.6 Test Data .............................................................................................................................14 8. RADIATED OUTPUT POWER ...............................................................................................15 8.1 Test Standard and Limit ....................................................................................................15 8.2 Test Setup ......................................................................................…
