2ANK8-D06Door Window Sensor

Door Window Sensor Thanks for choosing our wifi smart door window sensor, which will provides you a whole-home security. Please read this manual carefully before use and keep it for future reference. Specification: Material: ABS Size: 71*25*20mm (Main body 36*10*17mm (Small body) Battery: LR03-1.5V/AAA*2 (Alkaline battery) Battery Life: 6000 times trigger Standby Current: 8uA Alarm Current: 70mA 120mA Wireless Type: 2.4GHz Wireless Standard: IEEE 802.11b/g/n Working Temperature: 0 Working Humidity: 20% 85% RH Storage Temperature: 0 °C 40°C 1. Low Voltage Remind When the battery level is low, it will remind you to change batteries, never worry about running out of battery. 2. Push Notification Push instant notification to your phone immediately when door or window is opened or closed. Keeping you informed all the time. 3. Alarm Alert Whenever the sensor is triggered to open/close, it will send alarm to alert you that someone open your door or window. 4. Alarm Recording Support checking open/close records in the app.Never worry about missing any important moments. 5. Device Sharing Select “Home Management” in the “Me” page to share your added sensors with your family members, so they can also monitor the status of doors/windows anytime when you are outside. 2 °C 60°C Storage Humidity: 0% 90% RH Supports Android 4.4 and iOS 8.0 or newer LED Indicator Reset Button Small body Main body (32140 (32104 Model: D06 6. Works with amazon alexa and Google assistant. How to Use 1. If the LED indicator is not flashing rapidly, hold the reset button for about 6 seconds till the LED indicator flash rapidly.Enter Wifi name and password,then click “Confirm”. it will connect to your wifi. Once connection completed, push the back cover to close the battery compartmemt. “ Contact Sensor (Wi-Fi) ” under “Contact Sensor” type from“Security & Sensors”. Slide to open the back cover of battery compartment of the main sensor, take out the insulation sheet . (Notes: when the batteries are run out, please choose Alkaline battery instead of Carbon-zinc battery .) Insulation sheet 5. Peel off the 3M adhesive tapes to mount the sensors onto the frame of door/window or secure them with the screws. make both bodies as close as possible. How to Set up 4 click the gap between two bodies is 10mm FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices).                                  This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: The equipment complies with FCC Radiation exposure limits set forth for uncontrolled enviroment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. .

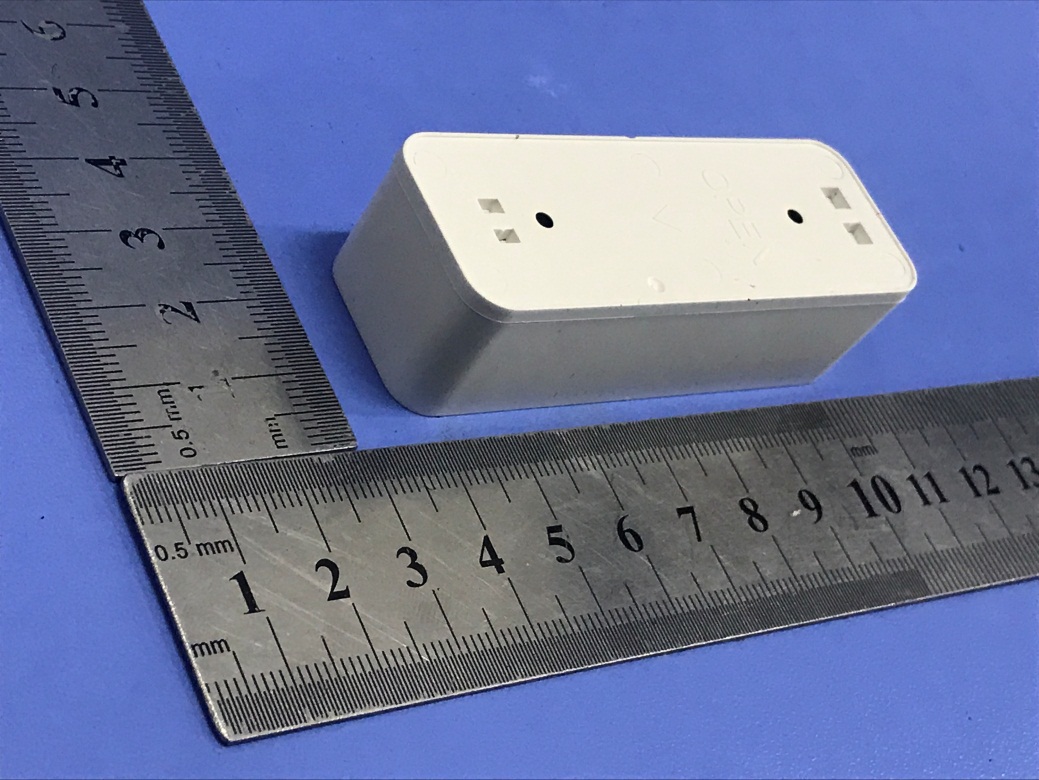

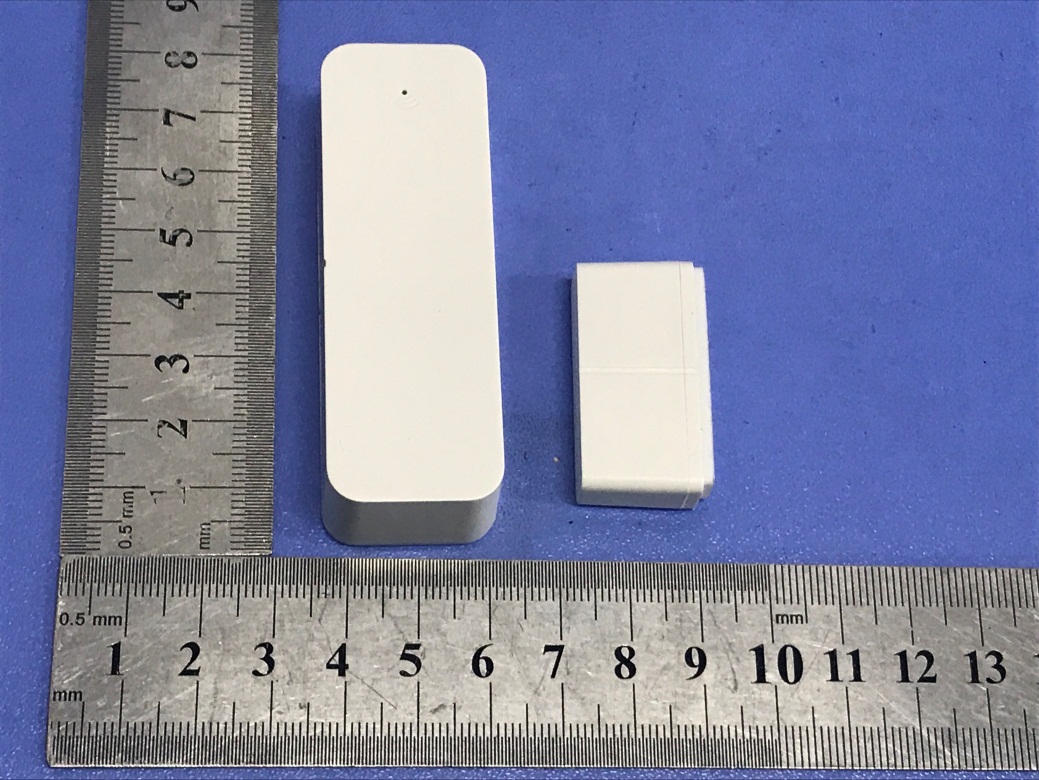

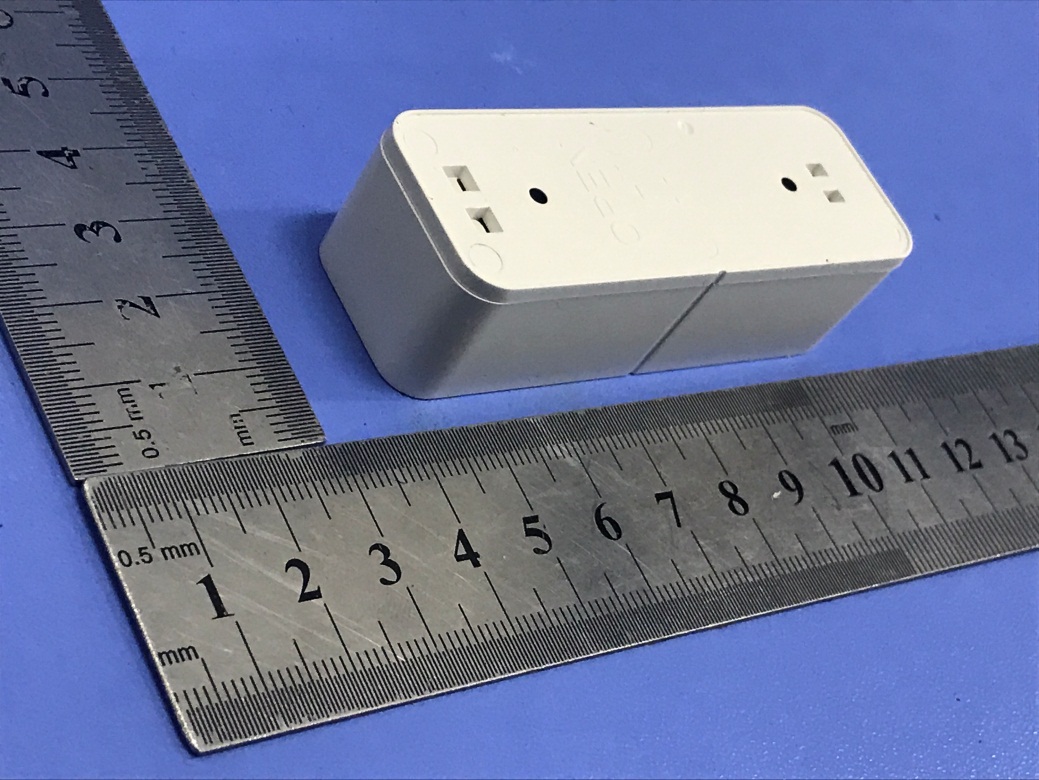

Page : 2 of 6 TB-RF-075-1.0 Appendix III EUT External Photographs Model: D06 Photo 1 External of EUT Page : 3 of 6 TB-RF-075-1.0

Page : 1 of 6 TB-RF-074-1.0 Appendix IFCC ID Label Model: D06 Wide & length:20mm *10mm Appendix II ID Label Location ID LOCATION FCC ID: 2ANK8-D06 Model: D06

Page : 4 of 6 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Model: D06 Photo 2 Internal of EUT Page : 5 of 6 TB-RF-075-1.0

version01 Shenzhen Forever Young Technology Co.,Ltd Declaration concerning Antenna Specification It is hereby declared that the product Model No.: D06 FCC ID: 2ANK8-D06 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for PCB Antenna antenna type(s) described below: Model No. of antenna: N/A Type of antenna: permanently attached (i.e. soldered into the PCB / built into the housing) Gain of the antenna: 2.69 dBi Frequency range: 2412~2462 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shenzhen Forever Young Technology Co.,Ltd Address: 2/F, No.B2 Bldg, Fu Yuan Industrial Park, Fu Yong Town, Bao'an District, City: Shenzhen ZIP / Postal code: N/A Country: China Contact: Michelle Zhao Date: 25/12/2019 Signature:

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE171125 Page: 1 of 3 TB-RF-075-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 Maximum Permissible Exposure Evaluation FCC ID: 2ANK8-D06 1. Client Information Applicant : Shenzhen Forever Young Technology Co.,Ltd Address : 2/F, No.B2 Bldg, Fu Yuan Industrial Park, Fu Yong Town, Bao'an District, Shenzhen, China Manufacturer : Shenzhen Forever Young Technology Co.,Ltd Address : 2/F, No.B2 Bldg, Fu Yuan Industrial Park, Fu Yong Town, Bao'an District, Shenzhen, China 2. General Description of EUT EUT Name : Door Window Sensor Models No. : D06 Model Different : ---- Product Description : Operation Frequency: 802.11b/g/n(HT20): 2412MHz~2462MHz RF Output Power: 802.11b: 15.96dBm 802.11g: 14.96dBm 802.11n (HT20): 13.82dBm Antenna Gain: 2.69dBi PCB Antenna Modulation Type: 802.11b: DSSS(CCK, DQPSK, DBPSK) 802.11g/n: OFDM(BPSK,QPSK,16QAM, 64QAM) Power Rating : DC 3V By AAA battery Software Version : 3.12.6 Hardware Version : V1.0 Connecting I/O Port(S) : Please refer to the User's Manual Remark : The antenna gain provided by the applicant, the verified for the RF conduction test provided by TOBY test lab. Report No.: TB-MPE171125 Page: 2 of 3 TB-RF-075-1.0 MPE Calculations for WIFI 1. Antenna Gain: PCB Antenna: 2.69dBi. 2. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 3. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 4. Test Result: Mode Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] 802.11b 15.96 16±1 17 2.69 20 0.01852 802.11g 14.96 15±1 16 2.69 20 0.01471 802.11n (HT20) 13.82 14±1 15 2.69 20 0.01169 Report No.: TB-MPE171125 Page: 3 of 3 TB-RF-075-1.0 5. Conclusion: As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure (MPE), Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 For 802.11b/g/n:2412~2462 MHz MPE limit S: 1mW/ cm 2 The MPE is calculated as 0.01852mW / cm 2 < limit 1mW / cm 2 . So, the device compliance the RF Exposure requirement. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47 CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference. Note For a more detailed features description, please refer to the RF Test Report. -----END OF REPORT-----

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC171124 Page: 1 of 68 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2ANK8-D06 Original Grant Report No. : TB-FCC171124 Applicant : Shenzhen Forever Young Technology Co.,Ltd Equipment Under Test (EUT) EUT Name : Door Window Sensor Model No. : D06 Series Model No. : ---- Brand Name : Zitech Receipt Date : 2019-12-20 Test Date : 2019-12-20 to 2019-12-23 Issue Date : 2019-12-24 Standards : FCC Part 15, Subpart C (15.247: 2019) Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC and IC requirements Test/Witness Engineer : Garen Test/Witness Engineer : Ivan Su Approved& Authorized : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC171124 Page: 2 of 68 TB-RF-074-1.0 Contents CONTENTS .................................................................................................................................... 2 1. GENERAL INFORMATION ABOUT EUT ........................................................................ 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 7 1.4 Description of Support Units .............................................................................................. 7 1.5 Description of Test Mode .................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 9 1.7 Measurement Uncertainty .................................................................................................. 9 1.8 Test Facility ......................................................................................................................... 10 2. TEST SUMMARY ..............................................................................................................11 TEST SOFTWARE .......................................................................................................................11 3. TEST EQUIPMENT ...........................................................................................................12 4. CONDUCTED EMISSION TEST ......................................................................................13 4.1 Test Standard and Limit .................................................................................................... 13 4.2 Test Setup ........................................................................................................................... 13 4.3 Test Procedure ................................................................................................................... 13 4.4 EUT Operating Mode ........................................................................................................ 14 4.5 Test Data ............................................................................................................................. 14 5. RADIATED EMISSION TEST ...........................................................................................15 5.1 Test Standard and Limit .................................................................................................... 15 5.2 Test Setup ........................................................................................................................... 16 5.3 Test Procedure ................................................................................................................... 17 5.4 EUT Operating Condition ................................................................................................. 18 5.5 Test Data ............................................................................................................................. 18 6. RESTRICTED BANDS REQUIREMENT .........................................................................19 6.1 Test Standard and Limit .................................................................................................... 19 6.2 Test Setup ........................................................................................................................... 19 6.3 Test Procedure ................................................................................................................... 19 6.4 EUT Operating Condition ................................................................................................. 20 6.5 Test Data ............................................................................................................................. 20 7. BANDWIDTH TEST ...........................................................................................................21 7.1 Test Standard and Limit .................................................................................................... 21 7.2 Test Setup ........................................................................................................................... 21 7.3 Test Procedure ................................................................................................................... 21 Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC171124 Page: 3 of 68 TB-RF-074…

Text truncated - open the document above for the full version.

Page : 6 of 6 TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Model: D06 Photo of Setup for Radiated Emission (Below 1 GHz) Photo of Setup for Radiated Emission (Above 1 GHz) -----END OF REPORT-----
