2ANNYDXV600L01HF Linear Amplifier

Tiny Amplifier for DX Vacation Instruction Manual THAMWAY CO., LTD Tiny Amplifier for DX Vacation DXV600L Tiny Amplifier for DX Vacation DXV600L Tiny Amplifier for DX Vacation Instruction Manual Table of Contents 1. General Information 1-1 Introduction 1-2 Owner Support 1-3 Features 1-4 Safety Precautions 2. Installation 2-1 Unpacking and Initial Inspection 2-2 Installation Location and Cooling for DXV600L 2-3 Installation 3. Names and Functions of Each Portion 3-1 Front Panel 3-2 Rear Panel 4. How to Use 4-1 Precautions for Use 4-2 Operation 4-3 Quantitative Power Measurement 4-4 ALC Circuit 5. Maintenance 5-1 Periodic Maintenance; General Check and Cleaning 5-2 Replacement of Fuse 6. Specification 6-1 Specification 7. Denial of liability 1 Tiny Linear Amplifier for Ham Radio 1. General Information 1-1 Introduction Thank you for purchasing the DXV600L linear amplifier for amateur radios. This manual describes the installation, operation, and maintenance of the DXV600L. Please read this manual carefully and use the product safely. 1-2 Owner Support If you need technical or operational assistance, please contact your dealer first. If you need more information, you can contact Thamway as follows: Fax: +81-545-53-8978 Tel: +81-545-53-8965 E-mail: [email protected] The internet page of Thamway is http://www.thamway.co.jp/english/. 1-3 Features This unit was born from a completely new idea as a linear amplifier for amateur radio. It eliminates the heavy power transformer (transformer less) and has excellent features, such as small size, light in weight, high efficiency, low distortion, and low price. Small SizeWidth: 200 mm, Height: 100 mm, Depth: 300 mm (excluding protrusions) Width: 7.9 inches, Height: 4.1 inches, Depth: 11.9 inches (excluding protrusions) Light in WeightOnly 3.76 kg 8.3 lbs. with output of 600 W or more High Efficiency80% or more (at output of 7 MHz 600 W) High GainRated power output of each band with drive power of 20 to 50 W Correspondence to Semi-Break-In Built-In Multimeter Monitoring on traveling wave power, reflected wave power, drain voltage, and drain current Protection Function that can identify the cause at a glance Built-In Power Meter that can be used up to the 50 MHz band 1-4 Safety Precautions DXV600L belongs to the equipment class I to prevent electric shock. The third ground wire (with two yellow stripes in green) of the power cord always needs to be connected to the ground system for safe use. The DXV600L amplifier complies with FCC regulations. This instruction manual contains the precautions, alerts, and warnings to keep the DXV600L in safe operating condition and to ensure its safe operation at all times. 2 Tiny Linear Amplifier for Ham Radio The definitions described below apply to this instruction manual. DANGER: If not done properly, it could cause injury, fire, electric shock, and could be life threatening. WARNING: If not done properly, it could cause damage to not only the DXV600L but also other equipment. CAUTION: If not done properly, it could cause inconvenience. WARNING Carefully read Chapter 2 “Installation” in this manual to avoid damage (not covered by the warranty). If you have any questions or doubts regarding the installation, operation, or safety of the DXV600L, please contact your dealer or us. DANGERHigh Voltage! In particular, never allow achild to push anything through a gap into the case. This can cause electric shock! Do not touch the antenna during transmission. There is a risk of electric shock or burns. Do not splash rain, snow, or liquid on the DXV600L, which could lead to electric shock or damage to the equipment. DANGERHigh Voltage! It is dangerous to touch the DC high voltage (120–160VDV) or the high frequency high voltage (1 kVp-p) inside the DXV600L or the main power supply voltage. It leads to electric shock. For safety, when removing the cover, pull thepower plug from the outlet and check that the voltage of the VD meter on the front panel is 0 V after 3 minutes or more before starting work. Never energize with the cover removed because it is dangerous. DANGER Never repair or modify the DXV600L. Repairs or modifications could endanger the health or life of you or others and could damage the DXV600L and the equipment connected to it. Such repairs or modifications are not covered by the warranty, and any subsequent warranty will be void. The manufacturer cannot be responsible for such repairs or modifications. As to repairs or modifications made without our permission, the person doing the work shall assume responsibility. 3 Tiny Linear Amplifier for Ham Radio 2. Installation 2-1 Unpacking and Initial Inspection Take out the contents of the cardboard box and carefully inspect it to see if there was any damage during transportation. If there is anything wrong, please contact the store immediately. 2-2 Installation Location and Cooling for DXV600L Place the DXV600L near your transceiver or transmitter. The rear panel for connecting coaxial and control cables and switches and meters on the front panel of the DXV600L need to be easy to operate and monitor. The DXV600L operates with forced-air cooling, so arrange it so that there is a space of 5 cm (2 inches) or more around it. If the ambient temperature is 40°C (104ºF), the exhaust temperature could reach 65ºC (150ºF). If your peripherals are sensitive to external heat or use forced-air cooling, increase the distance accordingly. CAUTION Do not place light materials, such as paper or cloth, around the DXV600L. They are drawn in by the cooling air stream and could block the air intake. In that case, the DXV600L could easily overheat, stop due to abnormal overheating, deteriorate the parts used, and cause damage that is not covered by the warranty. CAUTION Please keep the original packaging for future transportation. WARNING Please read this manual carefully before starting the installation of the DXV600L. First, check the cardboard box you received for any majo…

Text truncated - open the document above for the full version.

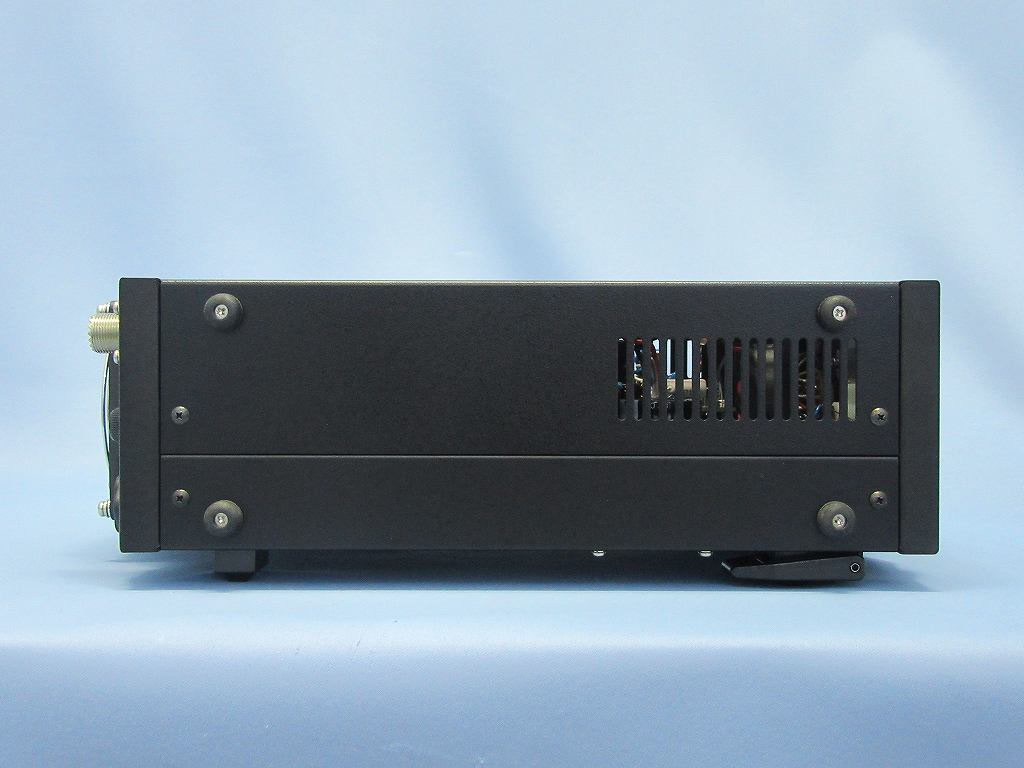

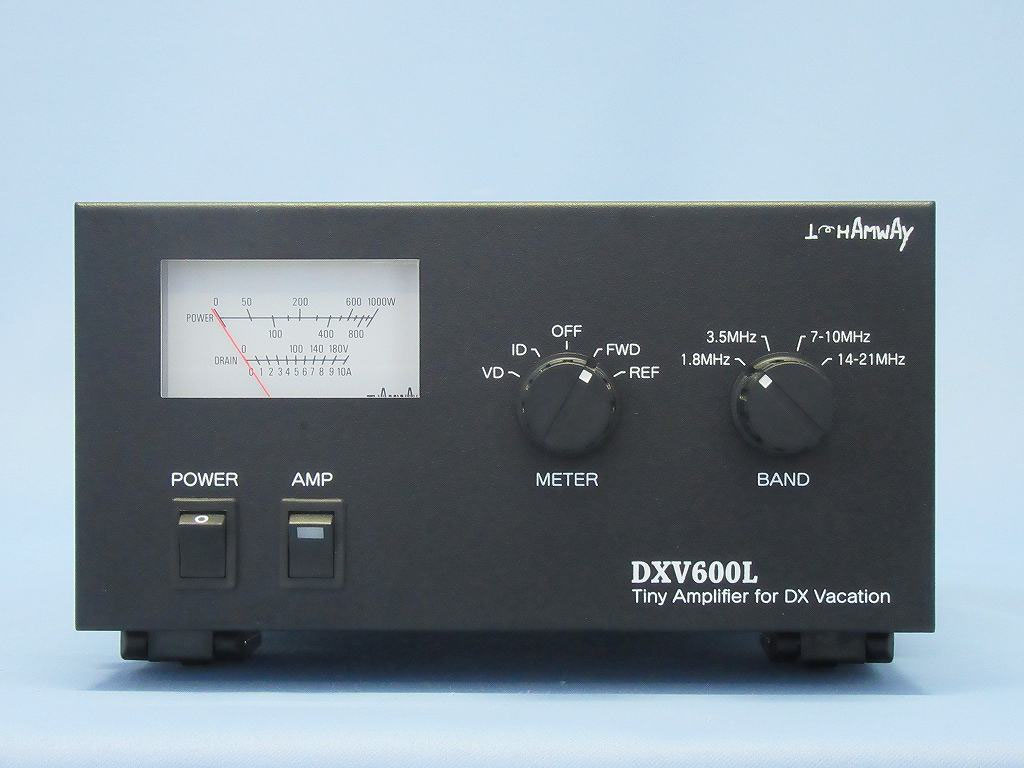

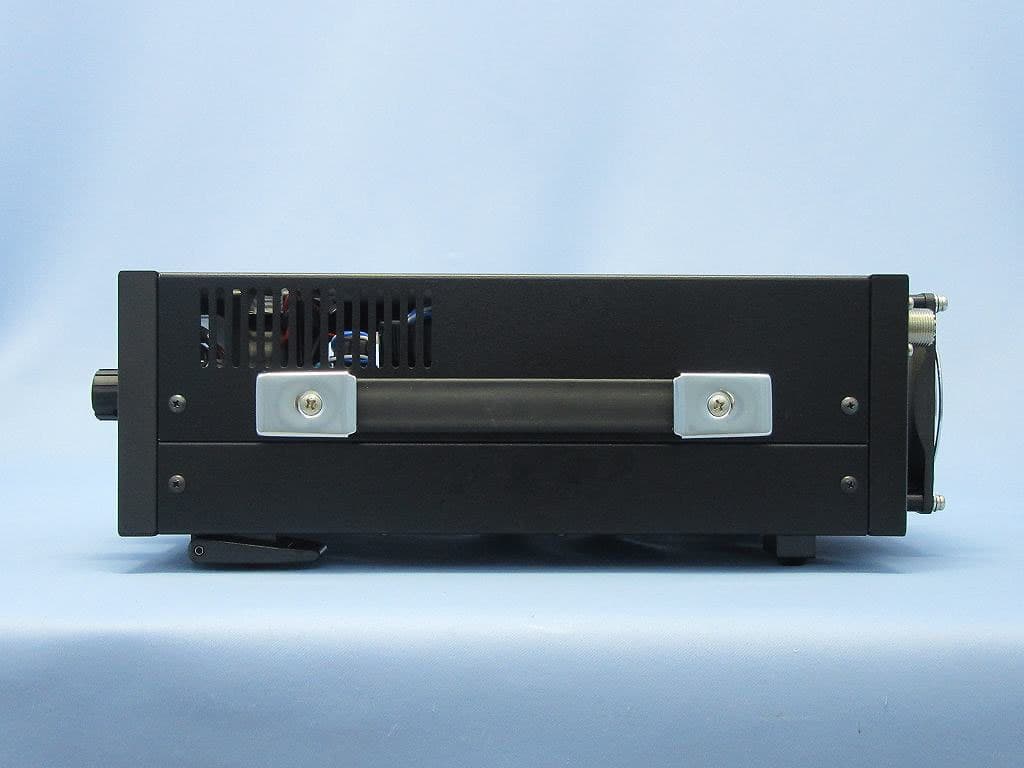

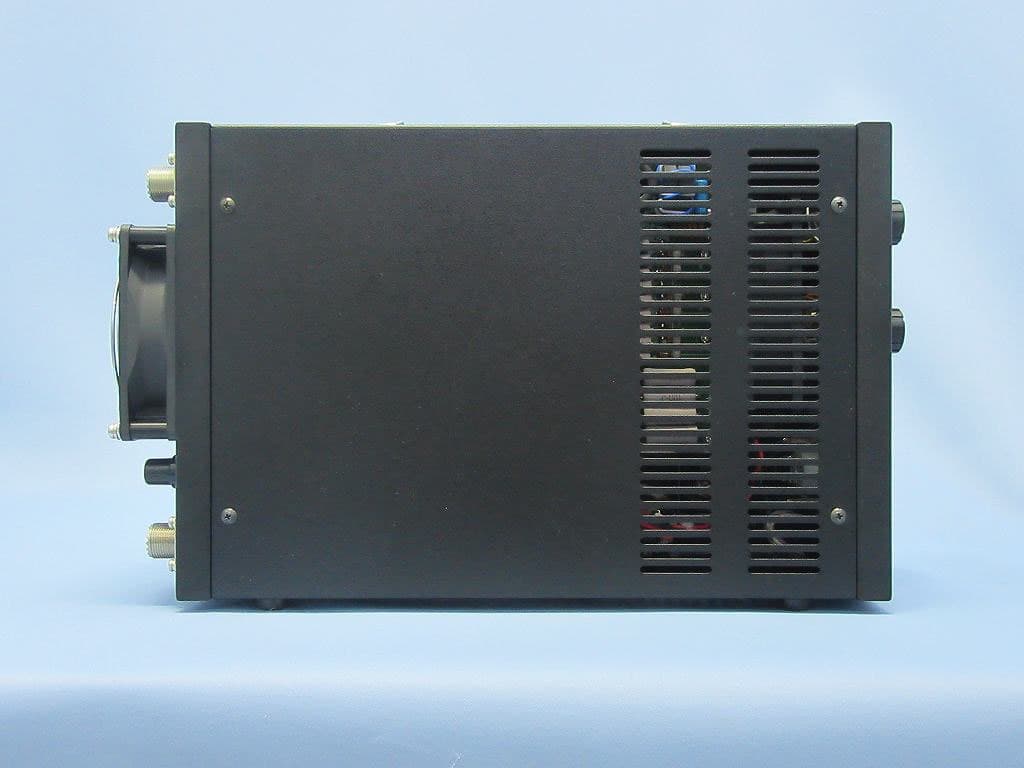

External Photo THAMWAY CO., LTD 2ANNYDXV600L01 Photo1 Photo2 External Photo THAMWAY CO., LTD 2ANNYDXV600L01 Photo3 Photo4 External Photo THAMWAY CO., LTD 2ANNYDXV600L01 Photo5 Photo6
