2ANPR-SAE3UHF RFID reader

1 August 2021 DCN-ST-00002-B User Guide SENSARRAY READERS (E3, ENTERPRISE, CORE) Revision History Version Author Date Changes 1.0 J. Major December 2017 Initial Document 2.0 J. Major December 2018 Inclusion of Pro model 3.0 D. Stump August 2021 Enterprise, CORE, reference documents 4.0 J. Major August 2025 Enterprise 3 (E3) 2 August 2021 DCN-ST-00002-B Legal Notices Copyright ©2017-2021 SensThys Inc. All rights reserved. SensThys has intellectual property rights relating to technology embodied in the products described in this document, including without limitation certain patents or patent pending applications in the U.S. or other countries. This document and the products to which it pertains are distributed under licenses restricting their use, copying, distribution and de-compilation. No part of this product documentation may be reproduced in any form or by any means without the prior written consent of SensThys Corporation and its licensors, if any. Third party software is copyrighted and licensed from Licensors. SensThys, SensArray and other graphics, logos, and service names used in this document are trademarks of SensThys in the U.S. and other countries. All other trademarks are the property of their respective owners. U.S. Government approval required when exporting the product described in this documentation. Federal Acquisitions: Commercial Software -- Government Users Subject to Standard License Terms and Conditions. U.S. Government: If this Software is being acquired by or on behalf of the U.S. Government or by a U.S. Government prime contractor or subcontractor (at any tier), then the Government's rights in the Software and accompanying documentation shall be only as set forth in this license; this is in accordance with 48 C.F.R. 227.7201 through 227.7202-4 (for Department of Defense (DoD) acquisitions) and with 48 C.F.R. 2.101 and 12.212 (for non-DoD acquisitions). DOCUMENTATION IS PROVIDED “AS IS” AND ALL EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARANTEES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGMENT ARE HEREBY DISCLAIMED, EXCEPT TO THE EXTENT THAT SUCH DISCLAIMERS ARE HELD TO BE LEGALLY INVALID. FCC Compliance This equipment has been tested and found to comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any change or modification to this product voids the user’s authority to operate per FCC Part 15 Subpart A. Section 15.21 regulations. Industry Canada Compliance This device complies with Industry Canada License-exempt RSS standards. Operation is subject to the following two conditions: (1) this device may not cause interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This device has been designed to operate with a variety of different gain (dBi). The reader maximum output power is set by the gain of the antenna. Using an antenna having a higher gain is strictly prohibited per regulations of Industry Canada. In addition, using the reader at a power exceeding the maximum output power for a given antenna is also strictly prohibited. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. Conformité d'Industrie Canada Cet appareil est conforme aux normes RSS exemptées de licence d'Industrie Canada. L'opération est soumise aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer d'interférence et (2) cet appareil doit accepter toute interférence, y compris les interférences susceptibles de provoquer un fonctionnement indésirable de l'appareil. Cet appareil a été conçu pour fonctionner avec une variété de gains différents (dBi). La puissance de sortie maximale du lecteur est définie par le gain de l'antenne. L'utilisation d'une antenne ayant un gain plus élevé est strictement interdite par règlement d'Industrie Canada. En outre, l'utilisation du lecteur à une puissance supérieure à la puissance de sortie maximale pour une antenne donnée est également strictement interdite. L'impédance d'antenne requise est de 50 ohms. Afin de réduire les interférences radio potentielles avec d'autres utilisateurs, le type d'antenne et son gain devraient être choisis de manière à ce que la puissance éloignée isotropiquement (EIRP) équivalente soit supérieure à celle requise pour une communication réussie. Safety Recommendations Reader antennas should be positioned so that personnel in the area for prolonged periods may safely remain at least 31 cm (12.2 in) in an uncontrolled environment from the antenna’s surface. See FCC OET Bulletin 56 “Hazards of radio frequency and electromagnetic fields” and Bulletin 65 “Human exposure to radio frequency electromagnetic fields.” Sicherheitsempfehlungen Reader Antennen sollten so positioniert werden, dass das Personal im Bereich über einen längeren Zeitraum kann sicher bleiben mindestens 31 cm (12.2 Zoll) entfernt von der Antenne Oberfläche, in einer unkontrollierten Umgebung. Siehe FCC OET Bulletin 56 "Gefahren der Radiofrequenz und elektromagnetische Felder" und Bulletin 65 "Human Exposition gegenüber hochfrequenten elektromagnetischen Feldern." 3 August 2021 DCN-ST-00002-B Product Compliance FCC Notices This equipment has been tested and found to comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any change or modification to this product voids the user’s authority to operat…

Text truncated - open the document above for the full version.

Rev 1/26/2023 (SensThys Inc.) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 8-27-2025 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2ANPR-SAE3 SensThys Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. SensThys Inc. (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name)Jo Major/CEO Rev 1/26/2023 (SensThys Inc.) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date:8-27-2025 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2ANPR-SAE3 SensThys Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name)Jo Major/CEO

SensThys Inc. U.S. Agent Designation for Service of Process - Certification Attestation Letter 9/2/2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID:2ANPR-SAE3 Per section 2.911(d)(7) of the FCC rules, SensThys Inc. (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Global Product Services and Consultation LLC FCC Registration Number (FRN): 0033406703 Physical U.S. Company Address: 328 W Palm Ave. Monrovia, CA91016 Contact Person: Chi S Chan Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different from Applicant): Signed: Signed: Company Representative: Jo Major/CEO Designated Agent Representative: Chi S Chan Company: SensThys Inc. Designated Agent: Global Product Services and Consultation LLC Date: 9/2/2025 Date: 9/2/2025 SC5098206

Rev 11/20/07 SensThys Inc. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID:2ANPR-SAE3 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description, Block Diagram, Schematics, Operational Description, The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Client’s name / title ：Jo Major/CEO Contact information / address: SensThys Inc./21060 Homestead Road，Suite 226 Cupertino, CA 95014

SensThys Inc. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: 2025-8-27 SUBJECT: FCC Application for FCC ID: 2ANPR-SAE3 To Whom It May Concern: We, the undersigned, hereby authorize Lisa Wangat EMTEK (SHENZHEN) CO., LTD.on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by EMTEK (SHENZHEN) CO., LTD.on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Client’s name / title ：Jo Major/CEO Contact information / address: SensThys Inc./21060 Homestead Road，Suite 226 Cupertino, CA 95014

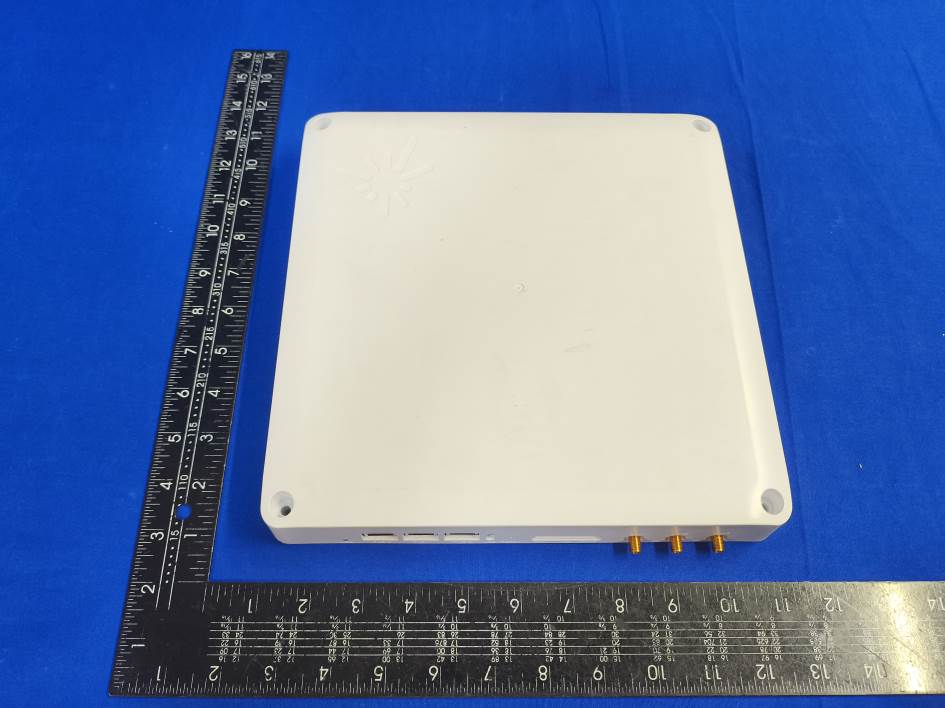

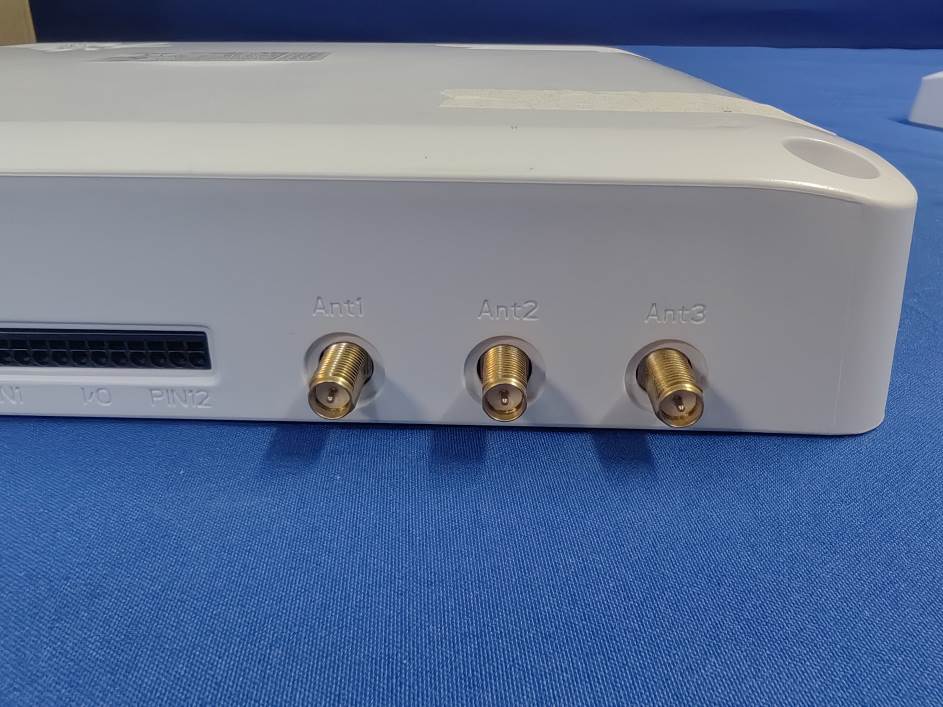

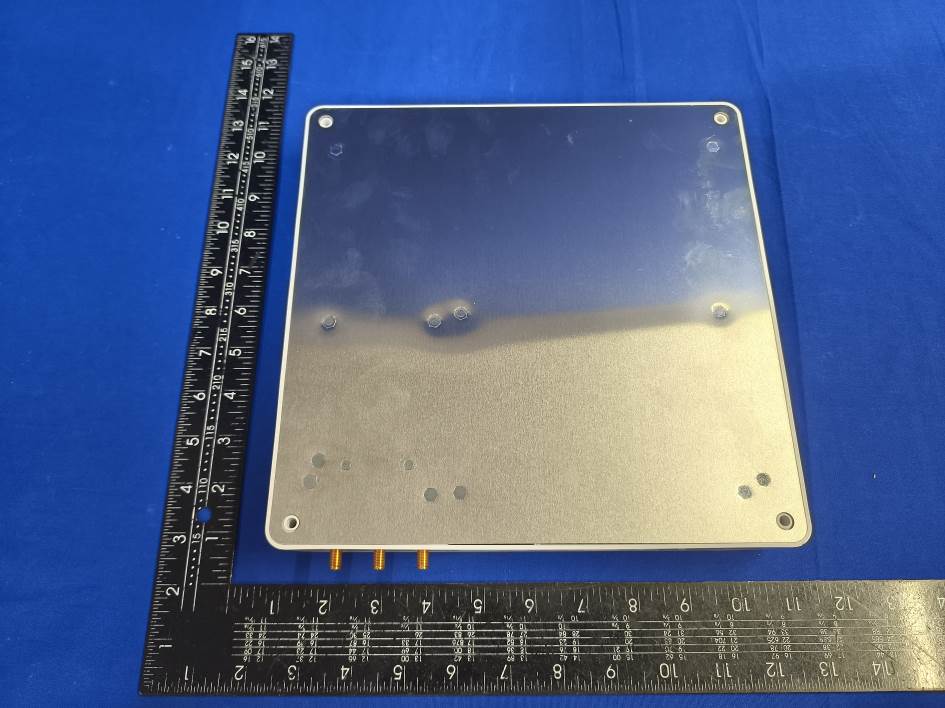

EUT EXTERNAL PHOTOGRAPHS External Antenna ----------------The end----------------

EUT INTERNAL PHOTOGRAPHS Internal Antenna ----------------The end----------------

FCC ID: 2ANPR-SAE3 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Stren gth(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500- 100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500- 100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 ,If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. RF Exposure Information: The radiated output power of this device meets the limits of FCC/IC radio frequency exposure limits. This device should be operated with a minimum separation distance of 31cm (12.2 inches) between the equipment and a person's body. 11.2 Measurement Result Mode Max Conducted Power (dBm) Antenna gain (dBi) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) RFID 15.32 6 3.98 0.01122 1 ----- The End -----

SensRF-101 TestReport Independent Antenna Testing BluFlux, LLC Testing Overview •BluFlux, LLC •A2LA and CTIA authorized test lab •Metrology certified by NIST •Louisville, CO •Key Technical contact: Ben Wilmhoff Performance •Beamwidth70 degrees (FWHM) •Directivity9 dBic •Bandwidth860 –930 MHz •PolarizationRight Hand Circular (RHCP) •Maximum Power10W •Input impedance50 Ohm •VSWR, Max1.33 •VSWR, Typical1.2 •Front to Back Ratio>25 dB •Lighting ProtectionDC grounded •Cover materialPolycarbonate (PC) •Physical Size 25.4 x 25.4 x 2.4 (cm) •ConnectorRP SMA Phi Cut Radiation Pattern Normalized, 5dB/div -5dB -15dB -10dB -20dB 0 dB Theta Cut Radiation Pattern Normalized, 5 dB/div -5dB -15dB -10dB -20dB 0 dB VSWR Performance 1 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2 800850900950 Voltage Standing Wave Ratio (VSWR) Frequency (MHz) VSWR vs. Frequency Return Loss

ReportNo.ENS2507140208W00101RPage1of45Ver.1.0 TESTREPORT ProductName:UHFRFIDreader ModelNumber:SensE3 FCCID:2ANPR-SAE3 Preparedfor:SensThysInc. Address: 21060HomesteadRoad ， Suite226Cupertino,CA95014 Preparedby:EMTEK(SHENZHEN)CO.,LTD. Address:Building69,MajialongIndustryZone,NanshanDistrict, Shenzhen,Guangdong,China Tel:(0755)26954280 Fax:(0755)26954282 ReportNumber:ENS2507140208W00101R Date(s)ofTests:July15,2025toAugust12,2025 Dateofissue:August13,2025 $二维码$ ReportNo.ENS2507140208W00101RPage2of45Ver.1.0 TableofContents TESTREPORT.........................................................................................................................................................................1 1TESTRESULTCERTIFICATION..........................................................................................................................................3 2EUTTECHNICALDESCRIPTION.......................................................................................................................................4 3SUMMARYOFTESTRESULT.............................................................................................................................................5 4TESTMETHODOLOGY........................................................................................................................................................6 4.1GENERALDESCRIPTIONOFAPPLIEDSTANDARDS.............................................................................................6 4.2MEASUREMENTEQUIPMENTUSED.........................................................................................................................6 4.3DESCRIPTIONOFTESTMODES.................................................................................................................................7 5FACILITIESANDACCREDITATIONS................................................................................................................................8 5.1FACILITIES.....................................................................................................................................................................8 5.2LABORATORYACCREDITATIONSANDLISTINGS.................................................................................................8 6TESTSYSTEMUNCERTAINTY...........................................................................................................................................9 7SETUPOFEQUIPMENTUNDERTEST............................................................................................................................10 7.1RADIOFREQUENCYTESTSETUP1........................................................................................................................10 7.2RADIOFREQUENCYTESTSETUP2........................................................................................................................10 7.3CONDUCTEDEMISSIONTESTSETUP....................................................................................................................12 7.4BLOCKDIAGRAMCONFIGURATIONOFTESTSYSTEM....................................................................................13 7.5SUPPORTEQUIPMENT...............................................................................................................................................13 8TESTREQUIREMENTS......................................................................................................................................................14 8.120DBBANDWIDTH.....................................................................................................................................................14 8.2CARRIERFREQUENCYSEPARATION.....................................................................................................................17 8.3NUMBEROFHOPPINGFREQUENCIES...................................................................................................................20 8.4AVERAGETIMEOFOCCUPANCY(DWELLTIME)................................................................................................22 8.5MAXIMUMPEAKCONDUCTEDOUTPUTPOWER...............................................................................................24 8.6CONDUCTEDSUPRIOUSEMISSION........................................................................................................................27 8.7RADIATEDSPURIOUSEMISSION............................................................................................................................34 8.8CONDUCTEDEMISSIONTEST.................................................................................................................................44 8.9ANTENNAAPPLICATION...........................................................................................................................................45 ReportNo.ENS2507140208W00101RPage3of45Ver.1.0 1TESTRESULTCERTIFICATION Applicant:SensThysInc. Address: 21060HomesteadRoad，Suite226Cupertino,CA95014 Manufacturer:ShenzhenBoweiRFIDTechnologyCo.,Ltd Address: B222，building2,hongpaiindustiralzone,qiaotoucommunity， fuhaiTown,Bao'anDistrict,Shenzhen,P.R.C ProductDescription:UHFRFIDreader ModelNumber:SensE3 Trademark:N/A MeasurementProcedureUsed: APPLICABLESTANDARDS STANDARDTESTRESULT FCC47CFRPart2,SubpartJ FCC47CFRPart15,SubpartC PASS TheaboveequipmentwastestedbyEMTEK(SHENZHEN)CO.,LTD.Thetestdata,dataevaluation,test procedures,andequipmentconfigurationsshowninthisreportweremadeinaccordancewiththeprocedures giveninANSIC63.10(2013)andtheenergyemittedbythesampleEUTtestedasdescribedinthisreportisin compliancewiththerequirementsofFCCRulesPart2andPart15.247 Thetestresultsofthisreportrelateonlytothetestedsampleidentifiedinthisreport DateofTest:July15,2025toAugust12,2025 Preparedby: Luopeiye/Editor Reviewer: JoeXia/Supervisor Approved&AuthorizedSigner: LisaWang/Manager ReportNo.ENS2507140208W00101RPage4of45Ver.1.0 2EUTTECHNICALDESCRIPTION CharacteristicsDescription Product: UHFRFIDreade…

Text truncated - open the document above for the full version.

1.1.PhotosofRadiationEmissionMeasurement SpuriousEmissionTestSetup(Below1GHz) SpuriousEmissionTestSetup(Above1GHz) ----------------Theend----------------
