2ANQF-TYWCR10Alarm clock

一。Button function description： 1 AUX IN PORT 9 SNOOZE/DIMMER/SLEEP/NAP 17 FM INDICATOR 2 DC 5V TNPUT 10 TUNING+ 18 BT INDICATOR 3 USB CHARGING PORT 11 TIMESET/MEM/PLAY/AUTO 19 AUX INDICATOR 4 CHARGING AREA 12 FUNCTION/OFF 20 SLEEP INDICATOR 5 TUNING- 13 AL1 INDICATOR 21 BATTERY COVER 6 AL2/VOL+ 14 PM INDICATOR 7 CHARGING LED 15 NAP INDICATOR 8 AL1/VOL- 16 AL2 INDICATOR 2. Setting time: 1. Shutdown mode-----Press the MEMORY/TIME SET button for 2 seconds 2. Press TUNING +/-key to select 12H/24H, ------ press MEMORY/TIME SET key to confirm. (Default 24H) 3. Press the TUNING +/-key to select the day of the week to be changed ------ press the MEMORY/TIME SET key to confirm. 4. Press the TUNING +/-key to select the hour to change ------ press the MEMORY/TIME SET key to confirm. 5. Press TUNING +/-to select the minute to change-----press MEMORY/TIME SET to confirm. three. Listen to FM radio (FM): 1. Adjust the position of the FM antenna. 2. Press the FUNCTION key once to turn on the FM radio. 3. Press TUNING +/-to select the radio station you like to listen to. (The station that encounters a strong signal will automatically stop). four. Automatic storage: 1. Press the FUNCTION key to turn on the FM radio, and then press and hold the MEM key for 3 seconds to enter the automatic storage state. 2. The machine will start searching from the 87.5-108MHZ frequency and store the stored radio stations in the machine's memory. The machine can store up to 20 radio stations. When the machine stores 20 radio stations or searches for the frequencies of the entire channel Go to P01 radio station to play. Fives. Manual storage: 1. Press the FUNCTION key to turn on the FM radio, and press the TUNING +/-key to tune to a station. 2. Short press the MEMORY/TIME SET button to enter the save mode. 3. Press the TUNING +/-key to select the station pre-stored number. 4. Press the MEMORY/TIME SET button again to confirm saving. (20 stations can be stored). six. To listen to a pre-stored FM radio station: 1. In FM broadcast mode ----- press TUNING +/-to select the pre-stored number and enter the pre-stored radio station to play. Seven. Set the alarm time: (set in the standby state) 1. Make sure the current time has been set. 2. Press AL1 to turn on the alarm, the [0:00] time will flash, press TUNING +/-to set the alarm hour, then press AL1 to confirm 3. Press the TUNING +/-button to set the alarm minute, and then press the AL1 button to confirm the setting. 4. Then press the TUNING +/-button to set the alarm date. The dates are: week 1---5; week 1-7; week 6--7; press AL1 to confirm. 5. Press TUNING +/-to set the size of the alarm. , And then press AL1 to confirm. Press TUNING +/-key to set the alarm type (BUZ&RAD) and then press AL1 to confirm, AL1 alarm setting is completed. 6. Short press the AL1 key in the clock state to turn off the AL1 alarm clock. Press the AL1 button again to view the AL1 alarm time, alarm type, and size of the alarm. 7. AL2 alarm time setting is the same as AL1 alarm time setting. (Same as above) Eight. SNOOZE alarm settings: When the alarm sounds, press the SNOOZE button once, and the alarm will sound again in 9 minutes. At the same time, the AL1 or AL2 indicator will continue to flash. Press AL1 or AL2 and / FUNCTION to turn off the alarm, and the AL1 or AL2 indicator will stop flashing. If you don't press any key, the alarm will stop automatically after 59 minutes. 九. Timing sleep shutdown setting: (SLEEP) 1. Press the FUNCTION key to turn on the FM radio. 2. Press the SNOOZE/DIMMER/SLEEP/NAP button repeatedly to select the FM radio timer shutdown time (minutes) 120>90 >60>30>15>10> 5 >OFF 3，When the clock runs through the time you set, the machine will automatically shut down and enter the standby clock state. 十。 Timing boot setting: (NAP) 1. In standby clock mode. 2. Press the SNOOZE/DIMMER/SLEEP/NAP button repeatedly to select the timing to turn on the FM radio time (minutes) 120>90 >60>30>15>10> 5 >OFF 3，When the clock runs through the time you set, the machine will automatically turn on and enter the radio state. eleven. volume adjustment: 1. Press the FUNCTION key to turn on the FM radio or BT playback. 2. Press-VOLUME + to adjust the volume level. twelve. Adjust the brightness of the display: Press the SNOOZE/DIMMER/SLEEP/NAP button for 2 seconds to repeatedly select the high or low brightness level of the display. thirteen. Bluetooth playback: (Bluetooth name: TY-WCR10) 1. Press the FUNCTION key to switch to the BT state, the display shows BT, and flashes, and the BT indicator is on. 2. Find the Bluetooth pairing name of the machine in the Bluetooth search menu of the mobile phone and click to perform Bluetooth pairing. 3. When the Bluetooth is successfully paired, the display BT no longer flashes, and then go to the mobile phone music player to play music. 4. When Bluetooth is not connected, it will automatically shut down within 15 minutes. 14. AUX playback: 1. Press the FUNCTION key to switch to the AUX state, the display shows AUX, and the AUX INDICATOR indicator lights up. 2. Insert one end of the AUX cable into the AUX IN PORT of the machine, and insert the other end of the cable into the earphone jack of the mobile phone or the output port of other audio sources. 3. Press-VOLUME + key to adjust the volume to listen to music. fifteen. Wireless charging: can be charged in any state, sixteen. USB charging: It can be charged in any state. FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part…

Text truncated - open the document above for the full version.

WEI SHENG TECHNOLOGY LTD. Agent Authorization Company: WEI SHENG TECHNOLOGY LTD. Address: Yong Fa Industrlal, NO.1 Tang Long West Road, Tangxia Town, Dongguan City, Guangdong Province 523710 China Product Name: Alarm clock Trade Mark: TOSHIBA Model Number(s ): WS-QI639, TY-WCR10 FCC ID: 2ANQF-TYWCR10 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-9-14 Name: Steven Yen Title: Company: WEI SHENG TECHNOLOGY LTD.

WEI SHENG TECHNOLOGY LTD. Add: Yong Fa Industrlal, NO.1 Tang Long West Road, Tangxia Town, Dongguan City, Guangdong Province 523710 China Tel: +852-37070880 Fax: +852-81483408 Date: 2020-09-14 To: MiCOM Labs Inc 575 Boulder Court, Pleasanton, California 94566, USA Dear Sir/Madam, We, WEI SHENG TECHNOLOGY LTD. Hereby declares the following statement for MiCOM Labs Inc, PCB board, structure and internal of these model(s) are the same, Only model name and shell color is different for these models.. Product name: Alarm clock Trade Mark: TOSHIBA Model No.: WS-QI639, TY-WCR10 Sincerely, Client’s name / title : Steven Yen Address: Yong Fa Industrlal, NO.1 Tang Long West Road, Tangxia Town, Dongguan City, Guangdong Province 523710 China Tel: +852-37070880 Fax: +852-81483408 E-mail: [email protected]

WEI SHENG TECHNOLOGY LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-09-14 Subject; Request for Confidentiality FCC ID: 2ANQF-TYWCR10 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Steven Yen Title:

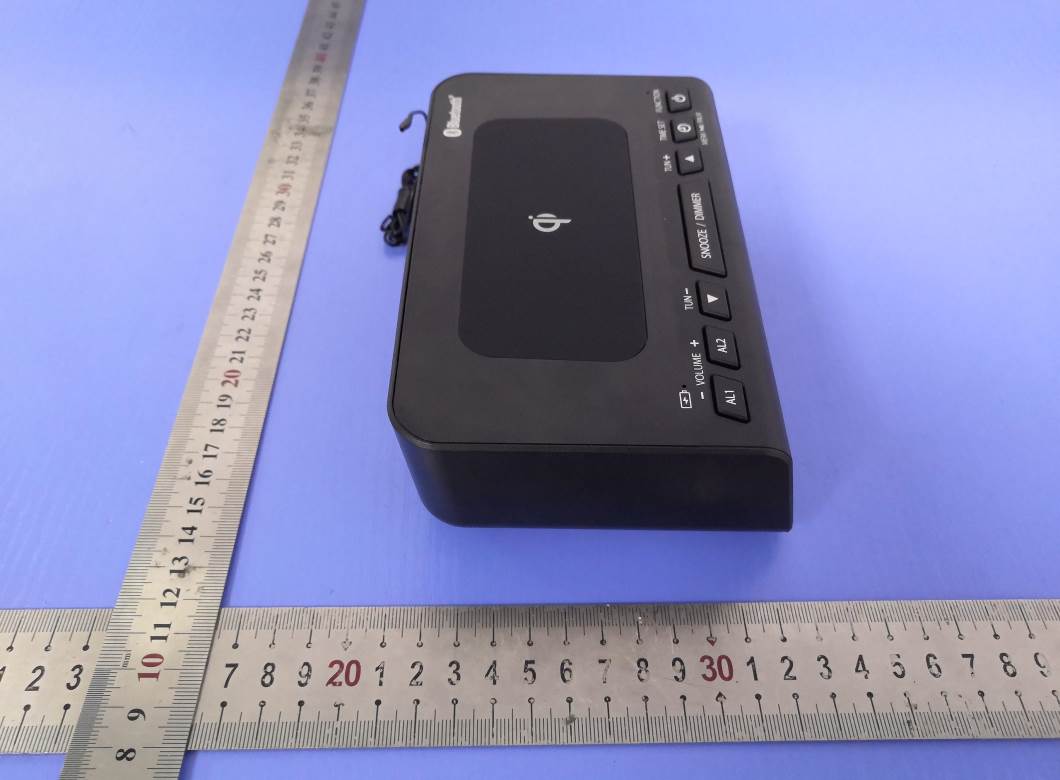

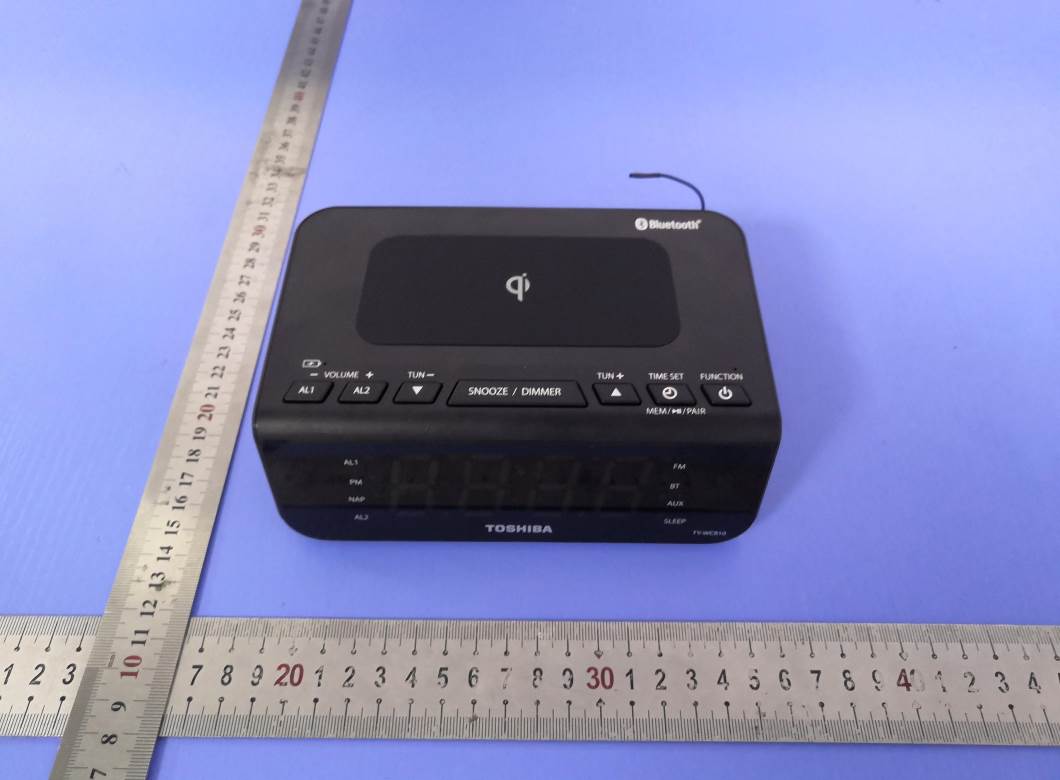

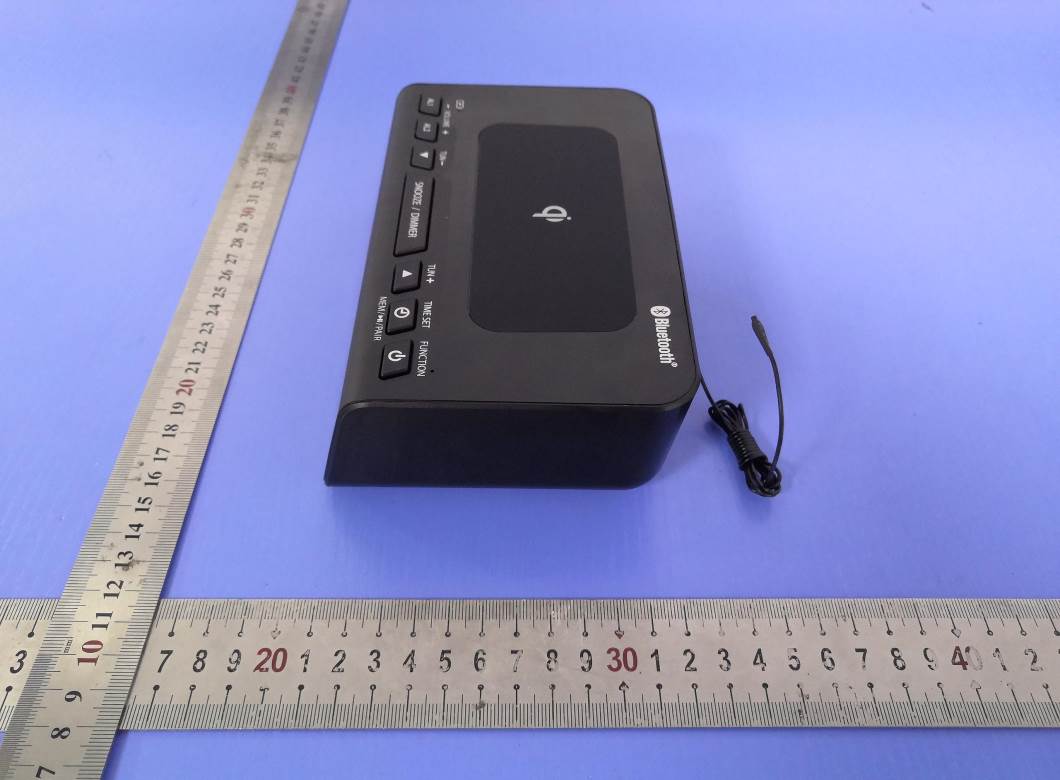

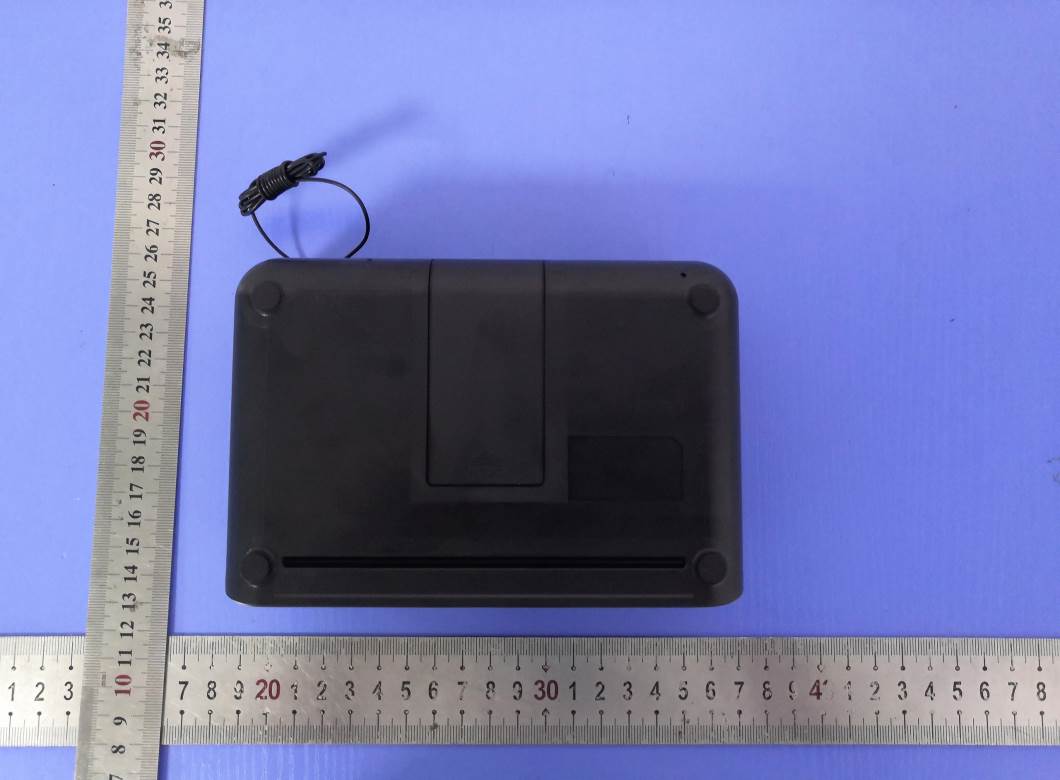

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 IC.: 21033-TYWCR10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 5 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 IC.: 21033-TYWCR10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 5 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 IC.: 21033-TYWCR10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 5 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 IC.: 21033-TYWCR10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 5 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 IC.: 21033-TYWCR10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 5 Fig.9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 2.0cm*W: 1.5cm Label Location Alarm clock Model No.: WS-QI639 FCC ID : 2ANQF-TYWCR10 For adapter Intput: AC 100-240V, 50/60Hz, 0.8A For adapter Output: DC 5V, 3.50A Made In China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 IC.: 21033-TYWCR10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 7 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 IC.: 21033-TYWCR10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 7 Fig.3 Fig.4 Coil Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 IC.: 21033-TYWCR10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 7 Fig.5 Fig.6 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 IC.: 21033-TYWCR10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 7 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 IC.: 21033-TYWCR10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 7 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 IC.: 21033-TYWCR10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 6 of 7 Fig.11 Fig.12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 IC.: 21033-TYWCR10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 7 of 7 Fig.13 Fig.14 AC6925A

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 10 RF Exposure Evaluation Report 1. Product Information FCC ID: 2ANQF‐TYWCR10 Product Name Alarm clock Model Number WS‐QI639, TY‐WCR10 Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power Supply For adapter Intput: AC 100‐240V, 50/60Hz, 0.8A For adapter Output: DC 5V, 3.50A Modulation Type Continuous Wave Frequency Range 110.0~205.0KHz Operation Frequency 128.0 KHz Antenna Type Coil Antenna Hardware version / Software version / Accessories / Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Per KDB 680106 D01 Section 3. RF Exposure Requirements; 1) Consumer wireless power transfer devices approved under Part 18 in some cases have to demonstrate compliance with RF exposure requirements. The potential for exposure must be assessed according to the operating configurations of the wireless system and the exposure conditions of users and bystanders. RF exposure must be evaluated with the client device(s) being charged by the primary at maximum output power. The RF exposure requirements must be determined in conjunction with the device operating characteristics, according to the mobile and portable exposure requirements in Section 2.1091 and Section 2.1093 of the rules. SAR and MPE limits do not cover the frequency range for wireless power transfer applications which operate below 100 kHz and 300 kHz respectively; therefore, RF exposure compliance needs to be determined with respect to 1.1307 (c) and (d) of the FCC rules. 2) Based on the design and implementation of the power transfer application, it must be clearly identified if mobile or portable RF exposure conditions apply. Devices that are installed to provide separation of at least 20 cm from users and bystanders may qualify for mobile exposure conditions. For some conditions where users and bystanders may be exposed at closer than 20 cm, section 2.1091(d) (4) of the rules may apply. 3) For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 10 4) Portable exposure conditions from 100 kHz to 6 GHz are determined with respect to SAR requirements. Existing SAR systems and test procedures are generally intended for measurements above 100 MHz. While numerical modeling can be an alternative, the constraints of substantial computational resources at low frequencies could introduce further limitations. Under these circumstances, including operations below 100 kHz, the Commission may consider a combination of analytical analysis, field strength, radiated and conducted power measurements, in conjunction with some limited numerical modeling to assess compliance. 5) Depending on the operating frequency, existing SAR and MPE measurement procedures may be adapted to evaluate wireless power transfer devices for compliance with respect to mobile or portable exposure conditions. If the grantee or its test lab have any questions regarding RF exposure evaluation they should contact the FCC Laboratory with sufficient system operating configuration details to determine if RF exposure evaluation is necessary and, if required, how to apply specific test procedures. Below 100 MHz, when SAR testing is required and the device is operating at close proximity to persons, information on device design, implementation, operating configurations, exposure conditions of users and bystanders are needed to determine the evaluation and testing requirements. In addition, the influence of nearby objects may also need consideration according to the wireless power transfer system implementation; for example, the effects of placing the device, its coils or radiating elements on or near metallic surfaces 3. Evaluation Limit 3.1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 680106 D01 RF Exposure Wireless Charging Apps v03: RF Exposure Considerations for Low Power Consumer Wireless Power Transfer Applications FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices FCC CFR 47 part 18.107:Indusial, Scientific, and Medical Equipment 3.2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3‐3.0 614 1.63 *100 6 3.0‐30 1842/f 4.89/f *900/f 2 6 30‐300 61.4 0.163 1.0 6 300‐1,500 / / f/300 6 1,500‐100,000 / / 5 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 ___________________________________________________________________________ …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 Report No.: LCS200713033AEC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 24 FCC TEST REPORT For WEI SHENG TECHNOLOGY LTD. Alarm clock Test Model: WS-QI639 Additional Model No.: TY-WCR10 Prepared for : WEI SHENG TECHNOLOGY LTD. Address : Yong Fa Industrlal, NO.1 Tang Long West Road, Tangxia TownDongguan City, Guangdong Province 523710 China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : July 14, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : July 14, 2020 ~ July 22, 2020 Date of Report : August 03, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 Report No.: LCS200713033AEC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 24 FCC TEST REPORT FCC CFR 47 PART 18 Report Reference No. ................ : LCS200713033AEC Date Of Issue ................................. : August 03, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : WEI SHENG TECHNOLOGY LTD. Address .......................................... : Yong Fa Industrlal, NO.1 Tang Long West Road, Tangxia TownDongguan City, Guangdong Province 523710 China Test Specification Standard ......................................... : FCC CFR 47 PART 18 Test Report Form No. .................... : LCSEMC-1.0 TRF Originator................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Alarm clock Trade Mark ..................................... : TOSHIBA Test Model ...................................... : WS-QI639 Power Supply ................................. : For adapter Intput: AC 100-240V, 50/60Hz, 0.6A For adapter Output: DC 5V, 3.5A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Ray Yang / Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 Report No.: LCS200713033AEC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 24 FCC TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200713033AEC August 03, 2020 Date of issue Test Model.............................. : WS-QI639 EUT......................................... : Alarm clock Applicant............................... : WEI SHENG TECHNOLOGY LTD. Address.................................. : Yong Fa Industrlal, NO.1 Tang Long West Road, Tangxia TownDongguan City, Guangdong Province 523710 China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Dong Guan City FUZE Electronic Co., Ltd Address................................... : No. 2, Dongyiheng Rd., Huangshidong Rd., Tangxia,Town Dongguan City, Guangdong Province, China Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 Report No.: LCS200713033AEC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 24 Revision History Revision Issue Date Revisions Revised By 000 August 03, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 Report No.: LCS200713033AEC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 24 TABLE OF CONTENTS 1. GENERAL INFORMATION ......................................................................................................... 6 1.1 Description of Device (EUT) .............................................................................................................. 6 1.2 Support equipment List ....................................................................................................................... 7 1.3 External I/O Cable ............................................................................................................................... 7 1.4 Description of Test Facility ....................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 IC.: 21033-TYWCR10 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Photographs of Test Setup Conducted Emission-AC adapter charge mode Conducted Emission-AC adapter charge mode SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANQF-TYWCR10 IC.: 21033-TYWCR10 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Radiated Emission below 30MHz-AC adapter charge mode Radiated Emission below 1GHz-AC adapter charge mode
