2ANTOEM-A839All-in-One VR

EmdoorVR内部文件 编号：IPD-YJA90002 EmdoorVR User manual Dear Customers Thank you for choosing and using EmdoorVR products. For better usage, please read the manual carefully, and follow the operation steps. If you have any questions, please contact us in reference to the phone number and address listed in the warranty card, we’ll be at your service. EmdoorVR－sincerity always for you! Directory 1、NOTICE： ....................................................................................................................................... 4 2、OPERATION GUIDELINE ........................................................................................................... 4 2.1 FUNCTION KEYS INSTRUCTION ....................................................................错误!未定义书签。 2.2 HOME PAGE ............................................................................................................................ 8 2.3 SETTINGS ................................................................................................................................ 9 2.3.1 Wireless network ........................................................................................................... 9 2.3.2 Bluetooth ..................................................................................................................... 10 2.3.3 General ....................................................................................................................... 10 2.3.4 System ......................................................................................................................... 11 2.4MEDIA PLAYER ......................................................................................................................... 11 2.4.1 Media player palyback ................................................................................................ 11 2.4.2 File management video play ....................................................................................... 12 2.5APPLICATION STORE ................................................................................................................. 13 2.6ALL APPLICATIONS .................................................................................................................... 13 3、CAUTIONS .................................................................................................................................. 14 4、FAQ AND SOLUTIONS ............................................................................................................... 14 5、DECLARATION OF HAZARDOUS SUBSTANCES IN ELECTRONIC INFORMATION PRODUCTS ......................................................................................................................................... 15 第 4 页 共 17 页 1、Notice： A. Please do not use the all-in-one machine where wireless devices are prohibited. B. Please use original accessories applied. (ie.: power adapter) C. Please keep the machine dry D. If you encounter software problems such as machine jam, press and hold the power button for 10 seconds to restart. E. When charging, the yellow light bar on the shell lights up, and when the battery is fully charged, the green light is on; F. For better charging efficiency, please keep the machine in sleep/shutdown mode while charging. G. When the battery status is lower than 5%, please charge up the machine in time. If the battery is used up completely, please better turn the machine on after it has been charged for 10 minutes. H. Use the USB cable to connect the device to your computer, then search for the storage disk for data transfer. I. Insert the TF card into the slot, insert the metal interface face down ,and then the device will identify the TF card. J. Default speaker can work during audio output, Insert 3.5mm standard headphone connector into the target interface for audio output,and the volume can be adjusted adaptively. K. Do not use the device under the sunshine, to prevent screen damaged from lens amplification. Notice Emdoor not responsible for the defective caused by this reason. 2、Operation guideline 2.1 Function keys instruction 第 5 页 共 17 页 1. Battery and host cable 9. Proximity sensor 2. Battery（Non-removable） 10. Horn hole 3. Side belt 11. Volume button 4. Charging and data transmission port 12. Microphone 5. Microphone 13. Memory card slot 6. Menu (N) button 14. Headphone plug 7. OK button 15. Power button 8. Back Button 第 6 页 共 17 页 2.2 Steps for usage： 1. Take out the machine 2. Long press the power button 第 7 页 共 17 页 3. Adjust the tightness of the strap 4.Bend the back ropeupwards ，at the same time put on the machine and adjust the rear support to the proper position. 第 8 页 共 17 页 5.After adjusting to the proper position, alignment of the angle of view to the all-in-one device, and the picture is clearly displayed. 2.2 Home page The home page includes local players, photo albums, games, browsers, online cinema, panoramic OL, panoramic roaming, VR live broadcast, file management,Settings ,and can also check the status of power, time, access device and wireless network. 第 9 页 共 17 页 2.3 Setting Setting options include Wi-Fi, Bluetooth, General, System and account. 2.3.1 Wireless network Scan the available wireless network and enter the corresponding wireless network password to connect .Select the corresponding wireless network can delete the password for connecting and connecting to the network. 第 10 页 共 17 页 2.3.2 Bluetooth When the Bluetooth is turned on, then it will automatically search for devices and come up a list of devices which can be connected. Users can choose to connect as needed. Notice：When the paired devices cannot be connected, cancel it and try again. 2.3.3 General The general settings allow you to adjust the screen brightness, volume level, select language, select a theme, sleep time, and change the time zone. 第 11 页 共 17 页 2.3.4 System With the system option, you can update the system, restore the factory settings, and up…

Text truncated - open the document above for the full version.

EmdoorVR Technology Co.,Ltd Agent Authorization Company: EmdoorVR Technology Co.,Ltd Address: Meigu bld, Wonderful life wisdom Valley technology Park, No.83 Dabao RD., Xin an ST, Baoan dist., Shenzhen, China Product Name: All-in-One VR Trade Mark: Firepack Model Number: EM_A839 FCC ID: 2ANTOEM-A839 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-05-11 Name: Yanchao Wu Title: Product Manager Company: EmdoorVR Technology Co.,Ltd

EmdoorVR Technology Co.,Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-05-11 Subject; Request for Confidentiality FCC ID: 2ANTOEM-A839 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Declaration of Software Security Requirements For U-NII Devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yanchao Wu Title: Product Manager

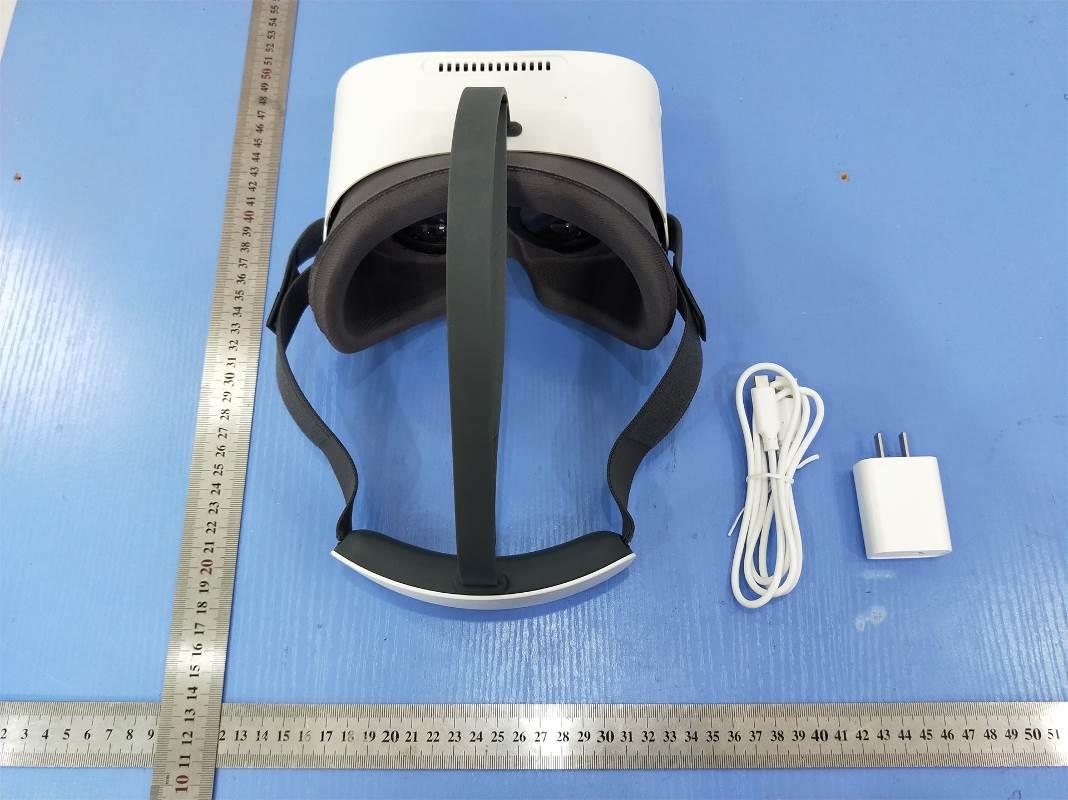

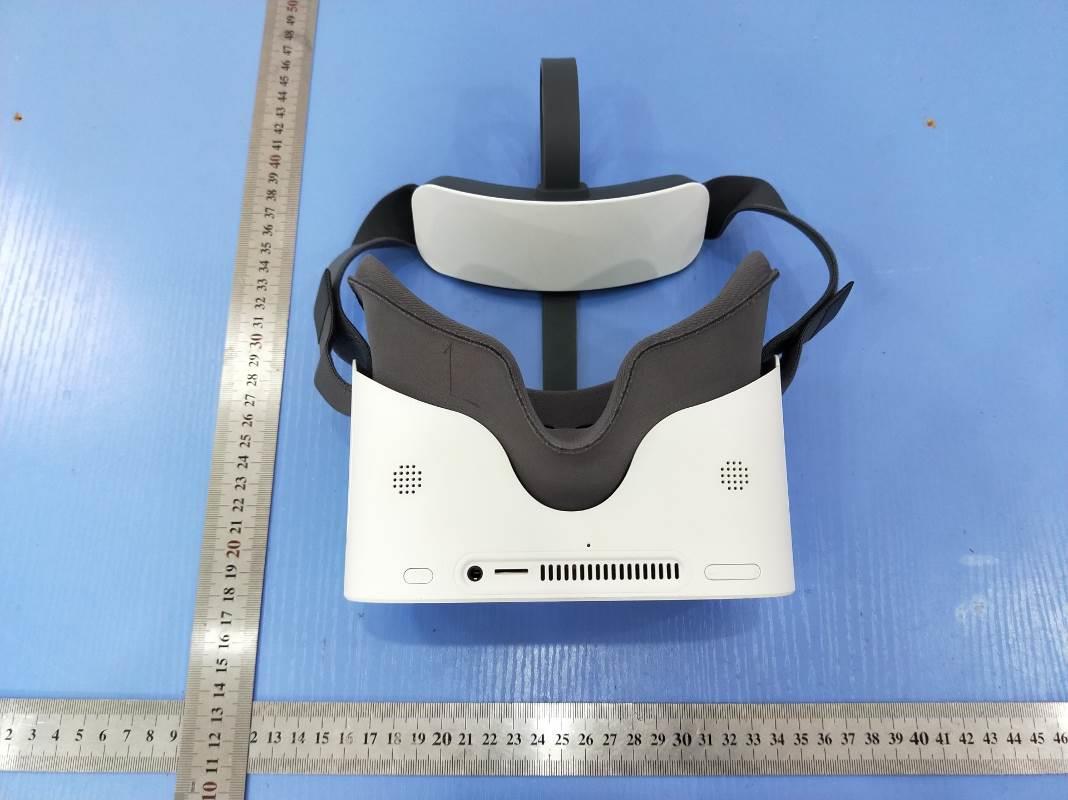

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L4.0cm*W3.0cm Label Location All-in-One VR Model No.: EM_A839 FCC ID: 2ANTOEM-A839 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For 5.2G WIFI indoor used only

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 11 FCC RF Exposure Evaluation 1. Product Information FCC ID 2ANTOEM-A839 Product name All-in-One VR Model number EM_A839 Power supply DC 3.8V by Li-ion Battery(2100mAh) Adapter Input: AC 100-240V, 50/60Hz, 0.5A Adapter Output: DC 5V/3A, 9V/2A, 12V/1.5A Modulation Type GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V4.0 (DSS) GFSK for Bluetooth V4.0 (DTS) IEEE 802.11b: DSSS (CCK,DQPSK,DBPSK); IEEE 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11a/n/ac: OFDM (64QAM, 16QAM, QPSK, BPSK) Channel Number 79 channels for Bluetooth V4.0 (DSS) 40 channels for Bluetooth V4.0 (DTS) 11 channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 40MHz bandwidth(2422~2452MHz) 4 Channels for 20MHz bandwidth(5180-5240MHz) 4 Channels for 20MHz bandwidth(5260-5320MHz) 11 Channels for 20MHz bandwidth(5500-5700MHz) 5 channels for 20MHz bandwidth(5745-5825MHz) 2 channels for 40MHz bandwidth(5190~5230MHz) 2 channels for 40MHz bandwidth(5270~5310MHz) 5 Channels for 40MHz bandwidth(5510-5670MHz) 2 channels for 40MHz bandwidth(5755~5795MHz) 1 Channels for 80MHz bandwidth(5210MHz) 1 channels for 80MHz bandwidth(5290MHz) 2 Channels for 80MHz bandwidth(5530-5610MHz) 1 channels for 80MHz bandwidth(5775MHz) Antenna Description Interal Antenna(ANT 0), used for WIFI TX/RX, 2.0dBi(Max.) for 2.4G Band, 1.9dBi(Max.) for 5G Band; Internal Antenna(ANT 1), used for WIFI/Bluetooth TX/RX, 2.0dBi(Max.) for 2.4G Band, 1.9dBi(Max.) for 5G Band Hardware version EM_A839_MB_V1.1 Software version VR1103/20191025105352 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 11 2. Evaluation Method and Limit According to KDB447498 D01 General RF Exposure Guidance v06Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedure…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 1 of 47 Appendix A RF Test Data for BT V4.0(BDR/EDR) (Conducted Measurement) Product Name: All-in-One VR Trade Mark: Firepack Test Model: EM_A839 Environmental Conditions Temperature: 25.1  C Relative Humidity: 53.6% ATM Pressure: 100.0 kPa Test Engineer: Alisa Huang Supervised by: Wang Chuang A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 0.219 21 PASS MCH -1.934 21 PASS HCH -0.930 21 PASS π/4DQPSK LCH -0.831 21 PASS MCH -2.738 21 PASS HCH -1.672 21 PASS 8DPSK LCH -0.671 21 PASS MCH -2.320 21 PASS HCH -1.217 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 1.028 Not Specified PASS MCH 1.026 Not Specified PASS HCH 1.032 Not Specified PASS π/4DQPSK LCH 1.290 Not Specified PASS MCH 1.294 Not Specified PASS HCH 1.290 Not Specified PASS 8DPSK LCH 1.294 Not Specified PASS MCH 1.297 Not Specified PASS HCH 1.296 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.950 0.685 PASS MCH 1.088 0.684 PASS HCH 0.864 0.688 PASS π/4DQPSK LCH 0.976 0.860 PASS MCH 0.924 0.863 PASS HCH 1.122 0.860 PASS 8DPSK LCH 1.116 0.863 PASS MCH 1.176 0.865 PASS HCH 1.268 0.864 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.307 0.4 PASS 2DH5 MCH 2.88 106.7 0.307 0.4 PASS 2DH5 HCH 2.88 106.7 0.307 0.4 PASS 8DPSK 3DH5 LCH 2.88 106.7 0.307 0.4 PASS 3DH5 MCH 2.88 106.7 0.307 0.4 PASS 3DH5 HCH 2.88 106.7 0.307 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -0.322 -38.214 -20.322 PASS MCH -2.166 -37.551 -22.166 PASS HCH -0.954 -37.628 -20.954 PASS π/4DQPSK LCH -2.403 -38.023 -22.403 PASS MCH -3.631 -37.810 -23.631 PASS HCH -2.68 -36.766 -22.680 PASS 8DPSK LCH -1.833 -37.755 -21.833 PASS MCH -3.616 -36.650 -23.616 PASS HCH -2.307 -37.484 -22.307 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPL…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 37 FCC TEST REPORT For EmdoorVR Technology Co.,Ltd All-in-One VR Test Model: EM_A839 Prepared for : EmdoorVR Technology Co.,Ltd Address : Meigu bld, Wonderful life wisdom Valley technology Park, No.83 Dabao RD., Xin an ST, Baoan dist., Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : November 28, 2019 Number of tested samples : 1 Serial number : Prototype Date of Test : November 28, 2019 ~ January 17, 2020 Date of Report : January 20, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 37 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS191023060AEA Date of Issue .................................. : January 20, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : EmdoorVR Technology Co.,Ltd Address .......................................... : Meigu bld, Wonderful life wisdom Valley technology Park, No.83 Dabao RD., Xin an ST, Baoan dist., Shenzhen, China Test Specification Standard ......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No.................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : All-in-One VR Trade Mark ..................................... : Firepack Test Model ...................................... : EM_A839 Ratings ........................................... : DC 3.8V by Li-ion Battery(2100mAh) Adapter Input: AC 100-240V, 50/60Hz, 0.5A Adapter Output: DC 5V/3A, 9V/2A, 12V/1.5A Result ............................................ : Positive Compiled by: Compiled by: Approved by: Jin Wang / Administrators Linda He / Administrators Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 37 FCC -- TEST REPORT Test Model............................... : EM_A839 EUT......................................... : All-in-One VR Applicant............................... : EmdoorVR Technology Co.,Ltd Address.................................. : Meigu bld, Wonderful life wisdom Valley technology Park, No.83 Dabao RD., Xin an ST, Baoan dist., Shenzhen, China Telephone............................... : Fax.......................................... : Manufacturer........................ : EmdoorVR Technology Co.,Ltd Address................................... : Meigu bld, Wonderful life wisdom Valley technology Park, No.83 Dabao RD., Xin an ST, Baoan dist., Shenzhen, China Telephone............................... : Fax.......................................... : Factory................................... : Visionsky (SZ) Industrial Co., Ltd Shiyan Branch Address................................... : Floor 4,1 Bldg A, No.34 Shilong Ave, Shuitian District, Shiyan St, Baoan district, Shenzhen, China Telephone............................... : Fax.......................................... : Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS191023060AEA January 20, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 37 Revision History Revision Issue Date Revisions Revised By 000 January 20, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 Report No.: LCS191023060AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 37 TABLE OF CONTENTS Description .............................................................................................................................. Page 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ..............................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 _______________________________________________________________________________________________ TEST SETUP Photographs Radiated Emissions Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ANTOEM-A839 _______________________________________________________________________________________________ Conducted Emissions Fig. 3 DFS Fig. 3
