2ANVW-MA1020Bluetooth Earphones

www.muveacoustics.com Thank you for trusting MUVEACOUSTICS with delivering you excellence in sound. We encourage you to connect with us and become a part of our community! SCAN THE QR CODE YOU WILL FIND INSIDE. SHARE WITH US YOUR PRODUCT EXPERIENCE. Imported and distributed by Zeeva Electronics Private Limited. All rights reserved 901-902, Trade World C wing Kamla Mill Compound, Senapati Bapat Marg, Lower Parel West, Mumbai-400013 20200306 CUSTOMER SERVICE For any service or technical queries, please contact our service team on the below email. Email: [email protected] Keep all relevant information for future reference REMOVE THE EAR CUSHION TO REPLACE WITH THE ONE THAT FITS BETTER YOUR EARS. HOW TO CHARGE YOUR EDGE 2PROEAR CUSHIONS REMOVAL JOIN THE COMMUNITY SIGN UP to receive ∙ Special Offers! ∙ Access to Events! ∙ Contests! ∙ News on new products launched www.muveacoustics.com/community User Manual and Warranty MA-1020 INCLUDES: EDGE 2PRO Wireless In-Ear Earphones Micro USB Charging Cable An Universal Size Ear Hooks Extra Ear Cushions User Manual & Warranty PRODUCT SPECIFICATIONS Bluetooth 5.0 Bluetooth profiles HFPHSPA2DPAVRCP Connectivity class Bluetooth Class 2 (10 meter) High performance driver 2 x 10mm Frequency response 20 Hz - 20 kHz Sensitivity 95+/- 3 dB Impedance 32 Ohm Signal to noise ratio ≥57 dB Battery type Lithium-ion polymer battery Battery capacity 60 mAh Play time up to 7 hours (varies by volume level and audio content) Recharge Time about 1.5 hours Charging method Micro USB charging Dimensions 580 x 25 x 25mm OPERATIONAL GUIDANCE FunctionButtonAudio LED Turn on & the paring mode Press and hold the On/Off button for 3 seconds Power OnBlue light goes on for 1 second OPERATIONAL GUIDANCE FunctionButtonAudio LED OPERATIONAL GUIDANCE FunctionButtonAudio LED Play / pause Listening music Increase volume Decrease volume Press the On/Off button once N/A Press "+" button repeatedly Press "-" button repeatedly N/A N/A with maximum volume alert N/A N/A Blue light flashing once every 5 seconds with maximum volume alert N/A OPERATIONAL GUIDANCE FunctionButtonAudio LED OPERATIONAL GUIDANCE Phone call in progress Redialling (last call) Incoming call Refuse incoming call End a call N/A Press the On/Off button twice Press the On/Off button once Press and hold the On/Off button for 2 seconds Press the On/Off button once N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A Previous song Next song Battery level is low Battery charging mode Press and hold the "-" button for 1 second Press and hold the "+" button for 1 second N/A N/A N/A N/A Battery Low N/A N/A N/A Red light flashing once every 5 seconds Red light goes on constantly Battery has been fully charged N/AN/ABlue light goes on constantly Bluetooth Connection Devices with Bluetooth 5.0 wireless technology or above, such as Bluetooth wireless technology equipped computers, smartphones, tablets and MP3 players. To use Bluetooth for your audio connection pair EDGE 2PRO with your audio source (music player, smartphone, laptop, or other Bluetooth equipped device that can act as a source of music). First turn on your Bluetooth connection on your device, then press and hold the On/Off button for 3 seconds until you hear “pairing”. The EDGE 2PRO is in pairing mode. The blue and red Sync LED will blink. Make sure Bluetooth is enabled on your audio source and in a few moments ‘MUVEACOUSTICS:EDGE 2PRO’ will appear on your list of possible Bluetooth connections. Press ‘pair’ or ‘connect’ on your device and when the connection is made you will hear “your device is connected”. You are paired. From now on, when you turn on EDGE 2PRO, it will automatically search for the last Bluetooth device it was paired with. for any wrong operation (eg. Voltage higher than 5V) as this may result in severe injury or loss of property, and we cannot control the operating process during the time the user using this product. In extreme cases, abuse or misuse of Lithium battery pack can lead to explosion, heat generation, fire development or smoke development. This product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Unsuitable for children under three years because it might, for instance, contain small parts. To prevent possible hearing damage, do not listen at high volume levels for long periods. The input voltage to the product is 5V 1A. In order to charge the product in safe manner and reliable conditions, please only adopt certified appropriate charger / adapter for charging the product. Only charge the product at ambient tempera- tures between 10 deg °C / 50 deg °F and 40 deg °C / 104 deg °F. Do not heat above 70 deg °C / 158 deg °F, eg. Do not expose to sunlight or throw into fire. Switch off the product after use. Please note that we won’t take any responsibility Reorient or relocate the receiving antenna. Increase the separation between the equipment and r eceiver. Connect the equipment into an outlet on a circuit - - - - different from that to which the receiver is connected. Consult the dealer or an experienced radio / TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. in portable exposure condition without restriction. FCC Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer…

Text truncated - open the document above for the full version.

Difference description FCC ID: 2ANVW-MA1020 Model: MA-1020, MA-1020SB, MA-1020FB, MA-1020SW, MA-1020SG, MA-1020RL Bluetooth Earphones manufactured by SHENZHEN LISAIER TRONICS CO.,LTD. needs to apply for FCC certification. The applied models are as list above. They are the same except for the model name, even the principle of the circuit, the electrical structure and all key components related to safety and electromagnetic compatibility are the same. The difference does not affect the EMC or RF for FCC related rule parts. Company: Name: Johnson Lam Company: Zeeva Electronics Private Limited Address: Unit 901-902, 9th Fl, Trade World ‘C’ Wing, Kamala city, Senapati Bapat Marg, Lower Parel (West), Mumbai 400-013, India Phone: +852-2586 0511 Fax: +852-2524 1986 E-Mail: [email protected]

Zeeva Electronics Private Limited Unit 901-902, 9th Fl, Trade World ‘C’ Wing, Kamala city, Senapati Bapat Marg, Lower Parel (West), Mumbai 400-013, India Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/21/2020 To whom it may concern: We, Zeeva Electronics Private Limited, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ANVW-MA1020 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Johnson Lam CEO Zeeva Electronics Private Limited

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 7/21/2020 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ANVW-MA1020 MA-1020, MA-1020SB, MA-1020FB, MA-1020SW, MA-1020SG, MA-1020RL For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Signature Johnson Lam CEO Zeeva Electronics Private Limited

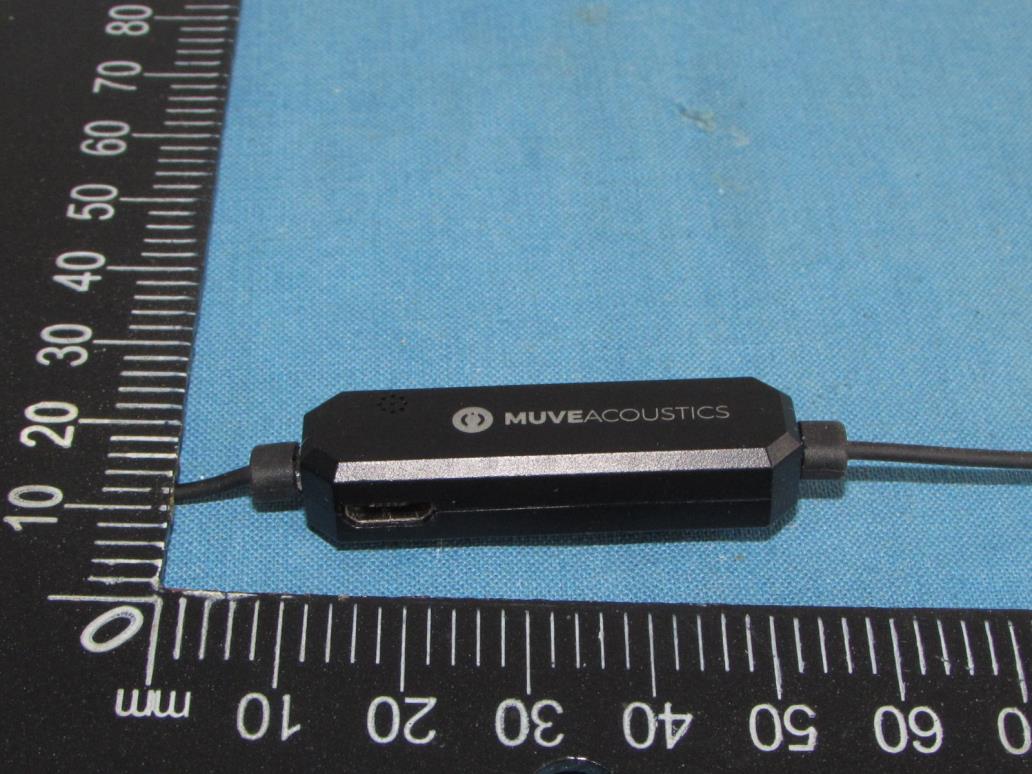

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Fig.3 Fig.4

Label & Label Location Size: 3mm(L)*3mm(W) FCC ID: 2ANVW-MA1020

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 RADIO FREQUENCY EXPOSURE Limit According to section 4.3.1 of KDB 447498 D01 General RF Exposure Guidance v06, SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Appendix A. Appendix A SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Note: Manufacturer declared that the maximum antenna gain is -3.0dBi (Max.). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK 00 2402 -3.31 39 2441 -3.25 78 2480 -3.52 π/4-DQPSK 00 2402 -2.51 39 2441 -2.35 78 2480 -2.90 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -3.5 -3.5 -4.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -3.0 -2.5 -3.0 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK 2402 -2.5 -5.5 0.28 10 2441 -2.5 -5.5 0.28 10 2480 -3.0 -6.0 0.25 10 π/4-DQPSK 2402 -2.0 -5.0 0.32 10 2441 -1.5 -4.5 0.35 10 2480 -2.0 -5.0 0.32 10 The antenna gain of the EUT for BT is -3.0dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to section 4.3.1 of KDB 447498 D01. So, the SAR evaluation is not required.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 1 of 34 Appendix A RF Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: Bluetooth Earphones Trade Mark: MUVEACOUSTICS Test Model: MA-1020 FCC ID: 2ANVW-MA1020 Environmental Conditions Temperature: 22.8 C Relative Humidity: 56% ATM Pressure: 100.0 kPa Test Engineer: Nancy Li Supervised by: Hugo Chen A.1 20 dB Bandwidth TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.936 2401.544 2402.480 --- PASS 2441 0.939 2440.541 2441.480 --- PASS 2480 0.789 2479.607 2480.396 --- PASS 2DH5 Ant1 2402 1.254 2401.376 2402.630 --- PASS 2441 1.284 2440.370 2441.654 --- PASS 2480 1.254 2479.373 2480.627 --- PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 2 of 34 Test Graph DH5_Ant1_2402 DH5_Ant1_2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 3 of 34 DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 4 of 34 2DH5_Ant1_2441 2DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 5 of 34 A.2 Dwell Time TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.92 110 0.322 <=0.4 PASS 2DH5 Ant1 Hop 2.92 100 0.292 <=0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 6 of 34 Test Graph DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 7 of 34 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 8 of 34 A.3 Carrier Frequency Separation TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.020 >=0.939 PASS 2DH5 Ant1 Hop 0.998 >=0.856 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 9 of 34 Test Graph DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 10 of 34 A.4 Hopping Channel Number TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 >=15 PASS 2DH5 Ant1 Hop 79 >=15 PASS 3DH5 Ant1 Hop 79 >=15 PASS Test Graph DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 11 of 34 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 12 of 34 A.5 Conducted Peak Output Power TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict Antenna Gain(dBi) EIRP (dBm) DH5 Ant1 2402 -3.31 <=20.97 PASS -3.0 -6.31 2441 -3.25 <=20.97 PASS -3.0 -6.25 2480 -3.52 <=20.97 PASS -3.0 -6.52 2DH5 Ant1 2402 -2.51 <=20.97 PASS -3.0 -5.51 2441 -2.35 <=20.97 PASS -3.0 -5.35 2480 -2.90 <=20.97 PASS -3.0 -5.90 Test Graph DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 13 of 34 DH5_Ant1_2441 DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 14 of 34 2DH5_Ant1_2402 2DH5_Ant1_2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 15 of 34 2DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 16 of 34 A.6 Band-edge for RF Conducted Emissions TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -4.04 -37.54 <=-24.04 PASS High 2480 -4.13 -43.77 <=-24.12 PASS Low Hop_2402 -4.30 -48.72 -24.3 PASS High Hop_2480 -2.57 -46.05 -22.57 PASS 2DH5 Ant1 Low 2402 -3.81 -39.75 <=-23.81 PASS High 2480 -4.11 -44.53 <=-24.11 PASS Low Hop_2402 -4.39 -48 -24.4 PASS High Hop_2480 -4.02 -47.86 -24.02 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 17 of 34 Test Graph DH5_Ant1_Low_2402 DH5_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 18 of 34 DH5_Ant1_Low_Hop_2402 DH5_Ant1_High_Hop_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 19 of 34 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 20 of 34 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 21 of 34 A.7 RF Conducted Spurious Emissions Test Graph DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 22 of 34 DH5_Ant1_2402_1000~26500 DH5_Ant1_2441_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 23 of 34 DH5_Ant1_2441_30~1000 DH5_Ant1_2441_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 24 of 34 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 25 of 34 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 26 of 34 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 27 of 34 2DH5_Ant1_2441_0~Reference 2DH5_Ant1_2441_30~1000 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 28 of 34 2DH5_Ant1_2441_1000~26500 2DH5_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 29 of 34 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 30 of 34 A.8 Restrict-band band-edge measurements TestMode Antenna ChName Channel Detector Freq Result Limit Verdict DH5 Ant1 Low 2402 AV 2310.000 -47.72 <=-41.20 PASS AV 2390.000 -46.17 <=-41.20 PASS Peak 2310.000 -40.89 <=-21.20 PASS Peak 2390.000 -39.89 <=-2…

Text truncated - open the document above for the full version.

Report No.: TZ200701463-E Page 1 of 39 Prepared for : Zeeva Electronics Private Limited Unit 901-902, 9th Fl, Trade World ‘C’ Wing, Kamala city, Senapati Bapat Marg, Lower Parel (West), Mumbai 400-013, India Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2020/7/3 - 2020/7/13 Date of Report: 2020/7/14 Report Number: TZ200701463-E The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. FCC TEST REPORT Test report On Behalf of Zeeva Electronics Private Limited For Bluetooth Earphones Model No: MA-1020, MA-1020SB, MA-1020FB, MA-1020SW, MA-1020SG, MA-1020RL FCC ID: 2ANVW-MA1020 Report No.: TZ200701463-E Page 2 of 39 TEST RESULT CERTIFICATION Applicant’s name ................. : Zeeva Electronics Private Limited Address .................................. : Unit 901-902, 9th Fl, Trade World ‘C’ Wing, Kamala city, Senapati Bapat Marg, Lower Parel (West), Mumbai 400-013, India Manufacture's Name ............ : SHENZHEN LISAIER TRONICS CO.,LTD. Address .................................. : NO.22, XIHU INDUSTRIAL PARK, XIKENG, HENGGANG TOWN, LONGGANG DISTRICT, SHENZHEN, CHINA Product description Trade Mark ............................. : MUVEACOUSTICS Product name ........................... : Bluetooth Earphones Model No ................................ : MA-1020, MA-1020SB, MA-1020FB, MA-1020SW, MA-1020SG, MA-1020RL Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................. ........... : Date (s) of performance of tests ........... : 2020/7/3 - 2020/7/13 Date of Issue ......................................... : 2020/7/14 Test Result ............................................ : PASS Testing Engineer : (Nancy Li) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ200701463-E Page 3 of 39 Revision History Revision Issue Date Revisions Revised By 00 2020/7/14 Initial Issue Andy Zhang Report No.: TZ200701463-E Page 4 of 39 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ................................................................................................................ 5 1.1. Description of Device (EUT) ................................................................................................................... 5 1.2 Support equipment List ................................................................................................................................ 5 1.3 EUT configuration ......................................................................................................................................... 5 1.4 External I/O Cable ........................................................................................................................................ 5 1.5 Description of Test Facility .......................................................................................................................... 6 1.6 Statement of the Measurement Uncertainty ............................................................................................. 7 1.7 Measurement Uncertainty ........................................................................................................................... 7 1.8 Description of Test Modes .......................................................................................................................... 7 2. TEST METHODOLOGY ...................................................................................................................... 8 2.1 EUT Configuration ........................................................................................................................................ 8 2.2 EUT Exercise ................................................................................................................................................ 8 2.3 General Test Procedures ............................................................................................................................ 8 2.4. Test Sample ................................................................................................................................................. 8 3. SYSTEM TEST CONFIGURATION .................................................................................................. 9 3.1 Justification .................................................................................................................................................... 9 3.2 EUT Exercise Software ............................................................................................................................... 9 3.3 Special Accessories ..................................................................................................................................... 9 3.4 Block Diagram/Schematics ......................................................................................................................... 9 3.5 Equipment Modifications ............................................................................................................................. 9 3.6 Test Setup ..................................................................................................................................................... 9 4. SUMMARY OF TEST RESULTS ......................................…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 TEST SETUP PHOTOS OF THE EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ANVW-MA1020 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Conducted Emission
